512 Channels twsl LiFePO4 Nca Ncm NiMH NiCd Lithium-Ion 18650 21700 32650 32140 Battery Cycle Charge Discharge Capacity Analyze Tester
BFGS-8 512 Channels Points 5V5A/3A 18650 Lithium Ion Batteries,21700 Rechargeable Batteries discharge capacity tester
Product Description
1. Cylindrical Cell Battery Capacity Analyzer mainly constitute by the computer system and control software, communication interface and battery detecting cabinet. Battery detecting cabinet comprises a fixture and placed the plate body of the fixture, charging, constant current and constant voltage source discharge constant current source, storage control circuit, current sampling circuit, voltage sampling circuit, the main control CPU, data memory, microcontroller programming and control panel.
2. Each battery test station has independent constant current and constant voltage power.
3. Using a unique constant current constant voltage power, constant current to constant voltage switch without impact, especially suitable for lithium ion battery charging and discharging requirements.
4. Per device consists of a set of completely independent MCU control system.
5. Specially used for chemical and capacity separation of cylindrical lopo battery.
Customizable current range: 0-1 mA, 0-10 mA, 0-300 mA, 0-2 A, 0-3 A, 0-5 A, 0-20 A, 0-30 A, etc.
Customizable voltage range: 0-5 V, 0-10 V, 0-20 V, 0-30 V, 0-50 V, 0-60 V, 0-150 V, 0-300 V, 0-500 V, etc.

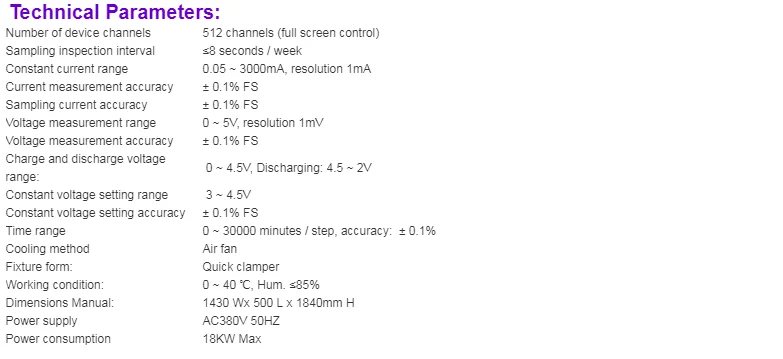

SPECIFICATIONS:
5V2A3A4A5A High Pricision Cylindrical Cell Battery Capacity Analyzer
BFGS-8512 Channels & Points LiPo Battery 32650 Cells 18650 Capacity Tester 5V 2A/3A/5A
Images:

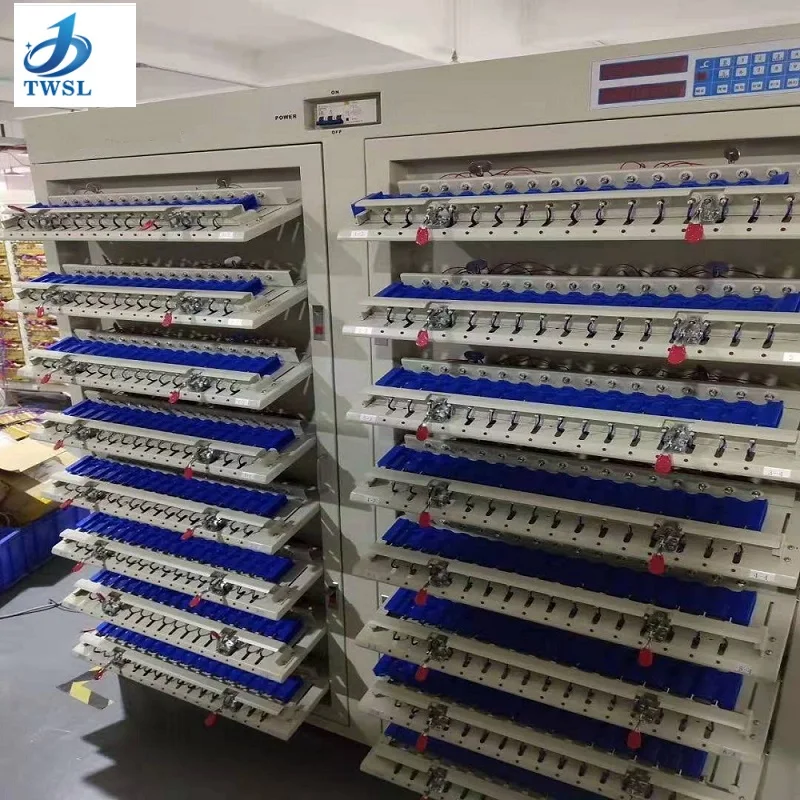

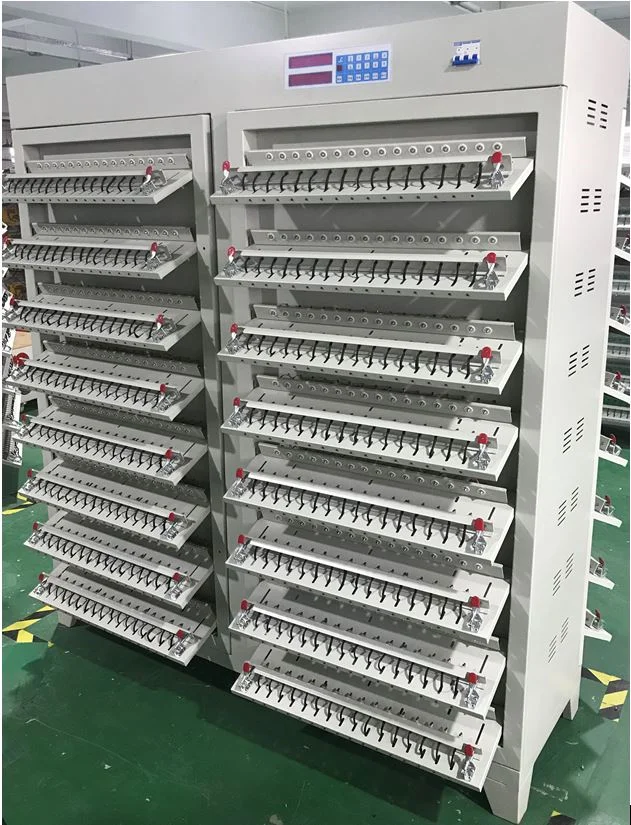

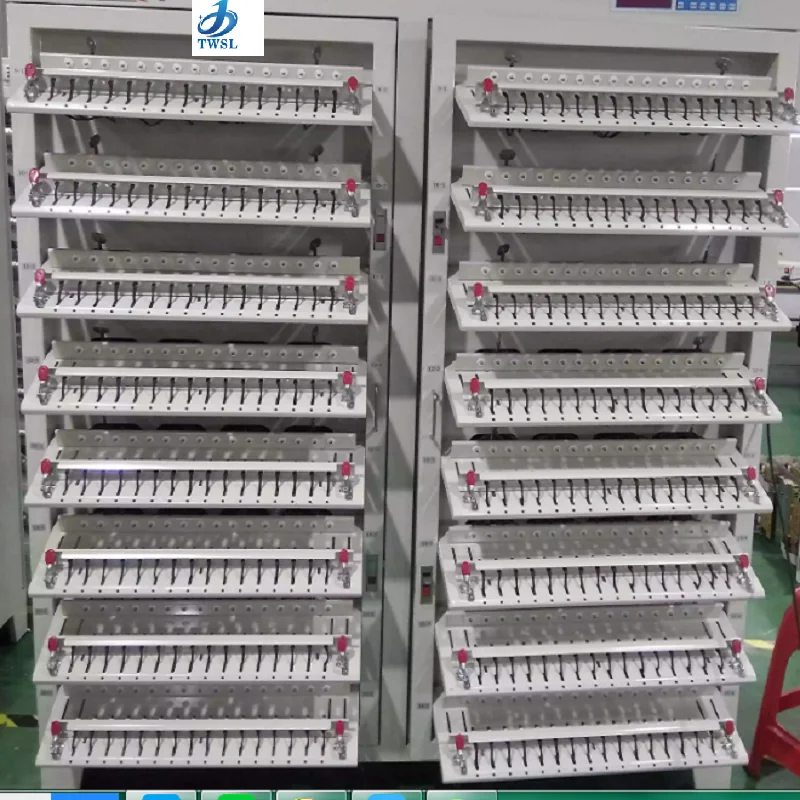

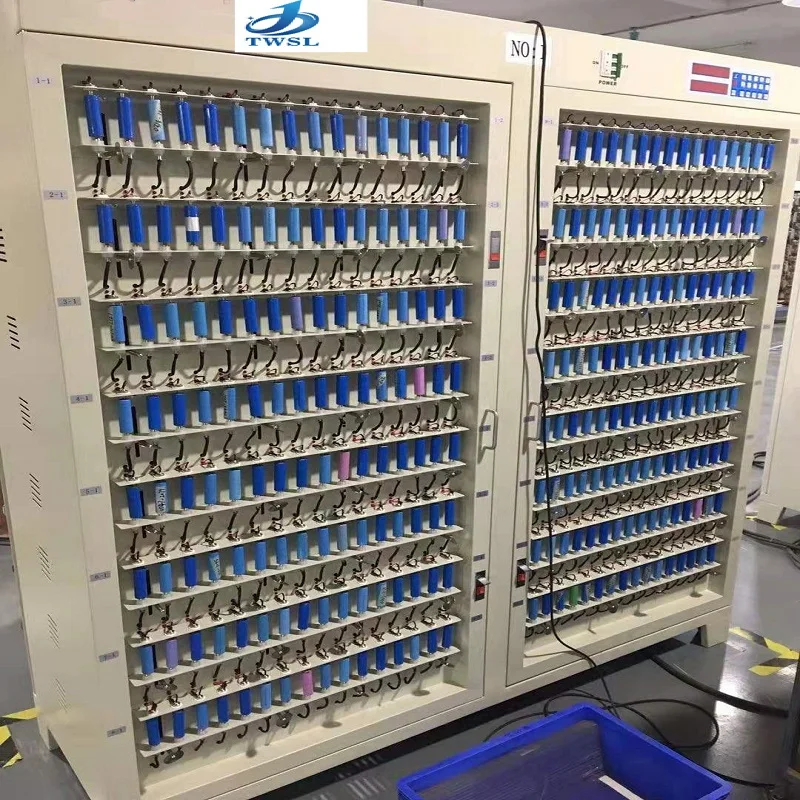

18650 battery cell charge and discharge testing machine lithium battery capacity tester
The cylindrical battery capacity analyzer is mainly composed of computer system and control software, communication interface and battery detection cabinet.
The battery detection cabinet is composed of a fixture and a plate body for placing the fixture, a charging constant current source and a constant voltage source,
discharge constant current source, a storage control circuit, a current sampling circuit, a voltage sampling circuit, a main control CPU,
a data memory, a single-chip microcomputer programming and a control panel.
Each battery test station has an independent constant current and constant voltage power supply.
3.Using a unique constant current constant voltage power supply, constant current has no impact on constant voltage switch,
especially suitable for lithium ion battery charge and discharge requirements.
Each device consists of a completely independent MCU control system.
5.Specially for chemical and capacity separation of cylindrical flow batteries.
Customizable current range : 0 ~ 1 mA, 0 ~ 10 mA, 0 ~ 300 mA, 0 ~ 2 A, 0 ~ 3 A, 0 ~ 5 A, 0 ~ 20 A, 0 ~ 30 A, etc.
Customizable voltage range : 0 ~ 5 V, 0 ~ 10 V, 0 ~ 20 V, 0 ~ 30 V, 0 ~ 50 V
Our Factory
Exhibition Show:
Our Service
Pre-sales
1) Inquiry and consulting support. All will be replied in 12 hours.
2) View our Factory and testing the machine, demonstrate how the machine work.
After-Sales
1) Training how to install the machine, training how to use the machine.
2) Engineers available to service machinery overseas
3) 1-year guarantee ( free maintain in a year)
4) Replacement parts and other accessories provided
Wooden Box Export Package:
