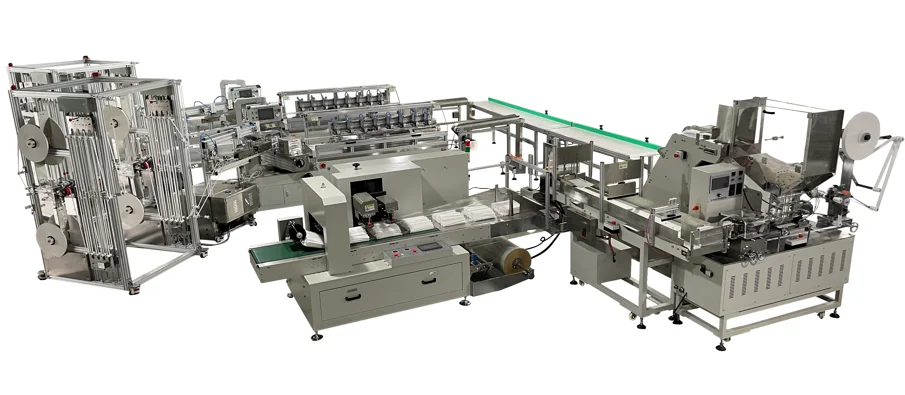

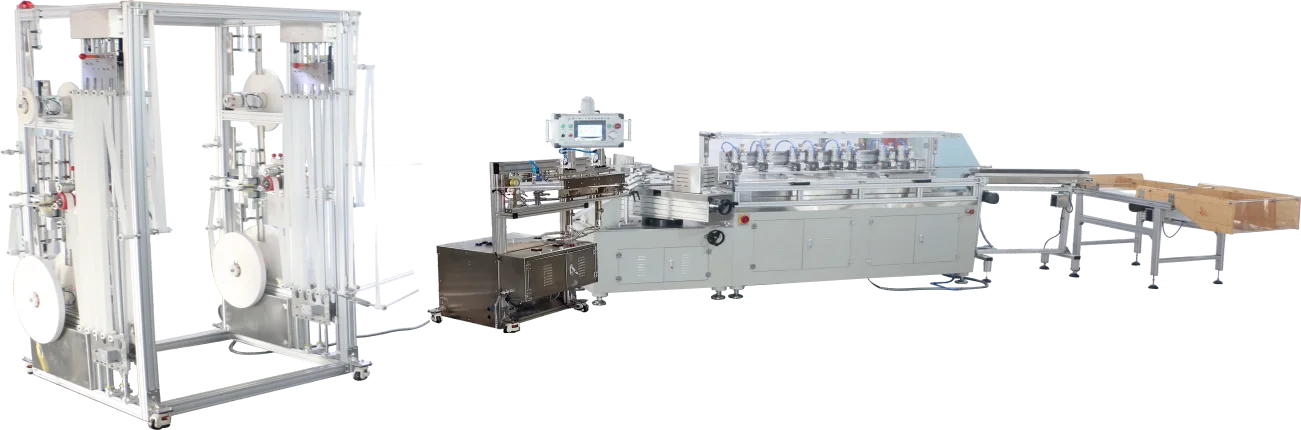

High Speed Paper Straw Production Line Drinking Straw Machine with straw packing machine
- Category: Straw Making Machines >>>
- Supplier: Wenzhou Anbo Machinery Co. Ltd.
Share on (1600909003769):
Product Overview
Description
Paper Straw Makimng Machine
Product Description

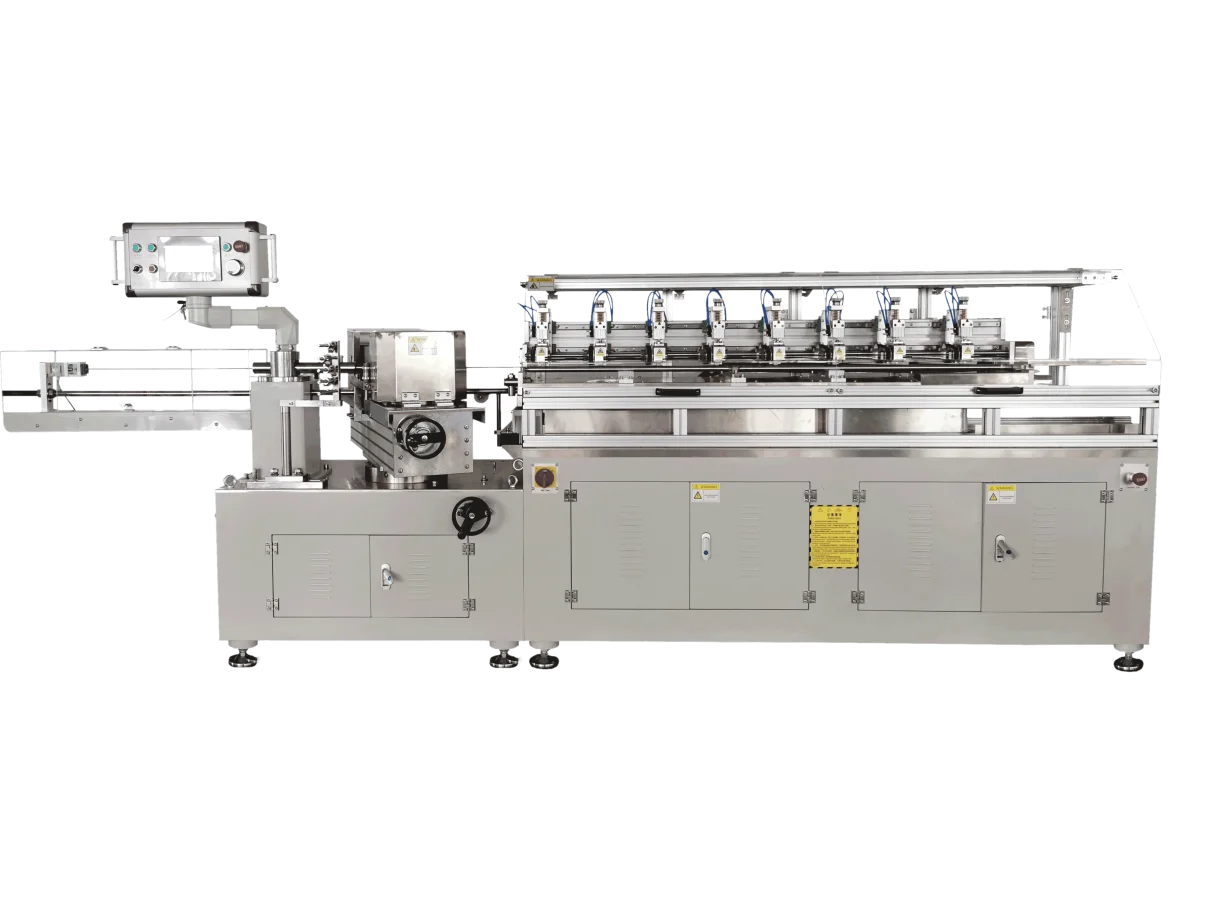

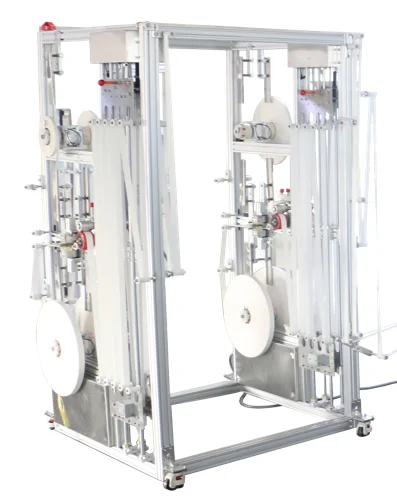

AB-20 no glue:
Working Principle and short instruction:
Winding/spiraling different layers paper strip into paper tube with no glue heating device.
Multi-cutting knife system, by servo tracking, cut paper tube into small piece of paper drinking straws.
1) Material: food grade white craft paper and No glue heating device;
Sub-raw material: may need oil for lubrication and cooling. White mineral oil.
Standard electric power: 380V/ 3phase/ 50Hz, could change by special requirement, like 60Hz or 220V/ 3 phase.
Electric consumption: Rated power, 6.15KW/h
FLA( Full load amp): 13.5A
Capacity:
How many pieces straw per minute. For example: 60m/min, making 6*197mm straws. Consider some waste, we use 200mm for calculating.
60*1000/200=300 pcs/minute.
Unit Name | Description and advantages |
Winding&control mechanism Multi-knife cutting system | Carbon steel; 5 sets servo motor; Dust & protect cover; Language: Chinese, English, Spanish, Polish, Vietnamese, Portuguese and so on; High and low voltage electric equipment separated isolation; Laser cutting and heat treatment to avoid micro shaking; Longer service life; Famous brand electric equipment: Schneider High speed and stable working; Safety labels for protecting method; |
Power supply | 220V 50-60HZ |
Max. film width | 850mm |
Packing Speed(Adjustable) | 3-10 bag/min |
Film thickness | 0.03-0.06mm |
Bag Length | 90–600mm |
Bag Width | 80–250mm |
Straw quantity | 50-500pcs |
Power Supply | 220V , 50/60 Hz , 4 KW, 1 Phase |
Machine Size (L x W x H) | 3100 × 1500 x 1550 mm 2000 x 800 x 1200mm |
Machine Weight | 750 Kg |

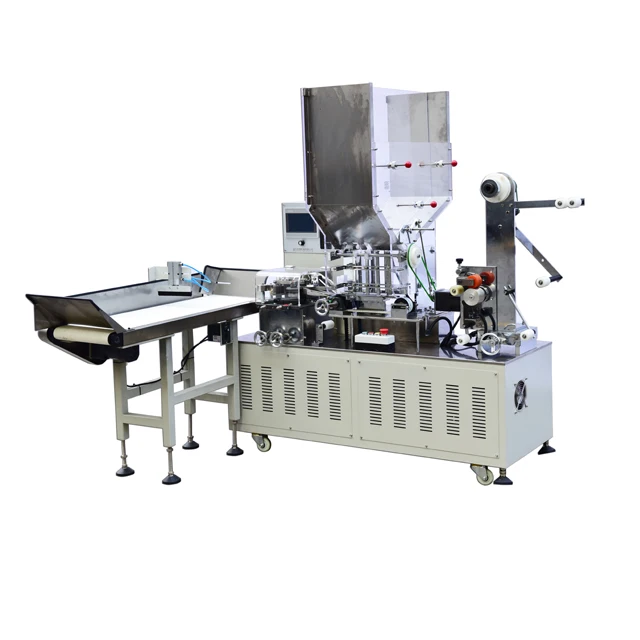

Model | AB-031QS(single pack) |
Drive motor | 3kw |
Speed | 200~600pcs/minute |
Seal | Back side sealing |
Material | BOPP or paper material |
Straw size | Diameter Φ4~Φ12mm |
Machine size and weight | 1500 × 800×1750mm 350kg |

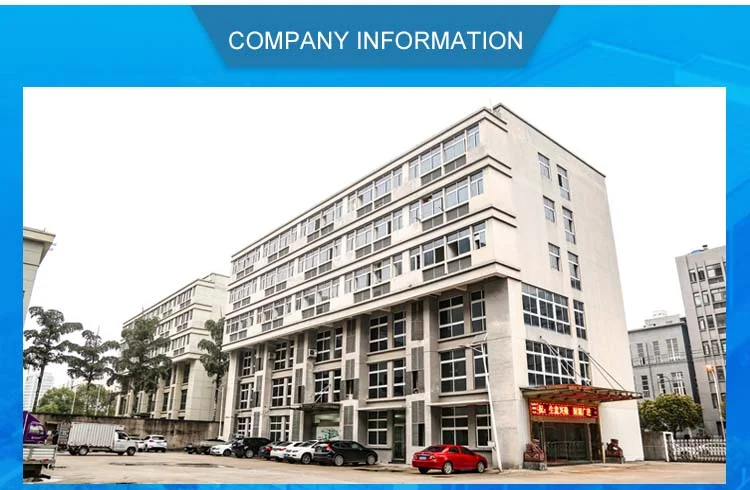

Company Information
Packaging & Shipping
FAQ
Q:What is your Installation Services?
Installation Services are available with all new machine purchases.
We will provide the user manual and videos to support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
Q:What about your Guarantee of quality?
The machine is 1 year warranty, all machine part can be replaced for free within 1year if broken(not including man made).And offer lifetime after sale service
Q:How about the after-sale service?
(1)More than 12 hours after-sale online service one day.
(2) we have engineers available to service machinery overseas.The service charge, include: service fee USD100/day, VISA fee, board round-trip ticket, room and eat in are buyer's side.
Q: How about the spare parts?
After we deal down all the things , we will offer you a spare parts list for your reference.
Q:Do you also offer the wrapping film?
Yes, we can offer you the plastic roll film, we have a long term cooperated supplier for roll film and the price is favorable.
Q:If we have very special request for the production line, could you help me to do the design?
Experienced mechanical designer customized-design provided.
Q: If we have samples of new products, can you help to analysis and design the machine?
Yes, Our technical department can help to analysis, design and test the new products you offered.
