NMN Paper Used For Motor And Transformer Insulation Papers Insulation Laminated Flexible Paper
- Category: >>>
- Supplier: Yancheng Advanced Insulation Co. Ltd.
Share on (1600909013457):
Product Overview
Description
Product Description

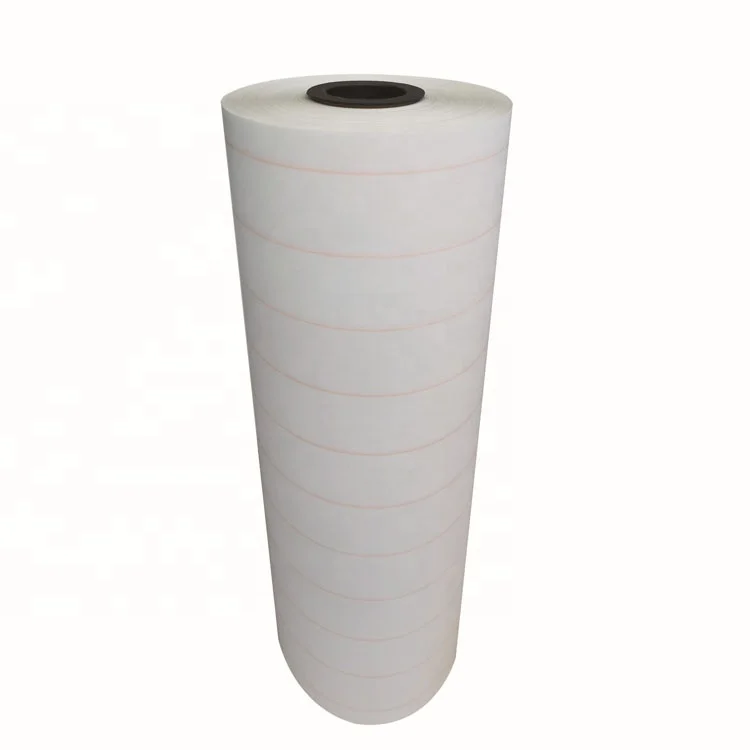

NMN is made of nomex and polyester film , it is 3 layers lamination product , nomex on both sides and polyester film in the middle , it is perfect electrical function , widely used for motor, generator , transformer .
Specification
Name： | NMN |
Thickness and Tolerance: | 0.15mm +/-0.02 , 0.18mm +/-0.02 0.20mm +/-0.02 , 0.25mm +/-0.02 0.30mm +/-0.03 , 0.35mm +/-0.02 0.40mm +/-0.03 , 0.45mm +/-0.03 |
Standard width: | 907mm +/-5 |
Package: | 50 kgs +/-5 per roll |
Breakdown voltage: | 0.15mm ------7kv , 0.18mm----10kv 0.20mm ------11kv , 0.25mm----13kv 0.30mm-------15kv , 0.35mm-----20kv 0.40mm-------22kv , 0.45mm-----24kv |
Thermal Class: | F (155 degree) |
Standard: | IEC60626-3-500 |
Why Choose Us
Advantages:
The thermal class covers: B, F, H, N,and C , the enterprise is managed strictly according to ISO9001 system (Registered No.: E03817Q01957R2M), and passed UL approval ( File No. : E345432) ,all products comply with IEC standard and ROHS as well as REACH test.
Applicable Industries:
Our products are widely used for wind power ,thermal power generation , civil aviation,railway , military project ,motor and transformer Etc.
Packing & Delivery
Packing：Carton packaging, large size is pallet packaging
Delivery：Shipping, Shanghai special line

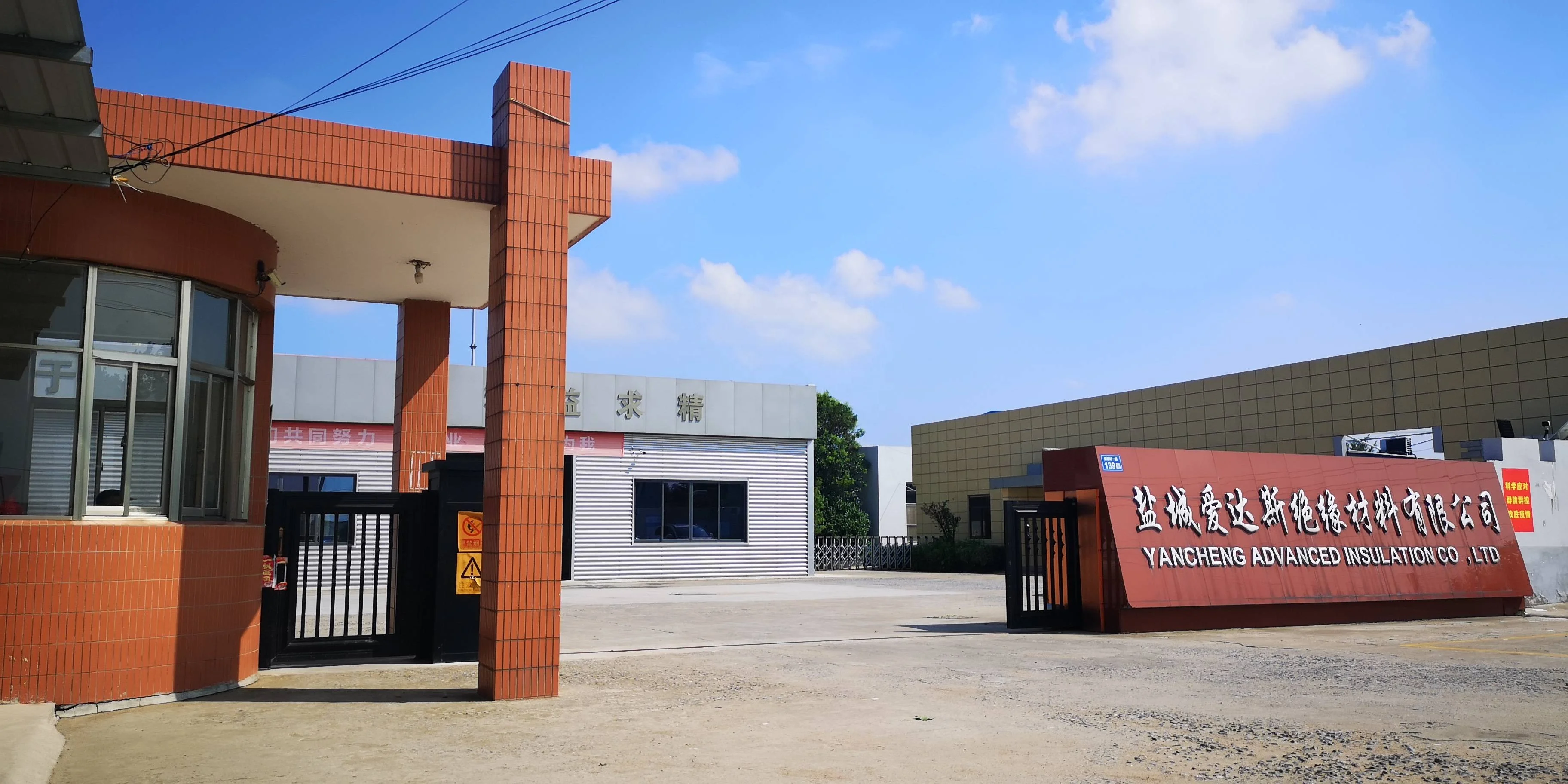

Company Profile
Yancheng Advanced Insulation Co.,Ltd is an esteemed insulation material manufacturer with brand ADAS registered , which mainly produce fiberglass insulation sleeving (yearly production 200 million meters), flexible lamination (3500 tons/year) , woven tape ( yearly production 50 million meters) .

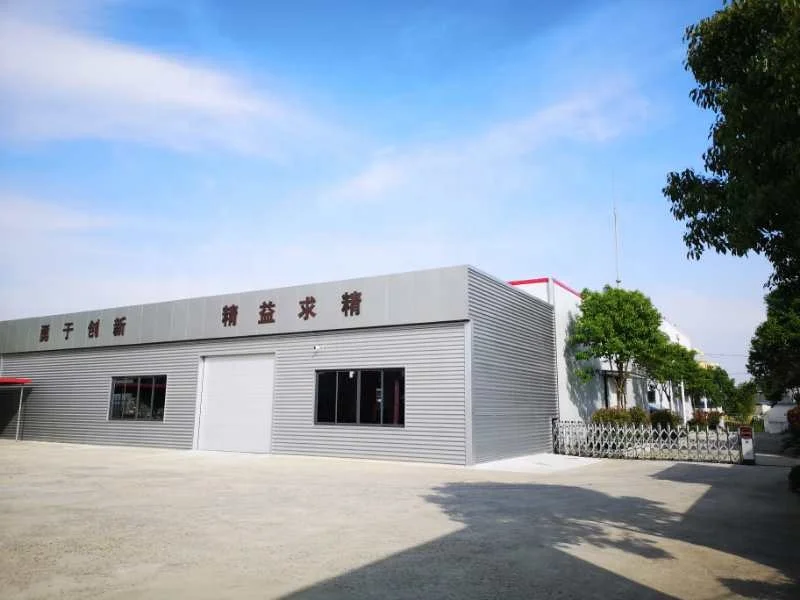

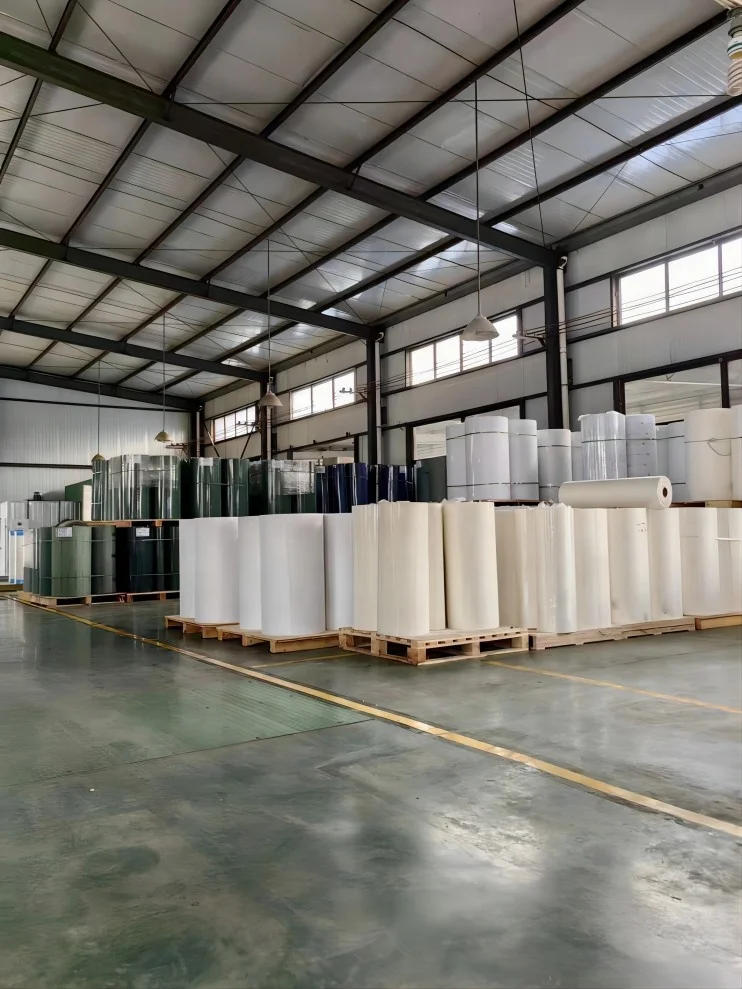

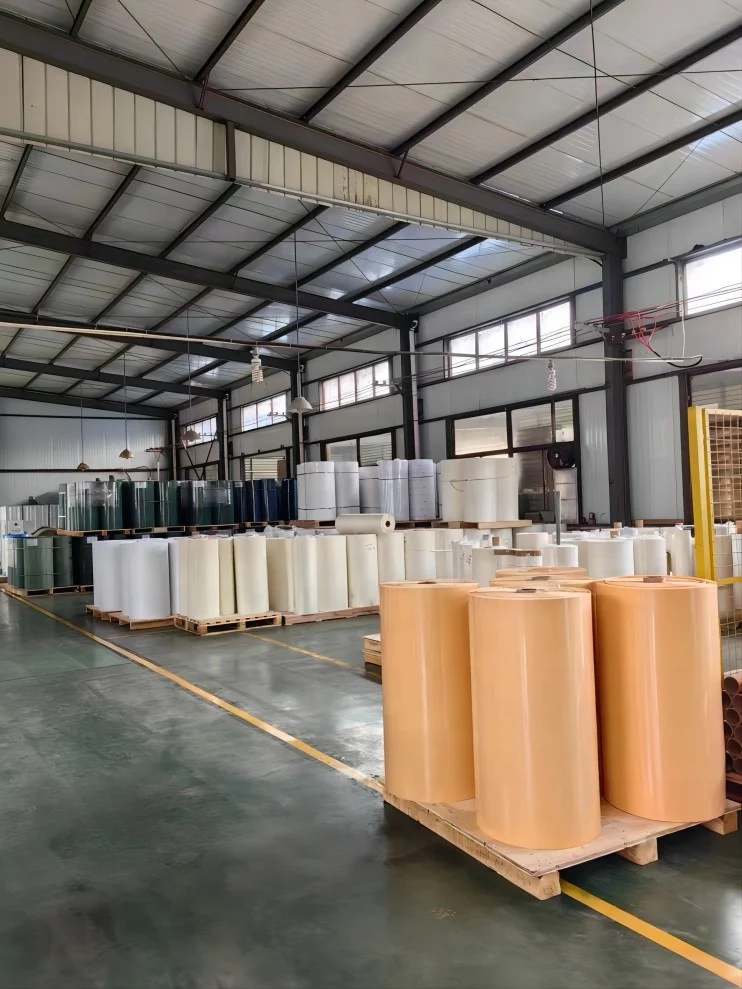

Factory workshop
Certifications
FAQ
Q1:What is the payment term?
A:T/T or L/C.
Q2:What is the shipping port?
A:Shanghai Port.
Q3:What is the delivery time?
A: 25 working days
Q4:What is the quality level of your product?
A:International Standard.
Q5. Are you factory or a trading company ?
A: Factory
Q6: when did you found ?
A: In July 2007
Q7: How many employee in your company ?
A:T/T or L/C.
Q2:What is the shipping port?
A:Shanghai Port.
Q3:What is the delivery time?
A: 25 working days
Q4:What is the quality level of your product?
A:International Standard.
Q5. Are you factory or a trading company ?
A: Factory
Q6: when did you found ?
A: In July 2007
Q7: How many employee in your company ?
A: 110
Any question，please let us know and contact us！
