garbage processing machine trommel screen for municipal solid waste household waste treatment machine
- Category: >>>
- Supplier: Zhengzhou Jinma Mining Machinery Co. Ltd.
Share on (1600909016624):
Product Overview
Description

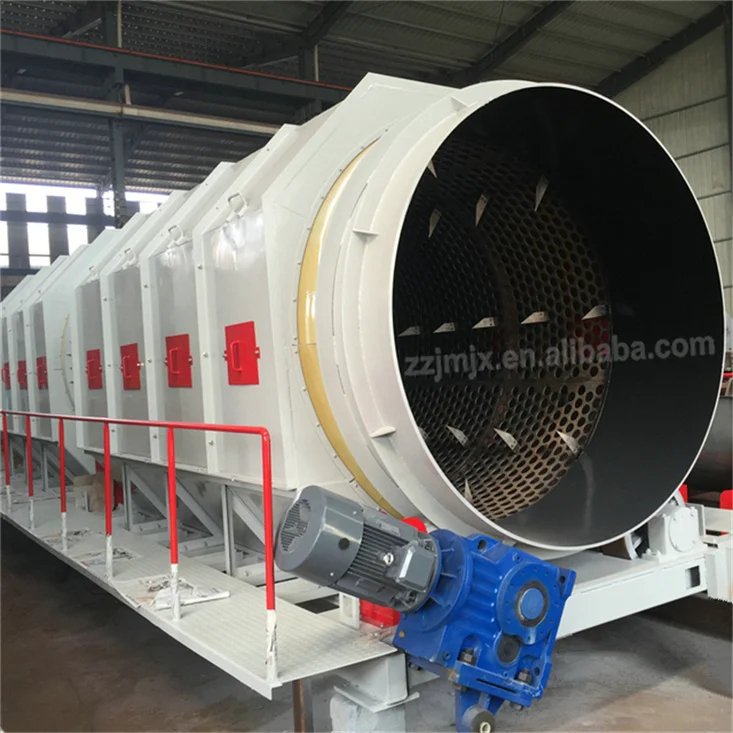

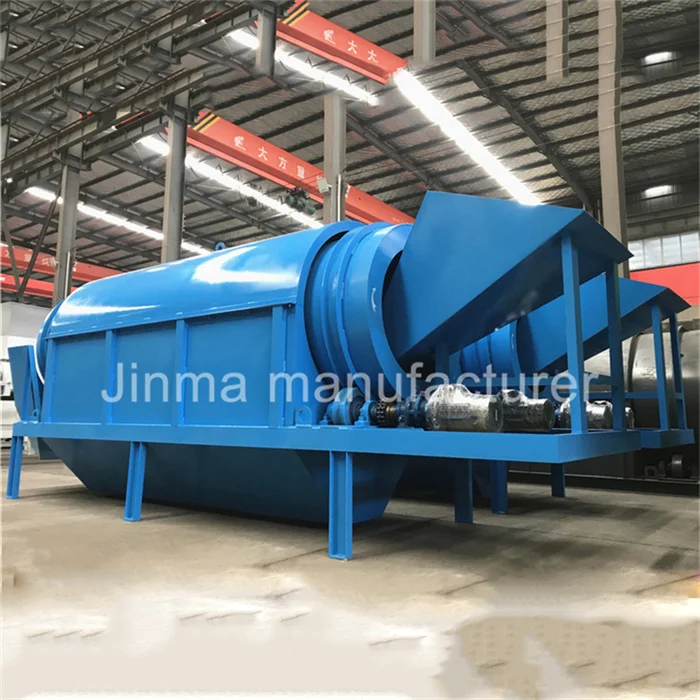

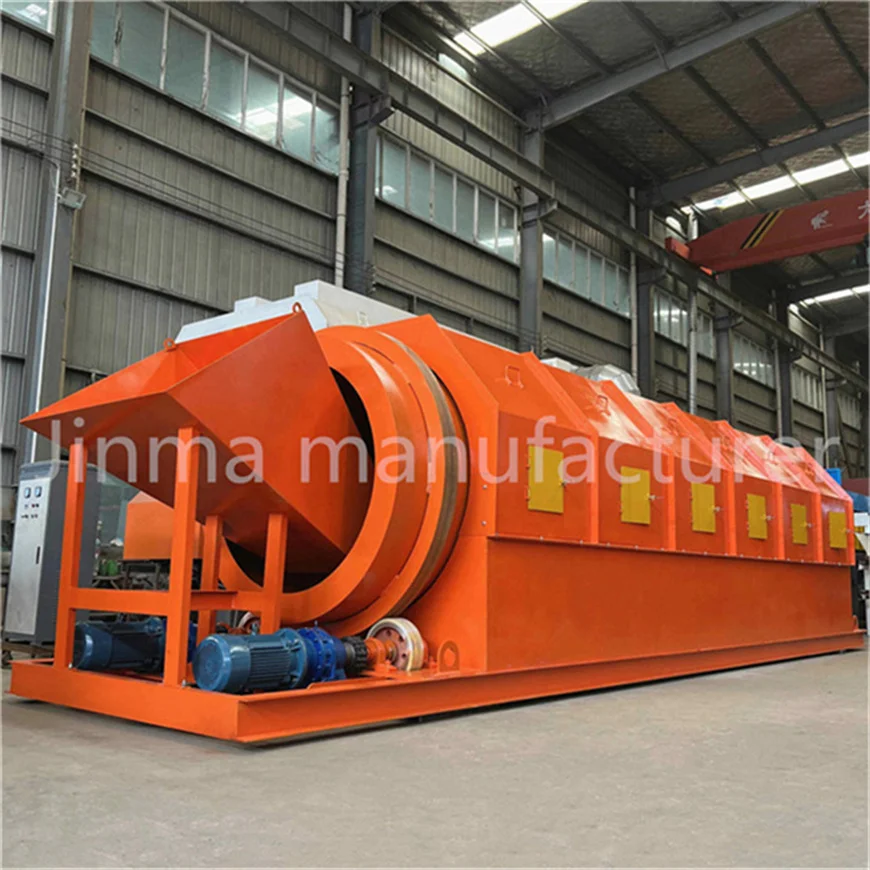

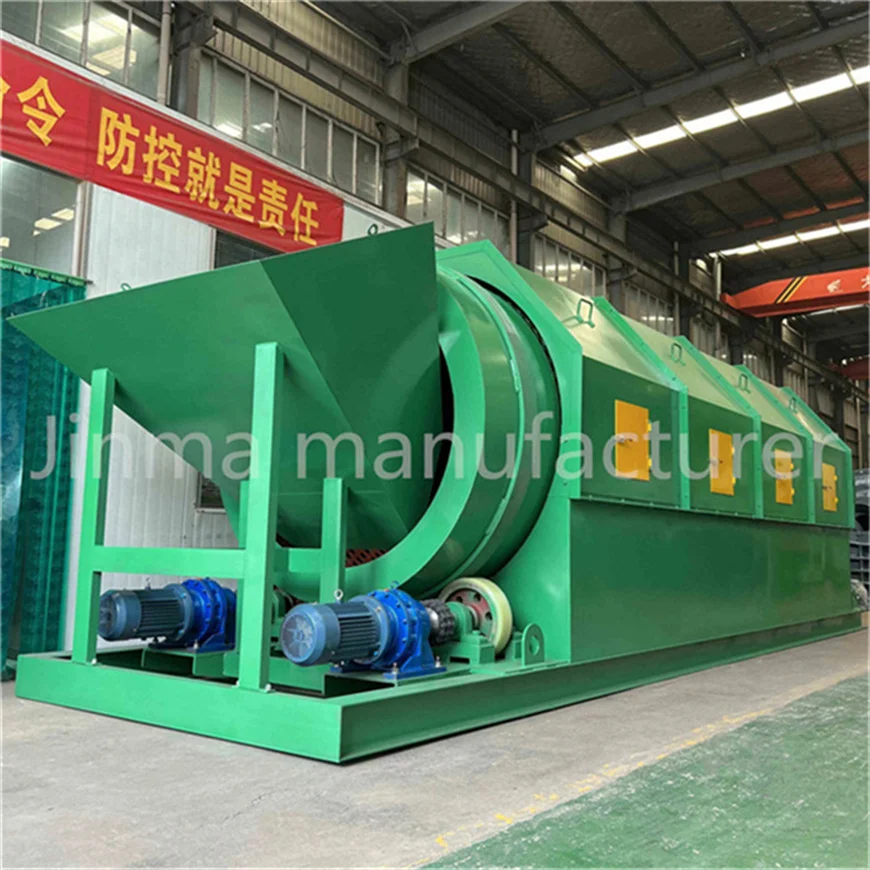

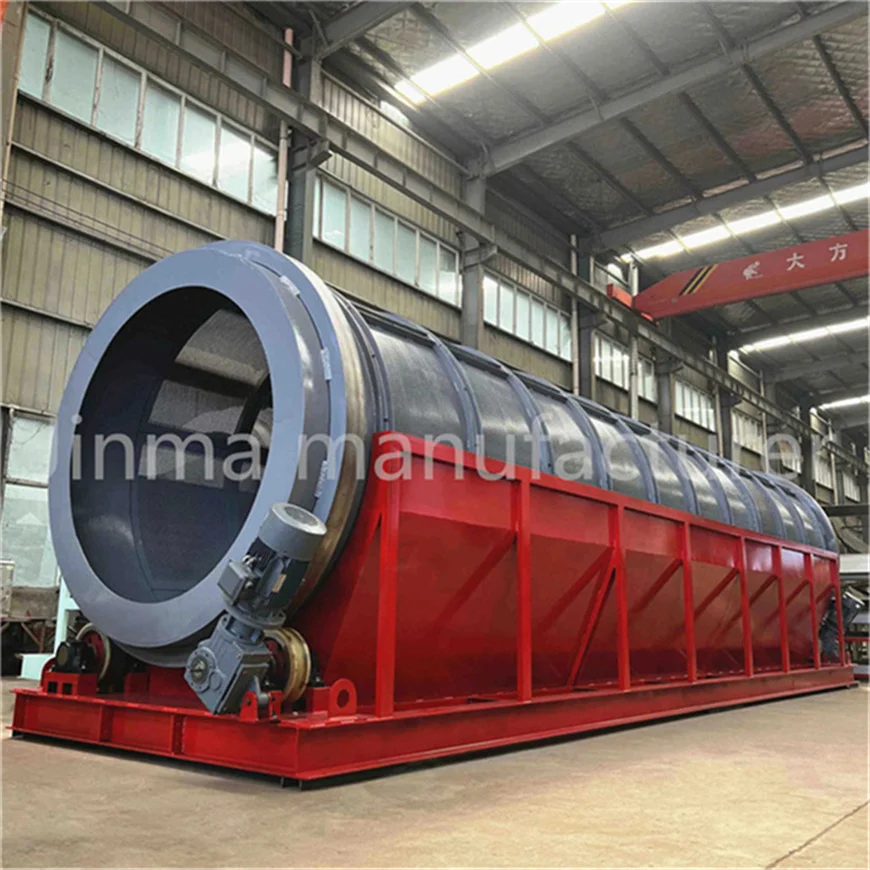

Introduction of JINMA brand trommel screen for waste
The trommel screen is a screening equipment developed by our company for environmental protection engineering technology,household waste, aged waste treatment, decoration waste, comprehensive waste treatment and other industries. It has the advantages of simple structure, convenient operation, high screening efficiency, and is suitable for screening materials of various properties. According to the specific requirements of the screened materials, the screened materials are 30mm and 80mm respectively. This product has been highly praised by users.
JINMA brand trommel screen structure and working principle
1. This machine mainly consists of mechanisms such as electric motor, reducer, support wheel, drum body, screen, frame, dust cover, etc
2. The electric motor drives the reducer, and then the friction wheel drives the screen drum mechanism to rotate around its axis. When the material enters the screen drum device, the rotation of the screen drum device causes the animal material to rotate to a certain height, and the material is thrown and falls due to gravity. After passing through the screen mesh, the material smaller than the screen mesh hole diameter (single or multi stage screen mesh) is discharged outside the screen drum, and the material larger than the screen mesh aperture is discharged through the end of the screen drum, thereby achieving the classification of material size.
3. The sieve drum device is sealed by the body sealing cover to ensure that the equipment is in operation, effectively preventing dust from escaping and eliminating dust pollution.
2. The electric motor drives the reducer, and then the friction wheel drives the screen drum mechanism to rotate around its axis. When the material enters the screen drum device, the rotation of the screen drum device causes the animal material to rotate to a certain height, and the material is thrown and falls due to gravity. After passing through the screen mesh, the material smaller than the screen mesh hole diameter (single or multi stage screen mesh) is discharged outside the screen drum, and the material larger than the screen mesh aperture is discharged through the end of the screen drum, thereby achieving the classification of material size.
3. The sieve drum device is sealed by the body sealing cover to ensure that the equipment is in operation, effectively preventing dust from escaping and eliminating dust pollution.
Applications filed of waste trommel screen
Urban or Household waste: organic, inorganic, waste paper, plastic bags, fabrics, plastics, glass, metals, etc... Construction waste: muck, waste concrete, waste masonry and rubble, brick and tile fragments, waste mortar slurry, asphalt blocks, waste plastics, waste metal, waste bamboo and wood, industrial waste.All of these sorted waste can be recycled after reprocessing.
JINMA brand trommel screen features
1. Adopting the principle of rolling conveying, the friction coefficient is small, the wear is light, and the sieve holes are not easily blocked.
2. The drum is supported by a roller assembly to support the operation of the large rolling ring. The roller is coated with polyurethane, which has high friction, low vibration, smooth operation, and low noise.
3. The drum body adopts an effective fully sealed structure, which does not raise dust,pollutes, and prevents exhaust gas leakage.
4. Safe and reliable operation, using a gearbox for variable speed transmission, with high transmission efficiency, low belt power, low energy consumption, and obvious energy-saving effect.
5. The sieve holes are arranged in a plum blossom array, which has a higher utilization rate and better screening effect than the matrix arrangement.
2. The drum is supported by a roller assembly to support the operation of the large rolling ring. The roller is coated with polyurethane, which has high friction, low vibration, smooth operation, and low noise.
3. The drum body adopts an effective fully sealed structure, which does not raise dust,pollutes, and prevents exhaust gas leakage.
4. Safe and reliable operation, using a gearbox for variable speed transmission, with high transmission efficiency, low belt power, low energy consumption, and obvious energy-saving effect.
5. The sieve holes are arranged in a plum blossom array, which has a higher utilization rate and better screening effect than the matrix arrangement.
Technical Parameters of trommel screen for waste
Model | Diameter （mm） | Length （mm） | Screen hole （mm） | Screen materials | Motor （kw） | Screen roller |
JM-GTSΦ1030 | 1000 | 3000 | 20-80 | Steel plate punching | 2.2×2 | Polyurethane roller |
JM-GTSΦ1240 | 1200 | 4000 | 20-80 | 3×2 | ||
JM-GTSΦ1560 | 1500 | 6000 | 20-80 | 4×2 | ||
JM-GTSΦ1860 | 1800 | 6000 | 20-80 | 5.5×2 | ||
JM-GTSΦ2080 | 2000 | 8000 | 20-80 | 7.5×2 | ||
JM-GTSΦ2580 | 2500 | 8000 | 20-80 | 15×2 | ||
JM-GTSΦ30100 | 3000 | 10000 | 20-80 | 18.5×2 |
Shipping and package of waste trommel screen
Zhengzhou jinma is the old brand professional design and manufacturing factory special for waste sorting machines. Always actively striving and pursuing progress, developing and producing various garbage sorting equipment; Strive to create a first-class level in research technology, artificial Intelligence, scientific management, and other fields.
Main business: Design, production, and sales (independent export): A complete set of solid waste sorting equipment for household waste, decoration waste, staled waste, etc., mainly include the equipment such as bag opener, trommel screen, magnetic separators, air separators, sortingTables, hydraulic baler and conveyors, etc.
Q1: Are you a factory or a trading company?
A1: We are a professional manufacturer in China, passed Alibaba field certification.
Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.
Q3: What’s your delivery time??
A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment.
A1: We are a professional manufacturer in China, passed Alibaba field certification.
Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.
Q3: What’s your delivery time??
A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment.
