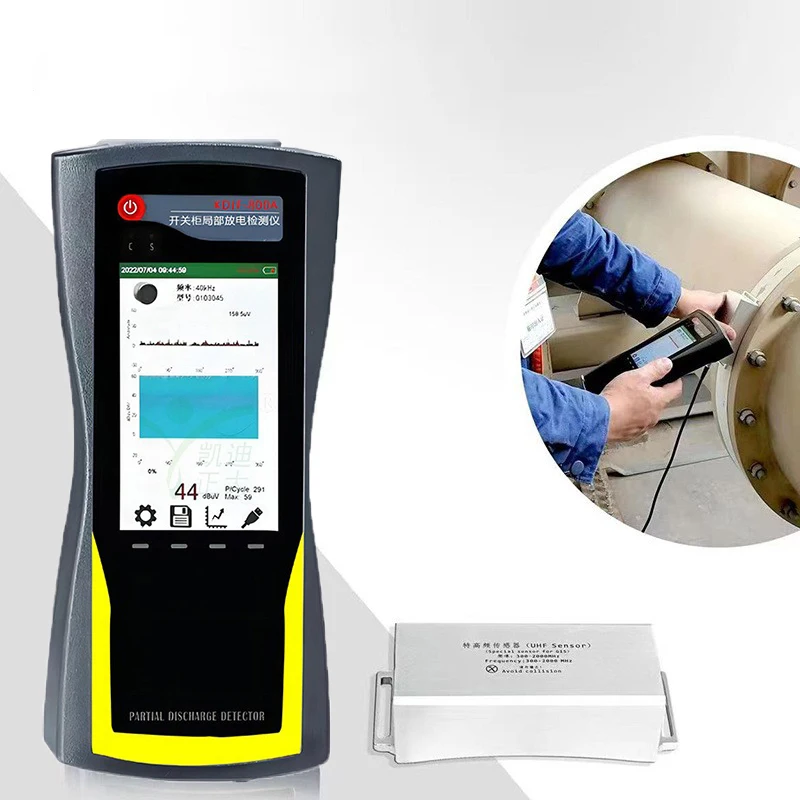

Portable Partial Discharge Detector Cable PD Detecting Analyzer Handheld PD Tester With TEV/UHF Sensor
- Category: >>>
- Supplier: Wuhan Kaidi Zhengda Electric Co. Ltd.
Share on (1600909033142):
Product Overview
Description
This product can be widely used in partial discharge detection of power system, including insulation state detection of high-voltage switchgear, ring network cabinet, voltage/current transformer, transformer (including dry-type transformer), GIS, overhead lines, cables and other equipment. The discharge degree of electrical and gas equipment is measured by the following indicators:
Partial discharge intensity detection: measure the discharge signal within one power frequency cycle, and characterize the partial discharge intensity according to the maximum value (dB) in the discharge pulse sequence.
Partial discharge frequency detection: measure the discharge signal within one power frequency cycle, extract the discharge pulse and characterize the frequency of partial discharge according to the number of discharge pulses.
Partial discharge intensity detection: measure the discharge signal within one power frequency cycle, and characterize the partial discharge intensity according to the maximum value (dB) in the discharge pulse sequence.
Partial discharge frequency detection: measure the discharge signal within one power frequency cycle, extract the discharge pulse and characterize the frequency of partial discharge according to the number of discharge pulses.

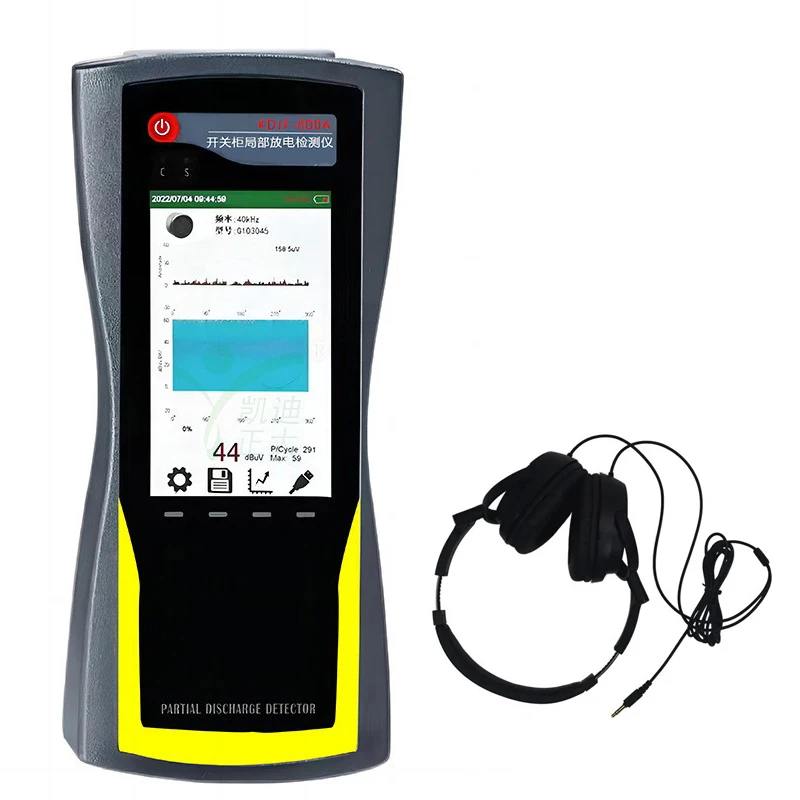

TEV measure | ||
measuring range | 0-60 dBmV | |
resolving power | 1dB | |
accuracy | ±1dB | |
Maximum pulse per cycle | 1400 | |
Measurement frequency band | 3-100MHz | |
UHF measurement | ||
UHF measurement and detection frequency band | 300-2000MHz | |
measuring range | 0-60 dBmV | |
accuracy | ＜1dBmV | |
Sensor frequency band | 300-2000MHz | |
AA measurement | ||
measuring range | -6dBμV~68dBμV | |
resolving power | 1dB | |
accuracy | ±1dB | |
Sensor center frequency | 40 kHz | |
AE measurement | ||
measuring range | -6dBμV 至 68dBμV | |
resolving power | 1dB | |
accuracy | ±1dB | |
Frequency range | 20~200 kHz | |
HFCT measure | ||
Sensor transmission impedance | 5mV/mA | |
Detection frequency | 1～30MHz | |
sensitivity | ≤50pC | |
Hard ware | ||
Housing | ABS | |
display | 4.0 inch RGB LCD display resolution: 800* 480 | |
connector | USB interface (also charger input) | |
3.5mm stereo headphone jack | ||
external sensor input interface | ||
headphone | 8 ohms minimum | |
SD card | standard 16G ~ 64G | |
built in battery | 3.7V/5000mAh lithium battery | |
working tiome | about 6 hours | |
charger | AC 90-264V or DC 5V | |
using temperature | -20 ~ 50℃ | |
humidity | 20-85% relative humidity | |
volume and weight | 210*100*35(mm) 0.4KG(host) | |

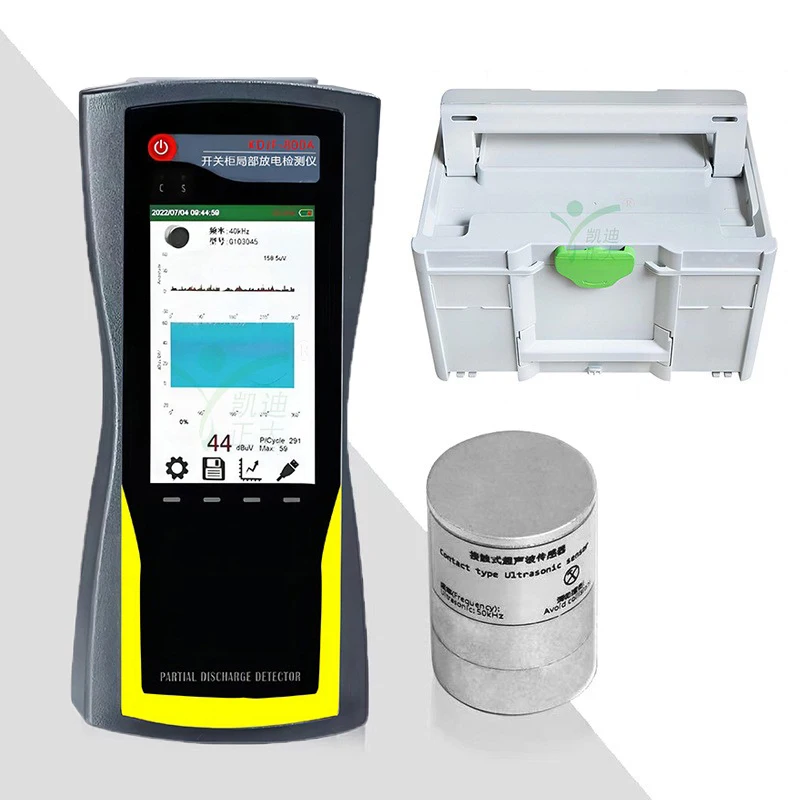

Product characteristics

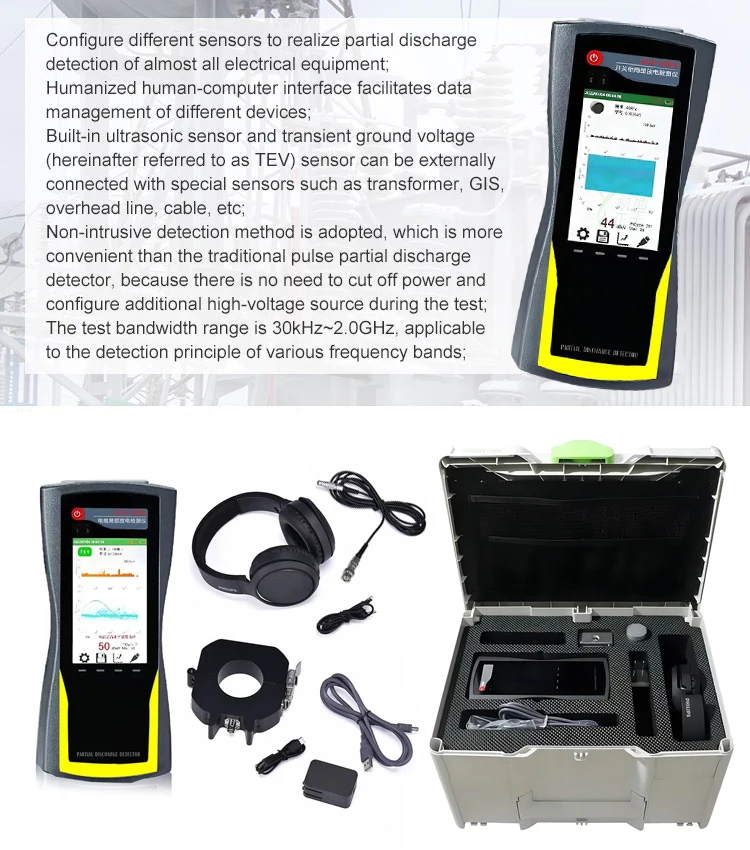

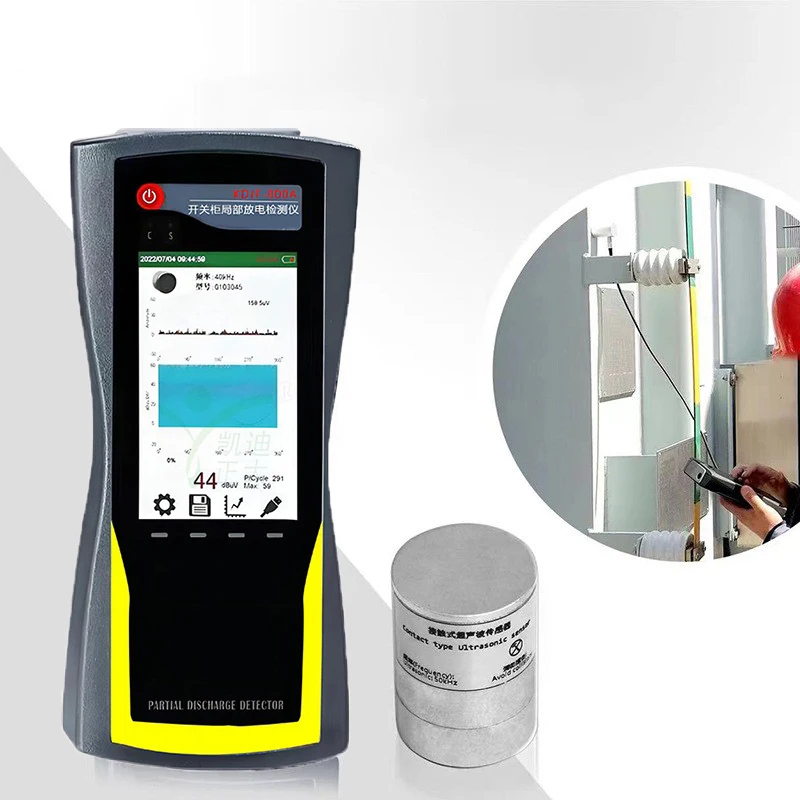

Built in ultrasonic sensor and transient earth voltage (hereinafter referred to as TEV) sensor, which can be externally connected to transformers, GIS, overhead lines, cables and other special sensors;
Non intrusive detection mode is adopted, so there is no need to cut off power and configure additional high-voltage source duringthe test, which is more convenient than the traditional pulse type partial discharge detector;
The test bandwidth range is 30kHz~2.0GHz, applicable to the detection principle of various frequency bands;
Product application field
Configure different sensors to realize partial discharge detection of almost all electrical equipment; The
humanized man-machine interface facilitates the data management of different equipment;
humanized man-machine interface facilitates the data management of different equipment;
Built in ultrasonic sensor and transient earth voltage (hereinafter referred to as TEV) sensor, which can be externally connected to transformers, GIS, overhead lines, cables and other special sensors;
Non intrusive detection mode is adopted, so there is no need to cut off power and configure additional high-voltage source duringthe test, which is more convenient than the traditional pulse type partial discharge detector;
The test bandwidth range is 30kHz~2.0GHz, applicable to the detection principle of various frequency bands;
Product application field
Power generation and distribution enterprises
Railway system
Petrochemical power supply system
Aerospace inspection field
Aerospace inspection field
Automatic detection field
Product Description
Company Profile
Certifications
Product packaging
FAQ
