Energy Saving Horizontal Medium Duty Single Metal Manual Cnc Slant Bed Lathe
- Category: >>>
- Supplier: Sjr Machinery Co. Ltd.
Share on (1600909044012):
Product Overview
Description
Recommend Products
Products Description
This machine is mainly suitable for turning pipe ends, taper pipe thread, pipe band, pipe sleeve, rod drilling and so on, It has characters of big power, good rigidity,high accuracy and excellent keep performance FANUC OR SIEMENS CNC system has been used, it is safe and reliable the reliability of the machine could be ensured, Pulse coder is as a measuring element, longitudinal and cross feed form semi-closed loop control.
The ultrasonic frequency quenched guide ways have a good wear-resistance.

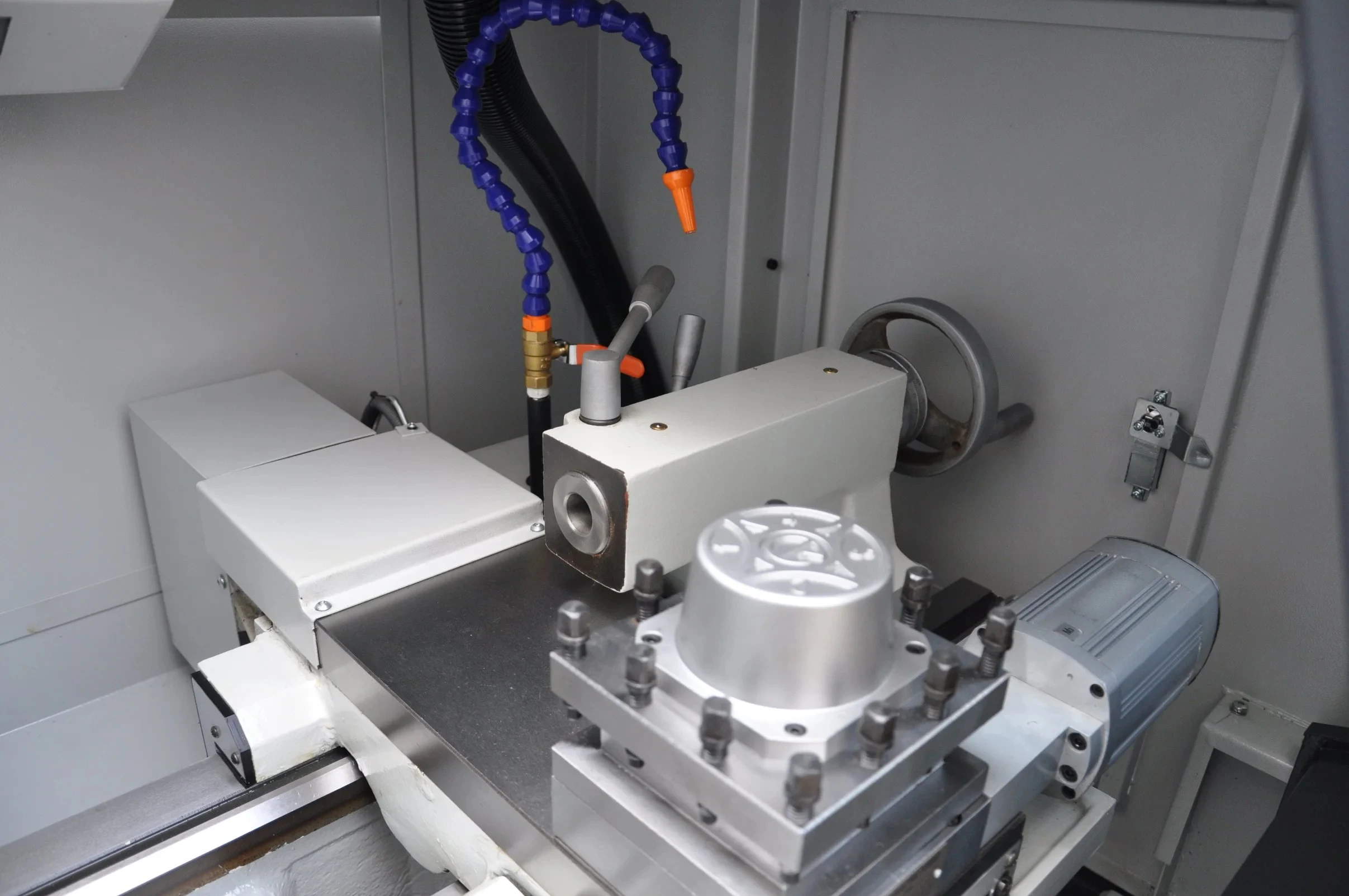

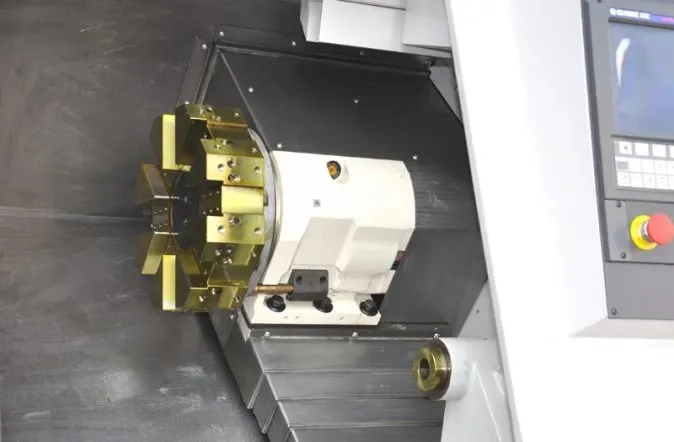

Electric four position turret adopts precision gear position, high repetitive positioning accuracy.
The tail frame has the advantages of fast cam clamping device, high work efficiency.
Engineers are available to do oversea machinery service. In some countries, we have oversea agent doing after-sale service in time
and professionally.
24 hours heart to heart service on-line or mobile.
Training in our factory and on-line are free of cost.Best agent price and distributer price are offered.
and professionally.
24 hours heart to heart service on-line or mobile.
Training in our factory and on-line are free of cost.Best agent price and distributer price are offered.
Main Features:
-The machine guideways are accurately grinded,
which has good wear resistance and high precision.
-The spindle adopts single spindle frequency shift, two axes and two gear variable speed.
-The machine is equipped with an automatic lubrication system, thus making it possible to minimize the thermal deformation
effectively and assure good machining accuracy.

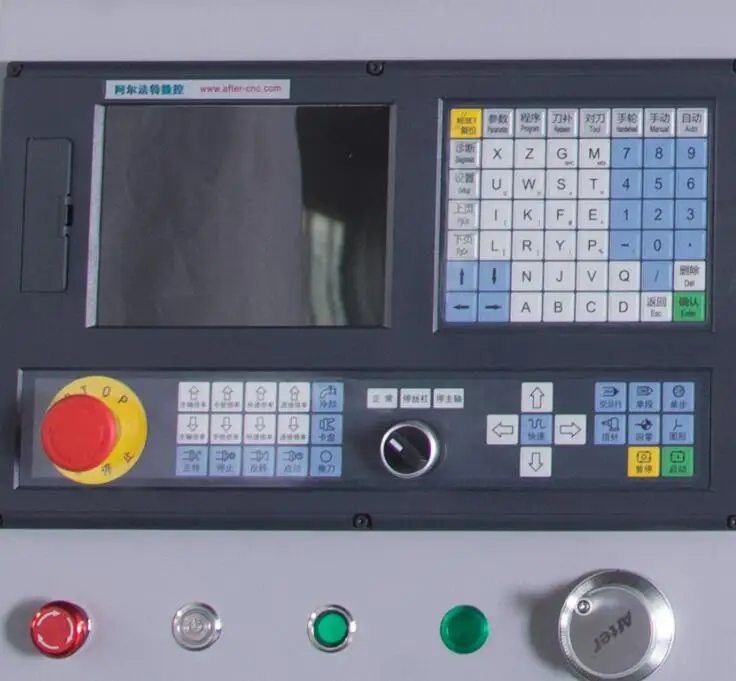

-Operating system: GSK, SIEMENS, FANUC etc.

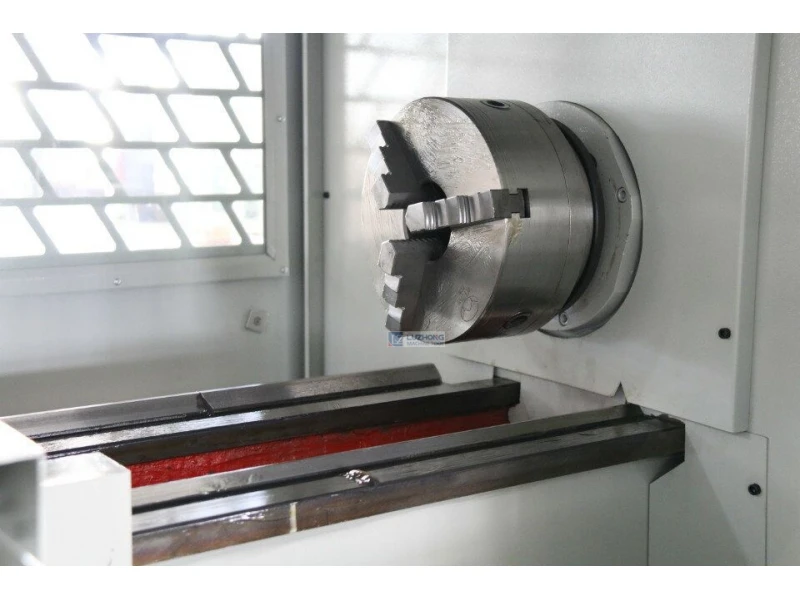

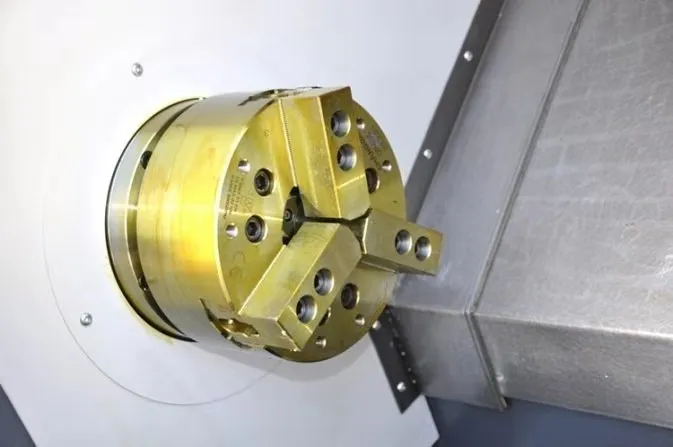

-According to client’s requirements, we can equip with pneumatic chuck, hydraulic chuck and other special accessories.
which has good wear resistance and high precision.
-The spindle adopts single spindle frequency shift, two axes and two gear variable speed.
-The machine is equipped with an automatic lubrication system, thus making it possible to minimize the thermal deformation
effectively and assure good machining accuracy.
-Operating system: GSK, SIEMENS, FANUC etc.
-According to client’s requirements, we can equip with pneumatic chuck, hydraulic chuck and other special accessories.
Product parameter
Main Specifications:
Items | LNC6150Bx1000 |
Max. swing over bed | Φ500mm |
Max. length of workpiece (Two centers) | 1000mm |
Max. swing over slide | Φ310mm |
Max. cross travel (X) | 300mm |
Spindle bore | Φ82mm |
Taper bore of spindle | M.T.No.6 |
Spindle nose | A2-8 |
Range of spindle speeds | 100-3000 rpm |
Z-axis screw Dia. X Pitch | Φ40x6 |
X-axis screw Dia. X Pitch | Φ25x4 |
Number of tools | 4-way, 6-way or gang tools |
Size of tool shank | 25 x 25mm |
Tailstock sleeve dia. | Φ75mm |
Tailstock sleeve travel | 130mm |
Taper of tailstock quill | M.T.No.5 |
Min. input | 0.001mm |
Power of main motor | 5.5KW |
Net weight | 1500kg |
Dimension | 2480x1420x1660mm |

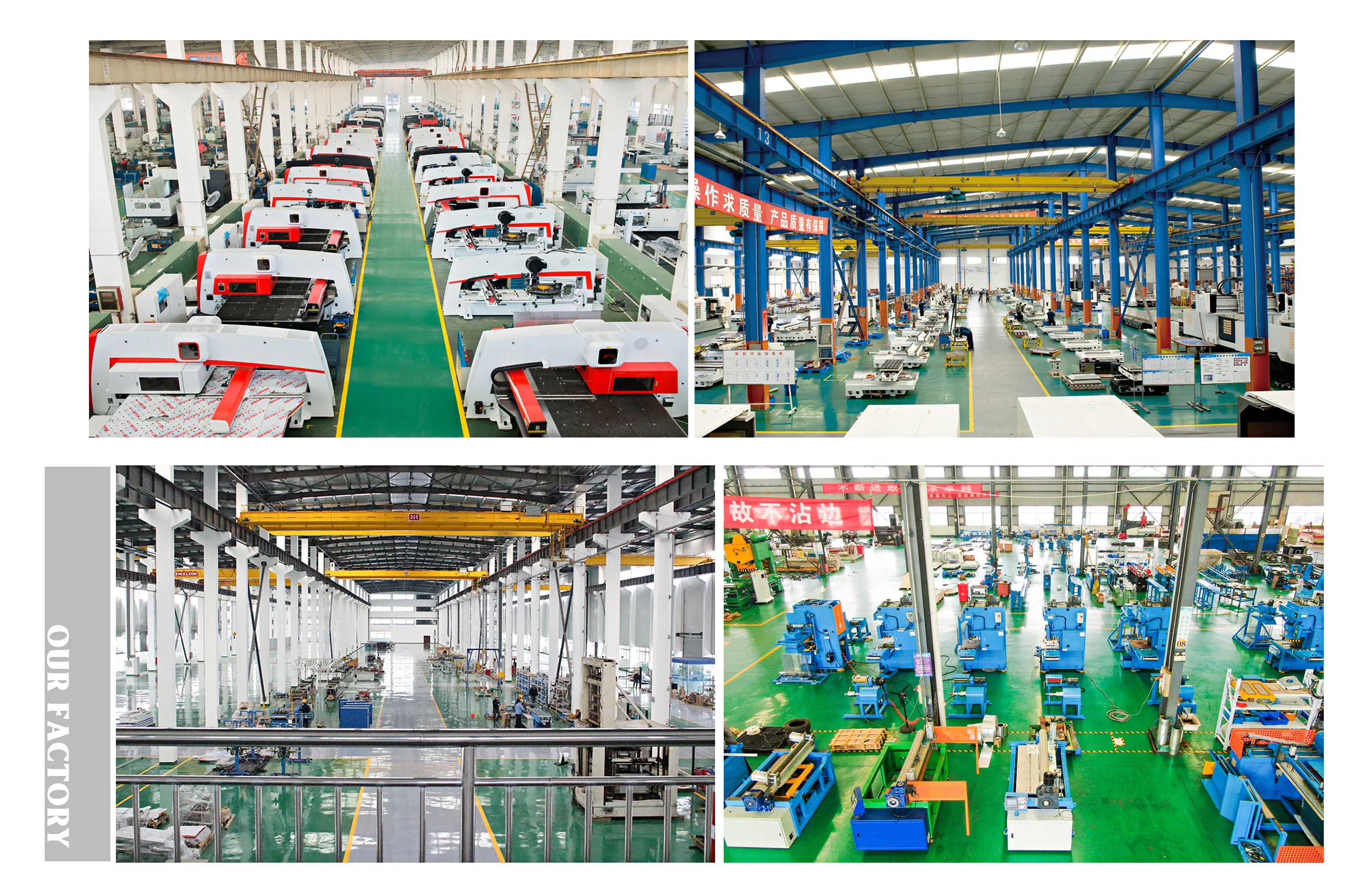

Company Profile
Exhibition
Customer Photos
Certifications
FAQ
Q1.Can I put my own label and logo on the products?
A: Yes,there are two options.
1), Send your label design to us and we make them for you.
2), Send your finished labels to us and we put them on the product.
Q2.Payment ways available?
A: Paypal , Western Union, T/T, L/C, Ali-express, anyways you prefer.
Q3.Why choose us?
A: (1)Own strong design team with various styles.
(2)More than 20 years experience manufactures with Reasonable price.
(3)High quality & quick response within 24 hours.
Q4.Can we visit your factory?
A: We warmly welcome you to visit our factory anytime.
