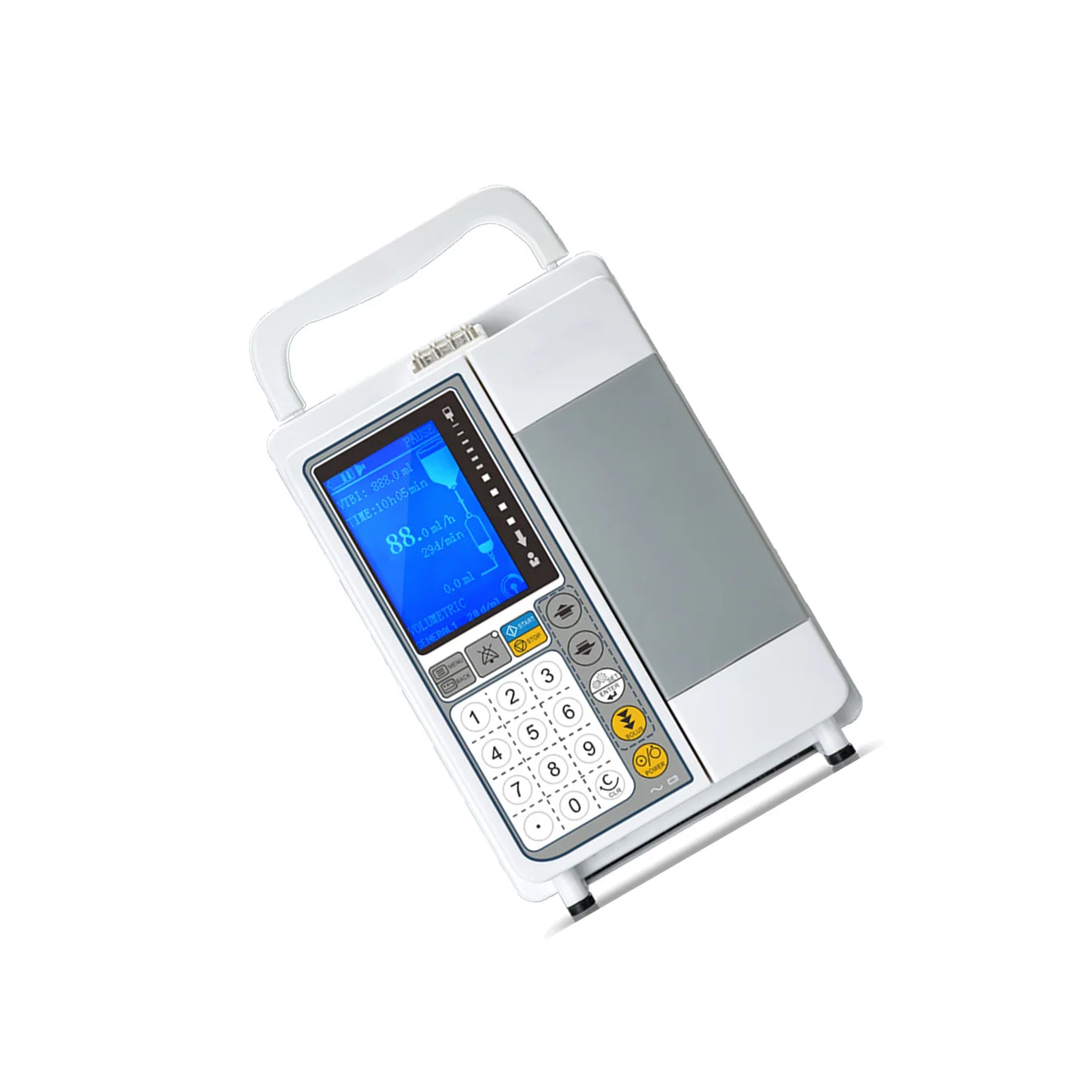

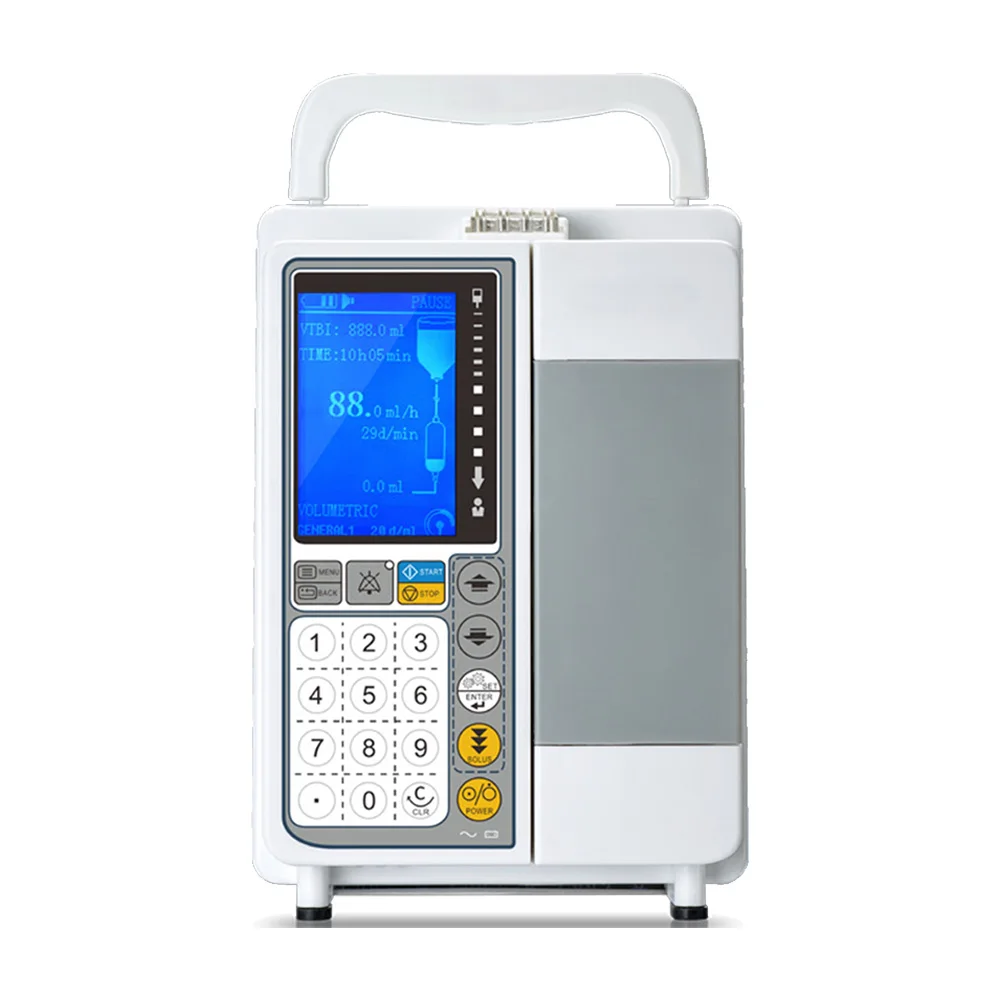

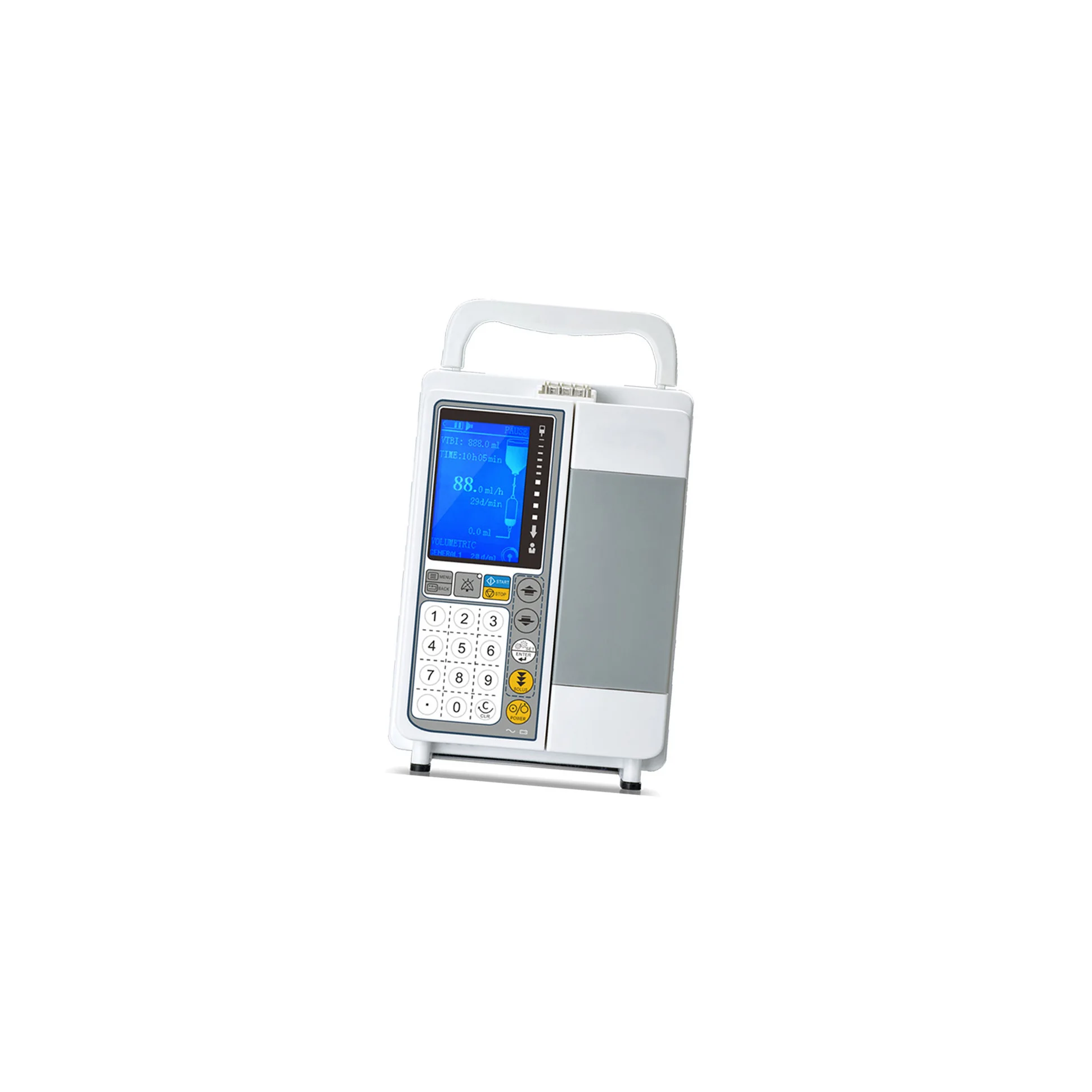

Numeric keypad Human Veterinary Medical Insulin Disposable Injection Syringe Pump IV Infusion Pump
- Category: >>>
- Supplier: Nanjing Hongtin Medical Equipment Co. Ltd.
Share on (1600909076238):
Product Overview
Description

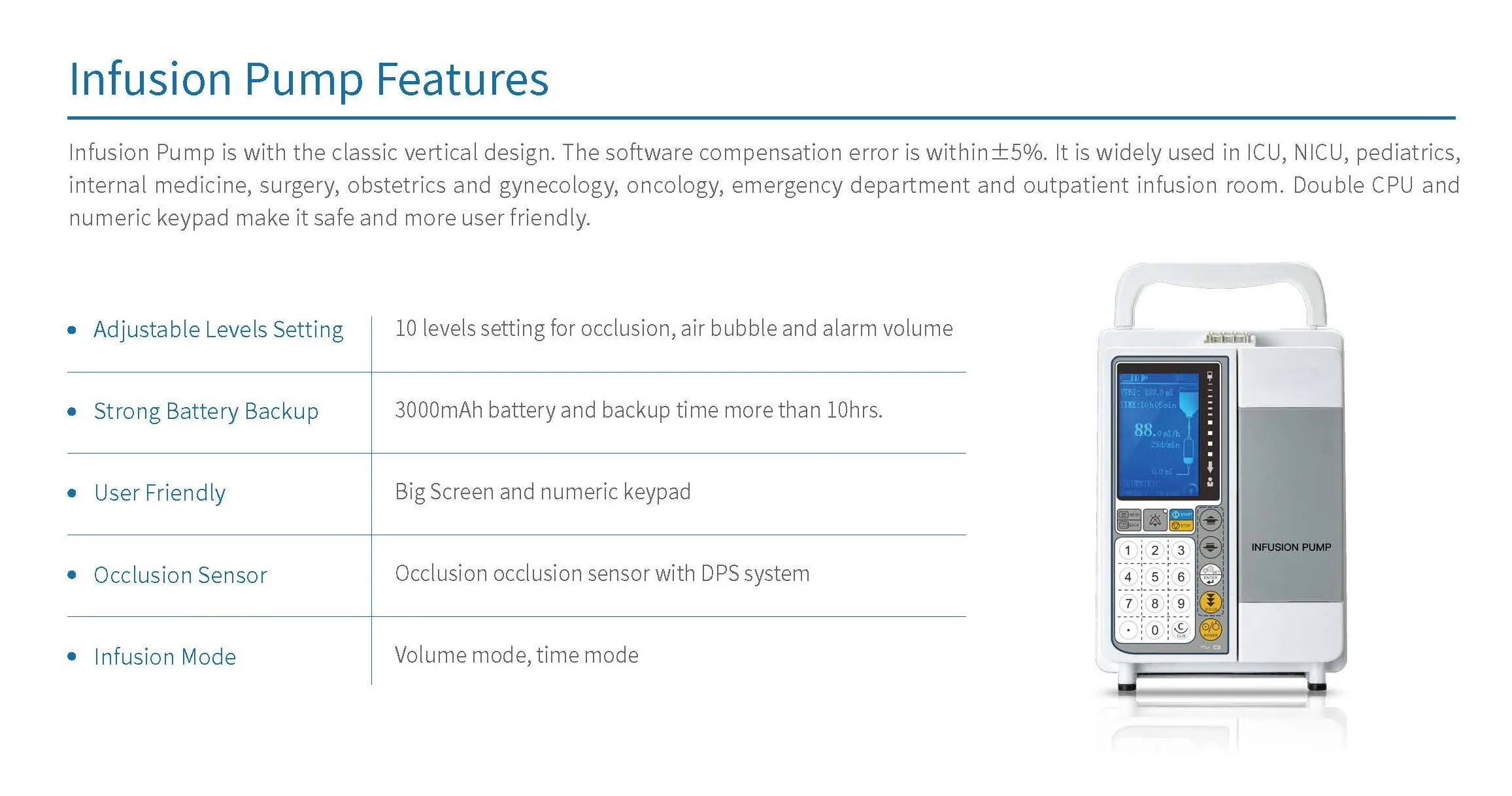

Product Features
1. Double CPU, Safter Infusion
2. Brightness LCD, Display visually
3. Numeric Keypad, User Friendly
4. 10 Level occlusion pressure detection adjustable
5. Occlusion, Air-in-line, Audio Visual Alarm Volume: 10 settings
6. 3000Ah Lithium Battery, Backup Life: >=10hours
7. KVO adjustable 0.1-5ml/h
2. Brightness LCD, Display visually
3. Numeric Keypad, User Friendly
4. 10 Level occlusion pressure detection adjustable
5. Occlusion, Air-in-line, Audio Visual Alarm Volume: 10 settings
6. 3000Ah Lithium Battery, Backup Life: >=10hours
7. KVO adjustable 0.1-5ml/h

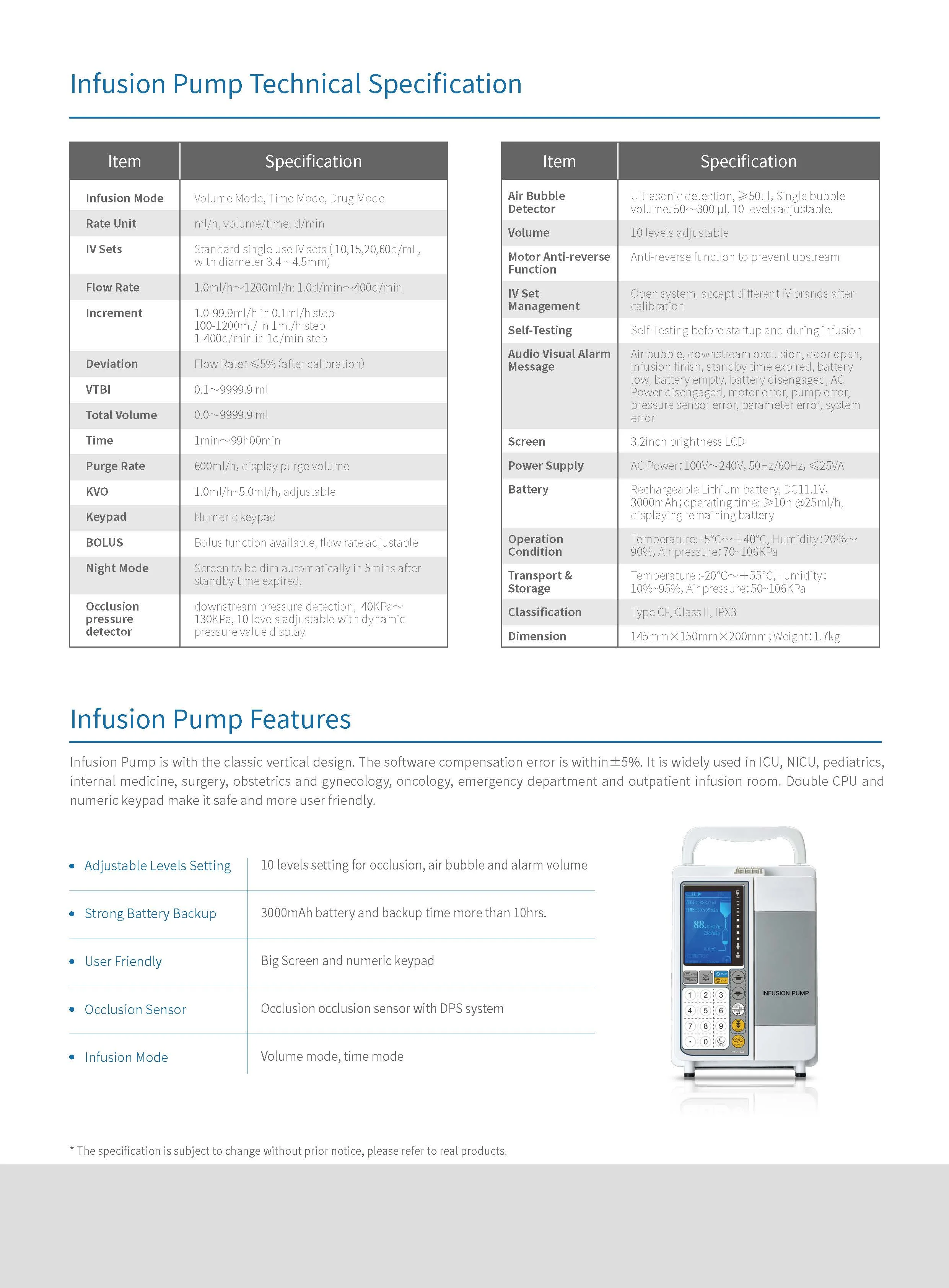

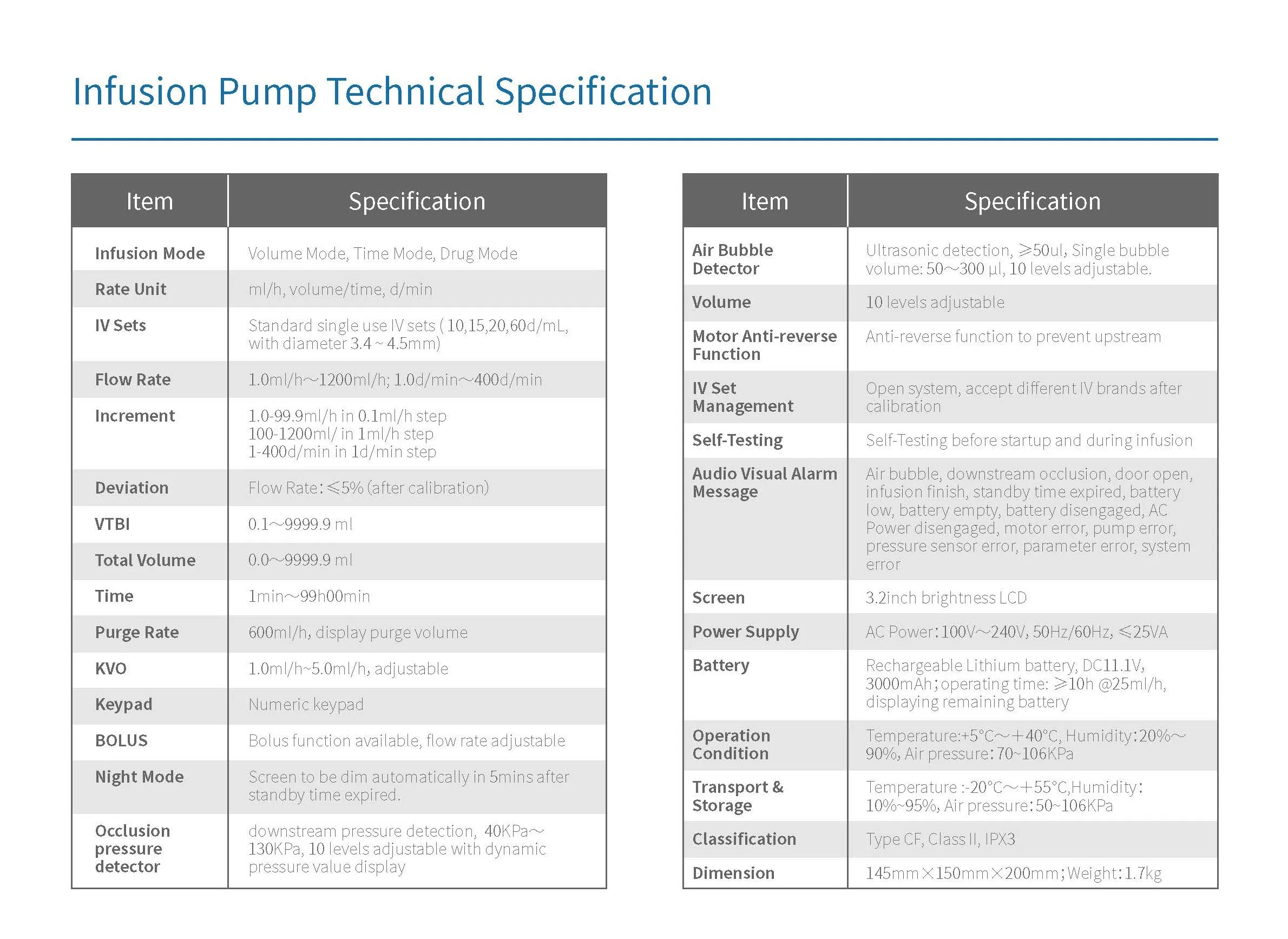

Product Specification
Specifications: | ||
Infusion Mode | Volume Mode, Time Mode, Drug Mode, Night Mode, Bolus Mode | |
Rate Unit | ml/h, volume/time，d/min | |
IV Sets | Standard single use IV sets ( 10,15,20,50, 60d/mL, with diameter 3.4 ~ 4.5mm) | |
Flow Rate | 1.0ml/h～1200ml/h, 1.0d/min～400d/min | |
Increment | 1.0-100ml/h in 0.1ml/h step；100-1200ml/ in 1ml/h step | |
Deviation | Flow Rate：≤5%（after calibration） | |
VTBI | 0.1～9999.9 ml | |
Total Volume | 0.0～9999.9 ml | |
Time | 1min～＞99h59min | |
Purge Rate | 600ml/h，display purge volume | |
KVO | 0.1ml/h~5ml/h，adjustable | |
Keypad | Numeric keypad, user friendly | |
BOLUS | Bolus function available, flow rate adjustable | |
Night Mode | Night mode ON, screen to be dim automatically in 5min standby time expired. | |
Occlusion pressure detector | Occlusion pressure detection, 40KPa～140KPa, 0-9 levels adjustable, dynamic pressure value display | |
Air bubble Detector | Ultrasonic detection, ≥50ul，Single bubble volume: 50～300 μl, 0-9 levels adjustable. | |
Volume | 1-10 levels adjustable | |
Motor Anti-reverse Function | Anti-reverse function to prevent upstream | |
IV Set | Open system, accept all kinds of IV brands after calibration | |
Self-Testing | Self-Testing before startup and during infusion | |
Audio Visual Alarm Message | Air bubble, downstream occlusion, door open, infusion finish, standby time expired, battery low, battery empty, battery disengaged, AC Power disengaged, motor error, pump error, pressure sensor error, parameter error, system abnormal | |
Screen | 3.2inch brightness LCD | |
Power Supply | AC Power：100V～240V，50Hz/60Hz，≤25VA | |
Battery | Rechargeable Lithium battery, DC11.1V，3000mAh；operating time: ≥10h @25ml/h, displaying remaining battery | |
Operation Condition | Temperature:+5℃～＋40℃, Humidity：20%～90%，Air pressure：70~106KPa | |
Transport & Storage | Temperature :-20℃～＋55℃,Humidity：10%~95%，Air pressure：50~106KPa | |
Classification | Type CF, Class II, IPX3, ISO13485, CE, IEC60601 | |
Specification | W*H*D：150mm×140mm×210mm；Weight：1.7kg | |
Warranty: | Two years, battery one year | |
