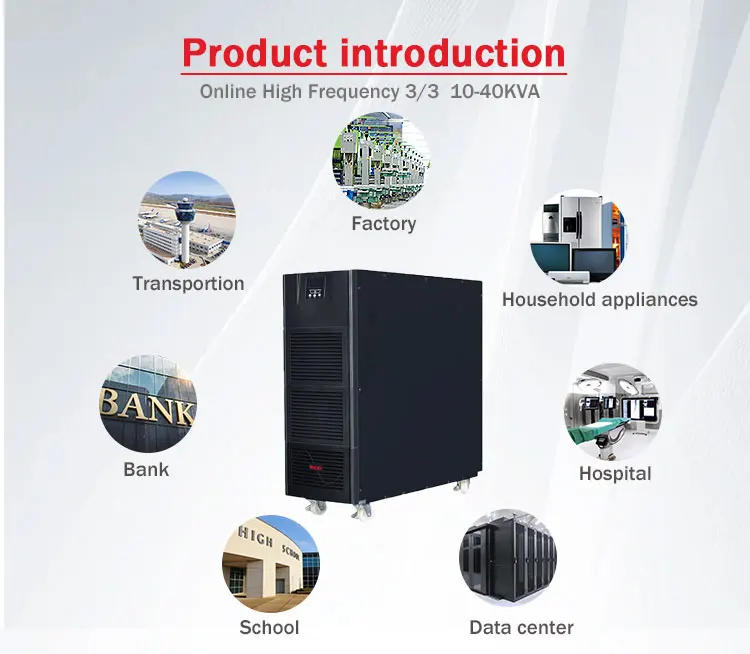

UPS true online double conversion 30kva 3 phase power supply uninterruptible power supply 30kva UPS

Model

33 10K(L)

33 20K(L)

33 30K(L)

33 40K(L)

PHASE

3 phase with ground

CAPACITY

10KVA/8000W

20KVA/16000W

30KVA/24000W

40KVA/32000W

INPUT

Range of voltage（full load）

207~475Vac 3P4W+G

Range of frequency

40-70Hz(adjusted)

Power Factor

≥0.99 nominal voltage(100% load)

OUTPUT

Rated voltage

380Vac(1±1%) 3P4W+G

frequency

1.The output frequency synchronizes with the input frequency when the input frequency is in the range of 46 Hz~ 54 Hz.
2.The output frequency is 50Hz when the input frequency is not in the range of 40 Hz~ 46 Hz and 54Hz~60Hz.
3.BAT mode:50Hz.

Rated current

15A

30A

45A

61A

Power factor

0.8

Distortion

≤3%

Ratio

3:1

Over load

105% ±5% < Load ≤ 125% ± 5% 60s transfer to bypass
125% ±5% < Load < 150% ± 5% 30s transfer to bypass
Load > 150% ± 5%, 300ms transfer to bypass

Line—bat transfer time

0ms

EFFICIENCY

> 90%

> 91%

BATTERY

Rated voltage

192Vdc (or 240Vdc)

+/- 192Vdc (or +/- 240Vdc)

Numbers

16(20)

16(20)×9AH

16(20)

16(20)×9AH

32(40)

Charging Current

5A

1A

7.5A

1A

5.5A

Size (L*W*H)mm

533*260*501

560*260*717

710*260*717

710*260*717

Weight

26kg

72kg

57.5kg

98kg

58.5kg

62kg

Work temp.(℃)

0℃～40℃

Work humidity

20%～95％

Noise（dB）

≤60dB
