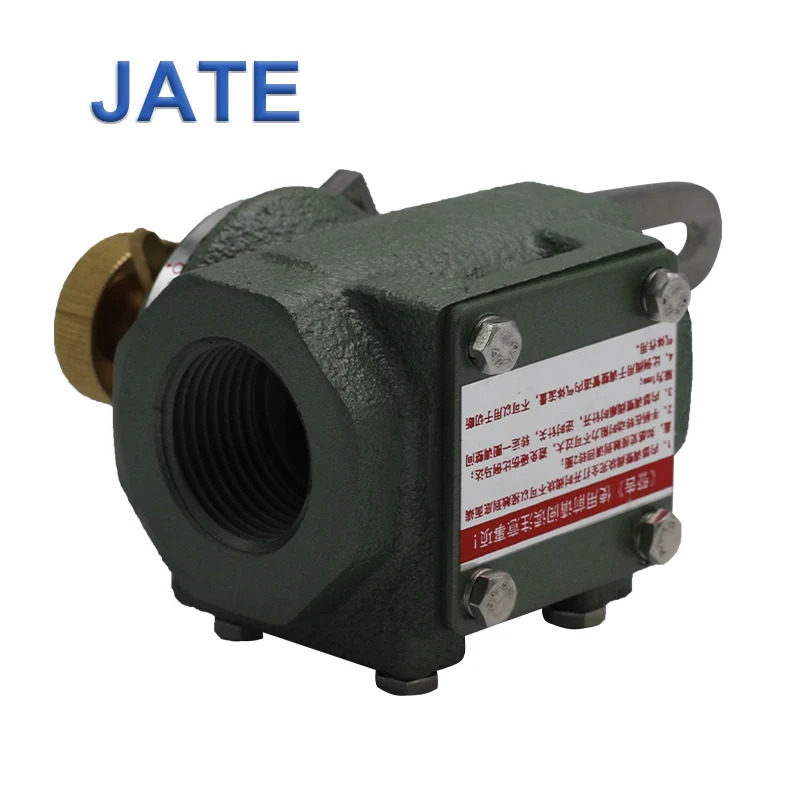

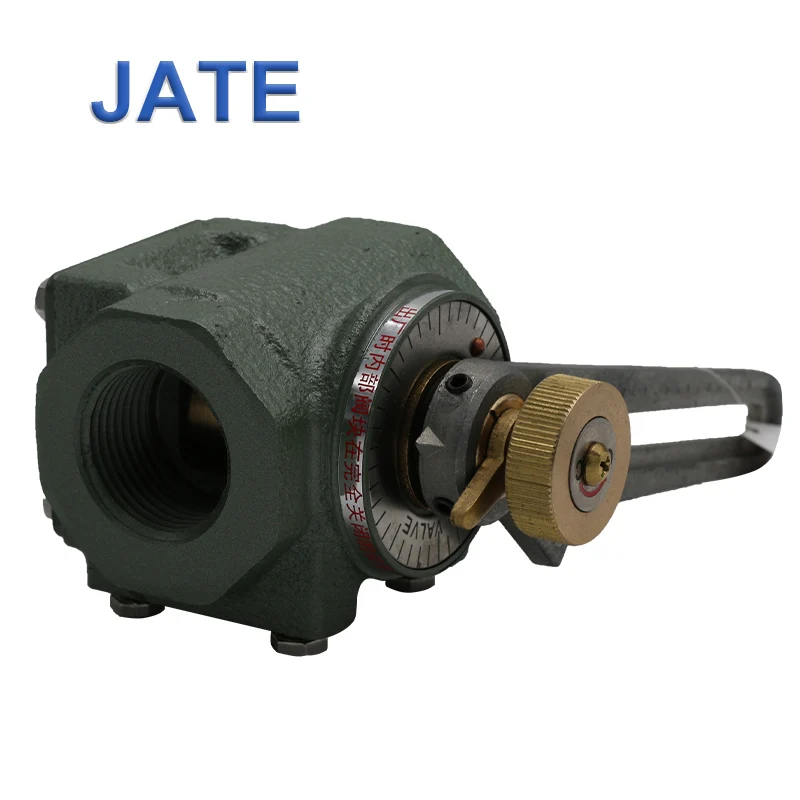

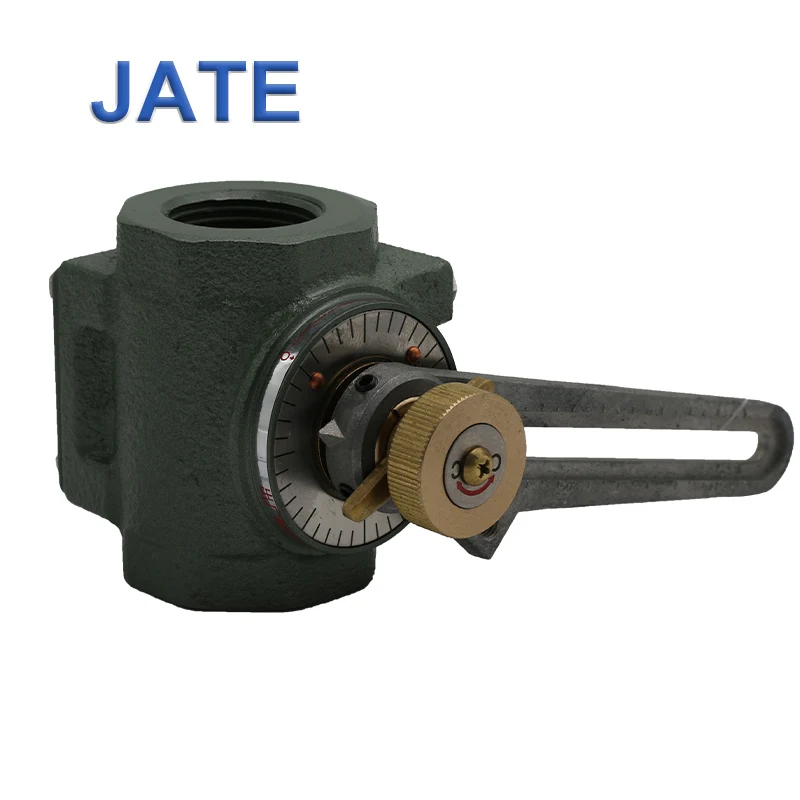

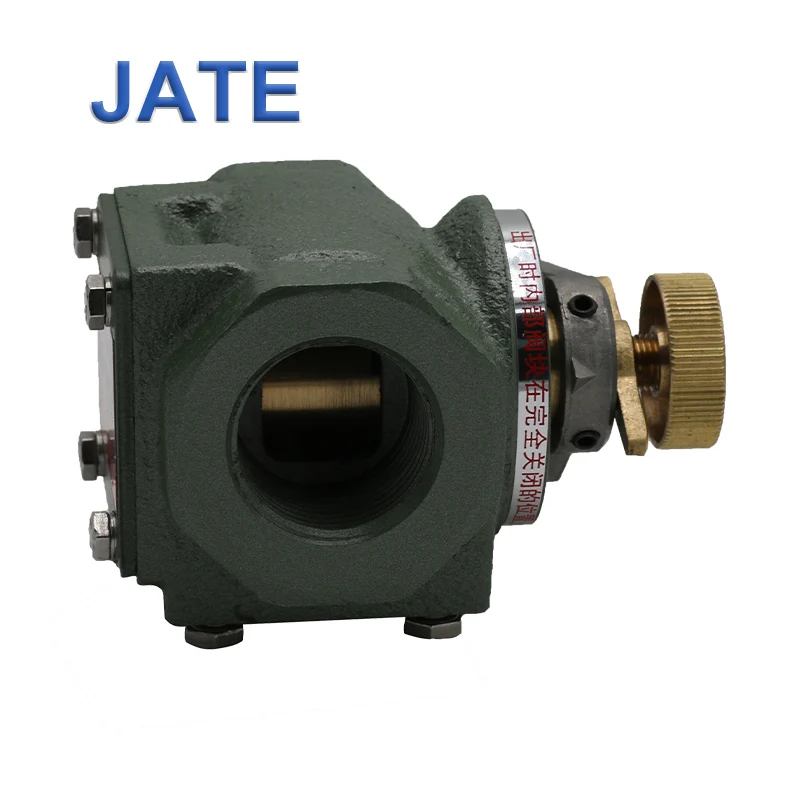

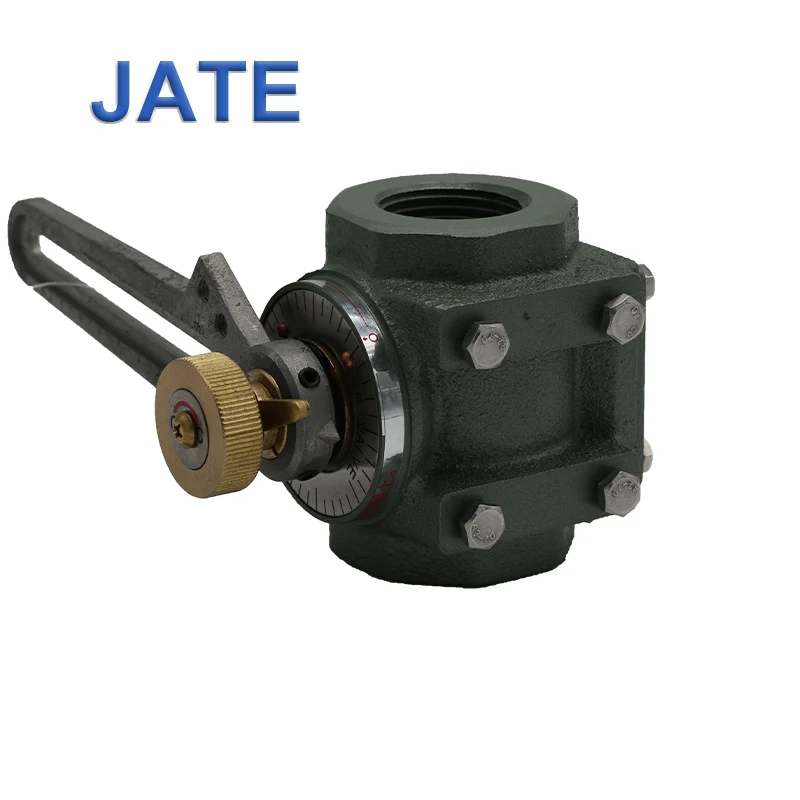

JATE SVP 40 Sanitary Double Flanged Manual Butterfly Valve With Pull Handle cast iron
JATE SVP 40 Sanitary Double Flanged Manual Butterfly Valve With Pull Handle cast iron
JATE SVP 40 Sanitary Double Flanged Manual Butterfly Valve With Pull Handle cast iron
JATE SVP 40 Sanitary Double Flanged Manual Butterfly Valve With Pull Handle cast iron
JATE SVP 40 Sanitary Double Flanged Manual Butterfly Valve With Pull Handle cast iron
JATE SVP 40 Sanitary Double Flanged Manual Butterfly Valve With Pull Handle cast iron
JATE SVP 40 Sanitary Double Flanged Manual Butterfly Valve With Pull Handle cast iron

JATE SVP 40 Sanitary Double Flanged Manual Butterfly Valve With Pull Handle cast iron

Share on (1600909091108):


Price:$54.00 - $58.00

Quantity:


Product Overview

Description



Product Description

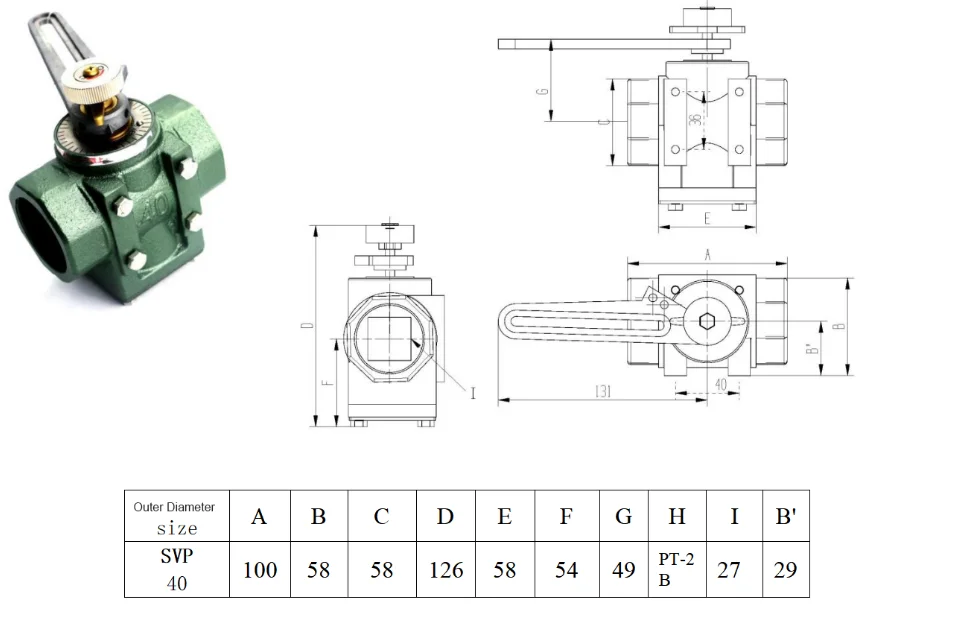

Specification


Brand Name
JATE
Model Number
SVP40
Product Name
Butterfly Valve
Material
Stainless Steel
Main body material
Zinc alloy
Biggest pressure
8kg
After Warranty Service
Video technical support
MOQ
1 pieces




Product introduction.
SVP series of butterfly valve is mainly used for combustion system of the main gas flow control fire, and achieve the temperature control more accurate, gas flow control is more reliable and more convenient, driven by servo motor control, airtight performance is very excellent, accuracy is very high, is well-known in the industry of gas combustion ratio control valve, and have manual fine tuning function, the combination of human and human nature to adjust control

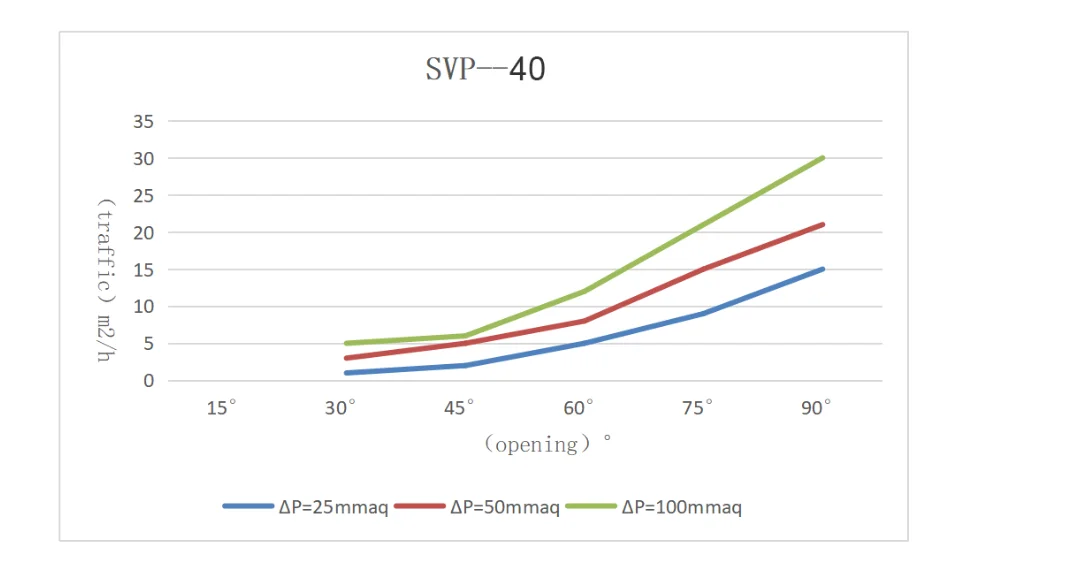

The proportional valve is different from the butterfly valve all the time, because it adopts the square inner hole way, the flow characteristic is closer to the actual value, and the flow (combustion) control is more stable In the series of combustion piping, the difference in flow characteristics caused by different diameters of gas piping and air piping can be compensated to the greatest extent
The area of the valve hole can be set at will by a adjusting knob, so gas change (heat conversion) can be
easily achieved
Adjustment of the inner hole requires only one adjusting knob with locking nut The outer shape is octagonal,
which is easy to use






Butterfly Valve Industry Adjustment] Valve JATE SVP40 Flanged Butterfly Valve For Gas Burner Parts

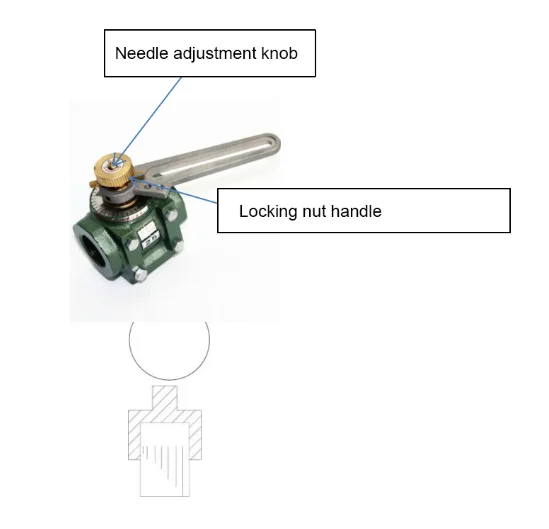

Method of use
Adjust port opening area
1.Use the pointer adjustment knob to adjust the open area of the port.
2.Rotate to the left to open,rotate
to the right to close,it can adjust by 1mm per turn
3.Use the lock nut to hold the pointer in place,in order not to Loosen the set
pointer,hold the knob with the other hand while fixing

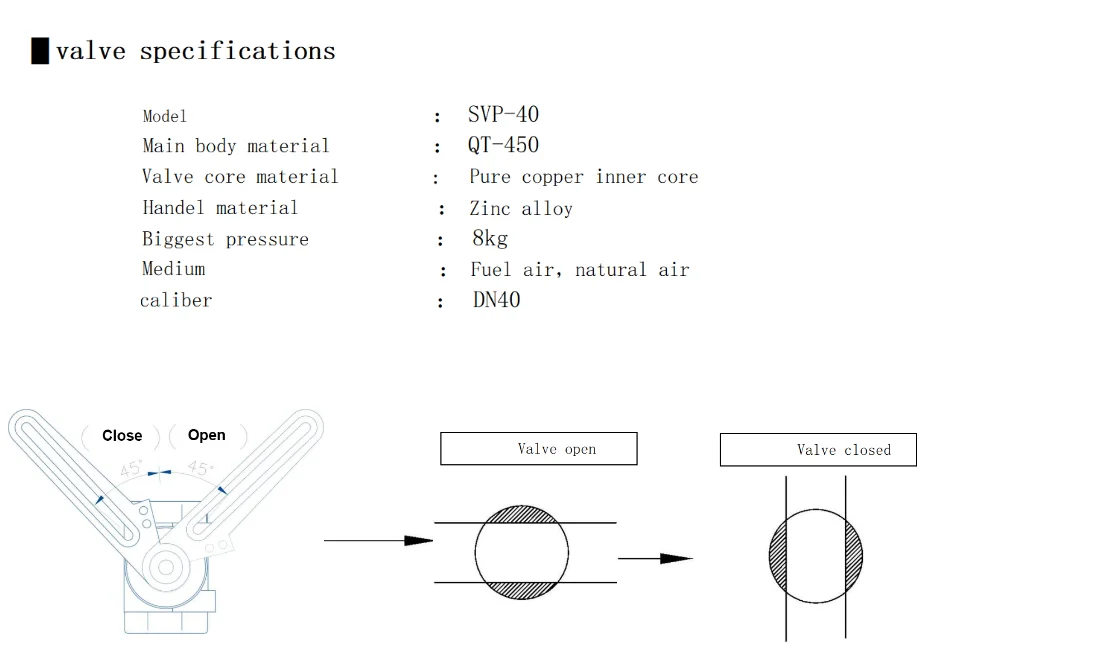

4.Adjust the opening the valve body
5.The opening of the valve body is shown
in the figure below,it depends on the switch on the different handle,the opening can be judged by the front end of the handle and the dial




Packing & Delivery




Carton Box Packing


Company Profile

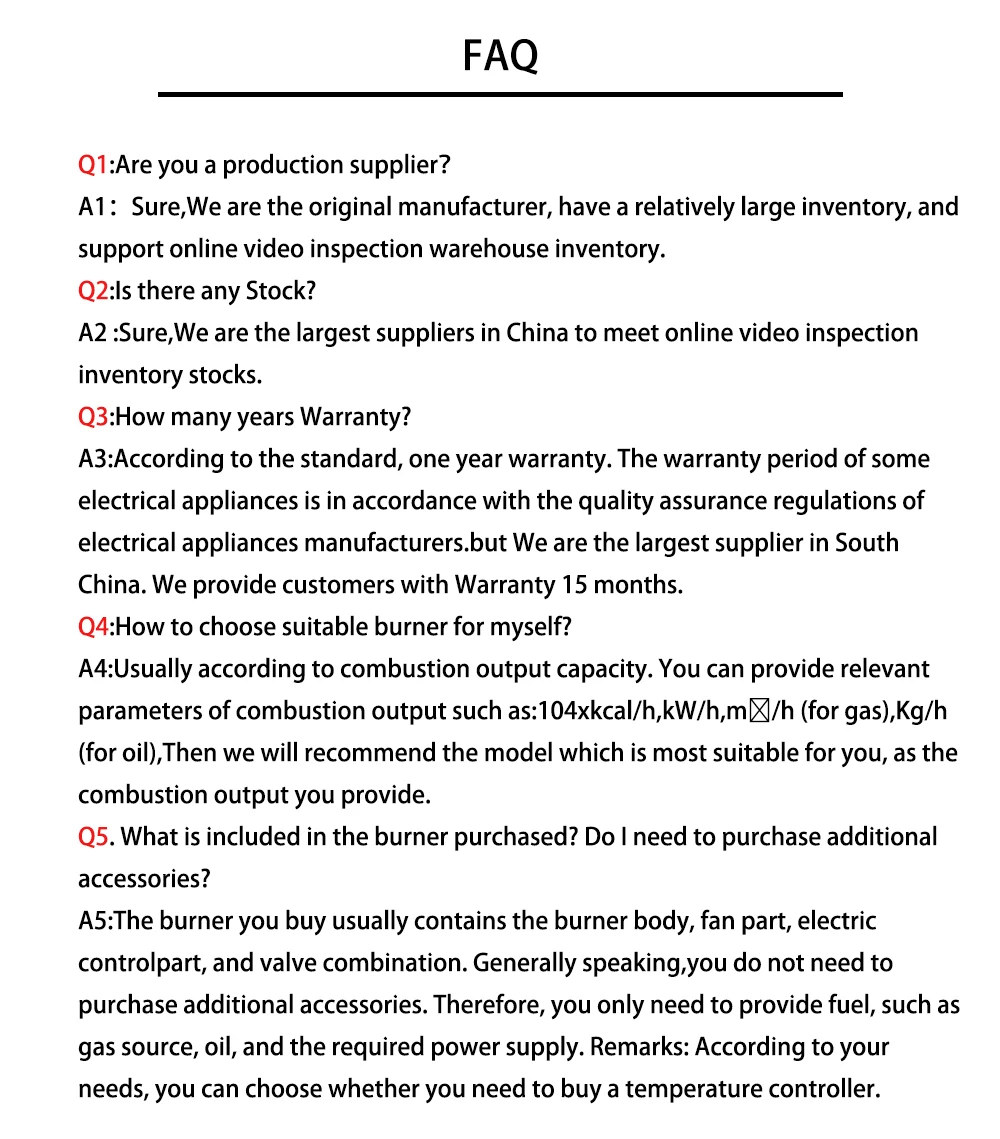

FAQ
