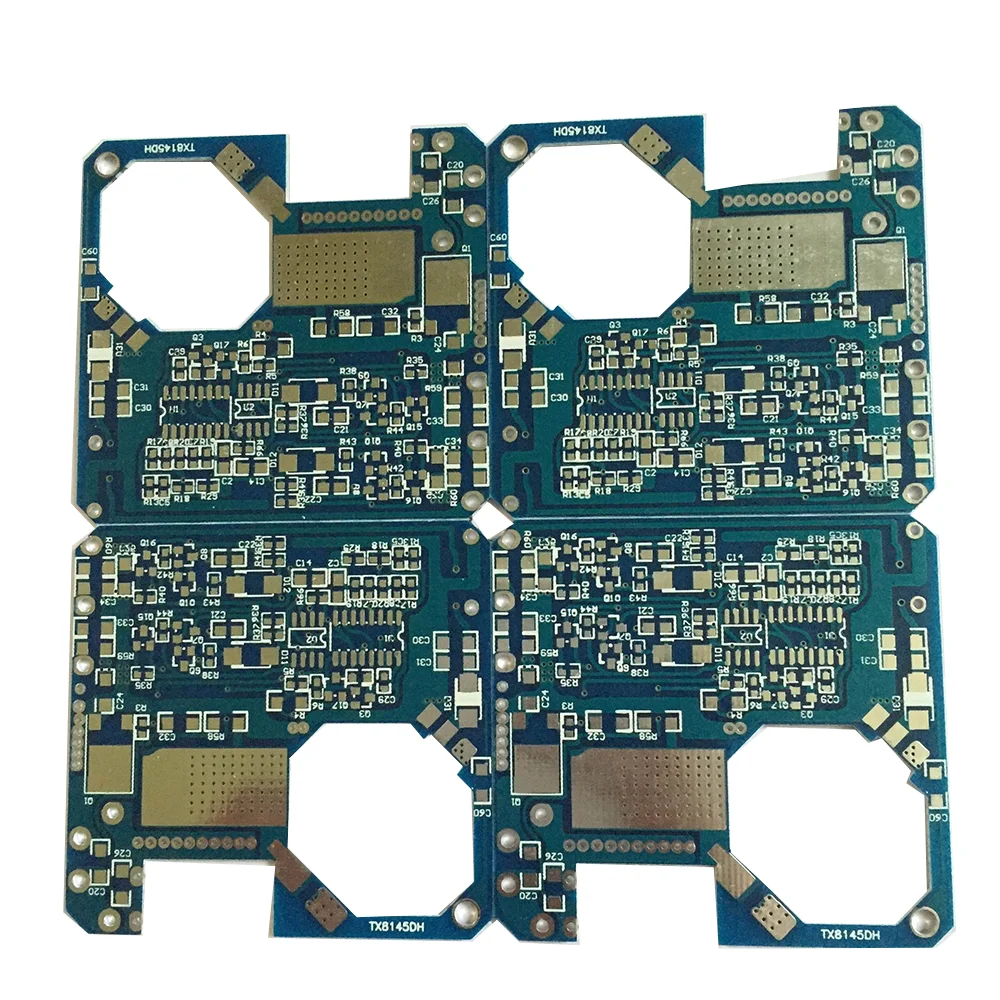

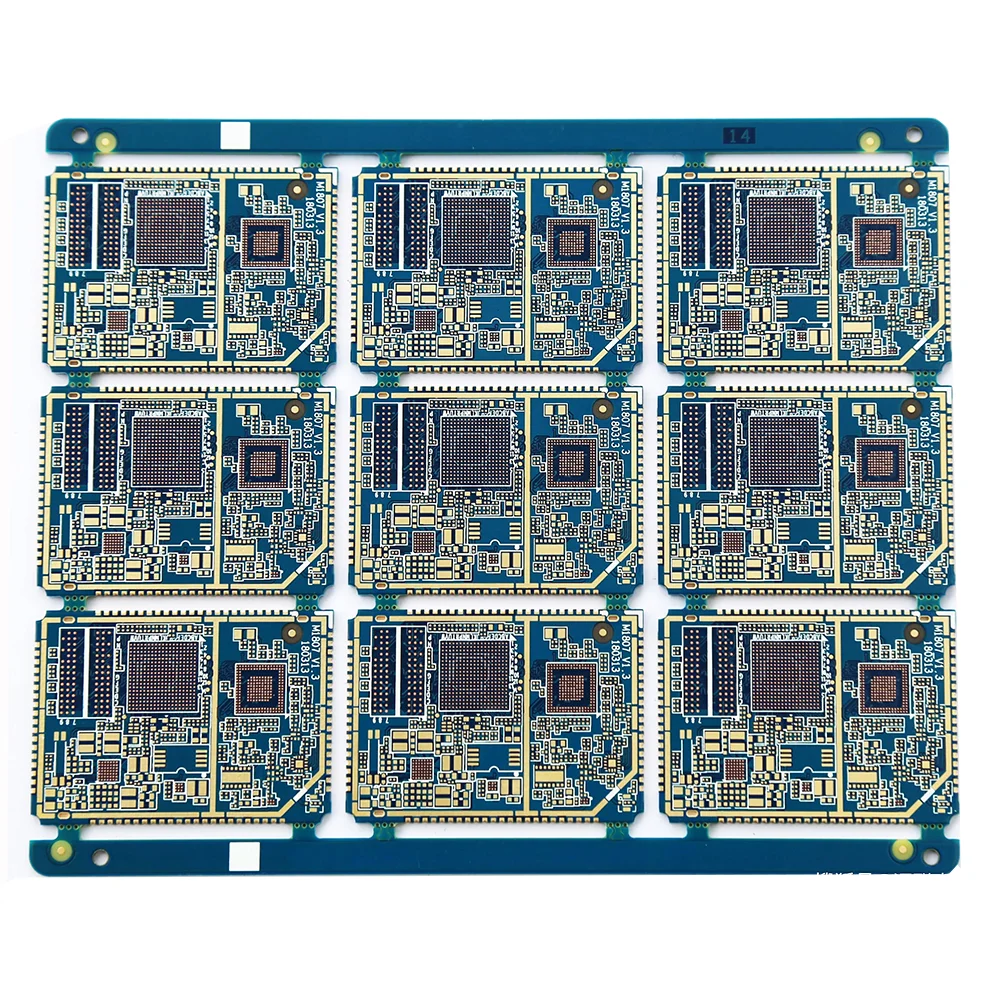

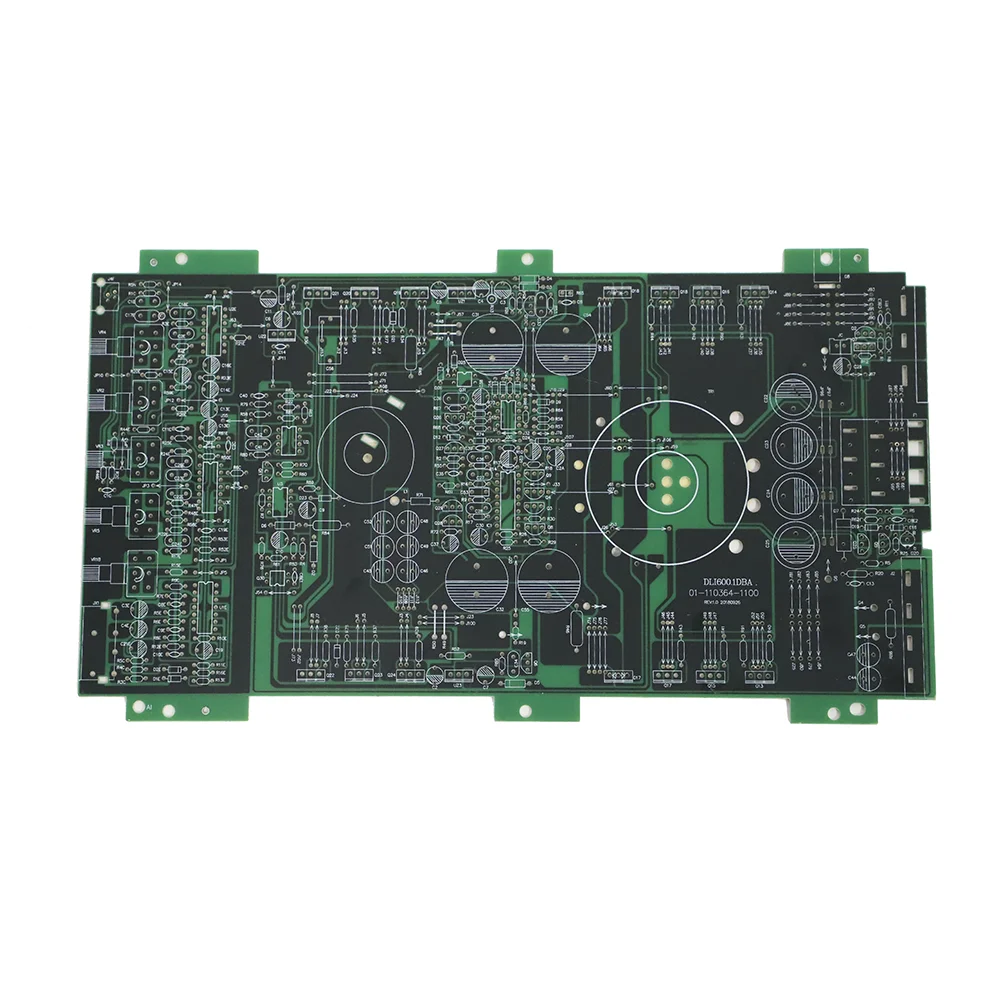

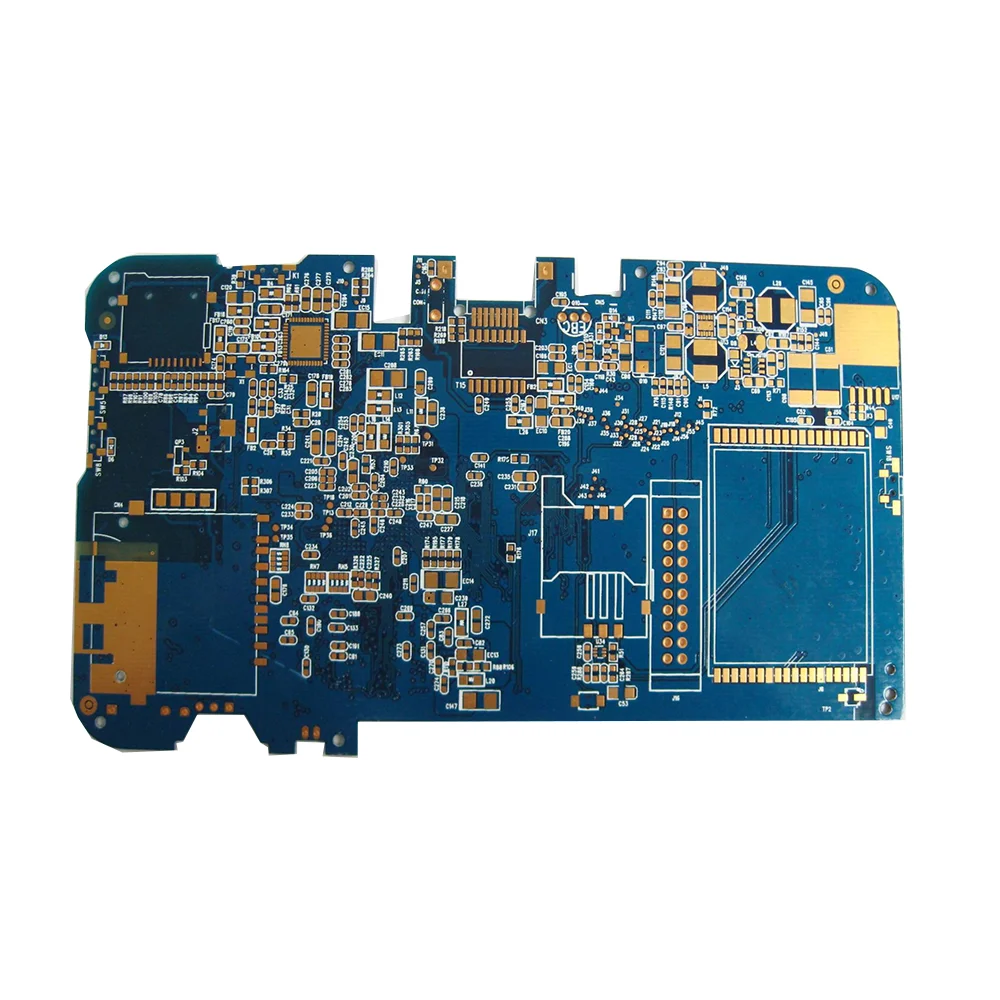

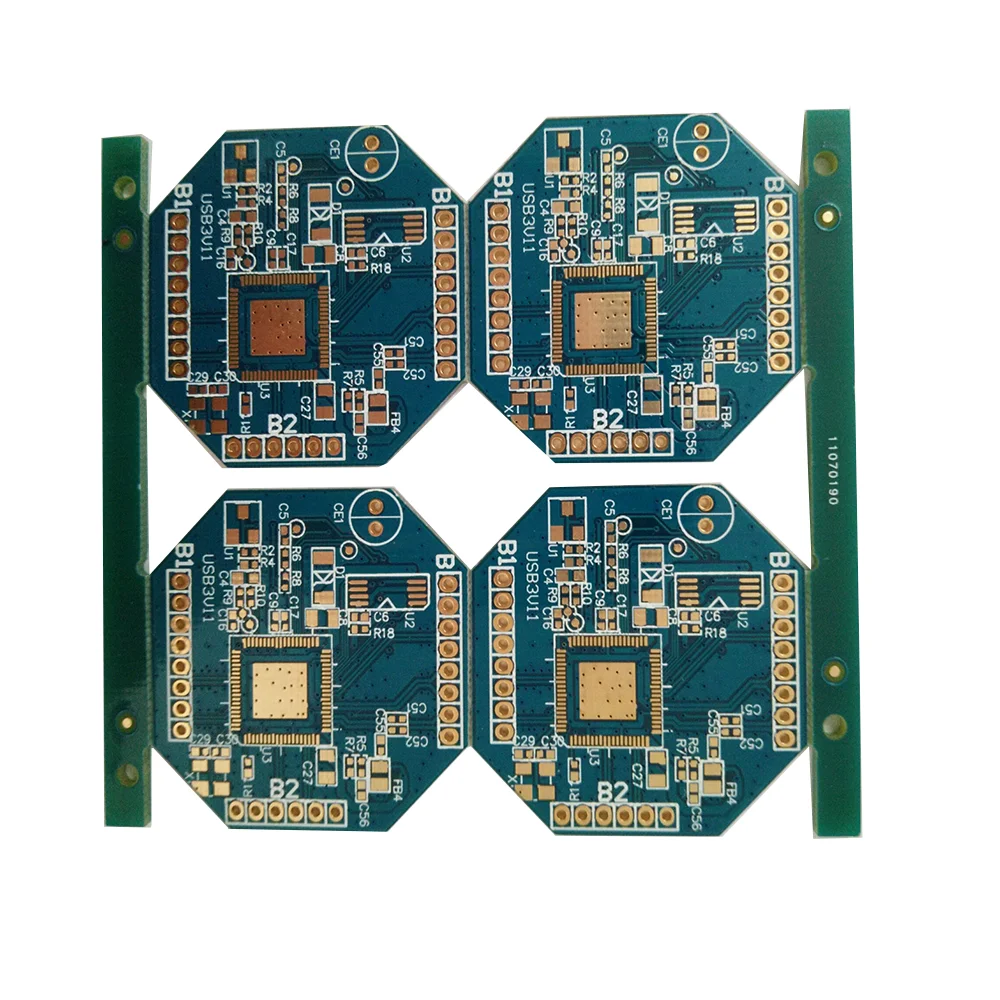

High Quality PCB Electronics Component Circuit Board O E M China Fabrication double sided PCB FR4 sheet factory
- Category: >>>
- Supplier: Shenzhen Jinlonghui Technology Co. Ltd.
Share on (1600909093657):
Product Overview
Description
Product Description
Reliable ODM, OEM, SMT service and PCBA supplier
PCB Techinecal Capacity
Layers | Mass production: 2~58 layers / Pilot run: 64 layers |
Max. Thickness | Mass production: 394mil (10mm) / Pilot run: 17.5mm |
Material | FR-4 (Standard FR4, Mid-Tg FR4,Hi-Tg FR4, Lead free assembly material) , Halogen-Free, Ceramic filled , Teflon, Polyimide, BT,PPO, PPE, Hybrid, Partial hybrid, etc. |
Min. Width/Spacing | Inner layer: 3mil/3mil (HOZ), Outer layer: 4mil/4mil(1OZ) |
Max. Copper Thickness | UL certificated: 6.0 OZ / Pilot run: 12OZ |
Min. Hole Size | Mechanical drill: 8mil(0.2mm) Laser drill: 3mil(0.075mm) |
Max. Panel Size | 1150mm × 560mm |
Aspect Ratio | 18:1 |
Surface Finish | HASL,Immersion Gold, Immersion Tin, OSP, ENIG + OSP, Immersion Silver, ENEPIG, Gold Finger |
Special Process | Buried Hole, Blind Hole, Embedded Resistance, Embedded Capacity, Hybrid, Partial hybrid, Partial high density, Back drilling, and Resistance control |
PCBA technical Capacity
SMT | Position accuracy:20 um | ||||||
Components size:0.4×0.2mm(01005) —130×79mm,Flip-CHIP,QFP,BGA,POP | |||||||
Max. component height::25mm | |||||||
Max. PCB size:680×500mm | |||||||
Min. PCB size:no limited | |||||||
PCB thickness:0.3 to 6mm | |||||||
PCB weight:3KG | |||||||
Wave-Solder | Max. PCB width:450mm | ||||||
Min. PCB width: no limited | |||||||
Component height:Top 120mm/Bot 15mm | |||||||
Sweat-Solder | Metal type :part, whole, inlay, sidestep | ||||||
Metal material:Copper , Aluminum | |||||||
Surface Finish:plating Au, plating sliver , plating Sn | |||||||
Press-fit | Air bladder rate:less than 20% | ||||||
Press range:0-50KN | |||||||
Max. PCB size:800X600mm | |||||||
Testing | ICT,Probe flying,burn-in,function test,temperature cycling | ||||||

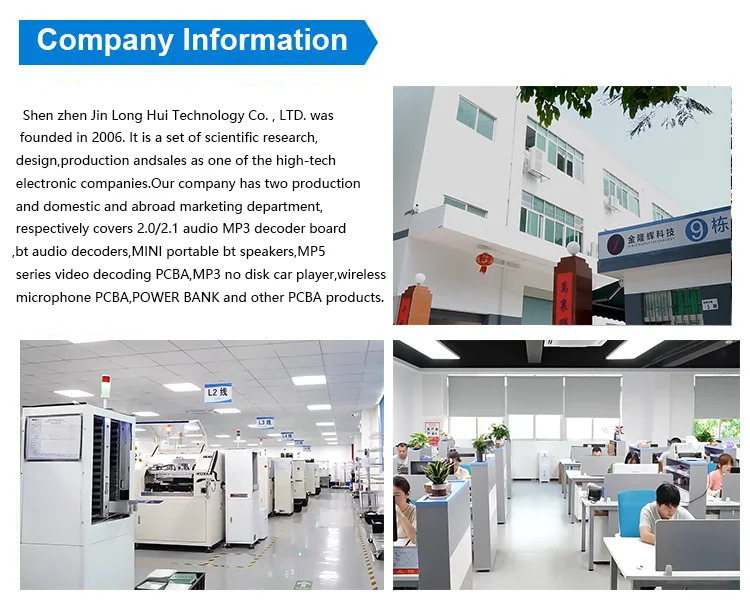

Company Profile
Jinohu,specializes in manufacturing USB/SD/FM board for car audio system, Hi-Fi home theater, WI-FI and bluetooth speakers SINCE 2004, owned two factories in Xixiang Town, Bao'an District , Shenzhen(the Silicon Valley of China) and one PCB factory in Huizhou, Guangdong Province.
Jinohu is one of the small number of manufacturers that provide one-stop solutions including electronic industrial design, PCBA SMT, acoustics structure & mechanical engineering, as well as assembly.
We provide one-stop OEM/ ODM solutions for worldwide buyers, Meanwhile Jinohu brand for those discerning partners who are looking for professional line, quality-assured products to make their business easier.
Our core competence majors in our people. We have built the infrastructure that stimulates and protects people's creativity. Our dynamic team of QC and engineering professionals are aware of how to work creatively to make the whole company more productive and accurate and to enhance product added-value via continuous design optimization.
We look forward to sharing product knowledge and 10-year professional audio industry experience with our buyers, We expect to listen to your requirements, understand your business and learn from you or to offer you our hand.
Engage our heart with your support, the excellence is infinite.
Jinohu is one of the small number of manufacturers that provide one-stop solutions including electronic industrial design, PCBA SMT, acoustics structure & mechanical engineering, as well as assembly.
We provide one-stop OEM/ ODM solutions for worldwide buyers, Meanwhile Jinohu brand for those discerning partners who are looking for professional line, quality-assured products to make their business easier.
Our core competence majors in our people. We have built the infrastructure that stimulates and protects people's creativity. Our dynamic team of QC and engineering professionals are aware of how to work creatively to make the whole company more productive and accurate and to enhance product added-value via continuous design optimization.
We look forward to sharing product knowledge and 10-year professional audio industry experience with our buyers, We expect to listen to your requirements, understand your business and learn from you or to offer you our hand.
Engage our heart with your support, the excellence is infinite.
Specification
Packing & Delivery
FAQ
Q1:What service do you have?
JLH: We provide turnkey solution including RD, PCB fabrication, SMT, plastic injection & metal, finalassembly,testing and other value-added service.

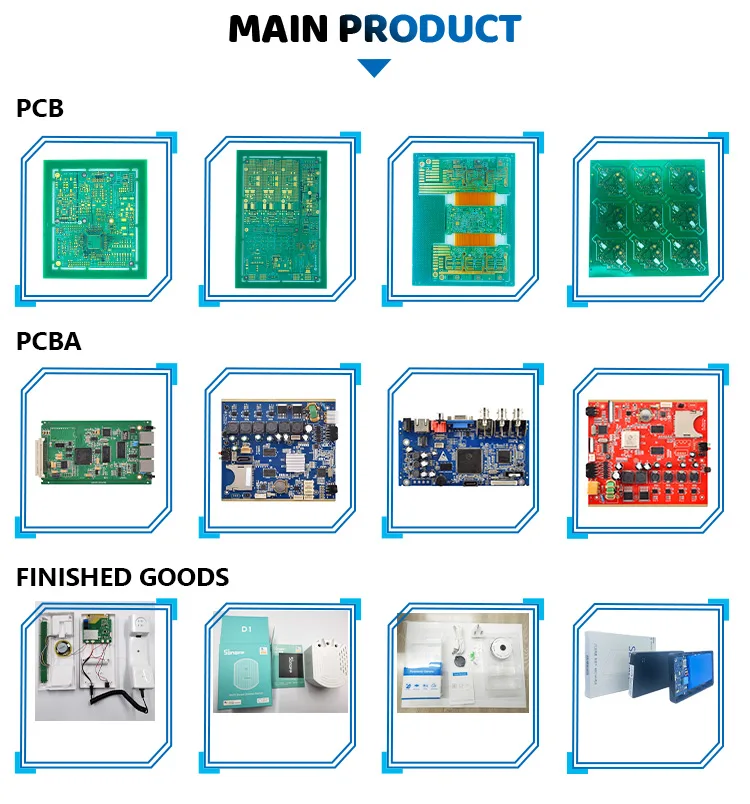

Q2:What are the main products of your PCB/PCBA services?
JLH: Our PCB/PCBAservices are mainly for the industries including Medical, Automotive, Energy, Metering/Measurements, Consumer Electronics.
Q3:Is BE a factory or trade company?
JLH: JLH is a factory with PCB factory located in China and SMT assembly factories also in China Shenzhen
Q4:Can we inspect quality during production?
JLH: Yes, we are open and transparent on each production process with nothing tohide. We welcome customer inspect our production process and check in house.
Q5:How can we ensure our information should not let third party to see our design?
JLH: We are willing to sign NDA effect by customer side local law and promising to keep customers data in high confidential level.
Q6:Do you have any minimum order quantity (MOQ) requirement?
JLH: No, we do not have MOQ requirement, we can support your projects starting from prototypes to mass productions.
