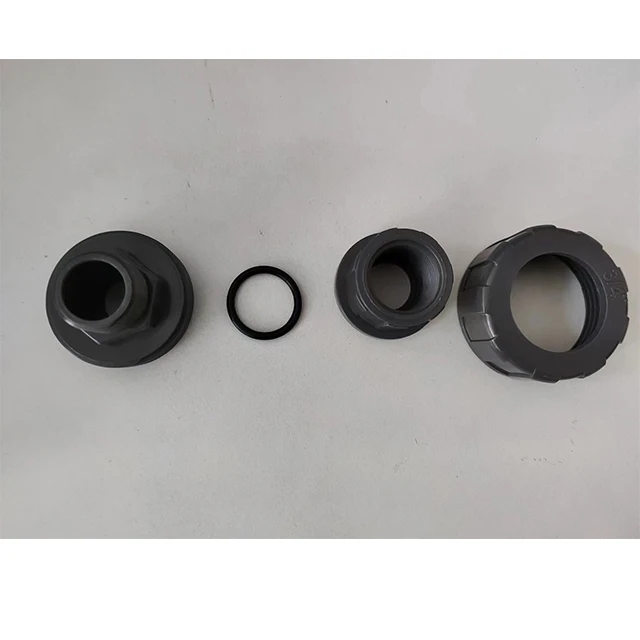

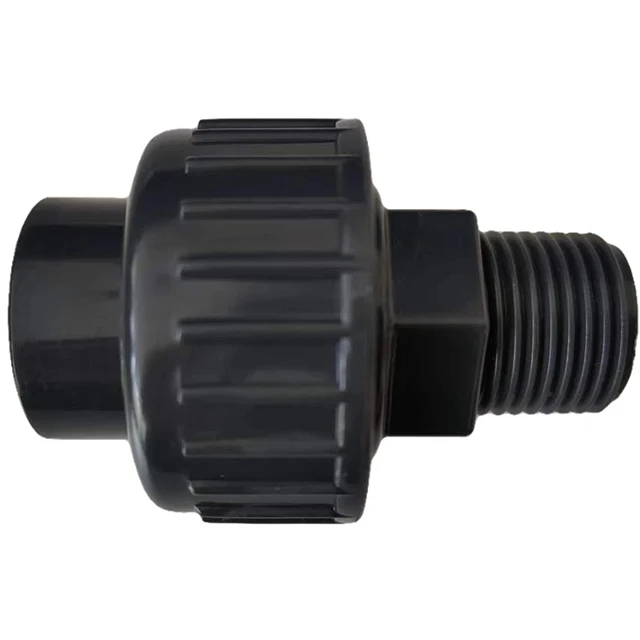

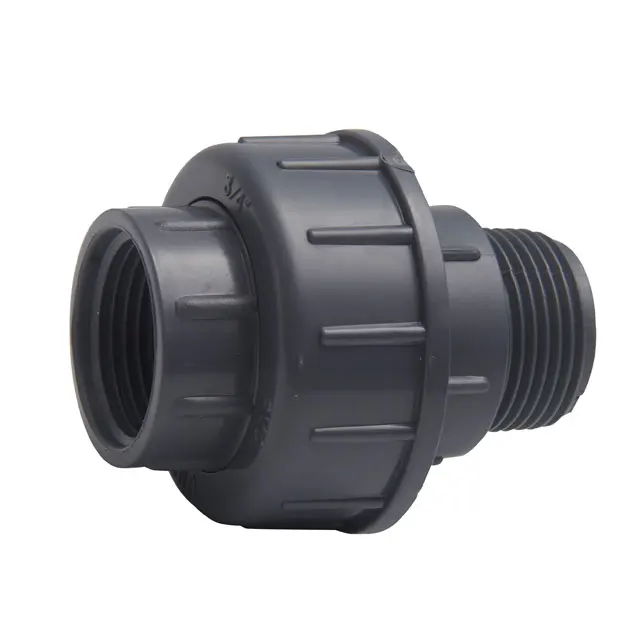

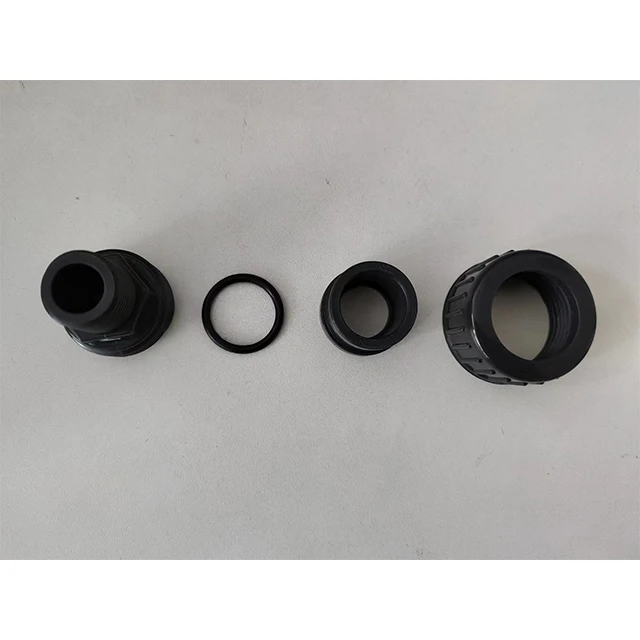

PVC plastic double threaded

Product Overview

Description

Model:	GT258	Material:	PVC
Size:	1 1/2" 2" 50mm 63mm	Connection:	Socket, screw
Standard:	ANSI/DIN/JIS/BS
Working pressure:	PN16=232PSI



Model	DN		15	20	25	32	40	50
	SIZE		1/2''	3/4''	1''	1-1/4''	1-1/2''	2''
GT254	tnd./in	NPT	14	14	11.5	11.5	11.5	11.5
GT253		BSPT	14	14	11	11	11	11
GT250	JIS	I	16.1	18.5	21	26.5	31.3	38
		d1	22.3	26.3	32.33	38.43	48.46	60.56
		d2	21.7	25.7	31.67	37.57	47.54	59.44
GT251	ANSI	I	16.1	18.5	21	26.5	31.3	38
		d1	21.54	26.87	33.65	42.04	48.56	60.63
		d2	21.23	26.57	33.27	42.04	48.11	60.17
GT252	DIN	I	16.1	18.5	21	26.5	31.3	38
		d1	20.3	25.3	32.3	40.3	50.3	63.3
		d2	20	25	32	40	50	63
D							38	48
C							95	116
L							142	160
D							62	75.5

The oven test showed no signs of bubbles or cracks

2: Simple installation and good electrical insulation
3: Good resistance
4: Water quality is not affected, flow resistance is small
5: Economy and the environment
