Horizon 6 Meter Long Metal Sheet CNC Slitter Folder
- Category: >>>
- Supplier: Nantong Super Machinery Co. Ltd.
Share on (1600909101683):
Product Overview
Description
Products Description

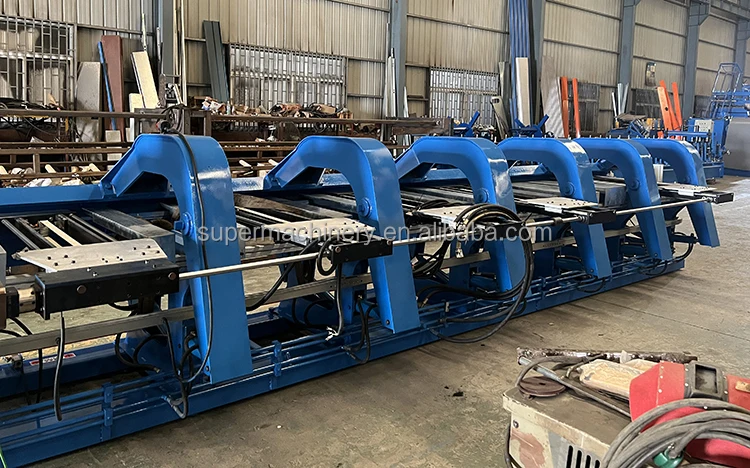

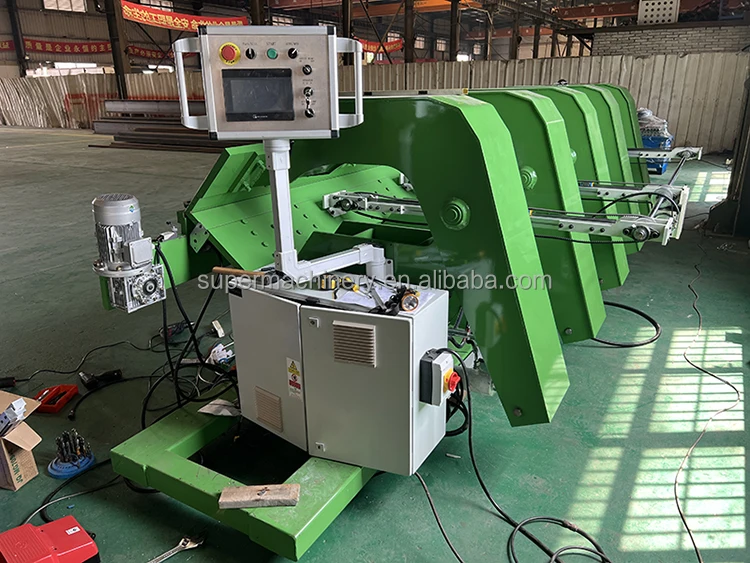

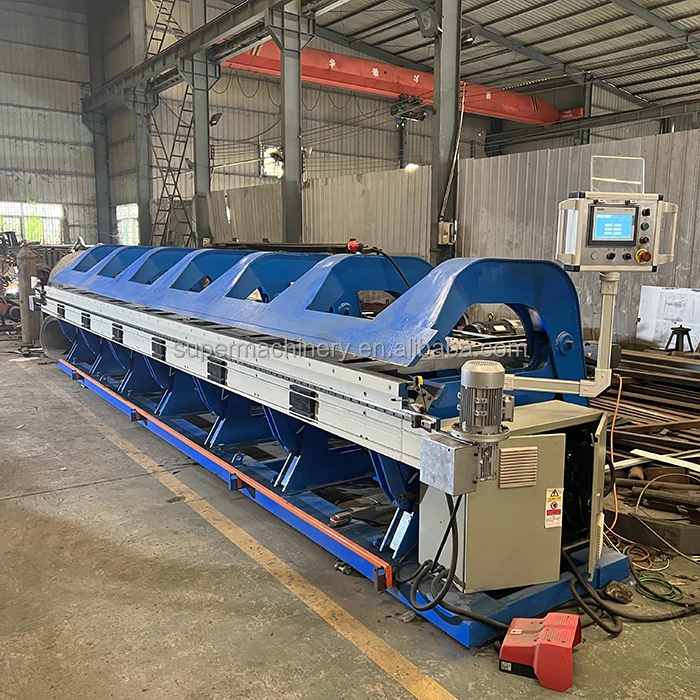

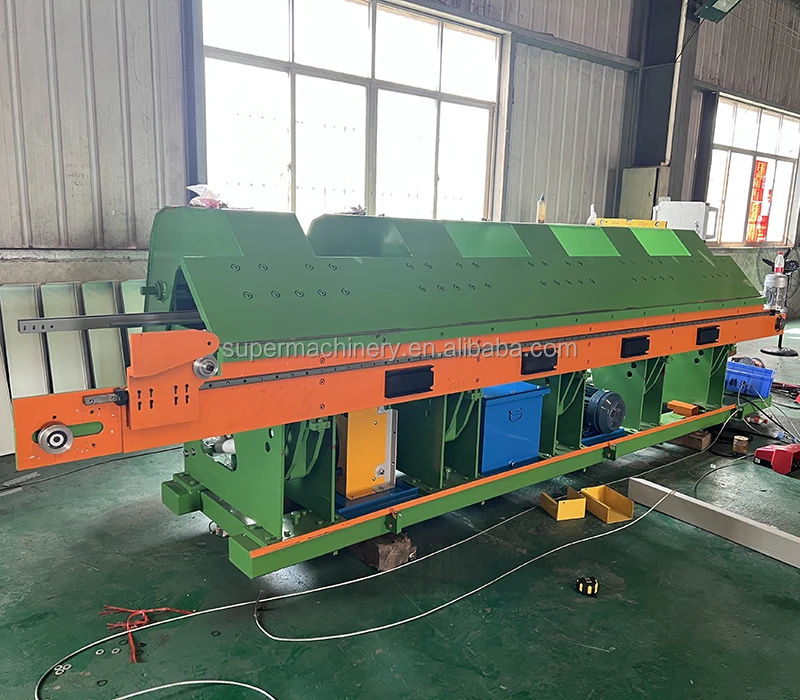

Full Automatic CNC Sheet Metal Slitter Folding Machine
Structural & Operating Features;
* Hydraulically operated folding and clamping beam for efficient heavy duty operation.
* High Structural Rigidity from Heavy Plate steel box construction with continuous welded seams.
* Folding beam powered by dual hydraulic cylinders.
* Fully integrated and enclosed electric/ hydraulic system with large oil reservoir.
* High load dual spherical plane bearings utilized at folding beam pivots and over-centre clamp bearings.
* Precise electric/ hydraulic controls with manual inching of folding beam.
* Utilization of easy to set micro-switches provides accurate adjustable angle control to the folding apron.
* Comprehensive equipment protection from electric and hydraulic overload systems
Hydraulic System;
* High quality components ensure reliable performance for years of continuous operation
* Powerful direct coupled hydraulic pump and motor provides efficient, rapid operation.
* Unique electric/ hydraulic control ensures safe and simple operation.
Specifications;
* Up to 8200 mm folding length available - Capacity 1.6 mm available
* High bending angle of 0-135° - Up to 145mm depth of box bent - Up to 150mm lift of clamping beam
* 24V control wiring – segmented folding tools made from hardened material maximizing life
* Instruction, Hydraulic and Electrical Manuals – CE Marked
* Hydraulically operated folding and clamping beam for efficient heavy duty operation.
* High Structural Rigidity from Heavy Plate steel box construction with continuous welded seams.
* Folding beam powered by dual hydraulic cylinders.
* Fully integrated and enclosed electric/ hydraulic system with large oil reservoir.
* High load dual spherical plane bearings utilized at folding beam pivots and over-centre clamp bearings.
* Precise electric/ hydraulic controls with manual inching of folding beam.
* Utilization of easy to set micro-switches provides accurate adjustable angle control to the folding apron.
* Comprehensive equipment protection from electric and hydraulic overload systems
Hydraulic System;
* High quality components ensure reliable performance for years of continuous operation
* Powerful direct coupled hydraulic pump and motor provides efficient, rapid operation.
* Unique electric/ hydraulic control ensures safe and simple operation.
Specifications;
* Up to 8200 mm folding length available - Capacity 1.6 mm available
* High bending angle of 0-135° - Up to 145mm depth of box bent - Up to 150mm lift of clamping beam
* 24V control wiring – segmented folding tools made from hardened material maximizing life
* Instruction, Hydraulic and Electrical Manuals – CE Marked
Feature
* 14 gauge maximum thickness
* Box and Pan upper clamp
* Advanced Computer Control
* Draw desired shape on touch screen, adjust lengths and angles, adjust bend sequence, save part, run part, bend part. Very easy to use.
* Servo controlled Backgauge
* Light curtain – safety device
* Video of operation available
* CE&ISO 9001:2000.
* Box and Pan upper clamp
* Advanced Computer Control
* Draw desired shape on touch screen, adjust lengths and angles, adjust bend sequence, save part, run part, bend part. Very easy to use.
* Servo controlled Backgauge
* Light curtain – safety device
* Video of operation available
* CE&ISO 9001:2000.
Options
* Back gauge extend
* IPC computerProduct Paramenters
Model | SF4616 | SF6516 | SF8216 | ||||
Max folding length (mm) | 4600 | 6500 | 8200 | ||||
Throat Depth (mm) | 1000 | ||||||
Folding Degree | 0~135 | ||||||
Max Folding/Slitting thickness (mm) | MS | 1.6 | |||||
Aluminium | 2.0 | ||||||
SS | 1.0 | ||||||
Slitting speed (m/s) | 0.72 | ||||||
Hydraulic pressure (Mpa) | 16 | ||||||
Total power (kw) | 6 | 8 | 9 | ||||
Total weight (kg) | 3000 | 4000 | 5000 | ||||

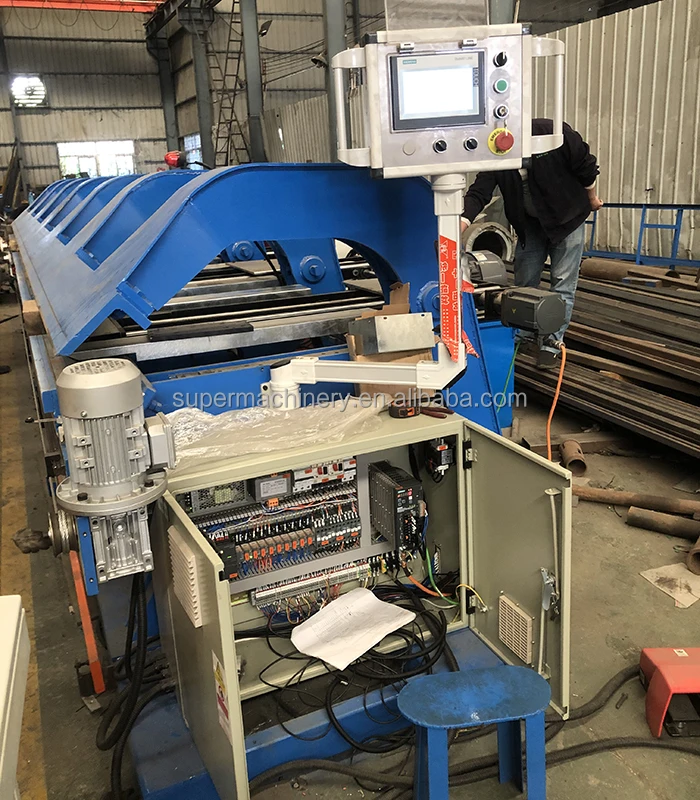

Main motor(siemens), magnetic valve (rexroth),hydraulic system
Electric componet(Schneider) , PLC+touch screen (Xinjie)
CNC folding brake samples
Sheet metal box and pan folding brake slitter machine options:
2-axis graphic CNC for bending angle and back gauge
