ETEK smart contactor AC 220v 4 pole and 2 modular TUYA/WIFI electric contactors WIFI smart switch controller contactor
- Category: >>>
- Supplier: Wenzhou Etek Import And Export Co. Ltd.
Share on (1600909157808):
Product Overview
Description
Recommend Products
Products Description

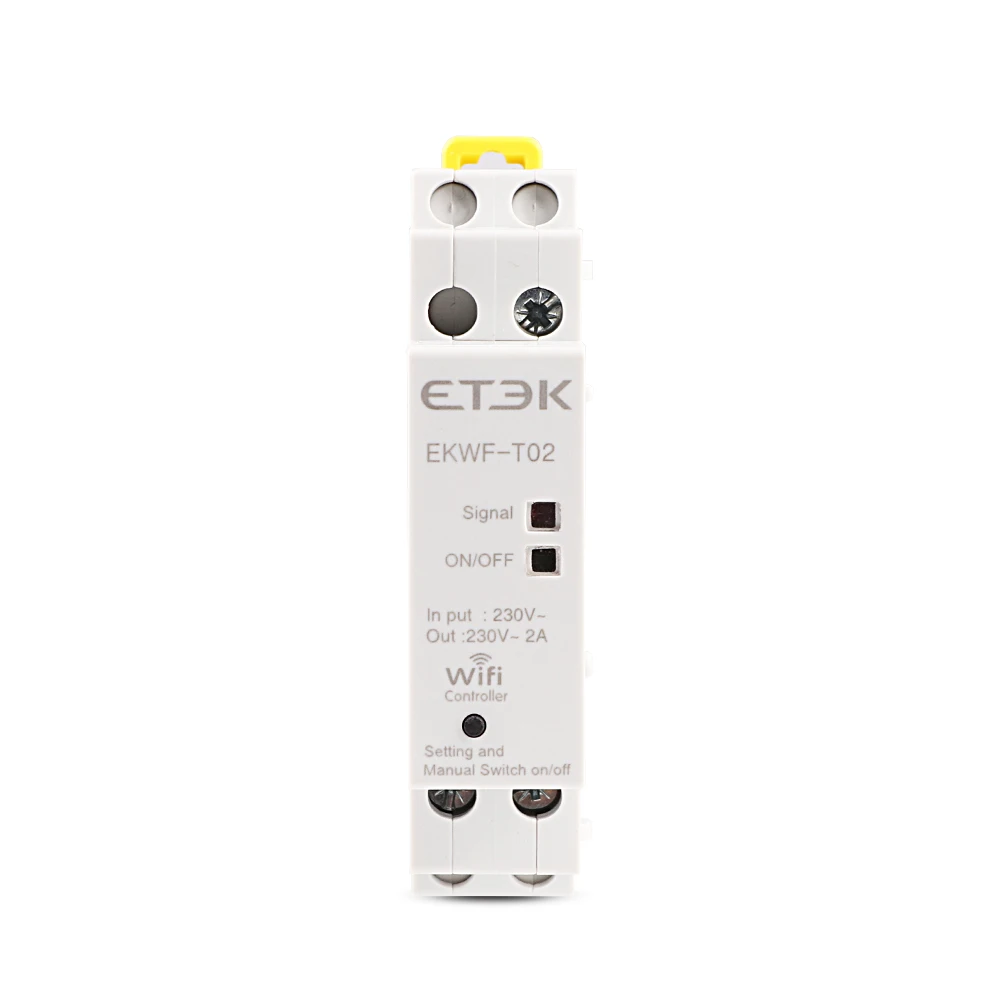

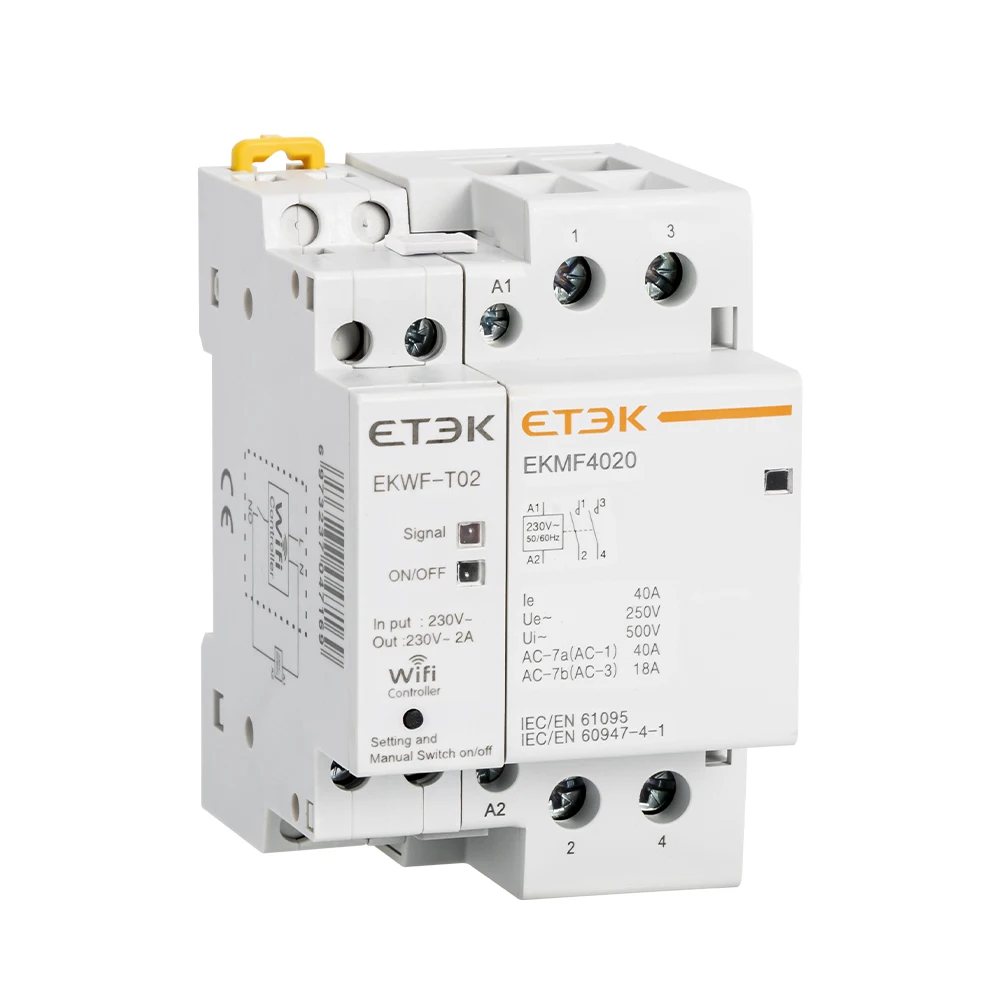

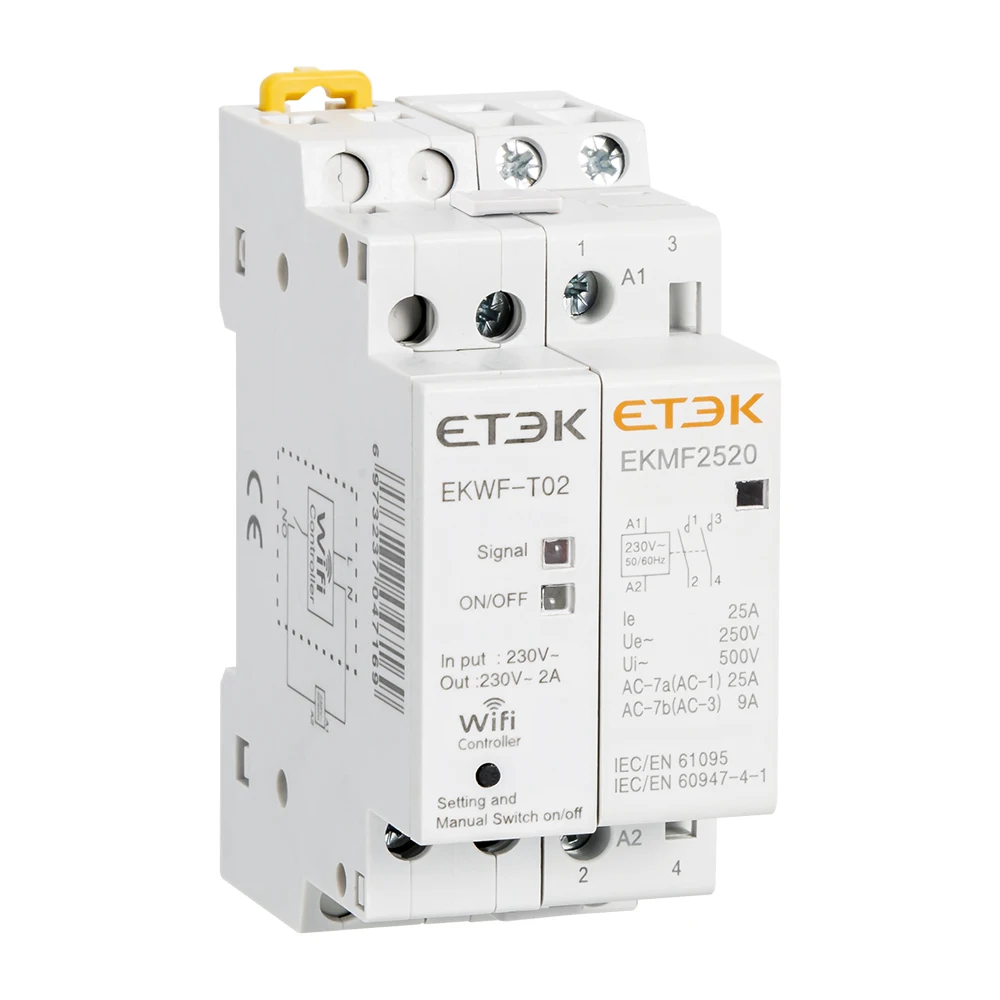

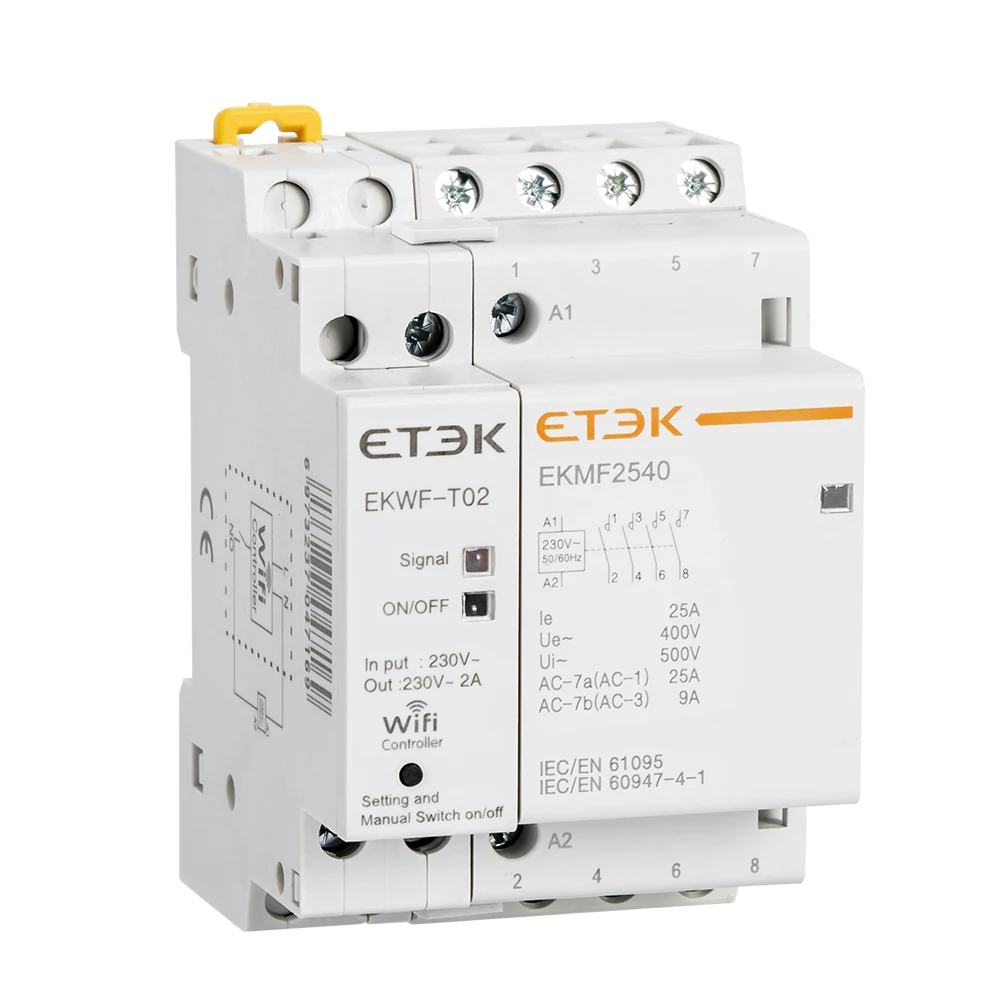

EKWF-T02+EKMF2520
A magnetic contactor is a device that is powered by magnetism. Used to open and close the contacts in the motor control circuit,
it may also be called a magnetic switch or a contactor.
A magnetic contactor is a device that is very often used in industry. Commercial, large industries are very much dependent on this
device. Through it, we can easily control heavy loads such as high-capacity motors.
ETEK Electric offers Magnetic Contactors, Mini Contactors, Capacitive Contactors and Contactor Accessories for different
applications.
it may also be called a magnetic switch or a contactor.
A magnetic contactor is a device that is very often used in industry. Commercial, large industries are very much dependent on this
device. Through it, we can easily control heavy loads such as high-capacity motors.
ETEK Electric offers Magnetic Contactors, Mini Contactors, Capacitive Contactors and Contactor Accessories for different
applications.
Technical Data
Voltage rating(Ue） | 1P, 2P | 250V AC | ||
3P, 4P | 400V AC | |||
Frequency | 50/60Hz | |||
Endueance (O-C) | ||||
Electrical life | 100000 | |||
Maximum number of switching operation a day | 100 | |||
Addition characteristics | ||||
Insulation vwltage(Ui) | 500V ac | |||
Pollution Degree | 2 | |||
Rated impulse withstand voltage(Uimp) | 2.5kV(4kV@12/24/48VAC) | |||
Degree of protection(IEC 60529) | IP20 | |||
IP40 | ||||
Storage temperature | -40℃~+70℃（1） | |||
Tropicalization (IEC 60068-1) | Treatment 2(relative humidity 95% at 55℃） | |||
ELSV compliance (Extra Low Safety Voltage) for 12/24/48 VAC versions | ||||
The product control conforms to the SELV (safety extra low volatge) requirements | ||||
Operating temperature | -5℃~+60℃（1） | |||
No. of Poles | Model | Rating (ln) | Rated Voltage Ue (V AC)(50Hz) | Circuit Diagram | ||
AC-7a | AC-7b | |||||
4P | EKMF-1640 | 16A | 6A | 24 110 230 | 4NO | |
EKMF-2040 | 20A | 7A | ||||
EKMF-2540 | 25A | 9A | ||||
EKMF-1604 | 16A | 6A | 4NC | |||
EKMF-2004 | 20A | 7A | ||||
EKMF-2504 | 25A | 9A | ||||
EKMF-1622 | 16A | 6A | 2NC/2NO | |||
EKMF-2022 | 20A | 7A | ||||
EKMF-2522 | 25A | 9A | 2NO | |||
EKMF-1631 | 16A | 6A | 3NO/1NC | |||
EKMF-2031 | 20A | 7A | ||||
EKMF-2531 | 25A | 9A | ||||
EKMF-3240 | 32A | 12A | 4NC | |||
EKMF-4040 | 40A | 18A | ||||
EKMF-6304 | 63A | 25A | ||||
EKMF-3204 | 32A | 12A | ||||
EKMF-3211 | 32A | 12A | 1NO/1NC | |||
EKMF-3202 | 40A | 18A | ||||
EKMF6302 | 63A | 25A | ||||

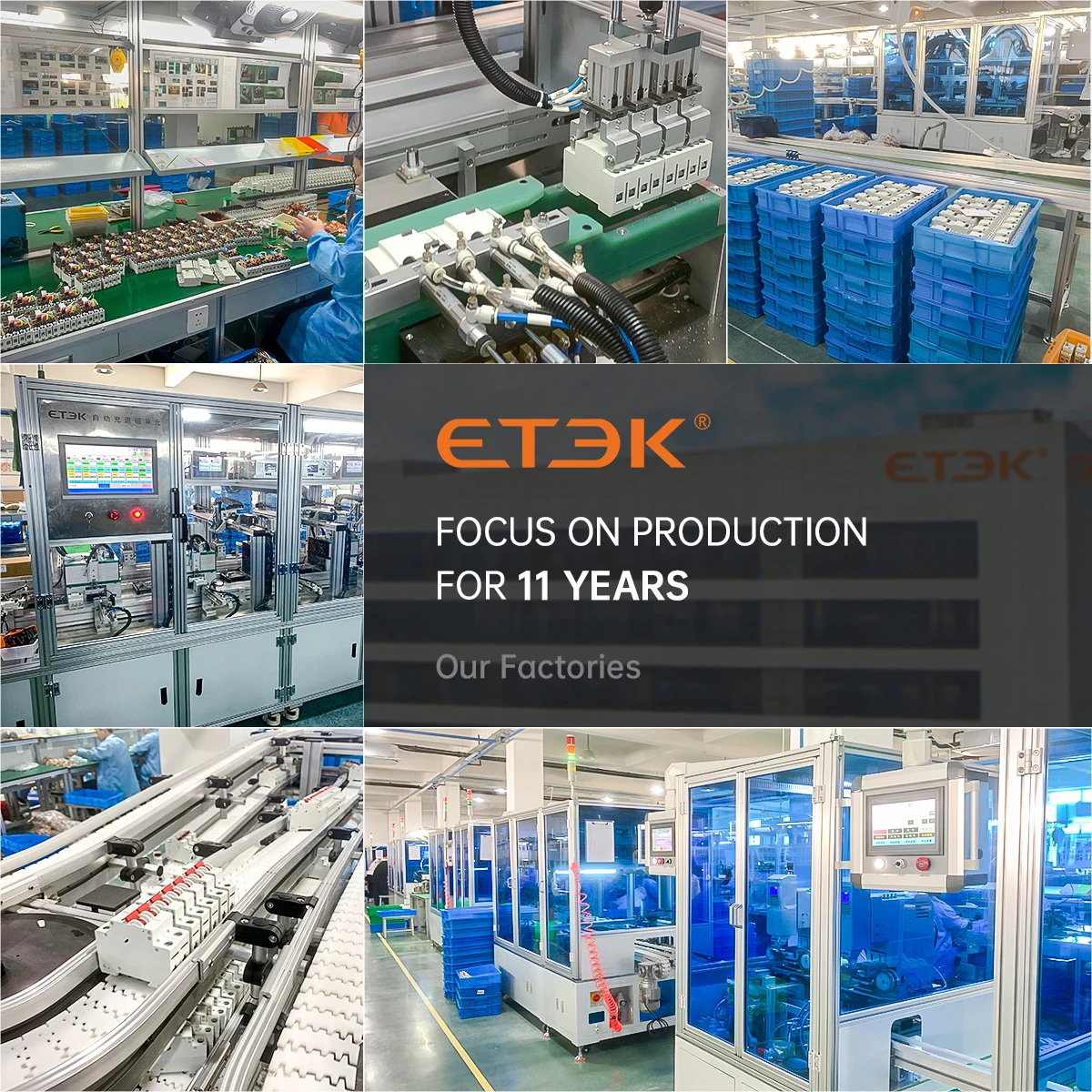

Company Profile
Packaging and Delivery
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral cartons.If you have legally registered patent,we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit,and 70% before delivery.We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF.
Q4. How about your delivery time?
A: Generally,it will take 3 weeks after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q7:Are you a real manufacturer or a trade company?
A: We are an integrated industrial and trade enterprises. We have our own factory and marketing department.
Q8:Is it OK to print my Logo on the product?
A:Yes,we support OEM/ODM service.
A: Generally, we pack our goods in neutral cartons.If you have legally registered patent,we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit,and 70% before delivery.We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF.
Q4. How about your delivery time?
A: Generally,it will take 3 weeks after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. Do you test all your goodsbefore delivery?
A: Yes, we have 100% test before delivery
A: Yes, we have 100% test before delivery
Q7:Are you a real manufacturer or a trade company?
A: We are an integrated industrial and trade enterprises. We have our own factory and marketing department.
Q8:Is it OK to print my Logo on the product?
A:Yes,we support OEM/ODM service.
