Electric Mini Size 3 Way Spiral Bevel Gearbox With Cheap Price
- Category: >>>
- Supplier: Dongguan Nosen M&e Technology Co. Ltd.
Share on (1600909165285):
Product Overview
Description
Ratio 90 Degree Transmission Gearboxes
Product Description

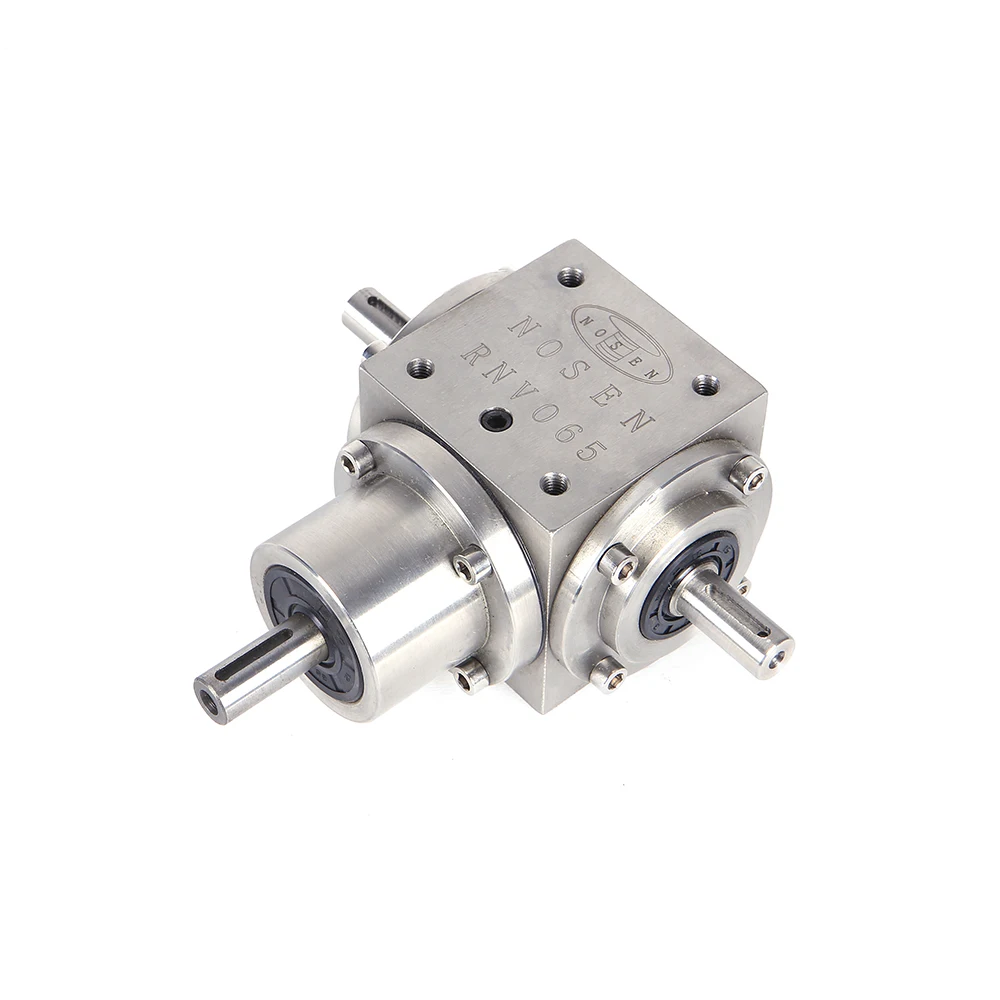

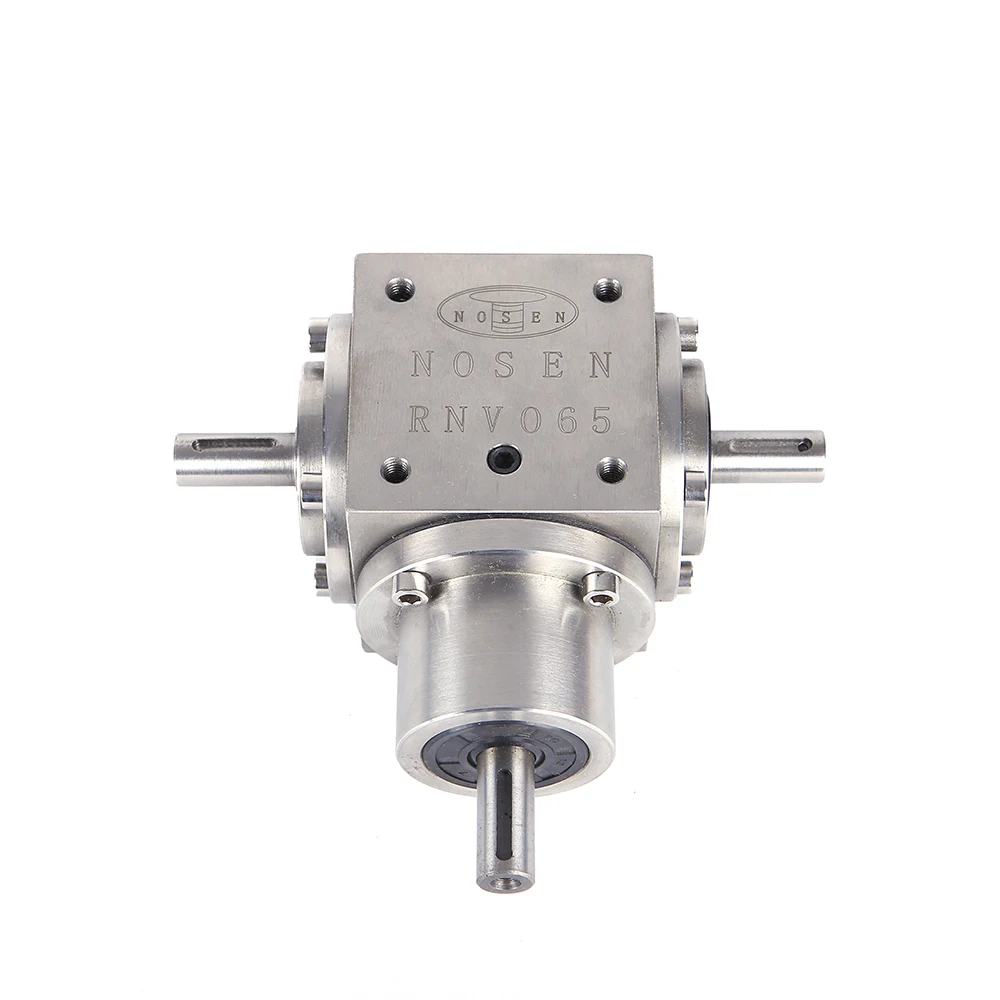

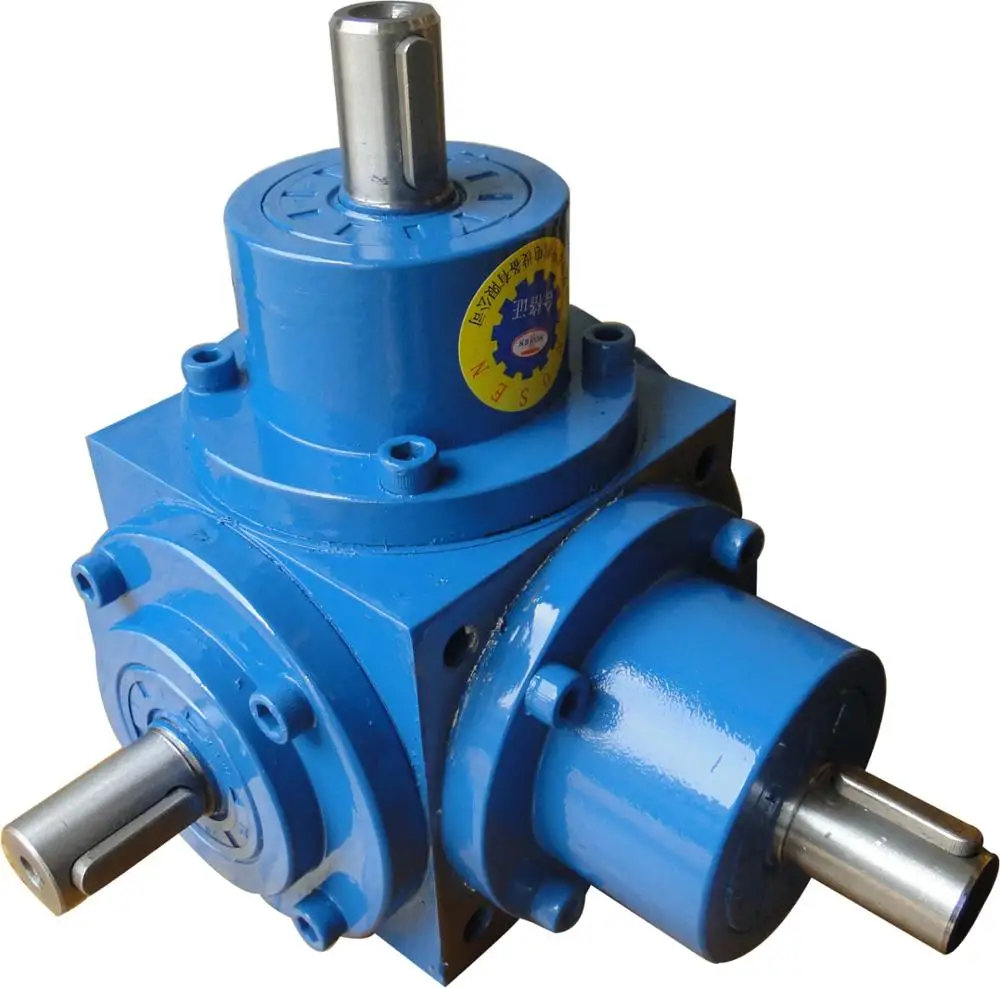

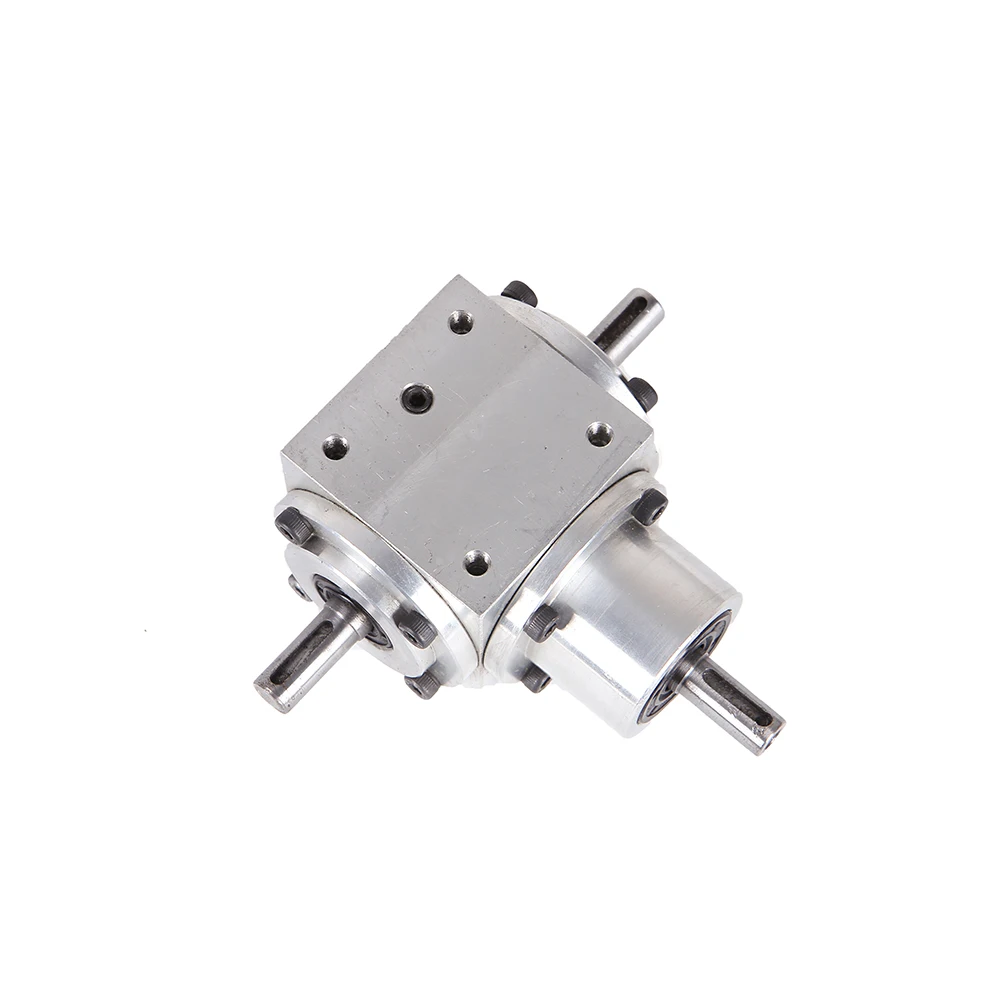

Bevel Gearbox RNV-series
RNVSeries 90 degree transmission bevel gearbox, named spiral bevel gear cubic gearbox, right angles change transmission
directions and power, efficiency up to 95%. 6 surfaces of gearbox milled and glossy. Gear ratio 1:1, 2:1 as our standard, also custom
1.5:1, 2.5:1, 3:1, 4:1, 5:1 gear box. 2 way,3 way,4 way gearboxes are available. 6 kinds of models for your selection.
Models:
RNV-065,RNV-090,RNV-120,RNV-160,RNV-200,RNV-260
Configurations:
spiral bevel gears,bearings,housing,oil sealing,input and output shafts etc.
Use Detail:
Gear Oil: HD320~680
Max Revolutions: 1500 rpm
Ambient Temperature: -20ºC~+80ºC, special temperature,consult our engineers
Noise Level: less than 80 dB
Temperature Level: less than 50ºC
Test Equipments: noise meter and infrared thermometer
Technical datas sheet
Model | Gear ratio | Input speed 1500RPM | Input speed 1000RPM | Input speed 750RPM | Input speed 500RPM | Input speed 250RPM | Input speed 50RPM | ||||||
Input (HP) | Torque (N.m) | Input (HP) | Torque (N.m) | Input (HP) | Torque (N.m) | Input (HP) | Torque (N.m) | Input (HP) | Torque (N.m) | Input (HP) | Torque (N.m) | ||
RNV-065 | 1:1 | 2.4 | 11.6 | 1.76 | 12.61 | 1.43 | 13.66 | 1.1 | 15.76 | 0.63 | 18.5 | 0.13 | 18.62 |
2:1 | 1.2 | 5.8 | 0.88 | 6.30 | 0.72 | 6.88 | 0.54 | 7.73 | 0.31 | 8.88 | 0.06 | 8.59 | |
RNV-090 | 1:1 | 7.05 | 33.8 | 5 | 35.81 | 4.08 | 38.96 | 3 | 42.97 | 1.6 | 45.86 | 0.37 | 53 |
2:1 | 2.97 | 14.3 | 2.28 | 16.33 | 1.76 | 16.81 | 1.25 | 17.91 | 0.66 | 18.91 | 0.13 | 18.62 | |
RNV-120 | 1:1 | 18 | 86 | 13.52 | 96.83 | 11.34 | 108.29 | 8.45 | 121.04 | 4.52 | 129.49 | 0.96 | 137.51 |
2:1 | 8 | 38.5 | 5.9 | 42.26 | 4.7 | 44.88 | 3.38 | 48.42 | 1.8 | 51.57 | 0.38 | 54.43 | |
RNV-160 | 1:1 | 57.3 | 275 | 42.6 | 305.1 | 34.2 | 326.59 | 24.25 | 347.36 | 12.85 | 368.13 | 2.78 | 398.21 |
2:1 | 27 | 129.6 | 19.84 | 142.09 | 15.4 | 147.06 | 11 | 157.56 | 5.88 | 168.45 | 1.3 | 186.21 | |
RNV-200 | 1:1 | 99.2 | 476 | 74.9 | 536.43 | 61 | 582.51 | 45.5 | 651.74 | 26 | 744.85 | 5.5 | 787.82 |
2:1 | 46.8 | 224.8 | 36.7 | 262.85 | 29.7 | 283.62 | 22.4 | 320.86 | 12.5 | 358.1 | 2.76 | 395.34 | |
RNV-260 | 1:1 | 209 | 1005 | 154.3 | 1105.1 | 128.9 | 1230.91 | 97 | 1389.43 | 56.5 | 1618.61 | 12.8 | 1833.47 |
2:1 | 104.7 | 502.6 | 77.2 | 552.91 | 64.5 | 615.93 | 47 | 673.23 | 26.8 | 767.77 | 6 | 859.44 | |

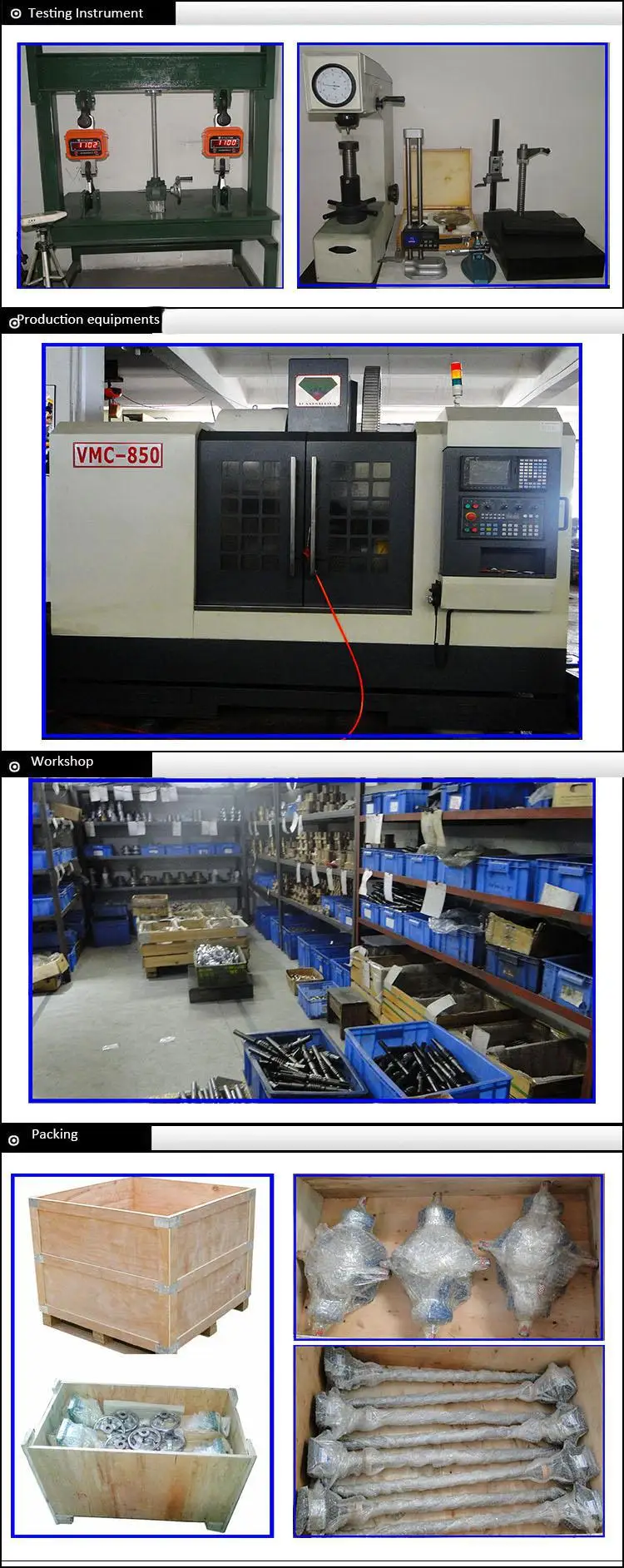

Company Information
Packaging & Shipping
FAQ
FAQ:
Q: Why choose NOSEN ?
A:1.Professional Mechanical manufacture for years with full experience .
Own factory, you could share direct factory price,Quality guaranteed by our QC.
Q:What paying methods do you accept?
A:T/T and West Union
Q:What ‘s the time of delivery?
A:It’s subject to your order quantity and our production schedule,
Usually,7-15 working days for production after receipt of payments
Q: What is your guarantee period?
A: NOSEN provides 1 (one) year quality guarantee for the products from your purchase date,
except the human damage and force manure factor.
Contact Info
NOSEN M&E TECHNOLOGY CO.,LTD
Xinhaoyuan Industrial Park,Xitou,Houjie,Dongguan,Guangdong,China
T: 86 769 88771988
F: 86 769 85644652
PS: Any questions or special requirements, please feel free to contact us !
Your success is our business!
