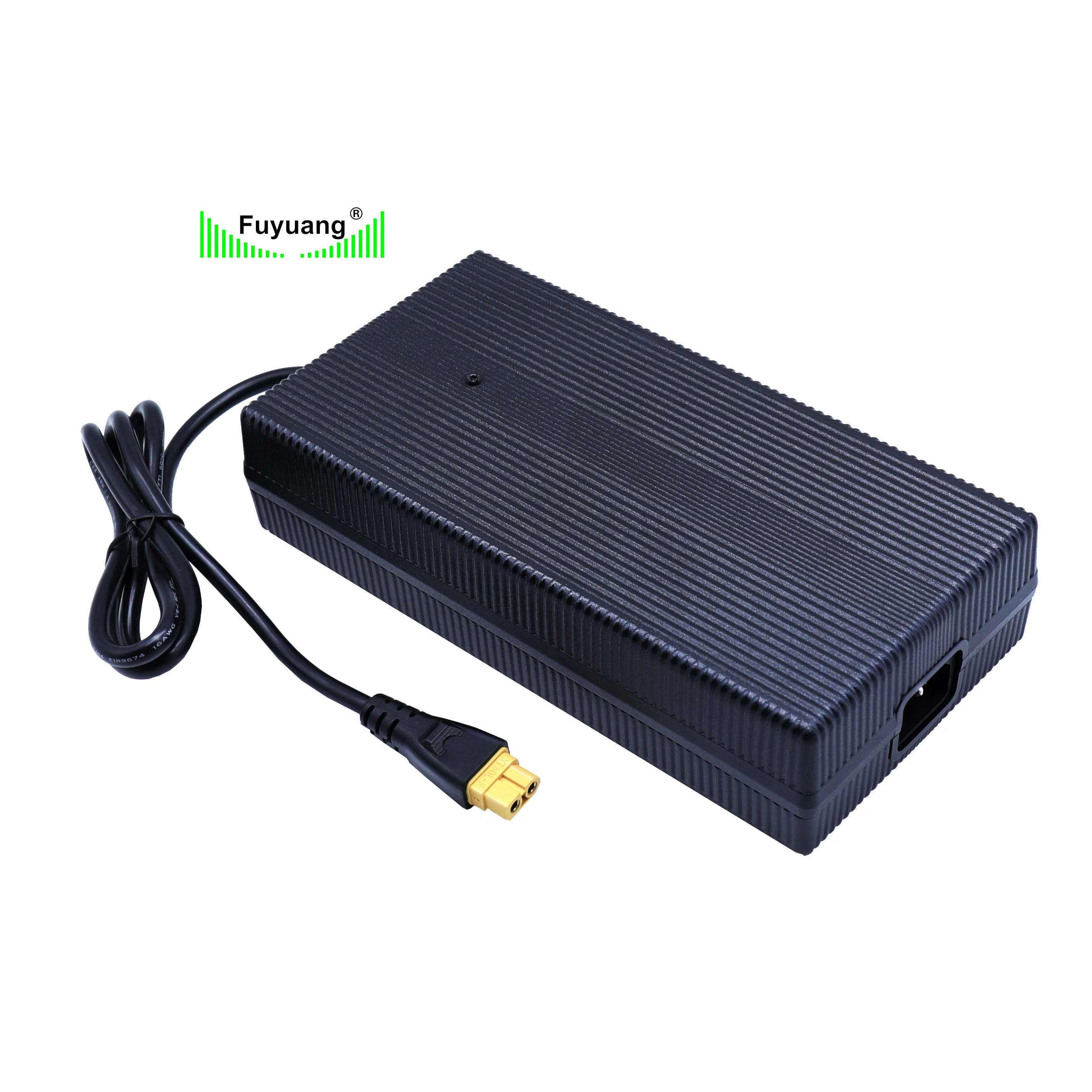

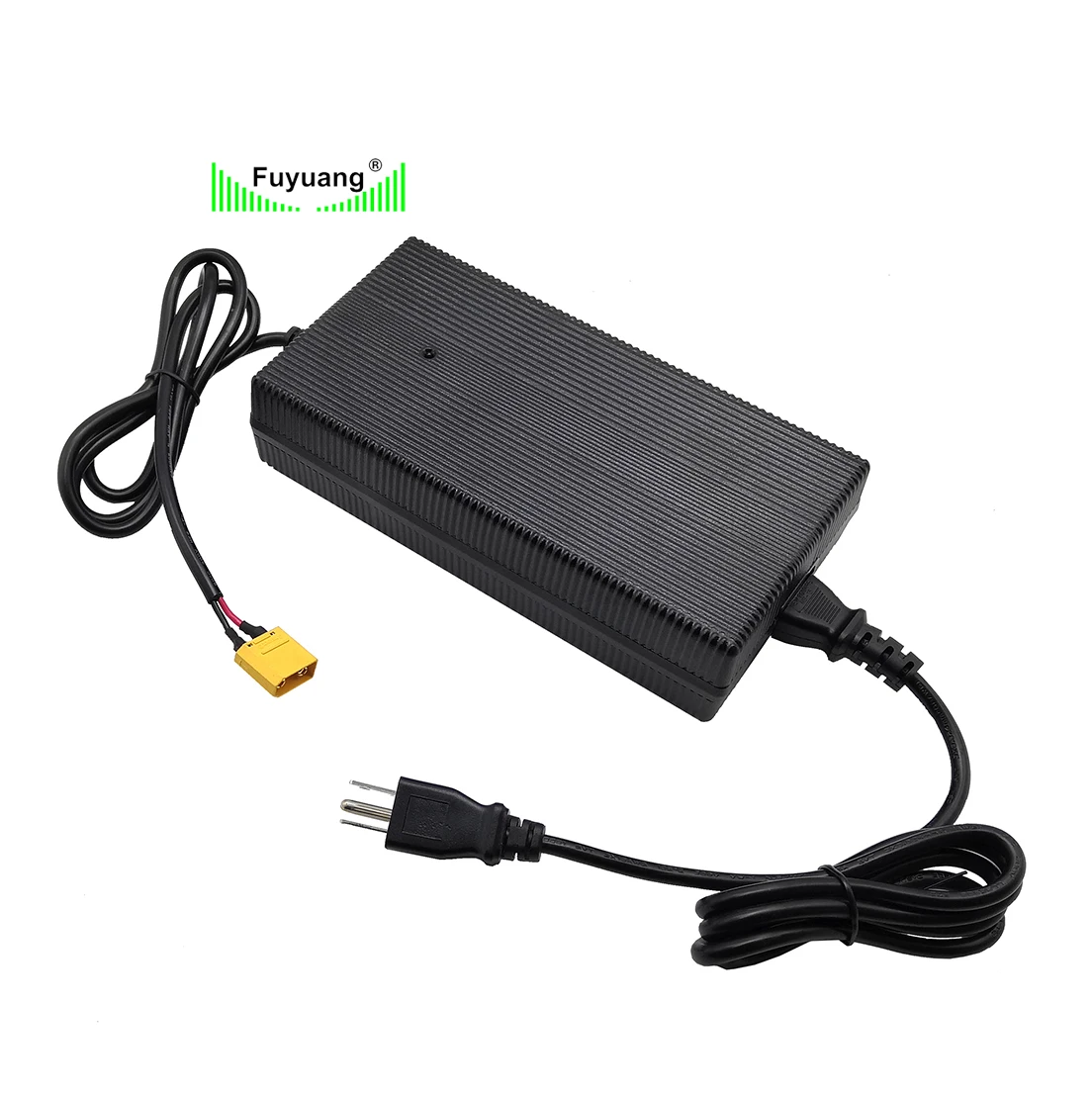

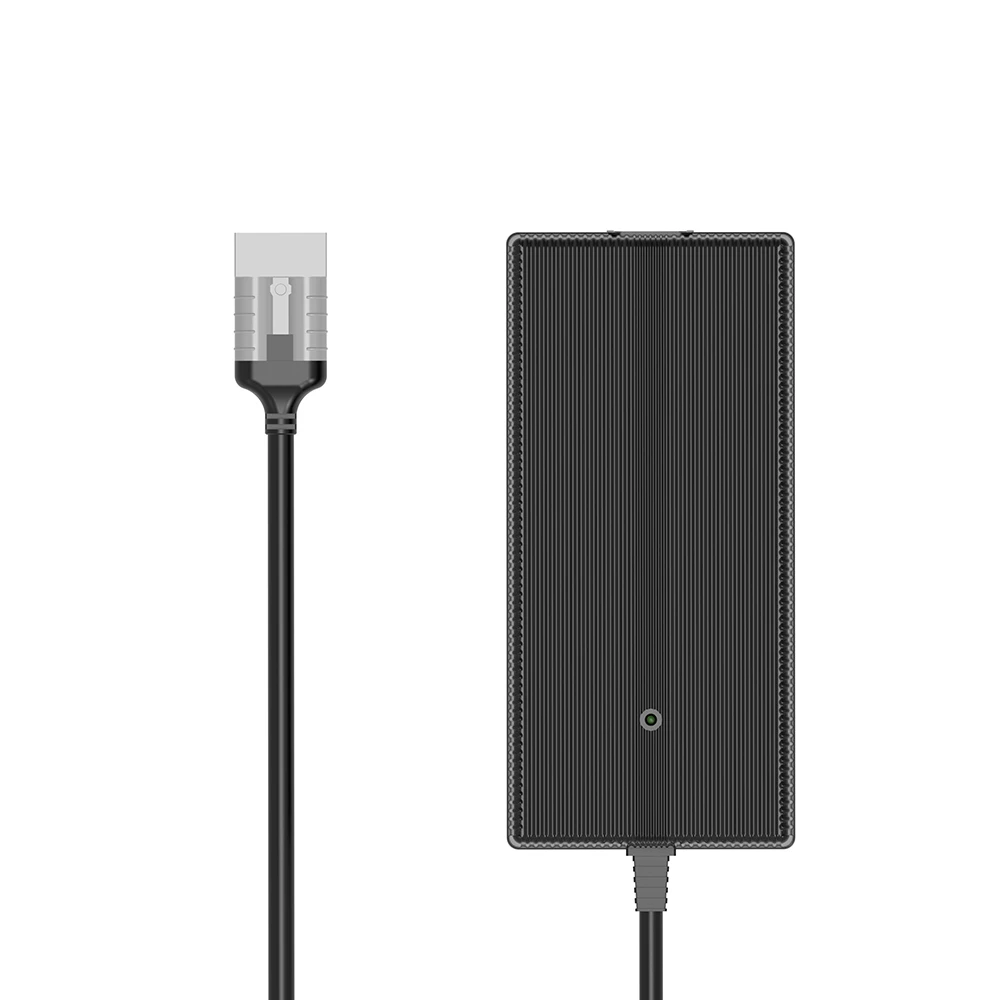

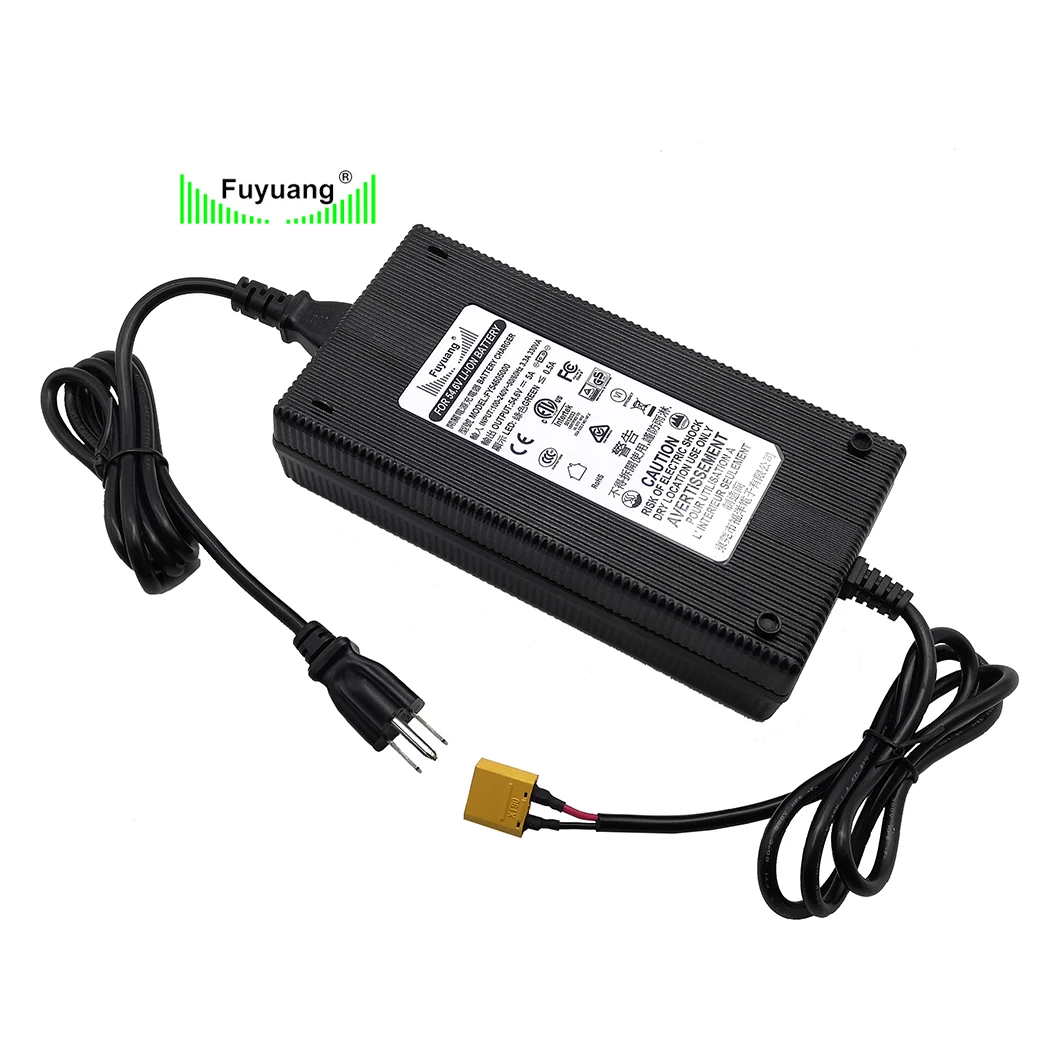

UL PSE GS SAA CE approved fanless 54.6v 4a 5a 15s lifepo4 battery chargers charger 48v 5a

1) With global certificates: UL, FCC, cUL, CE, RoHs, CB, GS(IEC-60335), Reach, SAA, RCM, PSE, CCC,KC.
2) With automatic identification circuit
3) Automatically shut off
4) Spark Proof
5) Protections: Short Circuit / Over Load / Over Voltage / Reverse Polarity Protection
6) Automatic 3 stage charging mode: Constant Current - Constant Voltage - Trickle charging / Shut Down
7) LED indicator (RED) for charging, (GREEN) for full charged
8) Fireproof PC plastic case
| Product Name | UL PSE GS SAA CE approved fanless 54.6v 4a 5a 15s lifepo4 battery chargers charger 48v 5a |
| AC Input: | 100-240V,50/60HZ, 4A Max |
| AC Inlet: | IEC320-C14, C6, fixed AC power cord |
| AC Power Cord: | 1.2M (or customized length) power cord with US,AU,EU,UK,KR,JP,CHN etc. plug |
| DC Wire: | SVT/SJT/UL1015/UL2464/UL2468/UL 1185/SPT-1, 1.2M/1.5M/1.8M or Customized length |
| DC Plug: | Anderson connector , 5.5*2.1,5.5*2.5,3.5*1.35,Canon connector, XLR connector, Inline plug, XT60,TX40/60 etc. --- DC plug customized as per your demands. |
| Charge Mode: | CC-CV-Floating Charge / Cut Off |
| Protection: | Short Circuit/Over Current / Over Voltage / Over Load/ Temperature/Reverse Polarity Protection. |

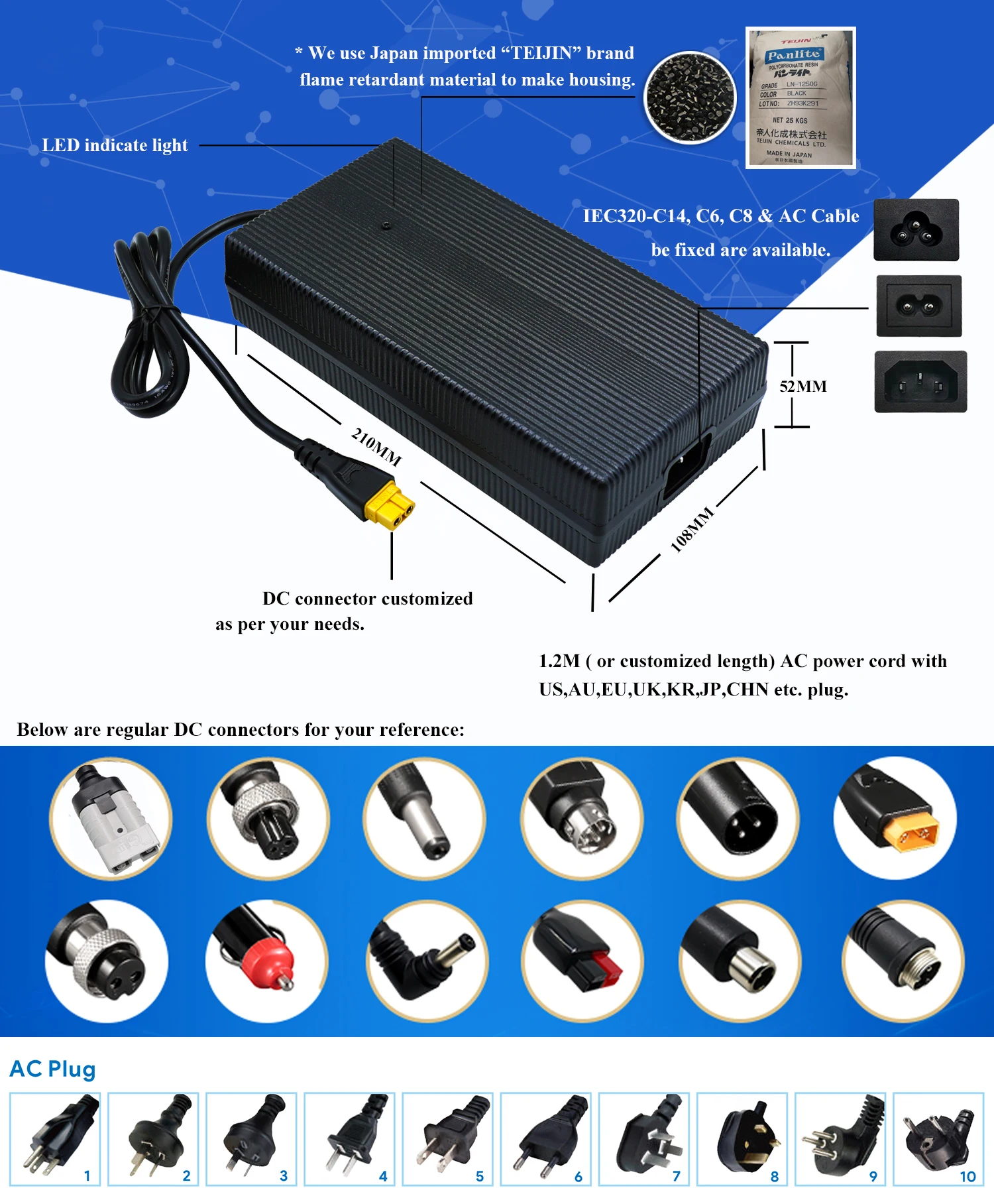

| Housing: | Dimension:210*108*55MM Black TEIJIN brand PC material |
| Packaging: | White box+Export standard Carton Carton Size:50x26x26cm 10PCS/CTN 15kgs/CTN |

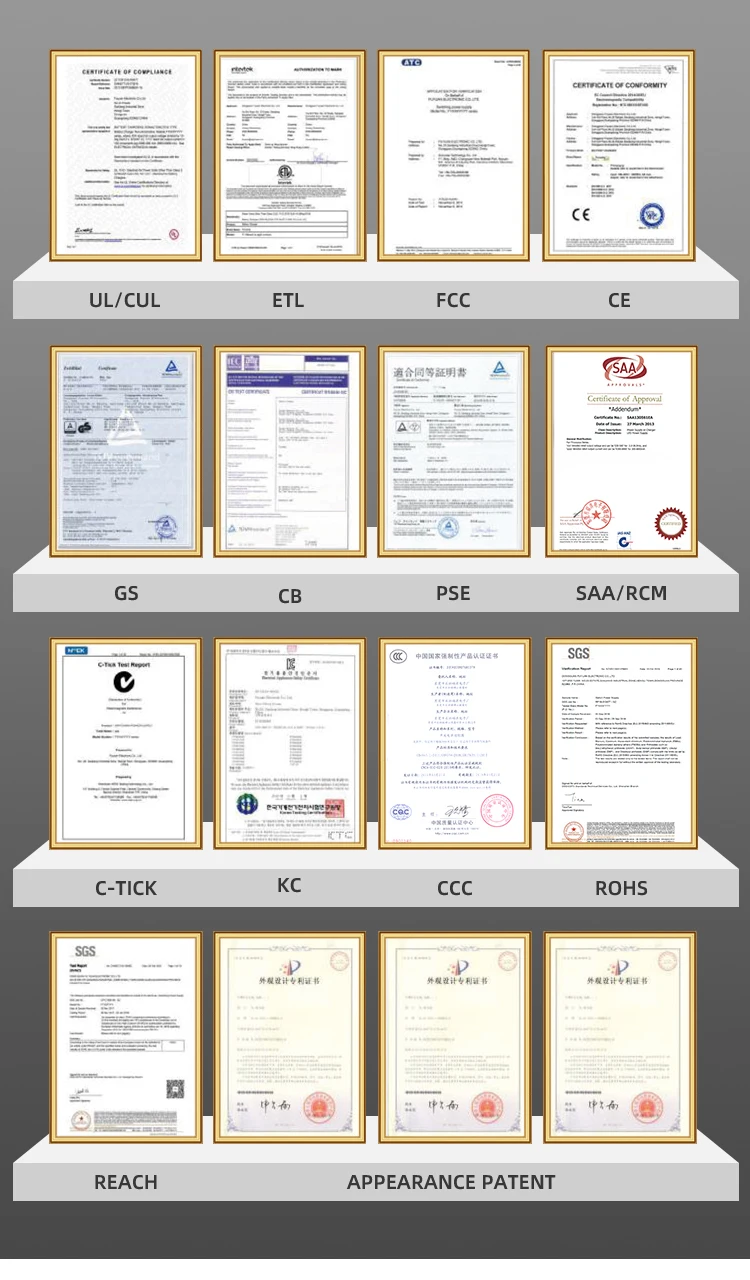

| Certificates: | UL, ETL, CUL, FCC, CE, GS, CB, BS, PSE, KC, RCM, SAA, C-TICK, CCC, ROHS |
| Safety Standard: | UL62368,UL1012,UL1310, IEC61347, IEC62368, IEC61558, IEC60335, EN62233, EN62493 |
| HIPOT testing: | 3000-4200V |
| Operating temperature: | -29ºC~ +45.5ºC |
| Storage temperature: | -40ºC~ +75ºC |
| Dropping Testing: | X-Y-Z direction 100cm,one time with each direction |
| MTBF: | 30000 hours full rated load at 25ºC |
| AQL: | MIL-STD-105E II CRI 0; MAJ 0.25; NIN 1.0 |

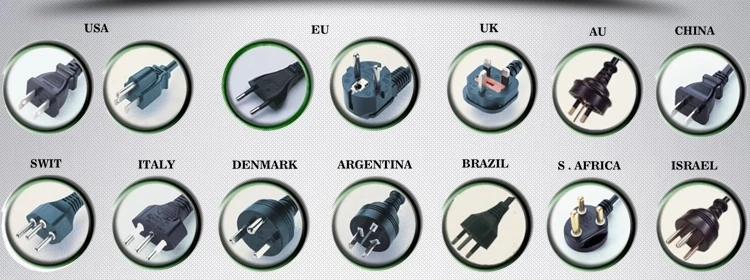

Worldwide plug AC power cords for your selection:

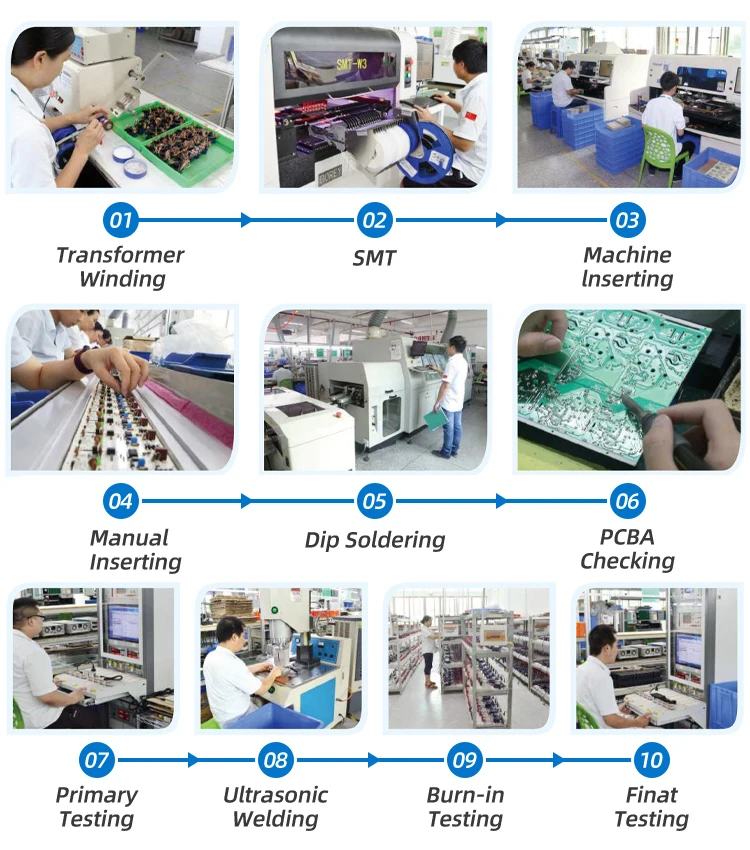

The Main Production Processes:

Fuyuan Electronic Co.,Ltd was established in 2005, relying on a 30 years of R&D experience engineer team, It focuses on meeting customers' personalized customization needs and developing environmentally friendly and efficient chargers.
Fuyuang chargers aim for utmost reliability and safety, equipped with features such as automatically identifying battery voltage and battery polarity, locking charging current, anti-spark, over temperature protection, reverse polarity protection, timing control etc., the charging mode include CC-CV- Trickle Charging or CC-CV-Shutoff.
Fuyuang chargers have obtained certifications including UL/FCC in the United States, CB/CE/RoHs/GS/Reach/UKCA in Europe, PSE in Japan, SAA/RCM in Australia, KC/KCC in South Korea, and CCC in China. Fuyuan has provided more than 25,000 sample solutions to over 5,000 customers worldwide and established long-term strategic partnerships with more than 300 domestic and international customers.

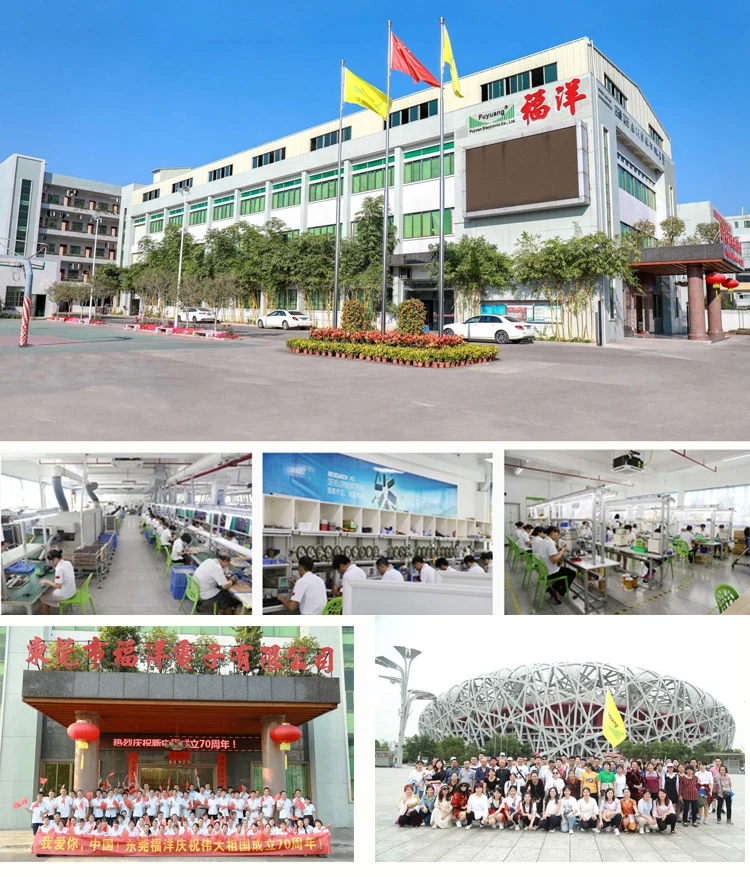

Fuyuan owns a self-built factory of 8000 square meters and has its own EMC laboratory, with approximately 200 employees, has been certified by ISO 9001, ISO 14001 and QC 080000. Fuyuan is committed to benefiting humanity, seeking the joint development of environmental protection and business operations, using resources prudently, and serving society with maximum capacity and sincerity, striving to make significant contributions to humanity!


*Fuyuan Electronic Co.,Ltd is certified by ISO 9001, ISO 14001 and QC 080000.
* Fuyuang Battery Chargers are approved by UL1012 & IEC-60335: Include UL, FCC, cUL, CE, RoHs, CB, GS, SAA, RCM, PSE, CCC,KC Certificates.
* Fuyuang Power Adapter are approved by UL62368 & IEC 62368: Include UL, FCC, cUL, CE, RoHs, CB, GS, SAA, RCM, PSE, CCC,KC Certificates.
* Fuyuang LED Power Supply are approved by UL1310 & IEC-61347: Include UL, FCC, cUL, CE, RoHs, CB, GS, SAA, RCM, PSE, CCC,KC Certificates.
