ELP 1MP VGA 680*480 High Frame Rate 60fps Mini USB Camera Module Micro Small Size camera For Scanning
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd.
Share on (1600909197409):
Product Overview
Description
Product Description
ELP OV7725 VGA 680*480 High Frame Rate 60fps USB Camera Module
KEY FEATURES
*640x480 VGA resolution USB Camera
*Support Android and Linux system
*Suport YUY and MJPEG format
*high pixel technology for sharp image and accurate color reproduction
*low light performance – ideal for any lighting condition
*Super small outline and thin profile for embedded applications
*High frame rate– deliver 60 fps in VGA
*High quality lens, true and undistorted color image
*Low power consumption – ideal for portable equipment
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above
*Camera with UVC
*Support Android and Linux system
*Suport YUY and MJPEG format
*high pixel technology for sharp image and accurate color reproduction
*low light performance – ideal for any lighting condition
*Super small outline and thin profile for embedded applications
*High frame rate– deliver 60 fps in VGA
*High quality lens, true and undistorted color image
*Low power consumption – ideal for portable equipment
*UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above
*Camera with UVC
Specification
Optional models | ELP-USB30W02M-L21(2.1mm lens) ELP-USB30W02M-L28(2.8mm lens) ELP-USB30W02M-L36(3.6mm lens) ELP-USB30W02M-L60(6mm lens) ELP-USB30W02M-L80(8mm lens) ELP-USB30W02M-L12(12mm lens) |
Sensor | OV7725 |
Lens size | 1/4 inch |
Max. Resolution | 640X480 VGA |
Picture format | YUY2 MJPEG |
USB Protocal | USB2.0 HS/FS USB1.1 FS |
Support free driver | USB Video Class(UVC)1.1 |
Auto exposure AEC | Support |
Auto white blance AEB | Support |
Frame rate | 640X480 MJPEG@ 60fps YUY2@ 30fps/ 480X480 MJPEG@ 30fps YUY2@ 30fps 450X450 MJPEG@30fps YUY2@ 30fps/ 352X288 MJPEG@ 30fps YUY2@ 30fps 320X240 MJPEG@30fps YUY2@ 30fps/ 240X240 MJPEG@ 30fps YUY2@ 30fps |
Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White balance, Backlight Contrast, Exposure |
Night vision | optional, can choose IR board |
view angle | 30-150 degree optional |
voltage | DC 5V |
current | 120mA |
work temperature | DEGREES(-20~70) |

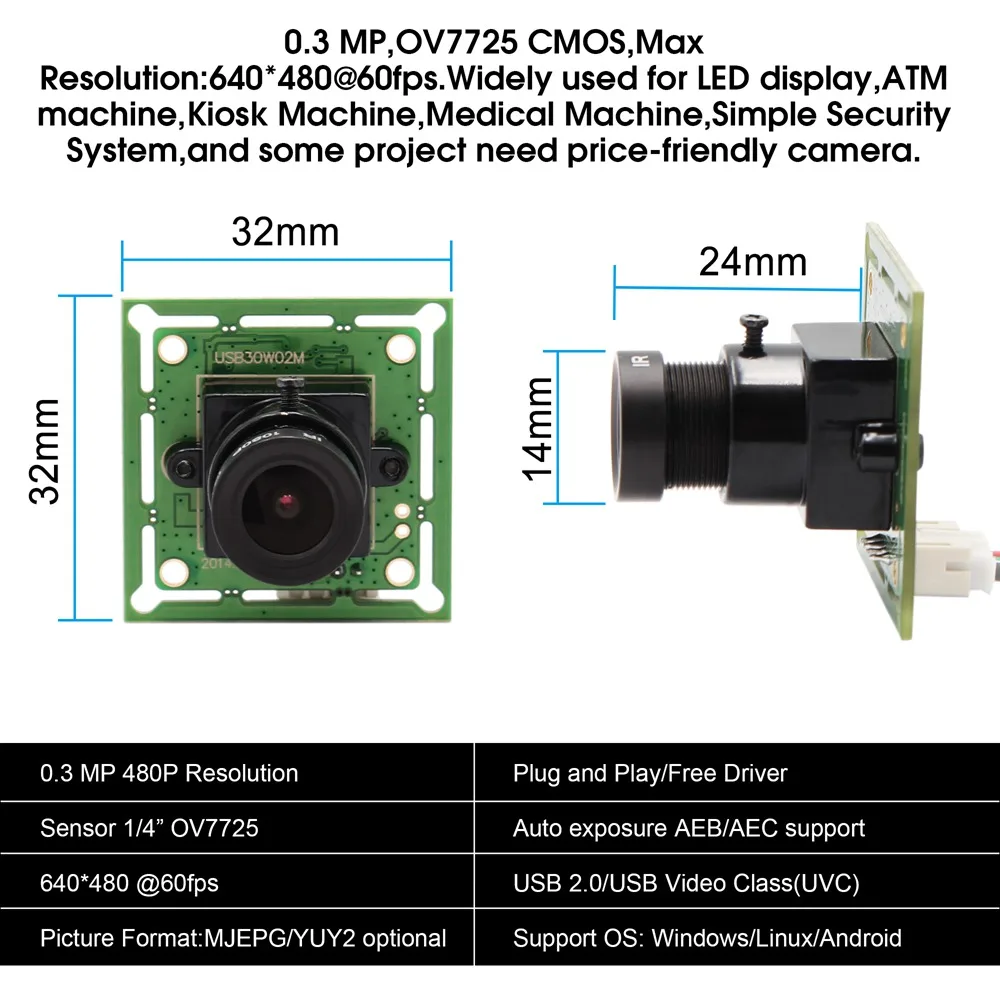

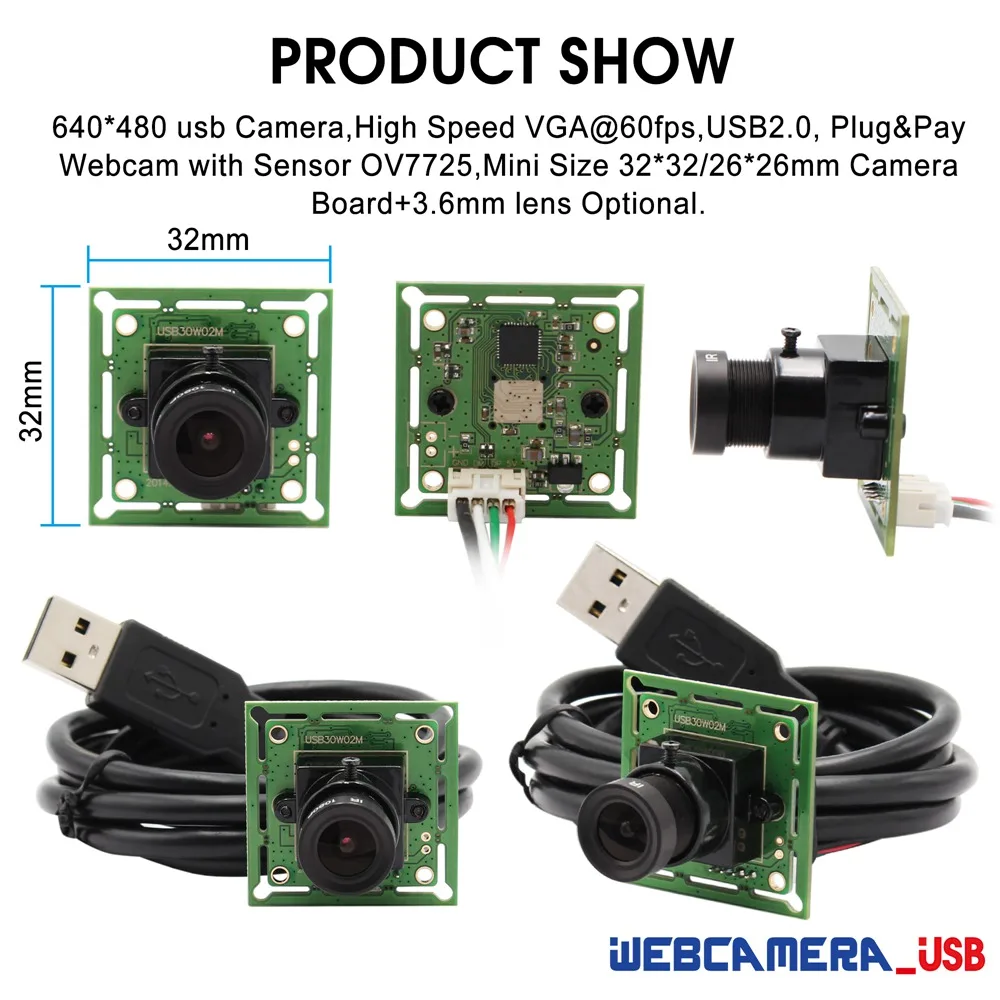

Size | 32x32mm 26x26mm |
Support OS | WinXP/Vista/WIN7/WIN8 Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC Android 4.0 or above |
Details Images

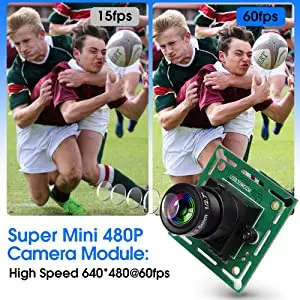

Super Mini 480P camera module
640x480 VGA resolution USB Camera ,high pixel technology for sharp image and accurate color reproduction

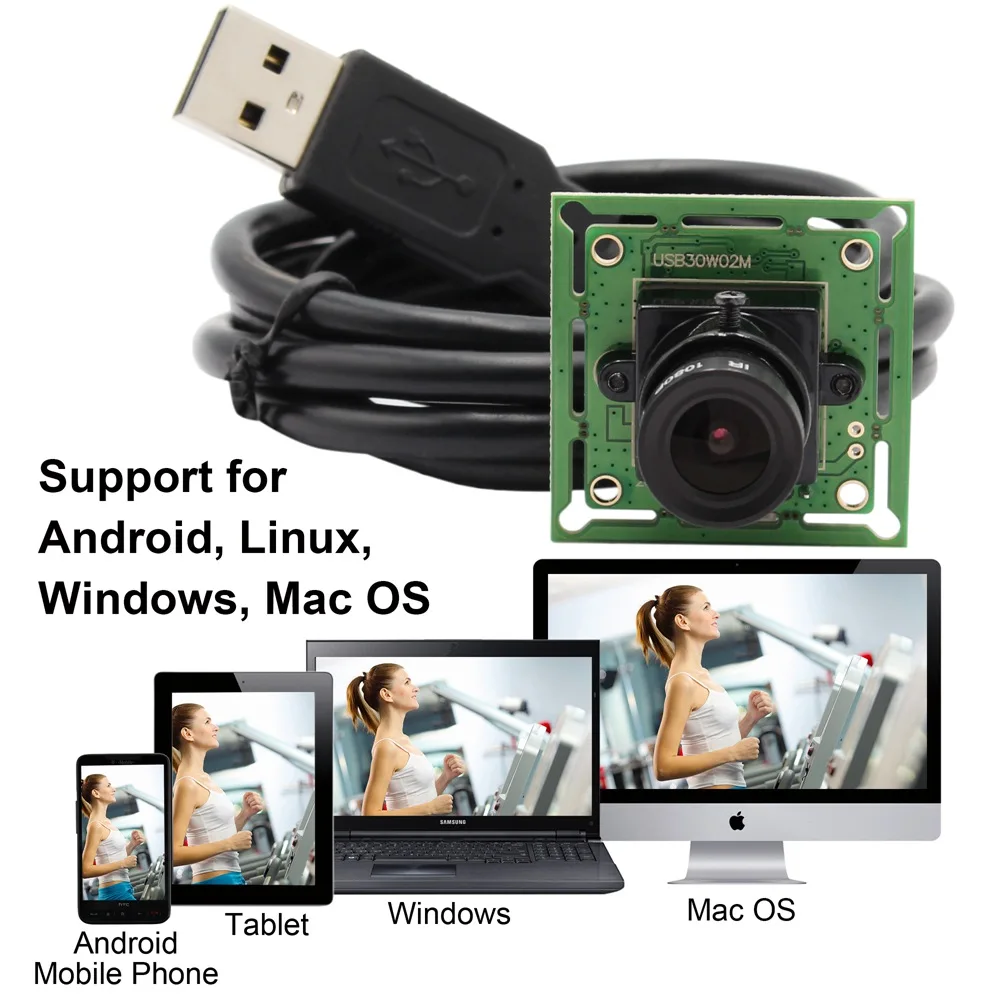

UVC free driver
just connect the camera to PC, laptop, Android device, or Raspberry Pi with the included USB cable without extra drivers to be installed. Compatible with Windows/Linux /Mac OS/Android, support OTG protocol and Raspberry Pi.
Applications
Application
ATM Machine, Kiosk, automatic vending machine,Robot, Sanner, Virtual reality, Medical equipment, machinery equipment, POS equipment, Smart TV BOX, advisement player, LED display, safety box, notebook, video door phone, Tablet external, on-the-spot law enforcement, Recognition algorithm attendance machine, simple security system, teaching system, Interactive system,credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
Packing & Delivery
Package include: 30W VGA 640*480 60fps USB Camera module with Standard 3.6mm, optional 2.1/2.8/6/8/12mm lens/ fisheye lens/ no distortion lens,1M cable.
Recommend Products
Company Profile
FAQ
1. Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System, Mac
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux,
Camerafi,VLC Player
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System, Mac
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux,
Camerafi,VLC Player
