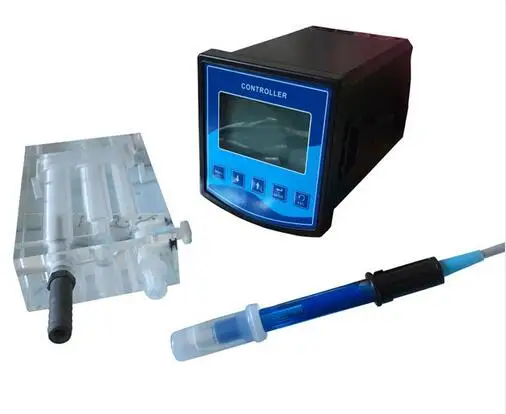

Китайский профессиональный производитель Arcl200 промышленный онлайн анализатор остаточного хлора
- Category: Other Analysis Instruments >>>
- Supplier: Shanghai Anjun Industrial Co. Ltd.
Share on (1600909279935):
Product Overview
Description
Products Description
Controller
Applications
ARCL200 used for drinking water treatment plant, drinking water, tap water, swimming pool, cooling circulating water, water treatment engineering, etc.
Main features
1. The large LCD display.
2. Can restore factory settings.
3. Manual/automatic PH compensation function and temperature compensation function.
4. Communication function (optional) : has the RS - 485 communication interface (MODBUS protocol part compatible).
5. Photoelectric isolation 4-20mA current output.
6. Hysteresis quantity any setting function, avoid switch relay frequent action.
7. Watchdog functions: ensure that instrument won't crash.
2. Can restore factory settings.
3. Manual/automatic PH compensation function and temperature compensation function.
4. Communication function (optional) : has the RS - 485 communication interface (MODBUS protocol part compatible).
5. Photoelectric isolation 4-20mA current output.
6. Hysteresis quantity any setting function, avoid switch relay frequent action.
7. Watchdog functions: ensure that instrument won't crash.
Technical indicators | ||
Range | 0-20.00 mg/L, PH value: 0-14 PH, temperature: 0 ~60℃ | |
Resolution | 0.001 mg/L, 0.01 mg/L, 0.01 ,0.1℃ | |
Precision | better than the plus or minus 1% or +/- 0.01 mg/L, plus or minus 1% or +/- 0.01 mg/L, +/- 0.02 pH, +/- 0.5℃ | |
Manual/automatic PH compensation function (0-14) and temperature compensation function (0 ~ 60℃). | ||
Control interface | two groups of ON/OFF relay contact, divided into high and low alarm signal photoelectric isolation output | |
Signal isolation output | 4-20mA | |
The electric apparatus | relay lag quantity any setting, relay load and a 220 VAC | |
Working conditions | environmental temperature is 0 ~ 60℃, relative humidity 90% or less | |
The output load | load<500 Ω(0-10mA), load<750Ω(4-20mA) | |
Working voltage | 220 VAC plus or minus 10%, 50/60HZ | |
Dimensions | 96 x 96 x 115 mm | |
Open hole size | 91 x 91 mm | |
Brand | ANJUN | |

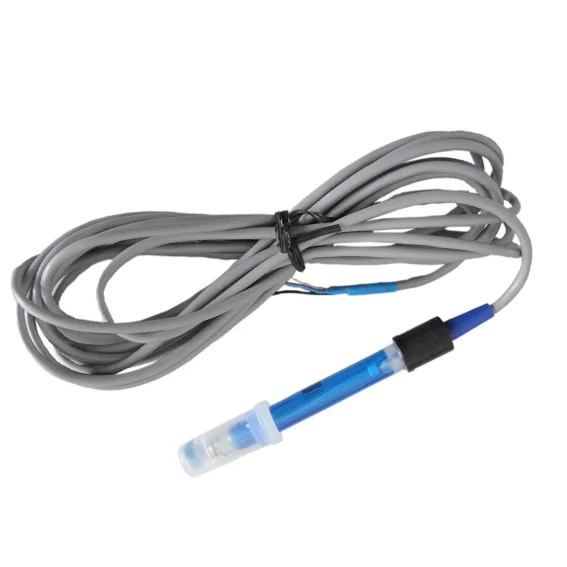

Sensor
Features
Has the stable zero performance to ensure accurate and reliable measurement of simple structure, easy to clean Suitable for the water of the residual chlorine, chlorine dioxide, ozone measuring
Technical parameters | ||
Measuring range | 0 ~ 2 PPM, 2 ~ 20 PPM | |
Electrode | 2 platinum rings | |
Reference electrode | gel with annular contact | |
Material | glass | |
Electrode cable | 3 m high impedance low noise shield cable | |
Working pressure | 10 bar at 20 ℃ (maximum) | |
Electrode size | diameter 12mm, length 110mm | |
Principle | constant pressure | |
Color | blue | |
Fixed attachment | flow cell | |
Application
Swimming pools, water works, drinking water, chlorine dioxide generator, hospital waste water, power plant, sewage treatment plant

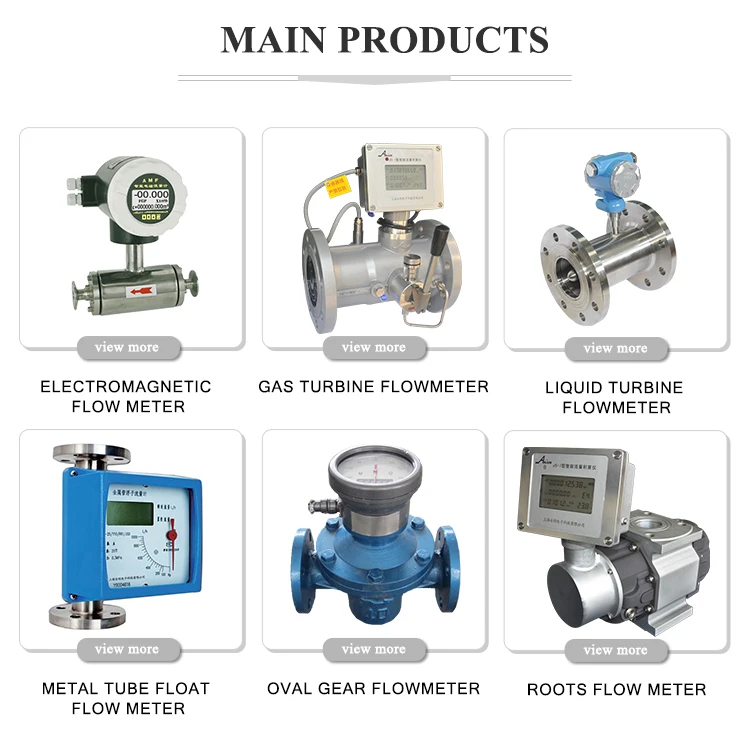

Recommend Products
Company Profile

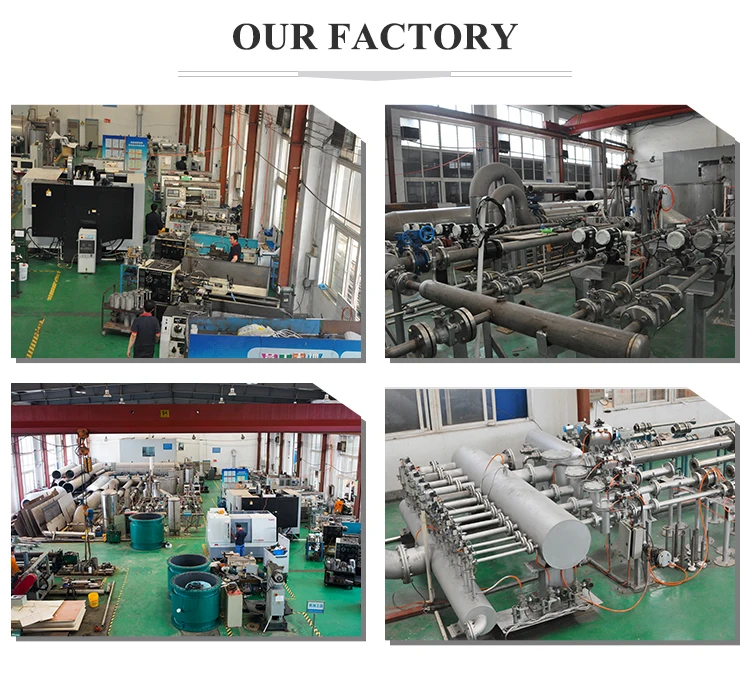

Factory Show
Our Customers
Certifications
Product packaging
FAQ
Q1.What’s your advantage? Why we choose you? |
A:1)15 Years experience of flow meter production and R&D.We have the most professional techniques and team. More advantage in price. 2)Great production capacity Sustainable Supply . According to customer requirements, We support the customized include package.OEM sevice is available. 3)We use 100% new materials and the best production process, in consequence our accurancy is high. |
Q2.What’s the Payment? |
A:T/T would be better with quick transfer and few bank fees. LC could also be accept, but the procedure is complex and the fee is high. You can also use Western Union.For large quantity,sea shipping can be provided. |
Q3.Are you a factory or trading company? |
A:We are a professional manufacturer. We are warmly welcome clients from worldwide to visit our factory and cooperate with us. |
Q4.How can I get some samples? |
A:We are honored to offer you samples. but you need pay for it |
