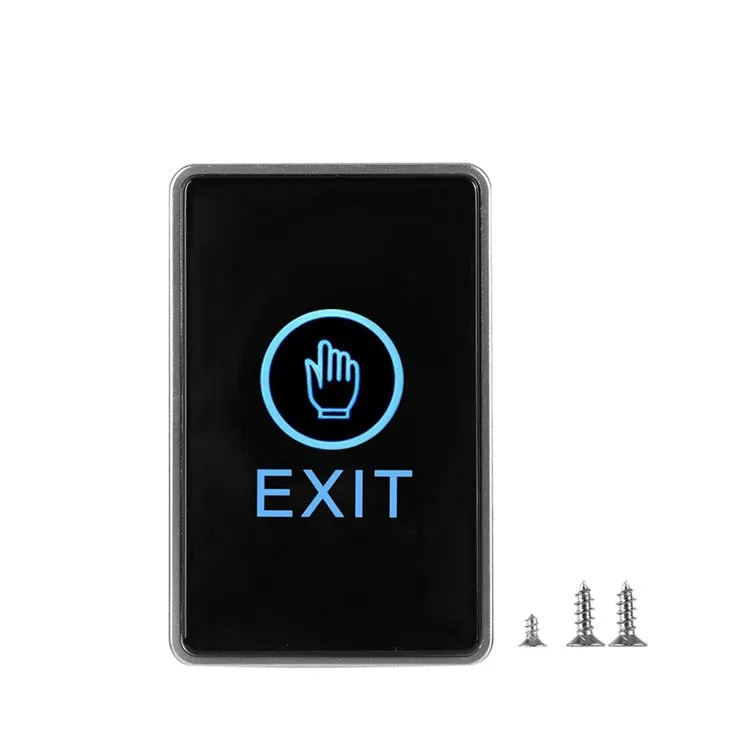

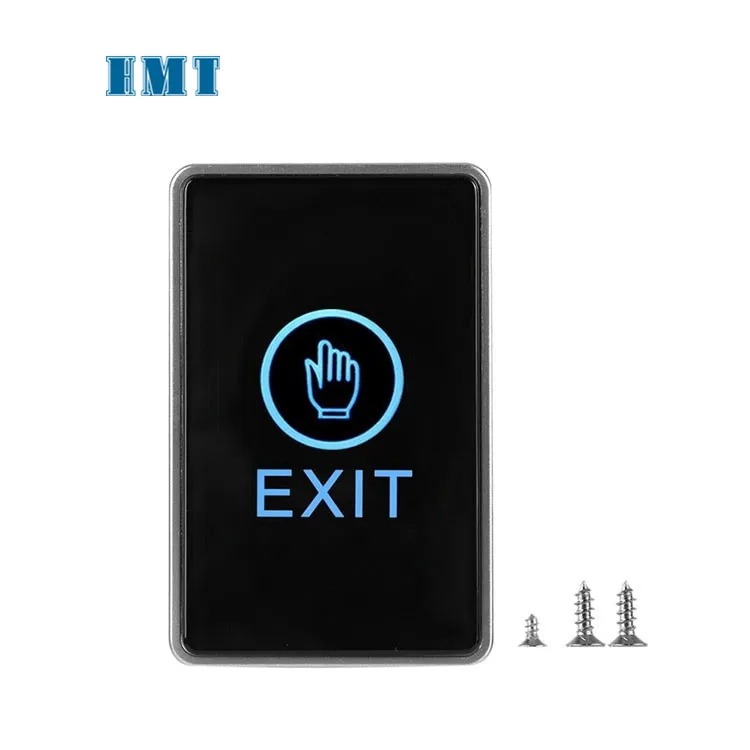

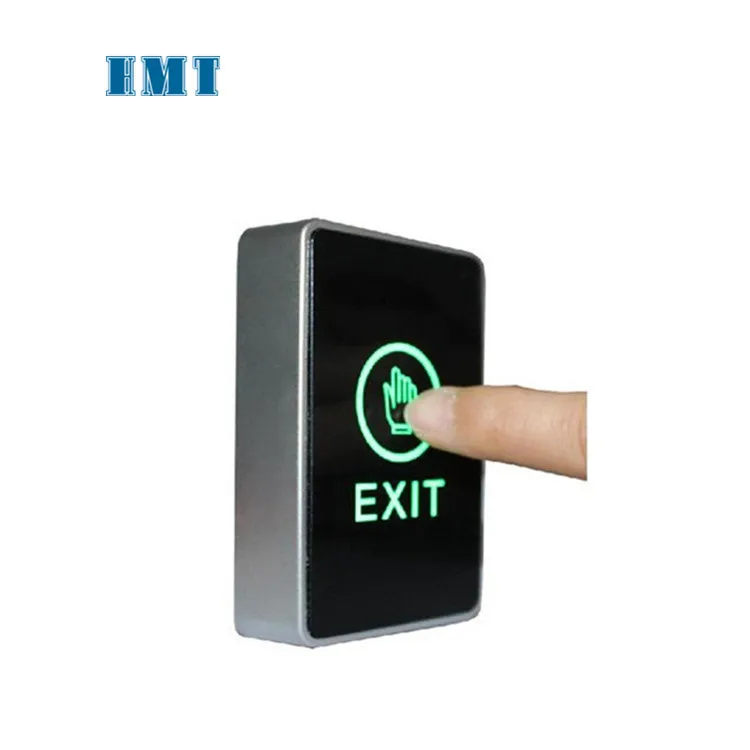

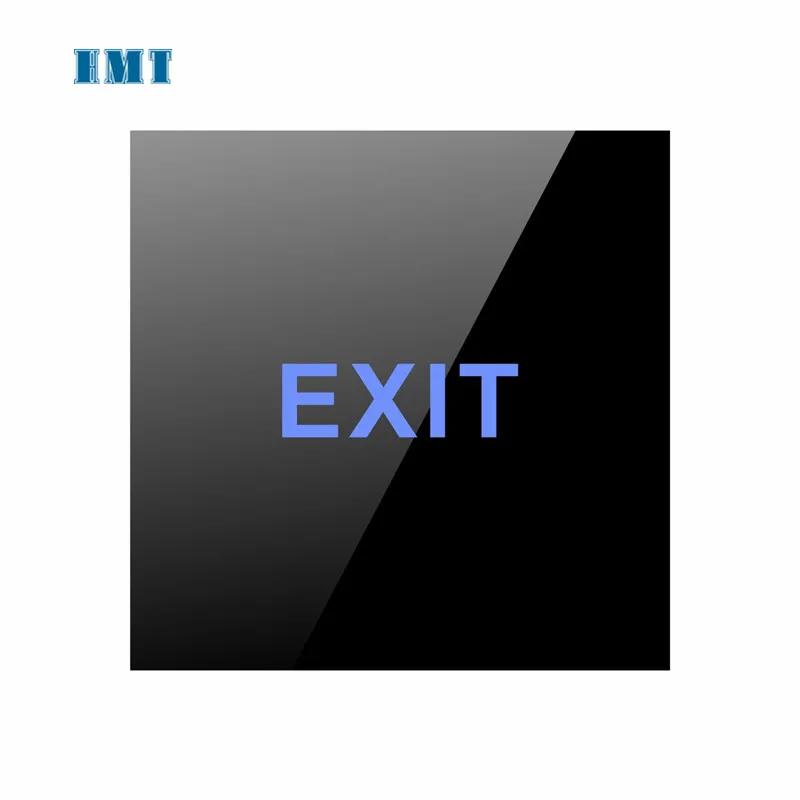

12V Plastic touch screen door release push Exit button for access control system
- Category: >>>
- Supplier: Shenzhen Huiyuxin Technology Co. Ltd
Share on (1600909298087):
Product Overview
Description
Products Description

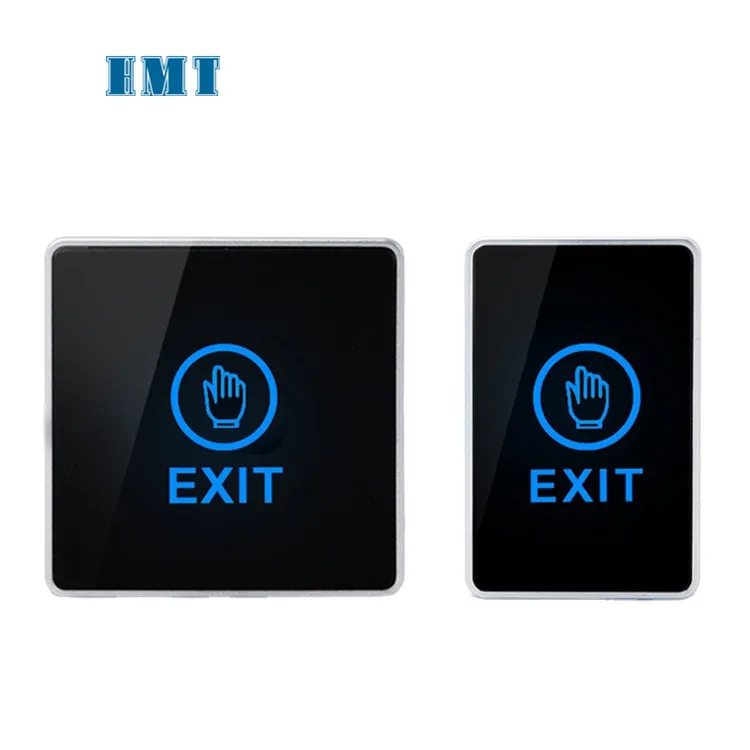

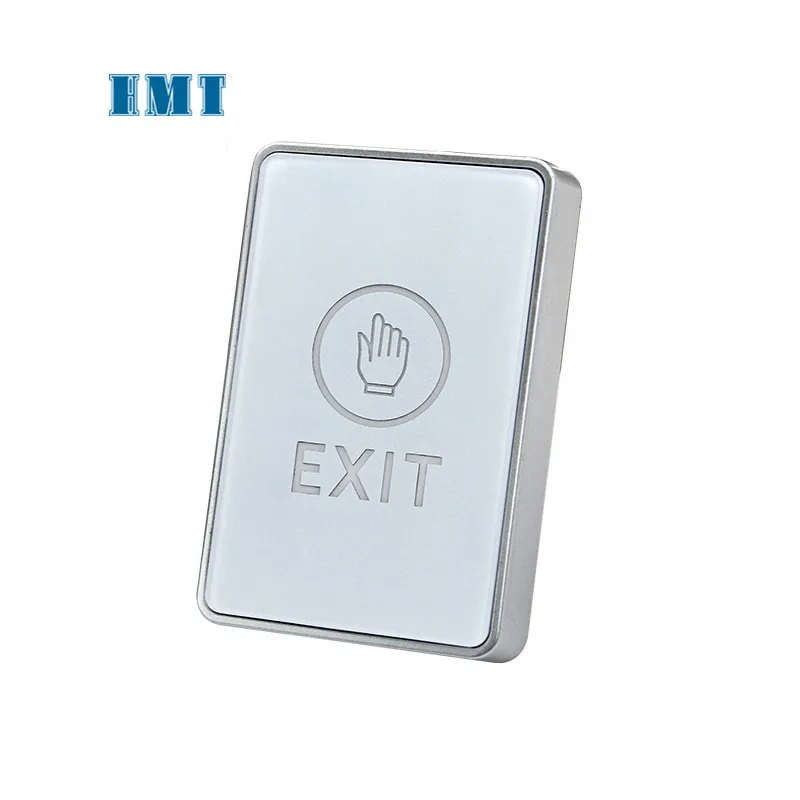

12V Plastic touch screen door release push Exit button for access control system
Features:
1.Current Rating: 3A,36VDC Max
2.Contact output: NO/NC/COM
3.Maximum current: 3A/125-250VAC
4.Standard panel: Acrylic panel
5.Panel pattern: can be customized according to requirements
6.Durability test: 100,000 times
7.Applicable door type: hollow door frame (surface installation)
8.LED indication: blue (standby), green (trigger)
1.Current Rating: 3A,36VDC Max
2.Contact output: NO/NC/COM
3.Maximum current: 3A/125-250VAC
4.Standard panel: Acrylic panel
5.Panel pattern: can be customized according to requirements
6.Durability test: 100,000 times
7.Applicable door type: hollow door frame (surface installation)
8.LED indication: blue (standby), green (trigger)
Specification
Model number | HMT-PK2A |
Product Name | Touch Screen LED Door Exit Button Switch |
Material | ABS |

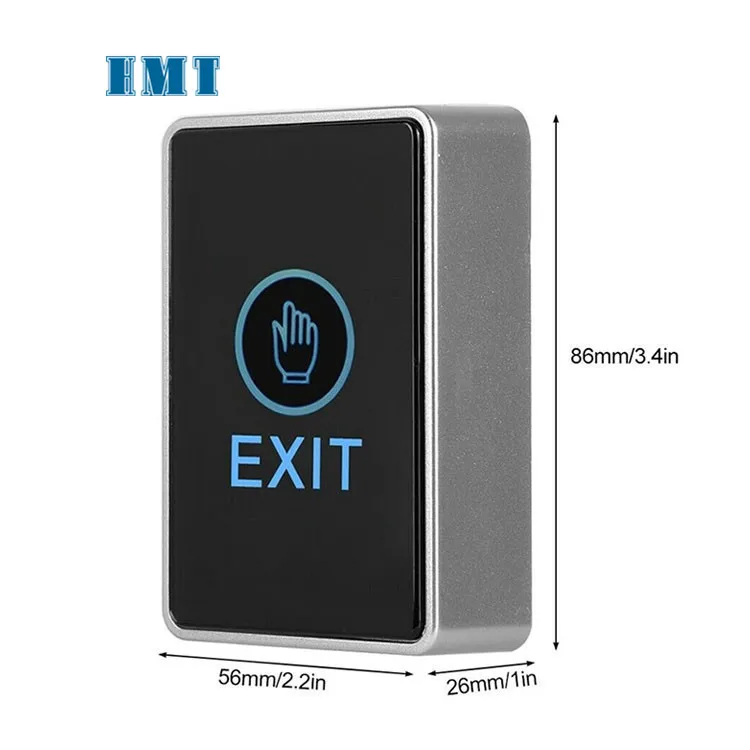

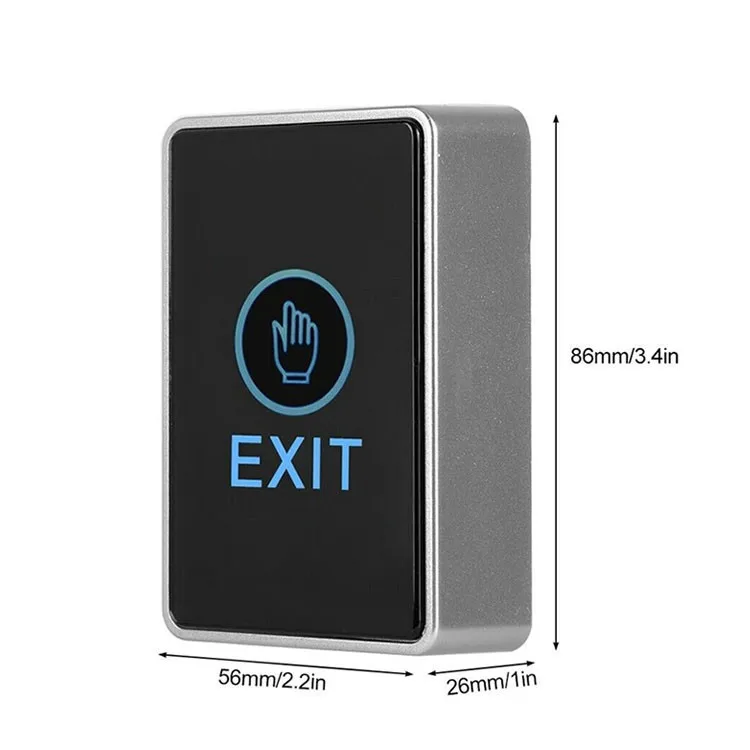

Product size | 86Lx50Wx21H(mm) |
Power supply voltage | 12VDC |
Contact output | NO/NC/COM /LED |
Color | Black or white |
Maximum current | 3A / 36DC |
Endurance test | 1000000 tested |
Installation: | hollow door frame |
Packing parameters | 100pcs/15kg/51*43*33cm/ctn |
Details Images

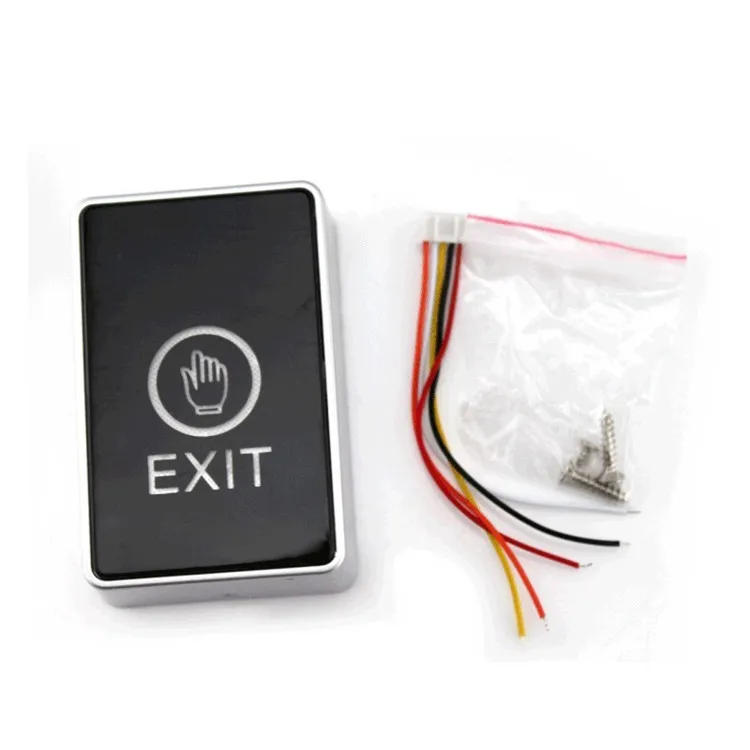

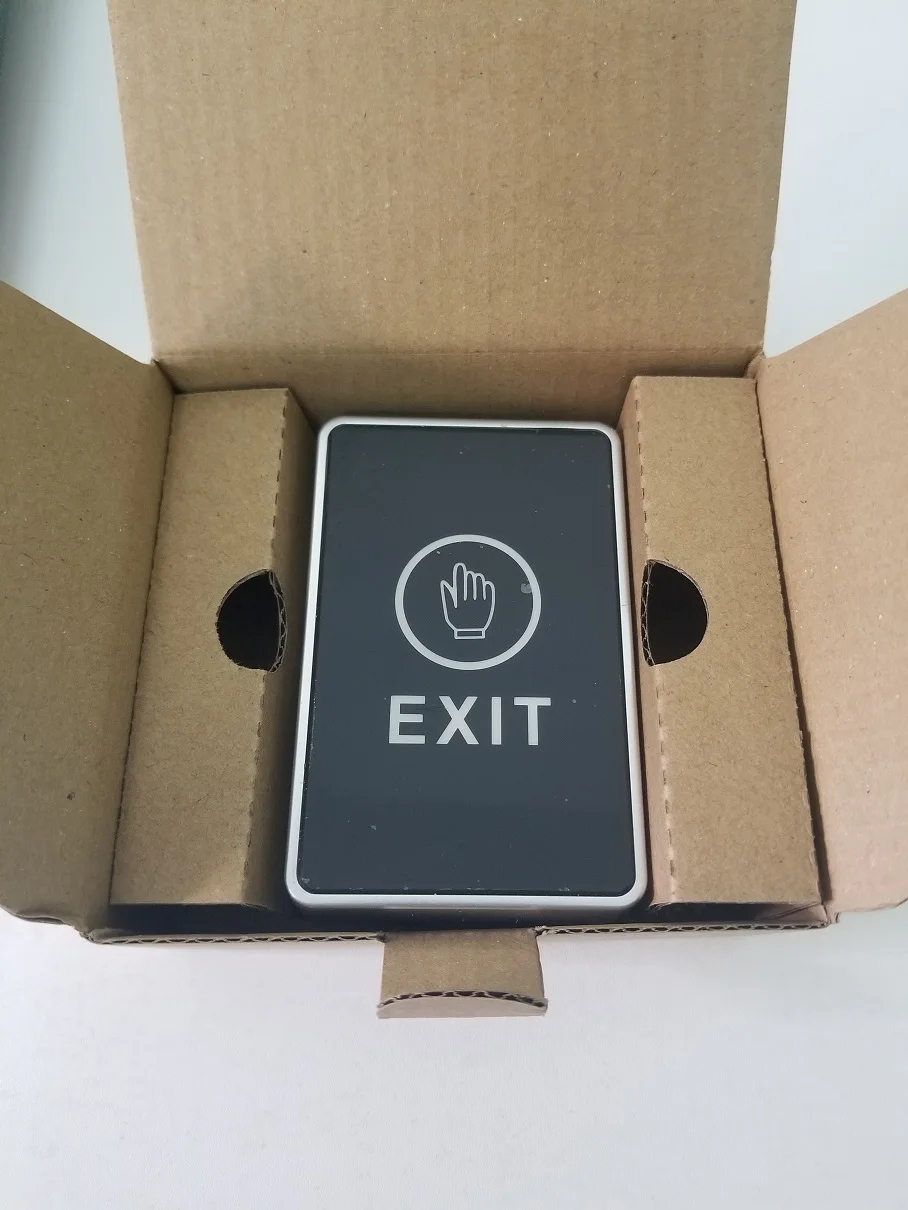

Product Package

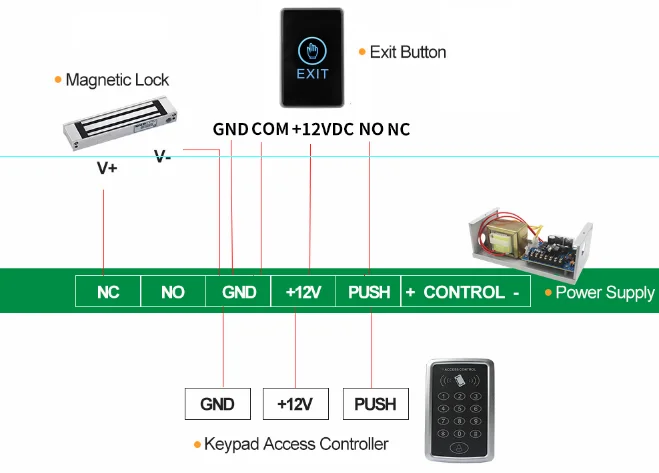

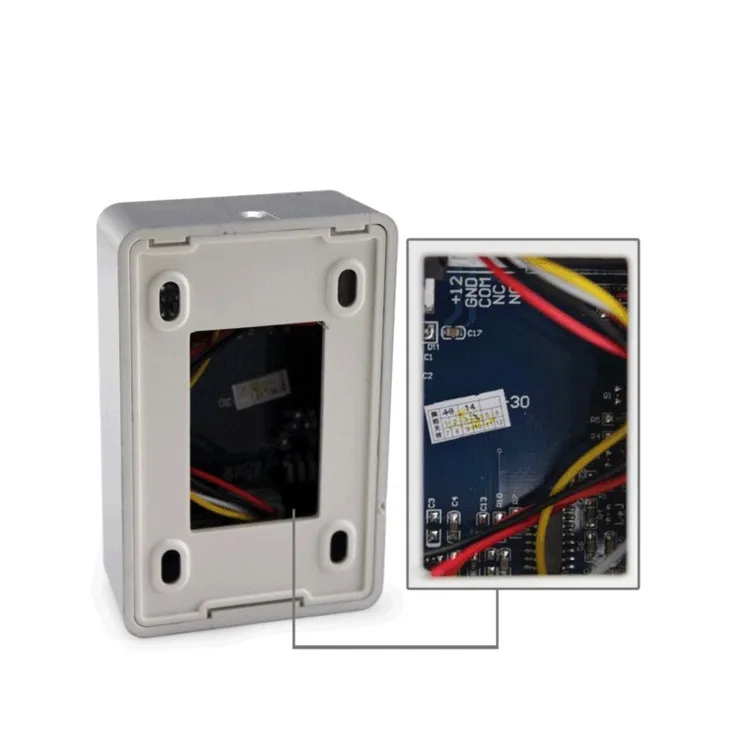

Product Wire Diagram
