Name | 86 Inch Interactive Conference Display | |
Supplier | Huizhongsheng | |
Model | HZS-Y861ABBXC | |
Edition | V1.0 | |
Date | In October, 2020 | |
Android system hardware configuration | ||
Main chip model | V560 (Huawei Hisilicon)/Intel i7 | |
Central processing unit (CPU) | ARM A55 Quad-core at 1.5GH z | |
Running memory (RAM) | 3/4/8GB | |
System Memory (ROM) | 32/128GB | |
The kernel version | Android 9.0/Windows10 | |
Touch recognition | Built-in infrared touch recognition | |
Automatic brightness adjustment | Support the environmental light sensing function, which can achieve 8-level linear dimming | |
{Optional} Built-in camera module (with 8-array HD microphone) | ||
Maximum effective pixel | 3264 * 2448 (8 megapixels, down compatible with 1080p / 720p / 480i and common resolution) | |
Dual-system following recognition | Support seamless switching, automatic follow, including built-in 8 array high, resolution, microphone | |
Imaging sensor | Sony SONY IMX179 (1 / 3.2 ") COMS | |
Array wheat receiving distance | 10 m (high sensitivity [-26 dB of 94 dB SPL @ 1 KHz] / dual-channel stereo) | |
Camera imaging distance | 30 meters, using the focal mode, installed on the top of the machine, with a downward tilt Angle | |
Main board input / output interface configuration | ||
USB import | 4 (1 front Type-A USB2.0,1 Type-C USB2.0) | |
1 Type A USB3.0 (front) | ||
USB output | 2-way Type B For VGA & HDMI 1,2 Touch out) | |
Audio input | 1-way PC-VGA audio (standard ø 3.5mm) | |
A 1-way MIC microphone | ||
Audio output | 1-way digital coaxial (RCA) | |
1-way headset / Line out (standard ø 3.5mm) | ||
Network input | 1-way RJ 45 cable network port (support through transmission to OPS to achieve a network cable global Internet access) | |
4 external Wi-Fi antenna interface [including standard 5G hotspot and 2 channels] | ||
Centralized control interface | 1-way RS232 serial port | |
Video in | 1-way VGA | |
3-way HDMI [including 1-way front panel] | ||
Electrical performance of the whole machine | ||
Power input | AC 180-240V 50/60Hz | |
Power consumption of the whole machine | 350W (standard mode excluding computer) | |
Speaker power | Stereo hybrid dual-channel CLASS-D power amplifier output, rated power: 2x 10W | |
(L+ R / 8Ω)of THD+N≤10%@1KHz(Audio Input:0.5VR MS) | ||
OPS module load output parameters | ||
OPS service voltage | 17-21V DC | |
Rated output current | 1.0A - 7.0A | |
Peak anode current | 8.0A | |
Rated load power | 135W | |
Support interface type | OPS-C 80 pin-blind JAE interface compliant with Intel Open Displappable Specification | |
Compatible case size | 65-86 inches: L196 * W180 * H33~42mm (recommended height 33mm) | |
OPS image resolution ratio | Max support is 3840 * 2160p@30Hz output | |
Display performance parameters | ||
Product model | HZS-Y861ABBXC | |
Backlit type | DLED | |
Display size (mm) | 1895x1066 | |
Pixel pitch(mm) | 0.49 | |
Physical resolution | 4K UHD(3840 x 2160) | |
Peak brightness of the whole machine | 350cd/㎡±30 | |
Dynamic contrast | 5000:1 | |
Watch the perspective | H / V: 178 / 178 degrees | |
Screen ratio | 16:9 | |
Show color | 10Bit, 16.7M | |
Structural dimensions (in mm) | ||
Product size | 86 Inch | |

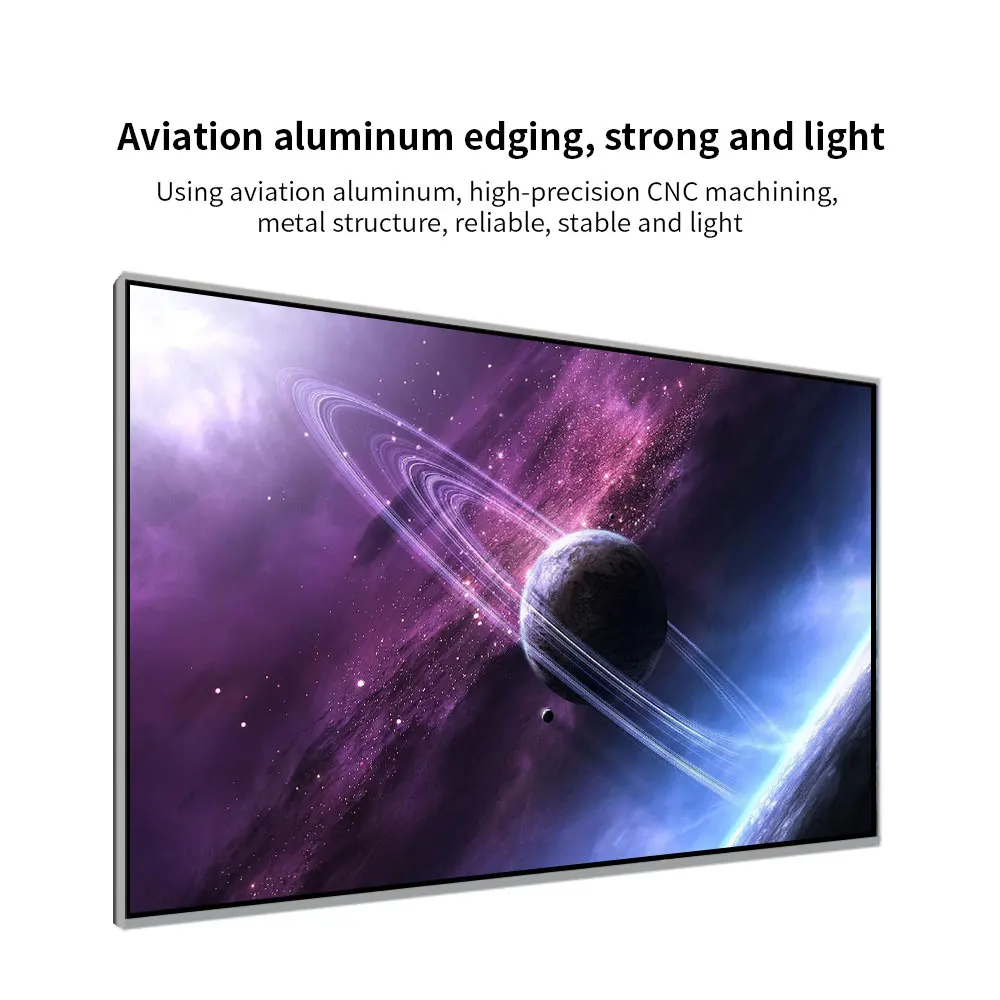

Appearance color | Basalt black (carefully frosted frame + hardware back cover) | |
Display protection | Optional: 4mm ordinary explosion-proof glass or AG anti-glare glass | |
Form size of the whole machine | L1965 x H1180 x W99 | |
Carton size | L2115xH1325 x W225 | |
Bare-machine net weight (Kg) | 77 | |
Gross weight (Kg) | 95 | |
Wall frame size | L990*H215*T40 | |
Ve size VESA | Horizontal 600 x vertical 600 | |
Wall screw specification | M8 x L25 x 4 pcs | |
