FR1200 Waterproof IP65 Smart Security Door Access Control Proximity RFID Card RS485 Slave Biometric Fingerprint Reader
- Category: >>>
- Supplier: Shenzhen Xpo Technology Co. Ltd.
Share on (1600909306056):
Product Overview
Description
Access Control Panel
for 1/2/4 doors
Smart app for remotely open lock
Could software remotely check records
Standalone professional software
Power Supply for Control Panel
with space to hold the control panel
Bigger to hold the battery too
for lock and card reader too
Other power available too
Access Control Panel C3-100
Support 2 readers
26-bit Wiegand
ZKAccess3.5 professional software
Access Control Panel C3-200
Support 4 readers
26-bit Wiegand
ZKAccess3.5 professional software
Access Control Panel C3-400
Support 4 readers
26-bit Wiegand
ZKAccess3.5 professional software

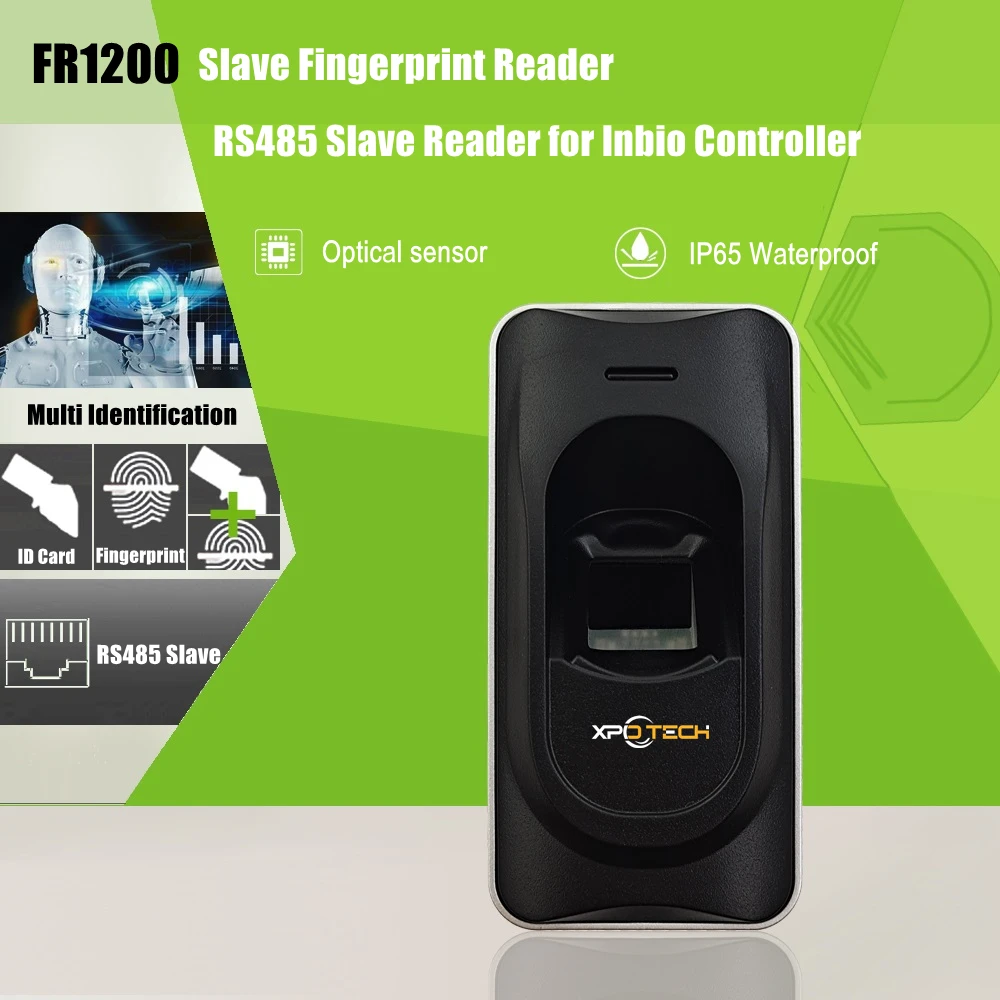

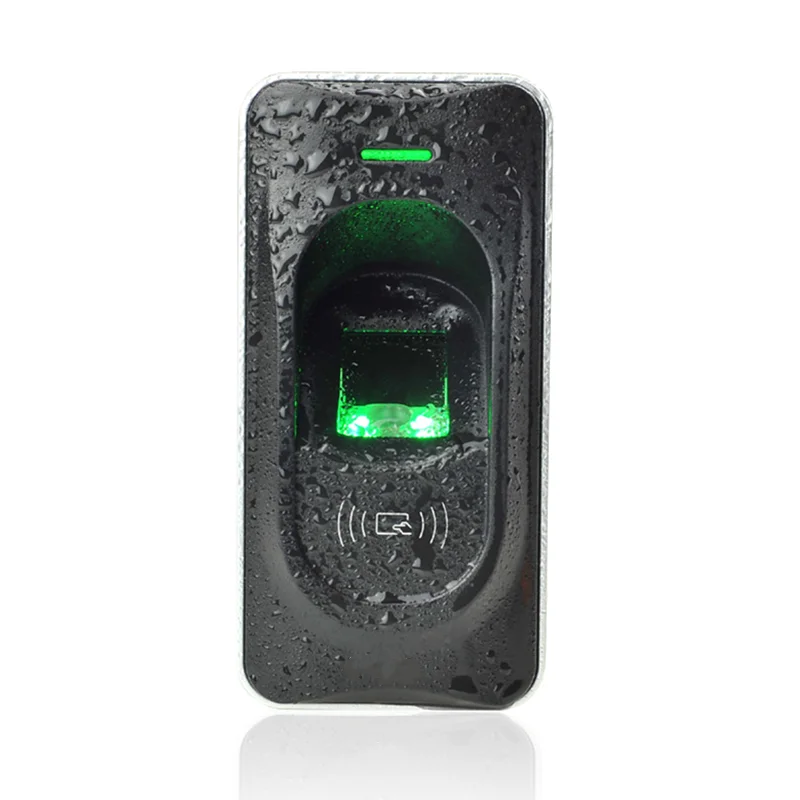

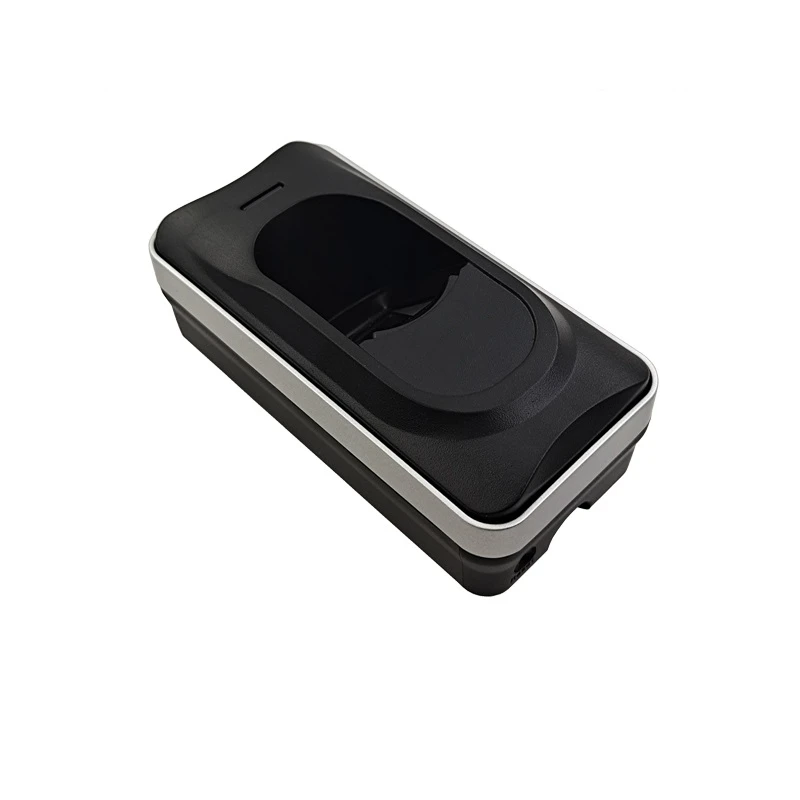

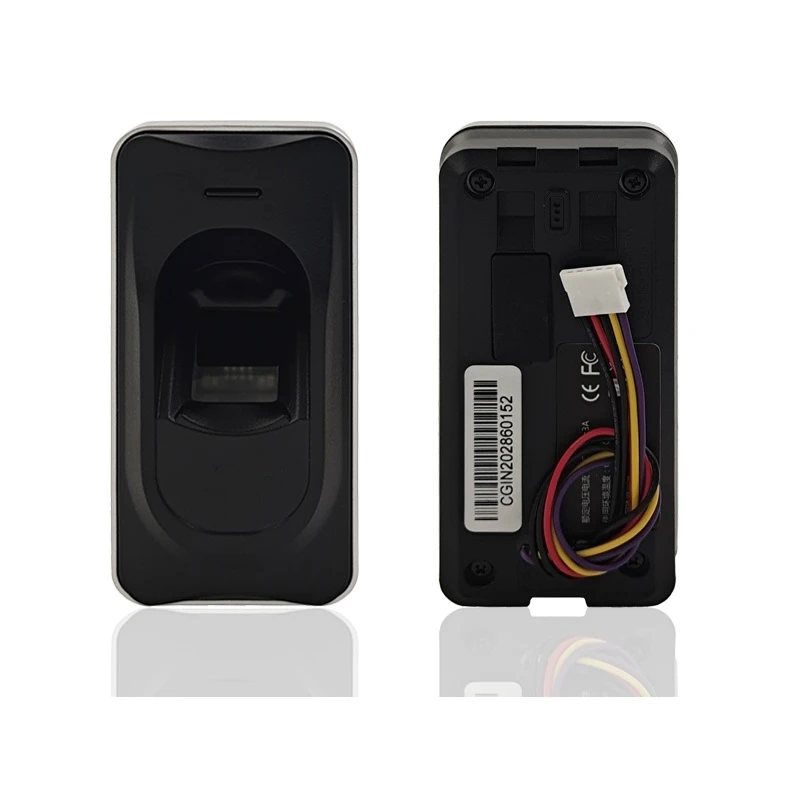

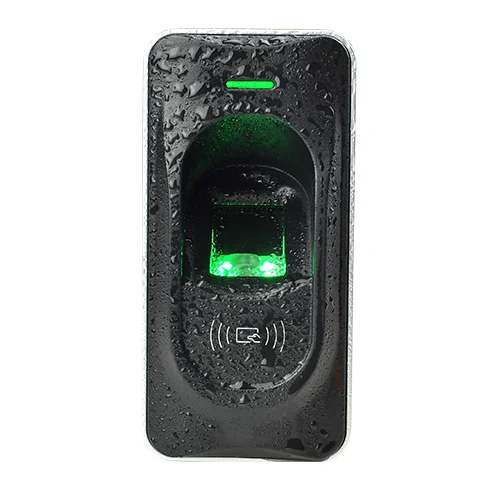

RS485 Slave Biometric Fingerprint Reader for inBio Series Control panel
FR1200, a fingerprint reader with RS485 communication interface works with biometric access controllers and fingerprint standalone access control, including inBIO series controllers, F8 and so on. It offers the function of capturing and transferring fingerprint samples to access control panel. With its IP65 rated rugged structure, FR1200 offers extra durability in all weather conditions including outdoor environments.
Product Paramenters
Model | FR1200 |
CPU | 324 MHz |
Fingerprint Sensor | Small Size Sensor |
Algorithm Version | Finger VX10.0 |
Communication | RS485 |
Standard Function | ID Card Module |
Optional Function | IC Card Module |
Voice Prompt | Buzzer |
Power Supply | DC 12V |
Operating Temperature | 0 ~ 45°C (32°~113°F) |
Protection Grade | IP65 |
Dimension(L x W x H) | 102 x 50 x 37mm |
Sensor | Infrared Optical Sensor |
Communication | RS485 |
Built-in Card Reader | 125 kHz EM card reader, Optional IC card reader |
Optional Function | IC Card Module |
Power Supply | DC 12V |
Operating Temperature | 0°C ~ 45°C |
Operating Humidity | 20% ~ 80% |
Dimension | 88mm×88mm×33.6mm |
Working Temperature | -10°C to 45°C |
Working Humidity | 20% to 95% |
Dimensions (L*W*H) | 121.3 × 77.3 × 38 (mm) |
Algorithm: | Finger V10.0 |
Net Weight/Gross Weight: | 14.2g /24.4g |
Power Supply | Voltage: DC 12V |
Compatibility | inBio/inBioPro Controllers |
Power Consumption under Stand-by | 12V*60mA=0.72W |
Peak Current of Fingerprint Scanning | 140mA |
Identfication | Fingerprint, ID card |
Communication | RS485 |

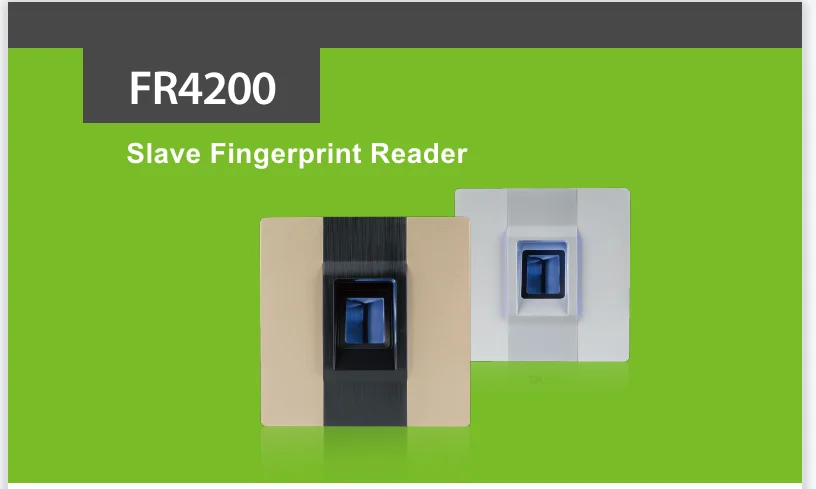

Model | FR4200 |
Algorithm Version | ZKFinger VX10.0 |
Power Consumption under Stand-by | 12V*60mA=0.72W |
Peak Current of Fingerprint Scanning | 140mA |
Communication | RS485; TCP/IP for inBio5 Series control panel |
Standard Function | Fingerprint and ID card reader |
Voice Prompt | Buzzer |
Operating Temperature | 0 ~ 45°C (32°~113°F) |
Dimension(L x W x H) | 95.1 x 95.1 x 53.4mm |
XPOTECH Fingerprint Scanner
Xpo Technology is a leading supplier in the field of access control and security products.
Our range of products extends from single door access control to integrated systems capable of managing hundreds of doors and
alarm monitoring points at worldwide locations.
Our range of products extends from single door access control to integrated systems capable of managing hundreds of doors and
alarm monitoring points at worldwide locations.
Beside, we accept OEM and ODM as per clients' requirements too. If you got any requirements, please feel free to contact us.
2001.web
TCP/IP Communication
1 door connect with 2 readers
Professional standalone software
Cloud based software
4G smart app remotely unlock
2002.web
TCP/IP Communication
2 door connect with 4 readers
Professional standalone software
Cloud based software
4G smart app remotely unlock
Professional standalone software
Cloud based software
4G smart app remotely unlock
