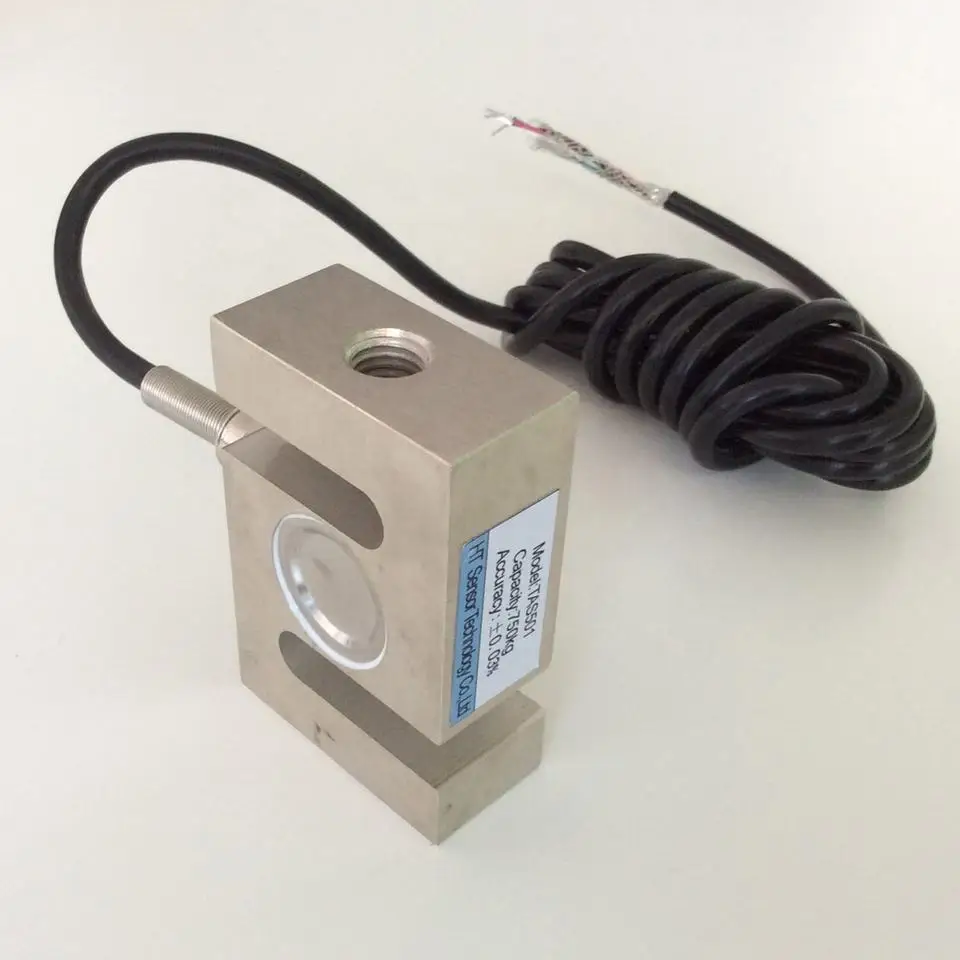

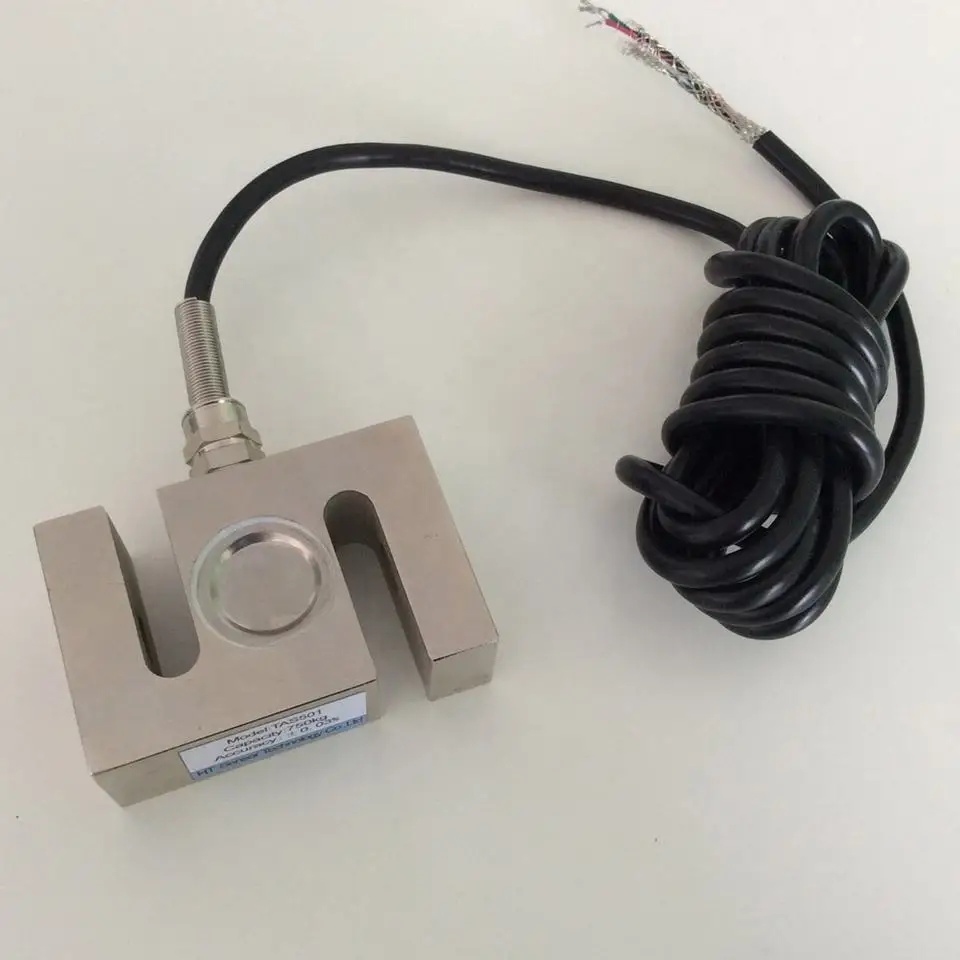

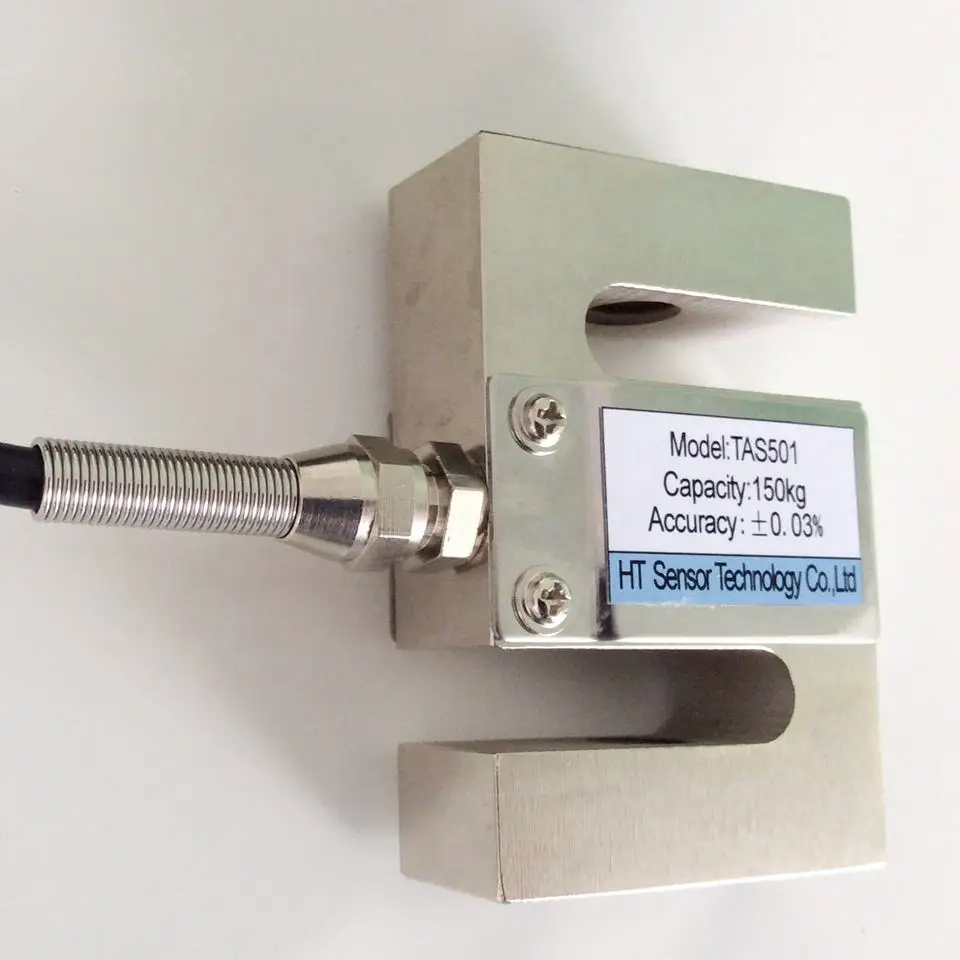

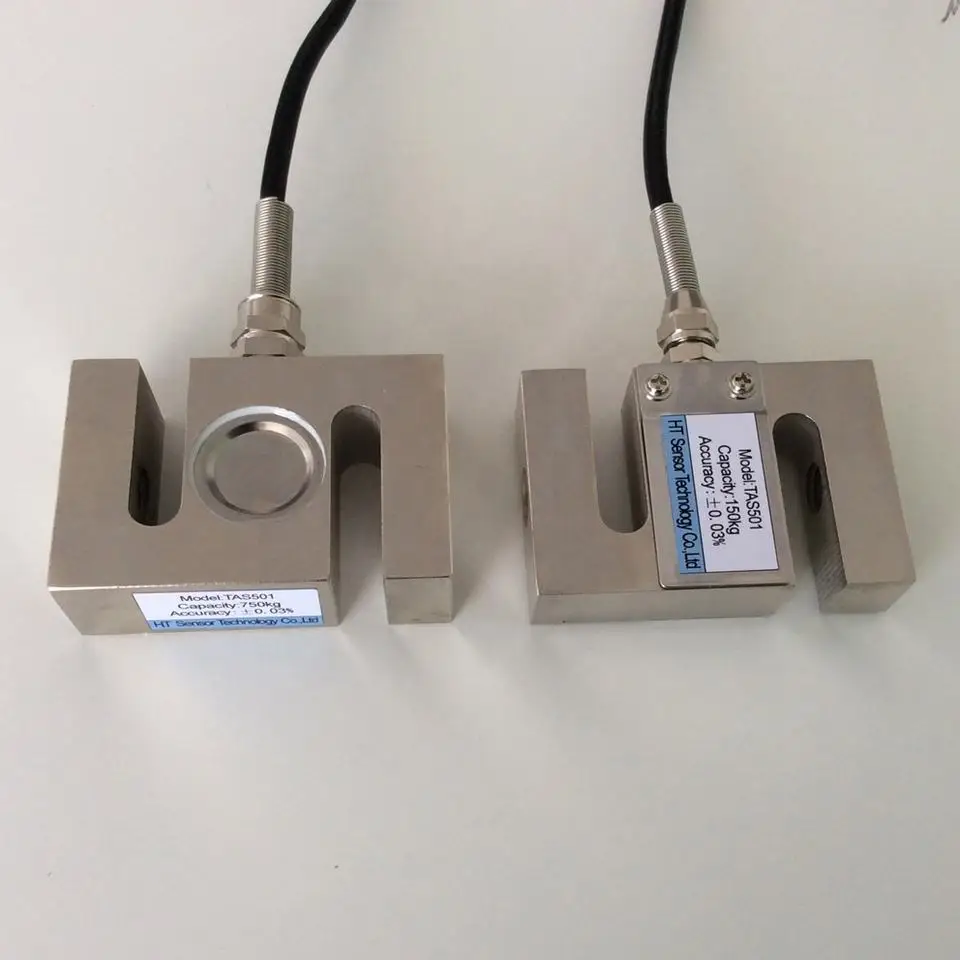

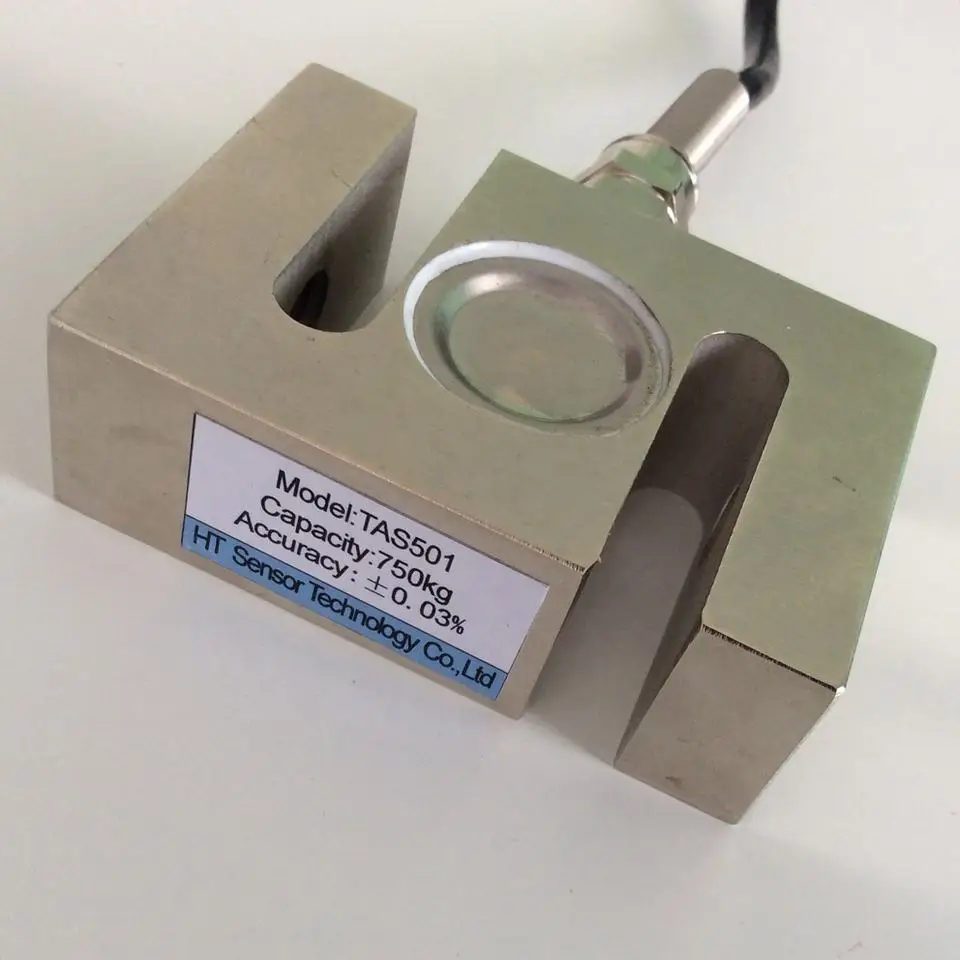

Original vishay flintec piezoelectric load cell 10t 20t 30t keli zsfy compression load cell yamato avery weighing cells
- Category: >>>
- Supplier: HT Sensor Technology Co. Ltd.
Share on (1600909326388):
Product Overview
Description

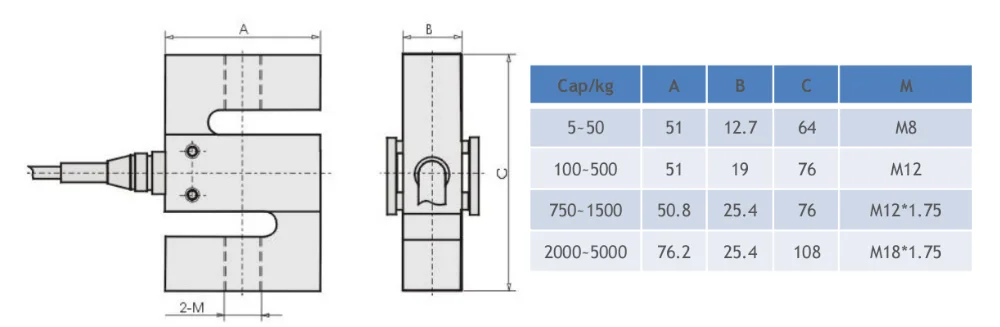

capacity | kg | 5,10,20,30,50,100,150,200,300,500,1T,1,5T,2T,3T,5T |
safe overload | %FS | 150 |
ultimuate overload | %FS | 200 |
rated output | mV/V | 2.0±0.004 |
excitation voltage | Vdc | 9~12 |
combined error | %FS | ±0.02 |
zero balance | %FS | ±1.0 |
non-linearity | %FS | ±0.02 |
hysteresis | %FS | ± 0.02 |
repeatability | %FS | ± 0.02 |
creep | %FS/30min | ± 0.024 |
input resistance | Ω | 350±20 |
output resistance | Ω | 350±5 |
insulation resistance | MΩ | ≥ 5000 @ 50 Vdc |
operating temperature range | ℃ | -10~ +40 |
compensated temperature range | ℃ | -20 ~ +55 |
temperature coefficient of SPAN | %FS/10℃ | ± 0.023 |
temperature coefficient of SPAN | %FS/10℃ | ± 0.017 |
We are a professional manufactory engaged in the development, sale and service of strain gauge, load cell, tension sensor, torque sensor, position travel sensor and proper instruments for electronic scales, factory automation and process control.
We have outstanding and experienced senior engineers with more than 20 years experience on the industry technology to support our customized service and help customers to get project solution.
In recent years, our factory has introduced a series of advanced equipment including CNC machine, Laser marking machine, calibration instrument and temperature testing chamber. In addition, the company obtained ISO 9001 :2015 certificates. All of our products pass the testing and obtain ROSH and CETest reports.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. Our products are selling well in all cities around China. Our sensors are also exported to clients across the globe, special for the countries as USA , Canada, Germany, Italy, Australia, Japan, South Korea etc.We are available to provide support for any product, service or inquiry.
We are located in Xi 'an China. Welcome you.
Sincerely hope to become your trusted partner.
We have outstanding and experienced senior engineers with more than 20 years experience on the industry technology to support our customized service and help customers to get project solution.
In recent years, our factory has introduced a series of advanced equipment including CNC machine, Laser marking machine, calibration instrument and temperature testing chamber. In addition, the company obtained ISO 9001 :2015 certificates. All of our products pass the testing and obtain ROSH and CETest reports.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. Our products are selling well in all cities around China. Our sensors are also exported to clients across the globe, special for the countries as USA , Canada, Germany, Italy, Australia, Japan, South Korea etc.We are available to provide support for any product, service or inquiry.
We are located in Xi 'an China. Welcome you.
Sincerely hope to become your trusted partner.
