Product Description

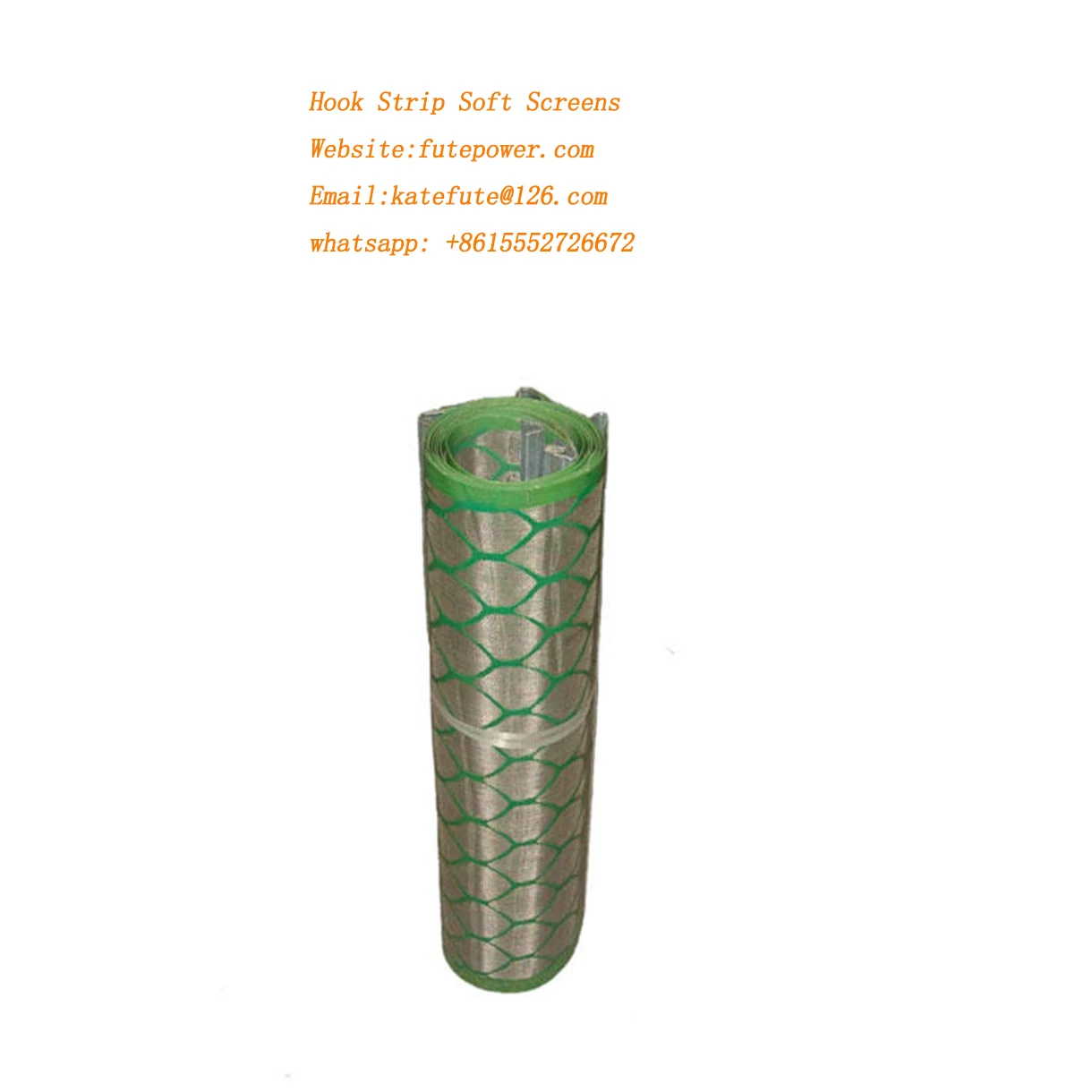

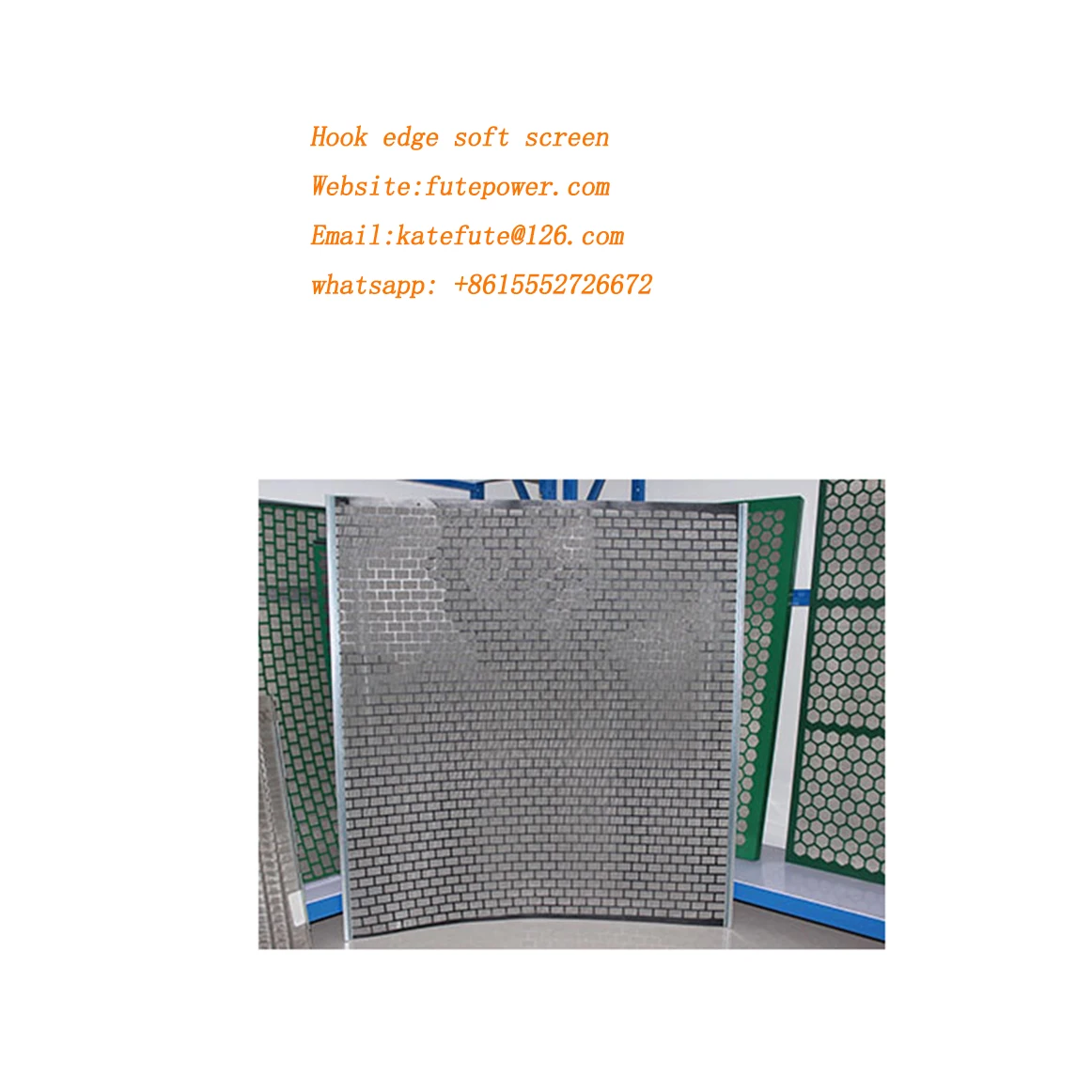

Hook Strip Soft Screen
Hook Strip Soft Screen is the most widely used screen, the features of screen of this type:
1. 2 to 3 layers of stainless steel wire cloths bonding as a whole without metal foils.
2.Install in the shaker by the way of crisperding without metal branch cuttings fiber towel glue and with large effective area.
3.The wire diameter of the bottom layer of the screen mesh is relatively coarse, which plays the roles of screening and supporting with the upper layer and extends the life of the screen.
4.The soft screen, with low price, effective filtration area is bigger than flat screen, but its lift is comparatively short with
that of flat screen. It needs to choose different screen, depending on the drilling conditions.



Specification


Screen Model
Range of Mesh
Dimension(W*L)
Brand&Model of shaker
GMHSF-1
20-325
700×1050mm
FLC2000
GMHSF-2
20-325
1212X1141mm
SWACO ALS-2
GMHSF-3
10-80
915X925mm
JSS(USA)
GMHSF-4
8-120
1514X1225mm
NOV 4X5
GMHSF-5
20-250
1000X1150mm
NS-115/2
GMHSF-6
20-250
600X1040mm
NCS-300X2


API RP 13C(ISO 13501)
D100 Particle sizing (Microns)
API Screen Number
>780.0 to 925.0
API 20
>655.0 to 780.0
API 25
>550.0 to 655.0
API 30
>462.5 to 550.0
API 35
>390.0 to 462.5
API 40
>327.5 to 390.0
API 45
>275.0 to 327.5
API 50
>231.0 to 275.0
API 60
>196.0 to 231.0
API 70
>165.0 to 196.0
API 80
>137.5 to 165.0
API 100
>116.5 to 137.5
API 120
> 98.0 to 116.5
API 140
> 82.5 to 98.0
API 170
> 69.0 to 82.5
API 200
> 58.0 to 69.0
API 230
> 49.0 to 58.0
API 270
> 41.5 to 49.0
API 325
