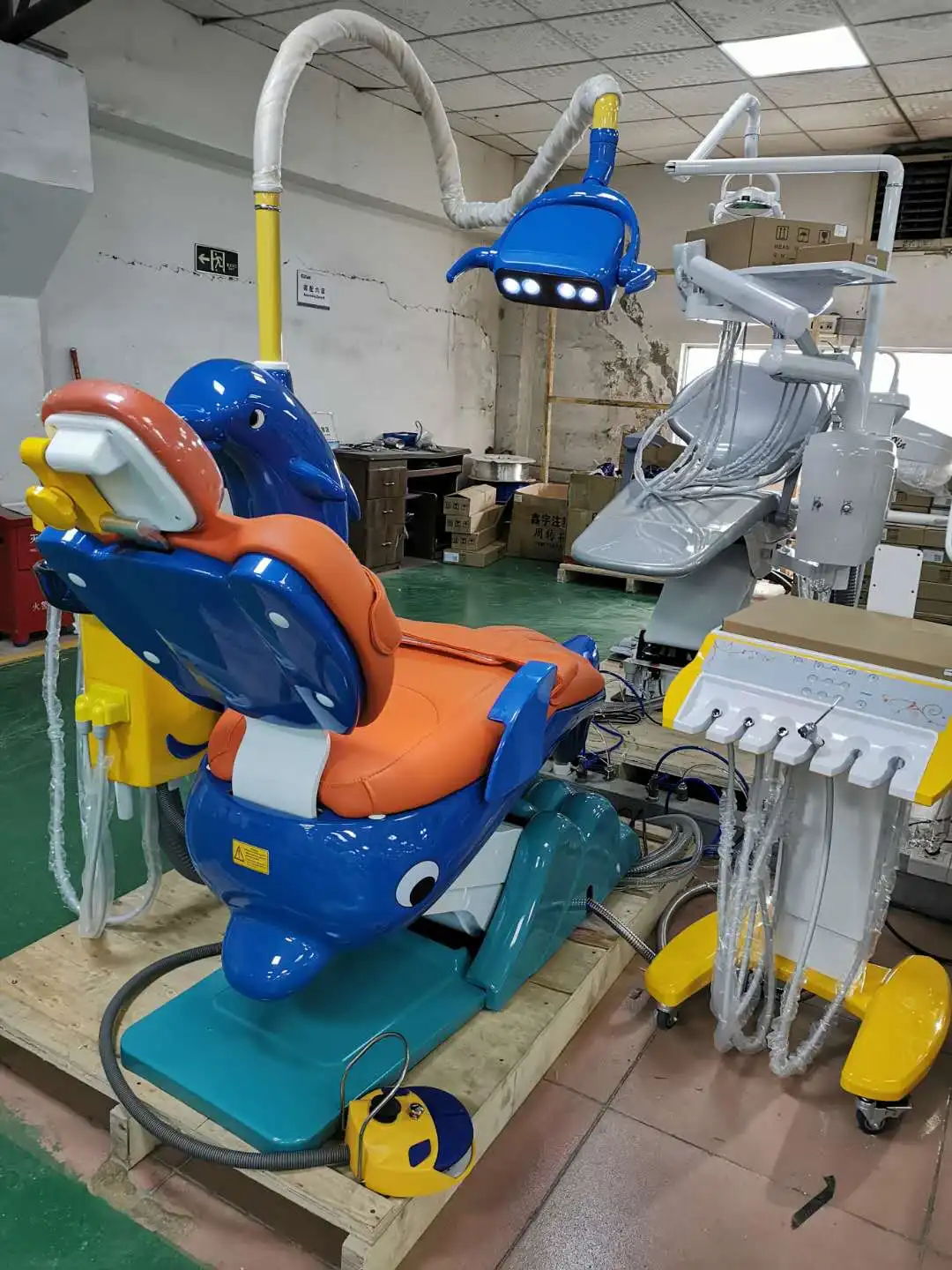

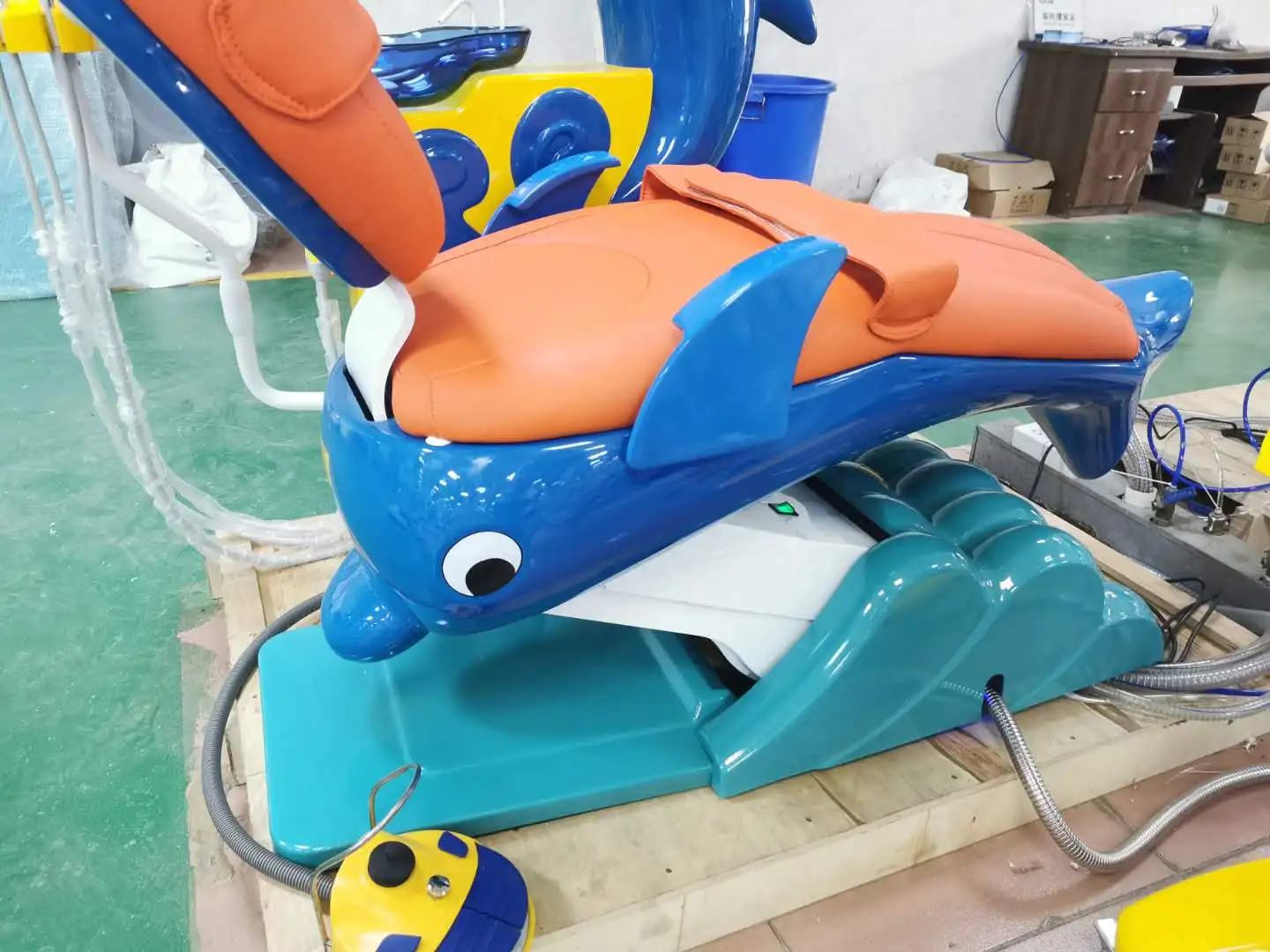

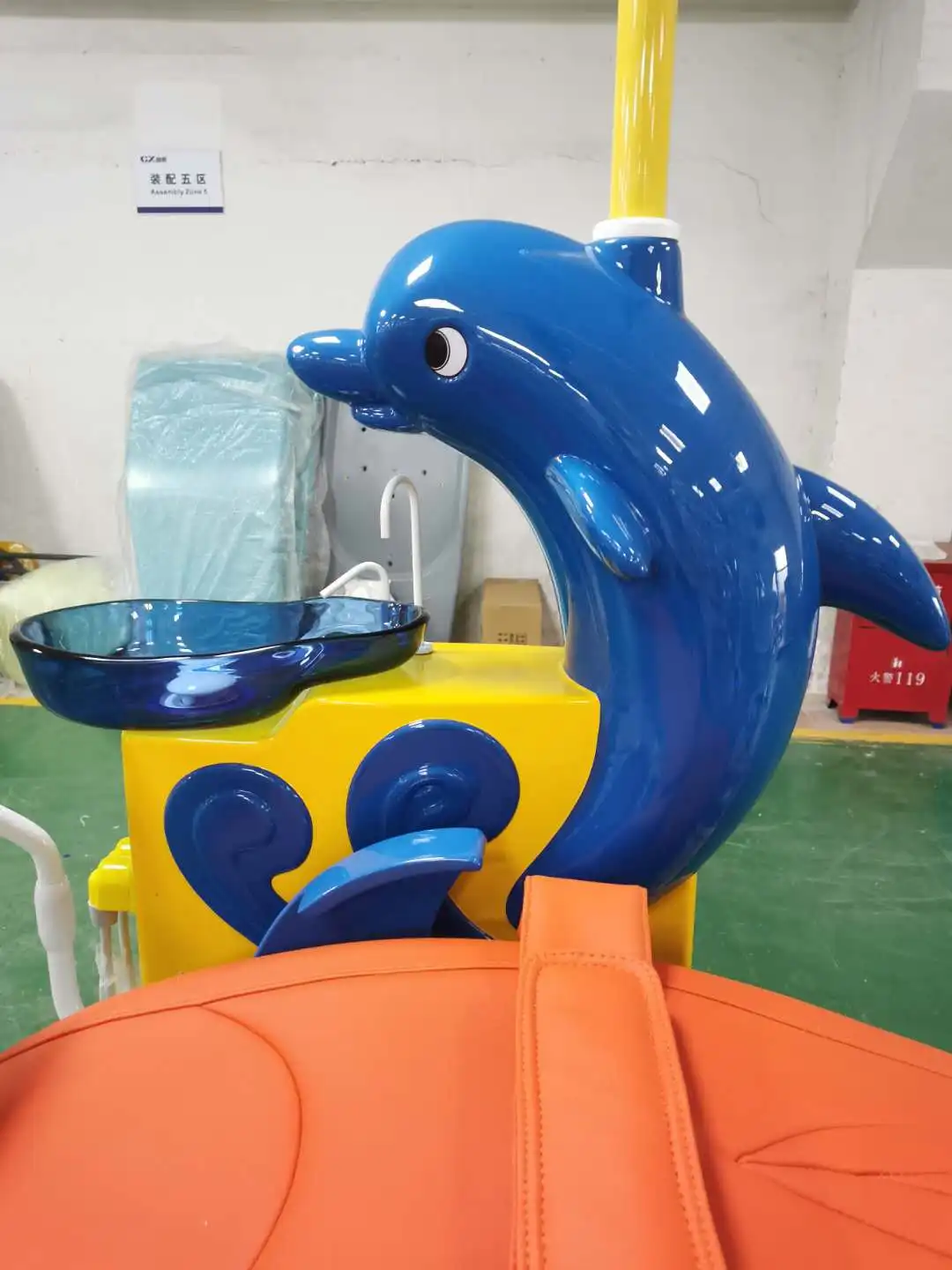

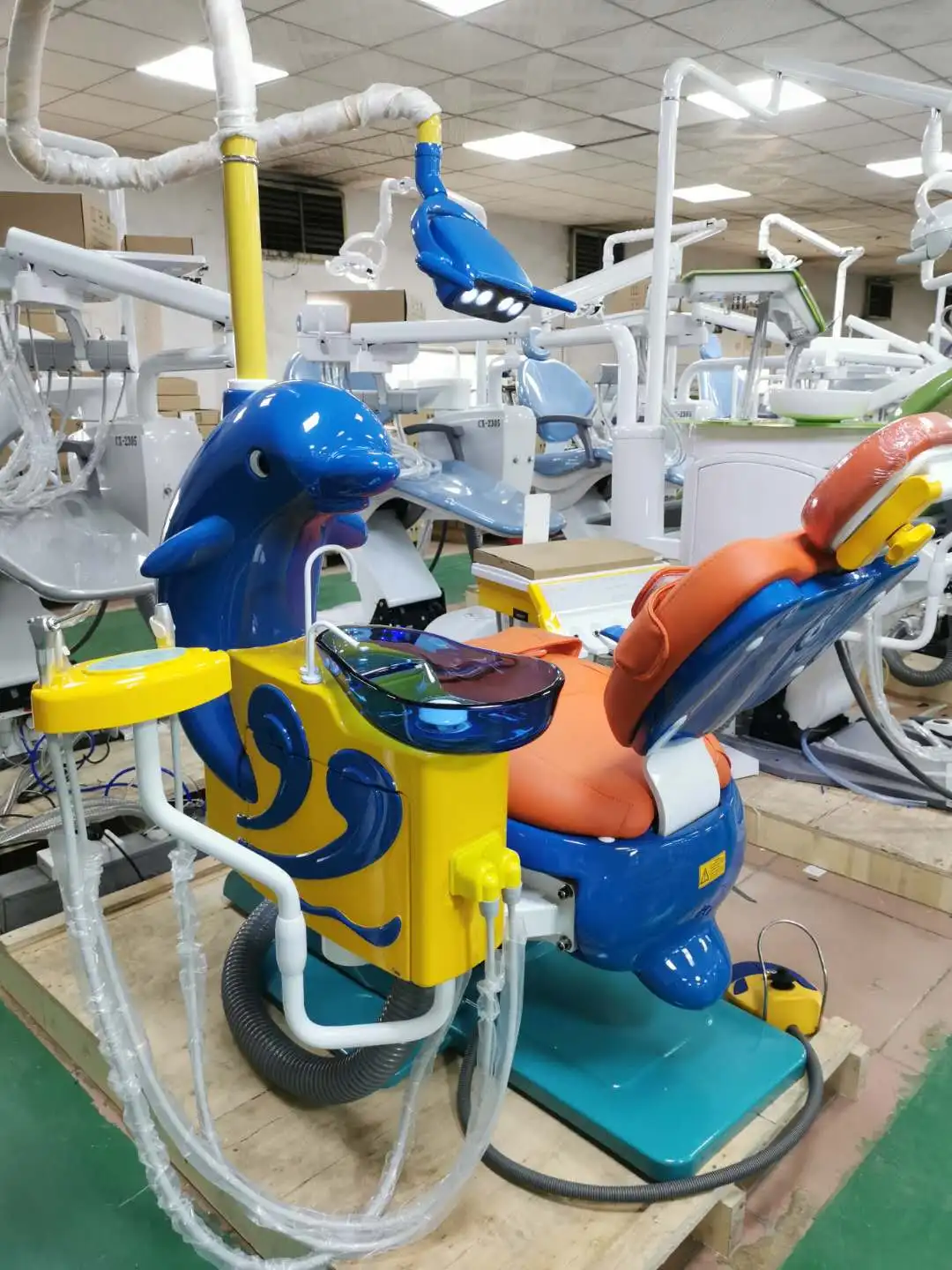

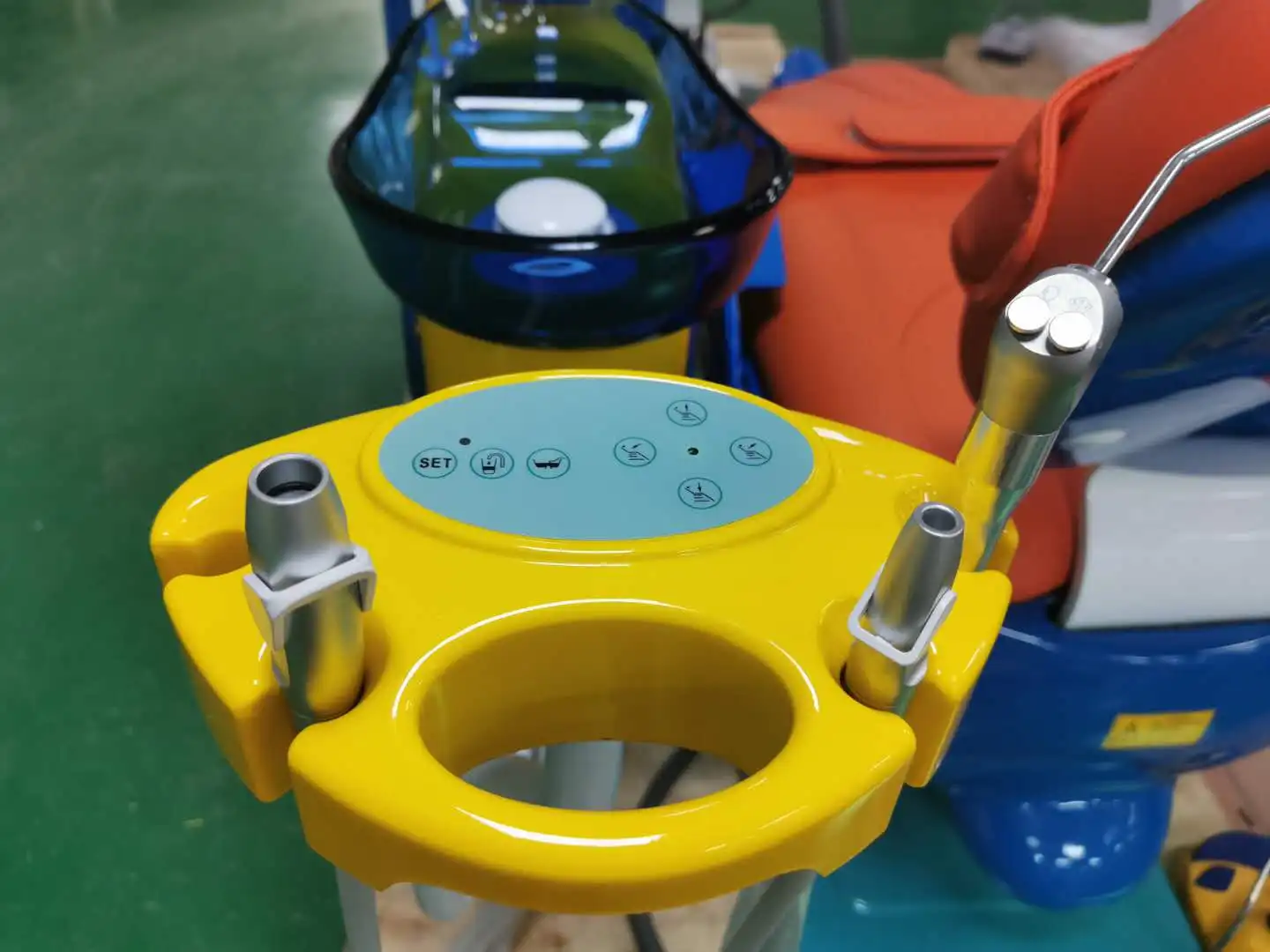

Cute Cartoon Dolphin kids Dental Unit Electric dental chair for children
- Category: >>>
- Supplier: Guangzhou Hearty Expresssion Medical Technology Co. Ltd.
Share on (1600909338973):
Product Overview
Description
Product Description
Technical parameters of dental comprehensive treatment machine
Children's dental chair HE-DC003
Product technical parameters:
Power supply: AC 220V Frequency: 50Hz
Input power: 680VA
Specification of fuse: Main network power supply: FR1-20 φ five × 20 5A
Work cycle: 2 minutes of work/18 minutes of rest
Maximum bearing capacity: 1350N
Maximum torque: 100N • m (users are not allowed to add torque load)
Tool tray additional load ≤ 8 Kg (when at the farthest center of gravity of the product in the width direction)
Working system: intermittent operation
Tooth chair loading duration ≤ 60% (tooth chair working time/gap time) (user)
Mouthwash temperature: 40 ± 5 ° C
Water particle filter aperture 80 μ The color of the m water pipe is white
Air particle filter aperture 20 μ The color of the m trachea is blue
Treatment water suction ≤ 40mm3 (0.04ML)

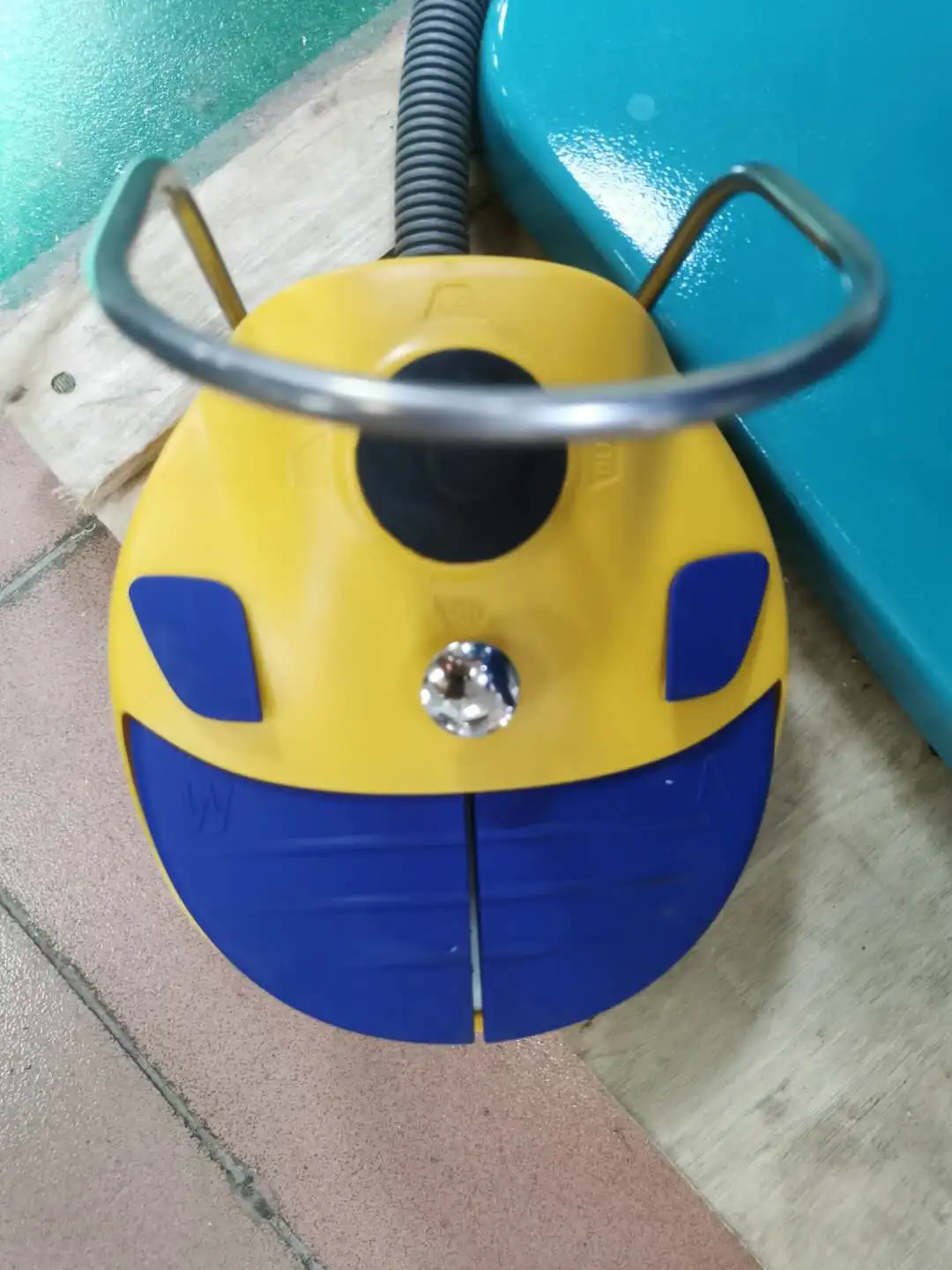

Foot switch: IPX1
High speed mobile phone with maximum speed ≥ 300000 r/min
Maximum output torque ≥ 6g. cm (air pressure is 0.22Mpa)
Low speed mobile phone with maximum speed ≥ 20000r/min
Maximum output torque ≥ 10g. cm (with a pressure of 0.3Mpa)
Input air pressure: 0.55~0.6MPa, flow rate ≥ 50L/min
Input water pressure: 0.2~0.4MPa, flow rate ≥ 10L/min
Environmental temperature: 5-40 ° C, relative humidity ≤ 80%
Oral cold light illumination 10000LX-1500LX
Backrest tilt range 105 ° -170 °
The height of the seat cushion from the ground is less than 450mm and greater than 780mm
The quality of water provided for the dental chair should comply with national regulations. Suggestion:
Water hardness limit: less than 2.14 MMOL/L (<12 'dH) pH value: 6.5-8.5
The air quality used in dental chairs should be free of oil, water, and bacteria.
Product technical parameters:
Power supply: AC 220V Frequency: 50Hz
Input power: 680VA
Specification of fuse: Main network power supply: FR1-20 φ five × 20 5A
Work cycle: 2 minutes of work/18 minutes of rest
Maximum bearing capacity: 1350N
Maximum torque: 100N • m (users are not allowed to add torque load)
Tool tray additional load ≤ 8 Kg (when at the farthest center of gravity of the product in the width direction)
Working system: intermittent operation
Tooth chair loading duration ≤ 60% (tooth chair working time/gap time) (user)
Mouthwash temperature: 40 ± 5 ° C
Water particle filter aperture 80 μ The color of the m water pipe is white
Air particle filter aperture 20 μ The color of the m trachea is blue
Treatment water suction ≤ 40mm3 (0.04ML)
Foot switch: IPX1
High speed mobile phone with maximum speed ≥ 300000 r/min
Maximum output torque ≥ 6g. cm (air pressure is 0.22Mpa)
Low speed mobile phone with maximum speed ≥ 20000r/min
Maximum output torque ≥ 10g. cm (with a pressure of 0.3Mpa)
Input air pressure: 0.55~0.6MPa, flow rate ≥ 50L/min
Input water pressure: 0.2~0.4MPa, flow rate ≥ 10L/min
Environmental temperature: 5-40 ° C, relative humidity ≤ 80%

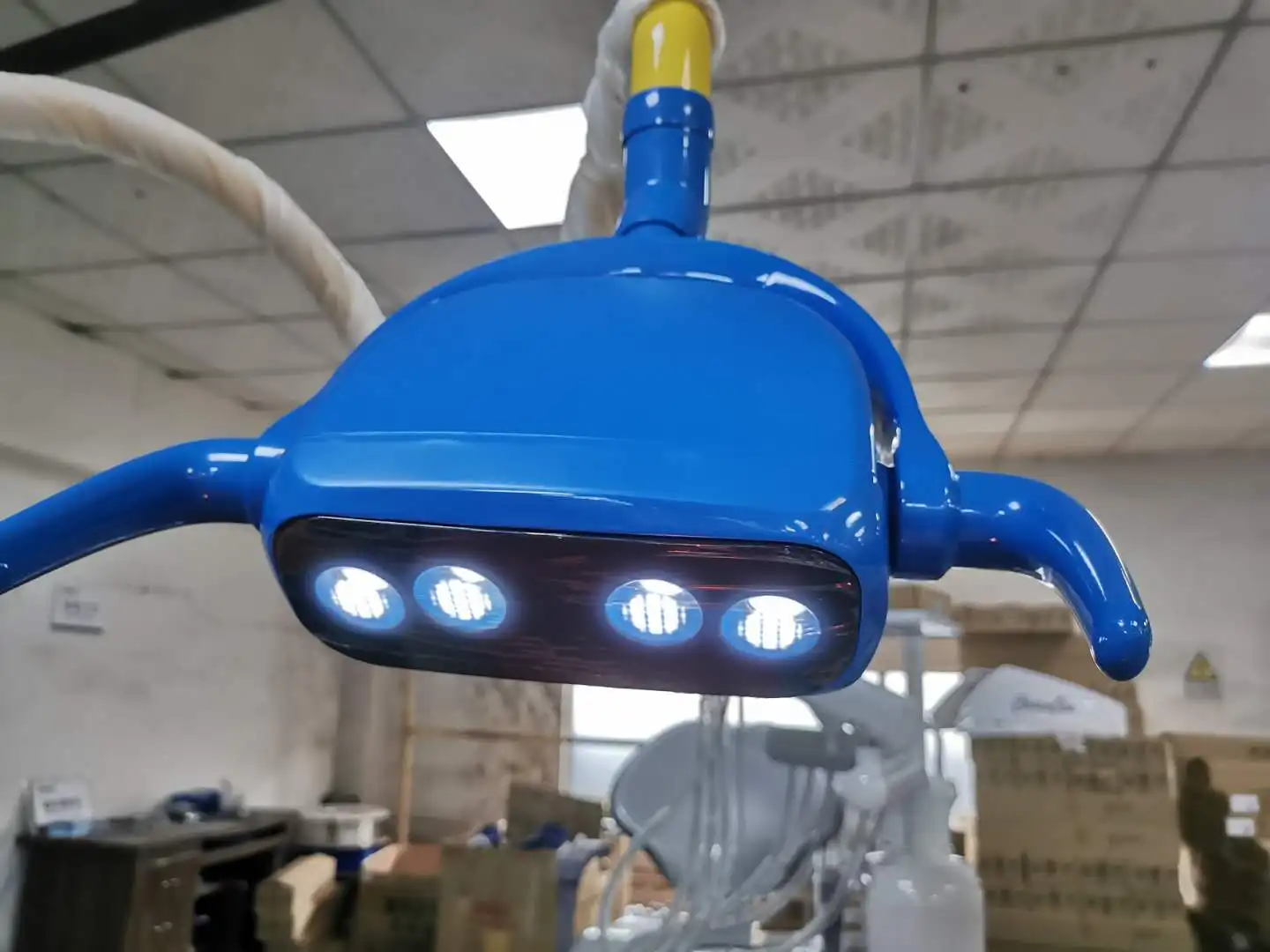

Oral cold light illumination 10000LX-1500LX
Backrest tilt range 105 ° -170 °
The height of the seat cushion from the ground is less than 450mm and greater than 780mm
The quality of water provided for the dental chair should comply with national regulations. Suggestion:
Water hardness limit: less than 2.14 MMOL/L (<12 'dH) pH value: 6.5-8.5
The air quality used in dental chairs should be free of oil, water, and bacteria.
Specification
item | value |
Place of Origin | Guangdong, China |
Model Number | HE-DC003V1 |
Power Source | Electricity |
Warranty | 1 Year |
After-sale Service | Online technical support |
Material | Acrylic, Metal, Plastic, Steel |
Shelf Life | 1years |
Quality Certification | ce |
Instrument classification | Class II |
Safety standard | EN 149 -2001+A1-2009 |
Type | Dental Chair |
Color | Colorful |
Certificate | CE ISO FREESALE |
Application | Hospital, Clinic |
Package | Wooden Case |

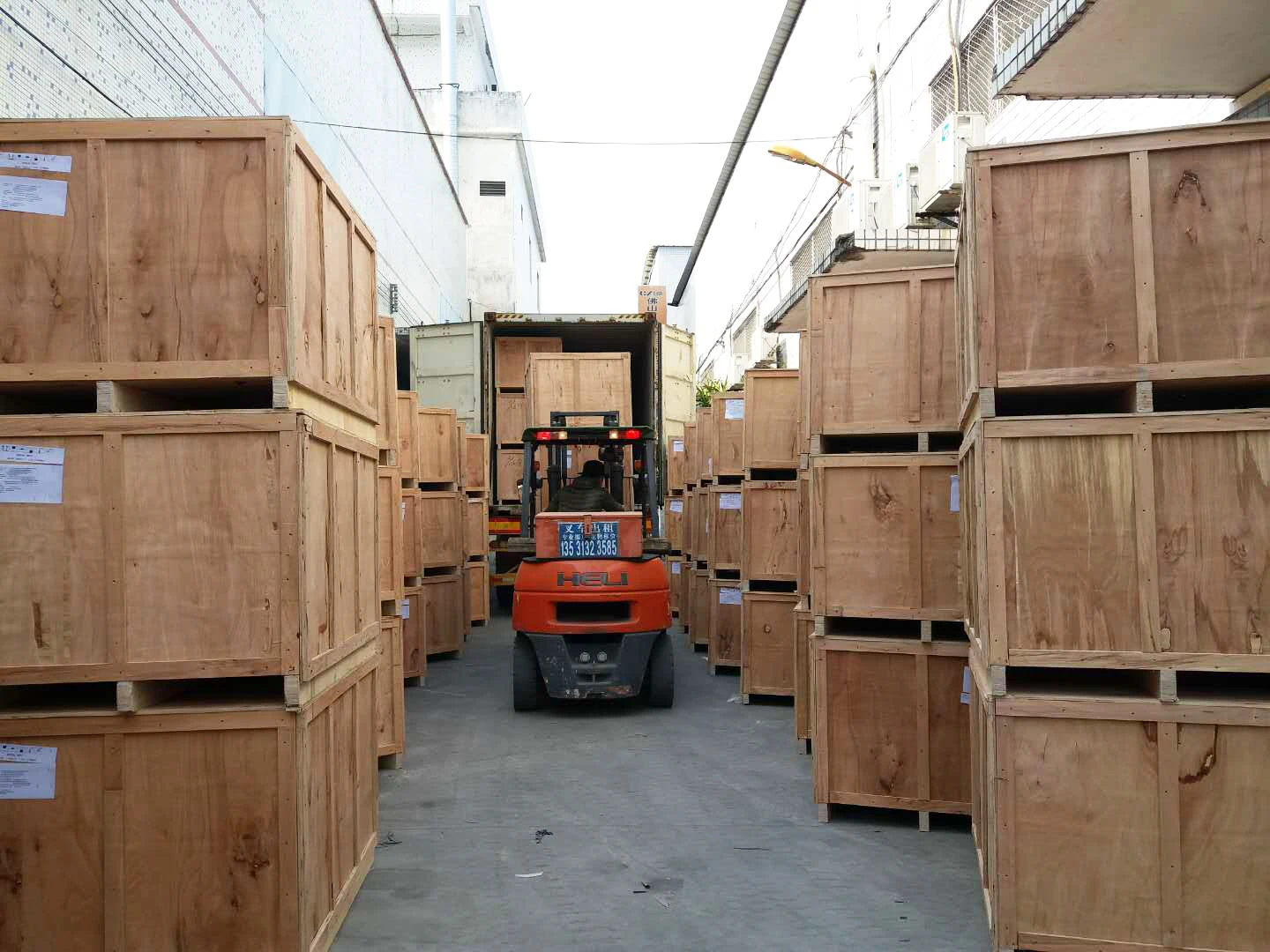

Packing & Delivery
145*120*135cm 300kg
16unit/20GP, 32unit/40HQ
16unit/20GP, 32unit/40HQ
