16kw monoblock EVI low temperature air to water heat pump wifi heating cooling hot water function air source heat pump
- Category: >>>
- Supplier: Shandong Fude New Energy Equipment Co. Ltd.
Share on (1600909343760):
Product Overview
Description

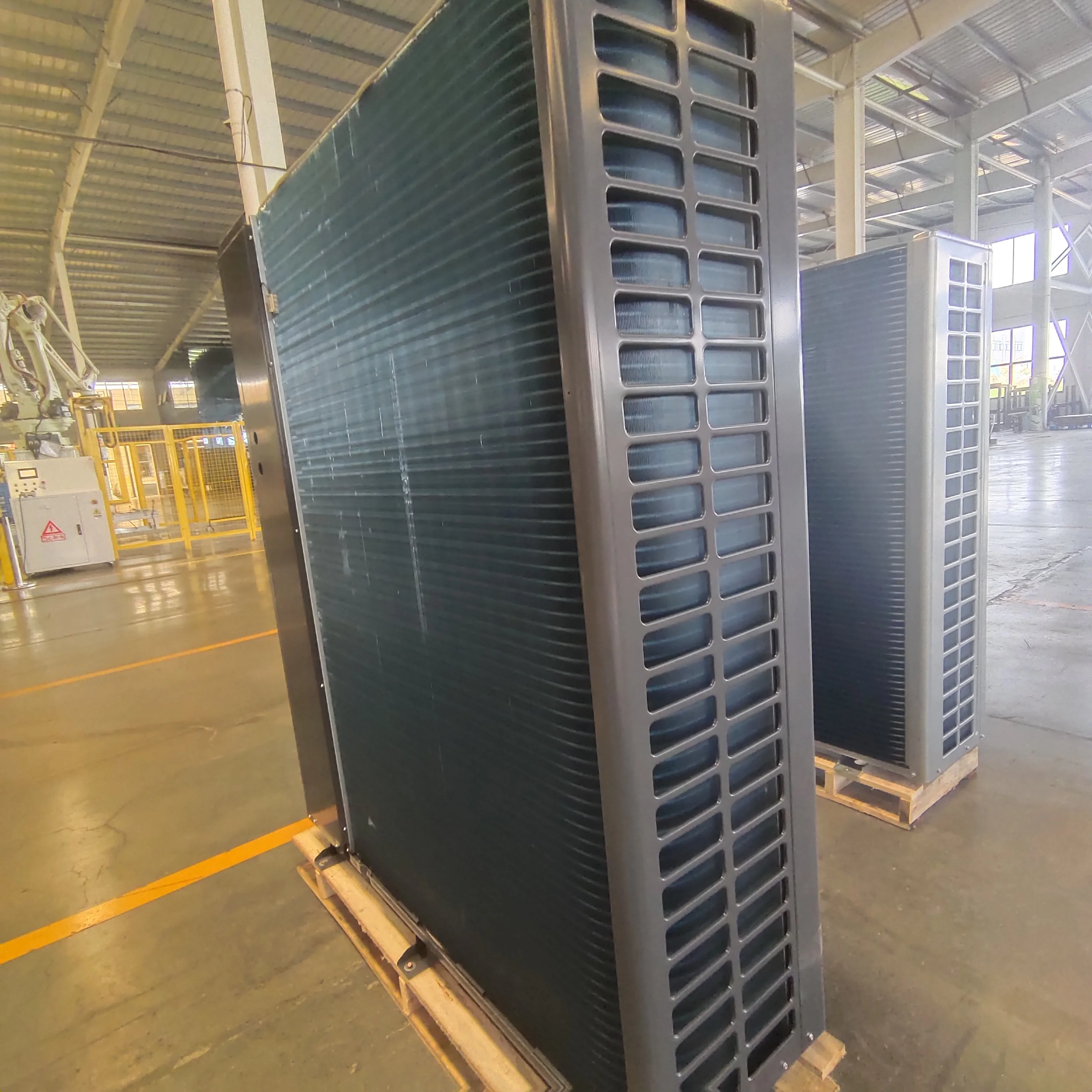

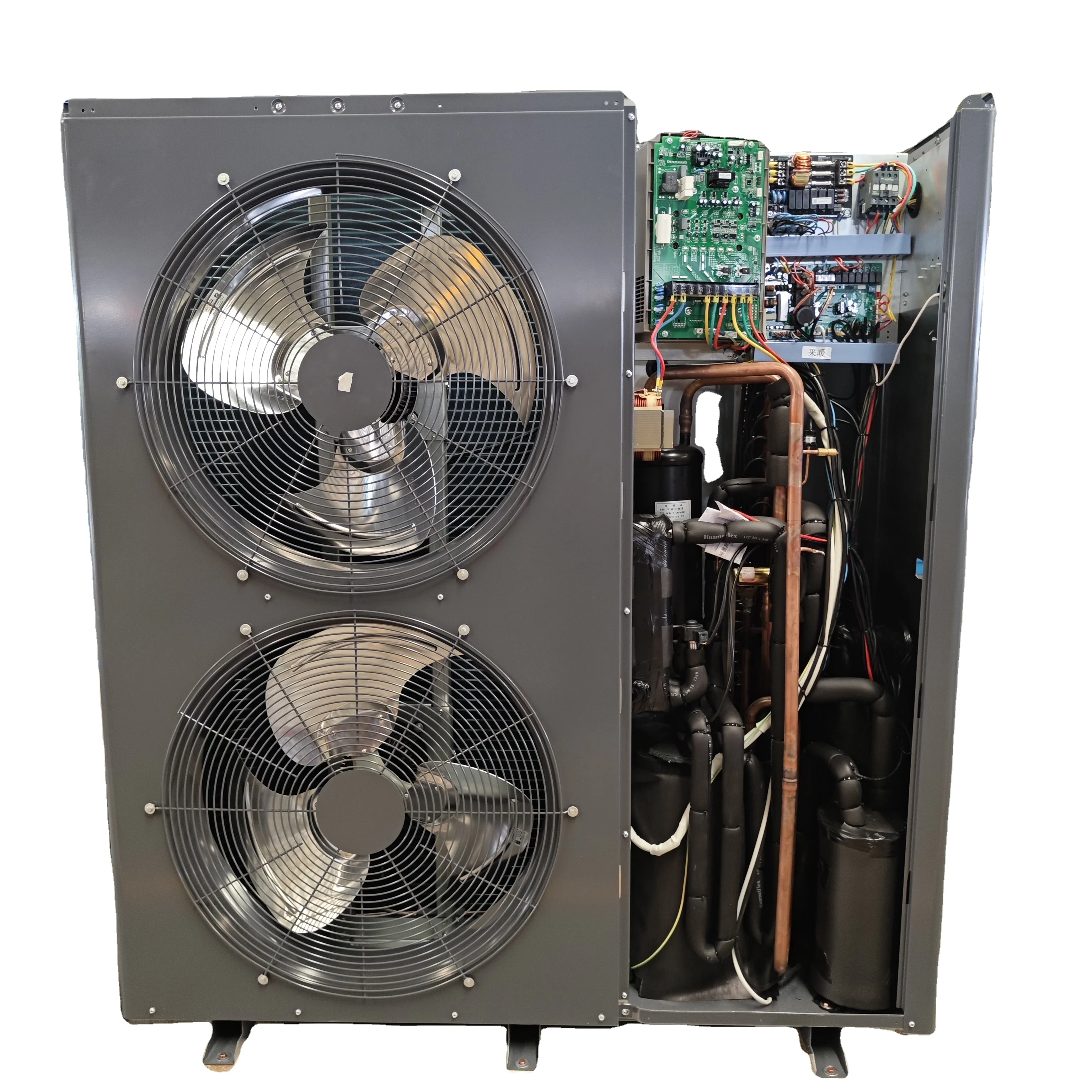

16kw monoblock EVI low temperature air to water heat pump wifi heating cooling hot water function air source heat pump

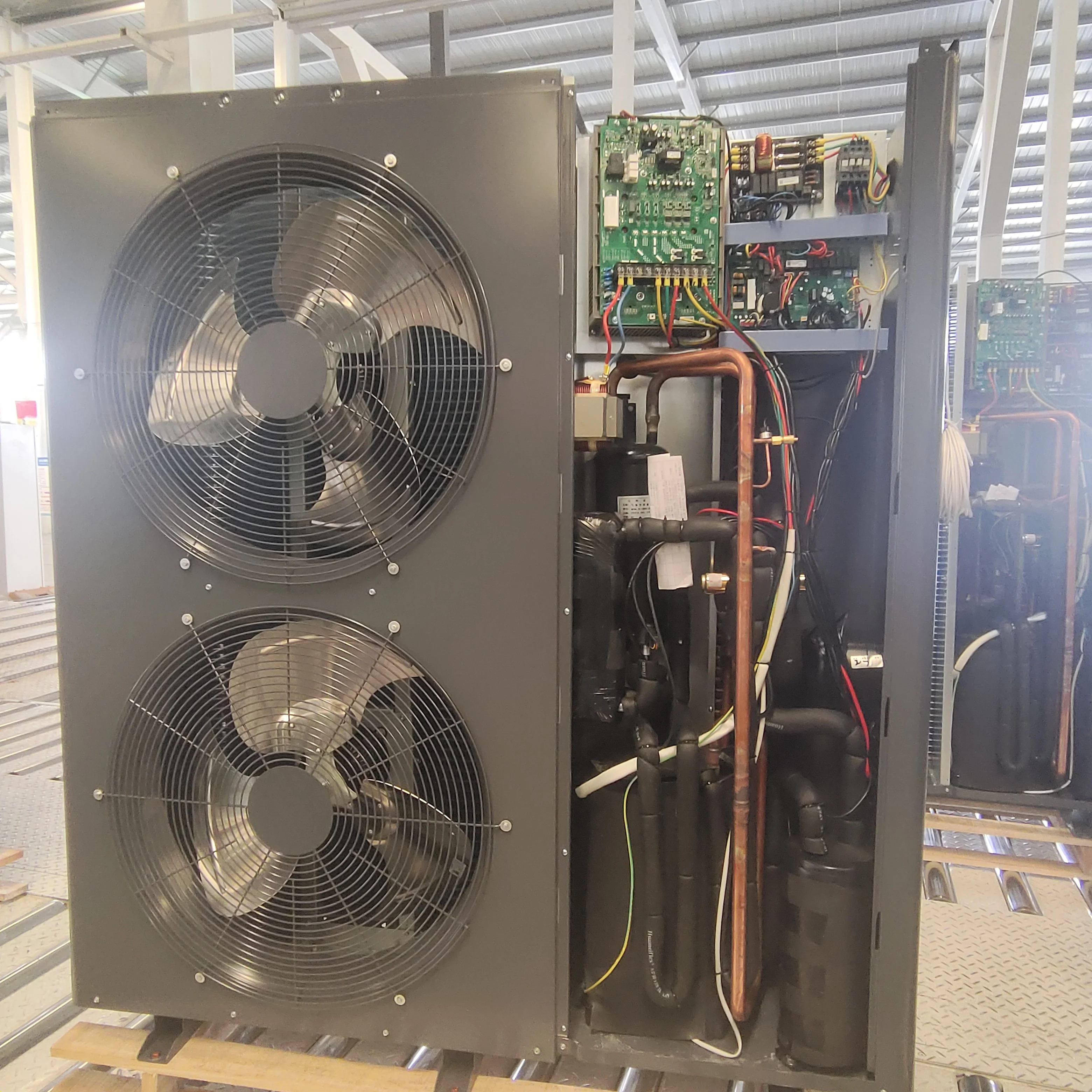

KEY COMPONENTS

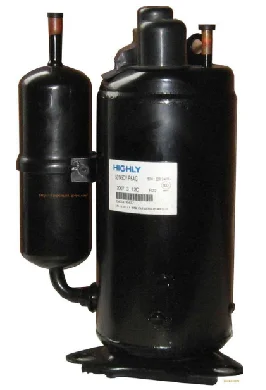

It's adopted to achieve safe and stable operation with high efficiency.

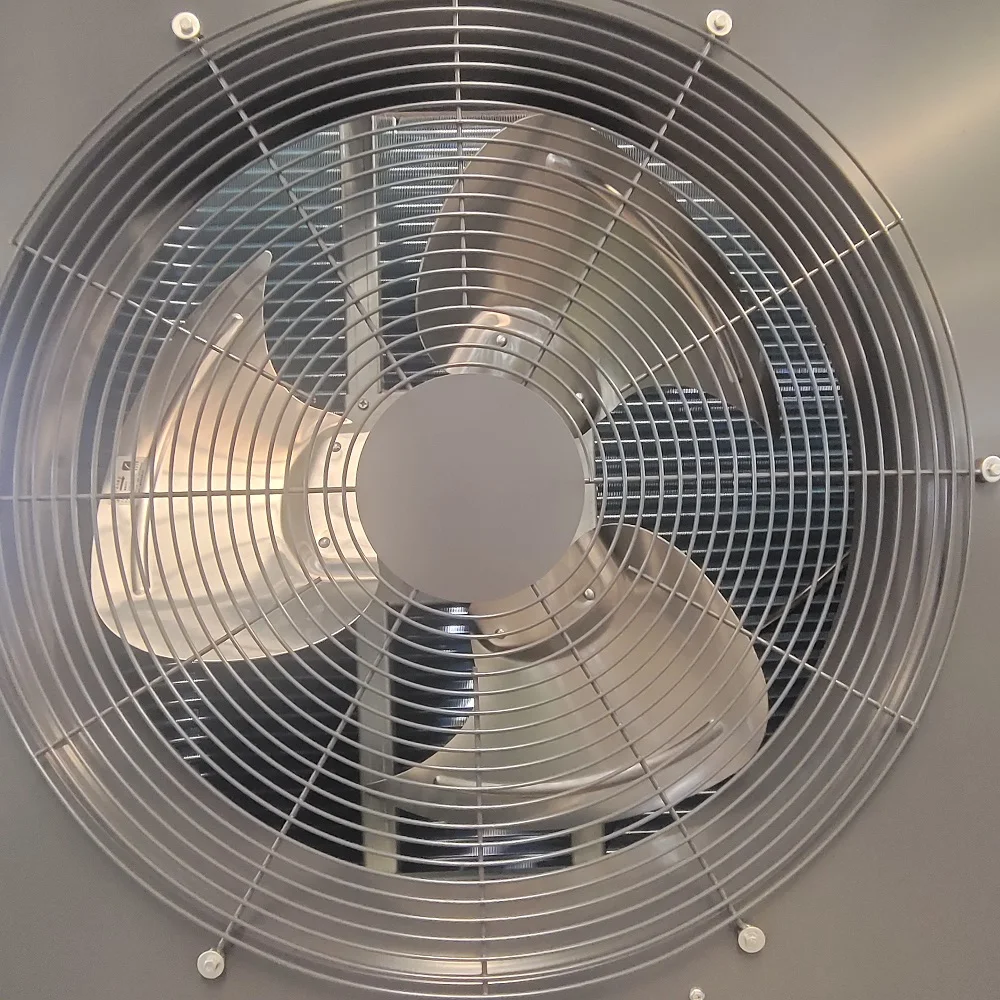

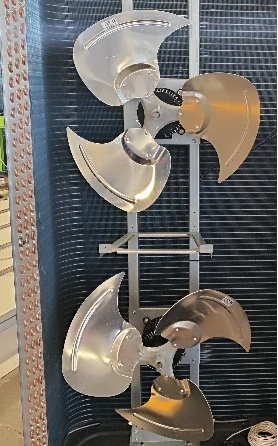

Brushless DC Fan motor can ensure higher efficiency and lower noise.

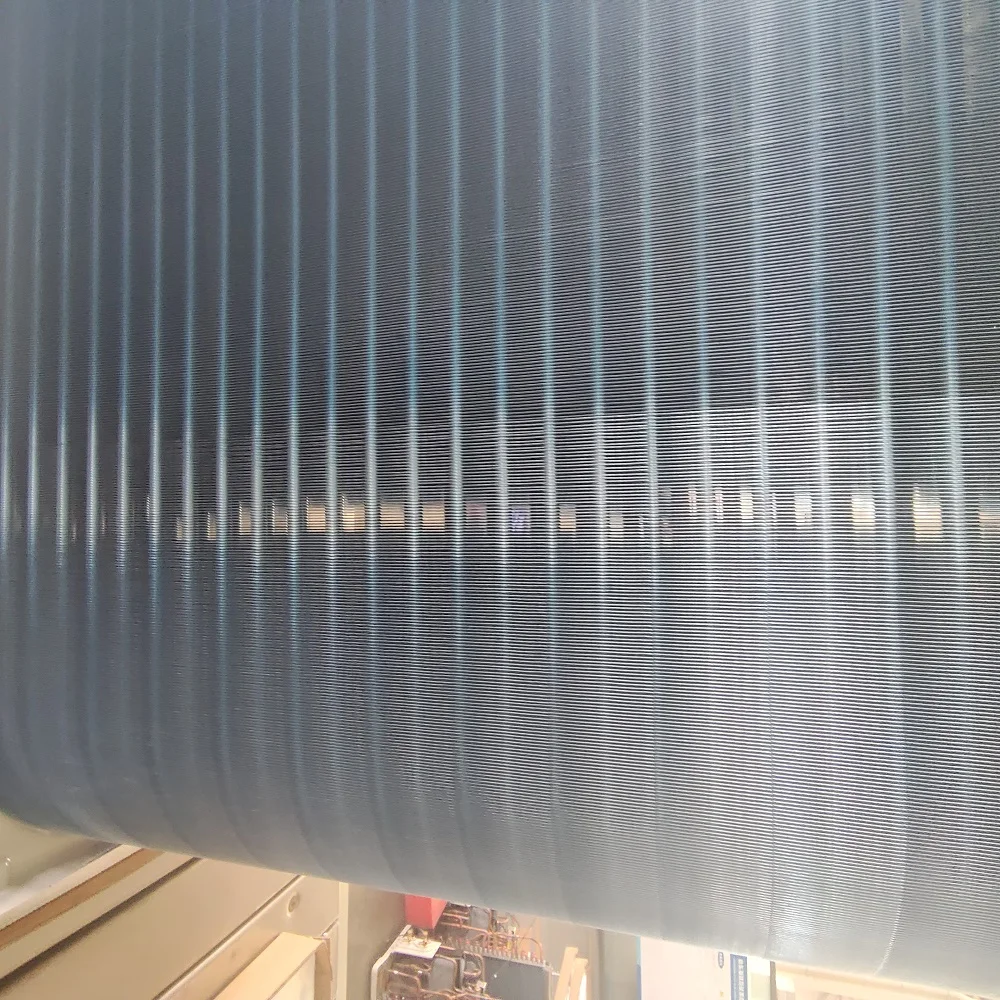

It's with corrugated copper tubes to greatly improved thermal efficiency and hydrophilic coating surface for sufficient defrosting.

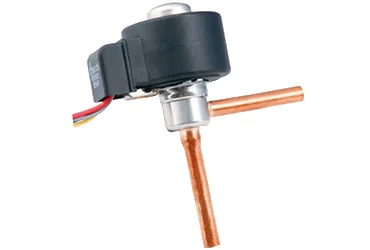

4) Electronical Controlled Expansion Valve
It's with intelligent control logic used for precise control and fast adjustment.

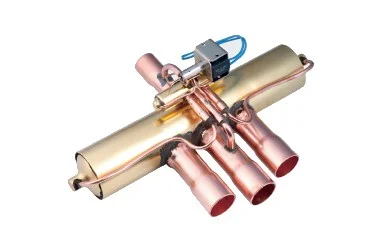

5）Four-Way Valve
It can be realized for cooling,heating and defrosting.
PRODUCT PARAMETER
ITEM | ZKFD-BPLN-050CD |
Rated Input Power (Heating under 7℃) | 4.85KW |
Rated Heating Capacity(7℃) | 16.20KW |
Rated Current (Heating under 7℃) | 22.04A |
Max Input Power | 5.54KW |
Max Current | 25.17A |
Rated Outlet Water Temp. | 55℃ |
Max. Outlet Water Temp. | 60℃ |
Power Supply | 220V/50Hz |
Working Ambient Temp. | -35℃~45℃ |
Electrical Shockproof | I |
IP Grade | IPX4 |
Noise Level | ≤60 dB(A) |
Water Pressure Drop | 40 kPa |
Rated Water Flow | 2.75m³/h |
Package Dimensions(L*W*H) | 1100*490*1265MM |
Gross Weight | 135KGS |
COMPANY PROFILE

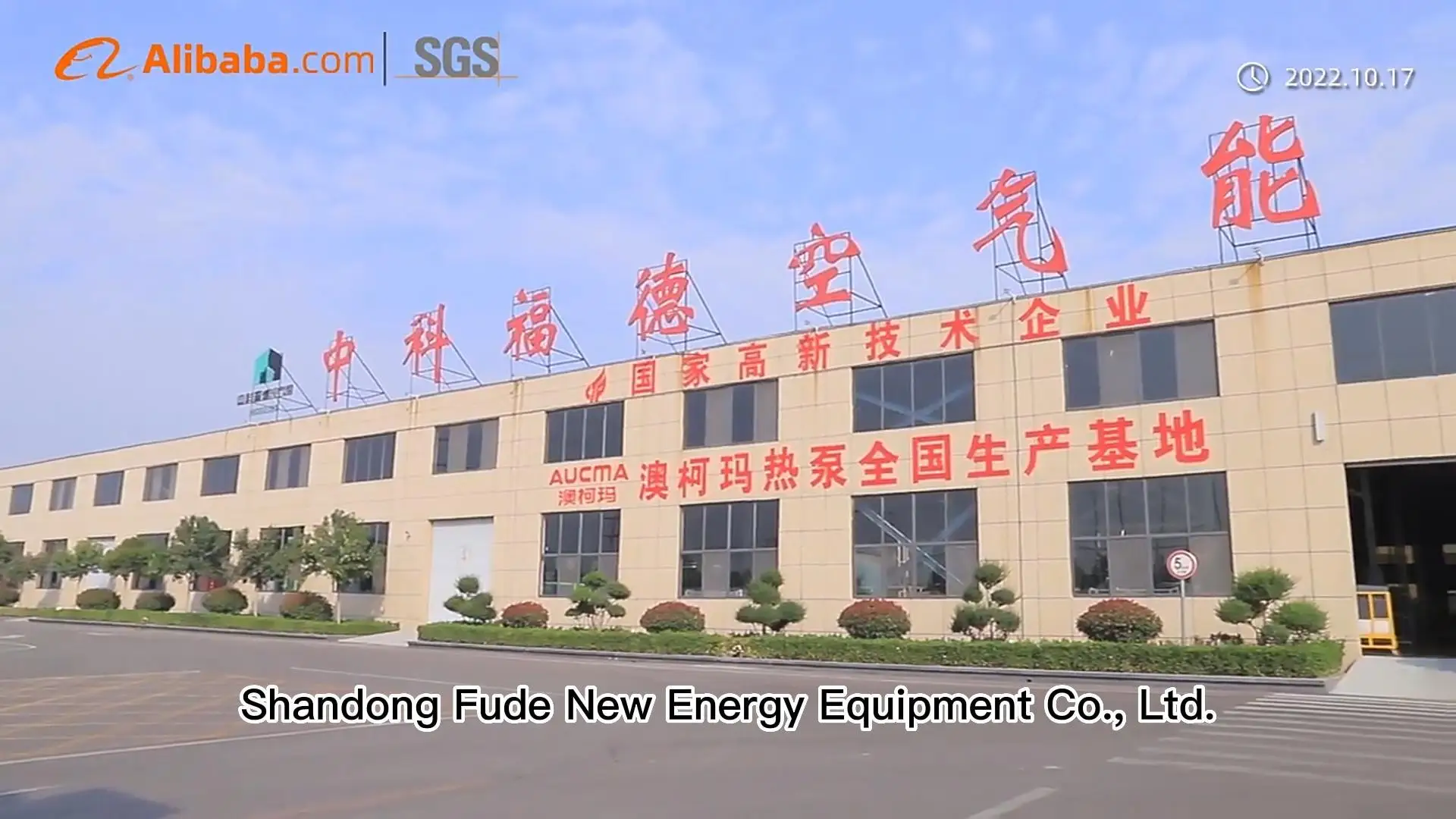

Shandong Fude New Energy Equipment Co., Ltd. is located in Tengzhou City, Shandong Province.
It was established in 2009 with a registered capital of 100.8 million yuan. It is a national high-tech enterprise specializing in research and development,production, sales, service and after-sales of air energy heat pump products. After more than ten years of development, ZKFD has built an air energy industrial park of 140000 square meters and more than 300 employees, laying out the whole air energy industrial chain.
The air energy industrial park and industrial cluster, including the assembly workshop, can achieve an annual production capacity of 500000 sets and a sales volume of 2 billion. It has more than 30 laboratory groups including CNAS ultra-low temperature air source heat pump laboratory, noise laboratory and drying test laboratory, which are leading in the industry. The company has dominated the northern market, with more than 3000 sales outlets in the country, and provides OEM / ODM services to dealers around the world. It is the largest air energy industrial park base in northern China.

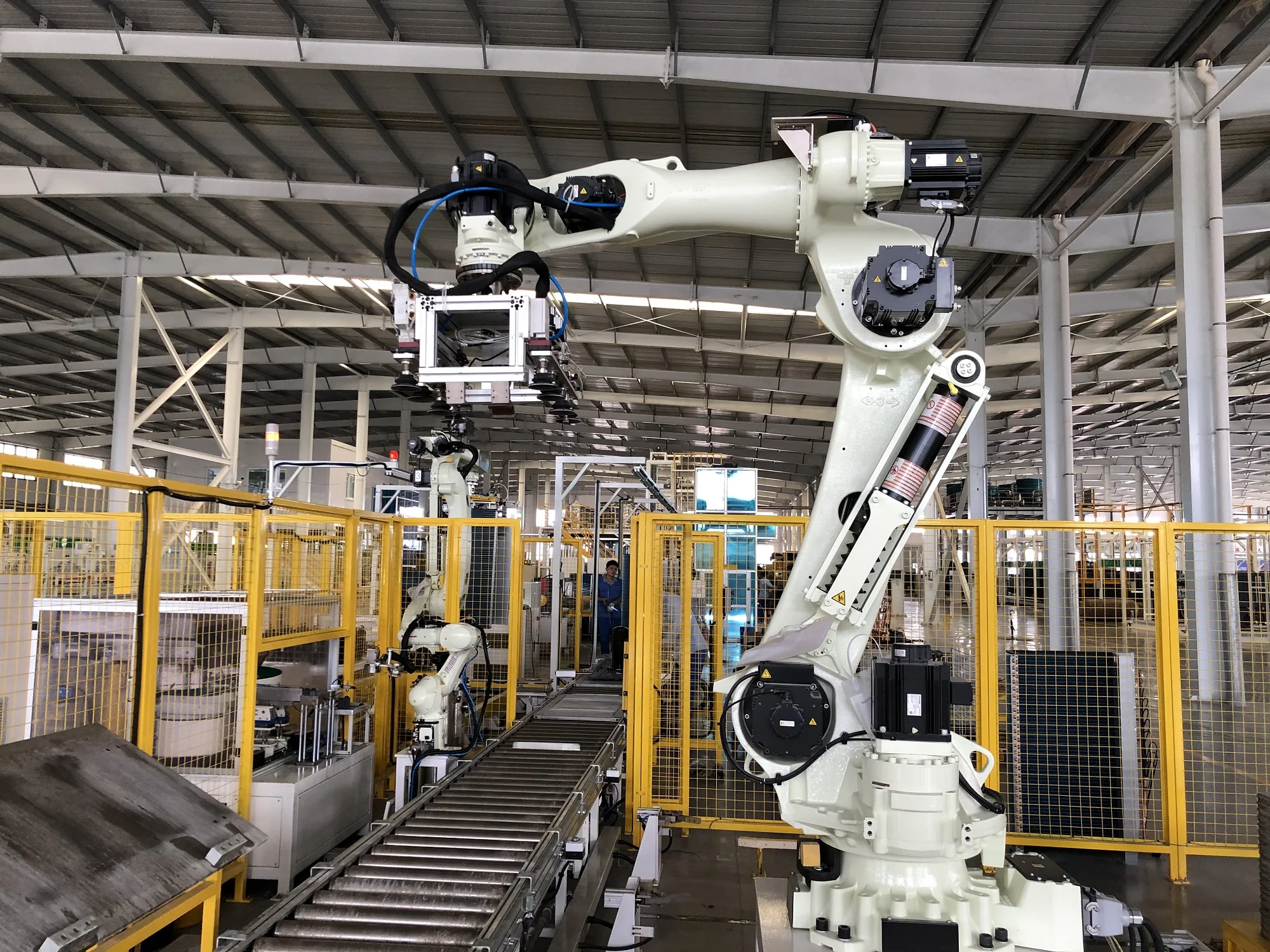

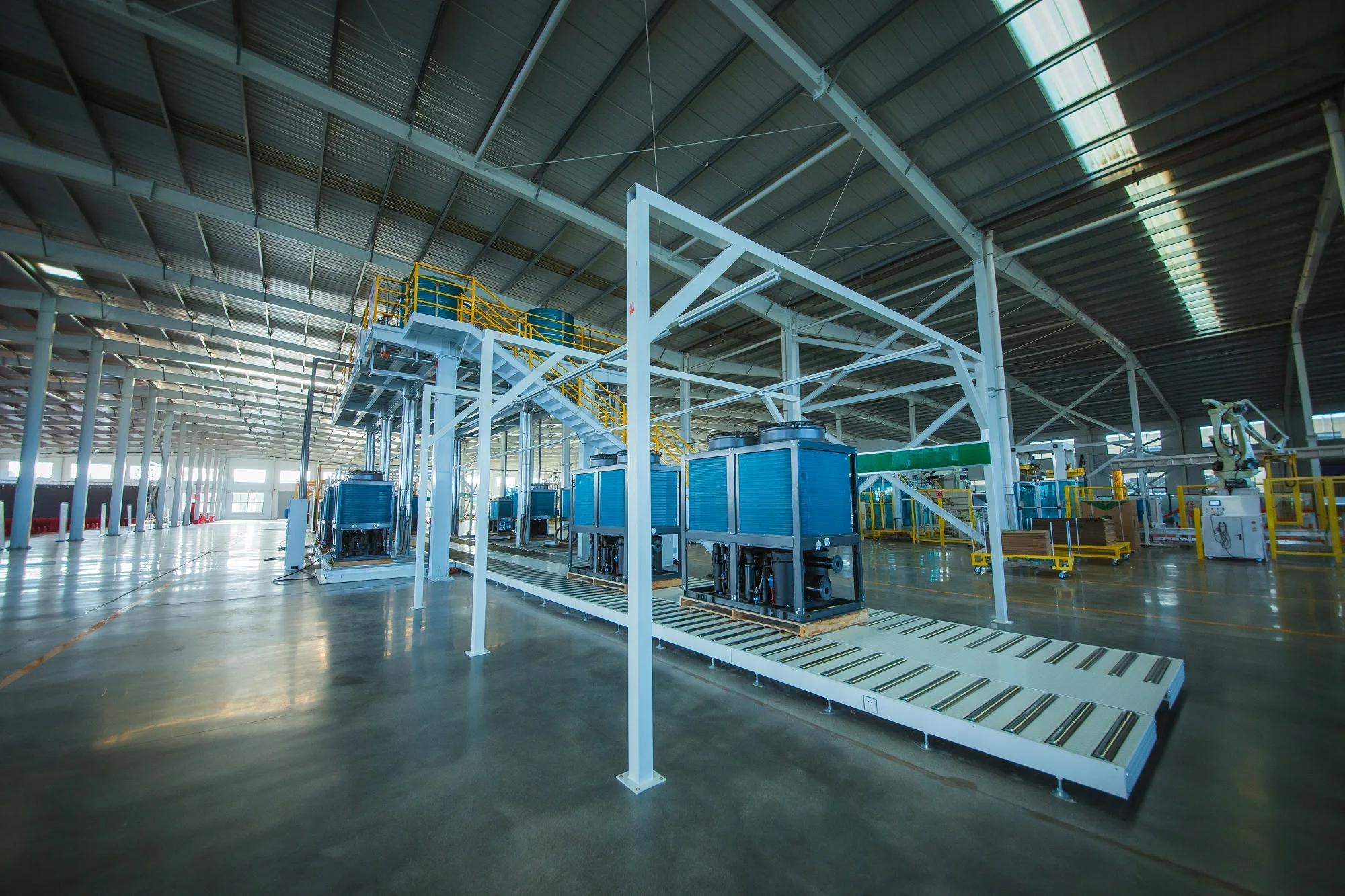

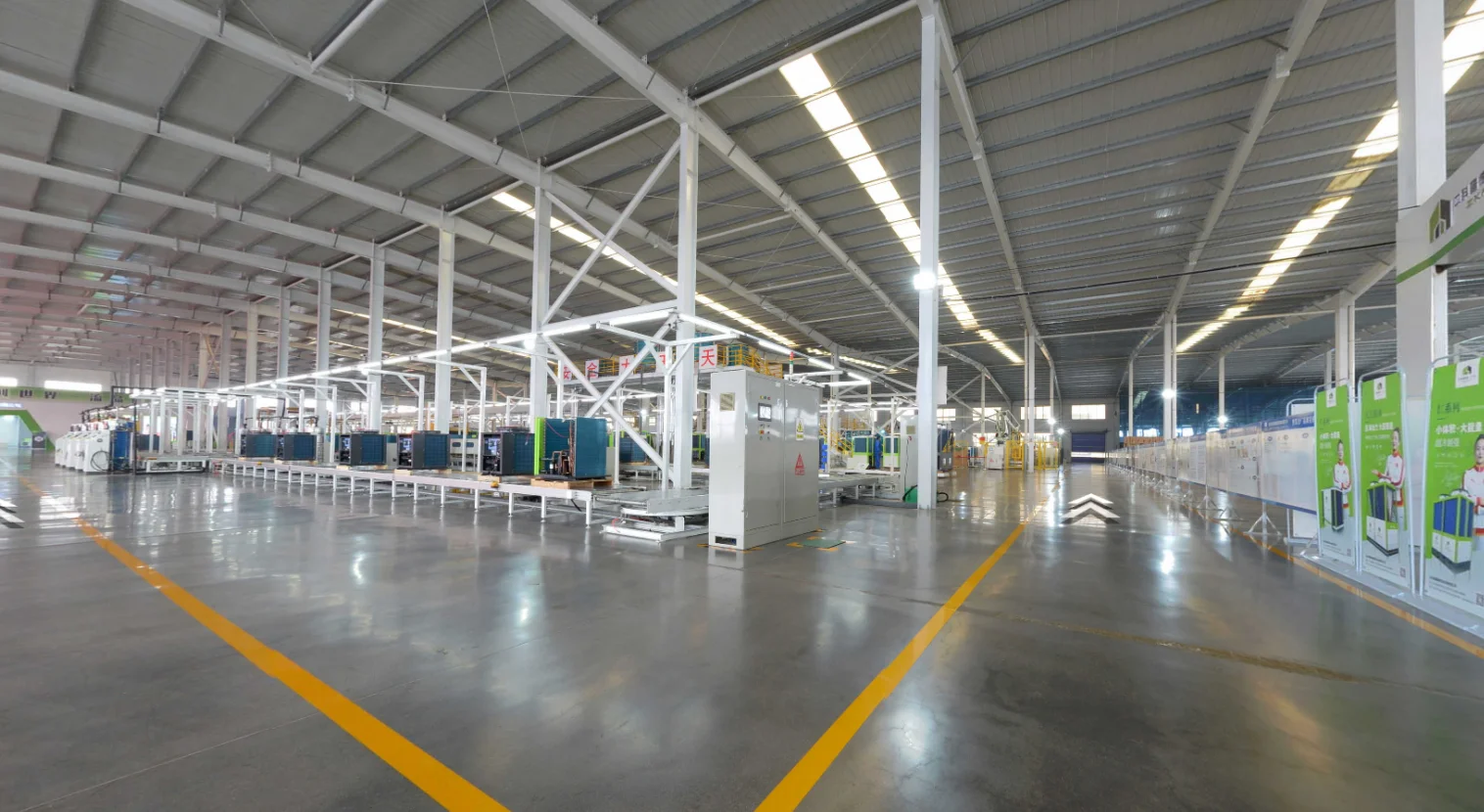

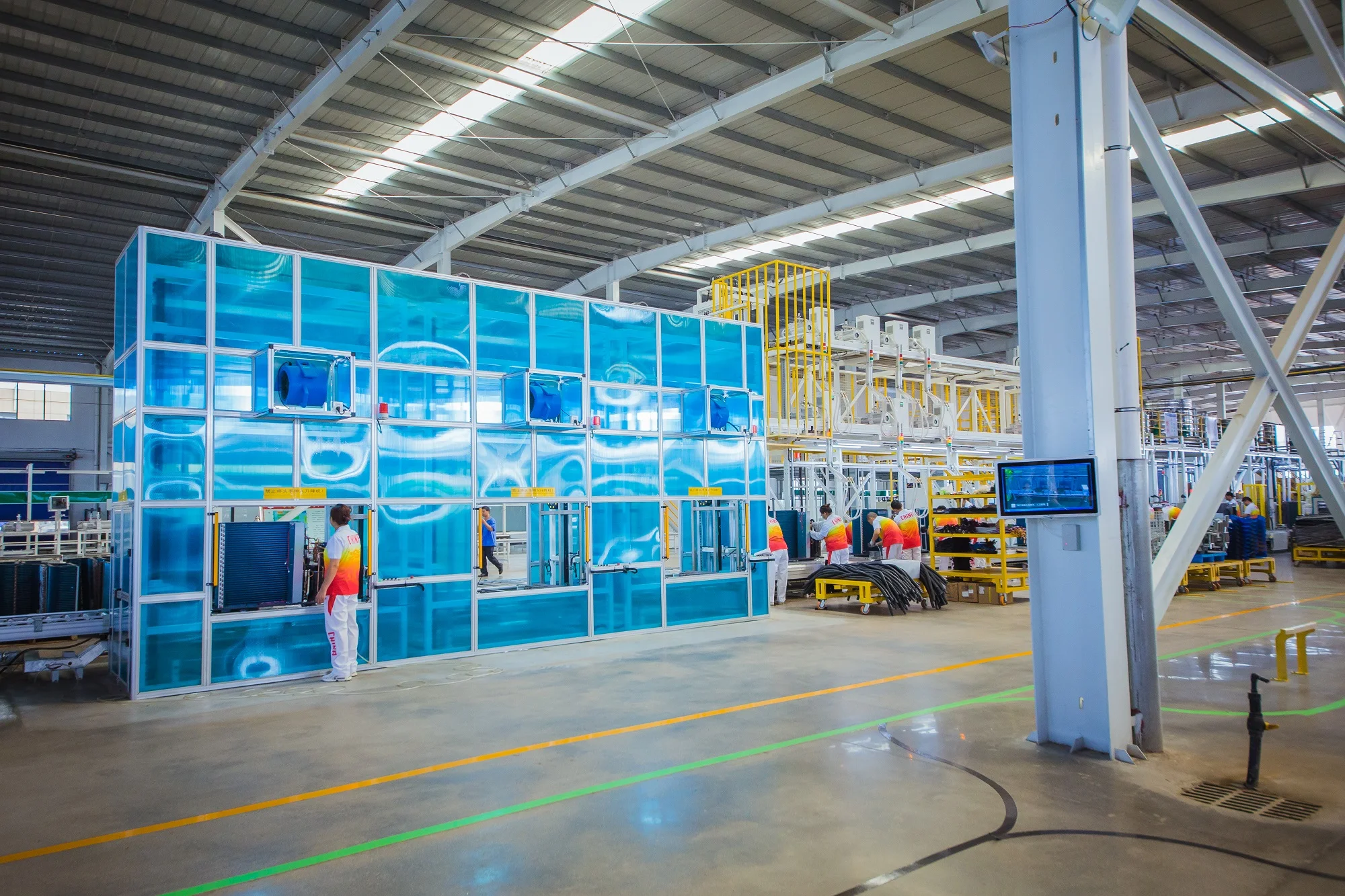

WORKSHOP DISPLAY

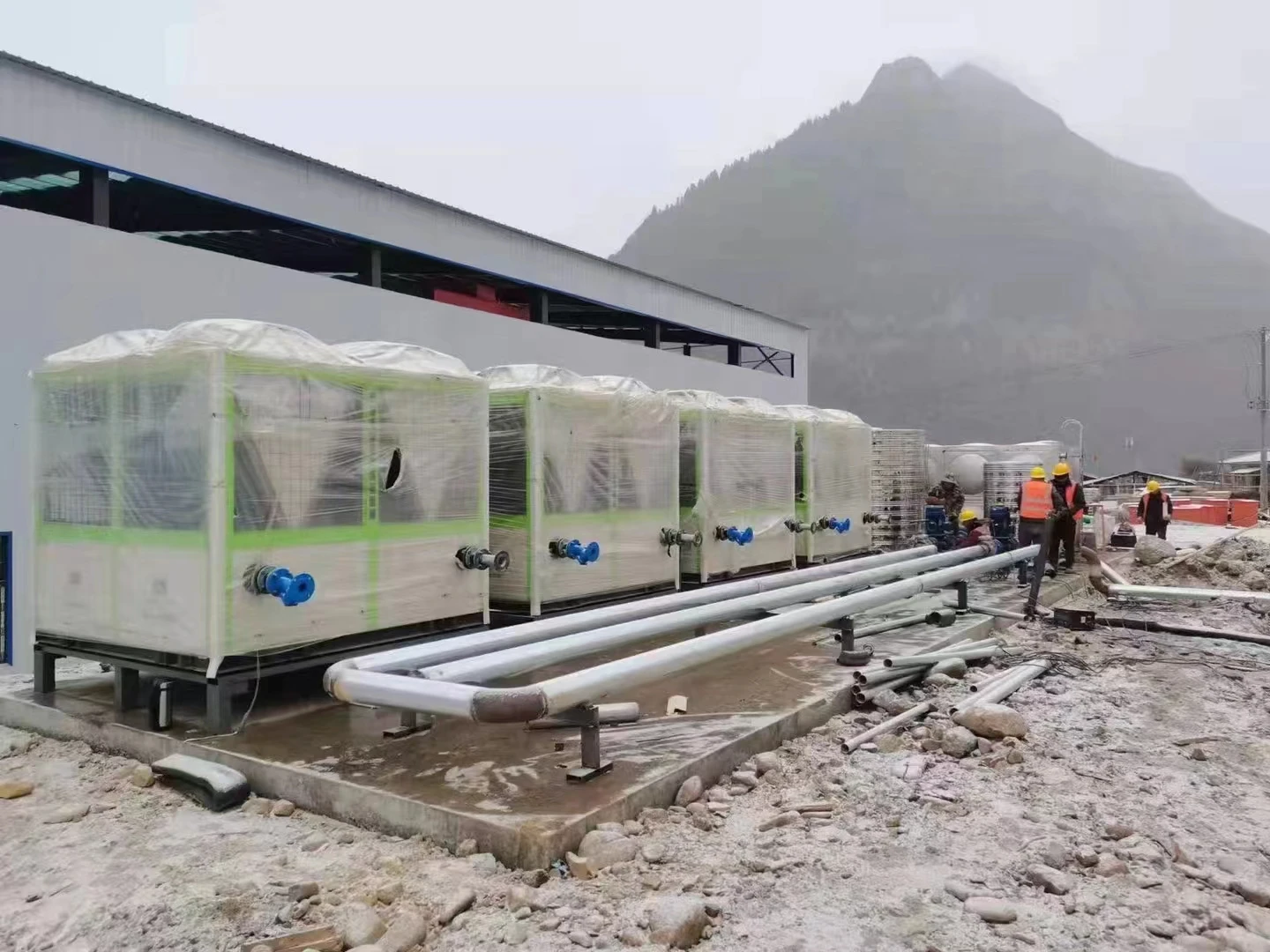

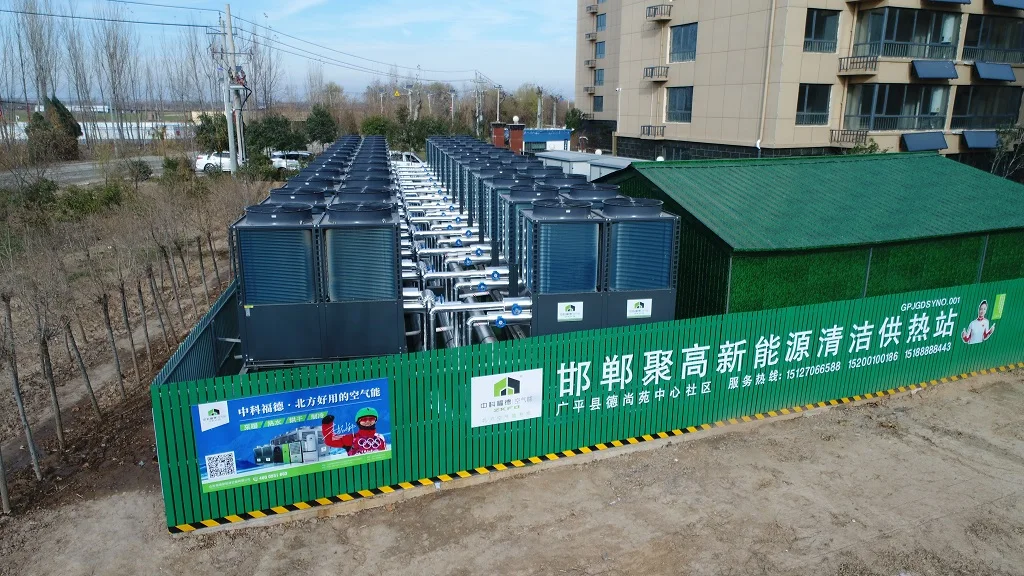

PROJECT CASE
CERTIFICATE
FAQ
1. How many years have your company been in heat pump industry?
We built our factory in 2009 and have more than 14 years of experience in the field of air energy.
2. Are you a manufacturer?
Yes, we're the biggest modern large-scale new energy high-tech enterprise integrating R & D production
and sales of air energy in northern China.
3. What are your main products?
Our products include air source heat pump water heaters, swimming pool heat pumps, high temperature heat pumps, Residential Hot Water Products,Commercial Hot Water Proucts and so on.
4. Do you provide OEM/ODM customized manufacturing service?
Yes. We can produce standard products under clients' brand, modify the products to satisfy client's personalized requirements and work together with clients to design and produce a totally new products.
5. How long is your warranty?
Three years warranty and long term technical support.
6.Can I apply to become your heat pump distributor/reseller?
Yes, we are currently looking for more heat pump distributors/resellers across the globe, who can distribute our heat pump products in their local countries.
