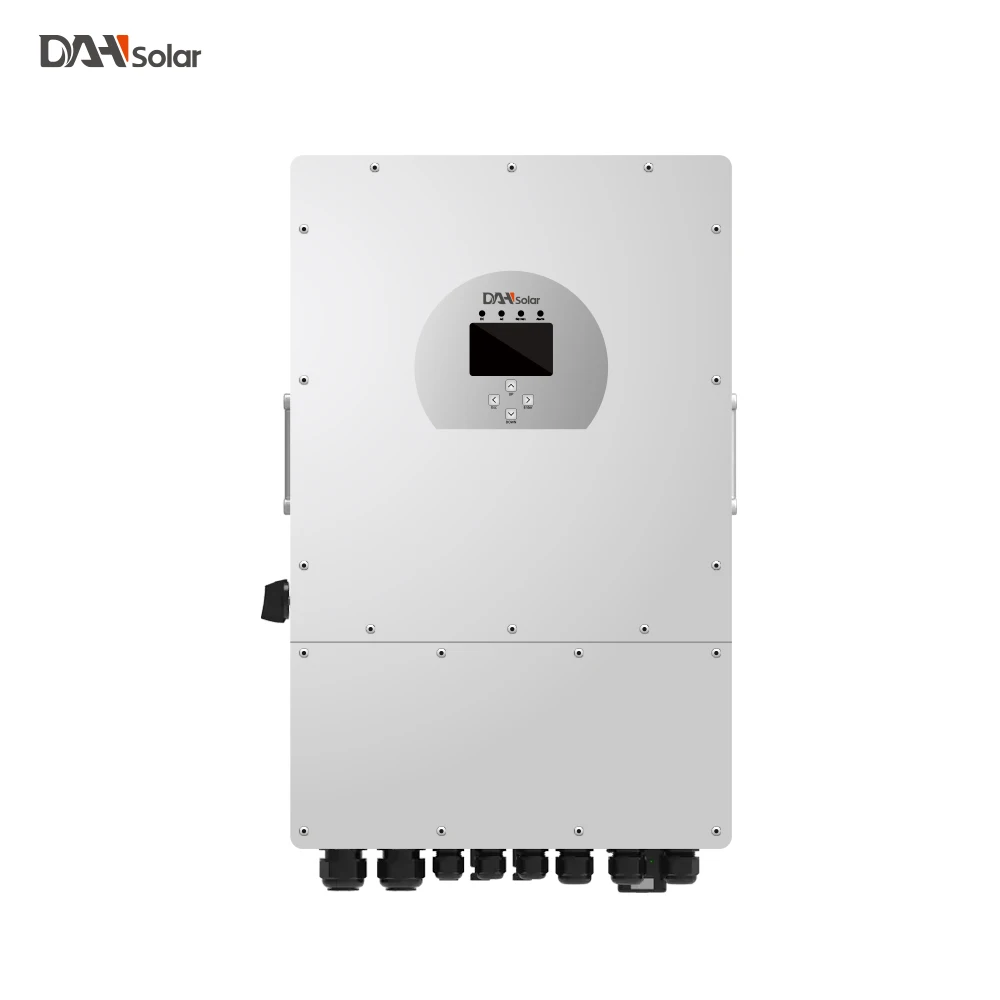

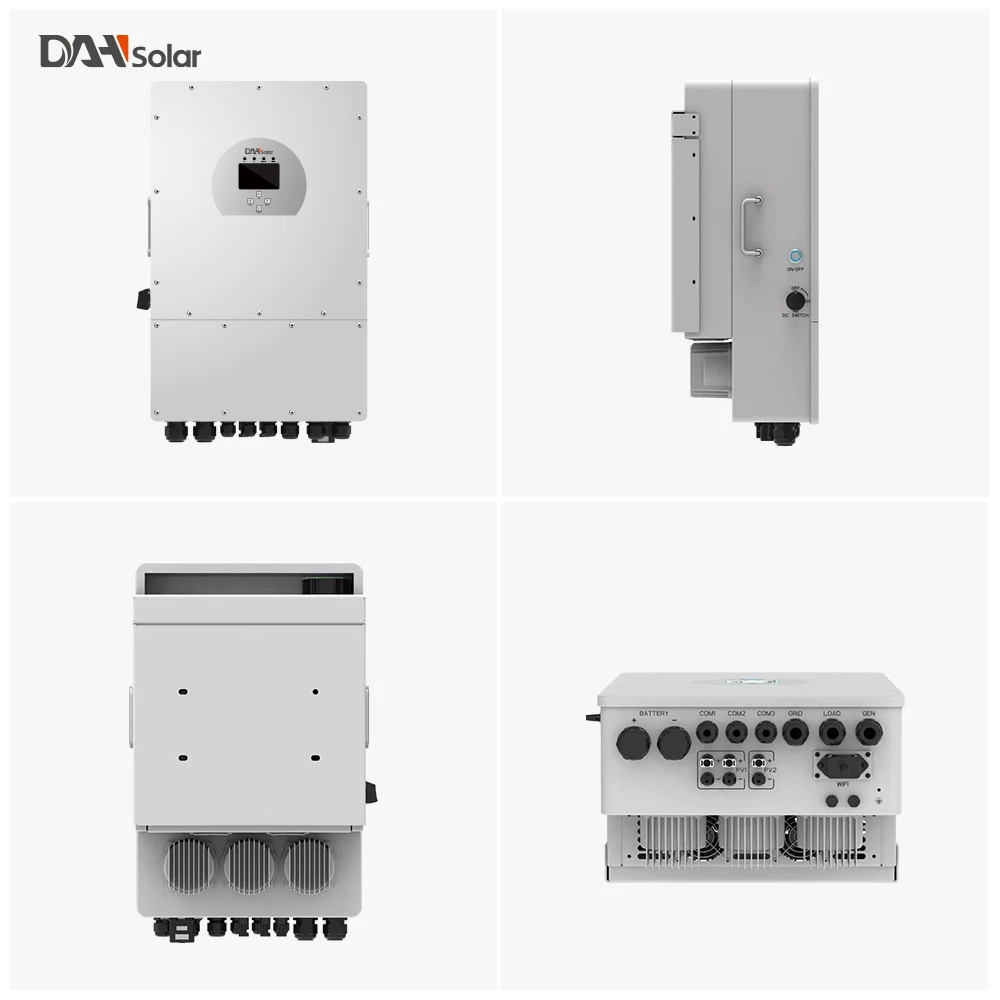

Deye New Modern Three Phase Germany 12kw Sun 12K Sg04lp3 EU Deye 10kw Hybrid Inverter
- Category: >>>
- Supplier: DAH Solar Co. Ltd.
Share on (1600909345085):
Product Overview
Description
Model | SUN-8K-SG04LP3 | SUN-10K-SG04LP3 | SUN-12K-SG04LP3 | |||
Battery Input Data | ||||||
Battery Type | Lead-acid or Lithium-ion | |||||
Battery Voltage Range(V) | 40~60V | |||||
Max. Charging Current (A) | 190A | 210A | 240A | |||
Max. Discharging Current (A) | 190A | 210A | 240A | |||
Charging Curve | 3 Stages / Equalization | |||||
External Temperature Sensor | Optional | |||||
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |||||
PV String Input Data | ||||||
Max. DC Input Power (W) | 10400W | 13000W | 15600W | |||
PV Input Voltage (V) | 550V (160V~800V) | |||||
MPPT Range (V) | 200V-650V | |||||
Start-up Voltage (V) | 160V | |||||
PV Input Current (A) | 13A+13A | 26A+13A | 26A+13A | |||
No.of MPPT Trackers | 2 | |||||
No.of Strings Per MPPT Tracker | 1+1 | 2+1 | 2+1 | |||
AC Output Data | ||||||
Rated AC Output and UPS Power (W) | 8000W | 10000W | 12000W | |||
Max. AC Output Power (W) | 8800W | 11000W | 13200W | |||
Peak Power (off grid) | 2 times of rated power, 10 S | |||||
AC Output Rated Current (A) | 12A | 15A | 18A | |||
Max. AC Current (A) | 18A | 23A | 27A | |||
Max. Continuous AC Passthrough (A) | 50A | 50A | 50A | |||
Output Frequency and Voltage | 50 / 60Hz; 400Vac (three phase) | |||||
Grid Type | Three Phase | |||||
Current Harmonic Distortion | THD<3% (Linear load<1.5%) | |||||
Certififications and Standards | ||||||
Grid Regulation | IEC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1 | |||||
Safety EMC/Standard | IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12 | |||||
General Data | ||||||
Operating Temperature Range (℃) | -25~60℃, >45℃ Derating | |||||
Cooling | Smart cooling | |||||
Noise (dB) | <30 dB | |||||
Communication with BMS | RS485; CAN | |||||
Weight (kg) | 36.8 | |||||
Size (mm) | 422W×658H×281D | |||||
Protection Degree | IP65 | |||||
Installation Style | Wall-mounted | |||||
Warranty | 5 Years | |||||
