Price:$1,850.00 - $2,000.00

Quantity:


Product Overview

Description



Product Description






Specification




Item
Production capacity
Volume in US Gallon
Heating area
Tank diameter
Height
ZYL-500
500L/day
132US Gallon
0.5㎡
1160mm
2800mm
ZYL-600
600L/day
158US Gallon
0.6㎡
1220mm
2350mm
ZYL-700
700L/day
185US Gallon
0.7㎡
1250mm
2380mm
ZYL-800
800L/day
212 US Gallon
0.8㎡
1260mm
2400mm
ZYL-1000
1000L/day
264US Gallon
1.0㎡
1360mm
3000mm
ZYL-1500
1500L/day
396US Gallon
1.5㎡
1520mm
2900mm
ZYL-2000
2000L/day
528US Gallon
2.0㎡
1760mm
3150mm
ZYL-2500
2500L/day
660US Gallon
2.5㎡
1800mm
3200mm
ZYL-3000
3000L/day
792US Gallon
3.0㎡
1860mm
3800mm
ZYL-5000
5000L/day
1320US Gallon
5.0㎡
2260mm
4400mm


Features:
1.High cost performance.Good abrasion resistance material of the copper.
2.CIP cleaning system.
3.SUS304 material. The inner jacket and seal head of the tanks are all 3.0mm. The external jacket is 2.0mm. It ensure the good pressure resistance and good abrasion resistance.
4.Polishing accuracy up to Ra0.4μ m .
5.Strict tank pressure test.

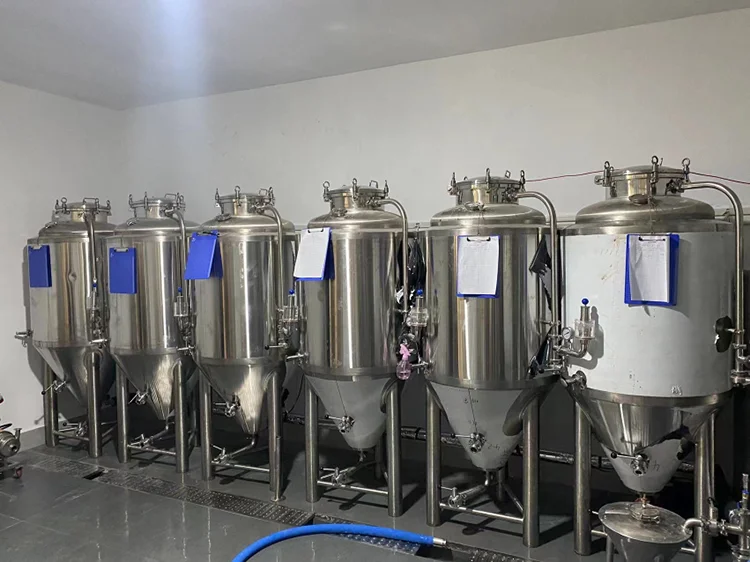

1. The fermentation tank is equipped with lifting ears, which is convenient for hoisting equipment in place.
2. With a rotating elbow and racking tam for beer delivery, it is convenient and flexible to deliver beer.
3. An elliptical guard plate is added at the junction of the outriggers and the lower cone refrigerant inlet pipe and the lower
cone outsourcing to ensure more precise machining accuracy.
4. All tanks are equipped with adjusting bolts to ensure the tanks are aligned and leveled.
5. The clamp is installed at the connection between the material port and the bottom of the tank, which can be rotated at will, which is convenient for customers to operate.
6. Outsourcing of the bottom of the Bright tank is made of finished products to ensure that the tank body has a beautiful
appearance, strong and durable.
7. All bright tanks are equipped with carbon stones for CO2.
8. Uses a shadowless manway, which is easy to clean. The top manhole can be designed according to the customer’s fermentation process and brewing beer.
9. The headspace is large, the total volume does not include the volume of the top head.
10. The cooling jackets are designed on both top of the cone and the bottom of the cylinder, and the cooling area is large enough.
11. Equipped with safety device, positive and negative pressure opening function.
12. The 60-degree cone angle is convenient for yeast excretion.
13. The fermentation tank is equipped with a special ladder for easy operation.
14. The working platform adopts water leakage and a non-slip design.
15. Brewhouse manways always use full glass manway.

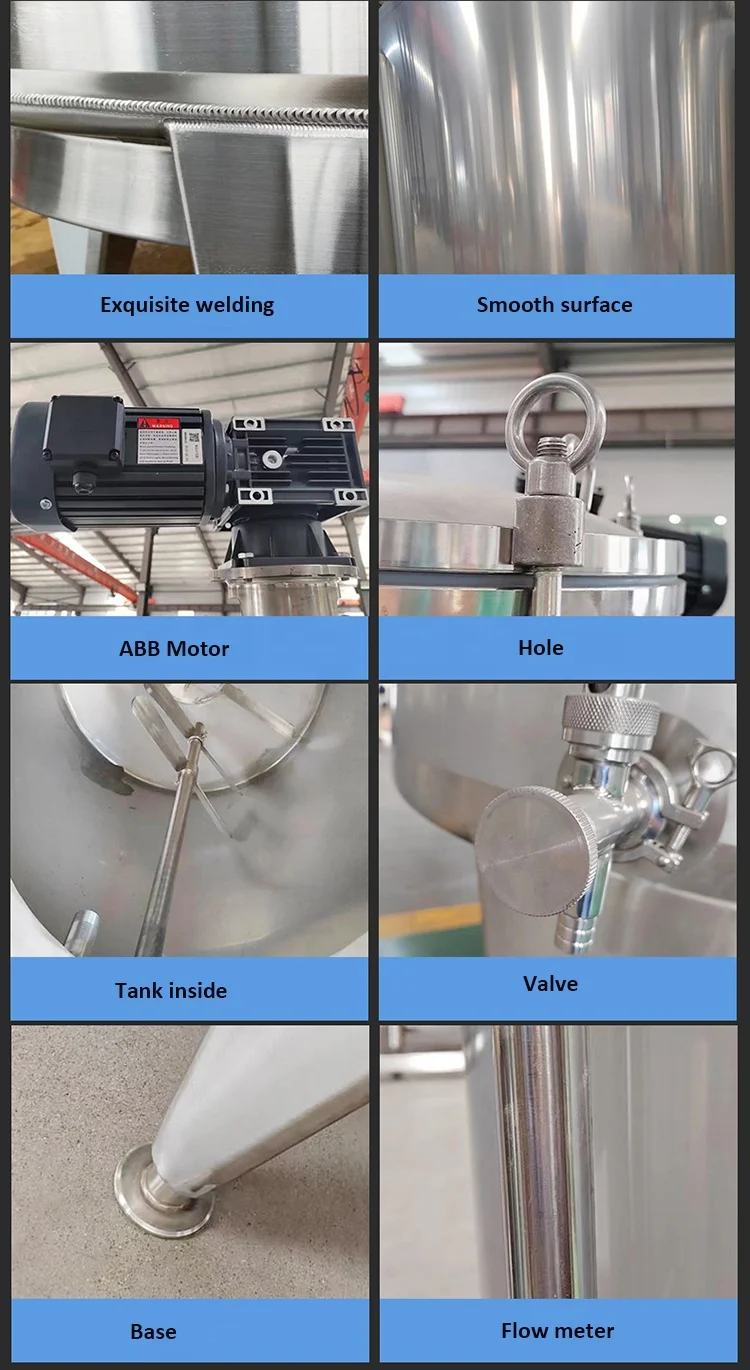

Product details








Related Products

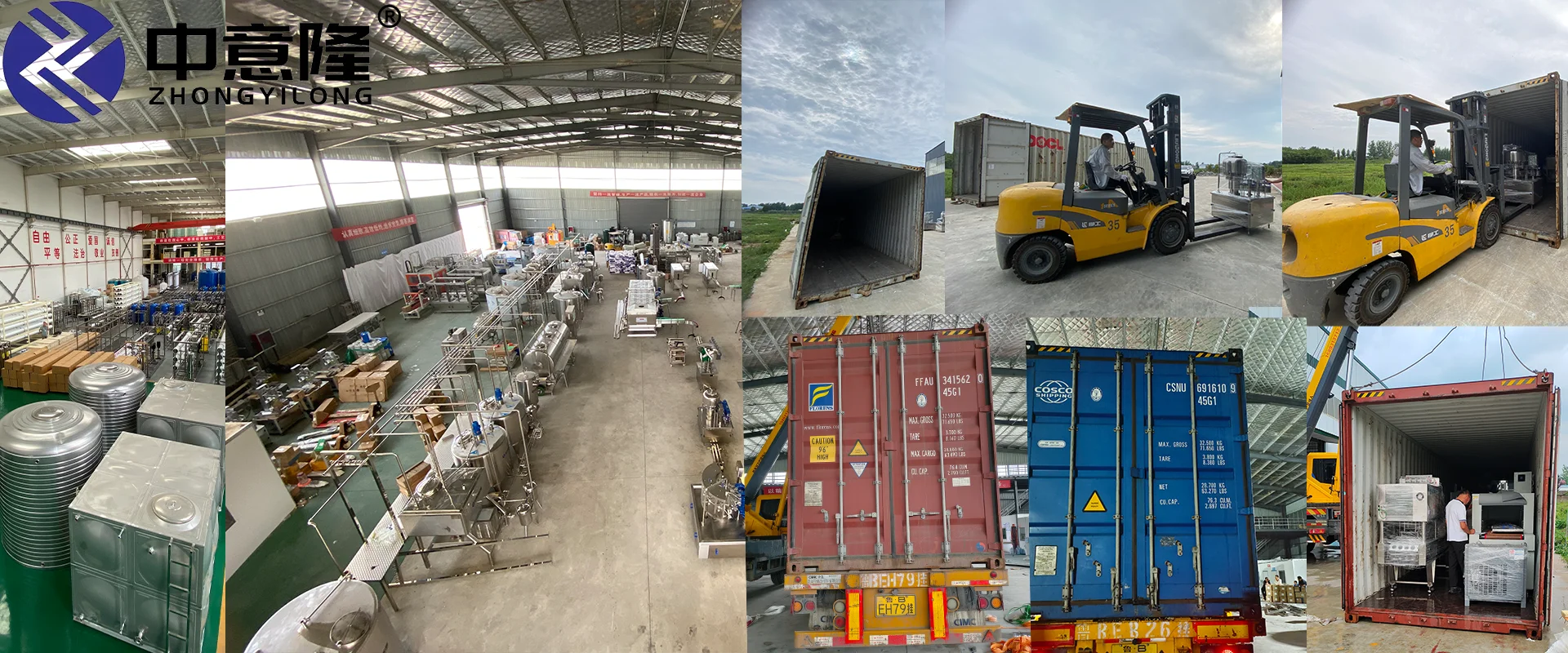

About us

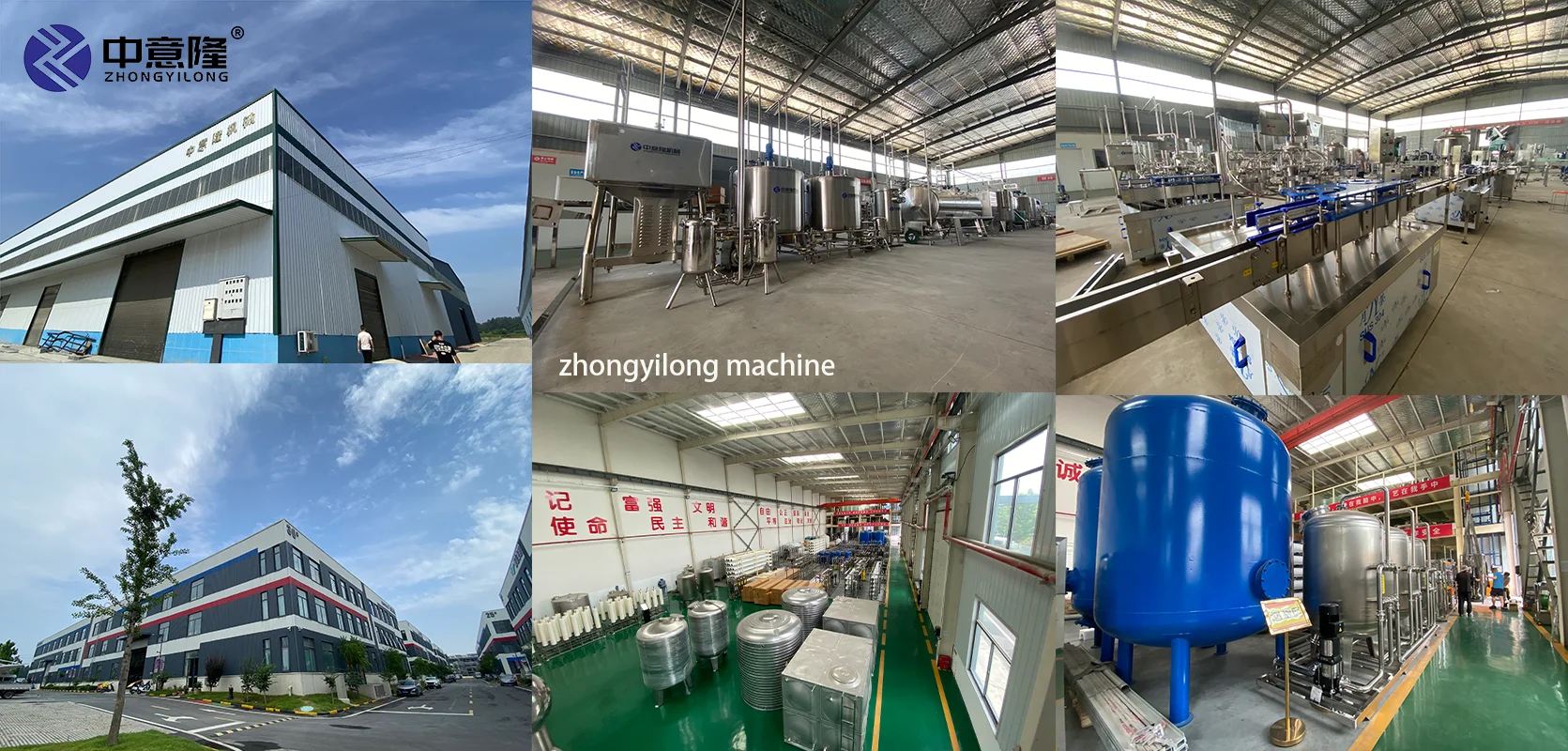

Thanks for your inquiry on Alibaba. ZHONGYILONG Machienry co.,ltd have been specializing in food&beverage processing line for over 20 years and successfully set up 300 factories for demestic and international customers.
We can customize beverage production line process and formula according to customer's demand. Our business scope covers dairy products,carbonated beverages, wine, beer, fermented beverages tomato paste, porridge, mixed juice drinks, vitamin functional drinks, purewater.cooking oil production lines, etc. We provide one-stop service to help customers build food and beverage plants: process formula, plant guidance equipment selection, installation and commissioning, technical training, after-sales service. We look forward to your inquiry and exchange cooperation. To generally understand your requirement and facilitate our further communication, we'd like to know from you: 1.Will this be your own business or you are trading company? 2.what will be the scale
of this project: home-scale ,commerical-scale or government procurement? 3.By which process: you already have process flowchart or we design for you? 4.what's the final products? package and product specification detail 5.what's the estimated capacity? input of raw material or output of final products, how much, by hour/daily or annual? 6.What's stage of this project are you in? gathering information for future inspection or want to finish this project in half or one year? Please kindly understand that we will work very closely with you to offer an turn key solution.
Send Inquiry>>
Click to Contact Us Now!!!












FAQ


Q1: Where is your factory? How can I visit your factory?
A: Our factory is located in Henan Province. If you have a travel plan, we warmly welcome you to visit our factory.

Q2: Can you send me a video to show me how the machine works?
A: Of course, we made videos of each machine.

Q3: How do I know your machine is designed for my product?
A: You can send us your product samples, and we will test them on the machine.

Q4: How do I pay for my order?
Answer: Usually we accept L/C, D/A, D/P, T/T, Western Union, Money Gram and cash payment .

Q5: Do you have a Ce certificate?
A: For each model of machine, it has CE certification
