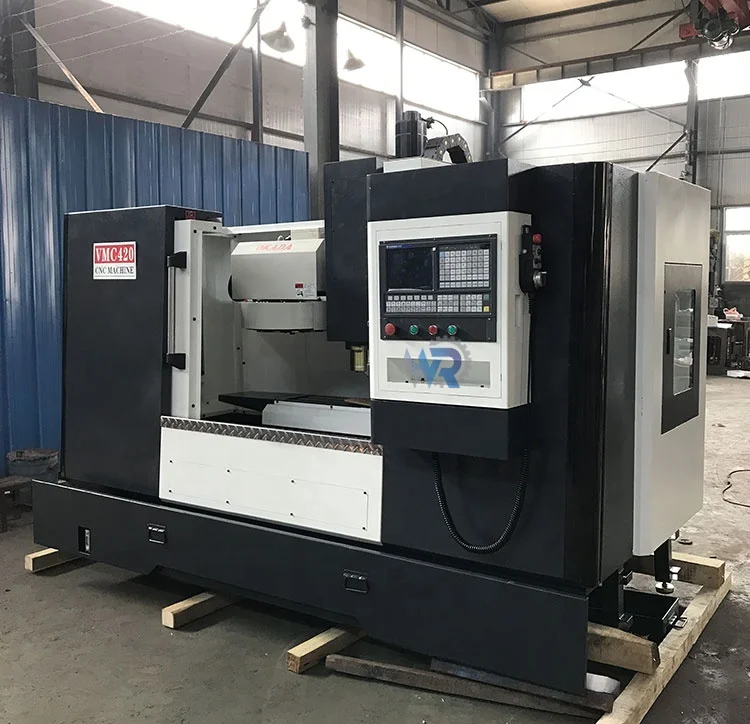

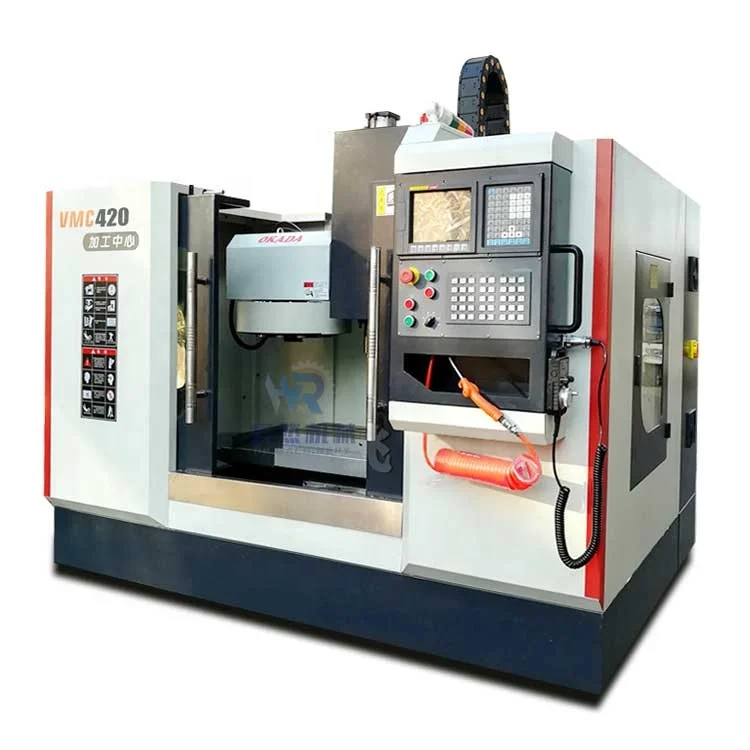

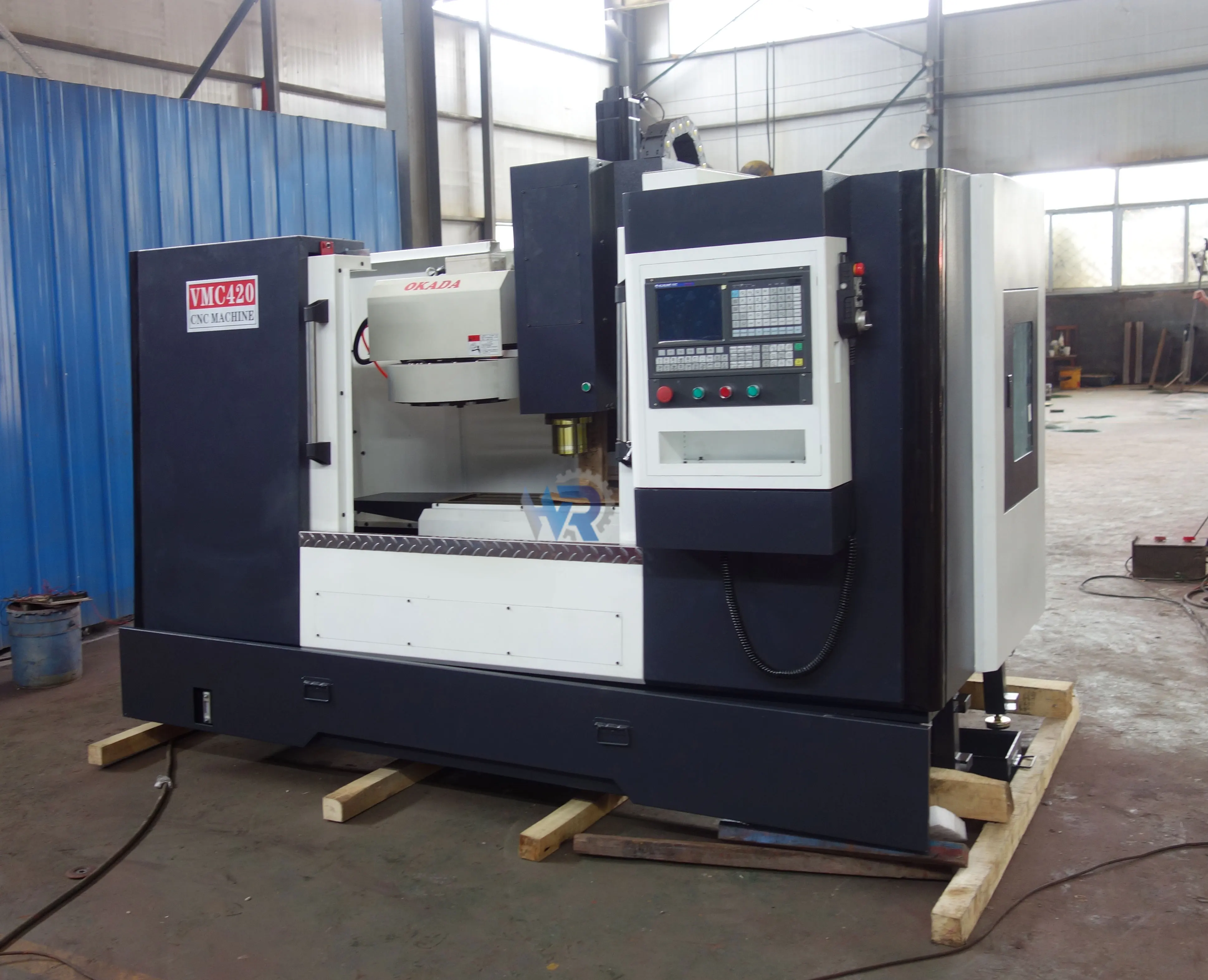

Cnc milling machine siemens control system vmc420 machine mini vertical processing center
- Category: >>>
- Supplier: Shandong HR Machinery Co. Ltd.
Share on (1600909366344):
Product Overview
Description
Product Description
Product main technical specifications:
Model | VMC420 | VMC650 | VMC840 | VMC850 | VMC855 | ||||
Table size (mm) | 800*260 | 1000*400 | 1000*400 | 1000*500 | 1000*550 | ||||
Max. allowable load (Kg) | 200 | 400 | 300 | 500 | 500 | ||||
X-axis stroke (mm) | 450 | 650 | 800 | 800 | 800 | ||||
Y-axis travel (mm) | 320 | 400 | 400 | 500 | 550 | ||||
Z-axis travel (mm) | 420 | 550 | 550 | 500 | 550 | ||||
T-slot | 5-16-50 | 3-18-120 | 3-18-140 | 5-18-108 | 5-18-90 | ||||
spindle center to Z-axis guide surface (mm) | 360 | 485 | 445 | 552 | 590 | ||||
spindle end face to work table (mm) | 70-480 | 100-650 | 100-650 | 110-610 | 120-670 | ||||
Spindle taper hole | BT40-120 | BT40-120 | BT40-120 | BT40-140 | BT40-150 | ||||
Spindle speed (r/min) | 8000 | 8000 | 8000 | 8000 | 8000 | ||||
X/Y/Z-axis fast moving | 24 | 48/48/48 | 30/30/18 | 48/48/48 | 48/48/48 | ||||
Machine Weight (Kg) | 3000 | 3800 | 3200 | 5300 | 5500 | ||||
Detailed description

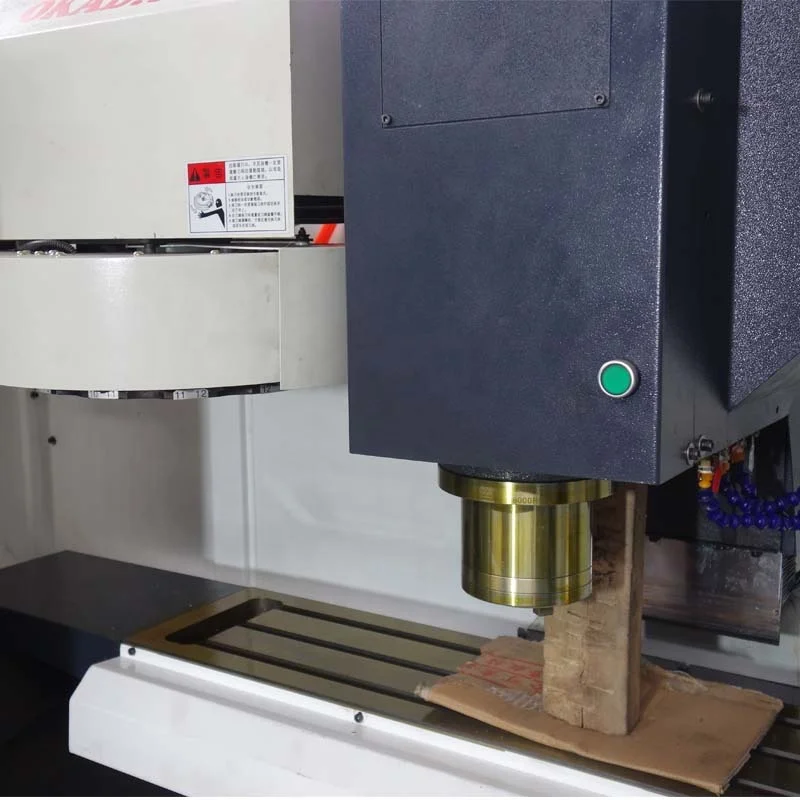

Taiwan spindle BT40/BT50
Taiwan 24T arm type auto tool changer
Taiwan P-grade high precision linear guide ways and Taiwan C3 grade precision ball screws.
FANUC, SIEMENS,, MITSUBISHI, GSK cnc controllers are optional.
Taiwan 4th or 5th axes rotary table is optional.
Tools and workpiece measuring instrument are optional.
Taiwan 24T arm type auto tool changer
Taiwan P-grade high precision linear guide ways and Taiwan C3 grade precision ball screws.
FANUC, SIEMENS,, MITSUBISHI, GSK cnc controllers are optional.
Taiwan 4th or 5th axes rotary table is optional.
Tools and workpiece measuring instrument are optional.
Application
It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on.Large steel molds are the first products requiring large cutting amount and fast processing speed. It is applicable to the processing of plastic mold industry, automobile tire industry, hardware industry, toy industry, handicrafts, fine stamping die, bronzing die, high-frequency die, embossing wheel die, die-casting die and graphite electrode. It is the best choice for mold manufacturing industry and parts processing.

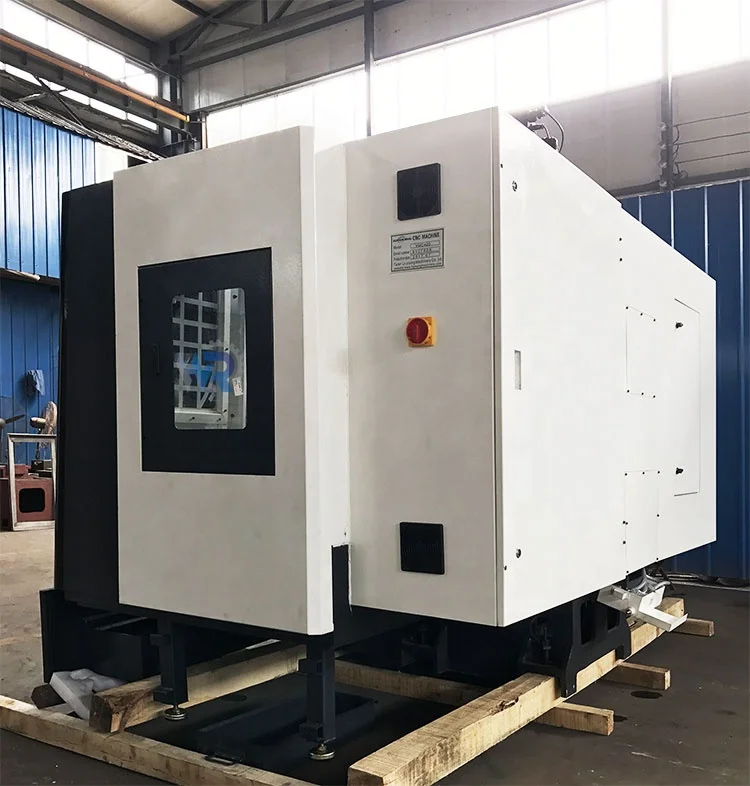

Packing & Delivery
1.Water-proof and damp proof, water resistant film wraped all the machine.
2.Non-fumigation packaging, we use seaworthy plywood.
3. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
2.Non-fumigation packaging, we use seaworthy plywood.
3. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
Certifications
All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us.
Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
Company Profile
Shandong HR machinery Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while meeting the personalized needs of users.
Customer visiting
We welcome customers to visit the factory, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you.Shandong HR is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
FAQ
1.What CNC system do you use?
A:FANUC, SIEMENS, MISTSUBISHI, GSK etc. It depends on your choice.
2. Payment Terms
A:30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4.How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
5.Where is our factory located? How can I visit there?
A : Our factory is located in Ji nan City ,Shandong . You are warmly welcomed to visit us.
6.What's the MOQ?
A: 1 set .
7.How long is the machine warranty?
A:warranty is 3 year.If you need to replace accessories or parts after the warranty period, we will provide them to you at the cost price
A:FANUC, SIEMENS, MISTSUBISHI, GSK etc. It depends on your choice.
2. Payment Terms
A:30% by T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss.
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4.How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
5.Where is our factory located? How can I visit there?
A : Our factory is located in Ji nan City ,Shandong . You are warmly welcomed to visit us.
6.What's the MOQ?
A: 1 set .
7.How long is the machine warranty?
A:warranty is 3 year.If you need to replace accessories or parts after the warranty period, we will provide them to you at the cost price
