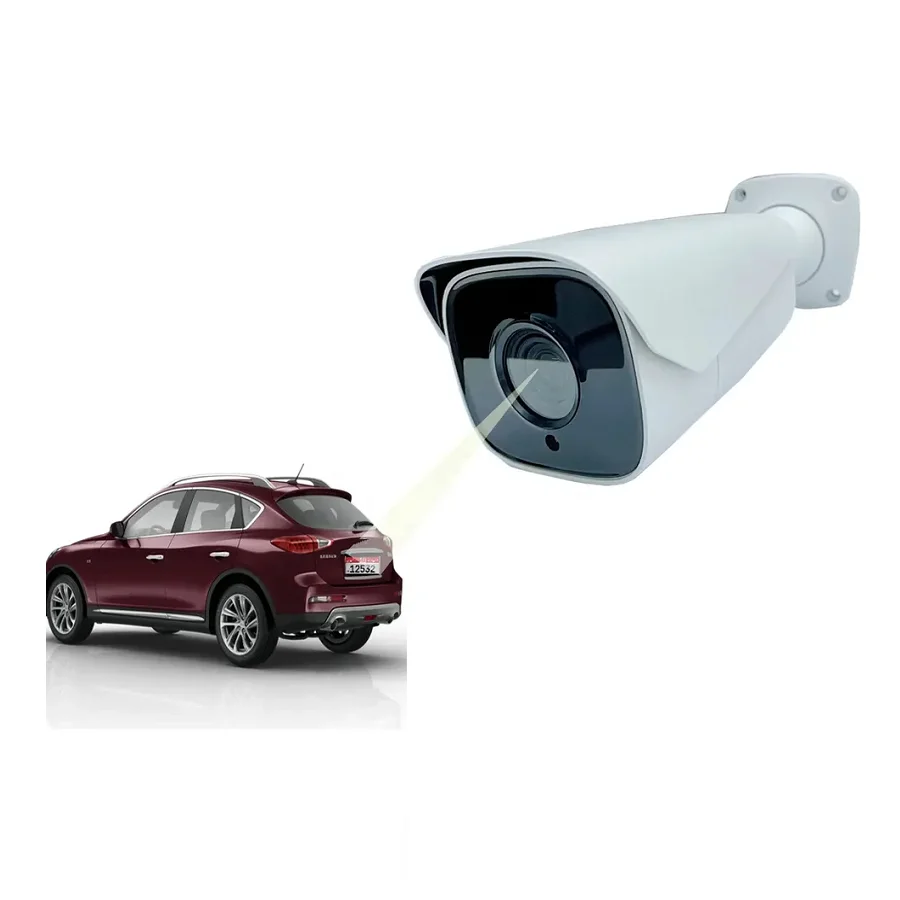

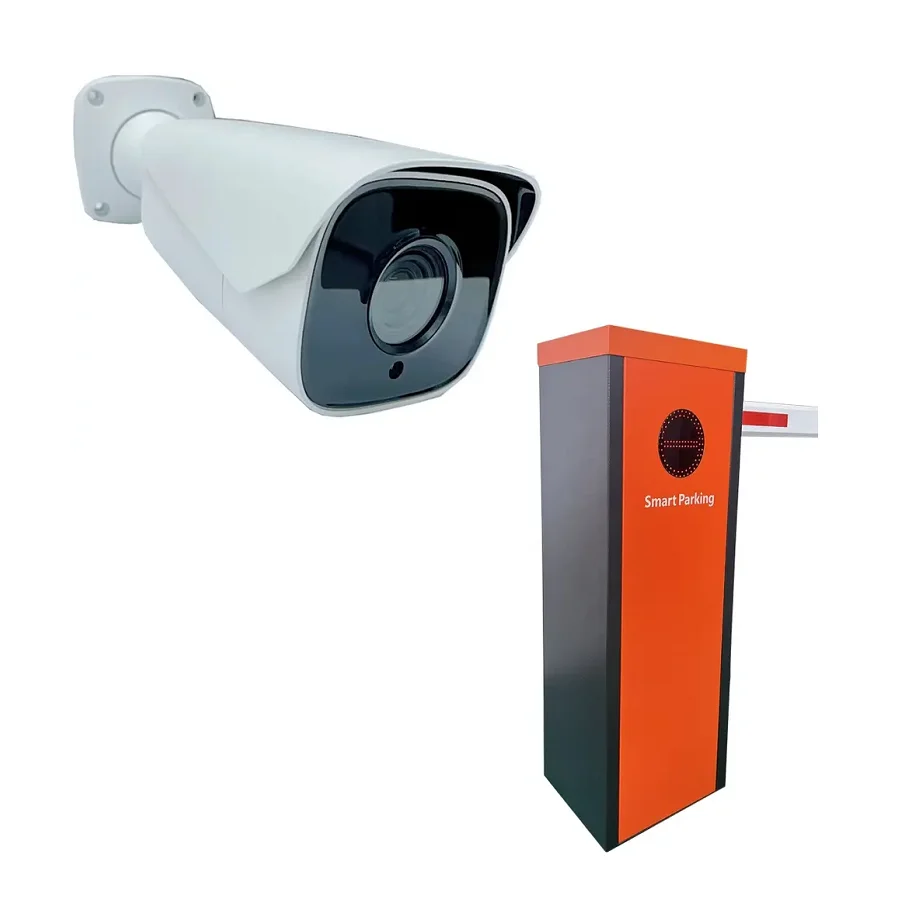

Factory price car parking lot cctv vehicle number license plate reader recognition road anpr lpr camera
- Category: >>>
- Supplier: Shenzhen Jana Electronic Technology Co. Ltd.
Share on (1600909369944):
Product Overview
Description
Products Description
Features
▶Starlight
▶2MP ( 1920 × 1080 ) @30fps
▶Support smart H.265/H.264 coding ICR auto switch, true day/night
▶Up to 100m IR night view distance; motorized zoom lens 3D
▶DNR, true WDR, HLC, BLC and ROI coding
▶Built-in micro SD card slot, up to 128GB
▶1CH audio input; 1CH audio output
▶1CH alarm input; 1CH alarm output
▶DC12V/PoE power supply
▶Support three streams
▶P2P function optional
▶IP67
▶Support mobile surveillance by smart phones with iOS and Android OS)
▶2MP ( 1920 × 1080 ) @30fps
▶Support smart H.265/H.264 coding ICR auto switch, true day/night
▶Up to 100m IR night view distance; motorized zoom lens 3D
▶DNR, true WDR, HLC, BLC and ROI coding
▶Built-in micro SD card slot, up to 128GB
▶1CH audio input; 1CH audio output
▶1CH alarm input; 1CH alarm output
▶DC12V/PoE power supply
▶Support three streams
▶P2P function optional
▶IP67
▶Support mobile surveillance by smart phones with iOS and Android OS)
▶Intelligent analytic: video abnormality (video tampering,scene change), license plate recognition

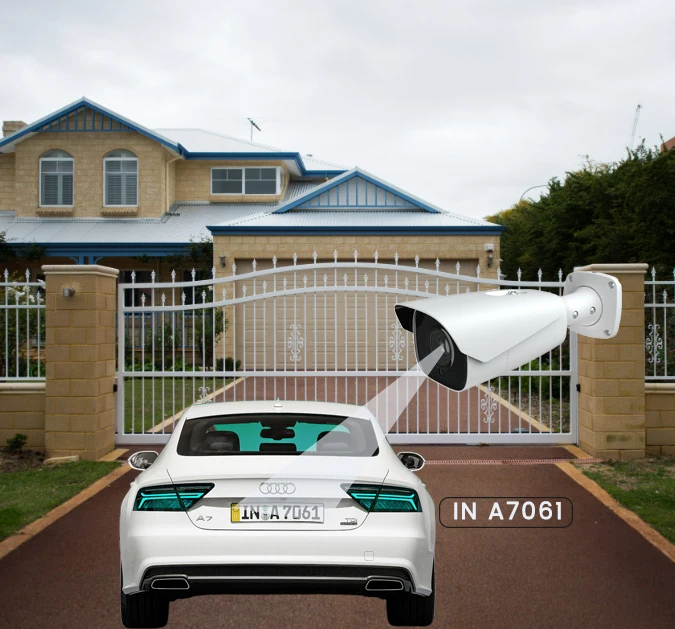

License plate detection
▶Three Video Stream Detection method;
▶Use starlight 2MP 1/2.8 "CMOS image sensor
▶Intelligent analytics: video abnormality (video tampering, scene change), license plate recognition
▶Detection Speed Max 70km/H
▶Detection Distance 3-10 m
Video Surveillance
▶Support smart H.265/H.264 coding ICR auto switch, true day/night
▶Up to 100m IR night view distance; motorized zoom lens 3D
▶DNR, true WDR, HLC, BLC and ROI coding.
▶Support mobile surveillance by smart phones with iOS and Android OS
▶Built-in micro SD card slot, up to 256GB
Data Interaction
▶Support result push function to server
▶Support RTSP API Docking for video
▶ Support Http Post Request from program
▶ Support FTP Agreement
▶ Support UPnP Agreement
▶ Support RTMP Agreement

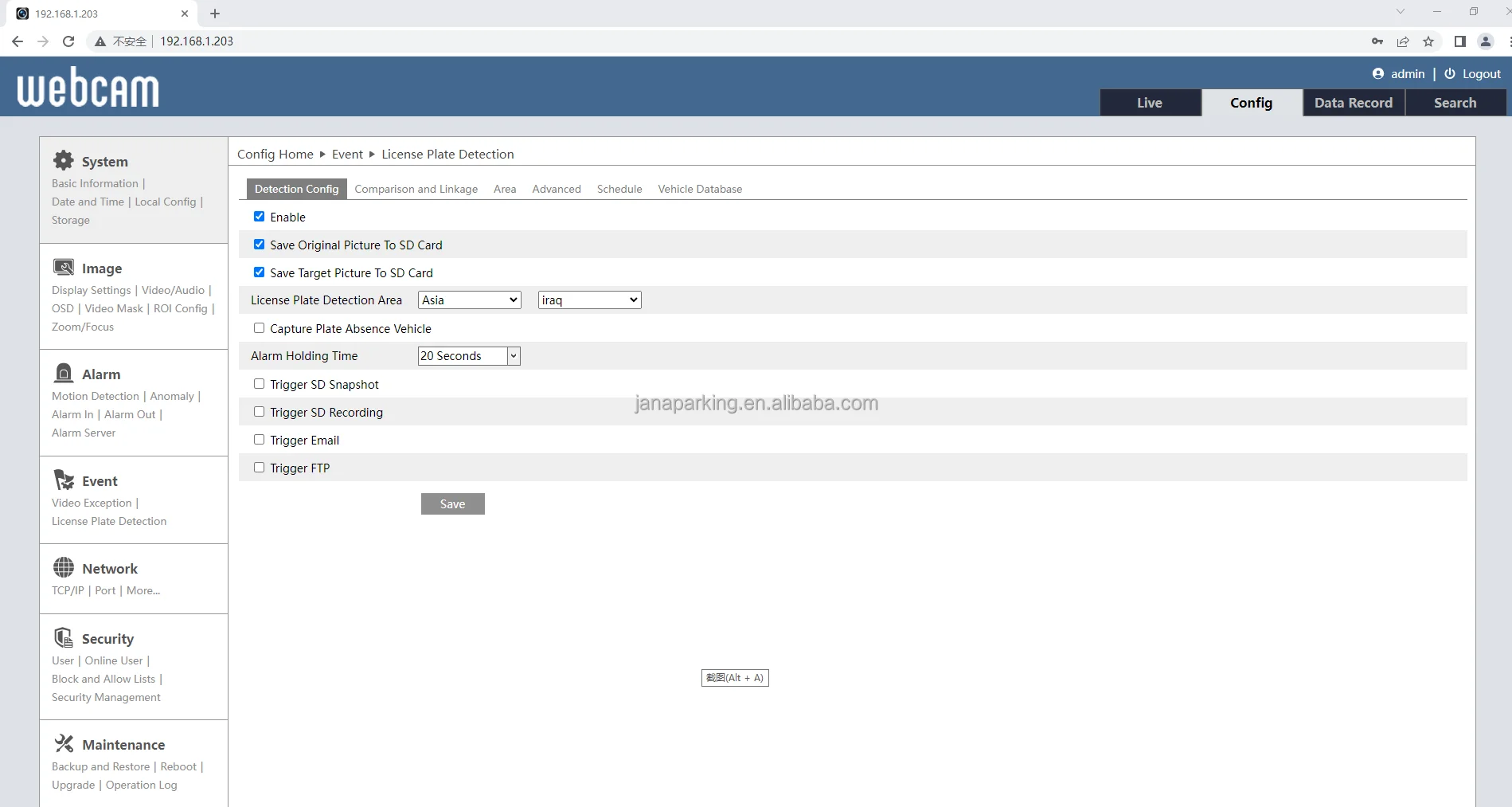

Basic Functions
◎ User Setting and Management
◎ Http Visit Verification
◎ White and Black List
◎ Event Detection and Alarm Settings
◎ Schedule Settings
◎ Display Settings
◎ Vehicle classification settings
◎Week Schedule setting of vehicle classification

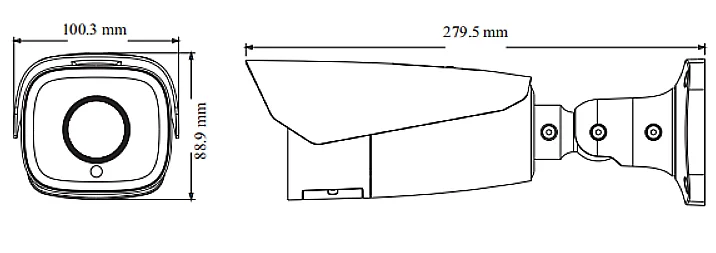

Camera Size
279.5 × 100.3 × 88.9 (mm) Net Weight: 1.04 KG

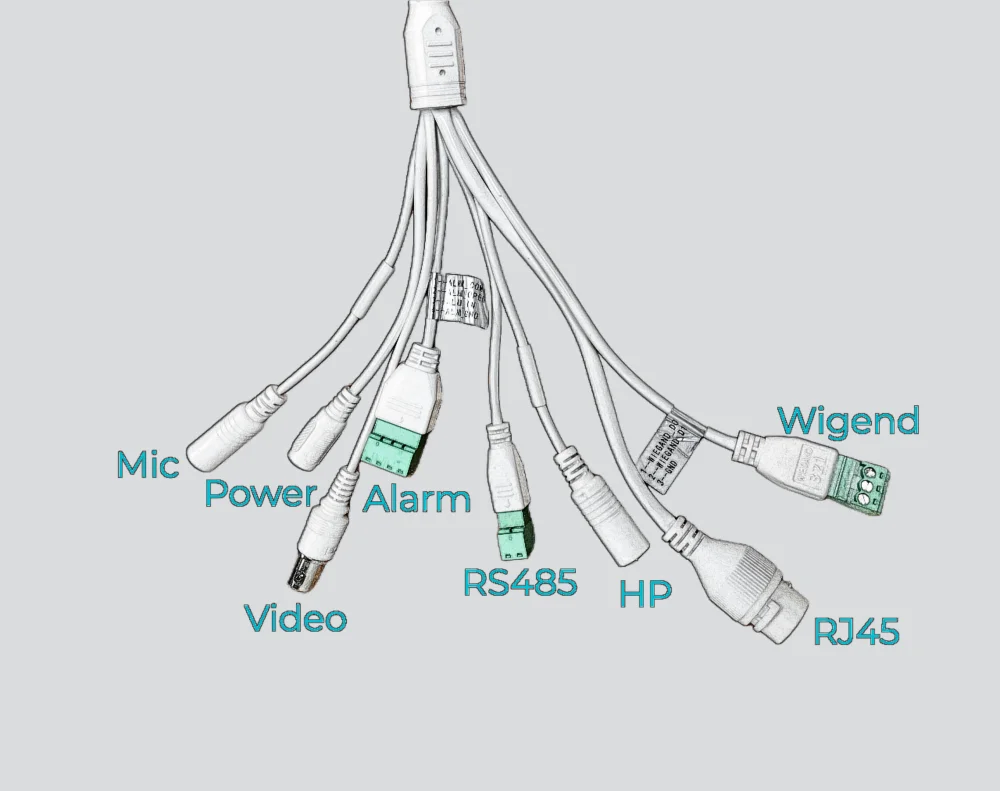

Ports
Multiple interface support, video, network, control, display synchronization and transmission.

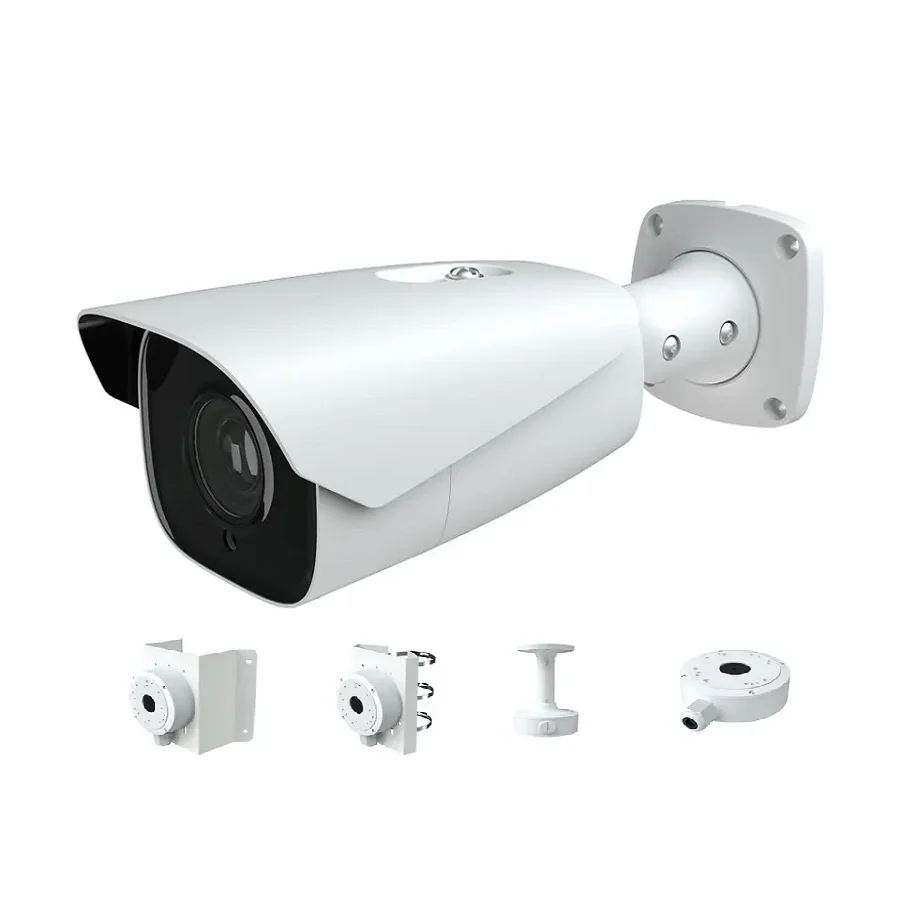

Accessories
Different Accessories are used in different scenes to fix the camera in proper places. Mostly could be used in ceiling mounted, wall mounted, pillar fixed, wall corner fixed . Get more details by inquiry admin@szjanatech.com
Product Paramenters
Model: J-823A3 | Network 1CH RJ45 | PoE : Yes IEEE802.3af |
Image Size: 1920*1080 | Video Output: NVR | Waterproof: IP67 |
E.Shutter :1 / 25 s ~ 1 / 100000 s | 1CH Audio Input;1CH Audio Output | IR Distance:50-70m |
Lens: 2.8~12mm@F1.4, motorized | Storage : Built-in micro SD card slot; up to 256GB | Snapshot: Overview and cutout of plate for picture |
Lens Mount Φ14 | Reset : Available | White list : 10000 |
Video Compression Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG | Alarm: 1 CH Alarm in 1CH Alarm out | Capture Speed Range 0-70km/h |
Resolution 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 | 1CH RS485 | Power Supply:DC12V/PoE |
Bit Rate :64 Kbps ~ 6 Mbps | 1 CH Wigend | Power Consumption< 11W |
Image Settings ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen NR,etc. adjustable through client software or web browser | Network Protocol: UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPs, QoS | Operating Environment - 30 °C ~ 60 °C (-22°F~140°F) Humidity: less than 95 % (non-condensing) |
Each ROI to be configured separately | Interface Protocol ONVIF | Installation :Ceiling mounting; Wall mounting |
