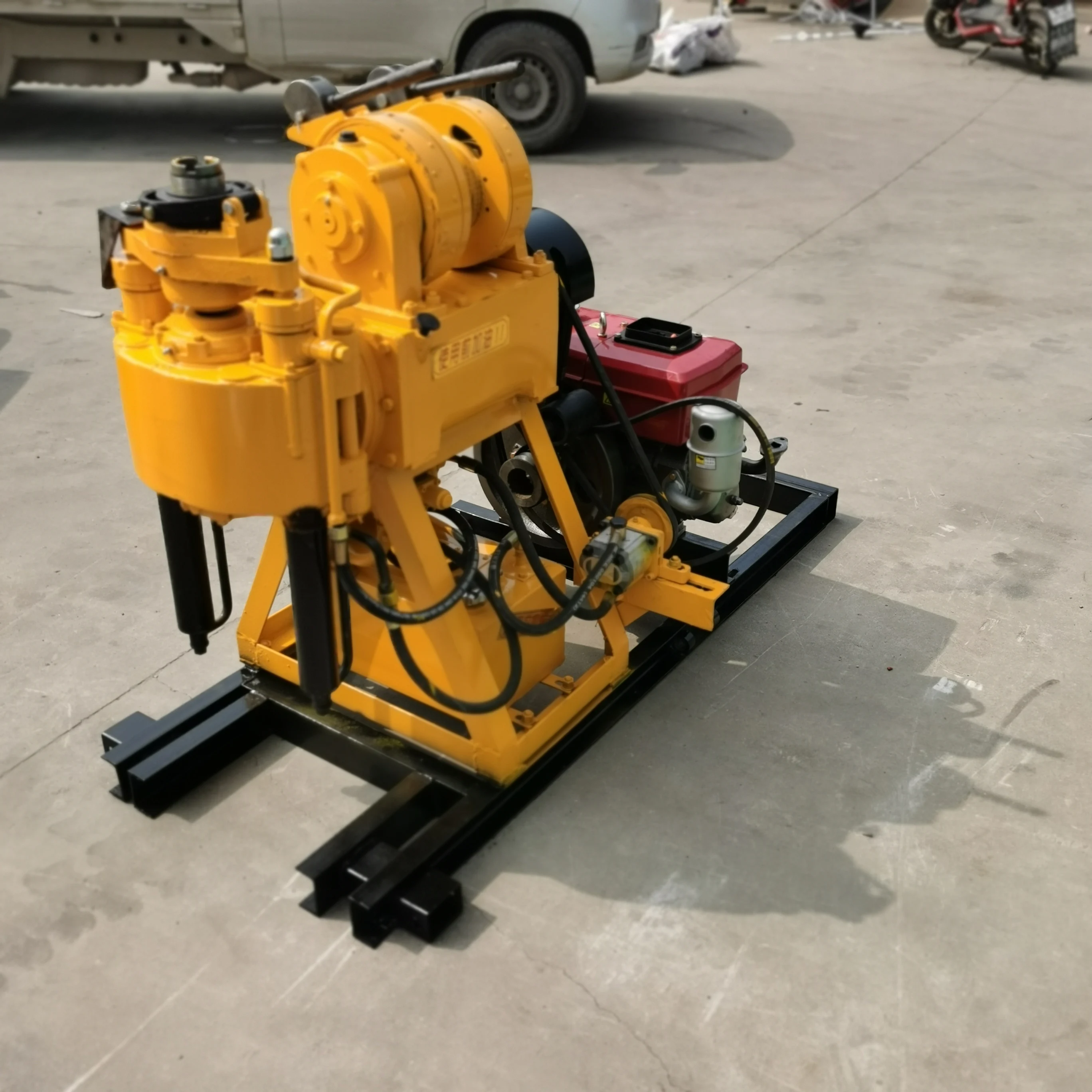

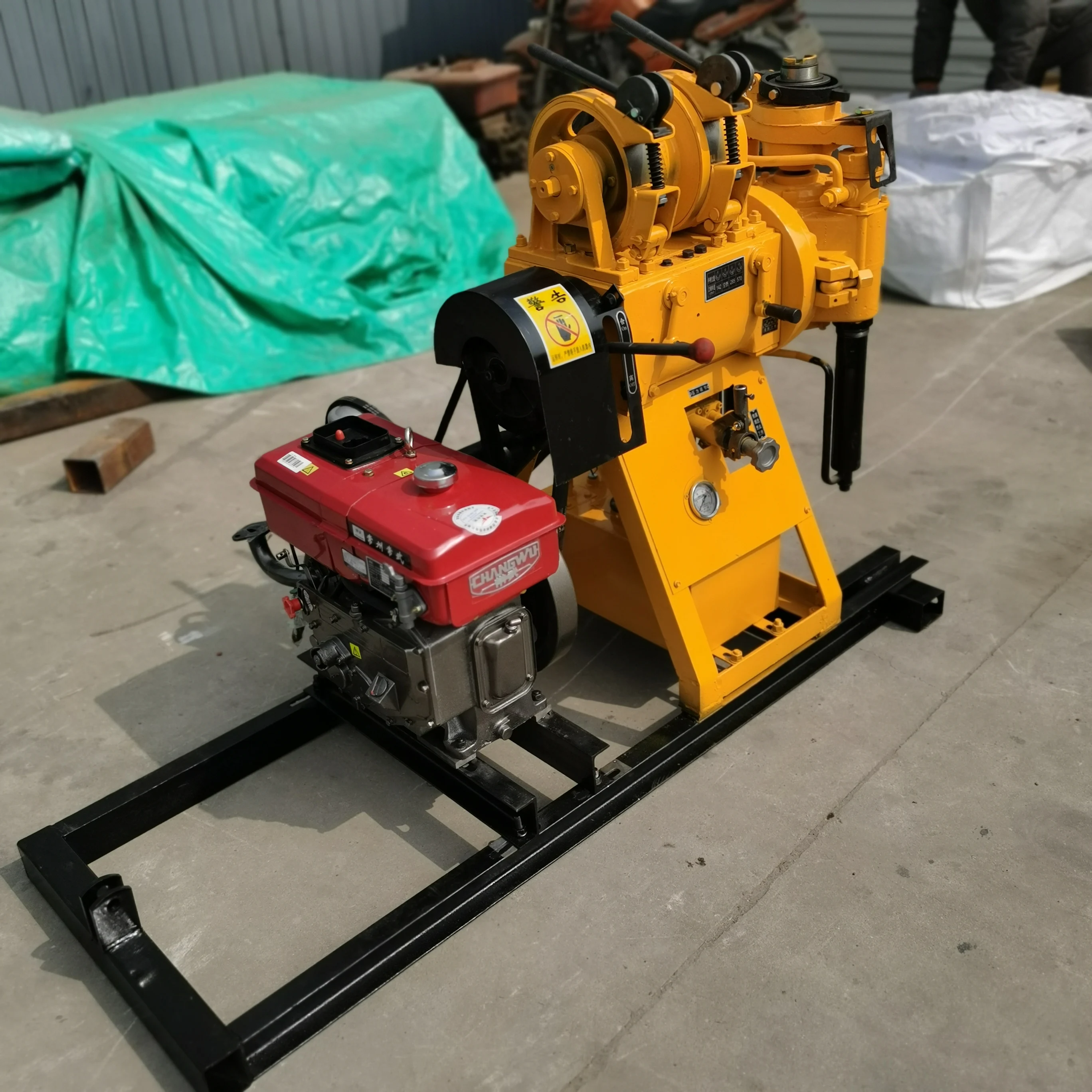

Portable core drilling rig Geotechnical soil sampling drill Underground Water Well Drilling Rig Machine

Product Overview

Description





1. Geological survey work in a highly difficult area that is small and light and convenient for high altitudes.concrete core drilling hole machine

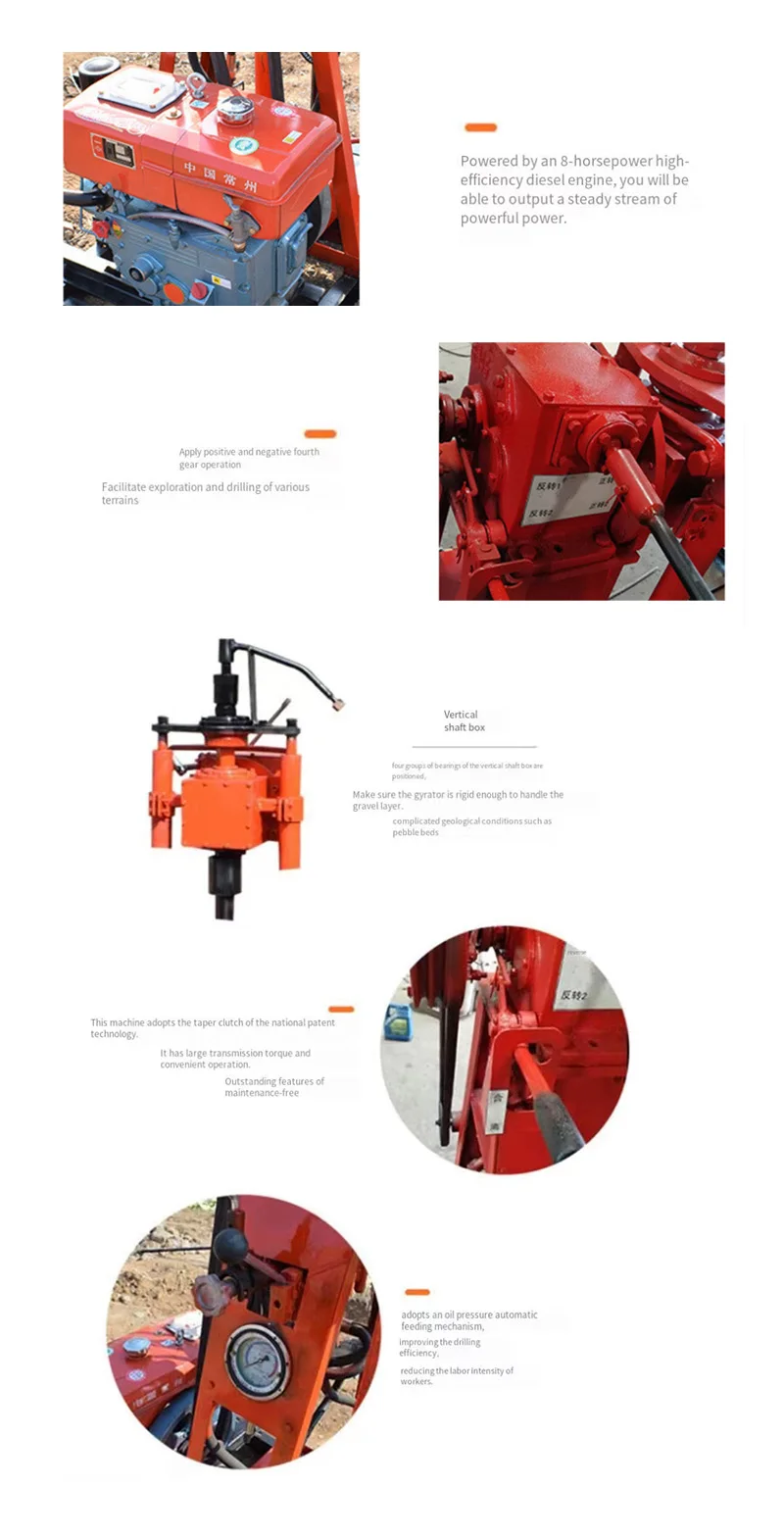

2. Adopting an automatic hydraulic feed mechanism to increase drilling efficiency and reduce labor intensity of workers.

3, Using 8 HP high-efficiency diesel engine as a power for you to export a steady stream of strong power.

3, Application of positive and negative four-speed operation to facilitate a variety of terrain exploration drilling

4. The four-axis bearing positioning of the vertical shaft box ensures that the gyrator is rigid enough to deal with complex geological conditions such as gravel layer and pebble layer.

5. The machine adopts the national patented technology of the taper clutch, which has the outstanding characteristics of large transmission torque, convenient operation and maintenance-free.mine drilling rig

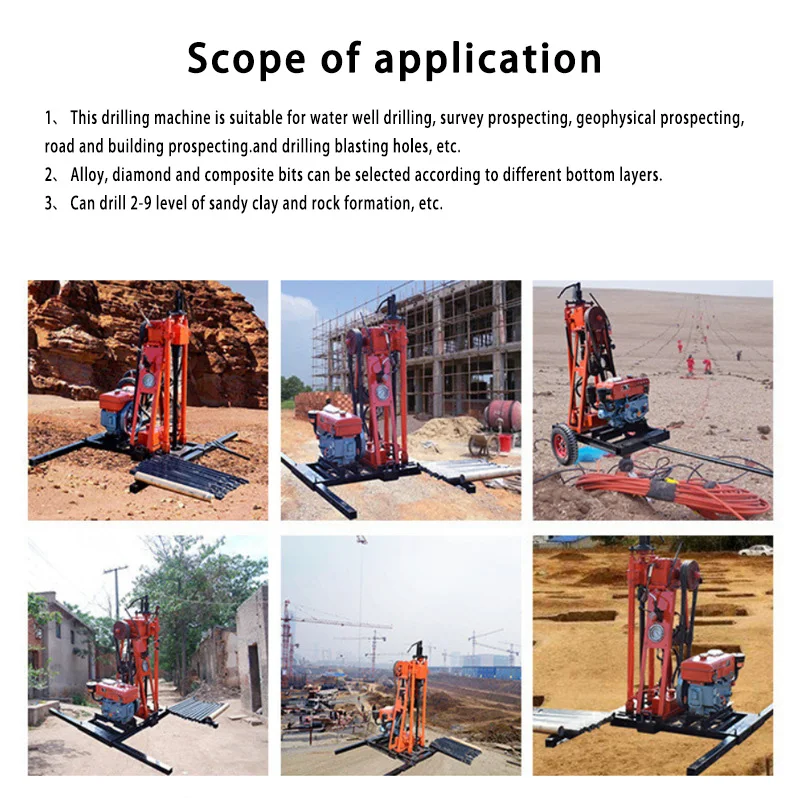

1.DLX-50 is suitable for drilling wells, general exploration, geophysical prospecting, road and construction exploration, and blasting holes.

2, According to the different layers of the bottom selection of alloys, diamonds and composite drill bits for drilling.



mine drilli

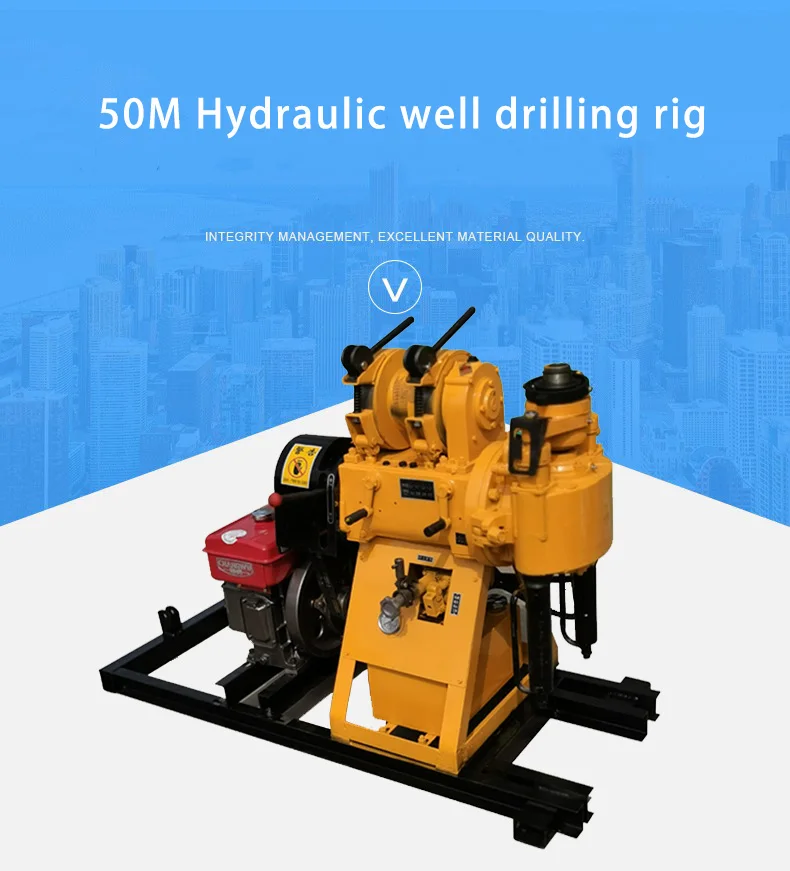

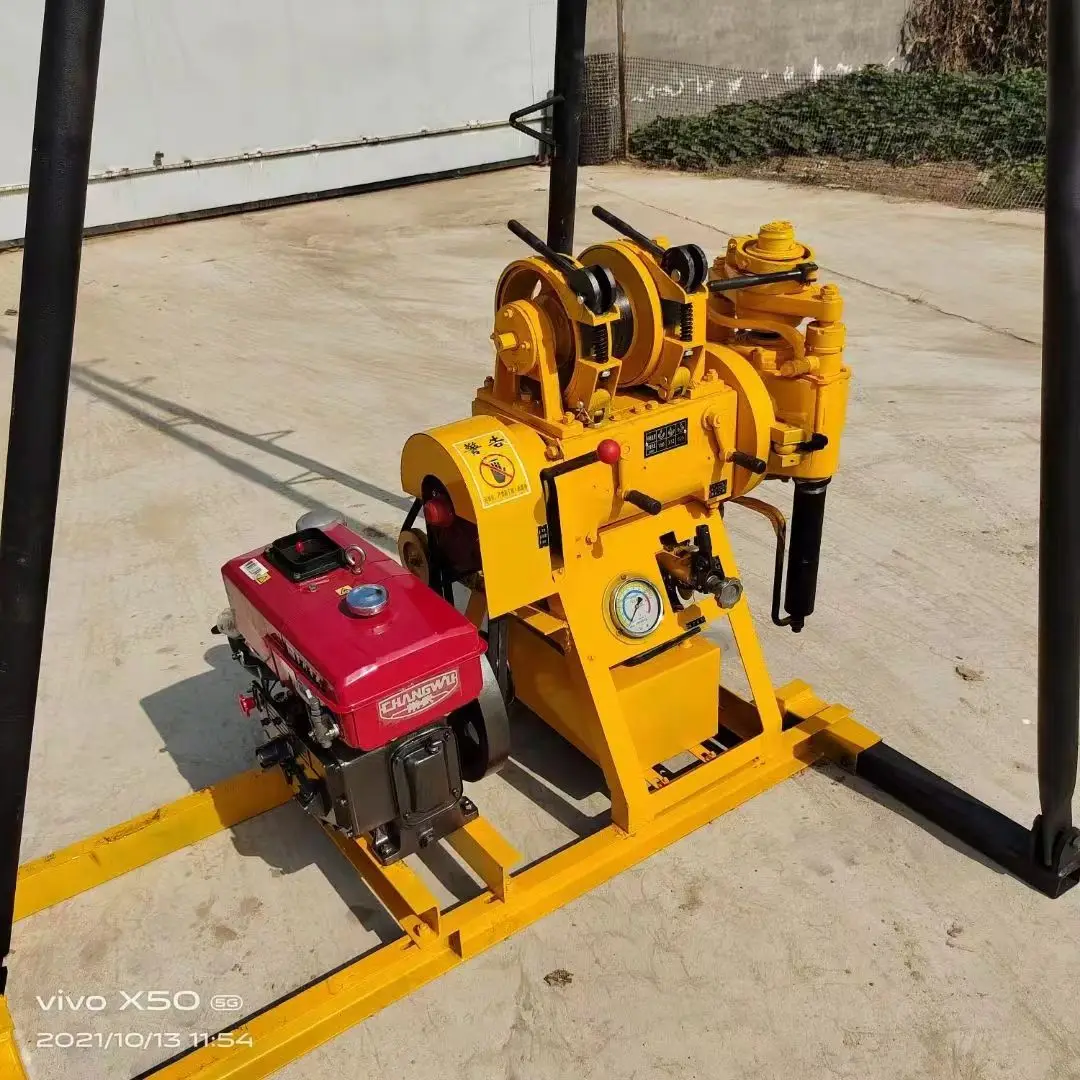

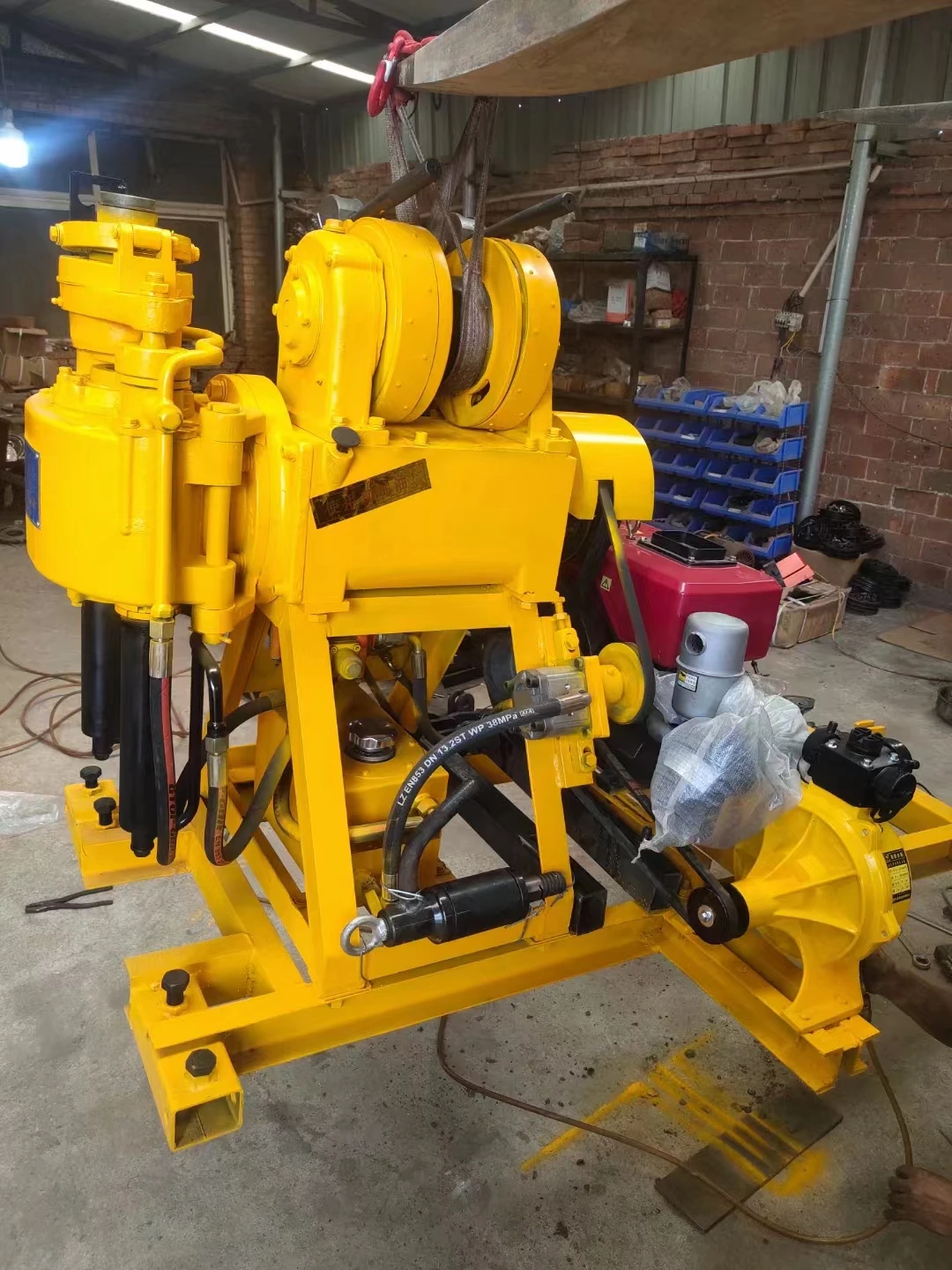

DLX-50 Drilling Rig
Max. drilling depth	50m
Max .opening diameter	φ108mm
End hole diameter	75mm
Active drill pipe	50/1000mm
Drill pipe diameter	Φ42mm
Power (diesel engine)	5.88kw(8HP)/2200r/min
Size	1040*800*1400mm
Weight	290kg
Spindle
Speed	142/285/570r/min
Vertical axis stroke	450mm
Vertical shaft feed force	1000mm
Lifting force	350kg
Vertical shaft lifting	250kg

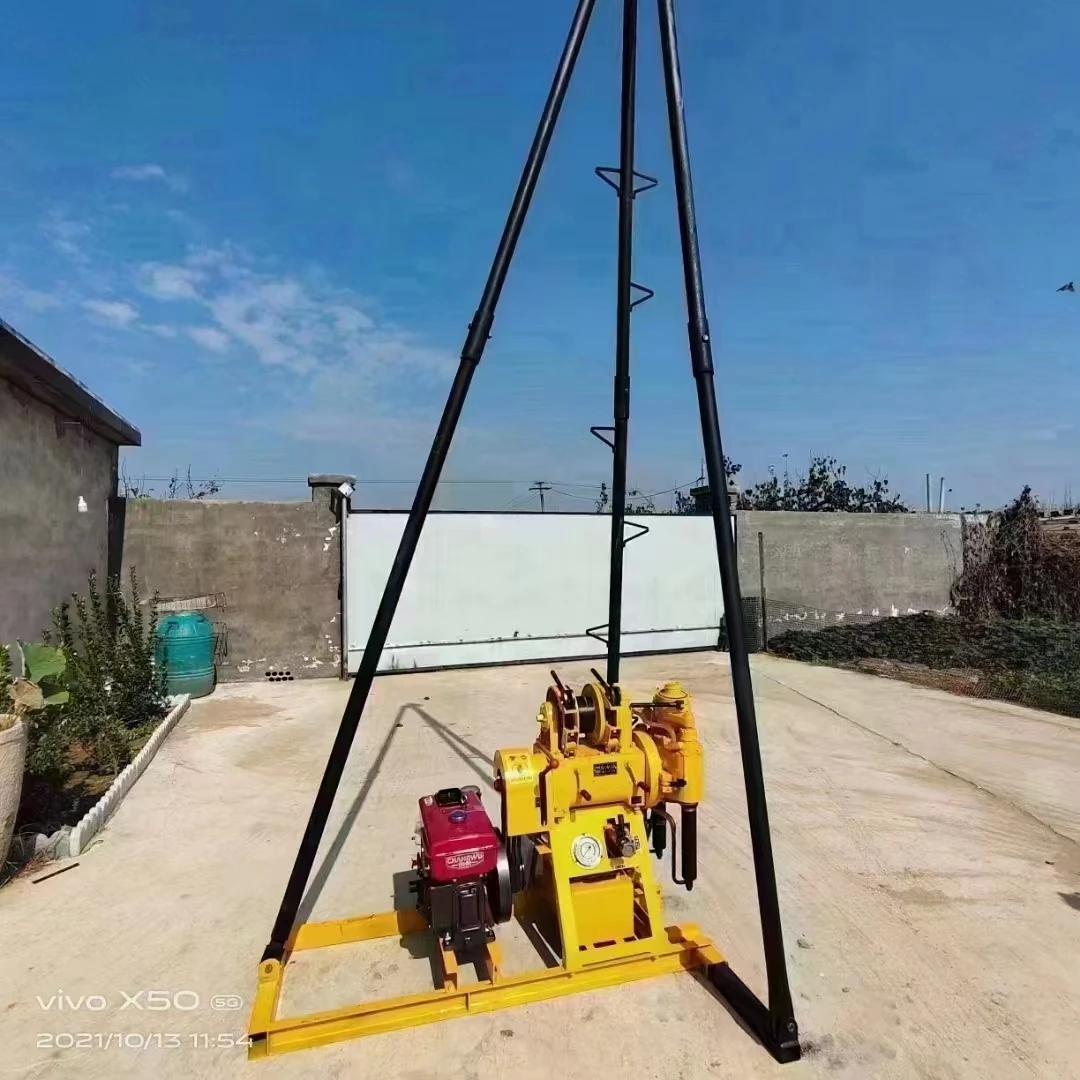

Drilling Tower
Rated load	1t
Height	4m
Tower leg specifications	60mm
