Price:$10.00 - $12.00

Quantity:


Product Overview

Description



Product Description




Specification


item
value
Place of Origin
China
Guangdong
Brand Name
JUTAI
Model Number
TB5X
Warranty
1 year
Type
infrared button
Certification
CE, FCC
Voltage
DC12-24V
Customized
Yes
Sensing Range
1-20CM (adjustable)
Whether the smart
NO
Power supply
DC12-24V
Output Contact
NO\\NC\\COM
Sensing Range
1-20cm
Material
Zinc-alloyed Metal
Function
Time delay 0-30s adjustable
Waterproof
IP68
Mechanical Life
500,000 tested
Sensor Mode
Hand Waving Sensor

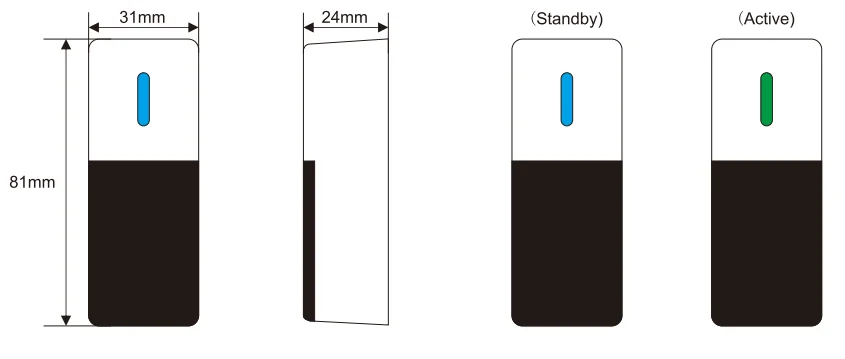

Product size
81mm*31mm*24mm
Weight
0.186kg

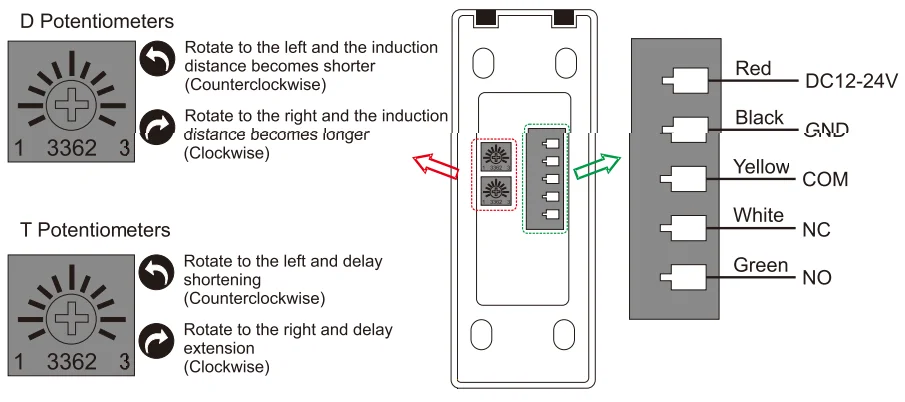

Diagram Connection
