PH8 800 155 55w to 150w TUV HO uv lamp Ballast germicidal lamp electronic ballast
PH8-800-155 55w to 150w TUV HO uv lamp Ballast germicidal lamp electronic ballast
PH8-800-155 55w to 150w TUV HO uv lamp Ballast germicidal lamp electronic ballast
PH8-800-155 55w to 150w TUV HO uv lamp Ballast germicidal lamp electronic ballast
PH8-800-155 55w to 150w TUV HO uv lamp Ballast germicidal lamp electronic ballast
PH8-800-155 55w to 150w TUV HO uv lamp Ballast germicidal lamp electronic ballast
PH8-800-155 55w to 150w TUV HO uv lamp Ballast germicidal lamp electronic ballast

PH8 800 155 55w to 150w TUV HO uv lamp Ballast germicidal lamp electronic ballast

Share on (1600909376586):


Price:$29.00 - $33.00

Quantity:


Product Overview

Description



Product Description


The compatibility between UV germicidal lamps and ballasts is very important, but which is often ignored unfortunately during practical application.
There are magnetic ballasts and electronic ballasts in the market, but the latter is more environmental than the former, saving energy.
PHIYANG can provide multiform electronic ballasts and inverters compatible with lamps.






Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.


Technical Specification


Model
Current (mA)
Input Voltage (V)
Lamp Power (W)
Lamp Specification
Size

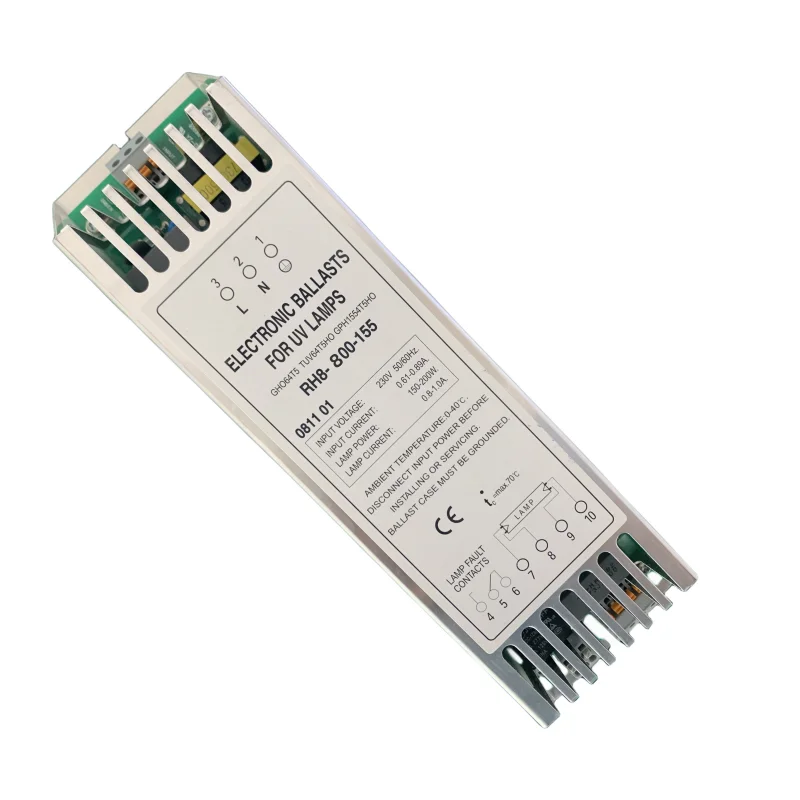

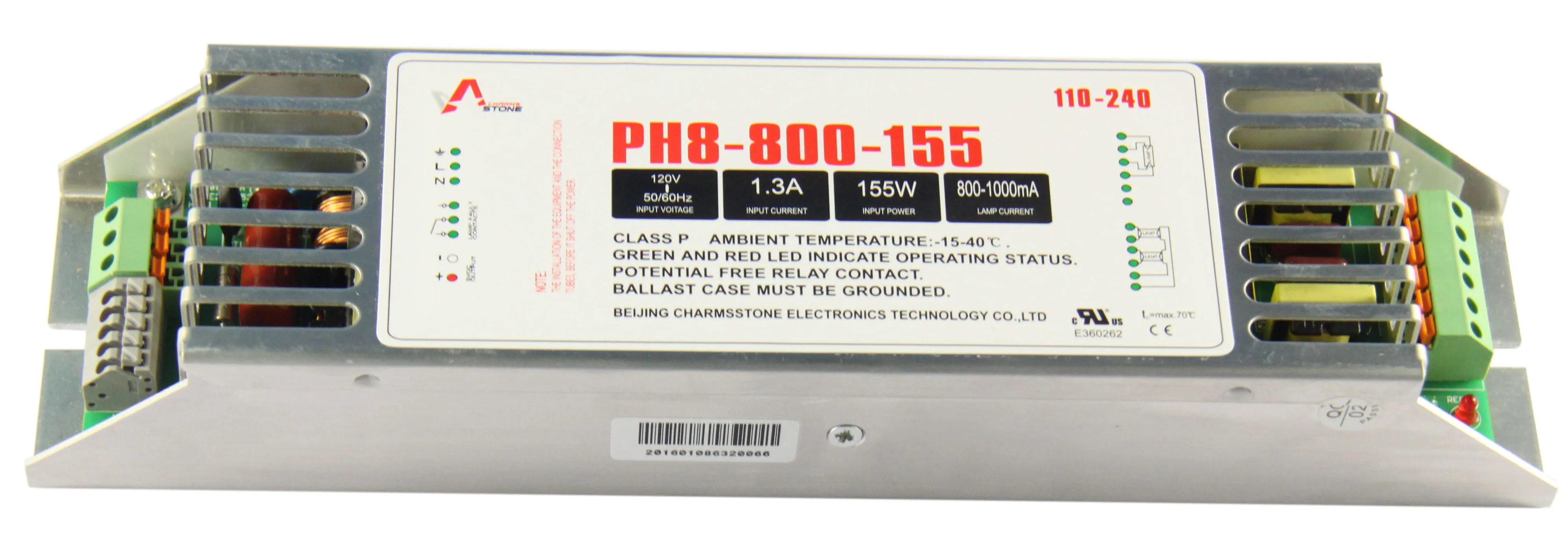

PH8-800-155
0.75-0.85
99-264
75-200W
1*GPH1554T5HO(150W) TUVPL-L95WHO 2*GPH893T5HO,GPH846T5HO, TUV55WHO,TUV75WHO
250*65*40


PH8-800-155
1*Lamp Type:GPH1554T5HO GHO64T5L TUV64T5HO
Wiring Diag:A
2*Lamp Type:GPH846T5HO GPH893T5HO GHO36T5L TUV36T5HO TUV55WHO TUV75WHO
Wiring Diag:B
l PH8-1200-190
1*Lamp Type: GPHA1000T5 GPHA1554T5
Wiring Diag:A
2*Lamp Type:GPHA843T5 GPHA357T5
Wiring Diag:B
l PH8-1500-150
1*Lamp Type:NNI120/79 NNI120/80 NNI120/84 NIQ120/80 NIQ120/84 TUV115WVHO
Wiring Diag:A
2*Lamp Type: NNI80/36U NIQ75/34 UVL80W/T5
Wiring Diag:B
l PH8-1800-150
1*Lamp Type:GPHA843T6 GPHA1000T6
Wiring Diag:A
2*Lamp Type:GPHA357T6
Wiring Diag:B
l PH8-2100-200
1*Lamp Type: GPHA1000T6 GPHA843T6
Wiring Diag:A

Technical specifications

Mains Voltage: 110-240VAC±10%
Mains Frequency: 50/60Hz
Power Factor: >0.98
Efficiency: >92%
Operating Frequency: 40-60KHz
Dimensions: 250*65*40mm

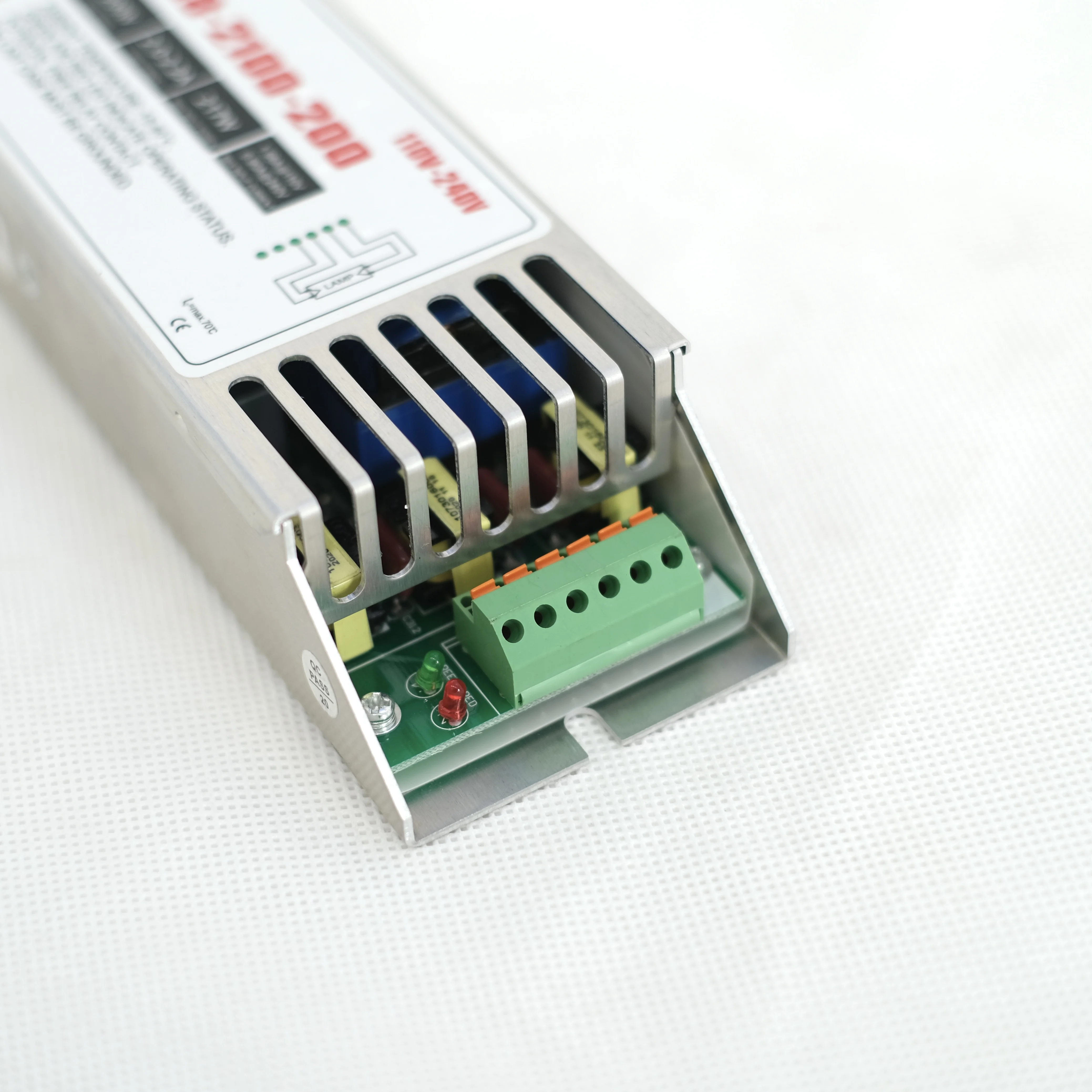

l Lamp status indication via LED indication
Green LED:Lamp on
Red LED:Lamp fault
l Lamp status forwarding
Potential free relay contacts for lamp on/lamp fault..
l Installation requirement
Wire Gauge:0.5-1.5mm2
Max.cable length between ballasts and lamp:5m
Relay contacts:potential free,load:50…500mA at 24…230V AC;
50…500mA at 5…60V DC
DC5V±5% 5mA:lamp on. DC 0V:lamp fault or on lamp. Connect LED.
DC5V±10% Max 50mA:lamp on. DC 0V:lamp fault or on lamp. Connect Relay.
l Mounting restrictions
Disconnect Input Power Before Installing or Servicing.
Ballast Case Must Be Grounded.
Don’t short any two wires of the four outputs.






1.If the power of the ballast is less than the power of the lamp tube, the lamp emits less light, or even does not light up. 2.If the ballast power is greater than the lamp power, the lamp life will be reduced; the greater the power gap, the more life will be reduced.
3.In addition, the voltage of the ballast must match the power supply voltage
