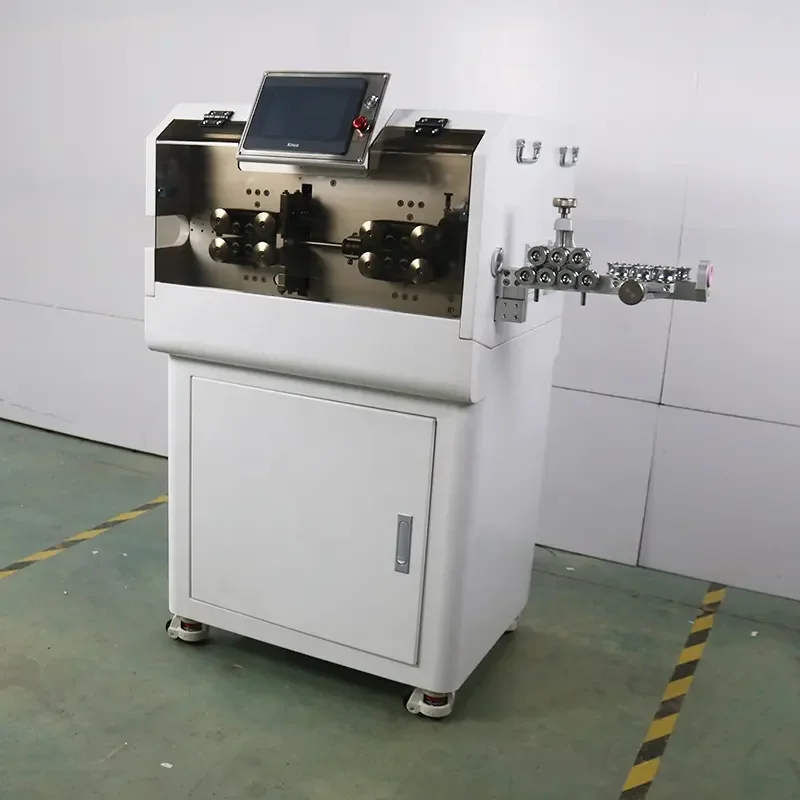

Data cable making machine for cutting and stripping cable machine cable manufacturing equipment
- Category: >>>
- Supplier: Henan Stimy Industrial & Trading Co. Ltd
Share on (1600909381483):
Product Overview
Description
Data cable making machine for cutting and stripping cable machine cable manufacturing equipment
Product Description
| Corrugated Pipe Cutting Machine | |
| Model | S-30AS Automatic Wire Harness Cutting Stripping Machine |
| Display | 7 Inch Man-Machine Interface |
| MOQ | 1 Set |
| Customized | MOQ 1 Set For Customized Version |

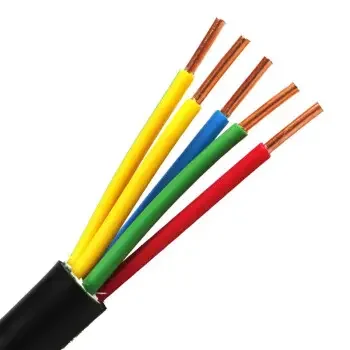

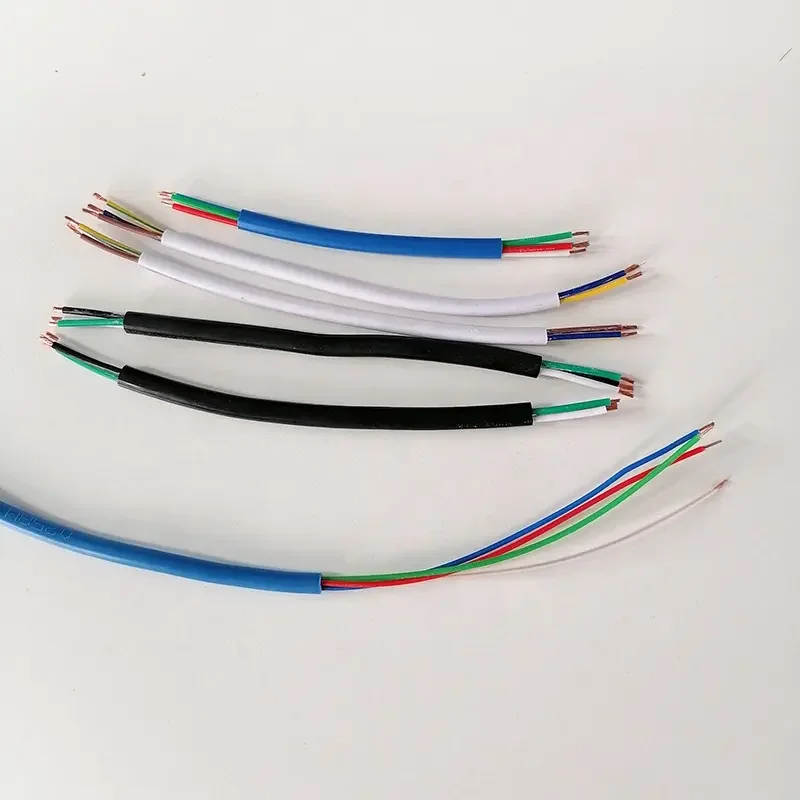

| Function | Single-core cable, multi-core cable, shielded cable, wire, automatic fixed length cutting, stripping. |
| Multi-core sheath wire, outer skin peeling, inner core wire peeling, cut off once completed | |

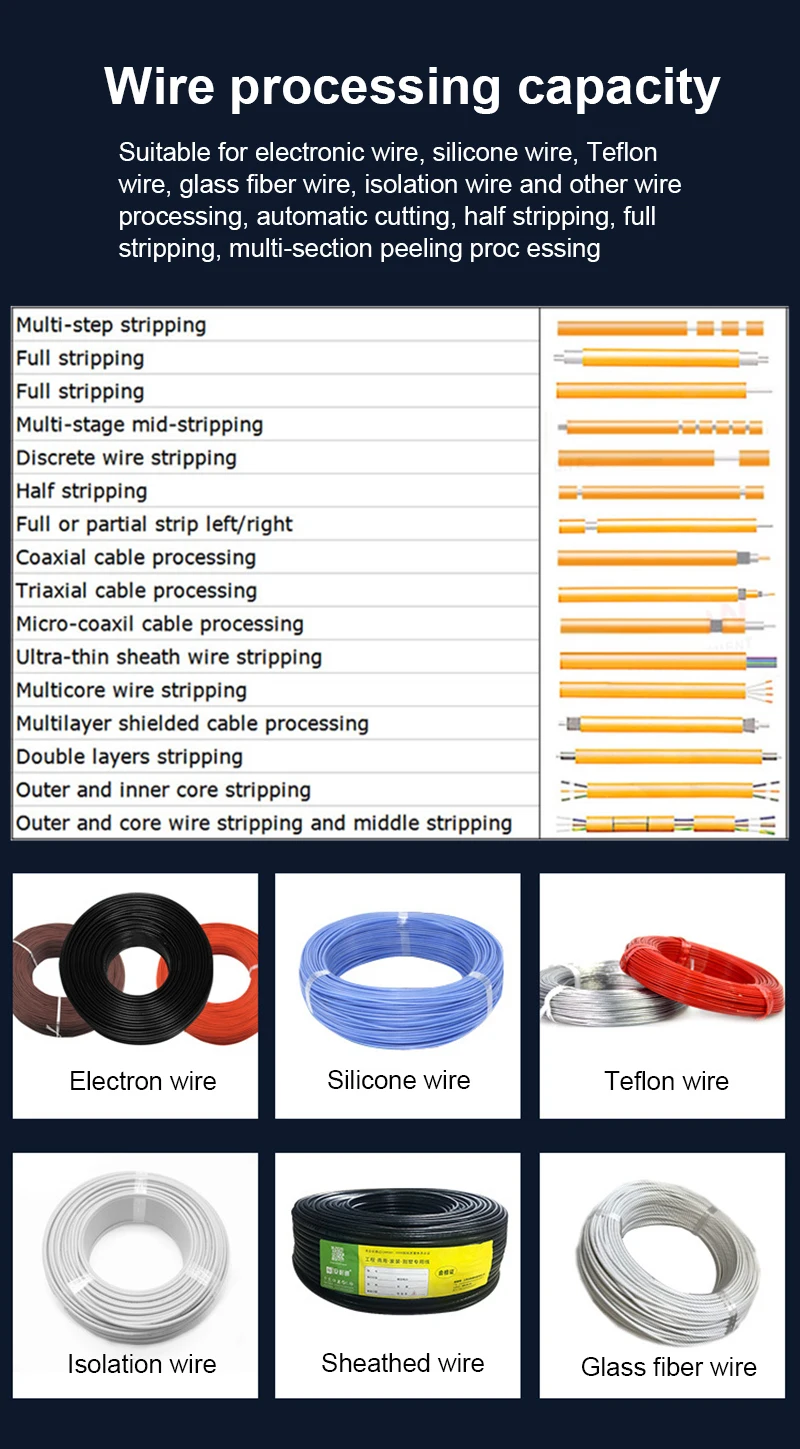

| Wire Type | Single-core cable, multi-core cable, shielded cable, wire,PVC,etc |
| Processing Range | 0.75-30mm² (including less than 10 core sheath wire) |
| Cutting Length | 1mm---9999.99mm |
| Minimum Length of peeling | >120mm |
| Cutting Tolerance | Within 0.002*L (L=Cutting Length) |
| Stripping length | Front stripping: Remove the outer sheath 10-200mm,and the inner core wire 1-50mm |
| Back stripping: the outer sheath is completely removed 10-80mm, and the inner core wire 1-50mm | |
| Maximum Diameter Allowed Through | Φ18mm |
| Tool Material | High quality imported high speed steel |
| Production Rate | 3500pcs/H,Sheath cable 900pcs/H(depending on the length and size of the wire) |

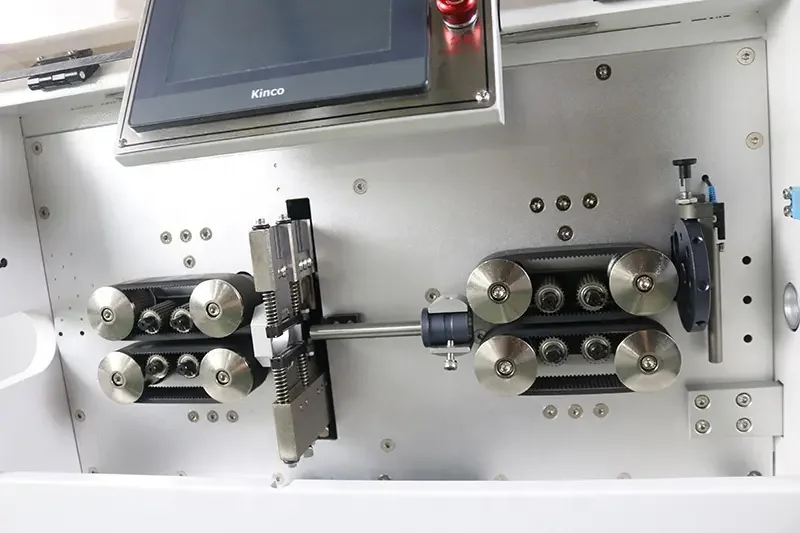

| Drive Mode | 16-wheel drive(Feed stepper motor, Tool holder servo motor); Servo Motor Optional |

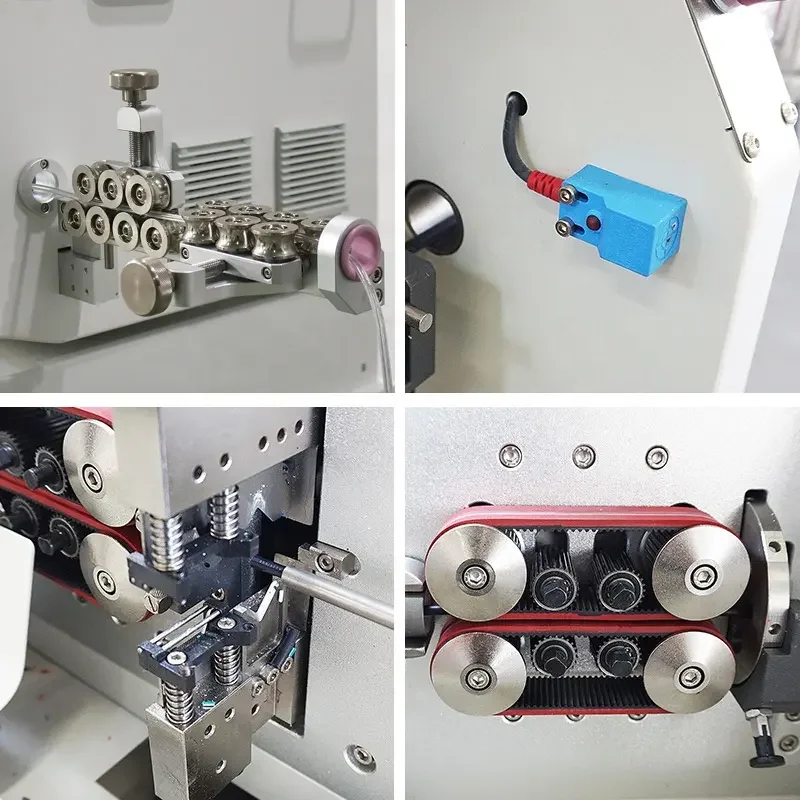

| Feeding System | Belt Feeding, No embossing or scratches on the wire(with peeling pressure function) |
| Lifting Operation Mode | Digital Adjustment of pressure wheel/roller height |
| Power Supply | AC220v 50/60Hz; Optional: 110v 50/60Hz |
| Air Source | 0.5Mpa clean air source |
| Dimension | 73*57*135cm |
| N.W | 140kg |

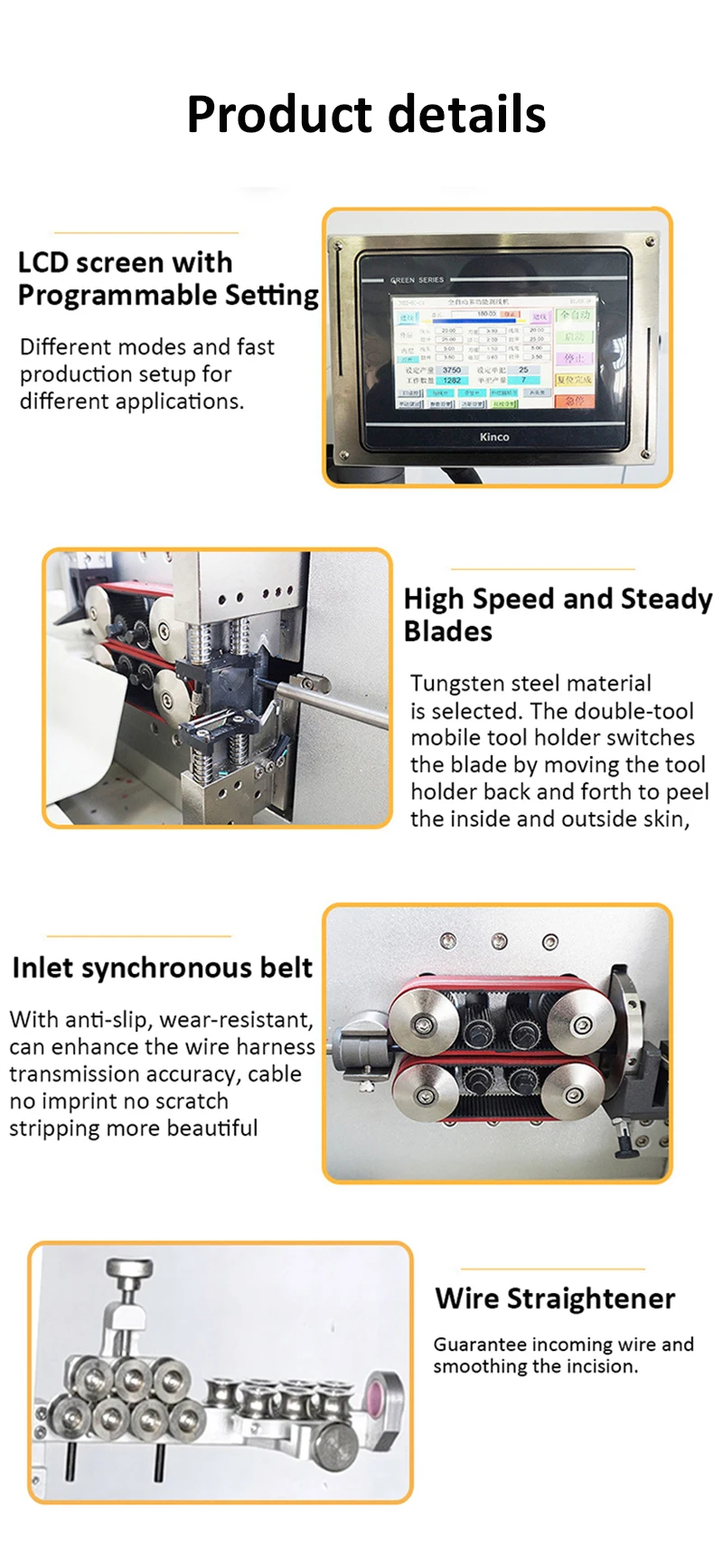

Feature:
1, Optional: MES system, Internet of Things system, fixed-point inkjet function, mid-stripping function, external auxiliary equipment alarm;
2, User-friendly system, intuitive operation via 7-inch color touch screen;
3, Modular interface, convenient for linking accessories and peripheral equipment;
4, Modular design, future upgradeable;
5, A variety of additional options can customize the system. Special pipe processing can be customized
Company Information
About US:
Stimy was founded in 2016 with ISO9001 and CE certifacates. We are leading manufacture of Wire Harness Equipments in China.
There are 20+ R&D staff, moe than 105 different types of wire harness machines are available and our products have been sold to more than 30 other counntries in the world. We accept low customized quantity for 1 set to be with customer's logo, production dimension, extra function and etc.
Our Mainly Products Lines Includes:
---- Automatic Terminal Crimping Machine: Single/Double Head Crimping; Double Head Tinning; Waterproof Crimping and Insertion; Housing Crimping and Insertion.
---- Semi-automatic Wire Cutting and Stripping Machine: Cutting&Stripping; Cutting; Stripping; Twisting; Crimpping;Recycling; Tinning.
---- Wire Binding Machine: Wire winding&binding; Nylon Tying.
---- Tape Bunding Machine
---- Accessories:Automatic Wire Feeder; Wire Collector Machine; Crimping Applicator; Tensile Tester.
Partrial of The Stripping Machines:
Packaging & Shipping
1, Sea shipment or air transportation,Truck Transportation to save your shipping cost.
2, Only urgent samples shipment we suggest to ship via DHL, UPS,FeDex etc.
3, All the machines are packaged with Fumigation-Free Wooden Frame which is standard for sea shipment!
FAQ
1, Quality Guarantee:
-- Pre-Production Sample Before Mass Production According To Customer Needs;
-- Full Inspeciton For Incoming Raw Materials
-- Full Inspection During Production
-- QC Full Inspection Before Packaging
-- Photo Or Video Confirmation With Customers
-- Live Stream Confirmation With Customers
-- Warehouse Department Final Random Inspection Before Shipping
2. Our Advantage:
-- Integration Of Manufacturer And Trader With Our Own Machines/Designers/Technology
-- Alibaba Verified Top Wire Harness Equipments Supplier
-- Sufficient Range Of Wire Harness Equipment Products
-- 10+ Years Customization Experience For OEM/ODM
-- Personalized Design and Low MOQ For Customized 1 Unit
-- Reasonable Selection Of Surface Treatment
-- Exquisite Craft
-- Intimate After-Sales Service
3, About Price:
All the price can be negotiatory and dicussed due to the details and special requirements. Maybe We Can't Give You The Lowest Price But We will try our best to provide the high quality and on time delivery with the most reasonable price.
4. Usage:
