800W Solar Panels System with 220V Output Volta Monocrystalline PV Panels for Home Use MPPT Controller Balcony App
- Category: >>>
- Supplier: Xiamen Empery Solar Technology Co. Ltd.
Share on (1600909409142):
Product Overview
Description
Product Description
Balcony installation system kit parameters
| Product name | Description | Quantity |

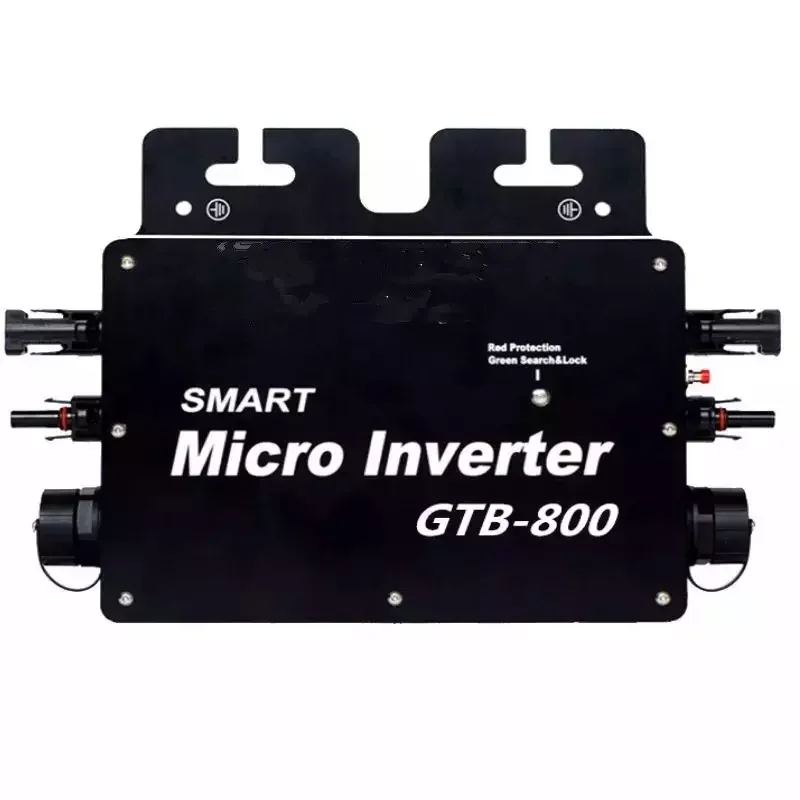

| Grid tied micro inverter | GTB-800 Smart 800W micro inverter | 1PCS |
| Mono solar panel | STC400 Mono 400W solar panel | 2PCS |

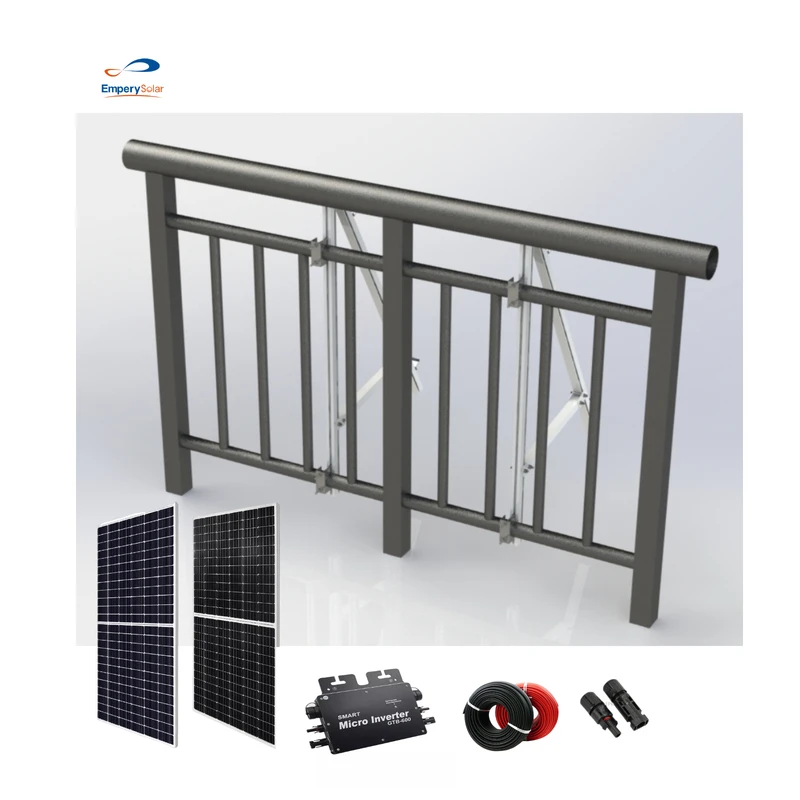

| Balcony Mount Bracket | Inclined mounting(vertical mounting optional) | 2PCS |

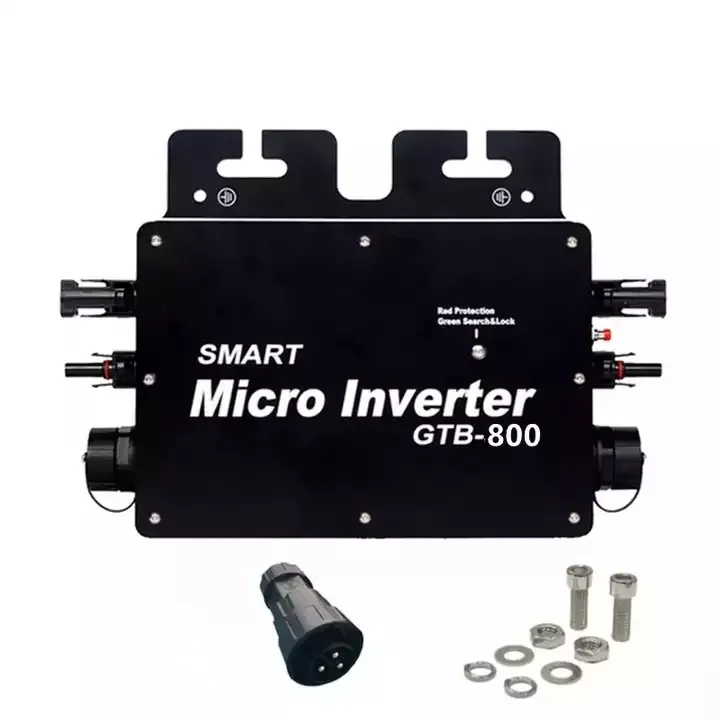

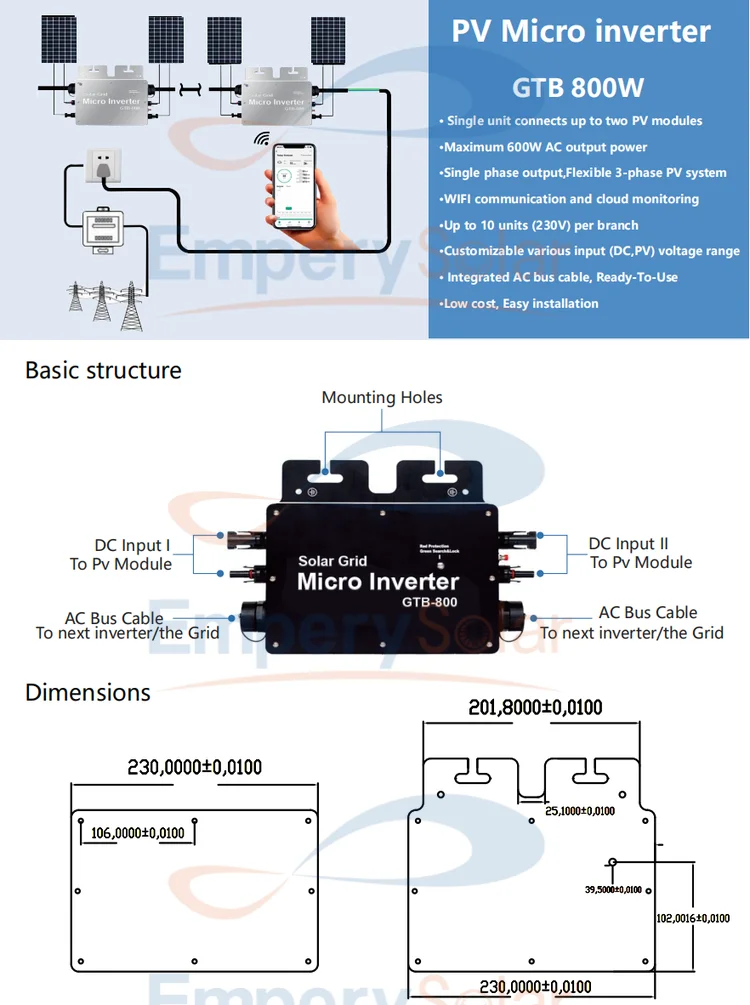

| Grid tied micro inverter Input Voltage:22/50V Output Voltage:80/160VAC-180/280VAC Output Current:5/2.6A Output Frequency:48-51HZ/58-61HZ Size:310X200X40mm Inverter Efficiency:95% Certificate:CE Warranty:5 Years Weight:1.8KG Protection:IP65 |  |

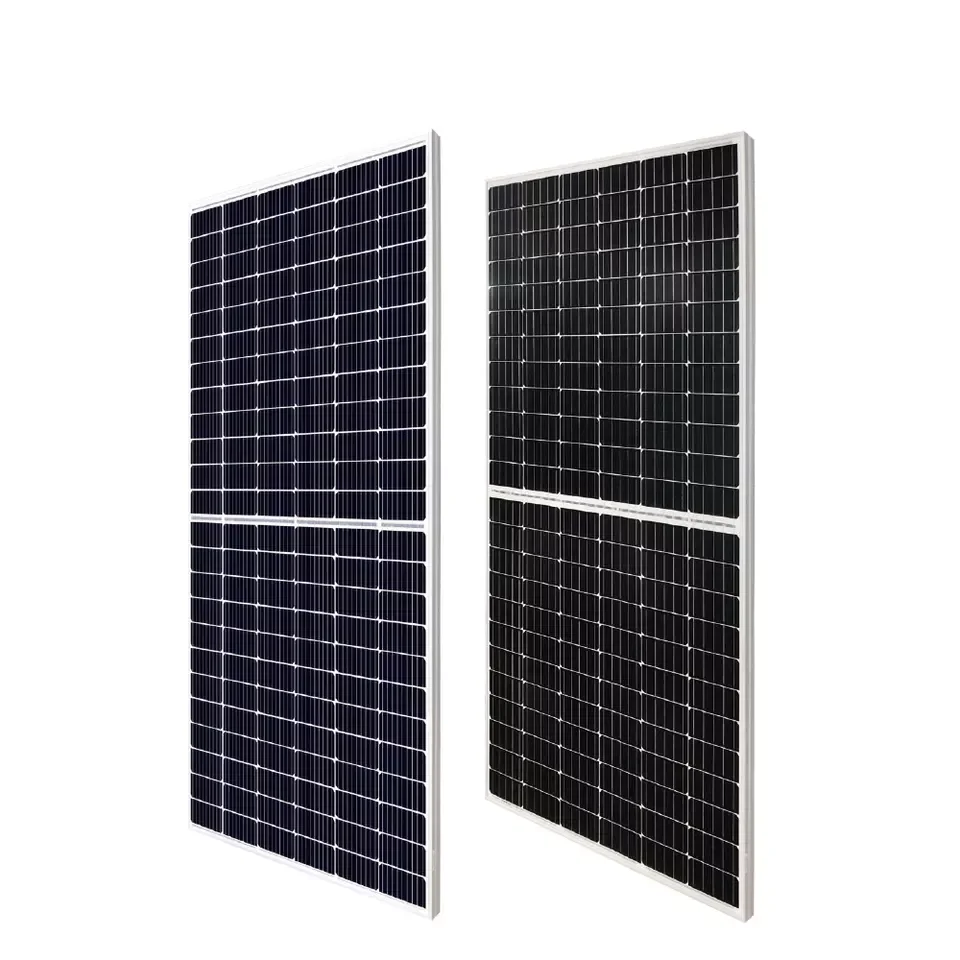

Mono-crystalline silicon solar cells Maximum power at STC(Pmax):400W Optimum operating voltage(Vmp):37.78V Optimum operating current(Imp):10.59A Open-circuit voltage(Voc):43.50V Short-circuit current(Isc):11.33A Short-circuit current temperature coefficient:(0.065±0.015)%/℃ Open-circuit voltage temperature coefficient:-(80±10)mV/℃ Peak power temperature coefficient: -(0.5±0.05)%/℃ NOCT (Air 20℃; Sun 0.8kW/m wind 1m/s): 47±2℃ Operating temperature :-40℃ to 85℃ Maximum system voltage :1000V DC Power tolerance :±3% Dimension of module: 1723mm×1134mm×35mm Weight :20.90kg |  |

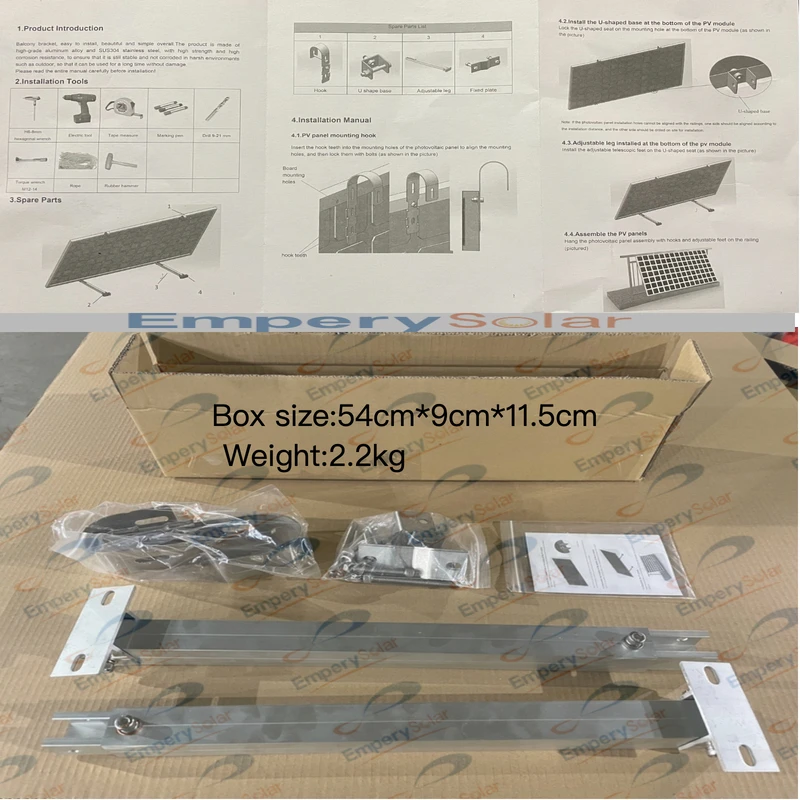

| Balcony Mount Bracket(vertical mounting) Installation Site: Balcony Panels: Solar panel for any size Structural materials: Aluminum Survival wind speed:Up to 50m/s Design snow pressure: Up to 1.4KN /m2 Inclination:0°-60deg Certificate: CE TUV UL Warranty: 15 years Life: Design Life for 25 years |  |

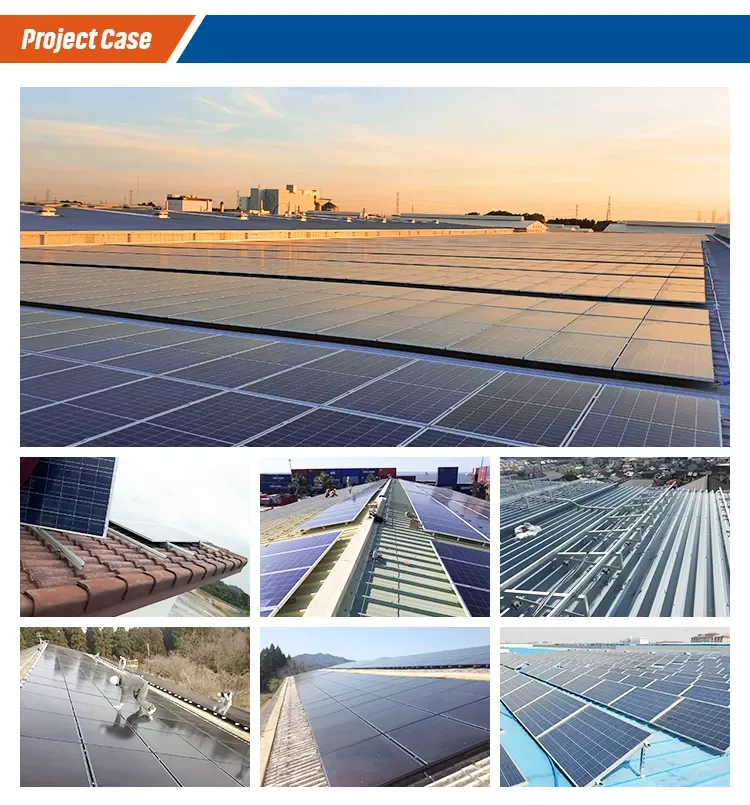

Project Case
Project Categories
Company Information
Packaging & Shipping

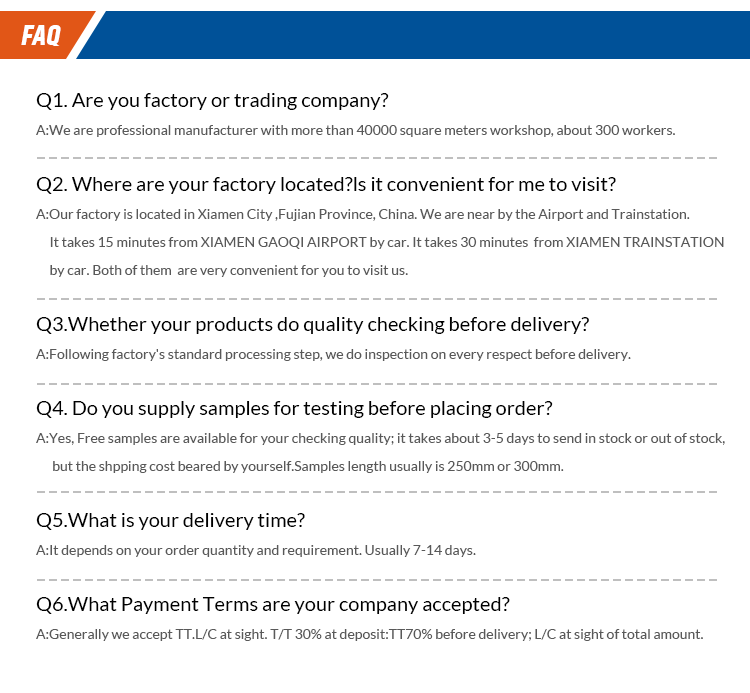

FAQ
