Tuya Linux 4' Smart Home Central Control Panel for Smart Home Appliances Built in Tuya Zigbee Gateway Hub Wall Switches Socket
- Category: >>>
- Supplier: SMATEK ELECTRONICS LIMITED
Share on (1600909432295):
Product Overview
Description

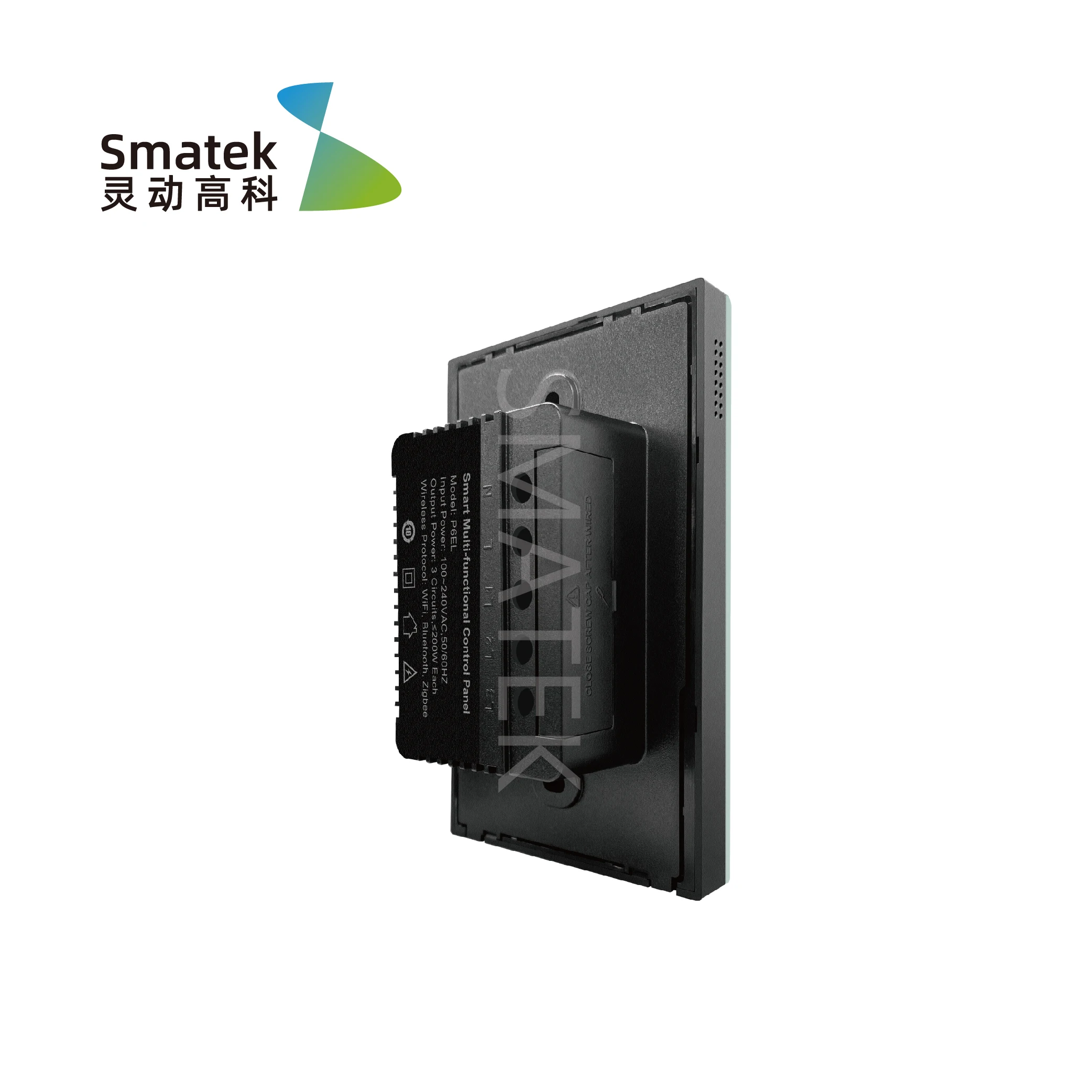

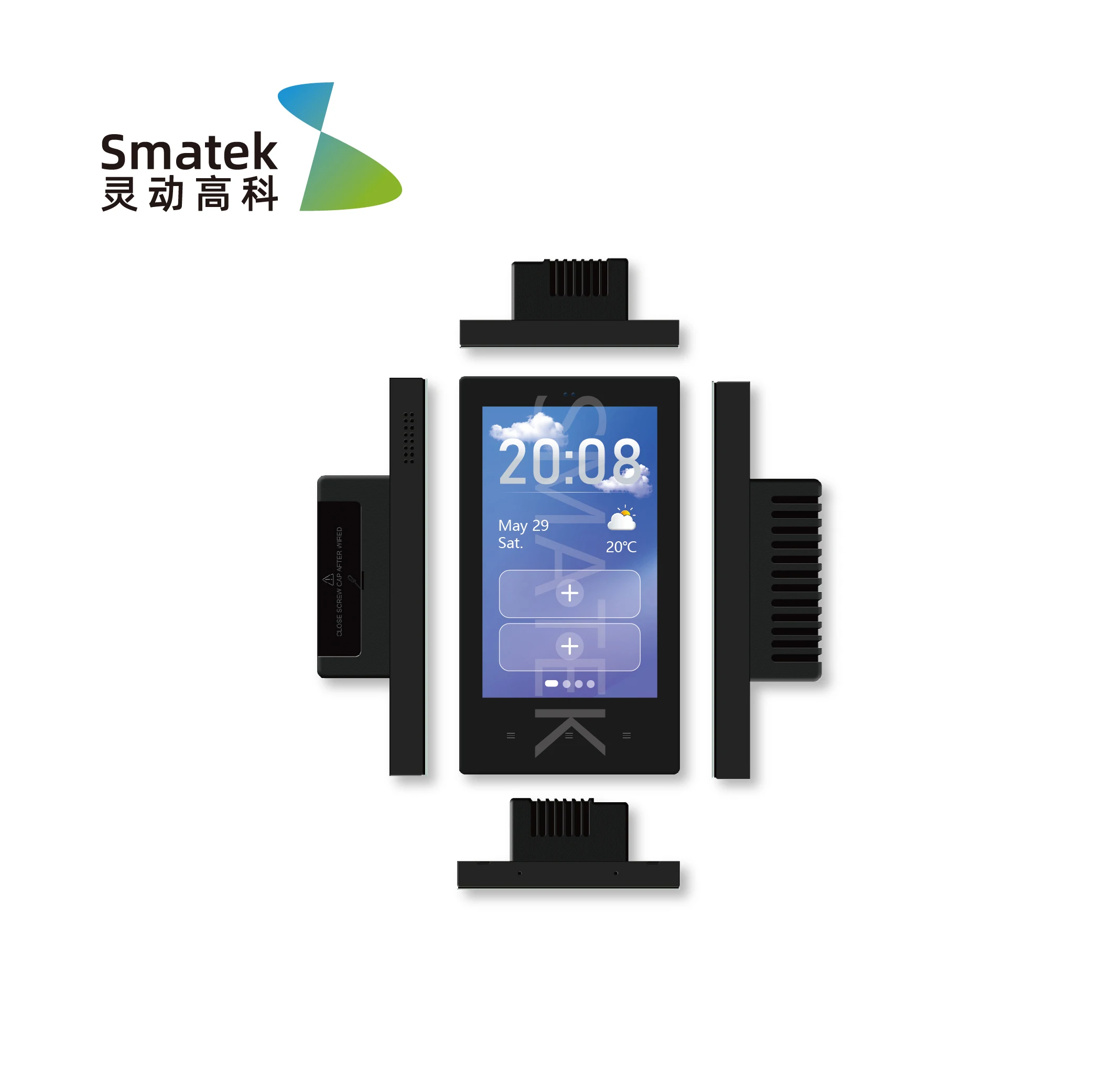

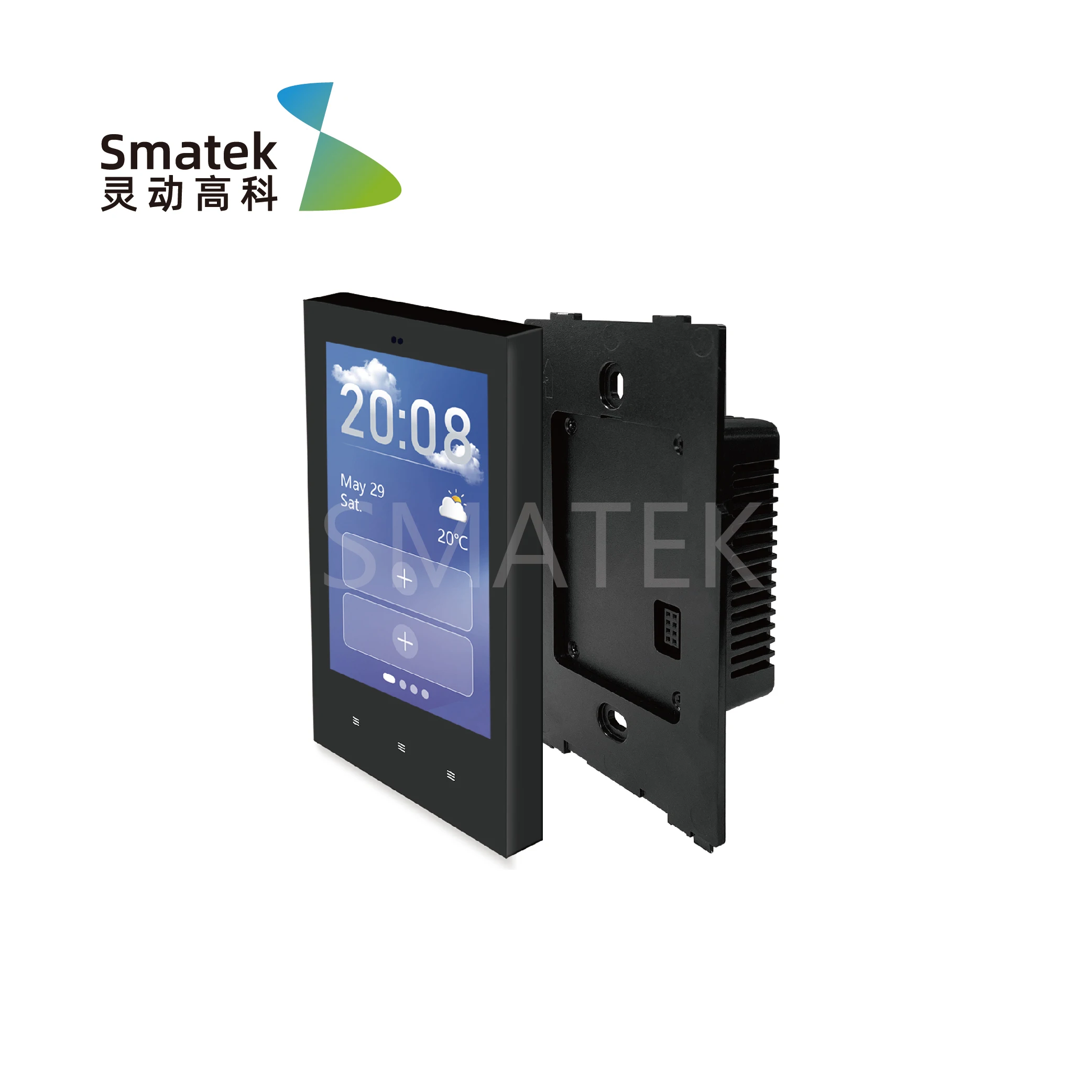

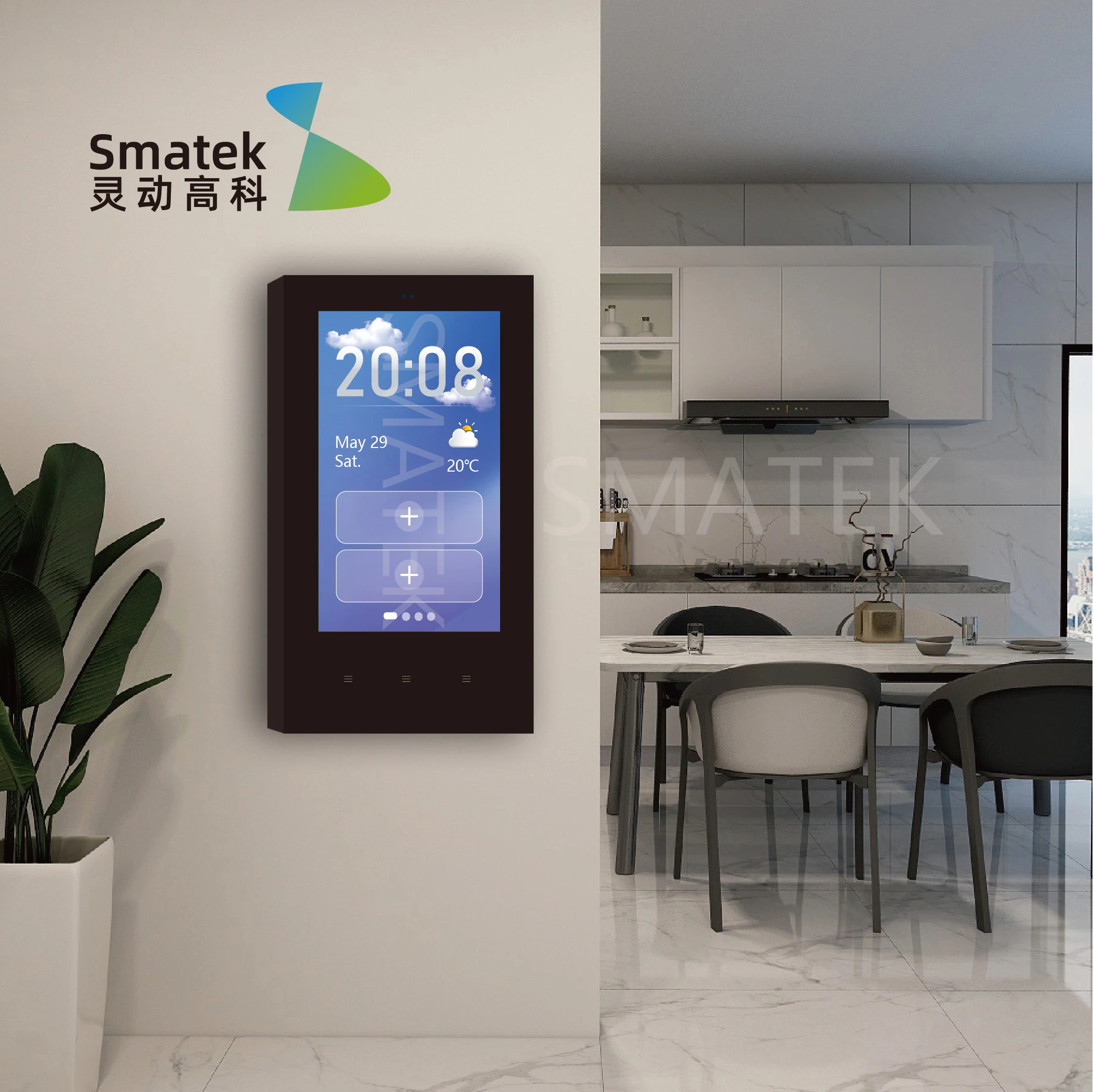

Tuya Linux 4'' Smart Home Central Control Panel for Smart Home Appliances Built in Tuya Zigbee Gateway Hub Wall Switches Socket
Product Overviews
Product Overview
One Tap to Smart Home
Our smart home control panel is actually a paneled home hub that can bind with and manage various Tuya smart devices, support devices control, scene interactions, and ZigBee gateway for smart home automation system.
So far, Tuya smart App support below devices for our smart home control panel:
Switches, lights, curtains, sockets, air conditioners, clothes hangers, thermostats, fresh air ventilators, door magnetics, temperature and humidity sensors, PIR, gas alarm sensors, water sensors, SOS, IR remote controllers...
(P6EL panels in firmware V 1.3.8, S6EL in V1.3.1 and S6EL in 1.4.0)
How to use it?
1. After the power is turned on, select the language and region
2. Use the central control panel to connect to the network (WiFi or local network)
3. Add devices in Tuya smart app
4. Pull down on the interface of the central control screen - sync the device and scene
For more use problems, welcome to contact us at any time!
| Specification | |||
| CPU | RK3308B Quad core Cortex-A35 | OS | Linux 4.4.143 |
| RAM | 128MB (DDR3) | Screen | 4 inch 480*480 Mutil-touch |
| ROM | 256MB (FLASH) | Bluetooth | BLE 4.2 Single point |
| Ethemet | N/A | RS485 | N/A |
| WiFi | 802.11b/g/n 150Mbps 2.4GHz | ZigBee | 802.15.4 PHY/MAC Zigbee network protocol stack |
| Functions | |||
| Voice Wake-up | The current version does not support voice wake-up. Built in Mircrophone and speaker. | ||
| Relays | Built in 3 relays which can connect and control 3 gang switches. | ||
| Music Play | Built in 1W Mono speaker, Support In-depth ODM local music source play, online mmusic sources optional | ||
| Light Sensor | Automatically adjust the screen brightness according to surroundings | ||
Give us ONE minute inquiry, and we will SURPRISE you :) !

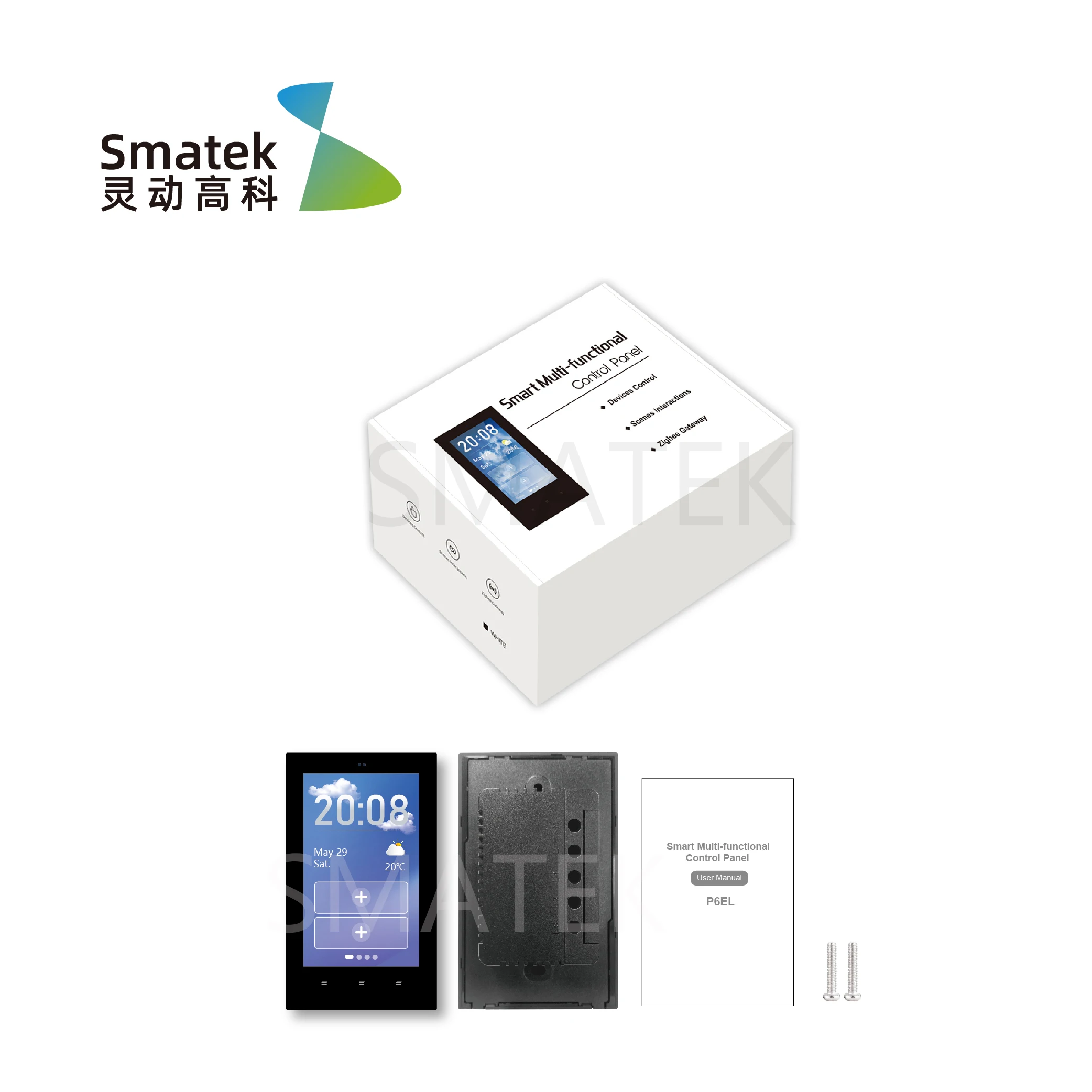

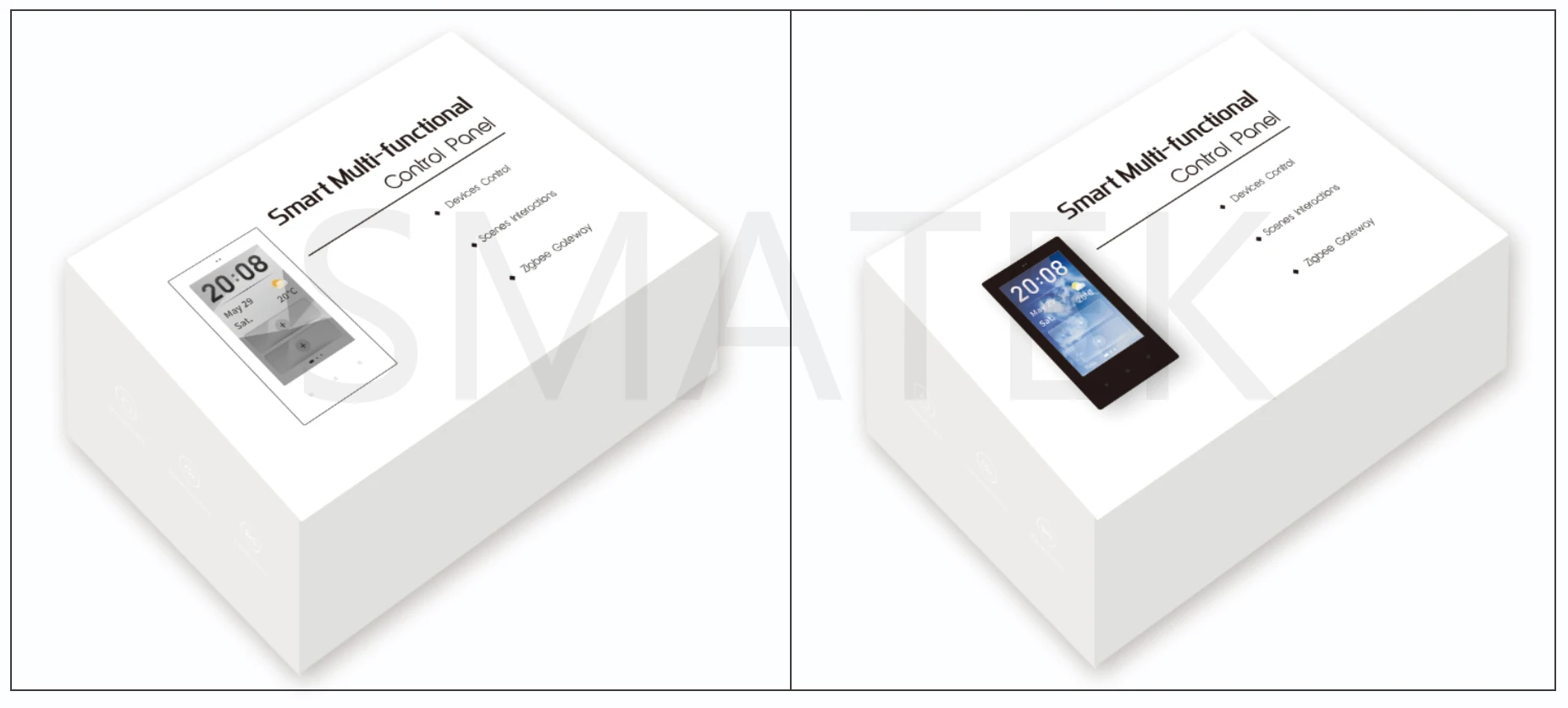

Packaging & Shipping
Our Services
3 Options below for buyers: :
Cooperation 1 - Choose existing Tuya firmware (incl. Tuya Smart App and users interface).
Cooperation 2 - We ship you panel with only an underlying android firmware ,but you do users' interface and APK etc.
Cooperation 3 - We ship you panel with your offered custom firmware,but you do users' interface and APK etc.
Cooperation 1 - Choose existing Tuya firmware (incl. Tuya Smart App and users interface).
Cooperation 2 - We ship you panel with only an underlying android firmware ,but you do users' interface and APK etc.
Cooperation 3 - We ship you panel with your offered custom firmware,but you do users' interface and APK etc.
Company Information
Certifications
FAQ
Q: Do you accept OEM & ODM?
A: Yes, we accept. OEM/ODM is what we are good at and it is our advantage. For more details, contact us now. We can quickly respond to your need at any time!
Q: I don’t know the product clearly, how can I install it?
A: We have the product's user manual and can send you a video if you need it. Or you can contact us, we'd love to help. So you don't have to worry about installation.
Q: How long is the delivery time?
A: Normally within 2 work days for sample orders when in stock, bulk order time depends on the quantity.mally within 2 work days for sample order when in stock, bulk order time depends on the quantity.
A: Yes, we accept. OEM/ODM is what we are good at and it is our advantage. For more details, contact us now. We can quickly respond to your need at any time!
Q: I don’t know the product clearly, how can I install it?
A: We have the product's user manual and can send you a video if you need it. Or you can contact us, we'd love to help. So you don't have to worry about installation.
Q: How to ensure the quality of the product?
A: We take a rigorous process that includes thorough testing for functionality, reliability, compatibility, aging test with devices, robust security measures, and always final Inspection before shipment. If you have any quality issues in using our product, feel free to contact us at anytime.
A: We take a rigorous process that includes thorough testing for functionality, reliability, compatibility, aging test with devices, robust security measures, and always final Inspection before shipment. If you have any quality issues in using our product, feel free to contact us at anytime.
Q: How long is the delivery time?
A: Normally within 2 work days for sample orders when in stock, bulk order time depends on the quantity.mally within 2 work days for sample order when in stock, bulk order time depends on the quantity.
