industrial router high quality LTE modem 4G router with SIM Card slot and WIFI function
- Category: >>>
- Supplier: Shenzhen Ex-Link Technology Co. Ltd.
Share on (1600909446117):
Product Overview
Description
Product overview

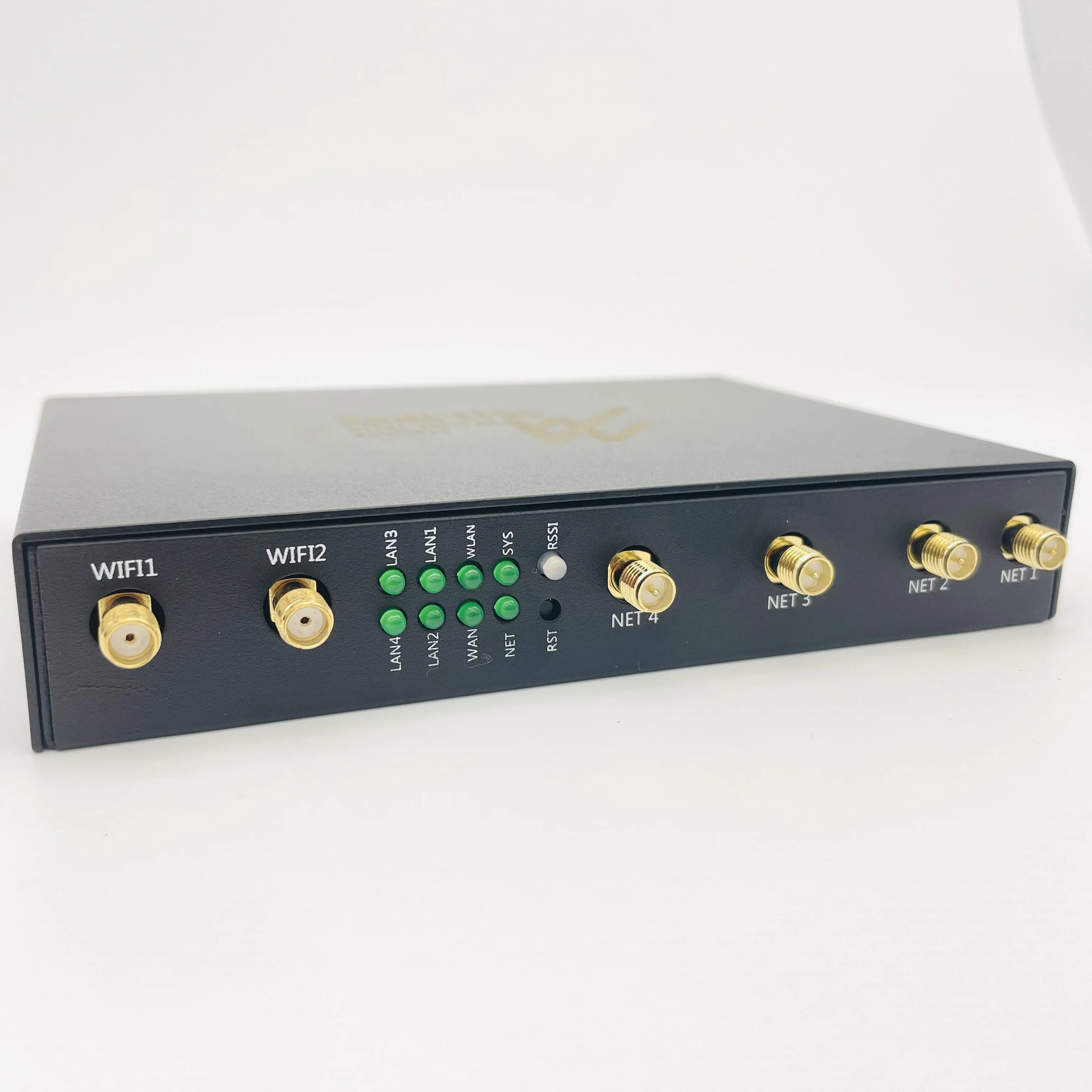

Industrial 4g wifi router high quality lte modem router with SIM Card slot
HDRM100 Cellular industrial router is a wireless gateway based on 4G LTE network. Supports 2G/3G/4G LTE global frequency bands. Supports 1 channel RS485 or RS232 for transparent IP packet transmission or data acquisition. Supports for 2.4GHz WIFI . It meets the application design of industrial harsh environment, and is suitable for ATM , POS system , vending machine , bus and vehicle WIFI .etc.
High light
◆Supports 2G/3G/4G LTE global frequency bands. industrial grade quality.
◆Supports 1 channel RS485 or RS232 for transparent IP packet transmission or data acquisition.
◆ Supports 1*WAN/2*LAN fast Ethernet ports to internet access.
◆ Supports Multiple VPN tunnels for data encryption
◆ System crashes and automatically recovers. The system automatically maintains the data link and is permanently online.
. ◆ Support GPS function (option)
portable size: 110*76*23 mm
2G/3G/4G LTE data connectivity | LTE-FDD, LTE-TDD, DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA networks. |
Antenna | 2* 2 MIMO 4G LTE external antennas, standard SMA connectors with 50 Ω impedance. ◆ 1* GPS antenna.(Optional). |
CPU ,chipset | MTK7628NN,575/580MHz ,MIPS 24KEc |
Memory | FLASH 16MByte, DDR2 128MByte |
Interface | 1* WAN/2* LAN 10/100Mbps fast Ethernet ports. 1*RS232 or 1*RS485 port |
LED light | PWR ,SYS, Net, WAN, LAN,WLAN |
Standard power | Power supply input. DC 12V/1A |
Working Temperature | Operating Temperature -20 ºC ~+70ºC, Storage Temperature -30 ºC ~+75ºC |
Housing | Aluminum black shell. |
Frequency bands | Version C LTE-FDD. B1, B3, B5, B8 LTE- TDD. B38, B39, B40, B41 WCDMA. B1, B8 GSM.900/1800MHz Version E. LTE FDD: B1/B3/B5/B7/B8/B20,B28A LTE TDD: B38/B40/B41 WCDMA: B1/B8 GSM: B3/B8 Version A. LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71 WCDMA: B2/B4/B5 Version AU. LTE FDD: B1/B2①/B3/B4/B5/B7/B8/B28 LTE TDD: B40 WCDMA: B1/B2/B5/B8 GSM: B2/B3/B5/B8 Version J LTE FDD: B1/B3/B8/B18/B19/B26 LTE TDD: B41 WCDMA: B1/B6/B8/B19 Remarks. More frequency bands requirements,please contact us. |
Product Usage

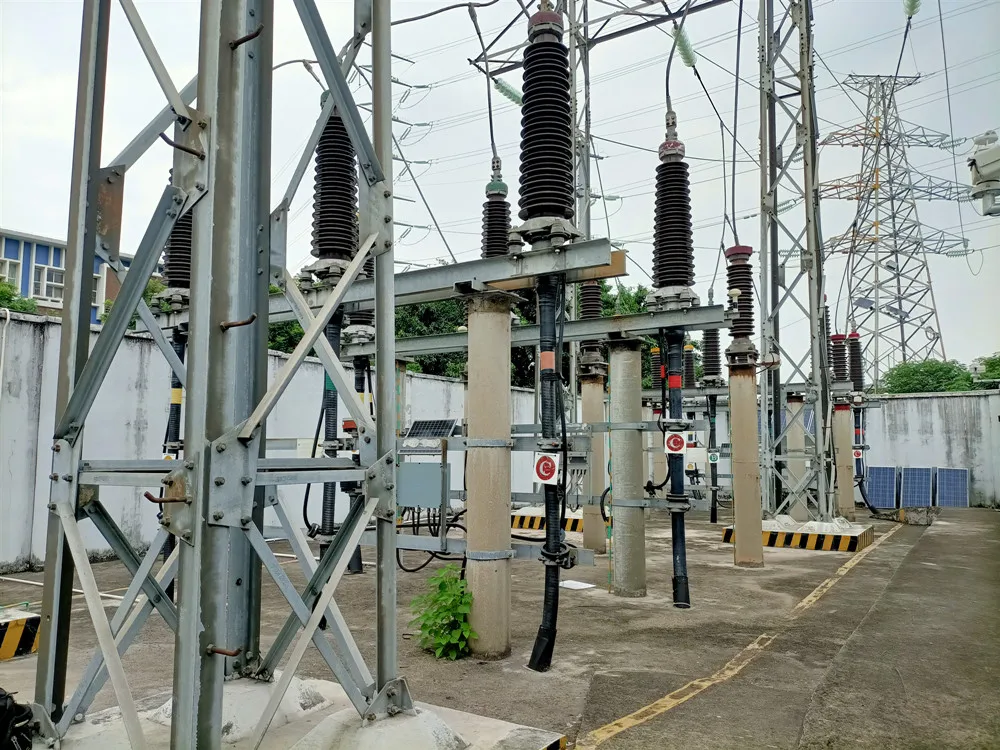

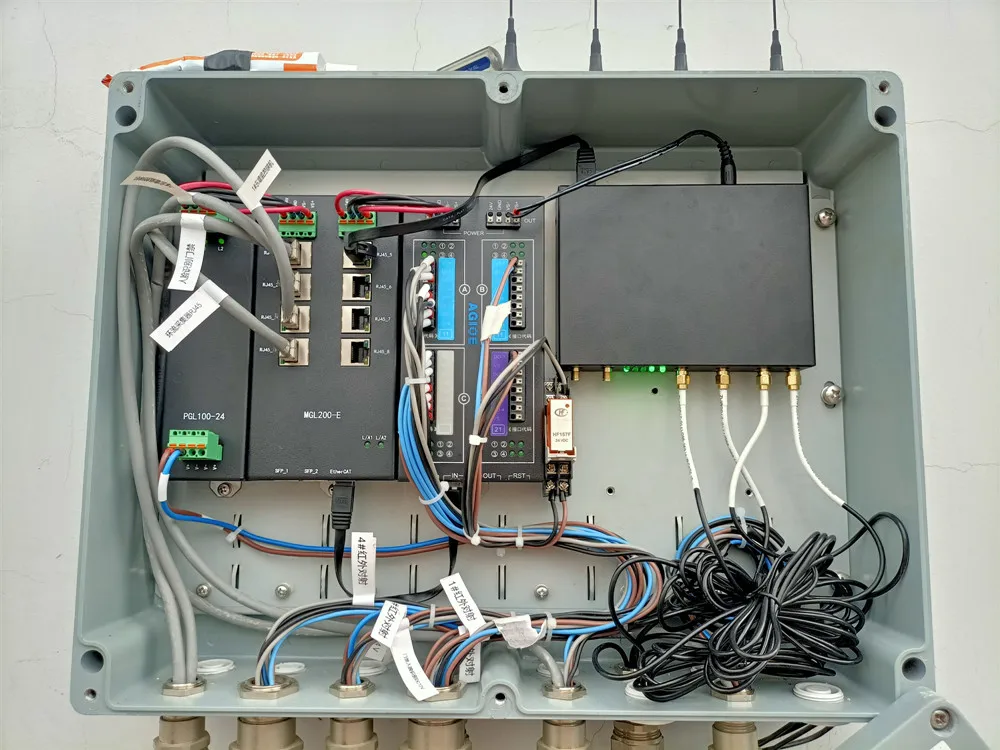

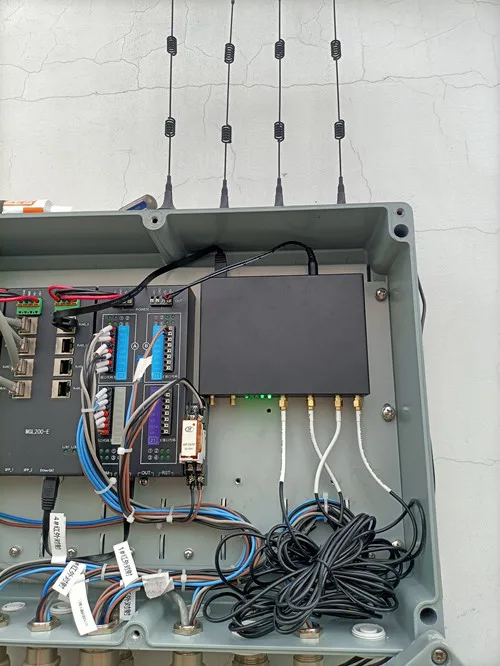

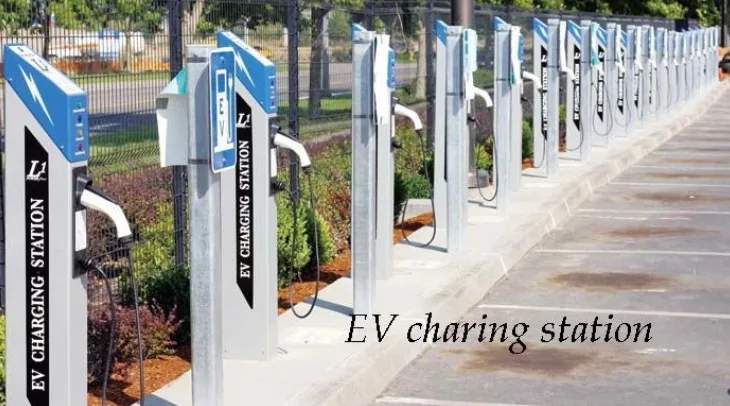

Use on charging station
Financial system
BUS WIFI use
Related Products
Company Introduction
Shenzhen Ex_link Technology Co., Ltd. was established in 2011. It is a team of senior experts who have been engaged in the wireless communication industry for many years. They have many years of implementation experience in broadband, IOT, and in-vehicle product development and application. The company focuses on R&D and sales of 3G/4G/5G/WIFI industrial routers, 4G LTE/ 5G CPE, 4G/5G edge gateway, 4G DTU, LORA/433M/BT/WIFI collector, 4G/CAT 1 tracker, 4G vehicle T-BOX, driving recorder and other terminals.
Our Services & Strength

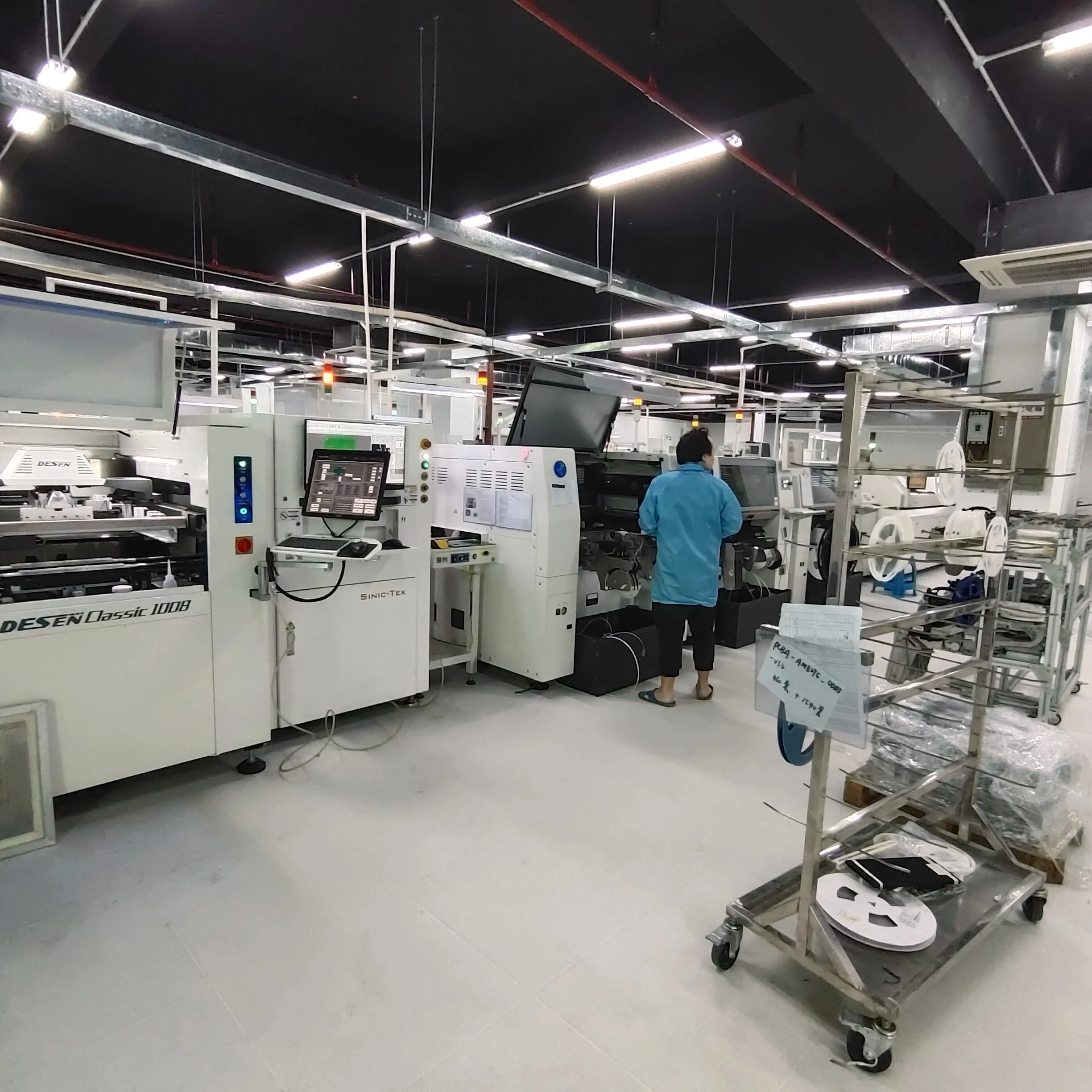

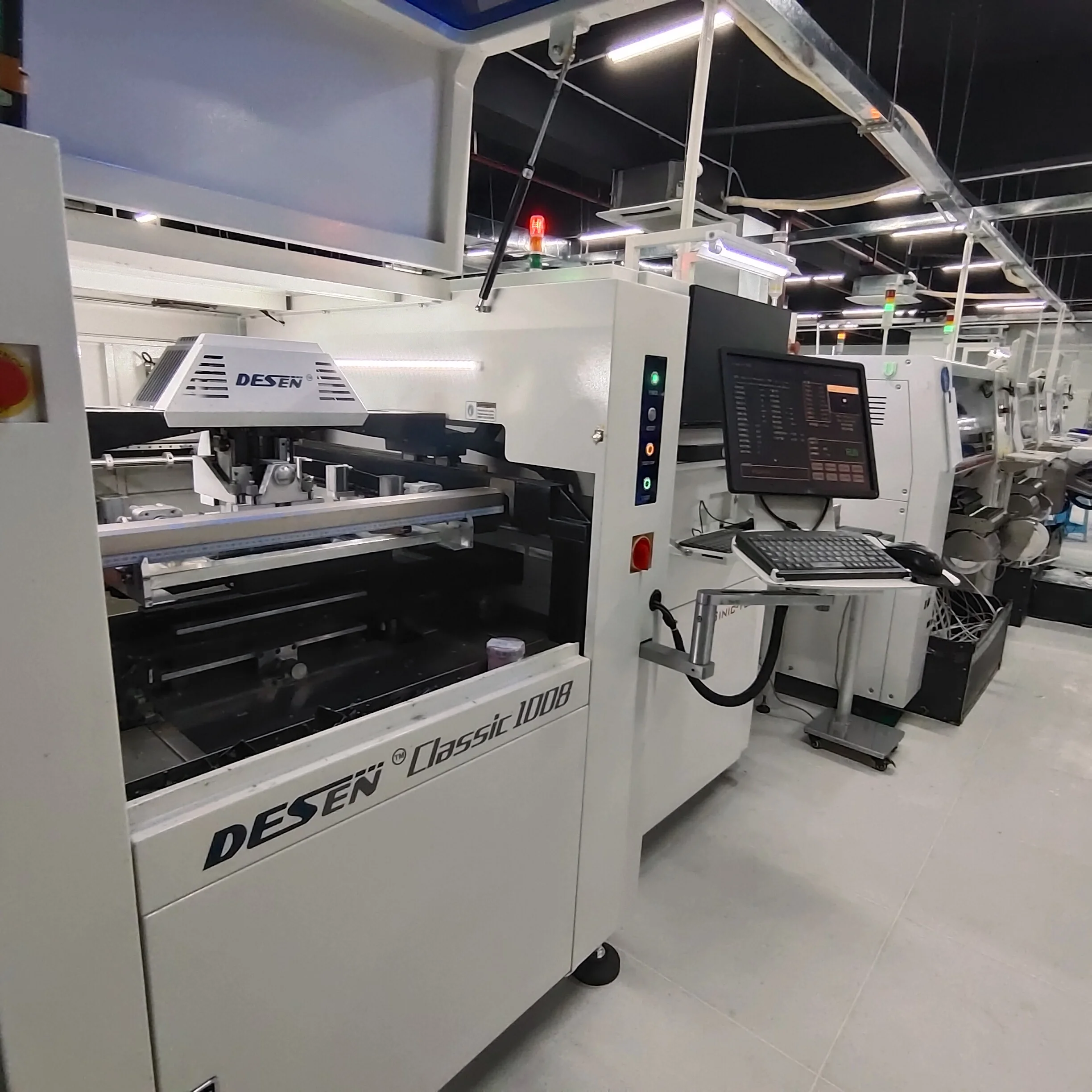

We have our research and development team in hardware and software , and provide 1 year after sell service .
FAQ
1. Are you trading company or factory ?We are factory with our own hardware and software engineer , due to direct sell, we provide
our customer cheaper factory price . and quick engineer service after sell .
2. Do you provide customer's Logo and package design?
Yes, we can provide customized logo and design if order quantity reach 1000pcs.
3.Do you accept PCBA orders only?
Of course, we can provide PCBA in a short time with good quality.
4.Do you provide firmware support?
Sure , unlike other companies which are buying solutions from design company, we have our own firmware development team to support
you in 100%.
5.How does your factory do regarding quality control?
We promise to use all new material to produce. Production is strictly monitored, and 100% QC inspection is done before shipment.
