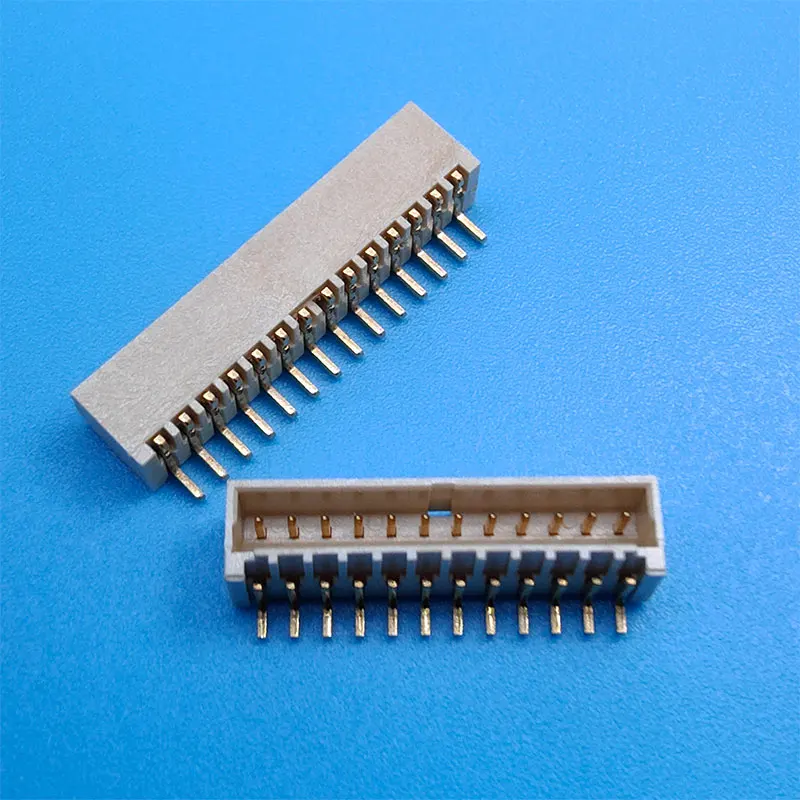

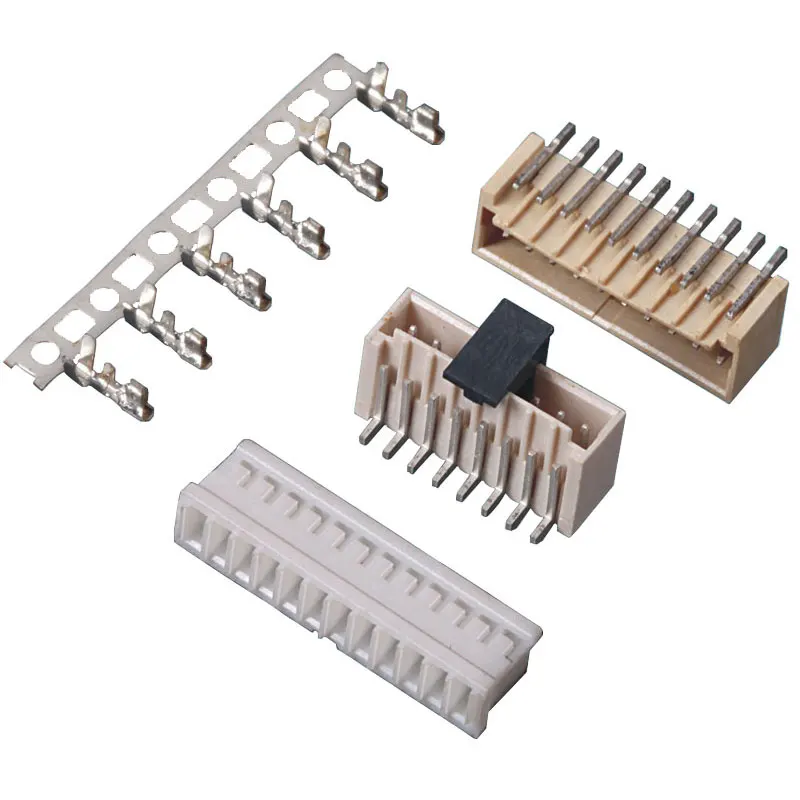

1.50mm Pitch Automotive Electrical Plug Wire to Board Connector

Product Overview

Description

1.50mm Pitch Automotive Electrical Plug Wire to Board Connector





Technical data for this equivalent 1.50mm automotive electrical connector:

Current rating: 3A AC/DC
Voltage rating: 350V AC/DC
Temperature range: -25C~+85C
Contact resistance: 20mΩ Max
Insulation resistance: 1000mΩ Min
Withstanding voltage: 500V AC/minute

Wire range: AWG#24-28

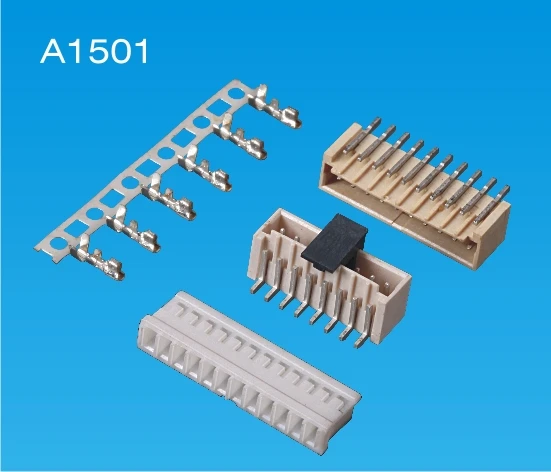

Item	Part No.	Material	Poles	QTY

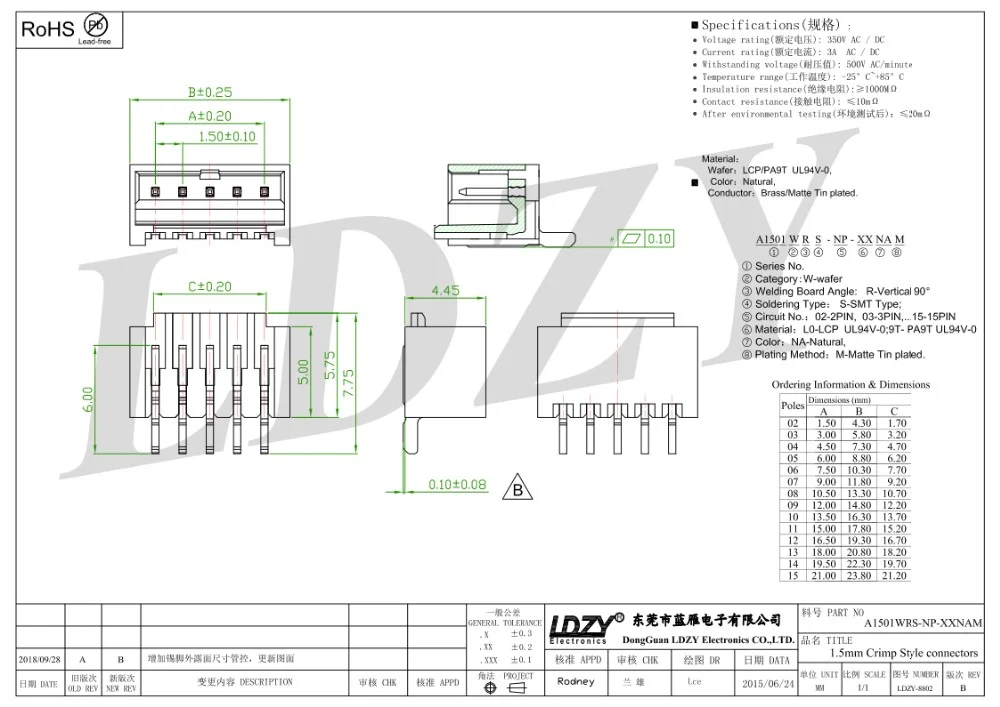

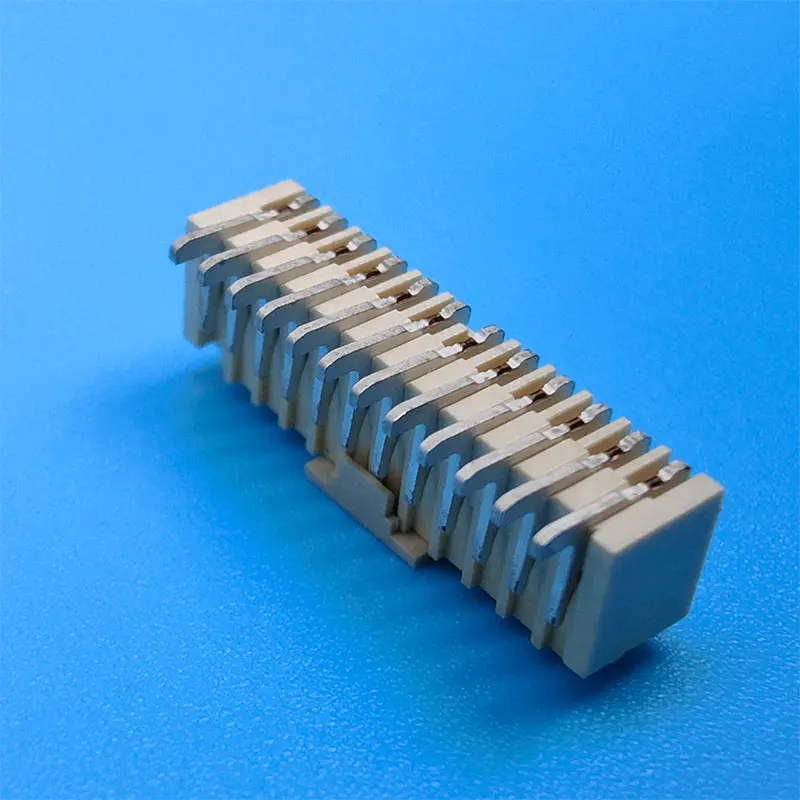

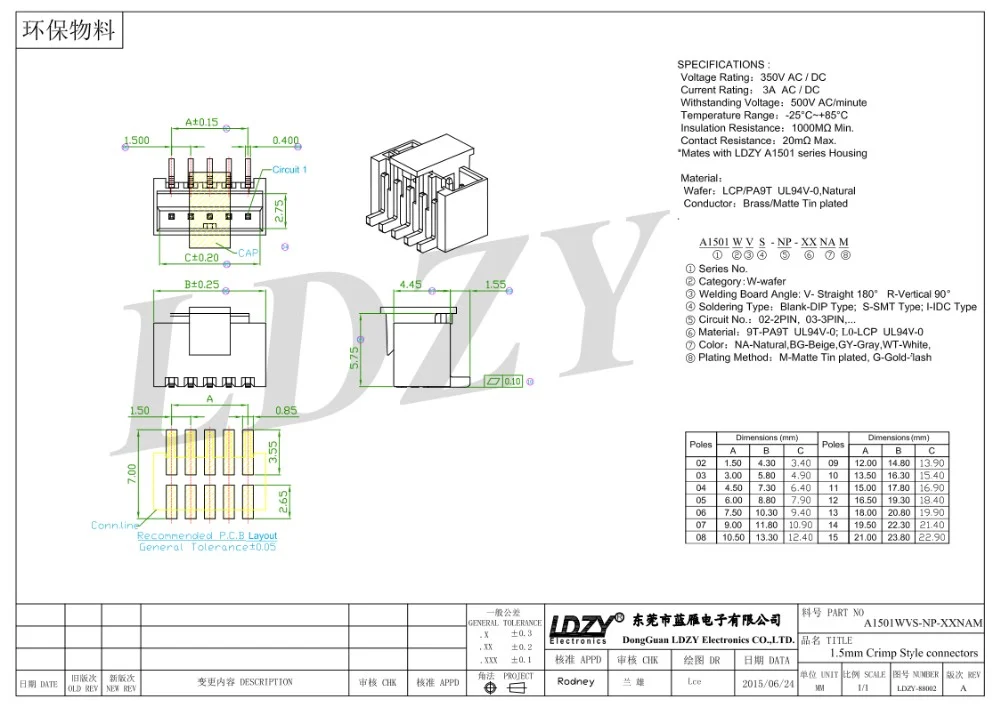

Wafer	A1501WV/WR(S)-NP	LCP/Nylon6T UL94V-0	02~15	1K PCS / Bag

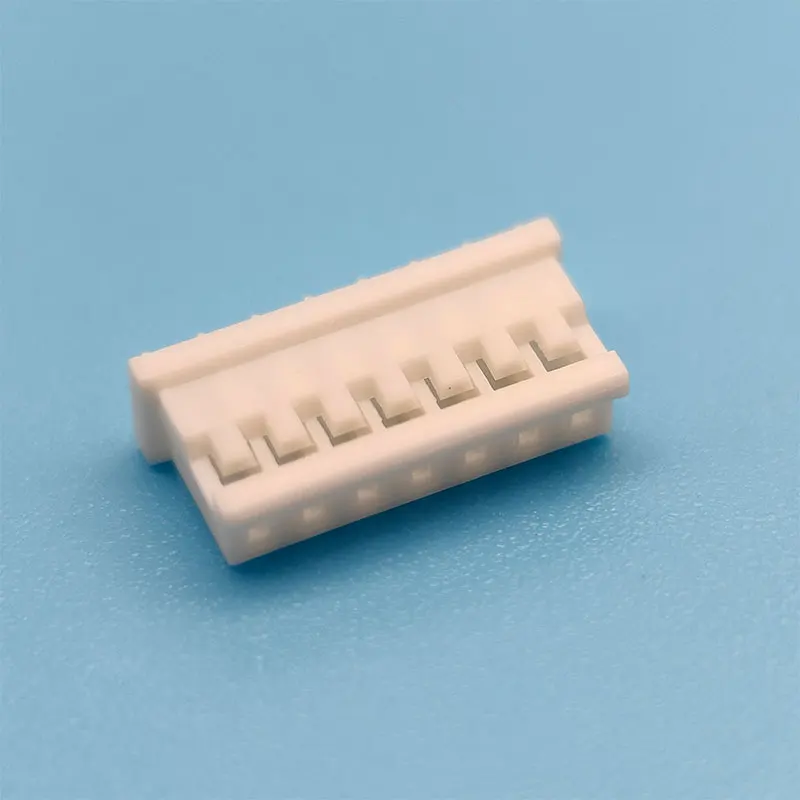

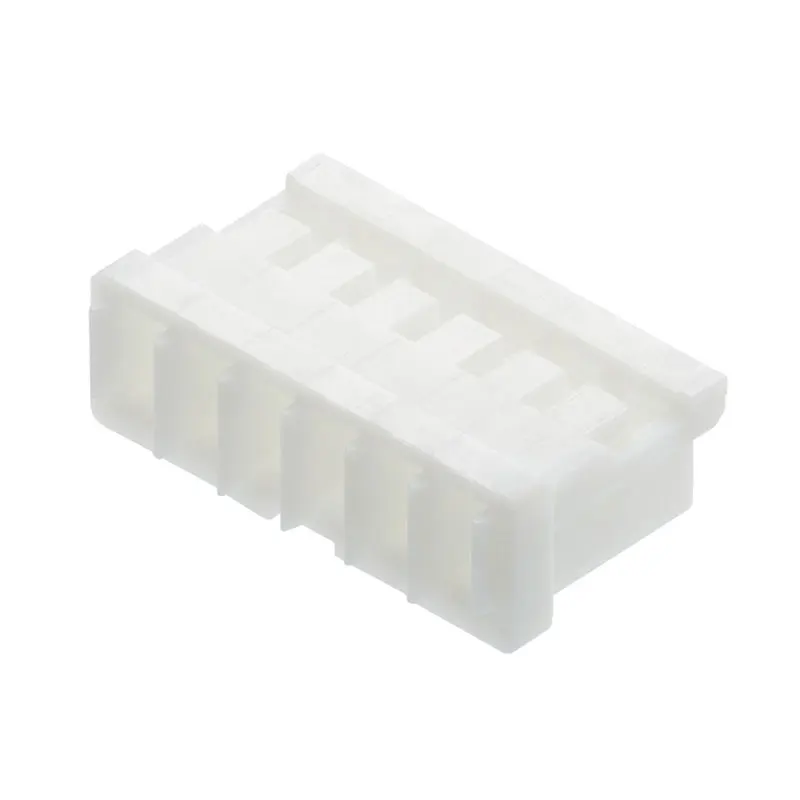

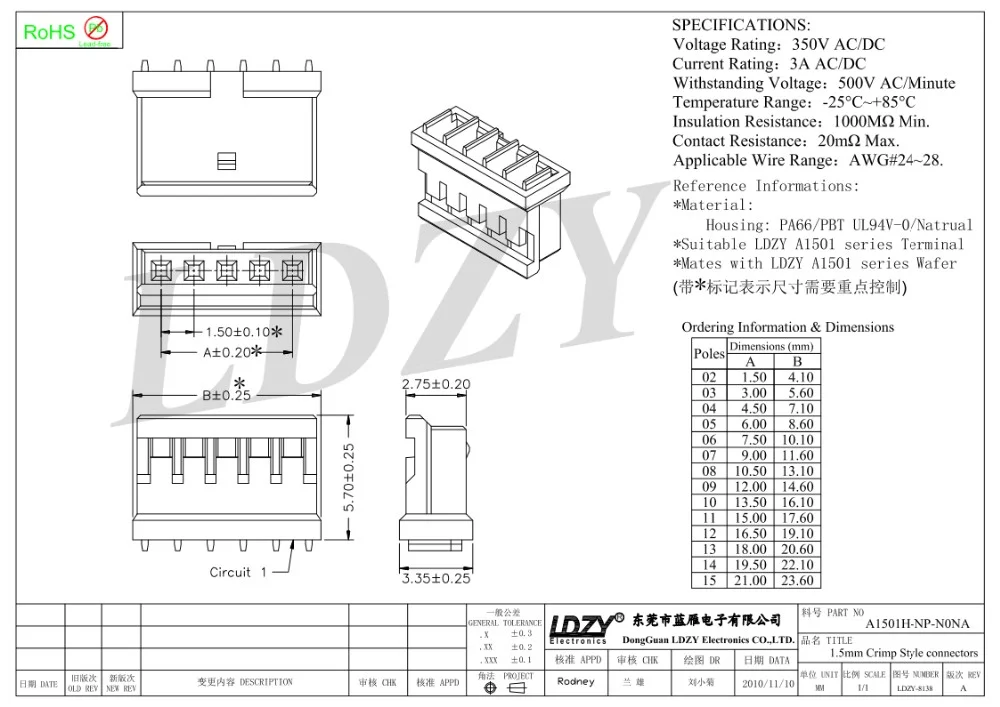

Housing	A1501H-NP	Nylon66 UL94V-0	02~15	1K PCS / Bag

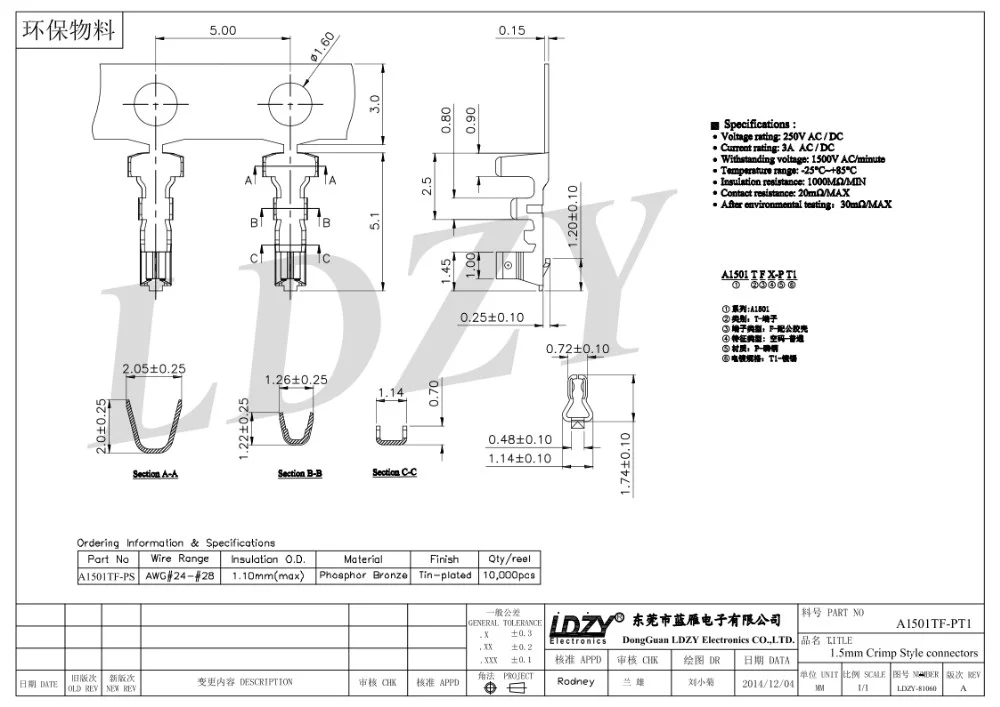

Terminal	A1501TF-P	Phosphor Bronze		10KPCS / Reel









Besides of this 1.50mm automotive electrical connnector, we also have other kinds of Electronics Connector as like below photos:









Package for this 1.5mm Pitch electrical connector:

PE bag for housing,

PE bag/plastic tray for wafer,
reel for terminal.



Shipping: delivery by air, by international express or by sea











We are a manufacturer of electronic connectors. Products include wire to board connectors, wire to wire connectors, board to board connectors, male & female headers, FPC connectors, cable/wire harnesses. They are widely used in medical equipments, automobile, household appliances, digital products, security products, office equipment, laptop, electric toys and some other fields.



LDZY R&D personnel with over 10 year's experience, we provide one-stop service from R&D and mold design to mass production.







Testing, Stamping, Injection & assembly workshop information:



We have advanced production equipments and 150 experienced workers. Include injection molding machine to manufacture connector housing, automatic pin insertion machine for connector assembly, stamping machine for production of PIN and terminal. And perfected testing equipments to ensure the quality of products. Products are UL, RoHS, TUV certified. We strictly adhere to ISO9001, ISO14001 & IATF16949 quality management system.







1. We are a direct factory which manufacturing of electronics connectors, more than 15 years experience of electronics connector field and cable assembly filed.



2. 90% automatic production makes our daily production capacity reach 1 millions PCS. This enables us fo finish customers's order in a short time.



3. Support low MOQ, support OEM/ODM services and free samples within 3-10 working days.



4. Products pass the third inspection company like TUV/UL/RoHS, and always a pre-production sample before mass production and 100% QC inspection Before Shippment.





LDZY company's products have been recognized by UL, RoHS and the third-party high-quality testing technology service institutions, and obtained a number of utility model and invention patents, and obtained "ISO 9001:2015, ISO14001, IATF 16949 quality management system", "National high and new technology enterprise".
