Anti drone Jammer On board Drone Detector And Jammer Car Anti Drone Jammer With Omnidirectional Jamming Mode
- Category: >>>
- Supplier: Sichuan Aee Aviation Technology Co. Ltd.
Share on (1600909502159):
Product Overview
Description
Hot Products
Specification
Operating Frequency of the Device | ||||||
Size | 345Mm * 682mm*538mm (H×L×W | Jamming frequency | Operating frequency | |||
Weight | 38Kg | Default | 900-930MHz 40±1dBm) | |||
Device type | Spectrum sensing and counting | 1559-1610MHz 40±1dBm | ||||
Real-time detection bandwidth | 160MHz | 2400-2485MHz 40±1dBm | ||||
Range of horizontal detection angle | 0°-360° | 5725-5850MHz 43±1dBm | ||||
Jamming distance | 1 km (100 m high) | Power consumption | 192W | |||
GPS automatic positioning | Yes | Device direction sensing of the compass | No | |||
Whether a whitelist is created | Yes | WIFI drone identification | Yes | |||
Operating temperature | -20° to 60° | Storage temperature | -40° to 70° | |||
Maximum power consumption | ＜400W(sending) | Radio frequency | From 70MHz to 6GHz | |||
About This Item

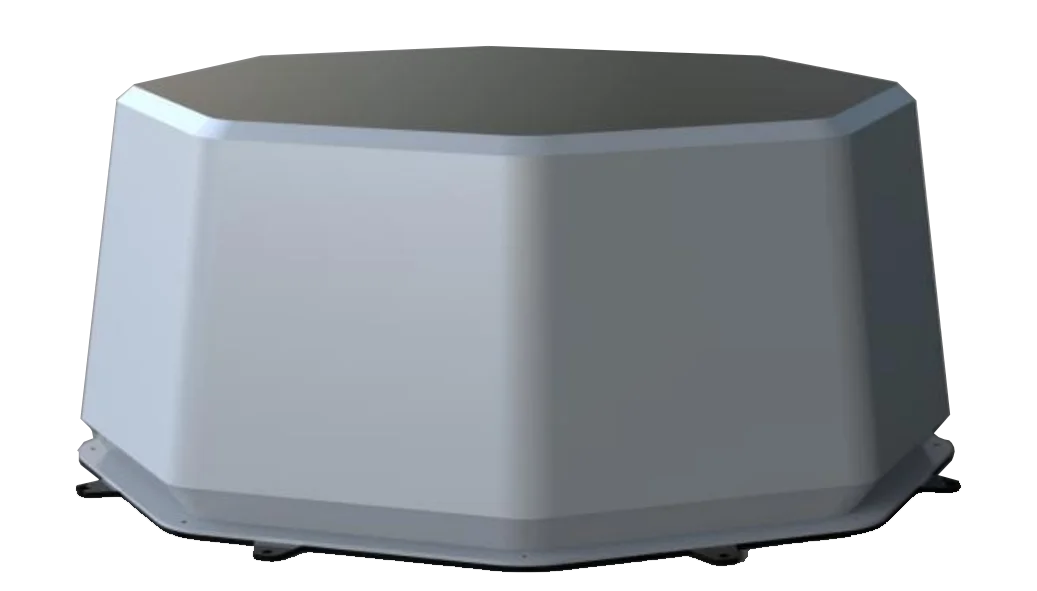

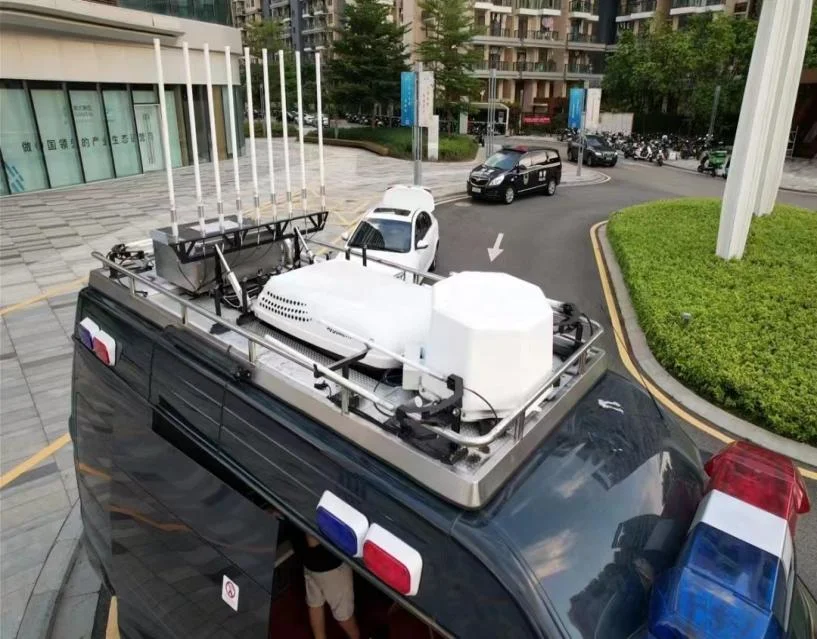

On-board Drone Jamming System

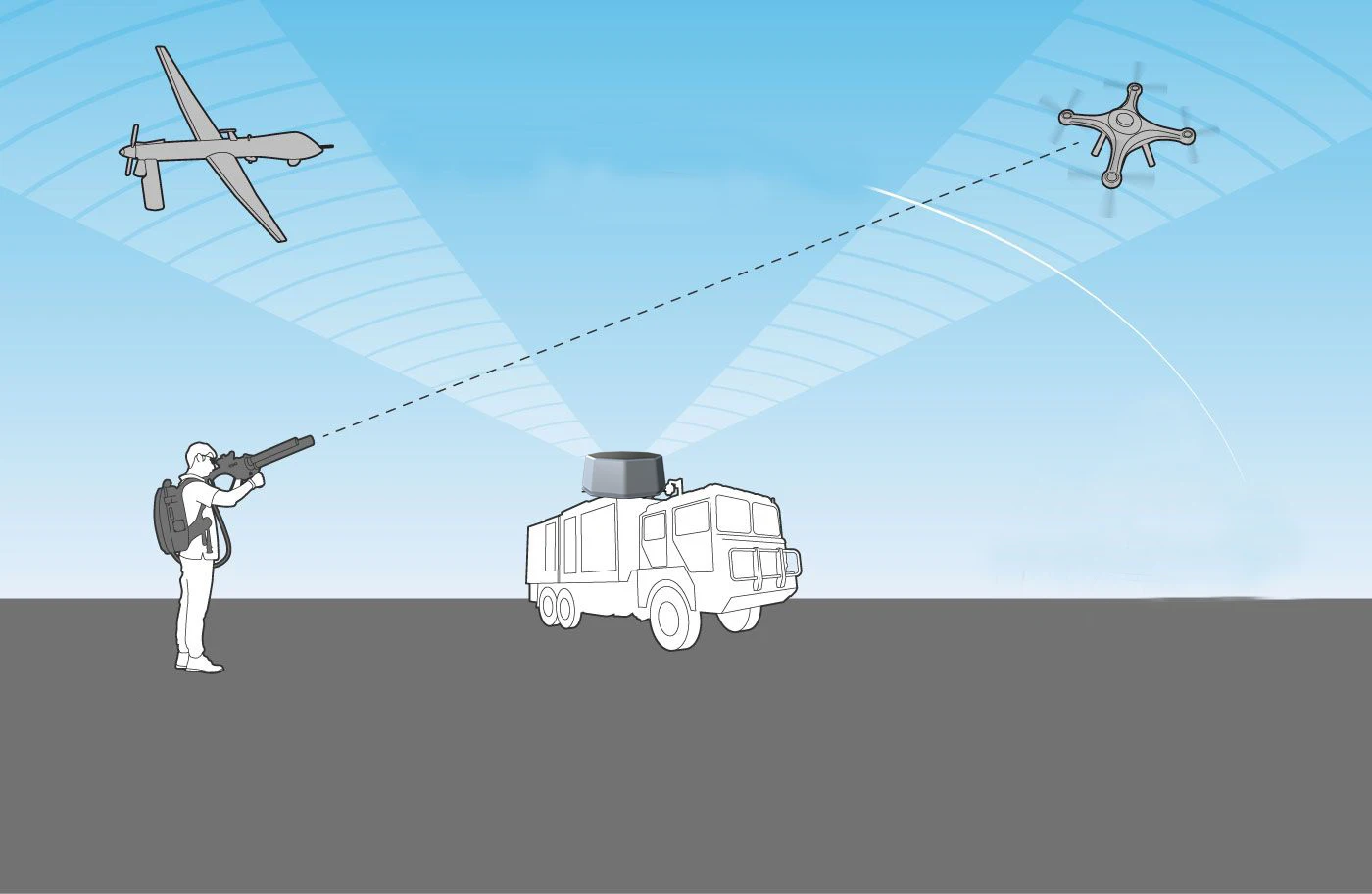

On-board drone detector and jammer applied to the detection, identification, and jamming of drones. The system is integrated with a variety of technologies such as cooperative spectrum sensing and deep neural network to detect and identify the“ unauthorized” drones according to the received drone characteristic signals, and to control the“ unauthorized” drones effectively by radio jamming and blocking technology. In addition, directional or omnidirectional jamming mode can be selected according to actual needs. The system can safeguard the temporary activities such as sports events, major conferences and celebrations
COUNTER FUNCTION
1. Intelligent linkage countermeasures
2. Evacuation and forced landing
DETECTION FUNCTION

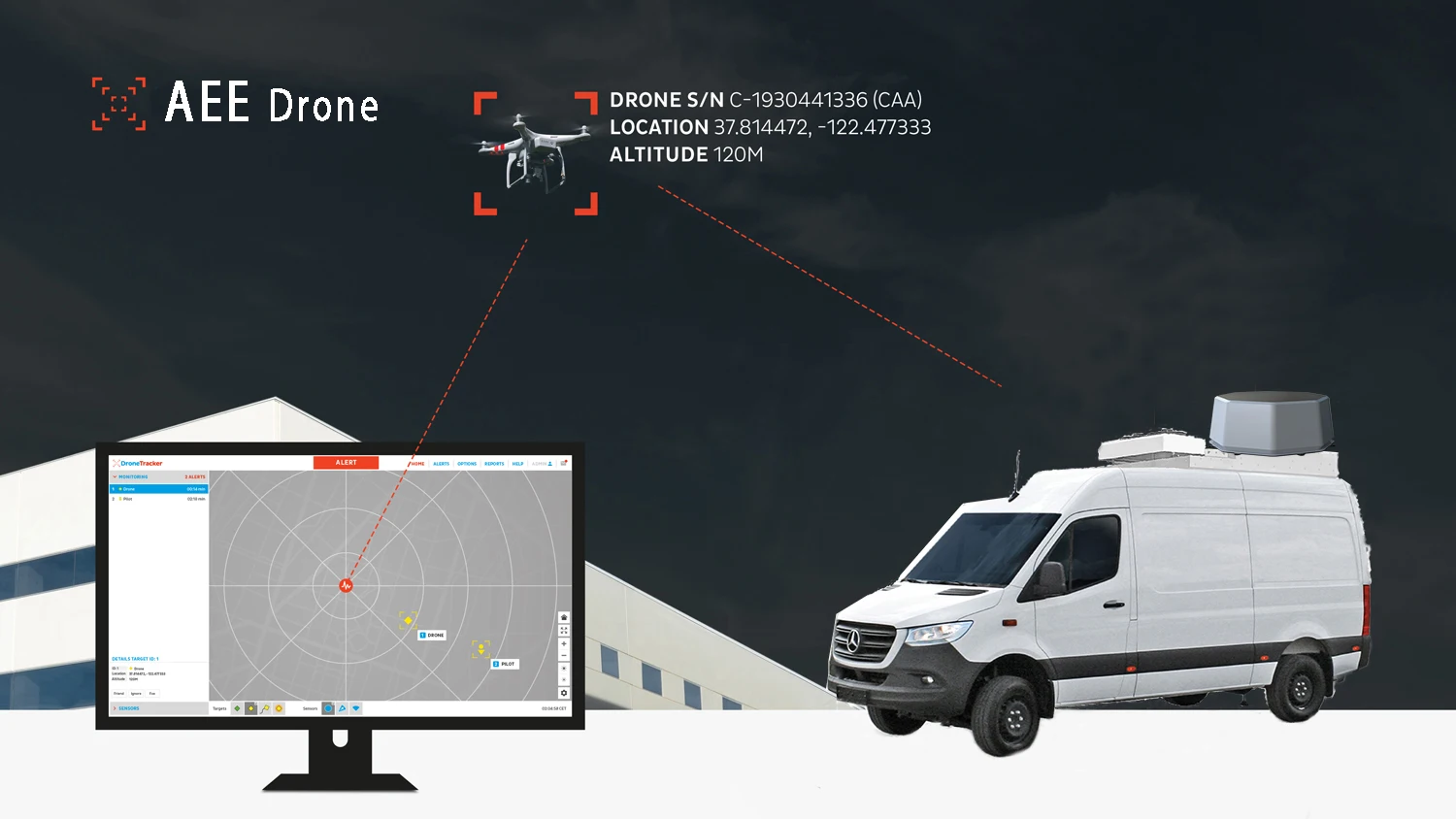

1. UAV identification and positioning2. List function
3 Quick identification and positioning
4. Detection result list
5. Single station positioning
6 map display function
7. Detective corner can be set
8. Distance Calibration
9. Set the detection frequency band (can detect all bands)
10. Gain and reference level automatic adjustment
11. Eliminate the alarm frequency band
3 Quick identification and positioning
4. Detection result list
5. Single station positioning
6 map display function
7. Detective corner can be set
8. Distance Calibration
9. Set the detection frequency band (can detect all bands)
10. Gain and reference level automatic adjustment
11. Eliminate the alarm frequency band
SIGNAL RECORDING FUNCTION
At present, it is the only company that has opened the signal feature recording function of unmanned aircraft to customers. For the new unmanned aircraft model, our system can automatically record the image transmission signal and frequency hopping signal characteristic data, and the menu will pop up automatically after recording, and the model will be automatically recognized next time. This special recording function can also identify industrial-grade drones. This feature keeps our equipment adaptable because if a new drone comes along, we can record it and be able to recognize the alert.

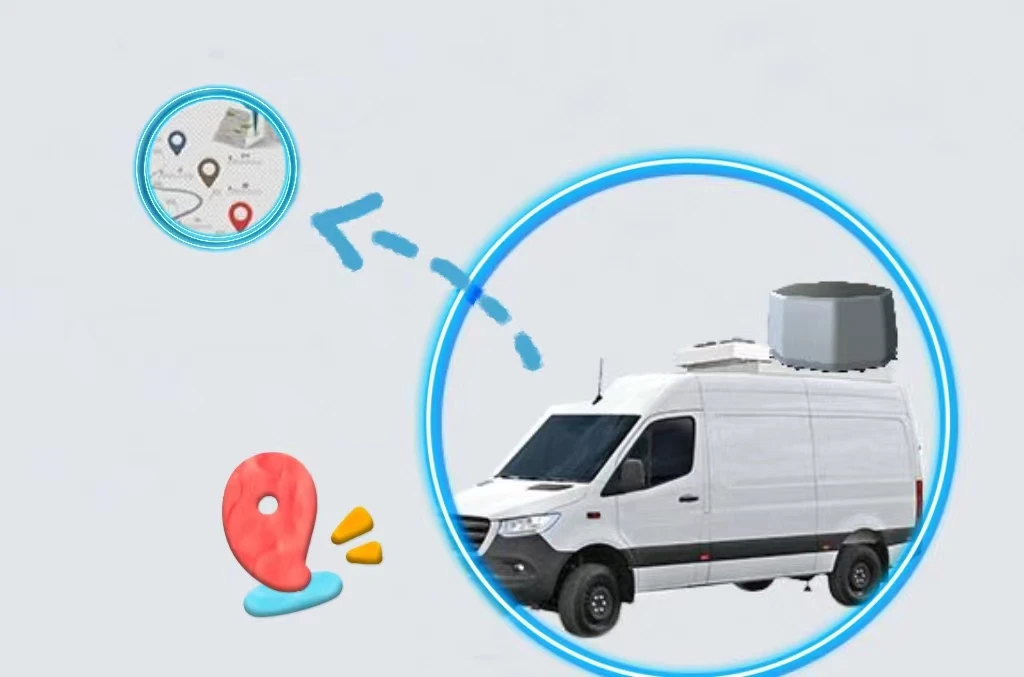

DEVICE SELF-LOCATION FUNCTION
The system is compatible with GPS and Beidou positioning systems, and can identify its own position without manually adjusting the azimuth, and the position and direction can be placed arbitrarily.
UNATTENDED FUNCTION
The unattended function is mainly to run the system automatically without any manual intervention, and to monitor the environment to be detected for a long time. If a drone is detected, it will identify the drone, record the model, time, azimuth, distance and other information, and automatically implement interference countermeasures under the set conditions. In other words, the counter-coupling operation is performed automatically under the condition of unattended detection. It automatically adjusts for changes in valleys and is able to detect and identify signal features in complex signals.
SELF-LEARNING AND IDENTIFICATION OF SYSTEM FEATURES
If there is no UAV model in the system database, the system has the functions of autonomous learning and identification and
judgment, and it is displayed as an unknown model. You can also detect the location of illegally assembled drones
judgment, and it is displayed as an unknown model. You can also detect the location of illegally assembled drones
ELECTROMAGNETIC SITUATIONAL AWARENESS FUNCTION
According to this function, electromagnetic situation awareness can be used to judge whether the electromagnetic environment of
the erected position is complex, and automatically give the reference level and signal gain suitable for the environment.
Professional judgment and operation are not required, the system is suitable for the selected location.
the erected position is complex, and automatically give the reference level and signal gain suitable for the environment.
Professional judgment and operation are not required, the system is suitable for the selected location.
IDENTIFICATION AND LOCALIZATION OF INDUSTRIAL DRONES
The special intelligent spectrum algorithm design surpasses general detection equipment and can identify and locate
industrial-grade unmanned aircraft that may carry more explosives, and even assembled unmanned aircraft, which is more suitable
for preventing terrorist attacks
industrial-grade unmanned aircraft that may carry more explosives, and even assembled unmanned aircraft, which is more suitable
for preventing terrorist attacks
FAQ
◎ Will the anti-drone gun interfere with the normal operation of other electronic devices?
Will not. This is because the electromagnetic signal emitted by the UAV jammer falls completely within the working frequency band stipulated by the state and will only shield communications.
◎ Is the anti-drone anti-drone gun harmful to human body and mobile phone?
Please rest assured that the strength of the emitted electromagnetic signal is very weak. The test data shows that the strength of this signal is far from Will not pose a hazard to the human body. At the same time, it is only the forward signal of interference, so that the UAV cannot establish contact with the operating remote control, so it will not cause any damage to the UAV itself at all.
◎ Is there a difference in the distance between the drone counter-gun when used indoors and outdoors?
have. Generally speaking, the outdoor signal is used outdoors, so the indoor interference effect is poor. Strictly speaking: Whether it is used indoors or outdoors, the effective distance of the UAV jammer has a certain relationship with the electromagnetic environment and surrounding environment at that time. Such as distance, location, etc.
◎ After working for a period of time, the casing of the anti-drone gun will heat up. Will it damage the machine if it works for a long time?
Thank you for your care, this is a normal phenomenon. In terms of design, we use the thermal conductivity of the all-aluminum chassis to assist in heat dissipation. So as to ensure that the machine works stably for a long time. Therefore, the heating of the casing will not damage the machine.
Will not. This is because the electromagnetic signal emitted by the UAV jammer falls completely within the working frequency band stipulated by the state and will only shield communications.
◎ Is the anti-drone anti-drone gun harmful to human body and mobile phone?
Please rest assured that the strength of the emitted electromagnetic signal is very weak. The test data shows that the strength of this signal is far from Will not pose a hazard to the human body. At the same time, it is only the forward signal of interference, so that the UAV cannot establish contact with the operating remote control, so it will not cause any damage to the UAV itself at all.
◎ Is there a difference in the distance between the drone counter-gun when used indoors and outdoors?
have. Generally speaking, the outdoor signal is used outdoors, so the indoor interference effect is poor. Strictly speaking: Whether it is used indoors or outdoors, the effective distance of the UAV jammer has a certain relationship with the electromagnetic environment and surrounding environment at that time. Such as distance, location, etc.
◎ After working for a period of time, the casing of the anti-drone gun will heat up. Will it damage the machine if it works for a long time?
Thank you for your care, this is a normal phenomenon. In terms of design, we use the thermal conductivity of the all-aluminum chassis to assist in heat dissipation. So as to ensure that the machine works stably for a long time. Therefore, the heating of the casing will not damage the machine.
Package
About CCE
About AEE
AEE AVIATION TECHNOLOGY founded more than 20 years ago, It is the leader of the global equipment-level UAV. AEE has more than 600 patents, edited four national drone standards and authored seven drone industry standards. Exclusive participation in the drafting of industry standards for the former General Armament Department's "Multi-rotor Unmanned Aircraft System" and the Ministry of Public Security's "Multi-rotor Unmanned Aircraft System" for police. The first company to obtain the national standard inspection and qualified product certification of "Police Multi-Rotor Unmanned Aircraft System" by the Ministry of Public Security, and the first batch to obtain the police unmanned aircraft pilot training qualification and the Chinese Aircraft Owners and Pilots Association (AOPA) training qualification.
Factory equipment display.
Exhibition
Certification
FAQ
1. How can we know the product quality?
We suggest you to order a sample. Also, you can send us email for detail photos for checking if you cannot get enough information in the product page.
2. Can you offer OEM/ODM service?
YES. The OEM/ODM is welcomed, we can printing any logo on the sample as your required.
3. How long can I expect to get the sample?
After you pay the sample charge and send us confirmed files, the samples will be ready within 3 working days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.
5.What's the delivery date for my order?
A: Sample needs 1-3 working days. Bulk order 3-5 working days.
We suggest you to order a sample. Also, you can send us email for detail photos for checking if you cannot get enough information in the product page.
2. Can you offer OEM/ODM service?
YES. The OEM/ODM is welcomed, we can printing any logo on the sample as your required.
3. How long can I expect to get the sample?
After you pay the sample charge and send us confirmed files, the samples will be ready within 3 working days. The samples will be sent to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account.
5.What's the delivery date for my order?
A: Sample needs 1-3 working days. Bulk order 3-5 working days.
