XC 9603P06 IP адаптер голосового пейджинга, 60 Вт и многоадресный усилитель пейджинга, ограниченная гарантия на 1 год
- Category: Broadcast\u00A0Intercom\u00A0Systems >>>
- Supplier: Spon Communications Co. Ltd.
Share on (1600909513441):
Product Overview
Description
Products Description

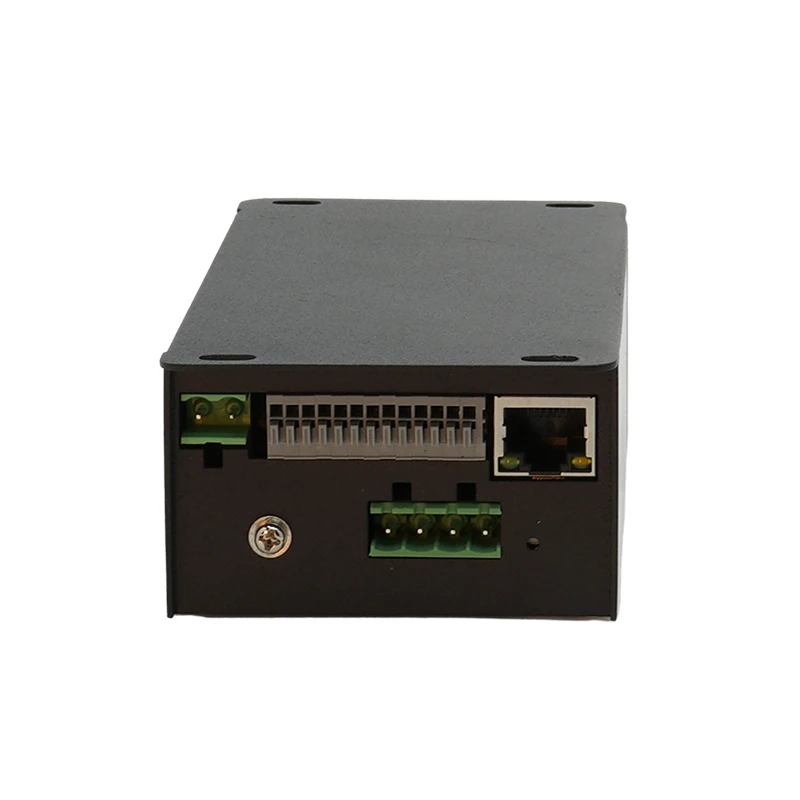

XC-9603 - IP Paging Adapter with Amplifier
Ideal for integrating your existing legacy analog amplifiers into VoIP telephone system or IP PA system in schools, hospitals, retail stores, office buildings, factories, transport terminals (i.e. airports, railway stations, bus stations) and other public places.
KEY FEATURES
● All-metal structure, compact and lightweight design, sturdy and durable.
● Easy configuration via user-friendly web interface.
● Line input is available for connecting external music source equipment such as CD player or AM/FM tuner.
● Line output with 600-ohm output impedance can be used for connecting external analog amplifier.
● Dynamic volume control based on the background noise level ensures continuous crystal clear voice intelligibility.
● Built-in 60/2×60 watt class-D digital amplifier for driving up to 4 8-ohm passive analog speakers.
● Fully compliant 3rd party SIP endpoint, compatible with most mainstream on-premise and cloud/hosted VoIP telephone systems.
● Work with VoIP telephone system for live voice announcements.
● Work with SPON® audio management software for more features such as live and scheduled voice announcements, real-time and timed background music, emergency notification alerting, zone paging, etc.
● Offering 1GB local storage for uploading scheduled bell ringing tasks with custom MP3 audio files, specific audio files can be played automatically at the specified time even when the device is offline.
● Easy configuration via user-friendly web interface.
● Line input is available for connecting external music source equipment such as CD player or AM/FM tuner.
● Line output with 600-ohm output impedance can be used for connecting external analog amplifier.
● Dynamic volume control based on the background noise level ensures continuous crystal clear voice intelligibility.
● Built-in 60/2×60 watt class-D digital amplifier for driving up to 4 8-ohm passive analog speakers.
● Fully compliant 3rd party SIP endpoint, compatible with most mainstream on-premise and cloud/hosted VoIP telephone systems.
● Work with VoIP telephone system for live voice announcements.
● Work with SPON® audio management software for more features such as live and scheduled voice announcements, real-time and timed background music, emergency notification alerting, zone paging, etc.
● Offering 1GB local storage for uploading scheduled bell ringing tasks with custom MP3 audio files, specific audio files can be played automatically at the specified time even when the device is offline.

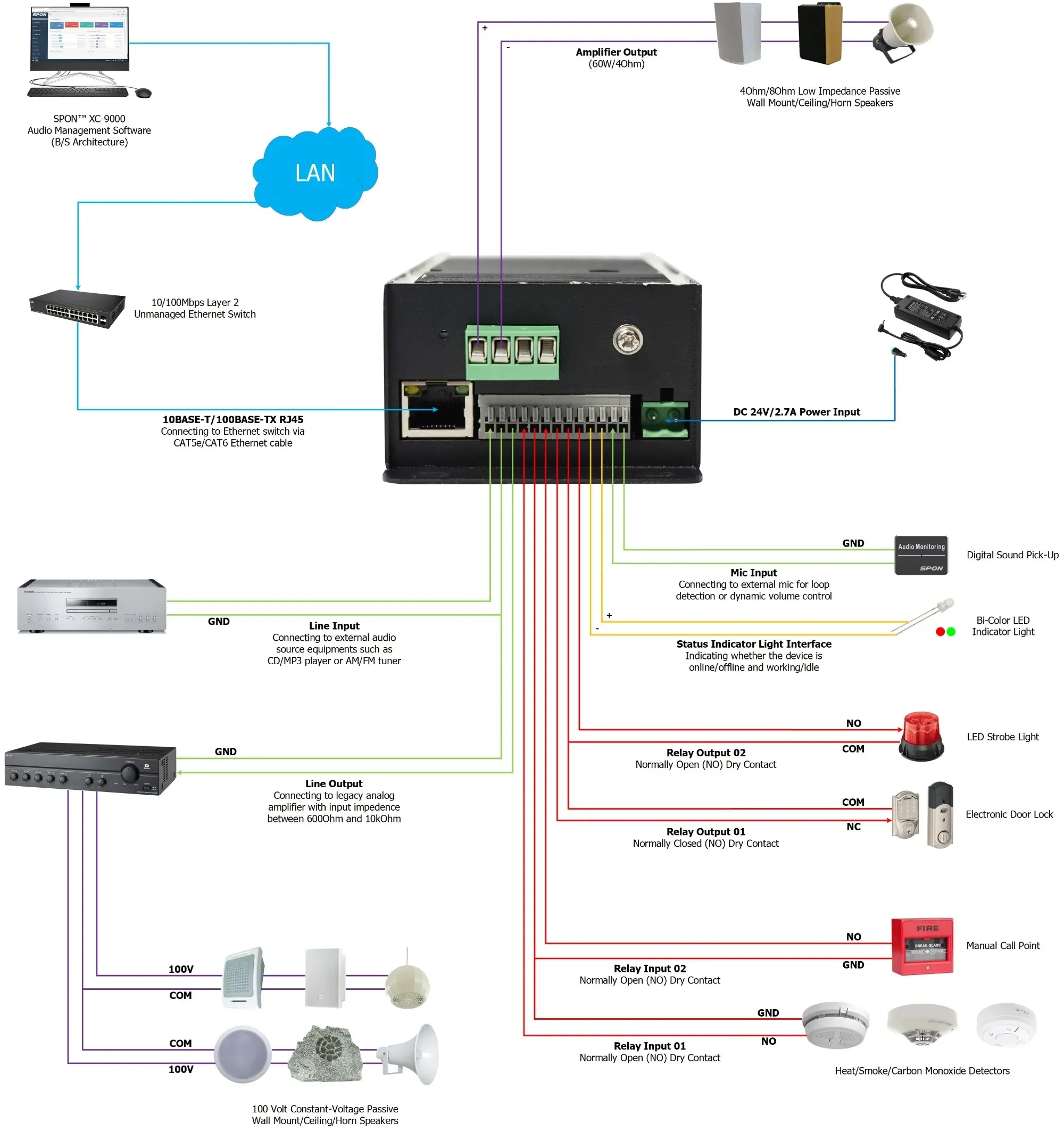

System Topology Diagram
Product Parameters
Model No.: | XC-9603P06 | ||||||
Power Supply: | DC 24V/2.7A | ||||||
Network Protocol: | SIP 2.0 (RFC 3261), FTP, HTTP, DHCP, TCP/IP, UDP, ARP, ICMP, IGMP | ||||||
Built-In Amplifier: | 60W/4Ω | ||||||
Audio Codec: | G.711 A-law, G.711 μ-law, G.729, PCM/L16 | ||||||
S/N (Signal-to-Noise) Ratio: | ≥86dB | ||||||
Audio Sampling & Bit Rate: | 8kHz-44.1kHz, 16bit, 8kbps-320kbps | ||||||
THD (Total Harmonic Distortion): | ≤0.3% at 1kHz | ||||||
Frequency Response: | 50Hz-20kHz | ||||||
Interface: | 1×RJ45 Ethernet Port, 1×Line Input, 1×Line Output, 2×Relay Input, 1×Relay Output, 1×Status Indicator LED Output, 1×Mic Input, 2× Speaker Output, 1×Power Input | ||||||
Dimensions: | 140×71×43mm | ||||||
Weight: | 0.4kg | ||||||
Standard Accessories: | 1×2-Pin Terminal Block Connector, 1×4-Pin Terminal Block Connector, 1×Installation Manual | ||||||
Optional Accessories: | DC 24V/2.7A Power Adapter IEC C13 Power Cord (US/EU/UK/AU) | ||||||

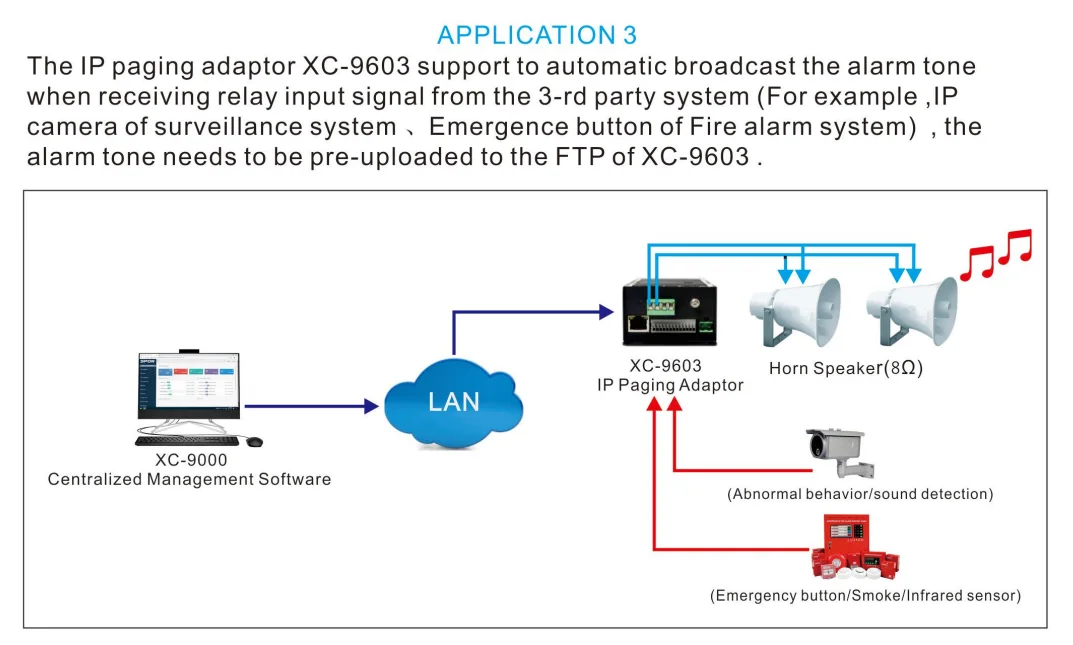

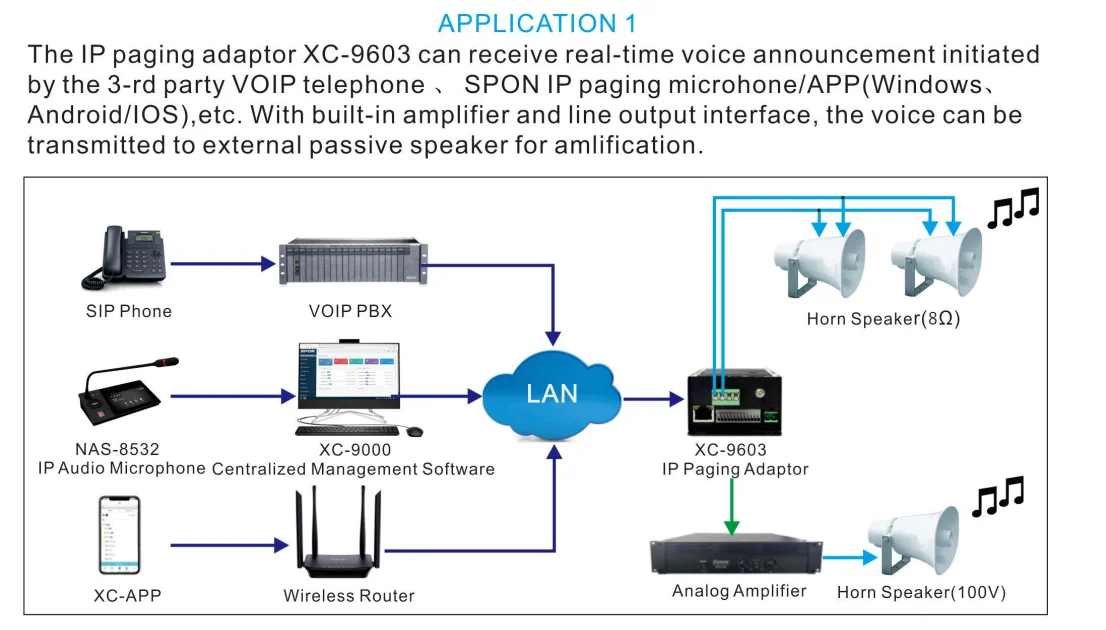

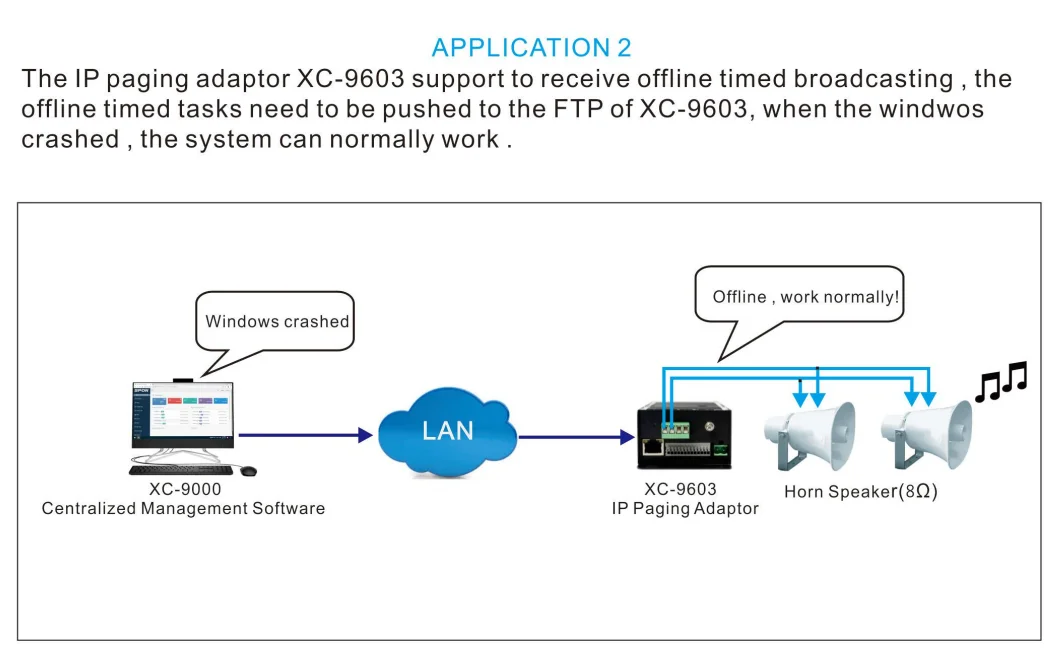

Typical Application
Company Profile
With over 20 years of experience in audio IoT research, development, and production, SPON stands at the forefront of the industry. Our state-of-the-art acoustic noise reduction laboratory, fully automated SMT factory, and spacious company premises spanning 57,000 square meters reflect our commitment to innovation and excellence.
Certifications
SPON's advantages lie in our technological expertise, customized approach, extensive experience, comprehensive support, state-of-the-art facilities, and unwavering commitment to quality. These factors set us apart and make us the preferred choice for audio technology solutions in the IoT industry.
FAQ
Q: How can I contact SPON's customer support team?
A: You can reach out to our customer support team through our hotline, email, or online support platform. Our dedicated team willpromptly respond to your inquiries and provide the necessary technical supportand solutions.
Q: Does SPON offer OEM/ODM services?
A: Yes, SPON provides OEM/ODM services. We have extensive experience in working with clients to develop and manufacture customized products according to their specific requirements and branding needs.
Q: What are the benefits of choosing SPON for OEM/ODM services?
A: By choosing SPON for OEM/ODM services, you can benefit from our expertise in audio technology, extensive manufacturing capabilities, and dedicated team of professionals. We can help you bring your ideas to life, offering flexible customization options, quality assurance, and timely delivery of products. Our goal is to collaborate closely with you to create innovative and tailored solutions that meet your unique business needs.
A: You can reach out to our customer support team through our hotline, email, or online support platform. Our dedicated team willpromptly respond to your inquiries and provide the necessary technical supportand solutions.
Q: Does SPON offer OEM/ODM services?
A: Yes, SPON provides OEM/ODM services. We have extensive experience in working with clients to develop and manufacture customized products according to their specific requirements and branding needs.
Q: What are the benefits of choosing SPON for OEM/ODM services?
A: By choosing SPON for OEM/ODM services, you can benefit from our expertise in audio technology, extensive manufacturing capabilities, and dedicated team of professionals. We can help you bring your ideas to life, offering flexible customization options, quality assurance, and timely delivery of products. Our goal is to collaborate closely with you to create innovative and tailored solutions that meet your unique business needs.
