SPON IP Split ТИП аудио домофон контроллер с сетевым аудио кодером/декодером может daisy цепь с несколькими разделенными панелями, которые
- Category: Broadcast\u00A0Intercom\u00A0Systems >>>
- Supplier: Spon Communications Co. Ltd.
Share on (1600909610139):
Product Overview
Description
NAS-8521A - IP Split-Type Audio Intercom Controller
This IP split type audio intercom controller is special designed for bank situation , especially can be deployed in ATM machine to avoid exposure of network cable.
KEY FEATURES
● Unique split-type design for avoiding exposure of network cable and improving local network security.
● Easy configuration via user-friendly web interface.
● Each split-type intercom controller can be connected to maximum 8pcs split-type intercom panels via daisy-chain connection.
● Distance between the split-type intercom controller and the connected split type intercom panel could reach up to 150 meters.
● Integrated with network audio encoder/decoder, the split-type intercom controller can act as the bridge between the connected
split-type intercom panels and IP audio intercom master station in the master control room.
● Record Output (1/8” TS Jack) on the back panel of the device can be connected to an external storage device for audio recording
of the voice communication.
● Built-in 2×10 watt class-D digital amplifier for driving up to two 8-ohm passive analog speakers.
● Custom WAV or MP3 audio files can be stored on the SD card and played automatically by triggering the relay inputs of the device.
●Work with SPON® XC-9000 audio management software for powerful features including two-way voice communication and live voice
announcements.
● Easy configuration via user-friendly web interface.
● Each split-type intercom controller can be connected to maximum 8pcs split-type intercom panels via daisy-chain connection.
● Distance between the split-type intercom controller and the connected split type intercom panel could reach up to 150 meters.
● Integrated with network audio encoder/decoder, the split-type intercom controller can act as the bridge between the connected
split-type intercom panels and IP audio intercom master station in the master control room.
● Record Output (1/8” TS Jack) on the back panel of the device can be connected to an external storage device for audio recording
of the voice communication.
● Built-in 2×10 watt class-D digital amplifier for driving up to two 8-ohm passive analog speakers.
● Custom WAV or MP3 audio files can be stored on the SD card and played automatically by triggering the relay inputs of the device.
●Work with SPON® XC-9000 audio management software for powerful features including two-way voice communication and live voice
announcements.
Product Parameters
Power Supply: | DC 12V/2A | ||||||
Power Consumption: | ≤23W | ||||||
Network Protocol: | FTP, HTTP, TCP/IP, UDP, ARP, ICMP, IGMP | ||||||
Audio Sampling Rate: | 8kHz-44.1kHz, 16bit | ||||||
Transmission Bit Rate: | 8kbps-320kbps | ||||||
S/N (Signal-to-Noise) Ratio: | ≥85dB | ||||||
Frequency Response: | 20Hz-16kHz | ||||||

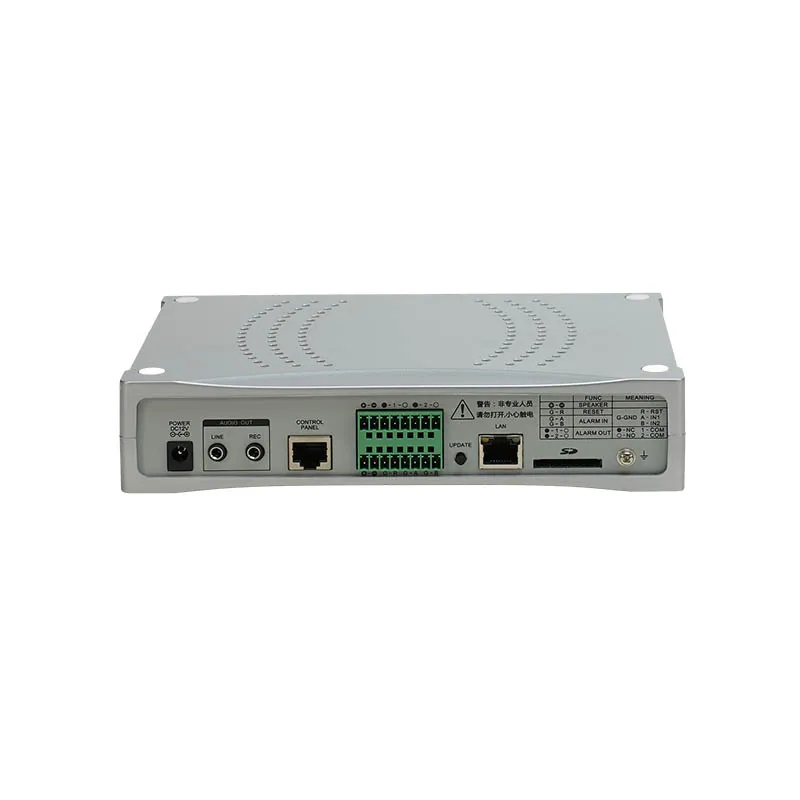

Interface: | 1×RJ45 Ethernet Port, 1×SD Card Slot, 2×Relay Input, 2×Relay Output, 1×Line Output (1/8” TS Jack), 1×Record Output (1/8” TS Jack), 1×Intercom Panel Output, 2×Speaker Output (8Ω), 1×Power Input | ||||||
Dimensions: | 210×155×44.5mm | ||||||
Weight: | 0.5kg | ||||||
Standard Accessories: | 2×8-Pin Terminal Block Connector, 1×Installation Manual | ||||||
Optional Accessories: | DC 12V/2A Power Adapter (US/EU/UK/AU) | ||||||

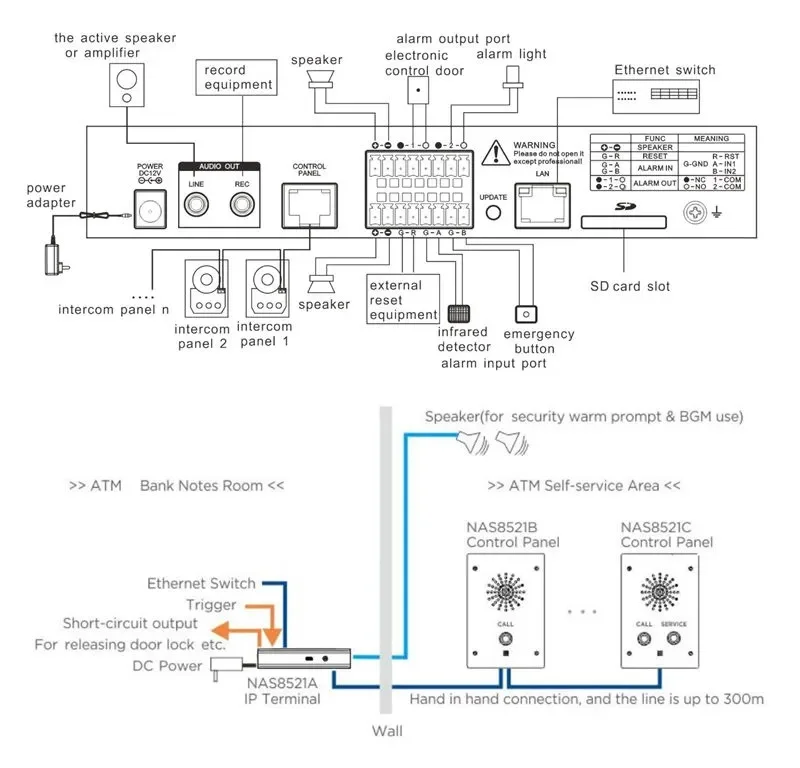

Connection Diagram
