PCB Mounting Current Transformer 2000. 1 30A 0.1class usefor smart home
Description:

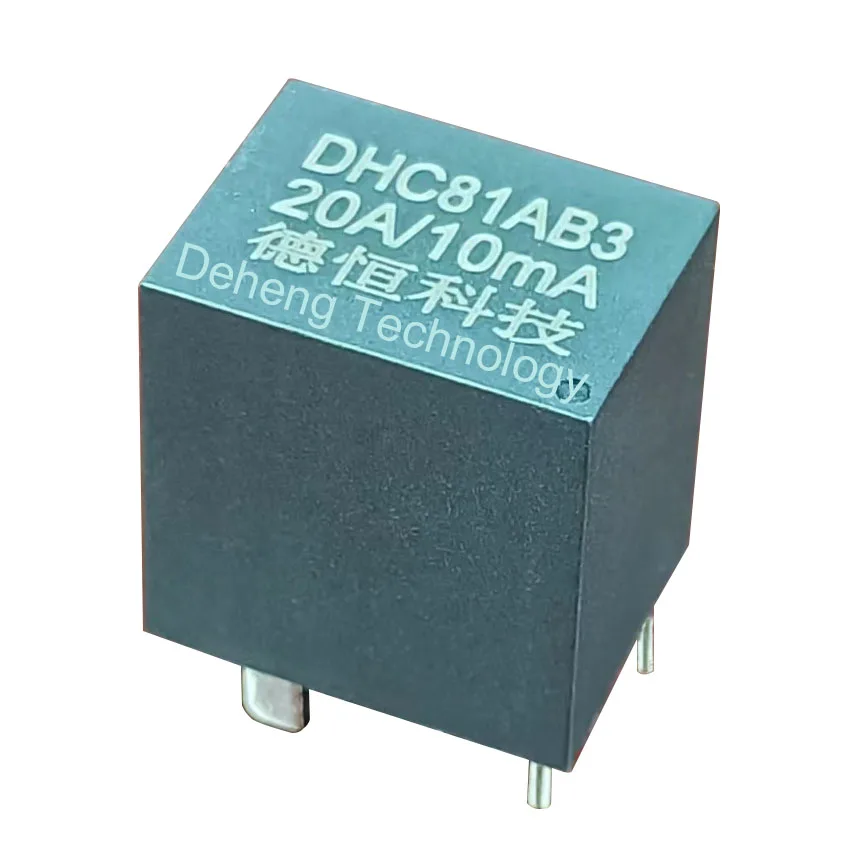

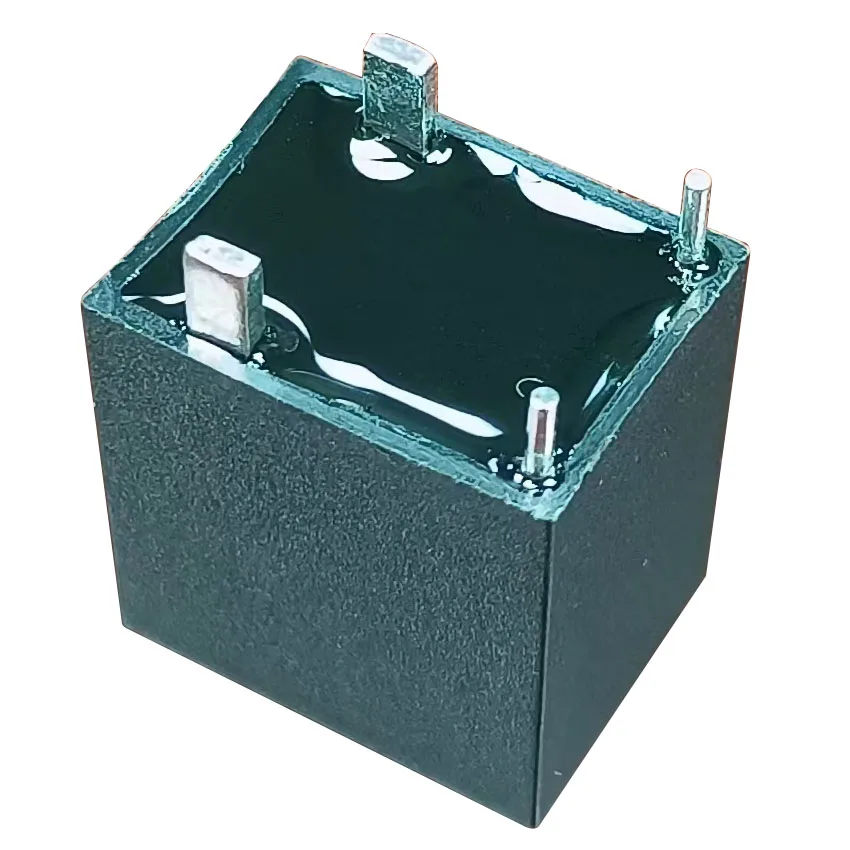

DHC81A series miniature precision current transformers have a wide range of primary current, can measure 30A current, and are small in size, especially suitable for compact product design.
Features:
Nanocrystalline core
High precision and good linearity

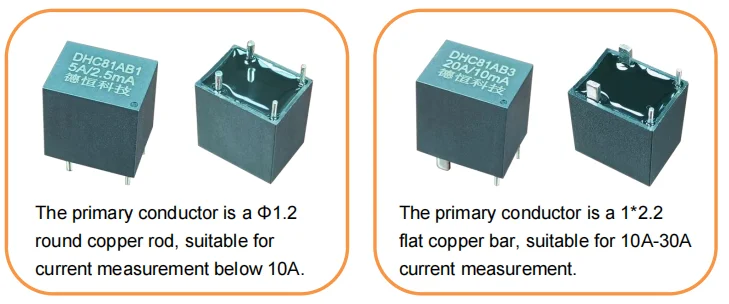

Built-in primary current conductor, integrated design
Primary and secondary effective isolation, withstand voltage 3kV
Epoxy potting, safe and reliable
Environmental protection (RoHS)
Flame retardant: UL94-V0
Advantages:
Small size, saving space
light weight
easy to use
Wide frequency range
Fool-proof design
Big measuring range
Good product consistency
Application :
smart meter
smart socket
induction cooker
smart lighting
smart home
AC frequency conversion equipment
Communication power

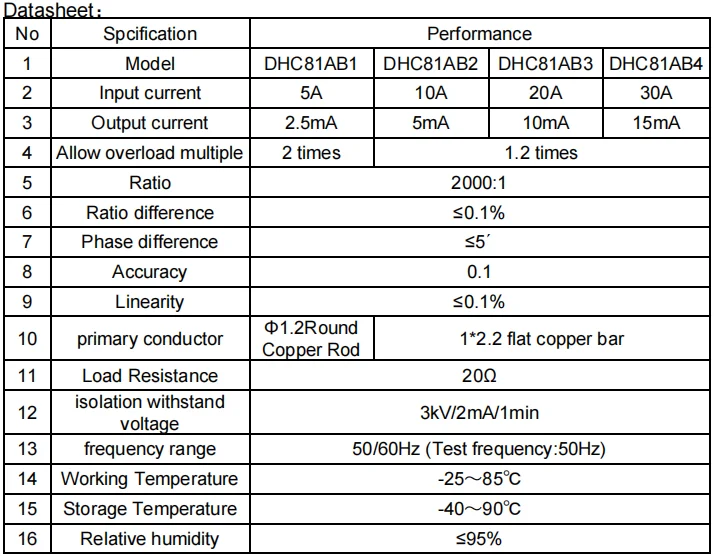

Datasheet:

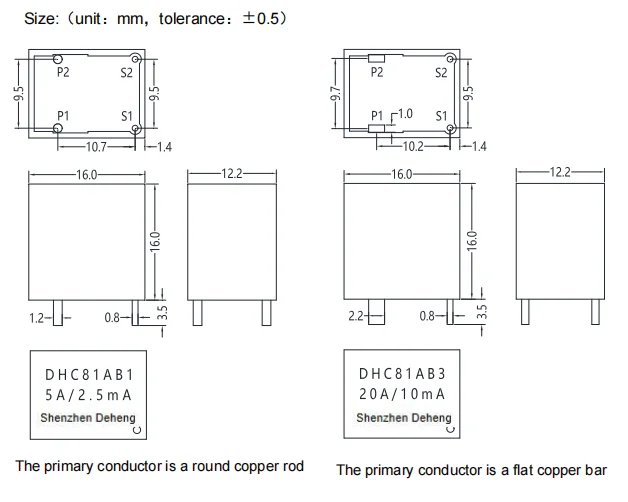

Size:
