Product Overview
Description
Products Description
MIX WORKING HEIGHT | 8m |
MAX PLATFORM HEIGHT | 6m |
MIN PLATFORM HEIGHT | 1020mm |
WORK PLATFORM LENGTH | 1400mm |
WORK PLATFORM WIDTH | 760mm |
PLATFORM EXTENSION SIZE | 600mm |
WHOLE MACHINE HEIGHT (FENCE EXPANSION) | 2160mm |
WHOLE MACHINE HEIGHT (FENCE FOLDED) | 1520mm |
WHOLE MACHINE LENGHT | 1520mm |
WHOLE MACHINE WIDTH | 760mm |
RATED LOAD | 230kg |
EXTENDED PLATFORM SAFE WORKING LOA | 100kg |
MAX WORKERS | 2 |
DRIVING SPEED (FOLDED MODE) | 4Km/h |
DRIVING SPEED (LIFTING) | 0.45Km/h |
LIFTING MOTOR | 24V/2.2KW/2.6CC |
DRIVING MOTOR | 24V/2×0.5KW |
LIFTING /FALLING TIME | 36/37s |
MAX CLIMBING CAPACITY | 25%(14°) |
MAX OPERATING ANGLE | 1.5°/2.5° |
DRIVE /BRAKE | Double rear wheels |
DRIVING MODE | Non marking rubber tire |
WHEEL SIZE | 305×100mm |
STORAGE BATTERY | 2×12V100Ah |
BATTERY CHARGER | 24V15A |
WHOLE MACHINE WEIGHT | 994kg |
Details Images

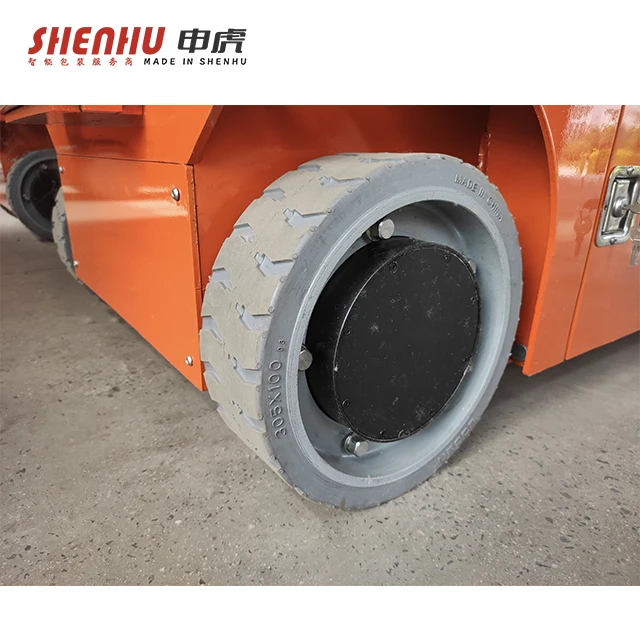

Seamless rubber tires
The diameter is 305mm, the tire width is 100mm, the tire is larger, the obstacle crossing ability is stronger, the climbingability is 25% (14°), and the passability is excellent.
Big tires make walking more stable and comfortable driving experience.

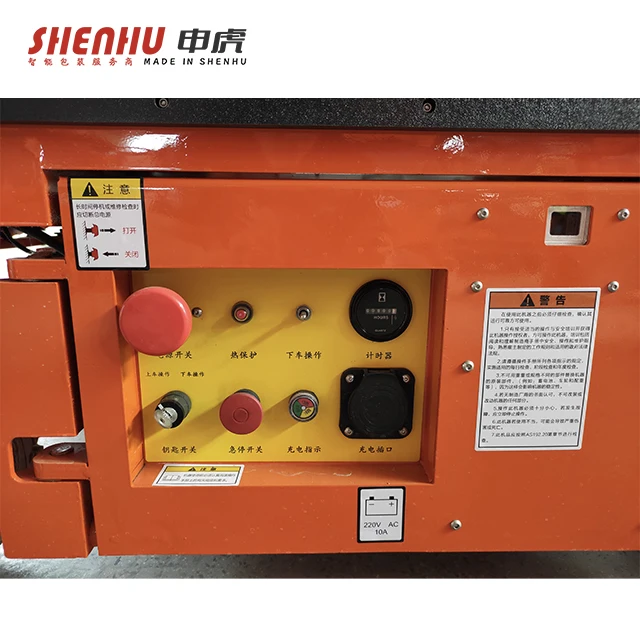

Ground control panel
Do not need to operate the handle to walk, lift and other actions.

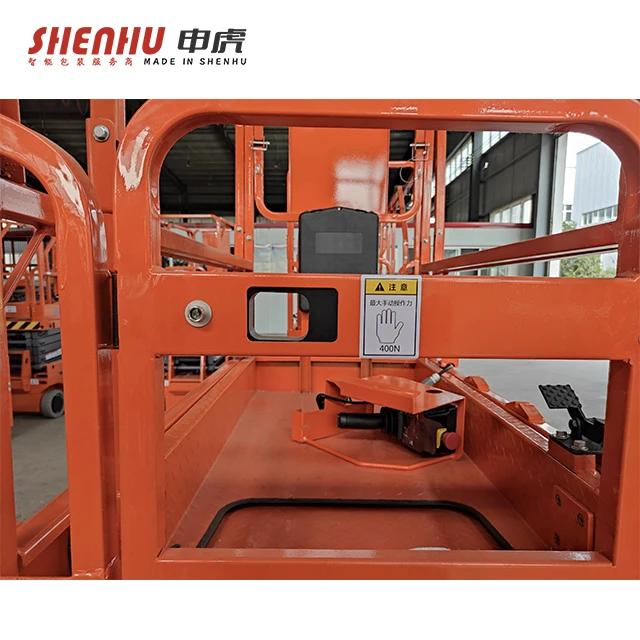

Platform self-locking door
The operator has a higher safety factor when working at altitude

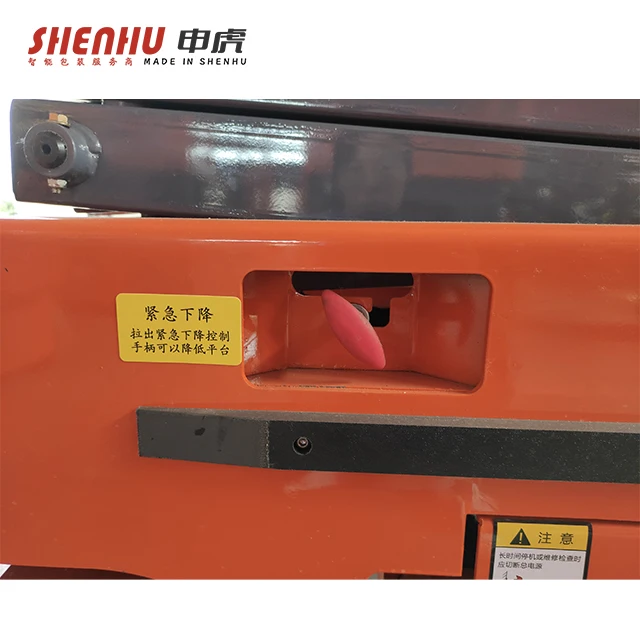

Emergency descent button
The operator can simply and quickly withdraw the vehicle in the face of emergencies.

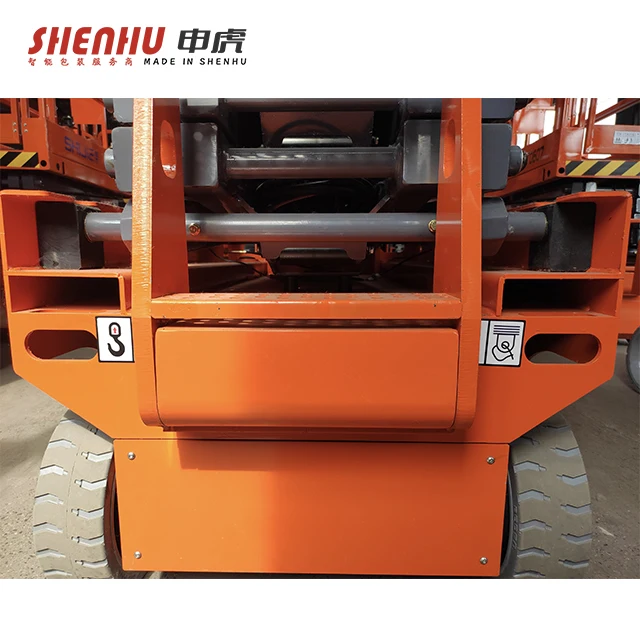

Crane ear
Easy and quick transfer

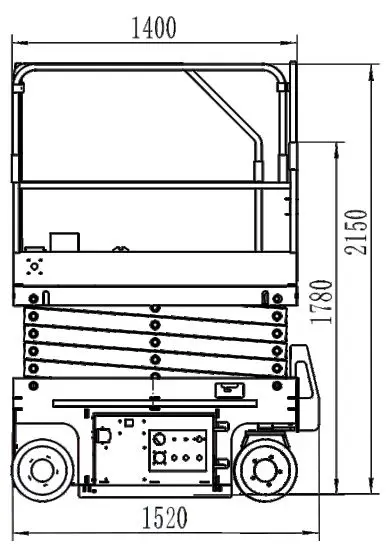

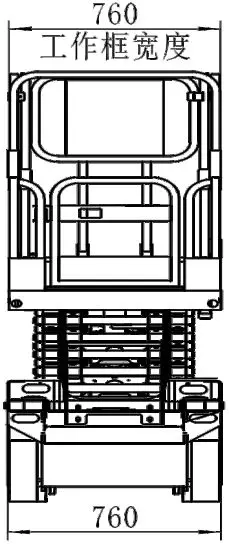

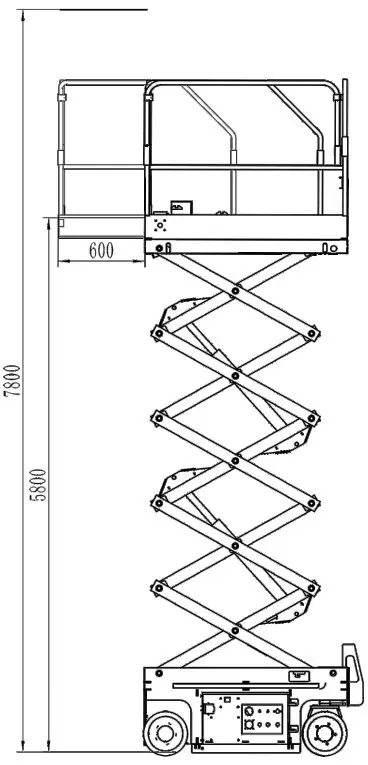

Product size
