High Precision CNC 3 Axis Vertical High Speed Cutting Machine Milling Machining Centre
- Category: >>>
- Supplier: TAIZHOU JIANGZHOU NUMBER-CONTROLLED MACHINE TOOL MANUFACTURE CO. LTD.
Share on (1600909725522):
Product Overview
Description
Product Description

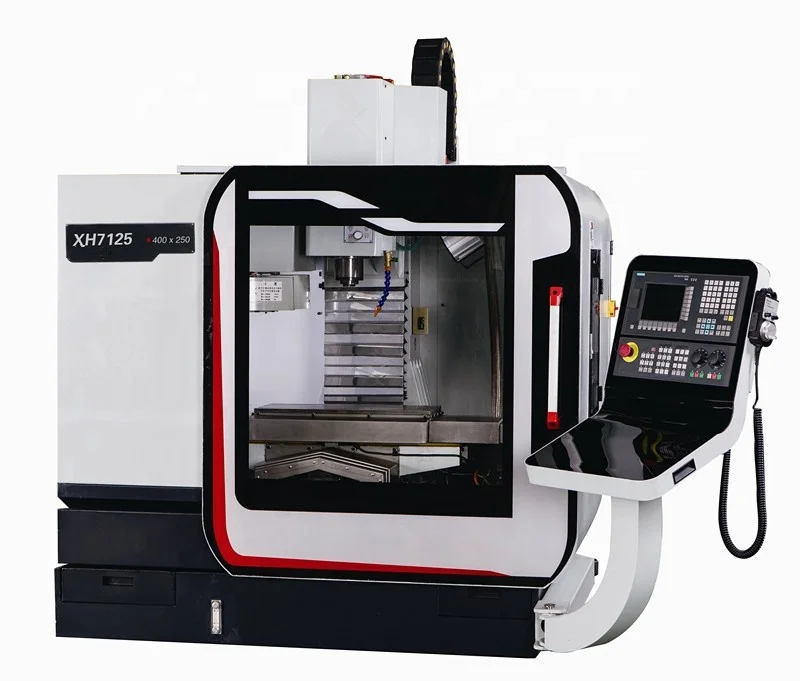

Specification | XH7125 |
Table size mm | 600×250 |
Number/width/Distance of T slot | 3/14/75 |
Max load of table | 150 |
X travel mm | 400 |
Y travel mm | 240 |
Z travel mm | 400 |
Distance from spindle nose to table surface mm | 60—460 |
Distance from spindle axis to column guideway mm | 325 |
Feed speed mm/min | 2.5--3000 |
Spindle taper | BT30 |
Spindle speed rpm | 60-6000 |
Spindle motor power kW | 3.7 |
Motor toque X/Y/Z Nm | 7/7/7 |
System | SIEMMENS 808D |
Rapid feed speed X/Y mm/min | 8000 |
Rapid feed speed Z mm/min | 6000 |
Tools number | 10 |
Tool magazine type | umbrella |
Max.dimension of tool mm | Φ92 |
Max length of tool mm | 150 |
Max weight of tool Kg | 5 |
Positioning accuracy | ±0.015 |
Repeat positioning accuracy | ±0.005 |
Machine weight | 1500/1650 |
Overall dimensition | 165*210*190cm |
Package size( Fanuc CNC mini VMC vertical machining center ) | 180*220*200cm |
Main Features of

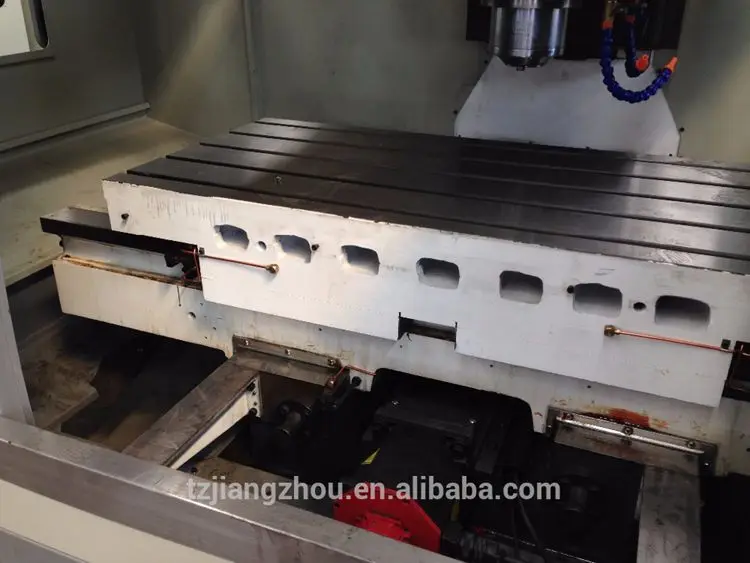

1.High rigidity and high stability in machine structure
2.High precision three-axis feeding system
3.High speed precision spindle
4.Fast and reliable tool chaning mechanism
Standard Configuration
1.SIMENS 808D CNC system
2.Taiwan drum-type tool magazine capability 10 tools
3.Spindle speed is 6000 rpm
4.Automatic intermittent lubrication
5.Large flow coolant pump
Production Details
Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem, we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you as usual.
1.Technical support online service provided .
2.Technical files service provided.
3.Machine operation video provided
4.On-site training service provided.
5.Spare parts replacement and repair service provided.
6.All of the questions will be replied within 24 hours

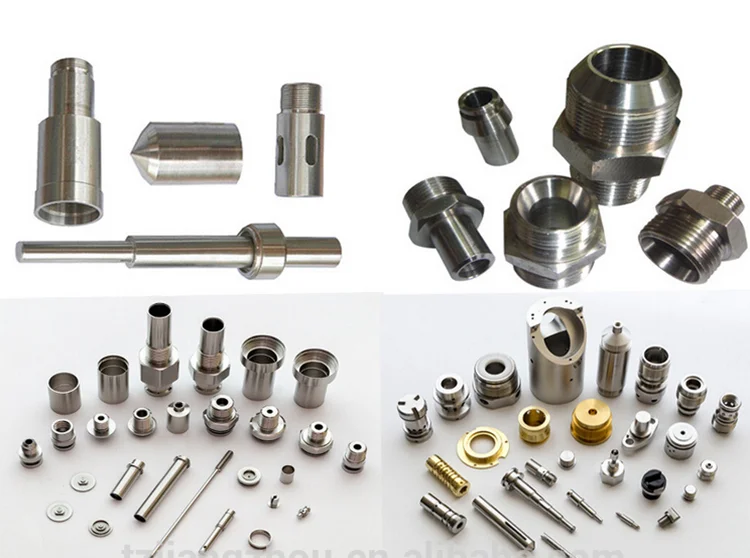

Main Products
Company Information
1. 20 years experience in research, development and manufacture of cnc machine tool.

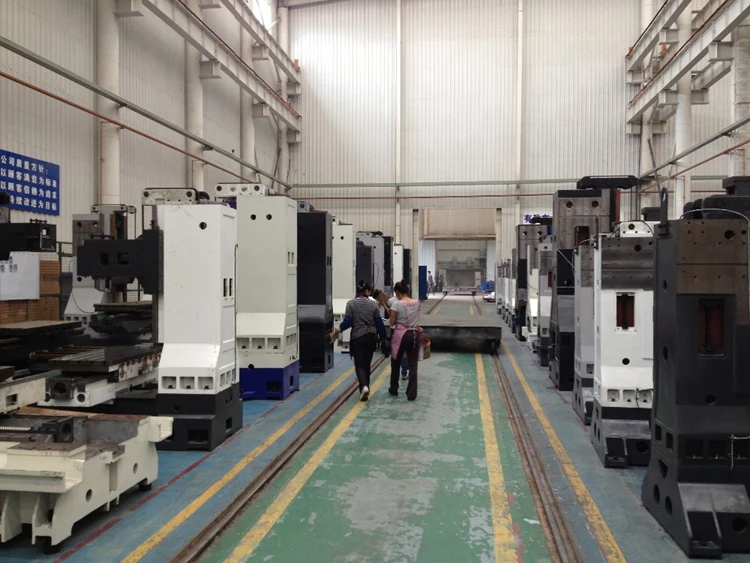

2. Covering an area of about 1500 square meters, Jiangzhou is equipped with professional engineers, skilled workers and scientific management system.
3. Reliable sale and after-sale service.
Certifications
Packing and Delivery
Packing Details : To be packed in wooden cases,suitable for export
Delivery Details : 15-20 days after receipt of deposit
FAQ
Q: What information will you need to make the proposal?
A: The worktable size and worktable travel, your special requirements.
Q: Are you a manufacturer or trade company?
A: We are the professional manufacturer of cnc machine tool, commited to this field for above 20 years.
Q: Do you provide training and maintenance?
A: Yes. In order to make your production more efficient, after signing contract, you can send someone to my company for professional operation training.
