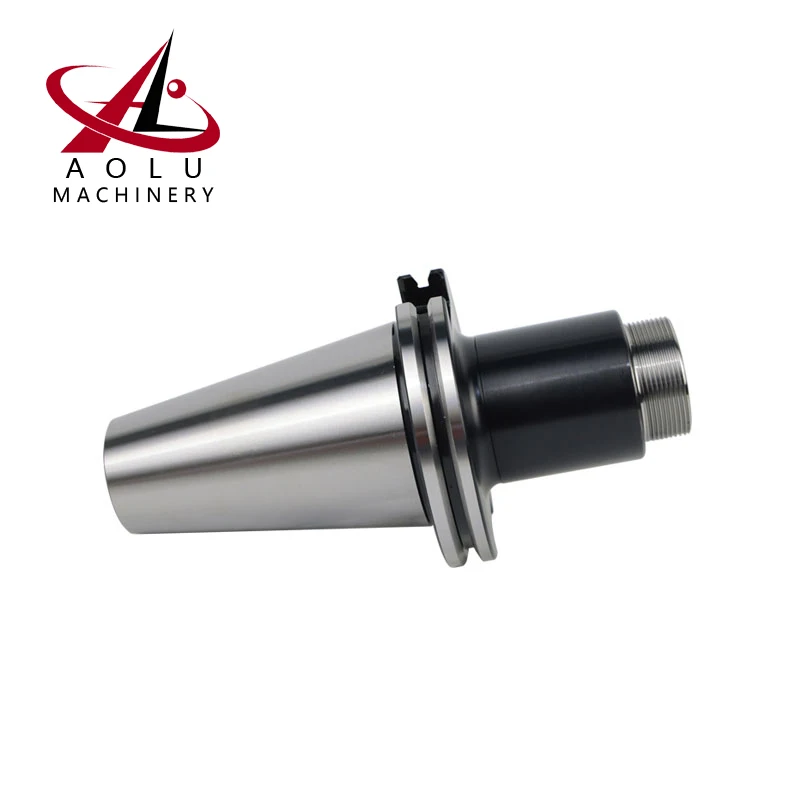

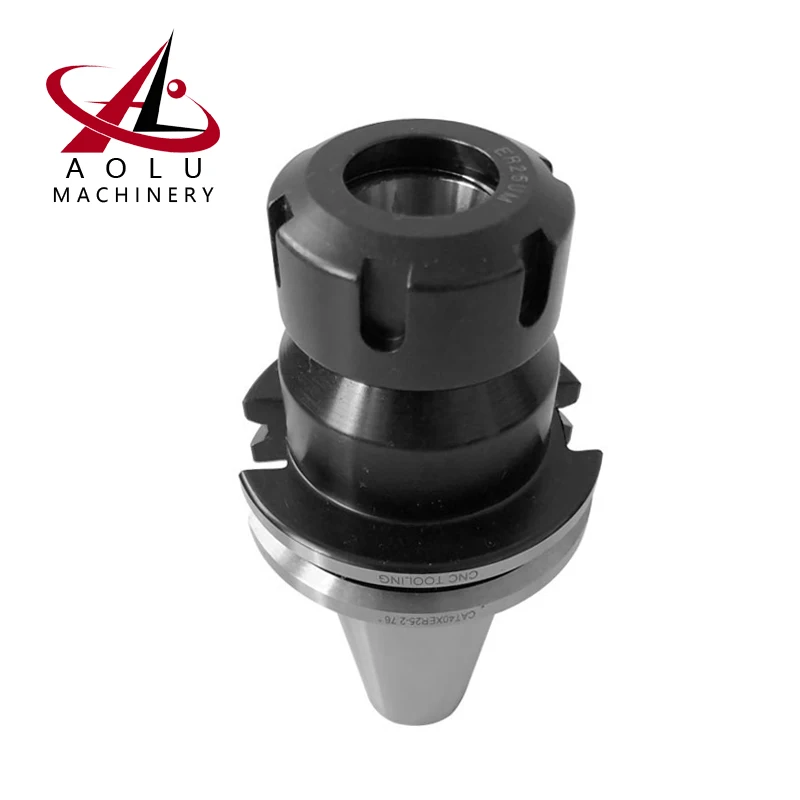

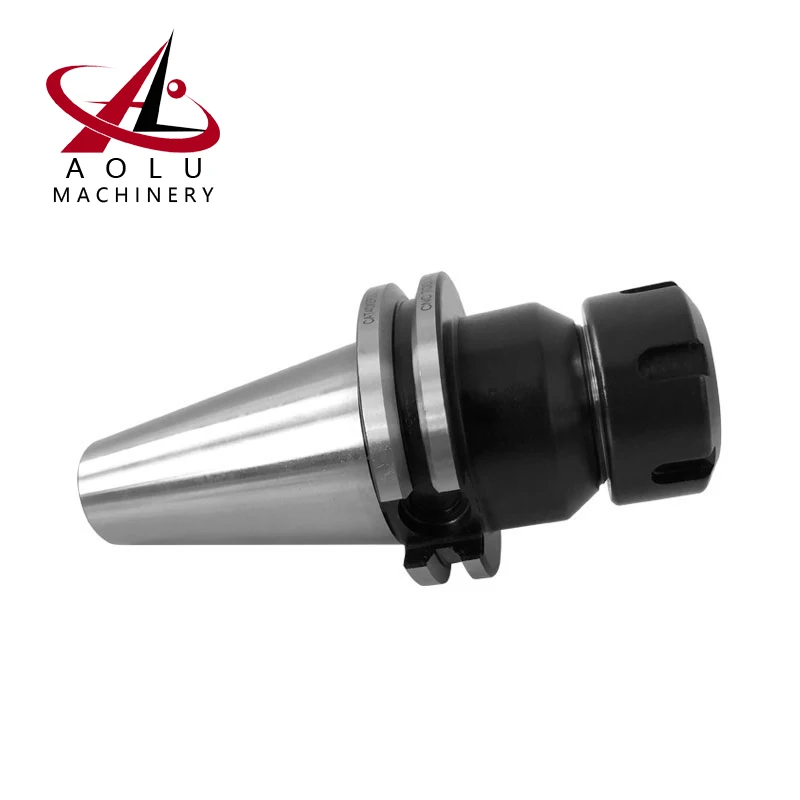

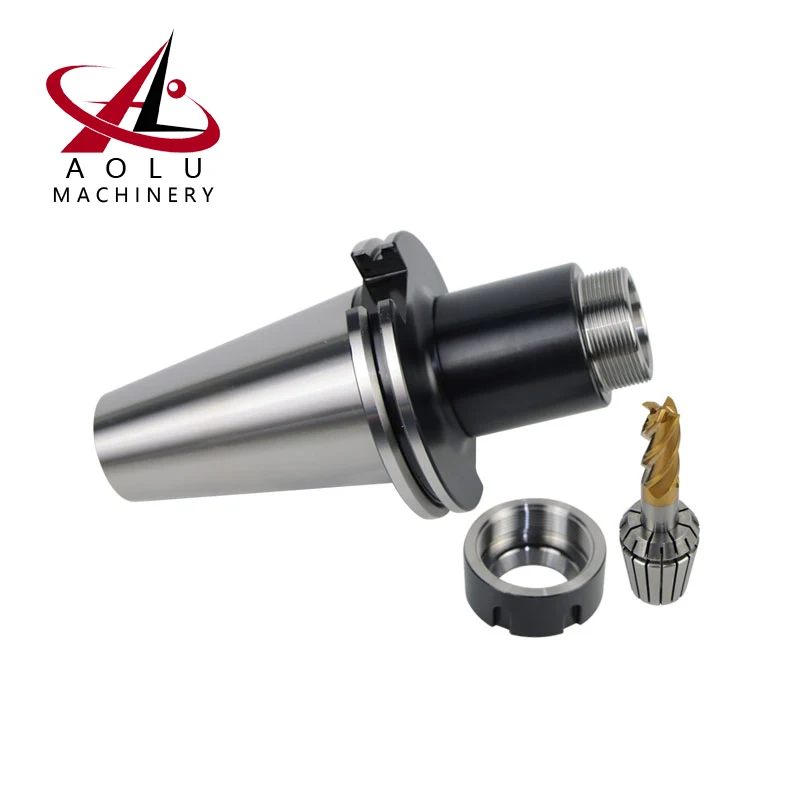

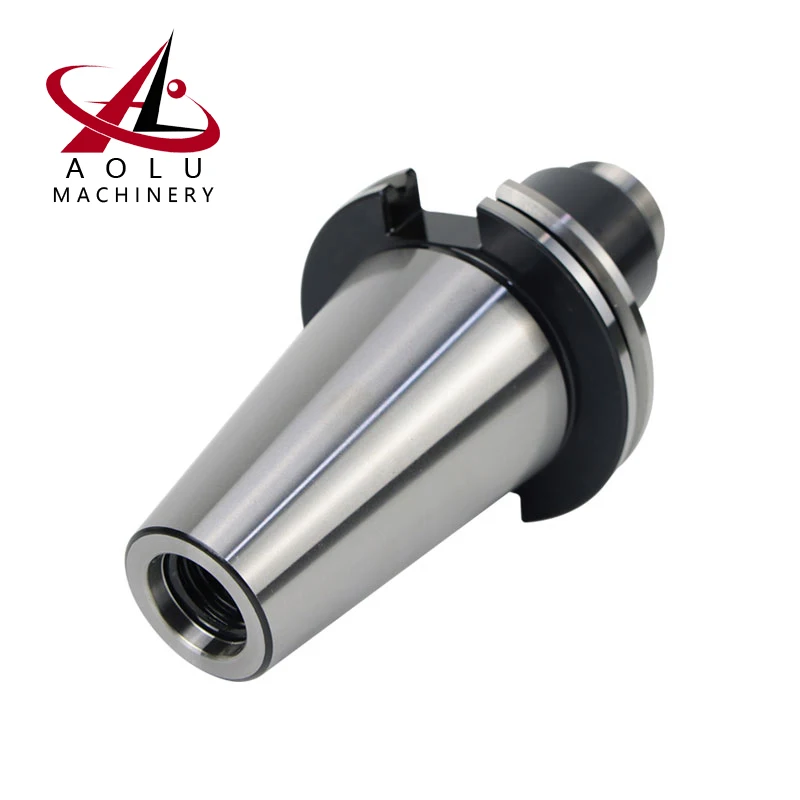

CAT ER Milling Tool Holder CAT40 CAT50 Arbor ER20 ER32 ER40 Collet Chuck
CAT-ER Milling Tool Holder CAT40 CAT50 Arbor ER20 ER32 ER40 Collet Chuck
CAT-ER Milling Tool Holder CAT40 CAT50 Arbor ER20 ER32 ER40 Collet Chuck
CAT-ER Milling Tool Holder CAT40 CAT50 Arbor ER20 ER32 ER40 Collet Chuck
CAT-ER Milling Tool Holder CAT40 CAT50 Arbor ER20 ER32 ER40 Collet Chuck
CAT-ER Milling Tool Holder CAT40 CAT50 Arbor ER20 ER32 ER40 Collet Chuck
CAT-ER Milling Tool Holder CAT40 CAT50 Arbor ER20 ER32 ER40 Collet Chuck

CAT ER Milling Tool Holder CAT40 CAT50 Arbor ER20 ER32 ER40 Collet Chuck

Share on (1600909749598):


Price:

Quantity:


Product Overview

Description



Product Description




Product name

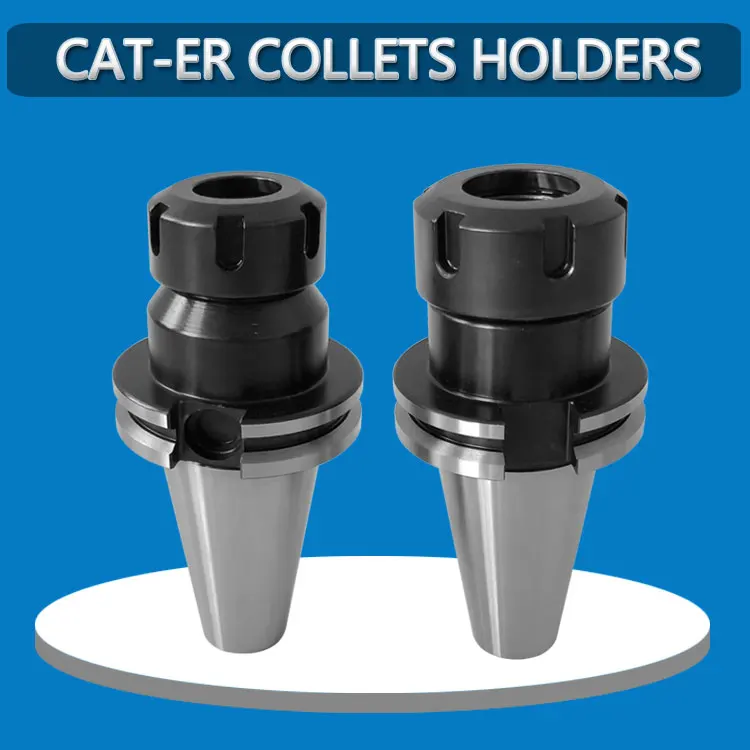

CAT-ER Collets Holders
Model
CAT40/50-ER20/25/32/40
Feature
High presion


Function
It is mainly used for clamping of straight shank tools and tools such as drills, milling cutters, and taps




Stronger clamping force

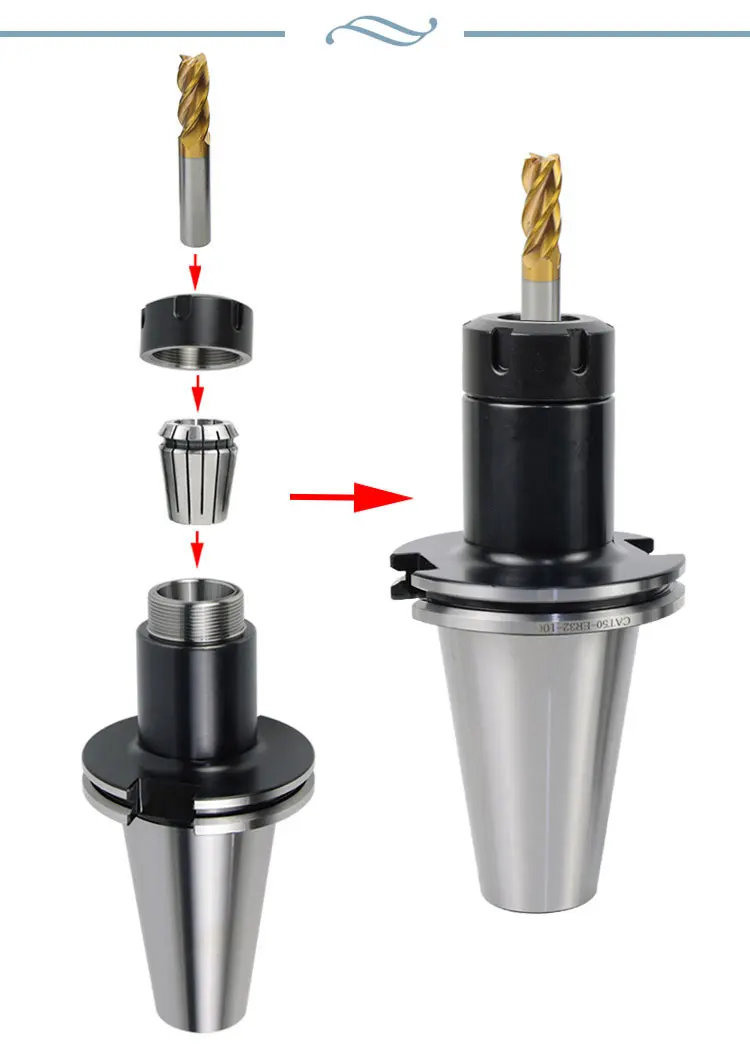

Installation

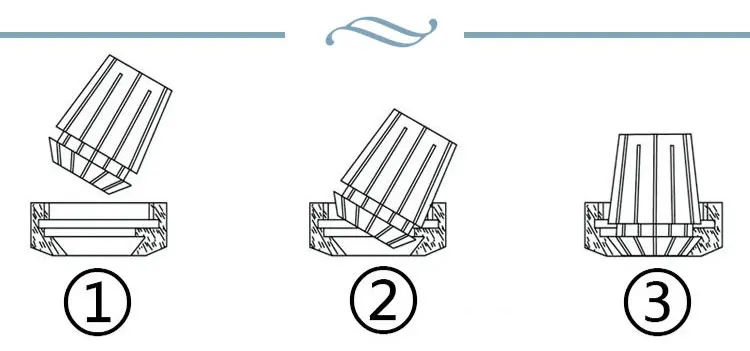

Collet in the process of the installation of the lock nut, collet locking nut must tilt angle,
and then gently on a lock card lock nut inside

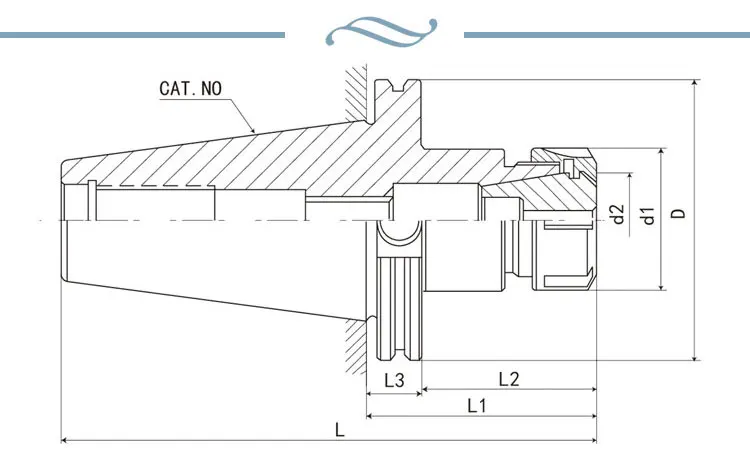

Size
L
L1
D
d1
d2
d3
T
CAT40-ER16-2.76〞
5.447〞
2.76〞
2.5〞
1.102〞
0.63〞
1.75
M10*1.5P
CAT40-ER16-4〞
6.687〞
4〞
2.5〞
1.102〞
0.63〞
1.75
M10*1.5P
CAT40-ER16-6〞
8.687〞
6〞
2.5〞
1.102〞
0.63〞
1.75
M10*1.5P
CAT40-ER16-8〞
10.687〞
8〞
2.5〞
1.102〞
0.63〞
1.75
M10*1.5P
CAT40-ER20-2.76〞
5.447〞
2.76〞
2.5〞
1.339〞
0.788〞
1.75
M12*1.75P
CAT40-ER20-4〞
6.687〞
4〞
2.5〞
1.339〞
0.788〞
1.75
M12*1.75P
CAT40-ER25-2.76〞
5.447〞
2.76〞
2.5〞
1.654〞
0.984〞
1.75
M16*2.0P
CAT40-ER25-4〞
6.687〞
4〞
2.5〞
1.654〞
0.984〞
1.75
M16*2.0P
CAT40-ER25-6〞
8.687〞
6〞
2.5〞
1.654〞
0.984〞
1.75
M16*2.0P
CAT40-ER25-8〞
10.684〞
8〞
2.5〞
1.654〞
0.984〞
1.75
M16*2.0P
CAT40-ER32-2.76〞
5.447〞
2.76〞
2.5〞
1.969〞
1.26〞
1.75
M16*2.0P
CAT40-ER32-4〞
6.687〞
4〞
2.5〞
1.969〞
1.26〞
1.75
M16*2.0P
CAT40-ER32-6〞
8.687〞
6〞
2.5〞
1.969〞
1.26〞
1.75
M16*2.0P
CAT40-ER32-8〞
10.687〞
8〞
2.5〞
1.969〞
1.26〞
1.75
M16*2.0P
CAT40-ER40-3.15〞
5.837〞
3.15〞
2.5〞
2.48〞
1.575〞
1.75
M20*2.0P
CAT40-ER40-4〞
6.687〞
4〞
2.5〞
2.48〞
1.575〞
1.75
M20*2.0P
CAT40-ER40-6〞
8.687〞
6〞
2.5〞
2.48〞
1.575〞
1.75
M20*2.0P
CAT40-ER50-4〞
6.687〞
4〞
2.5〞
3.07〞
1.969〞
1.75
M24*3.0P
CAT50-ER16-4〞
8〞
4〞
3.875〞
1.102〞
0.63〞
2.75
M10*1.5P
CAT50-ER16-6〞
10〞
6〞
3.875〞
1.102〞
0.63〞
2.75
M10*1.5P
CAT50-ER16-8〞
12〞
8〞
3.875〞
1.102〞
0.63〞
2.75
M10*1.5P
CAT50-ER20-4〞
8〞
4〞
3.875〞
1.339〞
0.788〞
2.75
M12*1.75P
CAT50-ER20-6〞
10〞
6〞
3.875〞
1.339〞
0.788〞
2.75
M12*1.75P
CAT50-ER20-8〞
12〞
8〞
3.875〞
1.339〞
0.788〞
2.75
M12*1.75P
CAT50-ER25-4〞
8〞
4〞
3.875〞
1.654〞
0.984〞
2.75
M16*2.0P
CAT50-ER25-6〞
10〞
6〞
3.875〞
1.654〞
0.984〞
2.75
M16*2.0P
CAT50-ER25-8〞
12〞
8〞
3.875〞
1.654〞
0.984〞
2.75
M16*2.0P
CAT50-ER32-4〞
8〞
4〞
3.875〞
1.969〞
1.26〞
2.75
M16*2.0P
CAT50-ER32-6〞
10〞
6〞
3.875〞
1.969〞
1.26〞
2.75
M16*2.0P
CAT50-ER32-8〞
12〞
8〞
3.875〞
1.969〞
1.26〞
2.75
M16*2.0P
CAT50-ER40-4〞
8〞
4〞
3.875〞
2.48〞
1.575〞
2.75
M20*2.0P
CAT50-ER40-6〞
10〞
6〞
3.875〞
2.48〞
1.575〞
2.75
M20*2.0P
CAT50-ER40-8〞
12〞
8〞
3.875〞
2.48〞
1.575〞
2.75
M20*2.0P
CAT50-ER50-4〞
8〞
4〞
3.875〞
3.07〞
1.969〞
2.75
M24*3.0P
CAT50-ER50-6〞
10〞
6〞
3.875〞
3.07〞
1.969〞
2.75
M24*3.0P
CAT50-ER50-8〞
12〞
8〞
3.875〞
3.07〞
1.969〞
2.75
M24*3.0P




















1:Are you factory or trade company?
We are Industry and trader integration.
2: Why we can choose you?
1): Reliable--.we are the real company, we dedicate in win-win
2): Professionalwe offer the pet products exactly you want
3): Factory--we have factory so have compective price
3: Could you supply samples?
Yes,we can supply samples.
4:Do you support processing customized products?
It can be customized according to drawings, samples and dimension drawings
