Highfly Smart 2000w Monitoring 5mm Solar Panel Power System On Grid Tie Mppt Solar Micro Inverter
- Category: >>>
- Supplier: Zhongshan High Fly Technology Co. Ltd.
Share on (1600909764516):
Product Overview
Description
Products Description
Model | WVC-2000W | |||
Maximum input power | 2200Watt | |||
Output voltage mode | 120/230V Auto Switch | |||
PV Open circuit voltage | 30-60Voc | |||
Operating voltage range | 22-60V | |||
Starting voltage range | 22-60V | |||
short-circuit current | 90A | |||
Maximum working current | 77A | |||
Output parameters | @120V | @230V | ||
Maximum Output Power | 2200watt | 2200watt | ||
Rated Output Power | 2000watt | 2000watt | ||
Output current | 16.6A | 8.7A | ||
AC voltage range | 80-160VAC | 180-280VAC | ||
Number of branch connections. | 3 units | 6units | ||
AC frequency range | 48-51Hz/58-61Hz | |||
Power factor | >95% | |||
Output efficiency | ||||
Static MPPT efficiency | 99.5% | |||
Max output efficiency | 95% | |||
Loss of power at night | <0.5w | |||
Total current harmonics | <5% | |||
Appearance and technical features | ||||
Size（L×W×H）mm | 370×300×41.6 | |||
Net amount | 3.18kg | |||

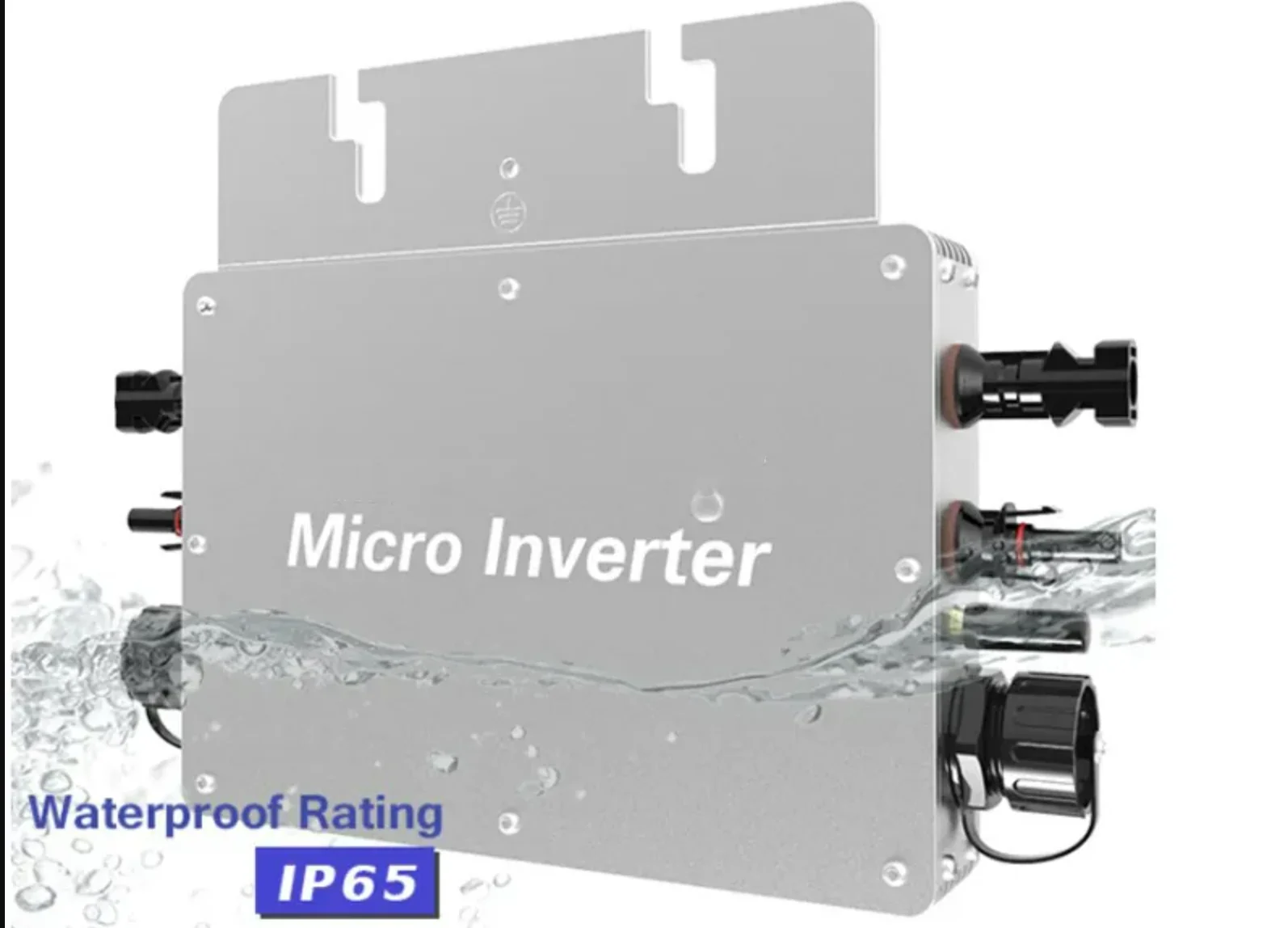

Waterproof grade | IP65 | |||
Temperature range | -40°C to +65°C | |||
Heat dissipation mode | Self-cooling | |||
Communication mode | 433MHz | |||
Power transmission mode | Reverse transmission,Load priority | |||
Monitoring system | Mobile phone APP | |||
Electromagnetic compatibility | EN50081.part1 EN50082.Part1.CSA STD.C22.2 No.107.1 | |||
Power grid | EN61000-3-2 EN62109.UL STD.1741 | |||
Power grid detection | DIN VDE 0126 IEEE STD.1547.1547.1 and 1547.A | |||
certificate | Industrial Design、Patent For Invention、CE、Inmetro | |||

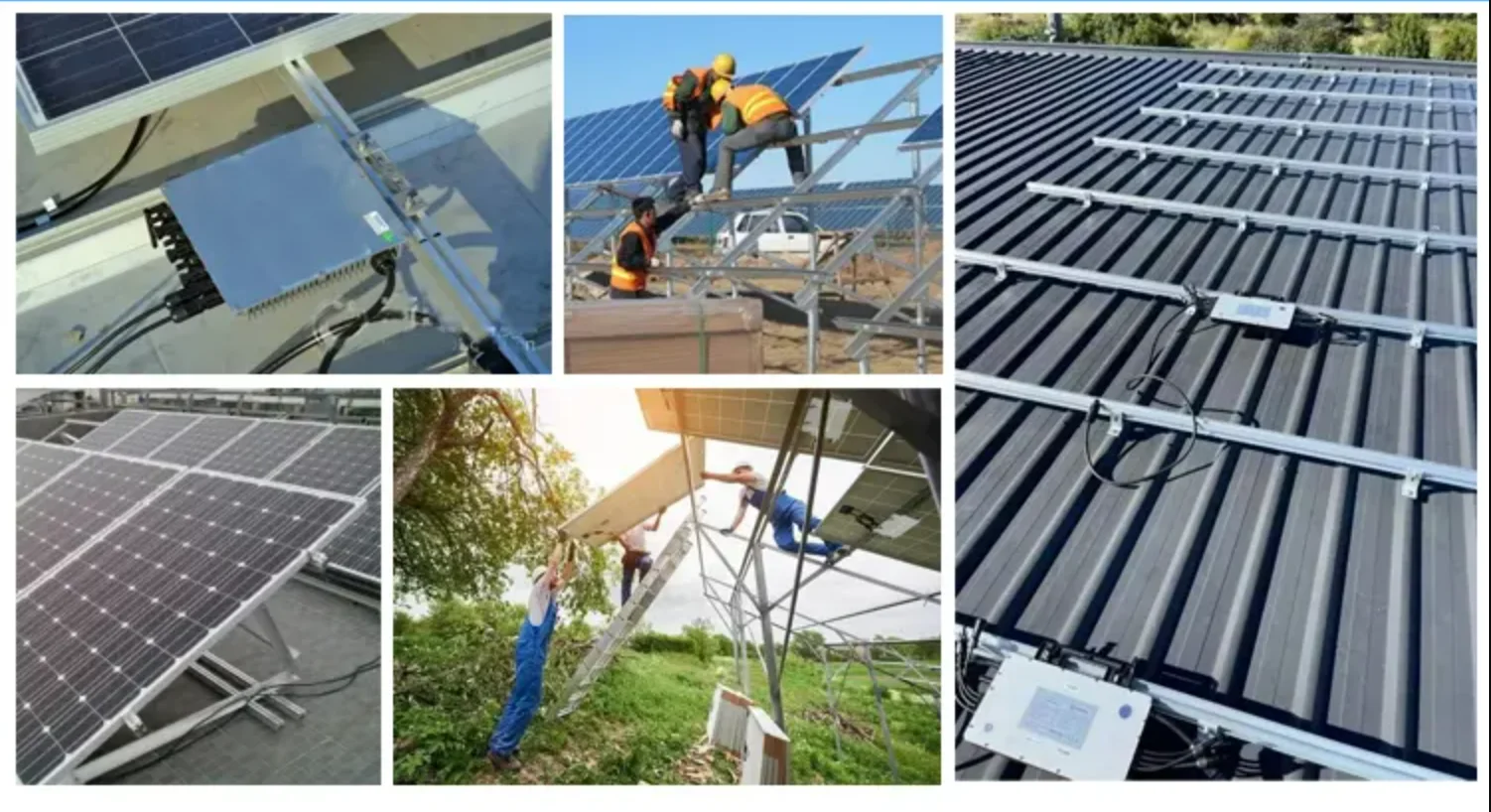

Customer Photos
