For the protection of high-voltage accessory circuits in EV/HEV 10x38mm 500V 40A LC EV fuse
Class of Operation: aR
Ratings:
Volts: 500V;
Amps:40A;
IR: 20kA@500Vdc;
Standards / Approvals for Reference:
* Standard: UL 248-1;
* Agency File Number: JDYX2 E479415
Features & benefits:
* Fast acting, high breaking capacity;
* 10 x 38mm physical size;
* Ceramic tube, Silver plated copper cap;
* Lead free and Halogen free material;
* Normal operating conditions: - 5°C ~40°C;
* Permissible conditions of use: - 40°C~125°C;
Product Name | The LC HEV fuse for protection of high-voltage accessory circuits in EV/HEV 500V 40A |
Ceramic | |
6A,10A, 15A, 16A, 20A, 25A, 30A,32A, 40A, 50A | |
500VDC | |
0HEV500-40Z | |
Cylindrical style Bolted fixing PCB mounting | |
Applications | multi-meter, power supply, DC power, Telecom, Li-battery |

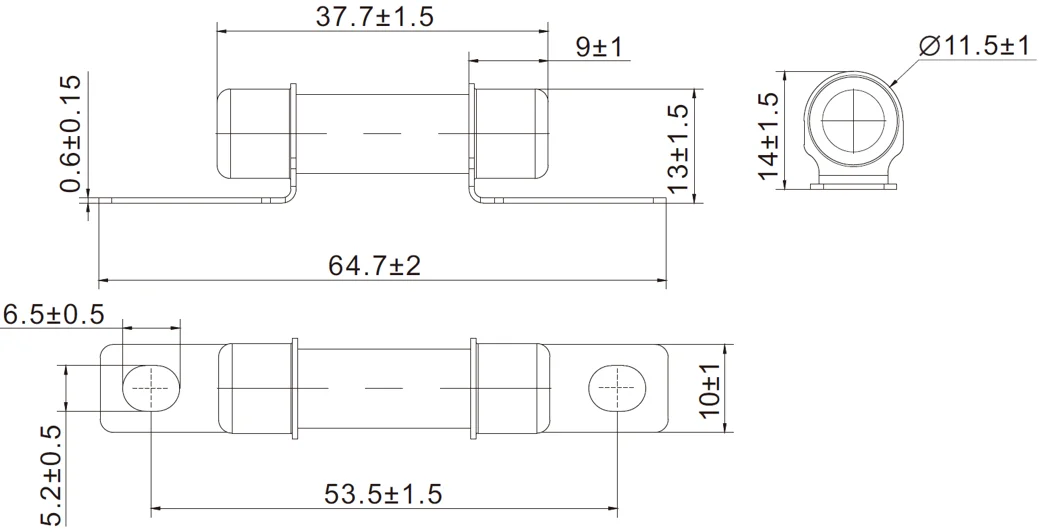

Size introduction and size picture
0HEV-Z
The 0HEV-Z fuse is designed for protection of high-voltage accessory circuits in electric and hybrid electric vehicles.
* Electrical Characteristics
Item | Rated Current (A) | Interrupting Capacity | Rated Voltage | Standard recommended bolts | Part No. |
1 | 10 | 20kA | 500Vdc | M5 | *0HEV500-10Z |
2 | 20 | 20kA | 500Vdc | M5 | *0HEV500-20Z |
3 | 30 | 20kA | 500Vdc | M5 | *0HEV500-30Z |
4 | 40 | 20kA | 500Vdc | M5 | *0HEV500-40Z |
5 | 50 | 20kA | 500Vdc | M5 | *0HEV500-50Z |

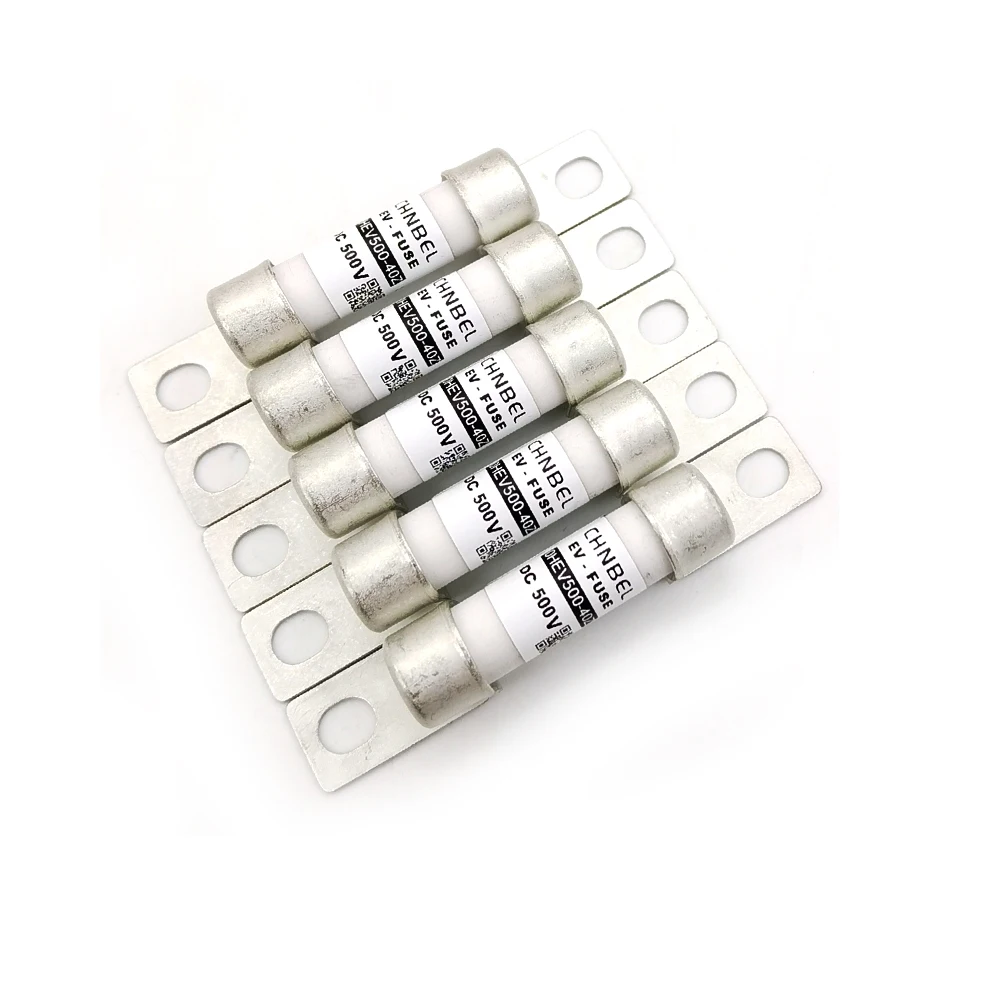

Product Description

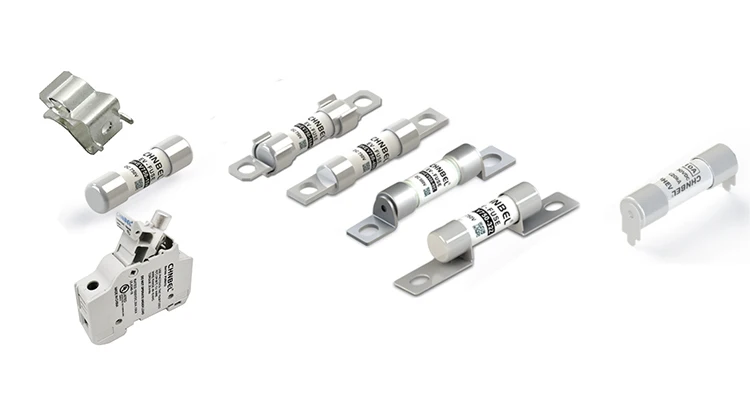

Cartridge Fuses with fuse clips or boxes
10x 38mm

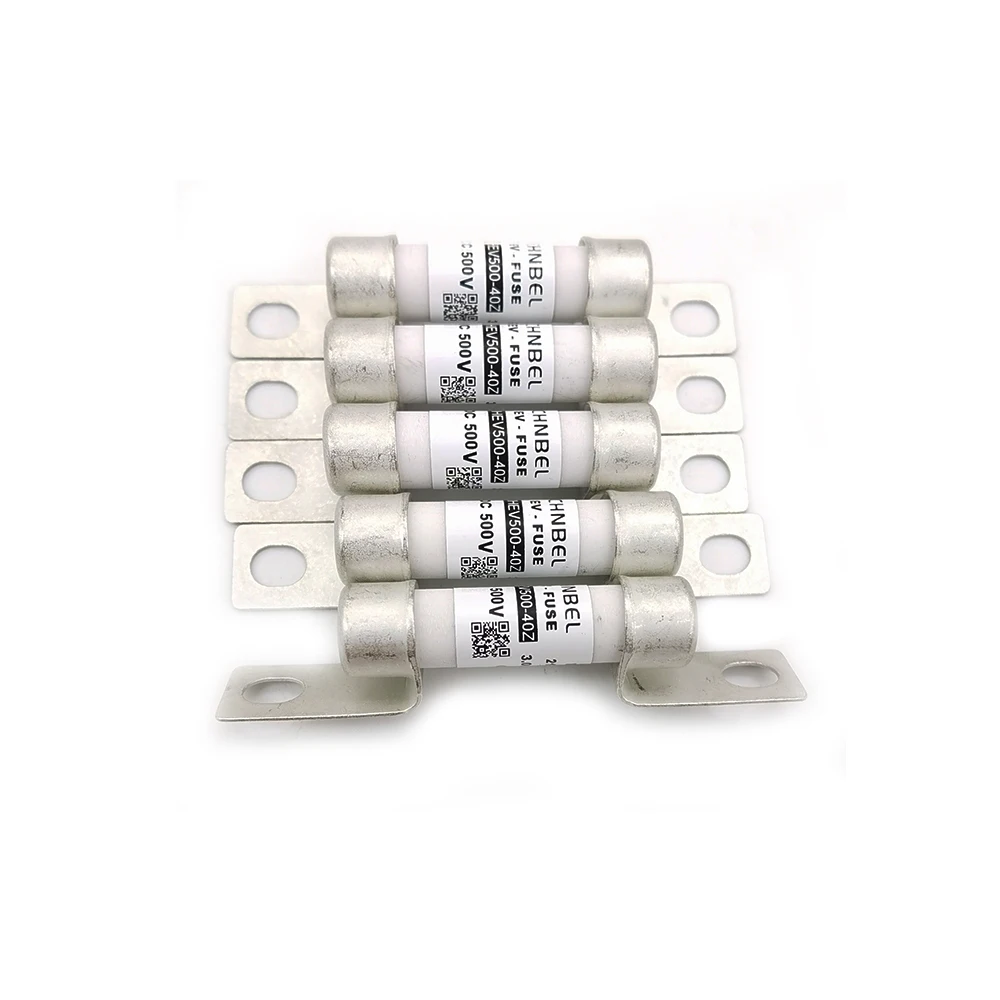

Cylindrical fuses with bolted fixing
Cylindrial fuses with PCB pins
Packing Instruction
Product Name: 10x38mm Cylindrical Fuses 0HEV-(amps)A | Fuse Links | Model | ||||||
Packing Material | Size | Remarks | ||||||
Vacuum Bag | 185*75*65mm | 64pcs per Box | ||||||
Outer Carton | 195*193.5*180mm | 256pcs(4 Boxes) per Carton | ||||||
