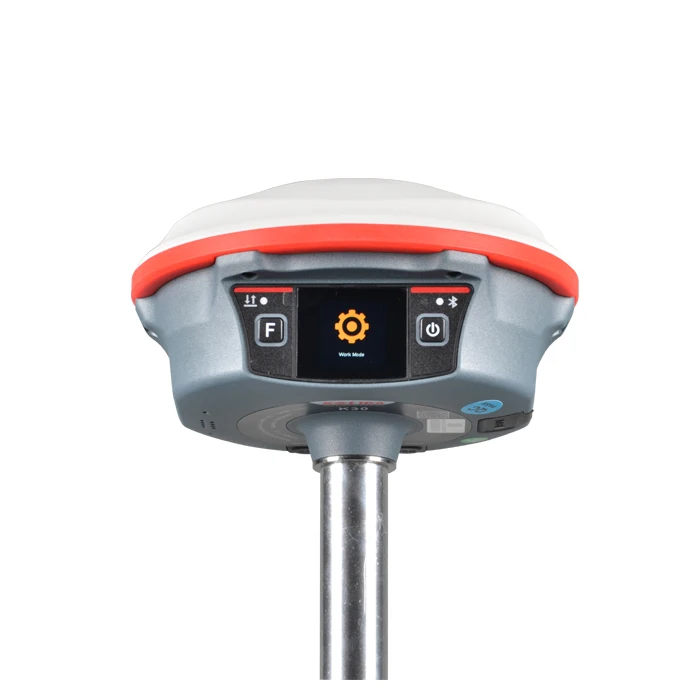

Excellent durability 25 hour working time measurement equipment Kolida K30 Gps differential terrain
- Category: >>>
- Supplier: Shanghai Jice Instrument Co. Ltd.
Share on (1600909819638):
Product Overview
Description
Products Description

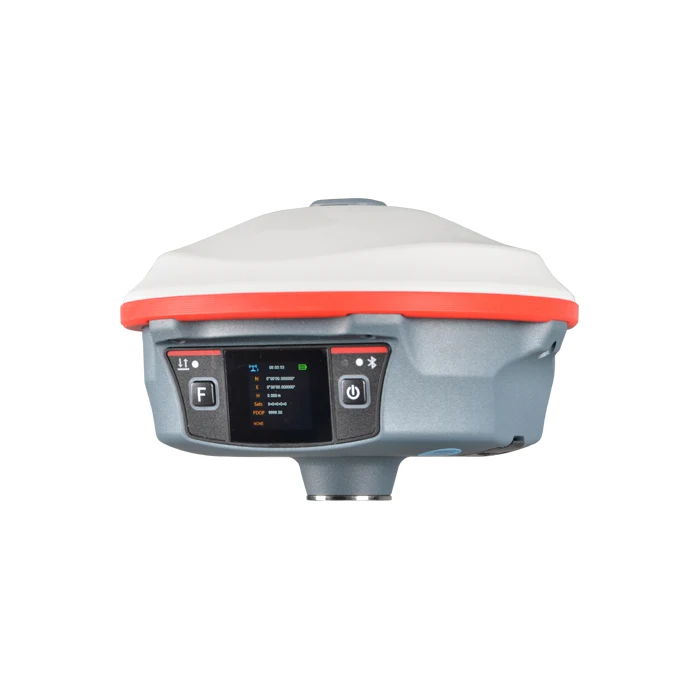

Durable Using Geophysical Survey Equipment Gps Rtk Gnss 1598 Channels Kolida K30 IMU
*1598 GNSS channels, best-in-class signal tracking capability
*GPS + GLONASS + BDS + GALILEO + QZSS
*Centimeter level correction data through L-band
*2G, 3G & 4G Network mode up to 8-10 km working range
*Inertial Measurement up to 60° tilt angle down to 2cm accuracy
*Dual battery hot-swappable, Up to 20 hours working
*GPS + GLONASS + BDS + GALILEO + QZSS
*Centimeter level correction data through L-band
*2G, 3G & 4G Network mode up to 8-10 km working range
*Inertial Measurement up to 60° tilt angle down to 2cm accuracy
*Dual battery hot-swappable, Up to 20 hours working

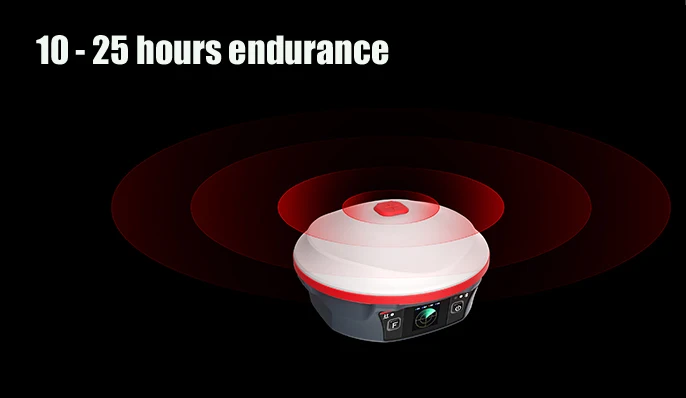

Working Longer, Stop Less.
Thanks to the low consumption operation system design, K30 Pro can work up to 10 hours in RTK base mode and up to 25 hours in rover mode, up to 27 hours in static mode. (Environment temperature is 25℃)

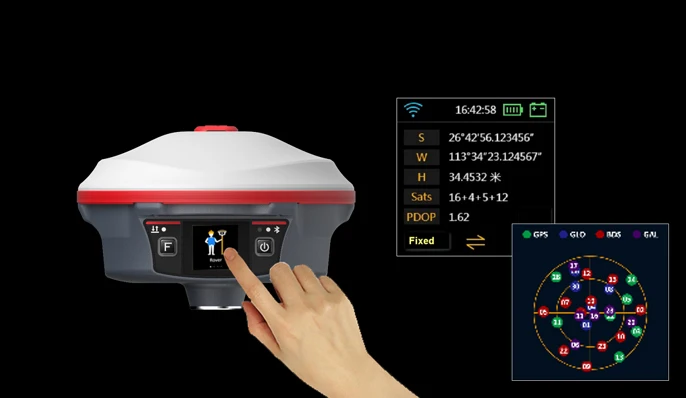

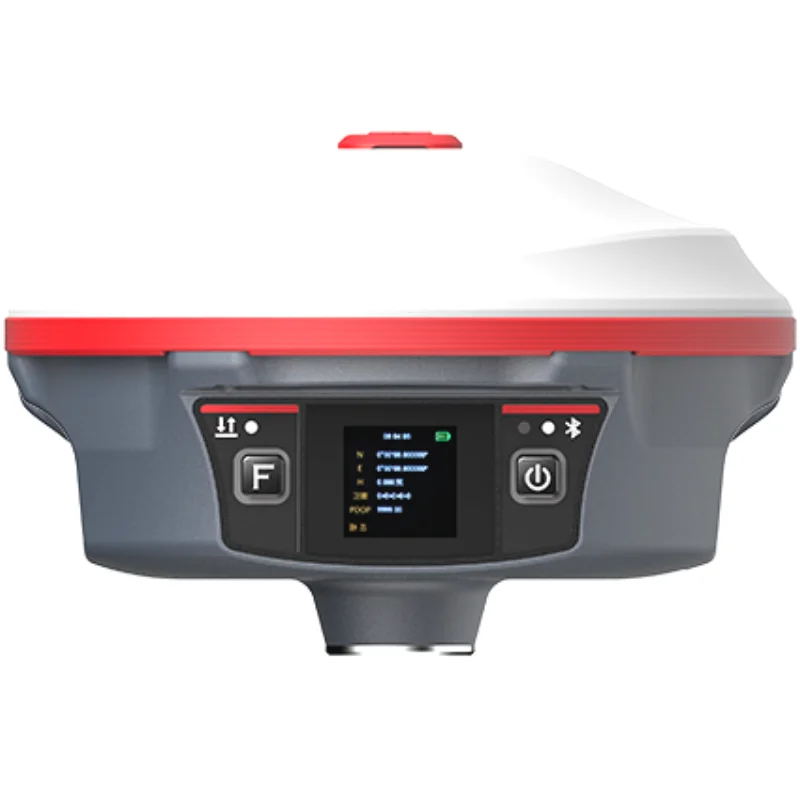

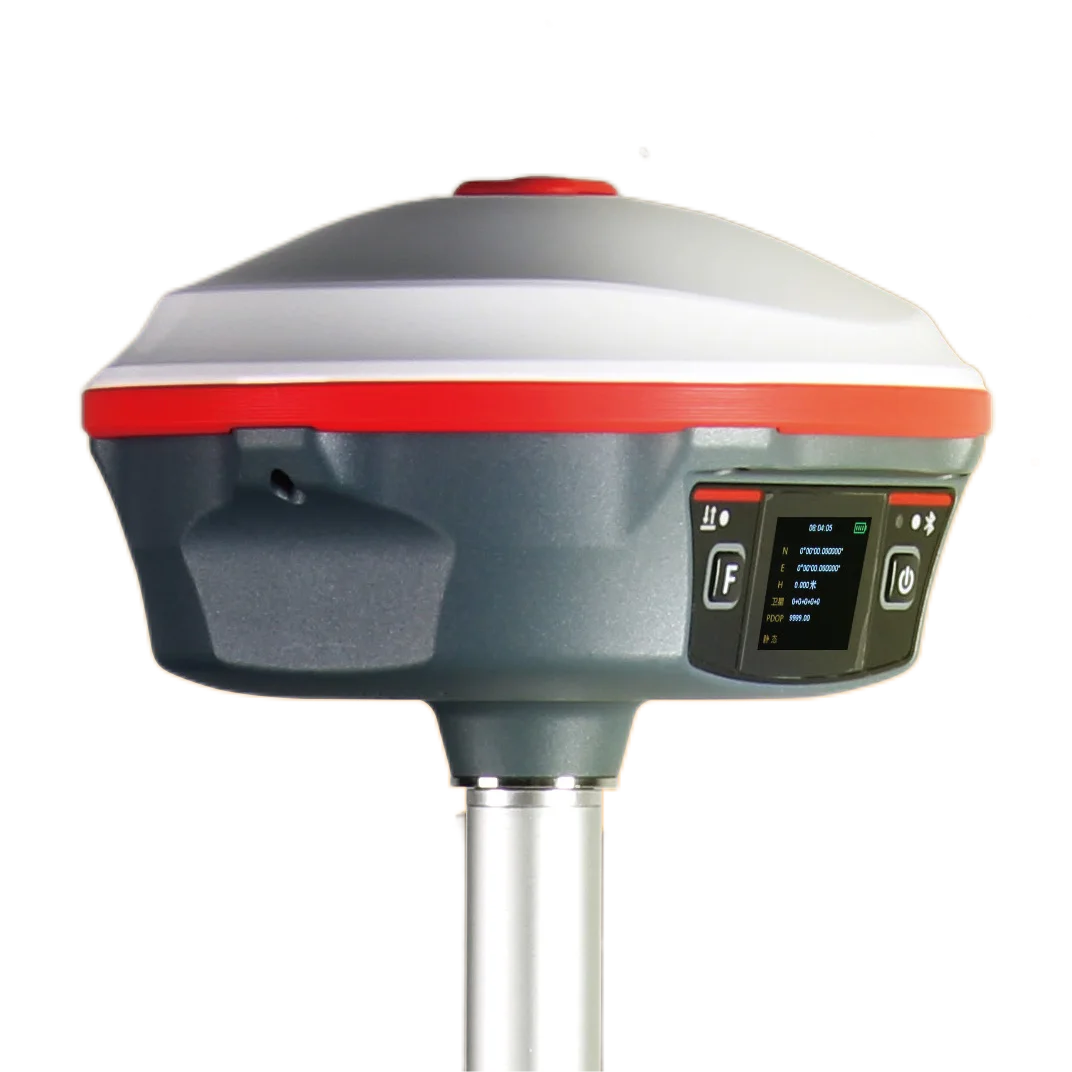

Intuitive and Vivid Screen Display
K30 Pro has a 1.3 inches colorful sreen, which displays measurement data and settings completely and provides a clear visibility under sunlight. It makes sure that all informations are in your control.
Constantly Upgraded Inertial Measurement
KOLIDA’s 3rd generation inertial sensor and algorithm are onboard now. The working speed and stability have been improved for 30% from the last version. When the GNSS fixed solution is lost and recovered again, Inertial sensor can remain the working status in a few seconds, no need to spend time to reactivate it...
New Radio, Farlink Tech.
Farlink technology is developed to send large number of data and avoid data loss.

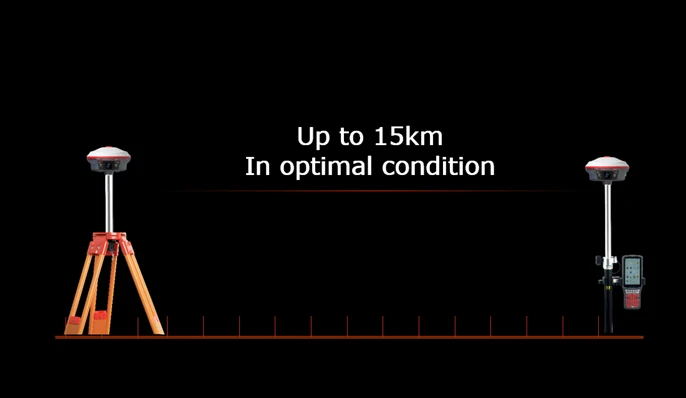

This new protocol improves the signal-catching sensitivity from -110db to -117db, so K30 can transmit to 10 km away by only 1 watt power consumption and to 15 km away by 3 watt power (in optimal environment condition).
This new protocol improves the signal-catching sensitivity from -110db to -117db, so K30 can transmit to 10 km away by only 1 watt power consumption and to 15 km away by 3 watt power (in optimal environment condition).
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.
producing PET plastic containers and bottles in all shapes.
Specification
25Hours Working Time 15km Working Range Gnss Receiver Kolida K30 | ||||
GNSS Performance | Channels | 1598 | ||
GPS | L1C/A, L2P, L1C, L2C, L5 | |||
GLONASS | G1, G2, G3* | |||
BeiDou | B1I, B2I, B3I, B1C, B2a, B2b | |||
Galileo | E1, E5b, E5a, E6, E5AltBoc* | |||
QZSS | L1C/A, L5, L1C, L2 | |||
SBAS | L1, L5 | |||
IRNSS | L5* | |||
L-Band* | B2b | |||
Positioning Accuracy | Code Differential GNSS Positioning | Horizontal: ±0.25m+1ppm Vertical: ±0.50+1ppm | ||
SBAS Positioning | Typically<5m 3DRMS | |||
High Precision Static | Horizontal: ±3mm+0.1ppm Vertical: ±3.5mm+0.4ppm | |||
Fast Static and Static | Horizontal: ±2.5mm+0.5ppm Vertical: ±5mm+0.5ppm | |||
Post Processing Kinematic (PPK) | Horizontal: ±2.5mm+1ppm Vertical: ±5mm+1ppm | |||
Real Time Kinematic (RTK) | Horizontal: ±8mm+1ppm Vertical: ±15mm+1ppm | |||
Network RTK (VRS, FKP, MAC) | Horizontal: ±8mm+0.5ppm Vertical: ±15mm+0.5ppm | |||
RTK Initialization | Time 2-8s, reliability >99.99% | |||
Positioning Rate | 1Hz-20Hz | |||
Inertial Measurement | Tilt Angle: up to 60 degrees Accuracy: down to 2cm (Typically less than 10mm+0.7mm/°tilt) | |||
Data Formats | Positioning Data | NMEA 0183, PSIC, PJK, Binary Code | ||
Differential Correction | RTCM 2.1, RTCM 2.3, RTCM 3.0, RTCM 3.1, RTCM 3.2,CMR,CMR+ | |||
Static | STH, Rinex 2, Rinex 3 | |||
Network | Supported VRS, FKP, MAC, Ntrip | |||
Operation Mode | Base | Base Internal Radio\\ Base Network\\ Base External Radio\\ Base WIFI | ||
Rover | Rover UHF\\ Rover Network\\ Rover Bluetooth | |||
Static | Static\\ PPK | |||
UHF Radio Chracteristics | TX\\RX | Up to 3W Transmitting and Receiving | ||
Frequency Range | 410-470MHz | |||
Protocols | Farlink\\ Trimtalk\\ SOUTH(KOLIDA) | |||
Channels | 60 channels for Farlink protocol 120 channels for other protocols | |||
Hardware | Size | 165mm*108mm | ||
Weight | 1.35kg | |||
Data Storage | 16GB SSD internal storage Support external USB storage (up to 64GB) Automatic cycle storage Changeable record interval Up to 20Hz raw data collection | |||
Communication | 1.3 inches colorful touch screen 3 Indicator lights, 2 Key Buttons 1 Type-C USB port 1 5-PIN LEMO external power port 1 UHF antenna port 1 PPS output port 1 SIM card slot Linux OS, WEB UI, WIFI: 802.11 b/g/n standard Bluetooth 4.2 standard and Bluetooth 2.1+EDR NFC, Network: 4G LTE\\3G WCDMA\\2G GSM Supported USB, FTP, HTTP data communication | |||
Voice Guide | Intelligent voice technology provides status indication and operation guide Chinese, English, Korean, Russian, Portuguese, Spanish, Turkish and user define | |||
Environment | Operating: -30℃ to +70℃ Storage: -40℃ to +80℃ | |||
Humidity | 100% condensation | |||
Ingress Protection | IP68 waterproof, sealed against sand and dust | |||
Shock | Survive 2m pole drop on concrete | |||
Power | Battery | 7.2V, 10000mAh unremovable battery | ||
Battery Life | Base up to 10 -14 hours Rover up to 20 - 27 hours Static up to 25 - 30 hours (when environment temperature is 25℃) | |||
Fast Charge | 3.5 - 4 hours charge to full power | |||
USB recharge | Supported | |||
