32A 400V 22KW EV Charger Wallbox Type 2 Level2 400volt 11KW EV Charger Wall Mounted Box IEC62196 2 Electric Car Charging S
- Category: >>>
- Supplier: Chengdu Khons Technology Co. Ltd.
Share on (1600909839895):
Product Overview
Description
Products Description

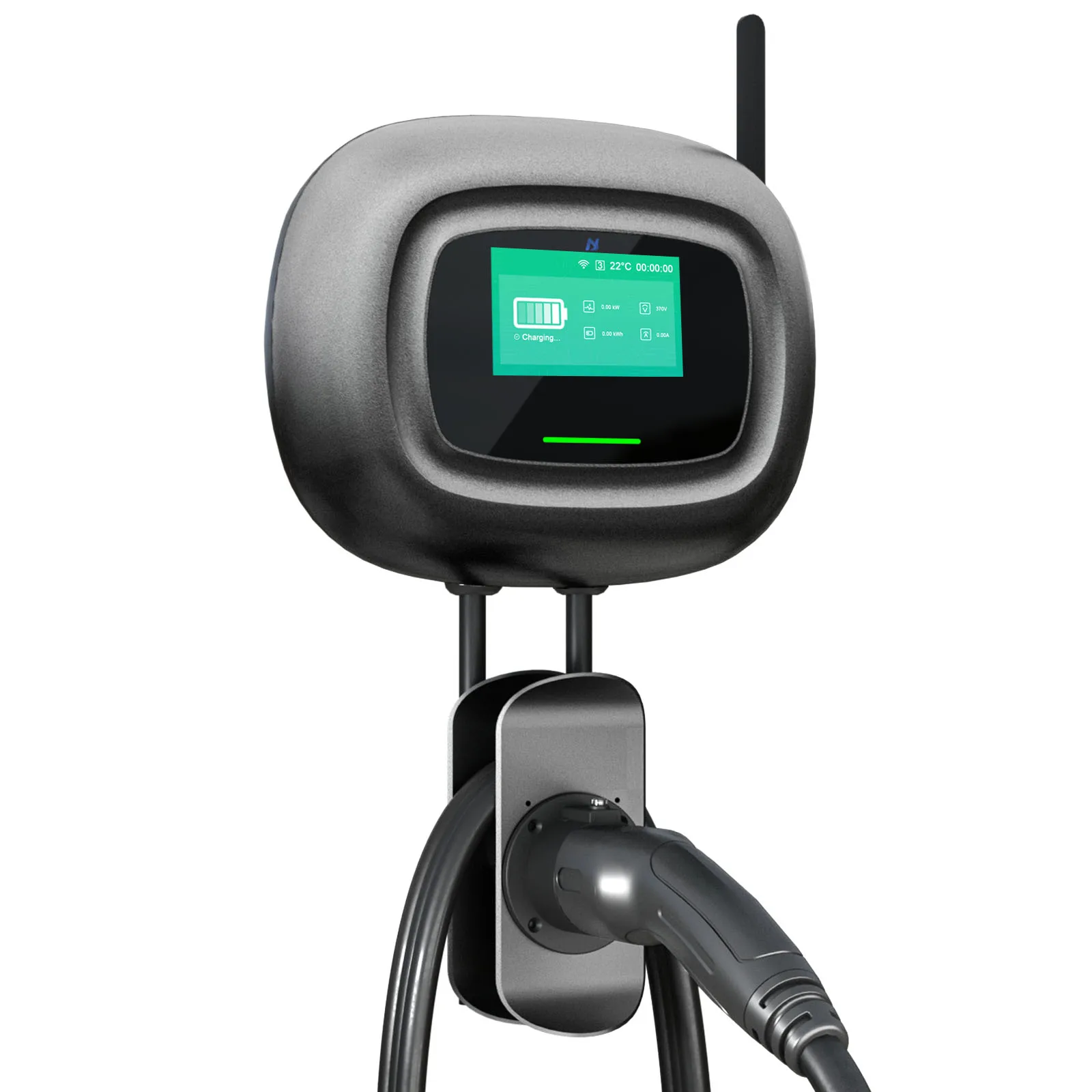

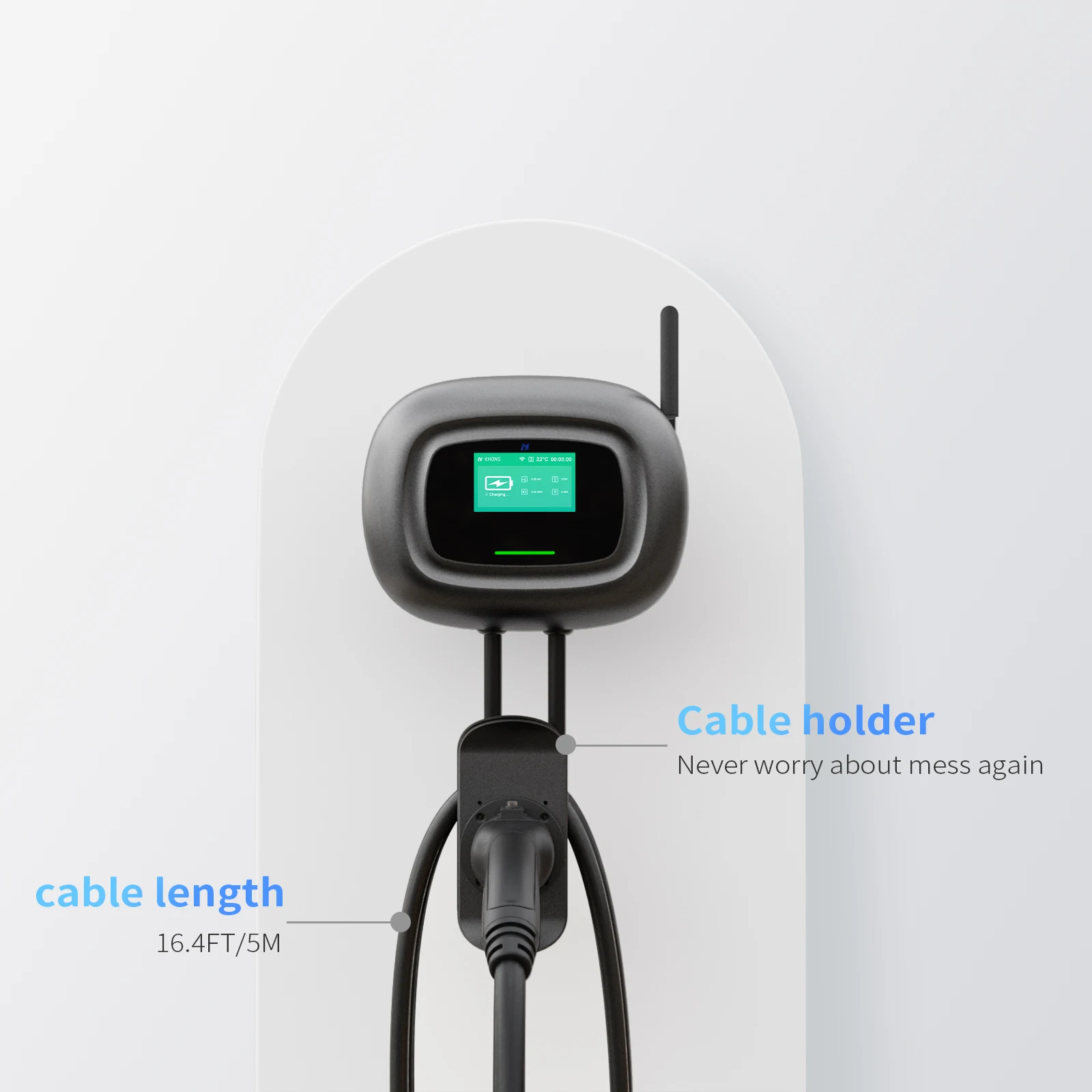

Details Images
Product Parameters
Product Name | Wallbox EV Charger Station 22kw 11kw 7kw 3.5kw | Output voltage | |||||
Standard | IEC Standard | Output power | |||||
Model Number | KHONS-WB-3SPSW | KHONS-WB-7SPSW | KHONS-WB-11SPSW | KHONS-WB-22SPSW | |||
Phase | 1 Phase | 1 Phase | 3 Phase | 3 Phase | |||
Power Input | 110V - 250V | 110V - 250V | 110V - 450V | 110V - 450V | |||
Current Range | 6A - 16A | 6A - 32A | 6A - 16A | 6A -32A | |||
Frequency | 50Hz/60Hz | ||||||

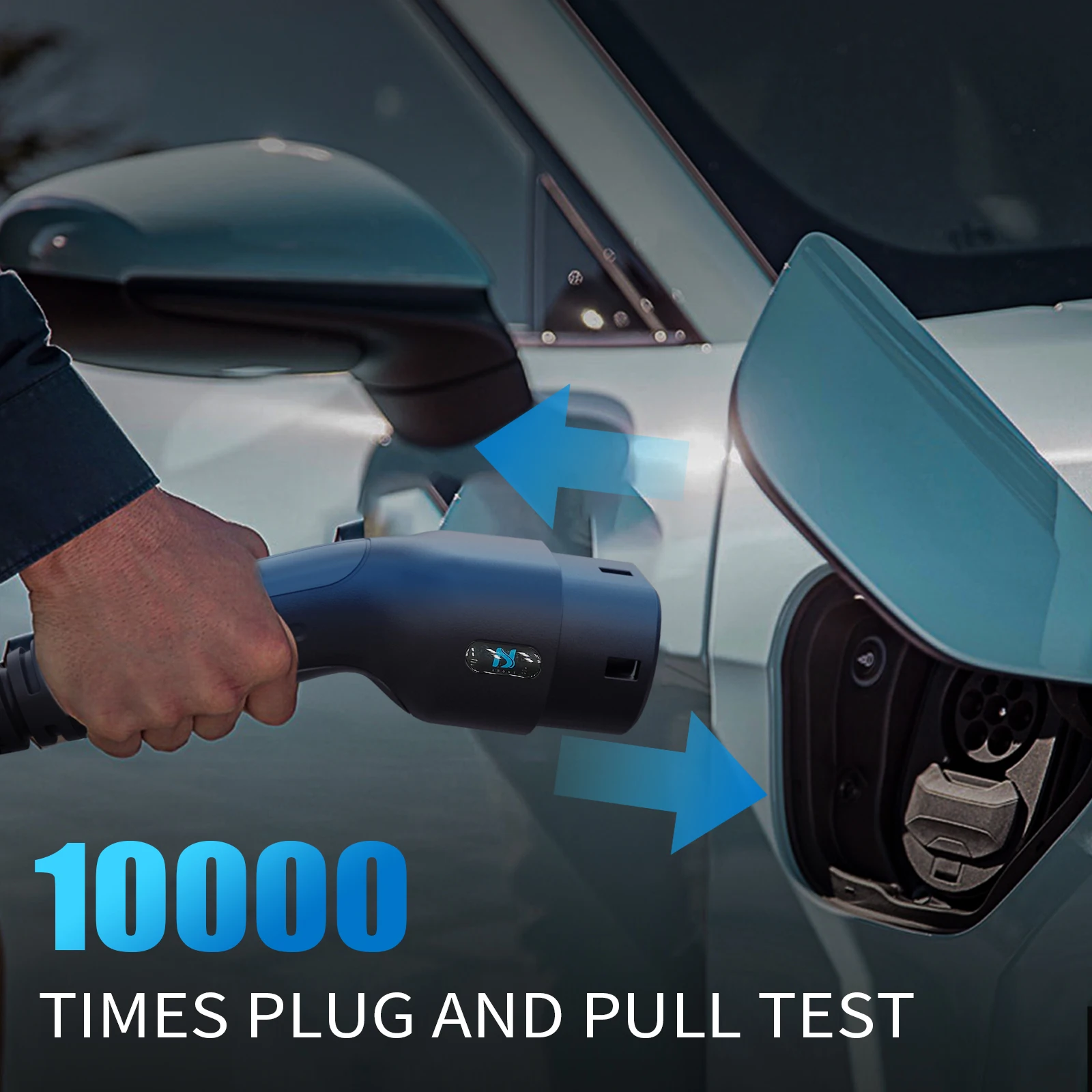

Connector | IEC 62196-2 Type 2 plug | ||||||
Charging Mode | Mode 3 charging | ||||||
Connection | Case C | ||||||
User Interface & Control | Wallbox EV Charger Station 22kw 11kw 7kw 3.5kw | Output voltage | ||||||
Charging Control Options | 1. Plug in to charge | KHONS-WB-7SPSW | KHONS-WB-11SPSW | KHONS-WB-22SPSW | ||||
Phase | 2. RFID control | 1 Phase | 3 Phase | 3 Phase | ||||
Power Input | 3. App control | 110V - 250V | 110V - 450V | 110V - 450V | ||||
How to start/stop charging | 1. Plug in to charge control: Plug in car (confirm on car side) will start charging; (unlock car side) plug out will stop charging. | 6A - 32A | 6A - 16A | 6A -32A | ||||
Frequency | 2. RFID control: Plug in car, (confirm on car side)swipe card will start charging; swipe card again, stop charging, (unlock car side)plug out | |||||||
Connector | 3. App control: Remote control: Plug in car, (confirm on car side)click start on app will start charging. Click stop to stop charging, (unlock car side) and plug out. Preset charging: Plug in car, (confirm on car side), set the time for charging, set current for charging, it will start charging at preset time. And to click stop to stop charging, (unlock car side) then plug out. | |||||||
Charging Data Mornitoring | 1. On app | |||||||
Connection | 2. On screen | |||||||

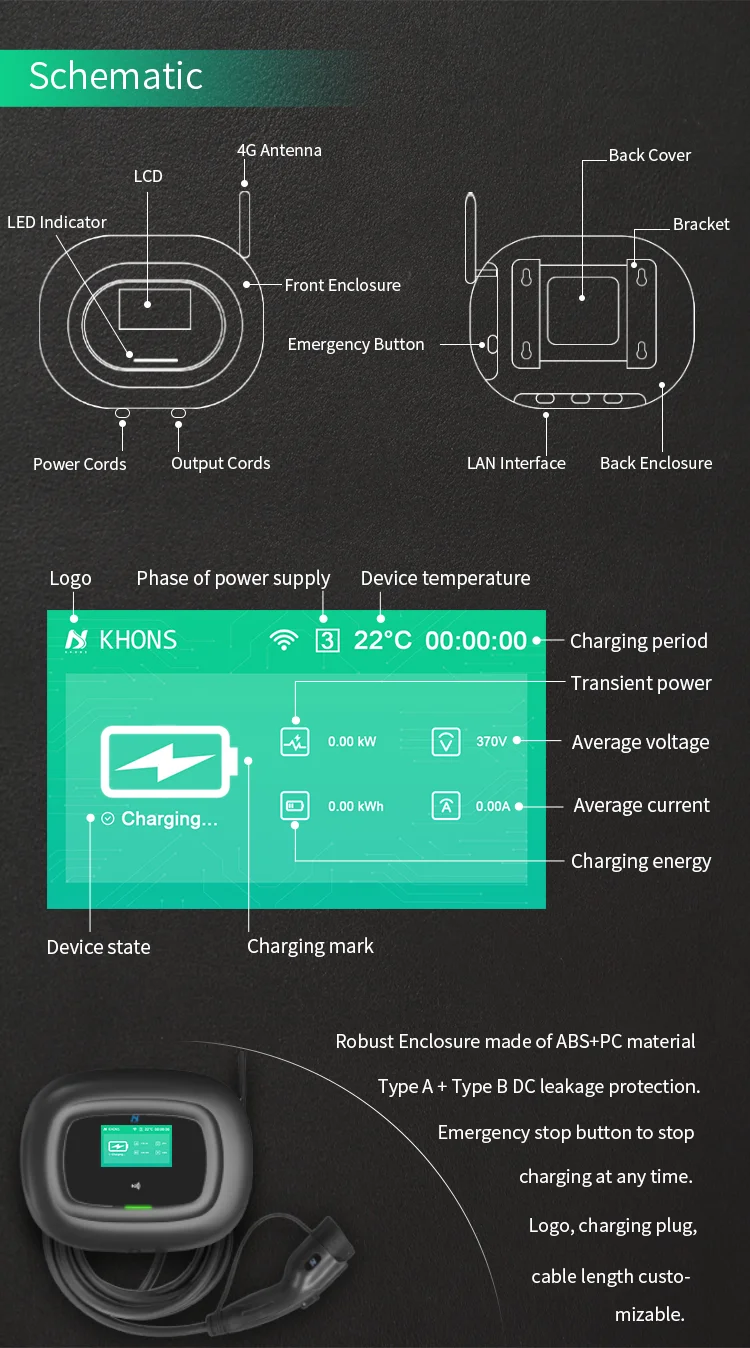

Screen Display | 4.3 inch LCD screen | |||||||
LED Indicator | Always light: charging station is free | |||||||
Blink: charging station is waiting, plug is connected to the car, wait to charge. | ||||||||
Slowly blink: charging station is charging. | ||||||||

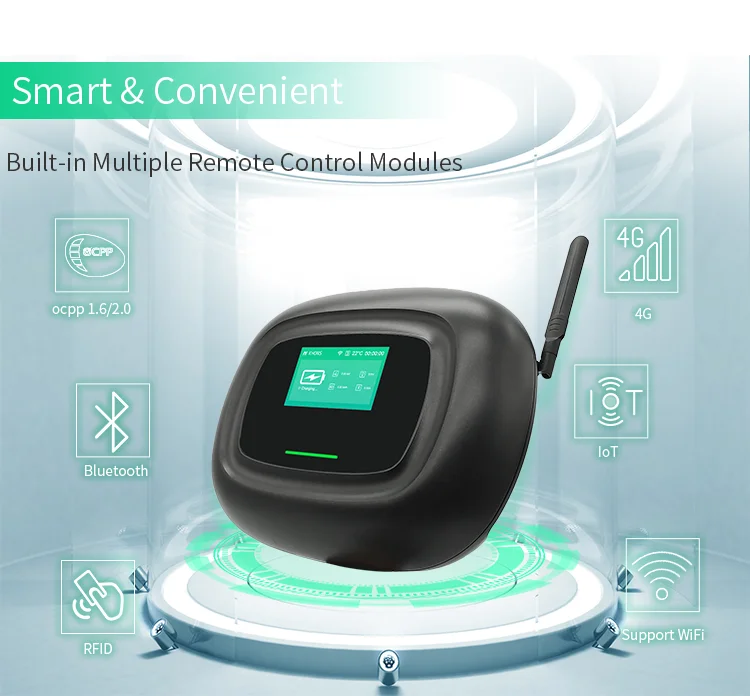

Internet Connection | 2.4G wifi standard | |||||||
lTE category 4(4G/SIM) optional, LAN optional | ||||||||
Protection | ||||||||
IP Rating | CE certified IP 65 for indoor and outdoor use | |||||||
RCD Protection | Type A +d.c 6ma, Type B optional | |||||||

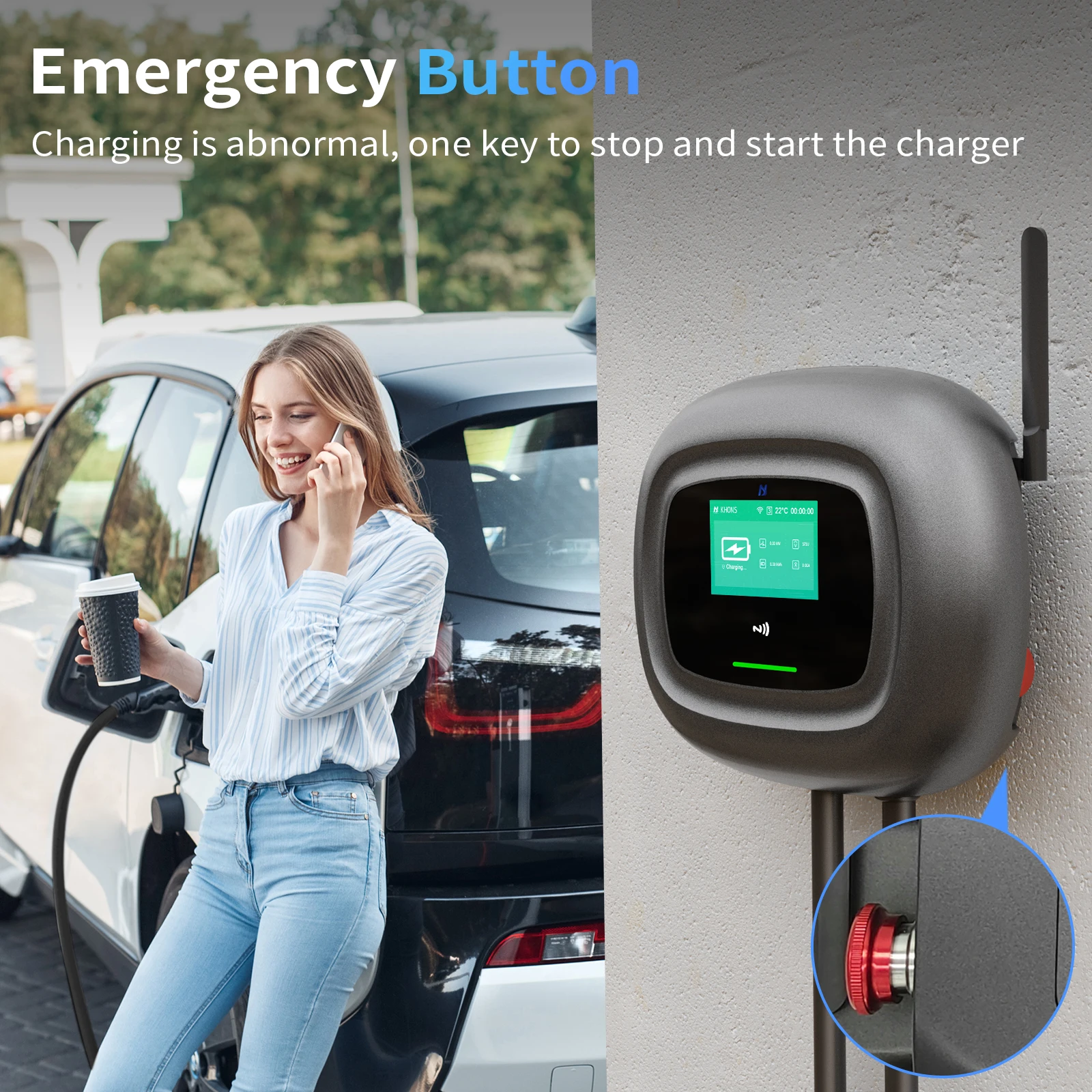

Emergency Stop | Yes | |||||||

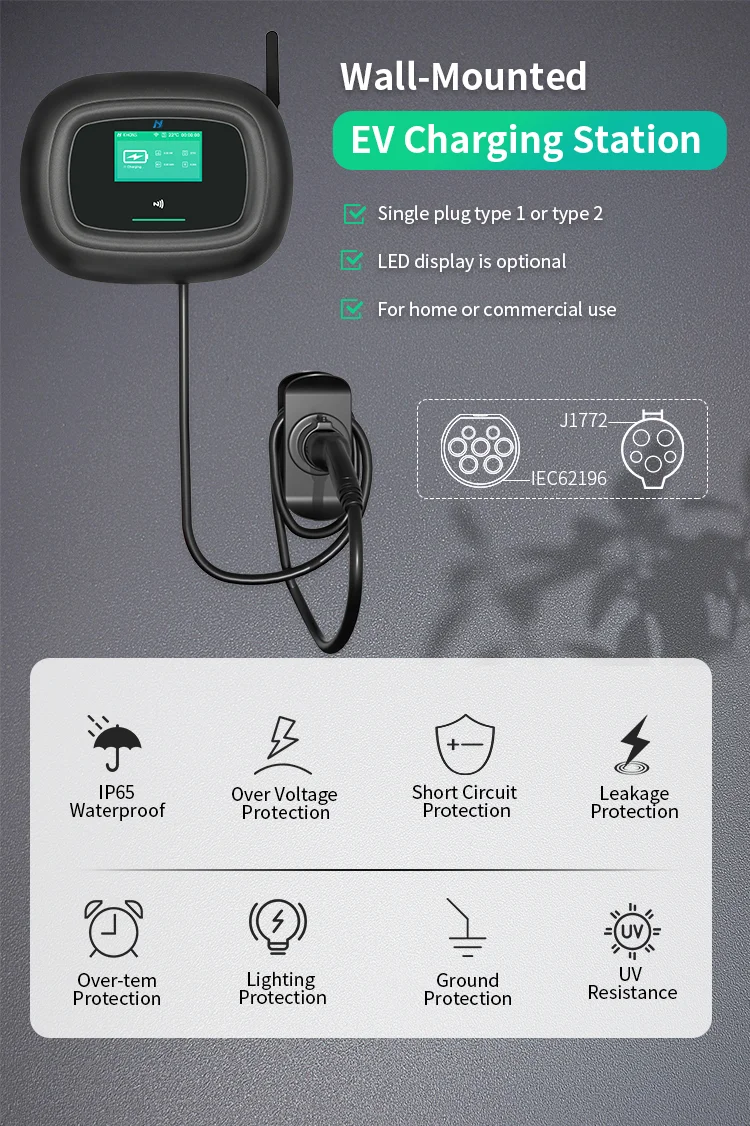

Protection | Over voltage protection | Yes | Over-temp protection | Yes | ||||
Under voltage protection | Yes | Lightning protection | Yes | |||||
Over load protection | Yes | Ground protection | Yes | |||||
Short circuit protection | Yes | UV resistance | Yes | |||||
Leakage protection | Yes | Lightning Protection | Yes | |||||
Working Environment | ||||||||
Temperature | -25 to 50℃ | |||||||
Humidity | 5% - 95%RH | |||||||
Altitude | ≤2000m | |||||||
Cooling | Natural air cooling | |||||||
Standby Power Consumption | <6W | |||||||
Wallbox EV charger Mechanical | ||||||||

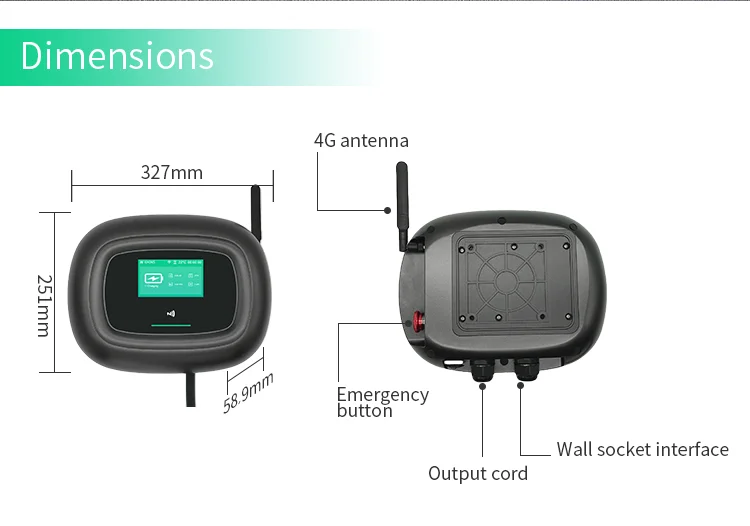

Dimension | 32 x 25 x 6cm(around the size of A4 paper) | |||||||
Weight | 7KW<7.5kg; 11KW<7.5kg; 22KW<8kg | |||||||
Enclosure | Tempered Glass +Thermo Plastic ( Insulator inflammability UL94 VO) | |||||||
Application: Indoor/outdoor | ||||||||
Plug in and Charge | Installation for private houses, garages etc | |||||||
RFID Control | Installation for area need access control such as underground parking lot with poor 4G signal or no without wifi coverage | |||||||
App control | Installation for area with internet connection such as wifi, 4G etc. | |||||||
Our portable charger are suitable for charging Audi A3 e-Tron, for BMW i3,BMW i8, for Chevrolet Spark, for Mercedes B Class E-Celi, for Mercedes S500 PHEV, for Mercedes Vito E-Cell Van, for Porsche Panamera S PHEV, for Vollkswagen e-Up, for Volkswagen e-Golf, for Volvo V60 PHEV, for Tesla S/X, for Chevrolet Volt, for Citroen C-Zero, for Fisker Karma, for Ford Focus Electric, for Ford C-Max Energi, for Mia, for Mia Electric Van, for Mitsubishi-I Miev, for Mitsubishi Outlander Phev, for Nissan NV200 SE Van, for Nissan Leaf, for Peugeot Ion, for Renault Fluence, for Renault Kangoo, for Smiths Edison Van, for Smiths Newton, for Tata Indica Vista EV, for Toyota Prius, for Vauxhall Ampera etc.
Company Information
Certificates
Success Case
Why Choose Us
FAQ
Q1: How can l place my order?
A1: You can order by yourself or contact our sales personnel who can provide you with a full quotation and understanding of your needs.
Q2: Do you post to all countries?
A2: Our ev chargers are shipped globally to many countries. lf you are unsure, kindly contact us via email or message for a quote.
Q3: How much do you charge for shipping?
A3: For samples shipping cost are prepaid according to the weight. For bulk when cargo is ready, we inquire multiple shipping options for buyer to choose and the cost is from shipping agent quotes.
Q4: What payment method do you accept?
A4: We accept all payment methods include PayPal, T/T, Credit Card, Alibaba Assurance, Western Union and bank transfers etc.
Q5: What if my item arrives damaged, faulty or incorrect?
A5: On the unfortunate case that this happens, please contact us as soon as you receive the item. Please provide your name, order number and issue so that we can get it resolved quickly.
Q6: What power/kw to buy?
A6: First, you need to check the obc specifications of the electric car to match the charging station. Then check the power supply of the installation facility to see if you can install it. However, Khons EV charging station are three phase and single phase compatible so even you buy a three phase charger, with only single phase power supply, it can be installed and used too.
Q7: How long does it take to fully charge a car?
A7: It’s the battery capacity divides the actual charging power.
Take BMW i4 eDrive40 for example, the batter is 83.9kw.h, charge power is 11kw, so if you have three phase power, install a 11kw charging station, actually charge at 11kw per hour, then the time to charge should be 83.9/11=7.62 hours. But usually after charging to 90%, the charging speed slows down. And if charge at a 7kw charging station, it should be 83.9/7=12hours.
Take BMW i4 eDrive40 for example, the batter is 83.9kw.h, charge power is 11kw, so if you have three phase power, install a 11kw charging station, actually charge at 11kw per hour, then the time to charge should be 83.9/11=7.62 hours. But usually after charging to 90%, the charging speed slows down. And if charge at a 7kw charging station, it should be 83.9/7=12hours.

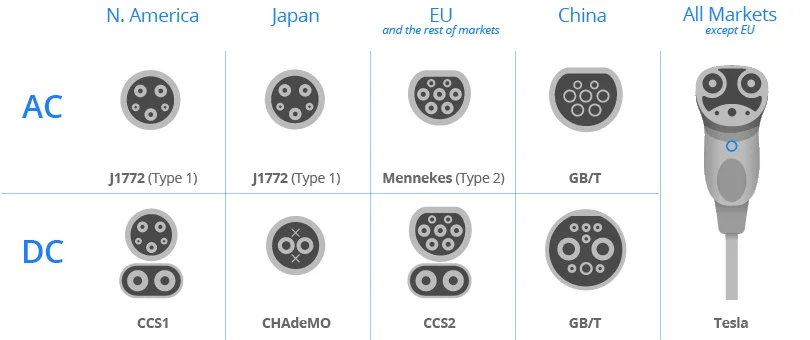

Q8: What types of charging connector/plug to buy for AC charging?
A8: Please refer to below picture to confirm your plug type:
