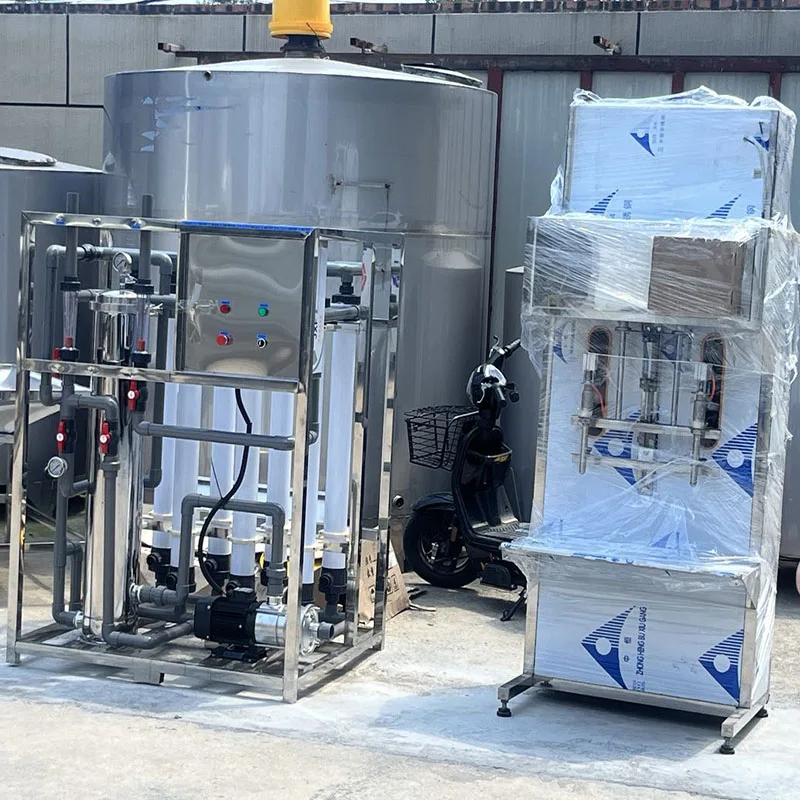

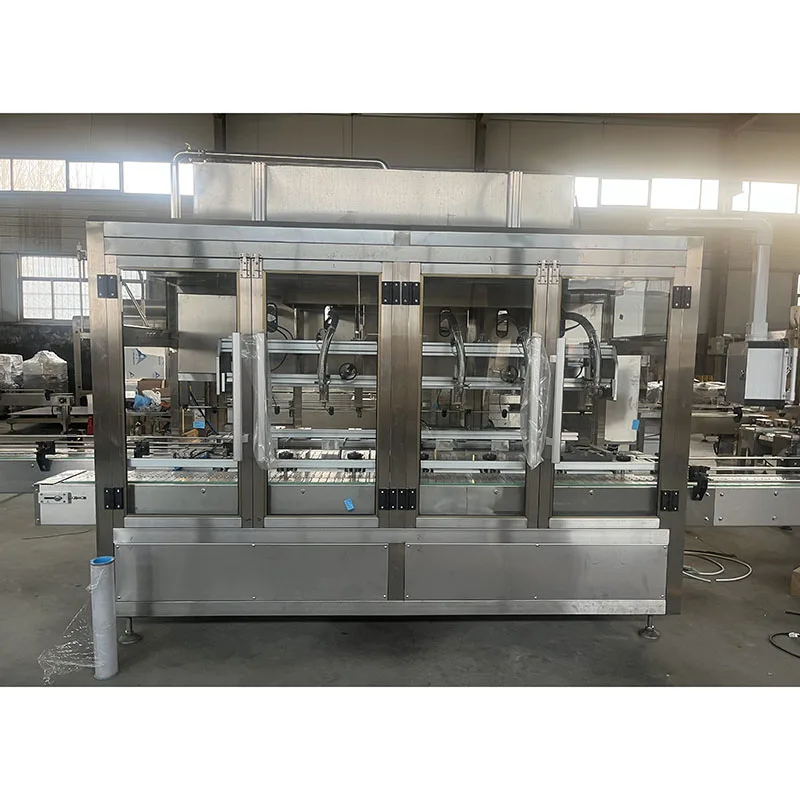

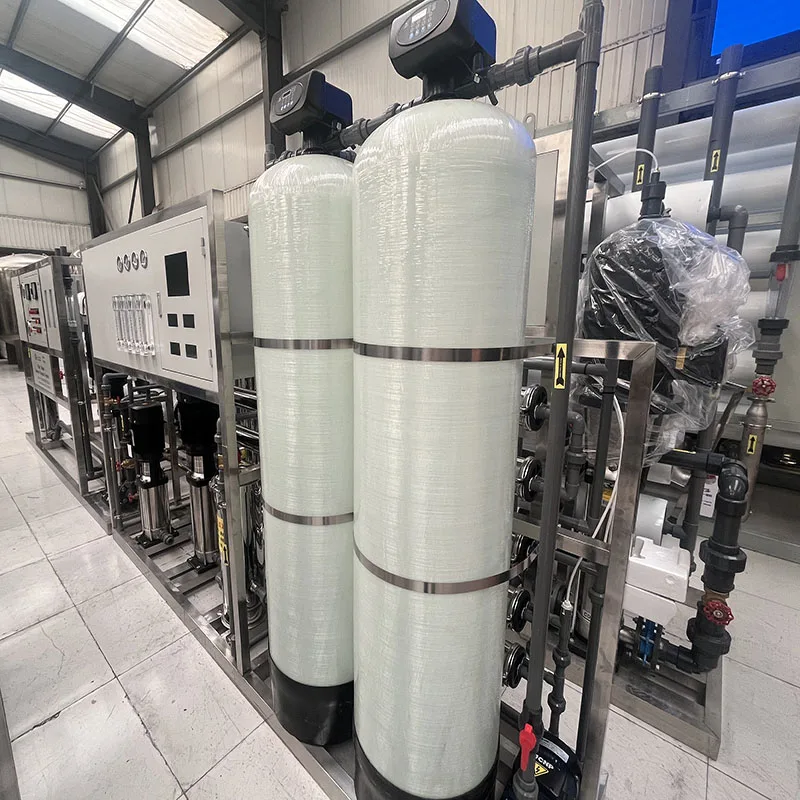

Full Automatic Complete PET Bottle Pure Mineral Water Filling Production Machine Line Equipment

Item

Function

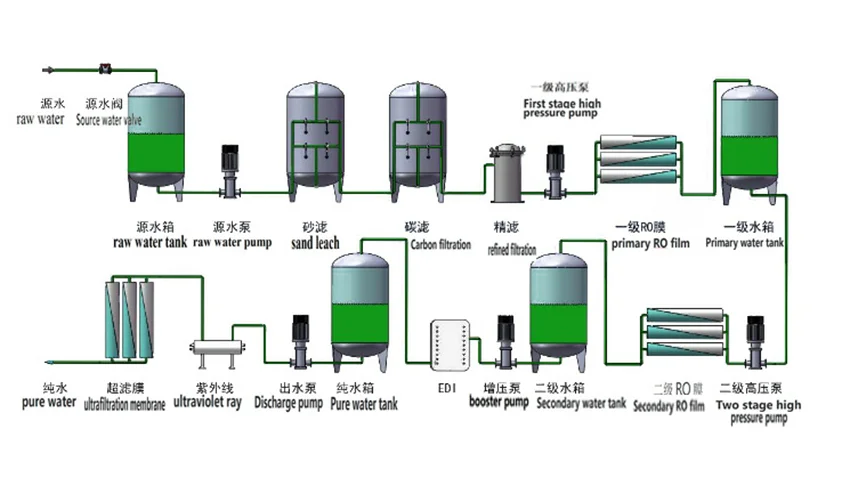

Flow Chart

raw water→ raw water pump→quartz sand filter→activated carbon filter→water softener(optional) →security filter →one stage high
pressure pump→one stage RO system →UV light/ozone generator →water supply point

Raw water tank

Store water, buffering pressure, overcome instability of supplying water by pipe, ensure to supply water stably and continuously
for whole system. Customer provides for themselves, because big size will result in expensive freight.

Raw water pump

provide the pressure to quartz sand filter/active carbon filter

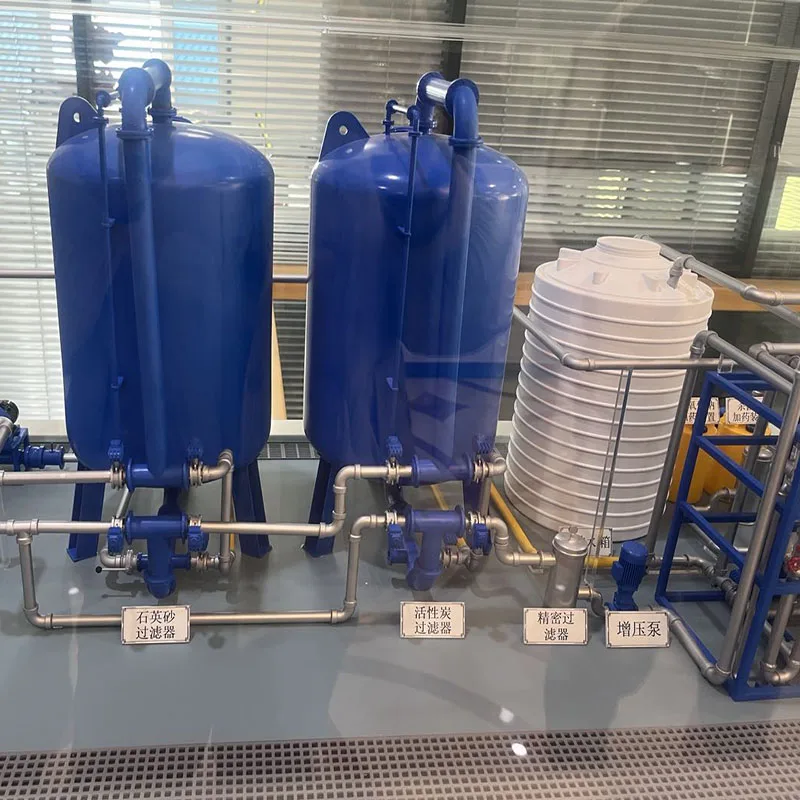

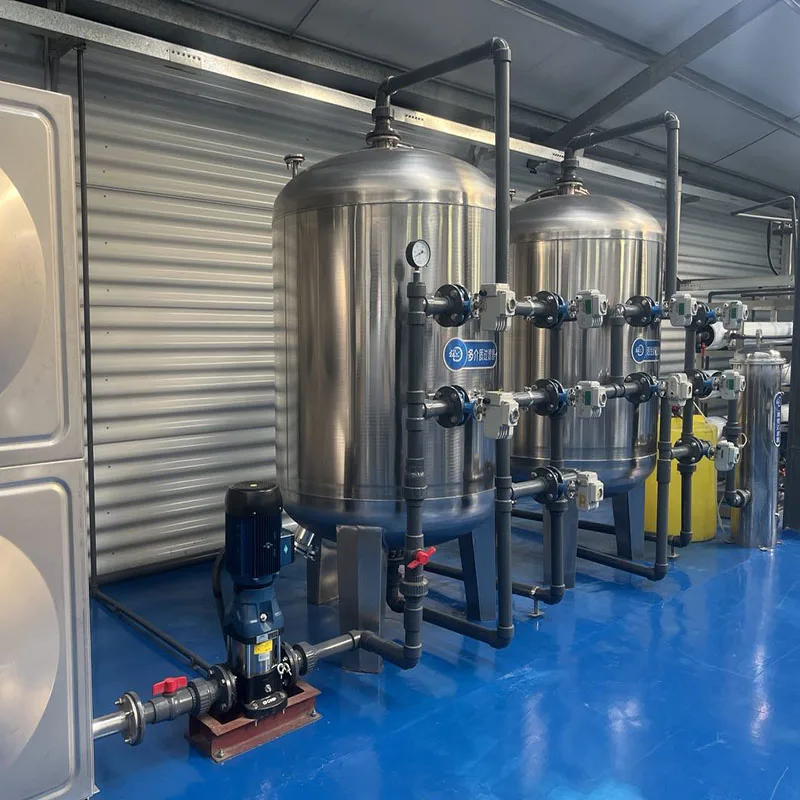

Automatic sand filter

Get rid of turbidity, suspended matter, organic matter, colloid, ect

Activate carbon filter

Remove the color, free chloride, organic matter, harmful matter, ect.

Water softener, demineralizer, or called Na+ exchanger

Adopt cation resin to soften water, cation resin will absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw
water, System can make resin intelligently regenerate, recycling

Security filter or pp filter, or called PP sediment filter

Prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um

High pressure pump

Provide the high pressure to RO membrane

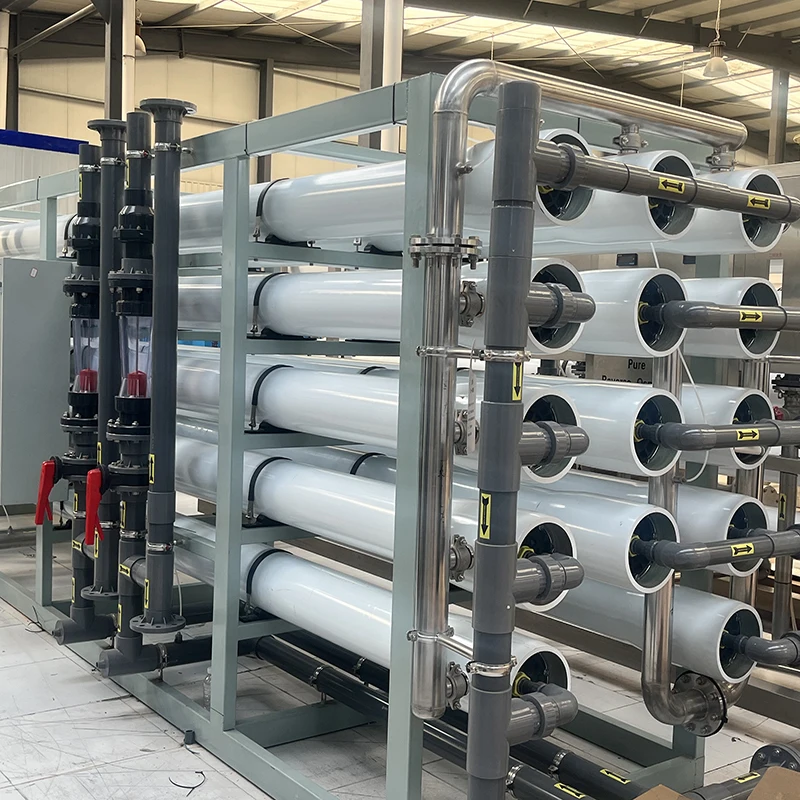

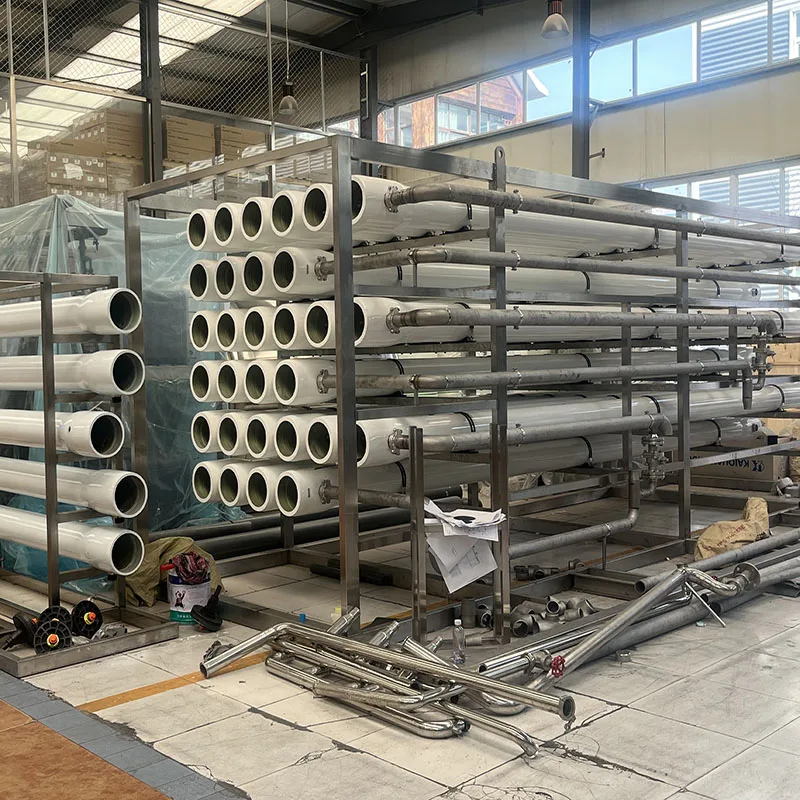

RO system

main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions

60 Liter Salt Water Tank

It can achieve continuous deionization and continuous regeneration of ion exchange resins.

UV sterilizer

kill bacteria

Voltage

220V/50Hz,220V/60Hz,380V110V Single phase or three phase, 440V 60hz 3phase or customization

Desalination

96%-99%

Application raw water

Tap water, city water, ground water,well water, borehole water

Raw water TDS

0-1000ppm

Material

Stainless Steel 304 or FRP Fiberglass

RO Membrane

Aromatic polyamide; The pore diameter of RO reverse osmosis membrane is as small as nanometer. Under the pressure, water molecules
can pass through RO membrane, while inorganic salts, heavy metal ions, organics, colloids, bacteria, viruses and other impurities
cannot pass through RO membrane.
