MG 2930 Light weight Gantry CNC Plasma cutting machine long life flame and plasma dual use sheet plate cut LGK 120A 80A
- Category: >>>
- Supplier: Changzhou Heavth Science & Technology Co. Ltd.
Share on (1600909874294):
Product Overview
Description
Product Description

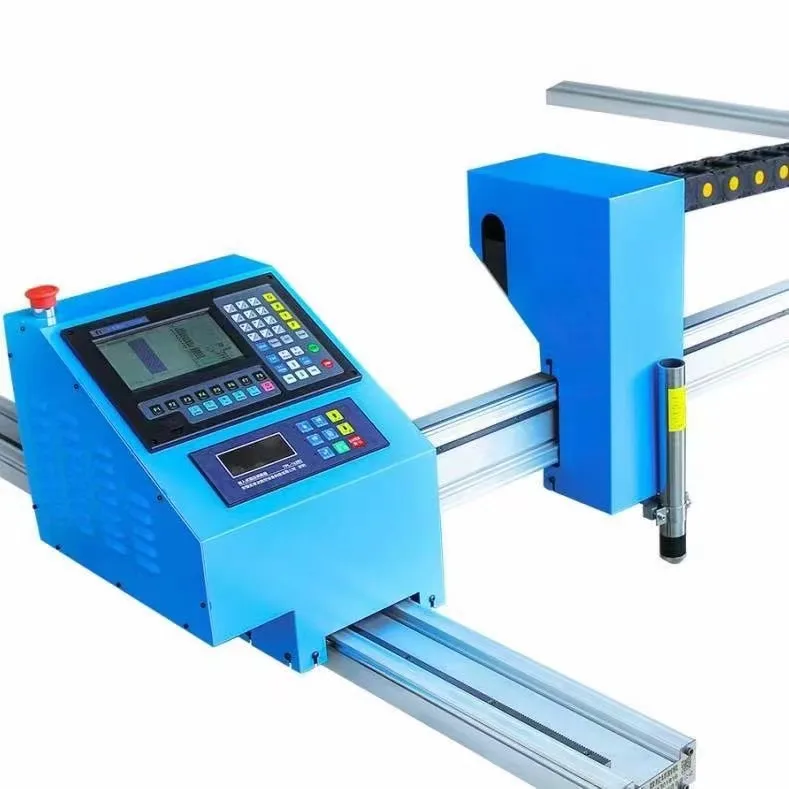

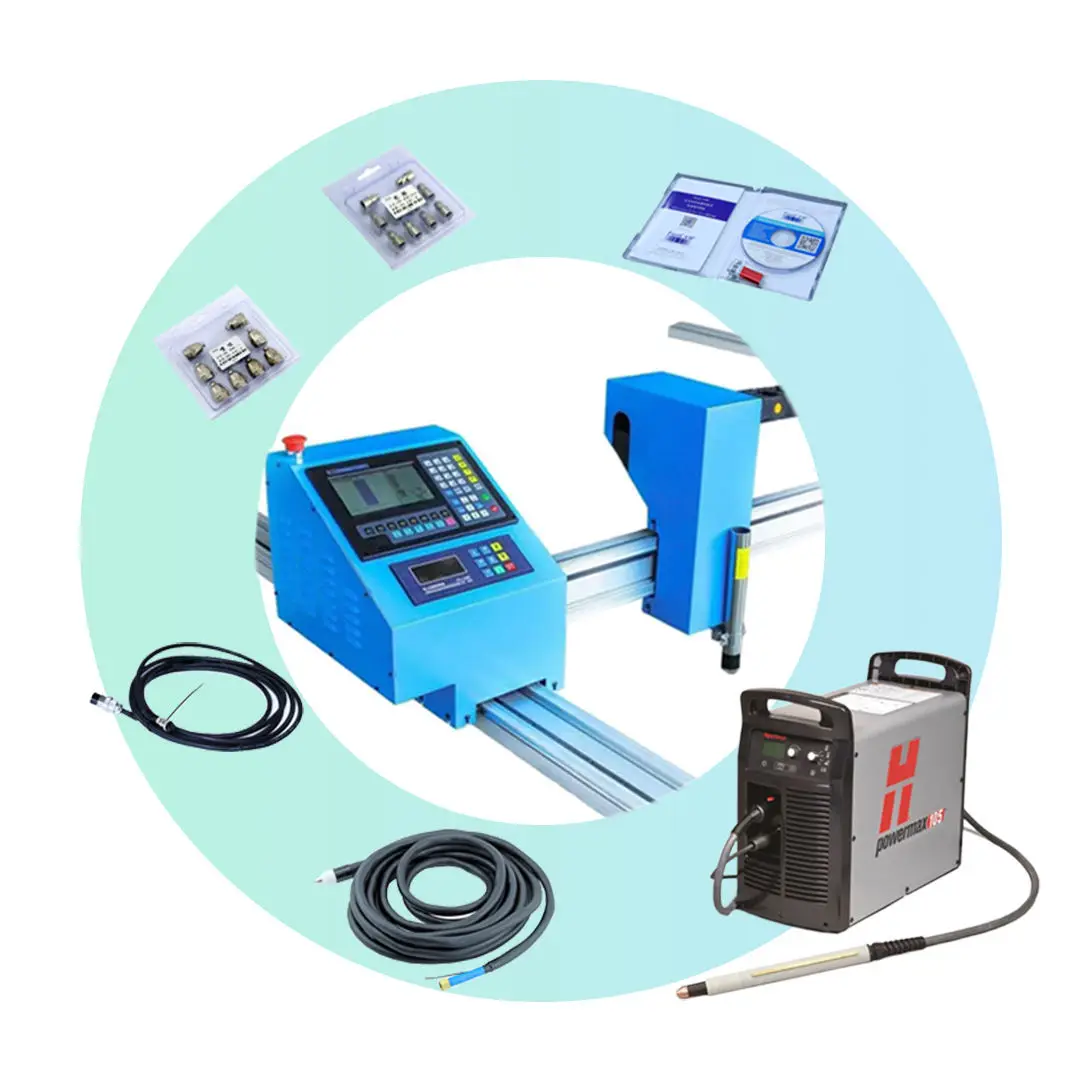

Light-duty Gantry CNC Plasma and Flame Cutting Machine
Light-duty gantry cutting machine 2.4*3m can choose flame and plasma model, iy has dual-track drive, strong power, stable walking, good configuration, high work efficiency and can be used for large, medium and small steel plates such as carbon steel, manganese steel, stainless steel and other metal materials The cutting. It’s easy to move, it is an economical gantry cutting machine.
Our products have obtained 3C certification, international EU certification, etc.
Our products have obtained 3C certification, international EU certification, etc.
Advantages
1.Automatic cutting: delay, preheating, perforation, radius compensation, breakpoint recovery, continuous retreat
2.Efficient cutting: the output is 6-8 times higher than manual cutting, and 4-6 times higher than semi-automatic trolley cutting
3.High-quality cutting:The positioning accuracy and repeatability of the whole machine reach the JB/T5102-1999 standard,
The cutting quality reaches the standards of JB/T10045.3-1999 and JB/T10045.4-1999
The cutting quality reaches the standards of JB/T10045.3-1999 and JB/T10045.4-1999
Specification
Model | MG-2930 |
Power supply | 220V±10%, 50Hz±10Hz |
Power | 0.5KW |
Oxygen purity | 99.50% |
Preheating oxygen pressure | 0.7~0.8Mpa |
Cutting oxygen pressure | 1 Mpa |
Acetylene or gas pressure | 0.04~0.06 Mpa |
Ambient temperature | -20℃~45℃ |
Relative humidity | 90% non-condensing |
Environment | No major shock and vibration within 5 meters of the surrounding environment |
Effective cutting width (mm) | Machine width - 2900mm |
Effective cutting length (mm) | Machine length - 3000mm |
Flame cutting thickness (mm) | Carbon steel: edge cutting 5-100; perforation cutting ≤100 |
Cutting torch lifting stroke (mm) | ≥100 |
Cutting speed (mm/min) | 0-4000 |
Setting speed error (%) | -5～+5 |
Automatically adjust high precision (mm) | ≤0.5 |
Linear accuracy (mm) | ≤0.5/2.5 |
Machine marking accuracy | ≤0.5mm |
Steady cut
Double-ply
enlarged chassis
V39 bearing
more stable operation
Stable operation
Brand
switching power supply
Nylon drag chain
Adopt reinforced nylon material,high temperature resistance,low temperature resistance,stable performance and long service life

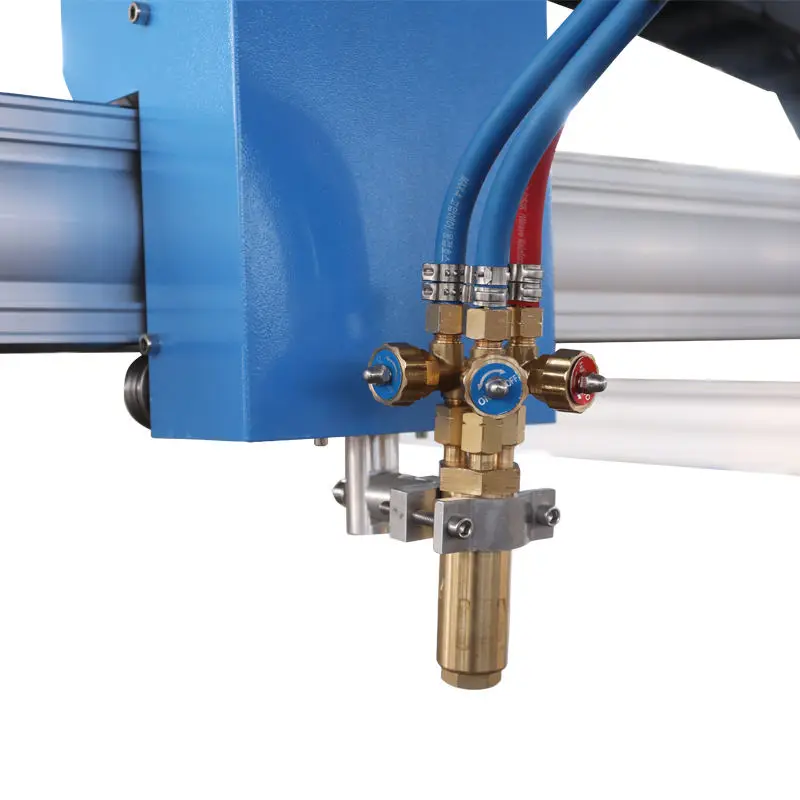

Cutting mode
Flame and plasma cutting.reduce secondary processing and improve production effciency

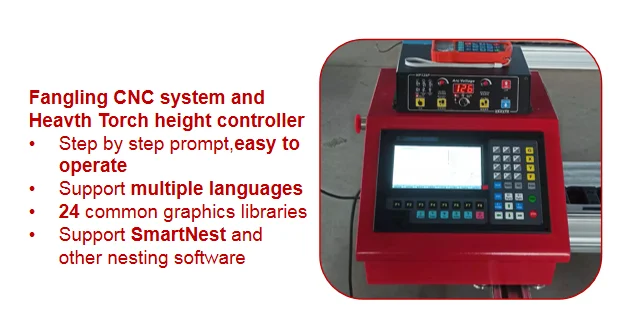

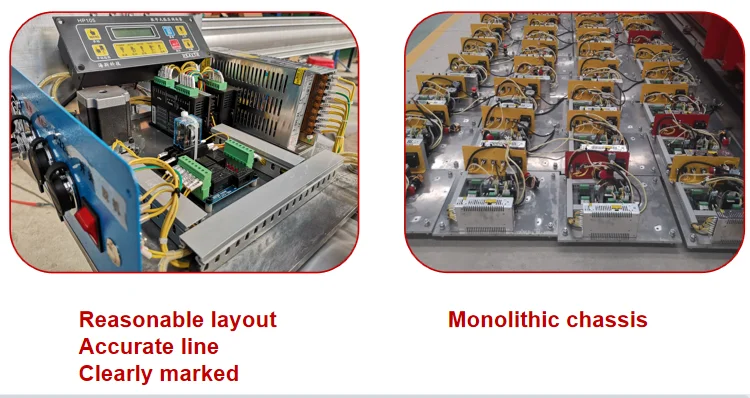

Hardware configuration
1.Display: 7-inch 800 * 480 high-resolution 16 million color high-brightness LCD screen
2. Memory: 64M SDRAM
3. User program space: 256M
4. main frequency: 400MHZ system main frequency
5. USB: USB1.1 interface front
6 keyboard: PCB film keyboard can effectively dustproof and oil-proof
7 chassis: all-steel structure completely shielded, really can do anti-electromagnetic radiation, anti-interference, anti-static
2. Memory: 64M SDRAM
3. User program space: 256M
4. main frequency: 400MHZ system main frequency
5. USB: USB1.1 interface front
6 keyboard: PCB film keyboard can effectively dustproof and oil-proof
7 chassis: all-steel structure completely shielded, really can do anti-electromagnetic radiation, anti-interference, anti-static
Software features
1. Simple and convenient to operate easy to learn, can be multi-language switch
2. 46 kinds of common graphics library (including grid graphics), you can choose to set the piece size and hole size.
3. Support G code and FastCAM, FreeNest, SmartNest, IBE and other types of nesting software. Support G-code with suffix TXT,CNC,NC,MPG,B3 etc.
4. Graphics scale, rotation, mirror image Graphics can be arranged in matrix, interactive arrangement, stacked arrangement
5. System upgrade using USB flash drive upgrade method, convenient, simple and practical, provide free lifetime upgrade service
6. All functions and processes of the whole system can be upgraded online, eliminating after-sales worries
7. Single or all import and export processing files
8. Support oxy-fuel, plasma, powder spraying and demonstration of 4 modes
9. Oxy-fuel auto-tuning, two-level preheating, three-level perforation
10 plasma arc pressure feedback, positioning feedback, turn the corner automatically off the arc pressure up
11. Plasma arc pressure control support speed and distance two off arc pressure adjustment mode, making the machine more balanced and safe
12. Support edge cutting, for thicker steel plate can reduce the preheating time
13. According to the thickness of the steel plate, the speed can be automatically limited at the corner to effectively prevent over-burning
14.Manual selection of starting line or selection of perforation point
15. Dynamic/static processing graphics display, graphics zoom in/out, dynamic tracking of cutting points in the zoomed-in state
16. DSP high-speed, high-precision interpolation control, high-speed operation, smooth operation, low noise
17. Arbitrary setting of the starting speed, lifting speed time
18. With power failure, breakpoint protection memory function
19. "Offset cutting" function can avoid the waste of sheet caused by the wrong calculation of the nesting material
2. 46 kinds of common graphics library (including grid graphics), you can choose to set the piece size and hole size.
3. Support G code and FastCAM, FreeNest, SmartNest, IBE and other types of nesting software. Support G-code with suffix TXT,CNC,NC,MPG,B3 etc.
4. Graphics scale, rotation, mirror image Graphics can be arranged in matrix, interactive arrangement, stacked arrangement
5. System upgrade using USB flash drive upgrade method, convenient, simple and practical, provide free lifetime upgrade service
6. All functions and processes of the whole system can be upgraded online, eliminating after-sales worries
7. Single or all import and export processing files
8. Support oxy-fuel, plasma, powder spraying and demonstration of 4 modes
9. Oxy-fuel auto-tuning, two-level preheating, three-level perforation
10 plasma arc pressure feedback, positioning feedback, turn the corner automatically off the arc pressure up
11. Plasma arc pressure control support speed and distance two off arc pressure adjustment mode, making the machine more balanced and safe
12. Support edge cutting, for thicker steel plate can reduce the preheating time
13. According to the thickness of the steel plate, the speed can be automatically limited at the corner to effectively prevent over-burning
14.Manual selection of starting line or selection of perforation point
15. Dynamic/static processing graphics display, graphics zoom in/out, dynamic tracking of cutting points in the zoomed-in state
16. DSP high-speed, high-precision interpolation control, high-speed operation, smooth operation, low noise
17. Arbitrary setting of the starting speed, lifting speed time
18. With power failure, breakpoint protection memory function
19. "Offset cutting" function can avoid the waste of sheet caused by the wrong calculation of the nesting material
After-sales service
1.We guarantee to provide a 1-year warranty for the goods, the warranty time is calculated from the acceptance signature. During the warranty period, we will strictly comply with the relevant laws and regulations of the People's Republic of China to provide "three packages" and other after-sales services for the goods. Within the warranty period, we are responsible for any deficiencies or failures due to defects in design, workmanship or materials, and we will only charge the cost of materials and exempt the maintenance fee for any damage not caused by product quality or damage caused by user misuse.
2.In the warranty period by our equipment failure, we will have within 24 hours by phone microsoft response.
3.We have a wealth of experience in technical personnel, the quality of the product problems can be quickly and efficiently solve the problem.

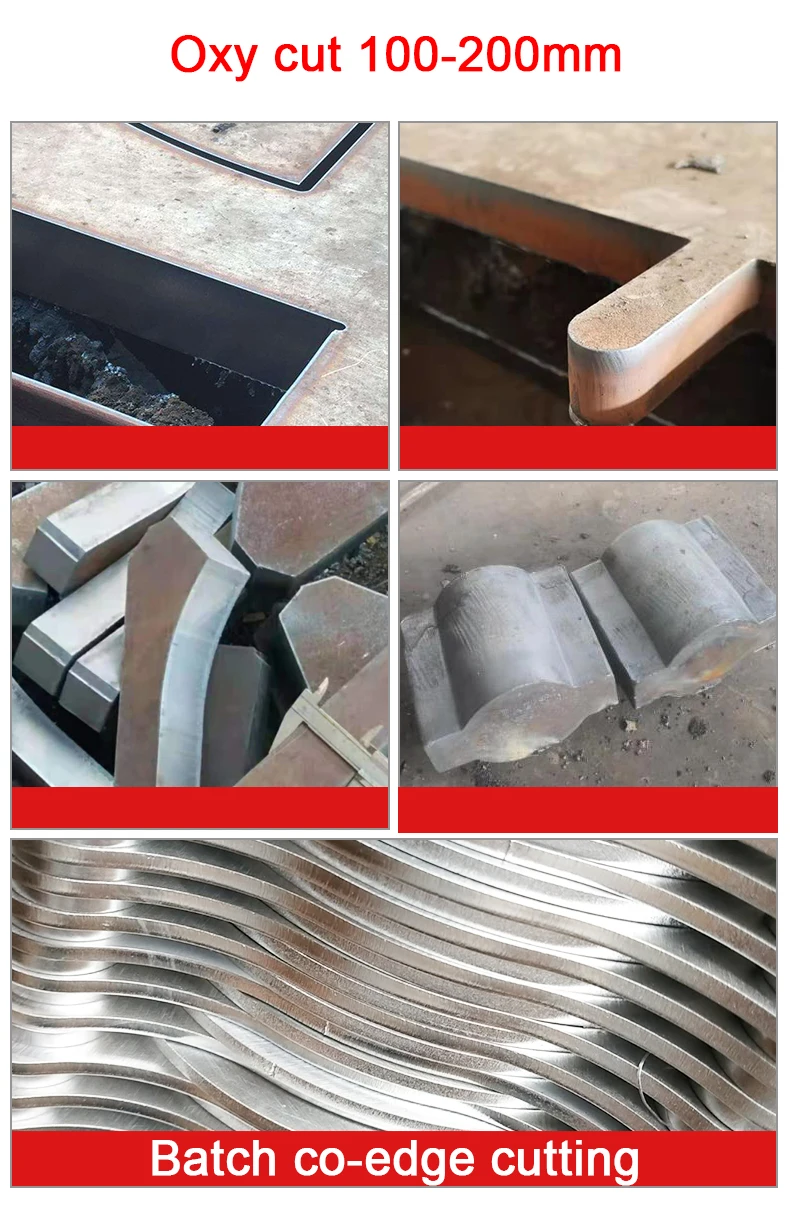

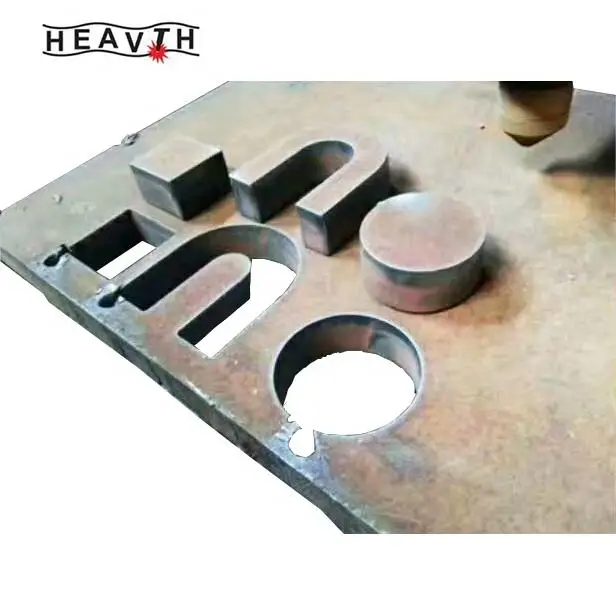

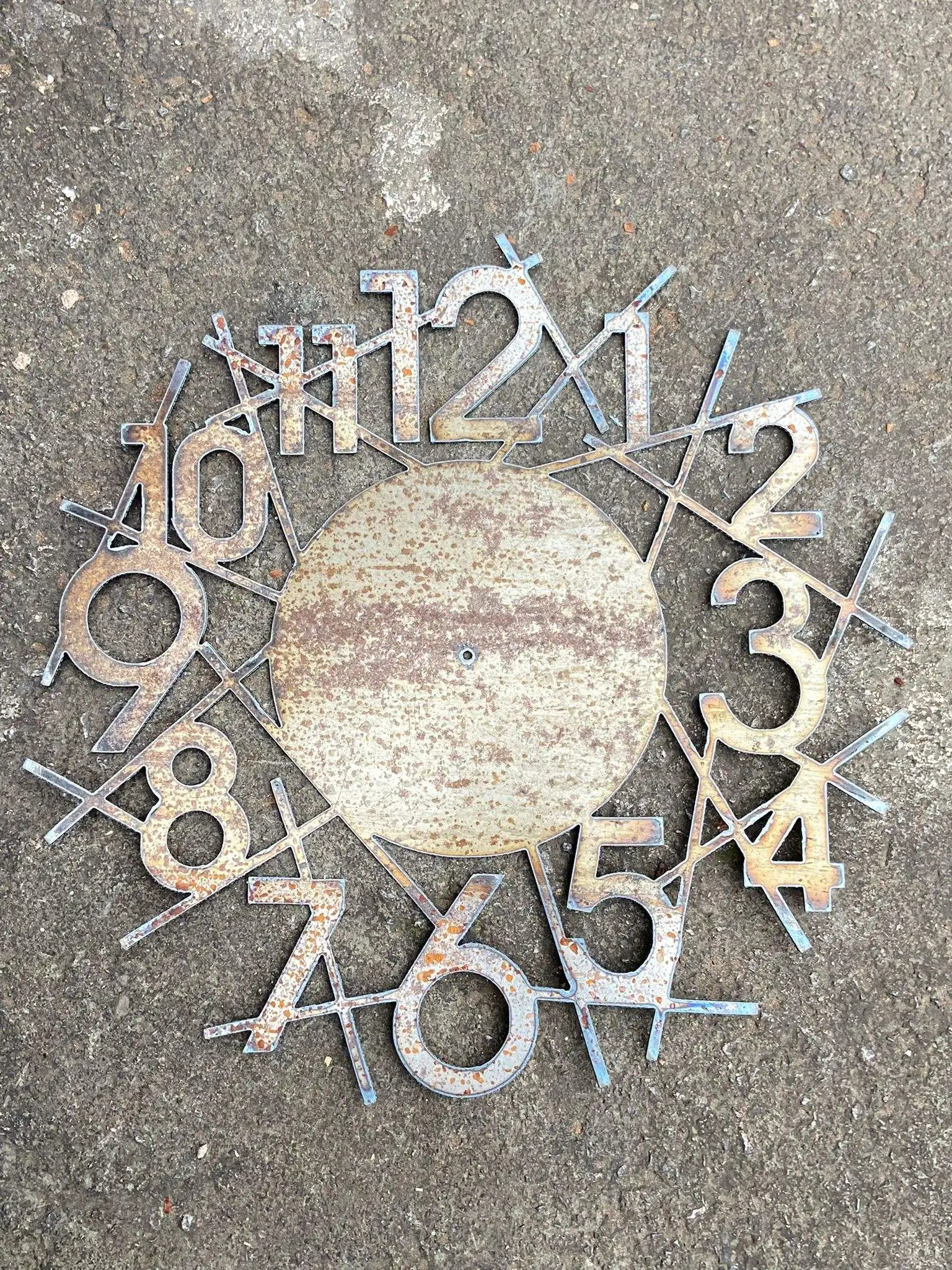

Cutting finished products show

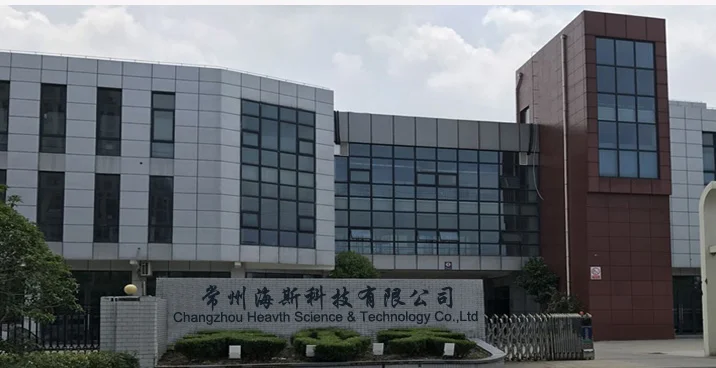

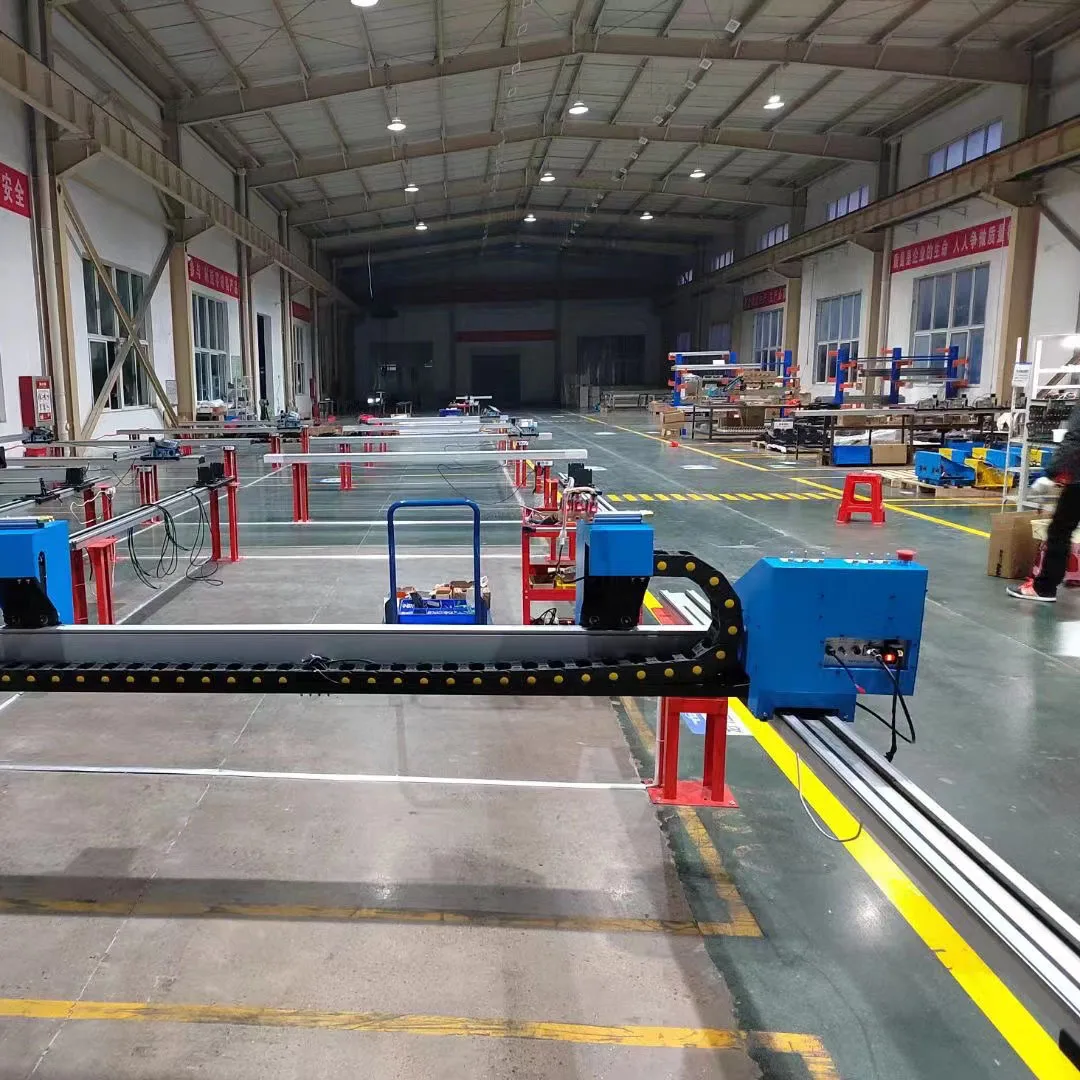

Company Profile
Changzhou Heavth Science& Technogy CO.,LTD. was established in 2006.
We have many years of practical experience in motion control, software and hardware development, industrial automation, etc., .
Development and design of various types of CNC cutting machine and related accessories are widely used in the large number of industrial circle. Available to the user the best price, the most suitable CNC cutting machine. From the customer interests, according to the actual needs of customers, to provide the most economical and most effective CNC cutting solution.
Company research, production, operating as one, strong technical force, advanced production equipment, detection means complete, excellent product quality. Products covering the United States, Japan, Europe, South Korea, etc.
We have many years of practical experience in motion control, software and hardware development, industrial automation, etc., .
Development and design of various types of CNC cutting machine and related accessories are widely used in the large number of industrial circle. Available to the user the best price, the most suitable CNC cutting machine. From the customer interests, according to the actual needs of customers, to provide the most economical and most effective CNC cutting solution.
Company research, production, operating as one, strong technical force, advanced production equipment, detection means complete, excellent product quality. Products covering the United States, Japan, Europe, South Korea, etc.
Certifications

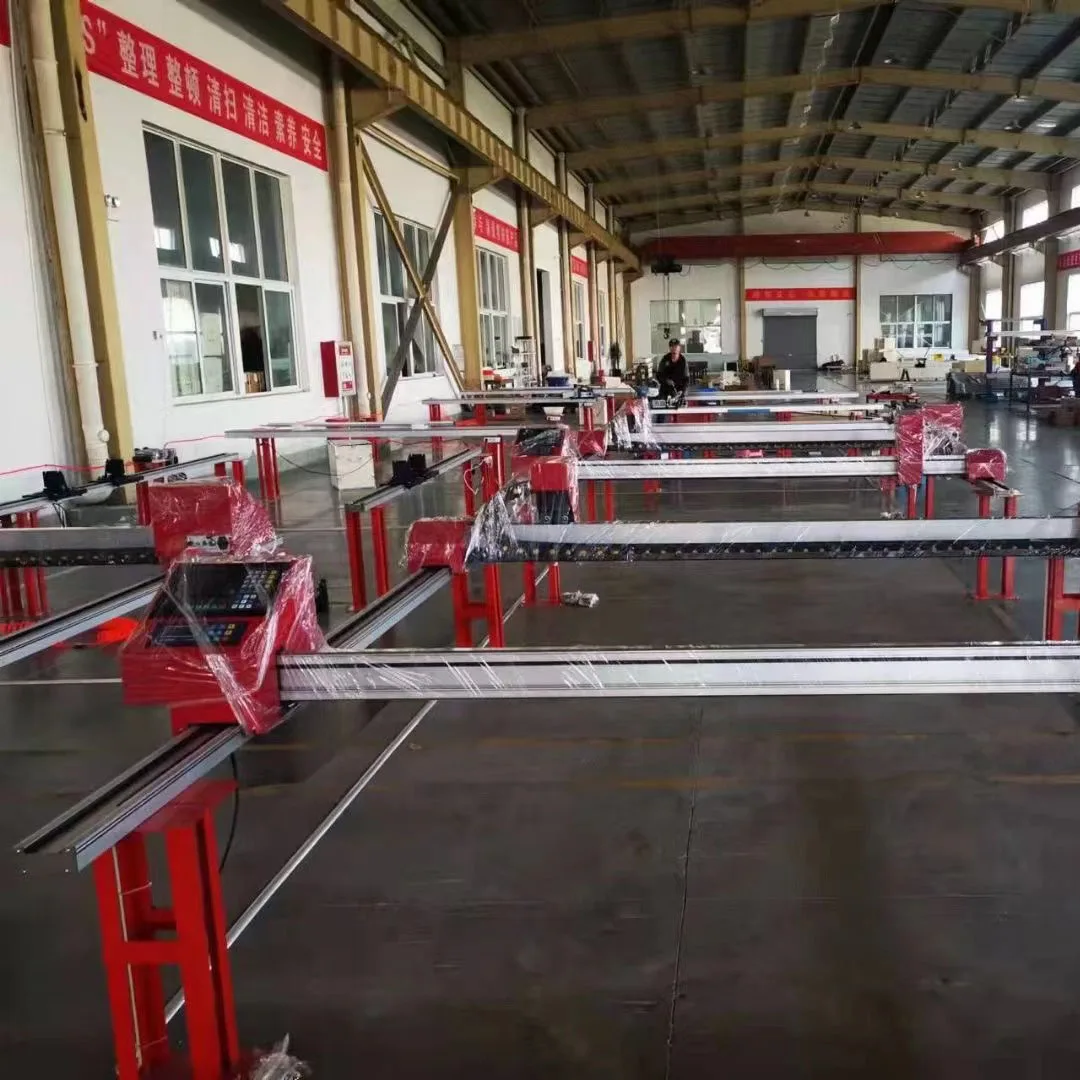

Product packaging
