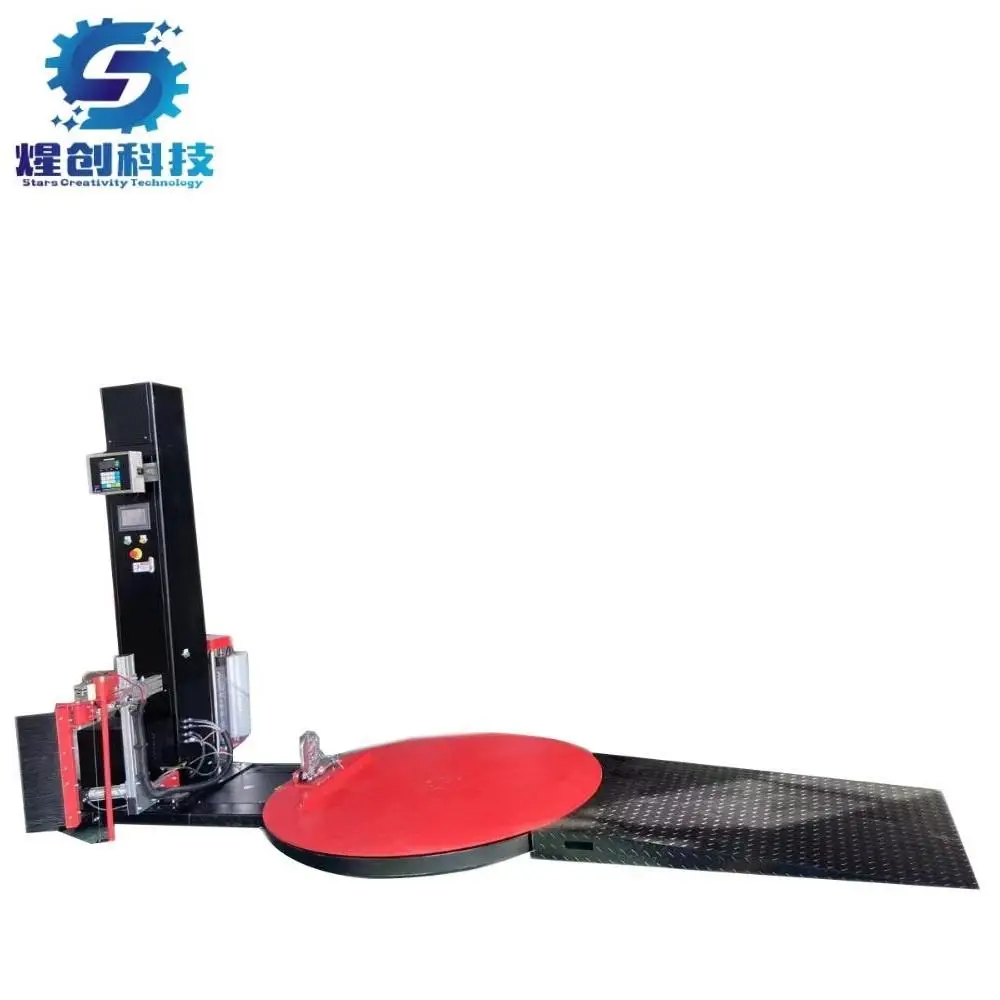

Automatic Pallet Stretch Wrapper Automatic Pallet Plastic Film Stretch Wrapper Mach Wrapper Film Shrink Wrap Pallet Wrapping Mac
- Category: >>>
- Supplier: Qingdao Stars Creativity Technology Co. Ltd.
Share on (1600909875200):
Product Overview
Description
Product Paramenters
Model | XC-1650FZ | ||||||
Voltage | AC110-240V 1Phase 50/60Hz(or 220-415V 3Phase) | ||||||
Approved CE | Yes | ||||||

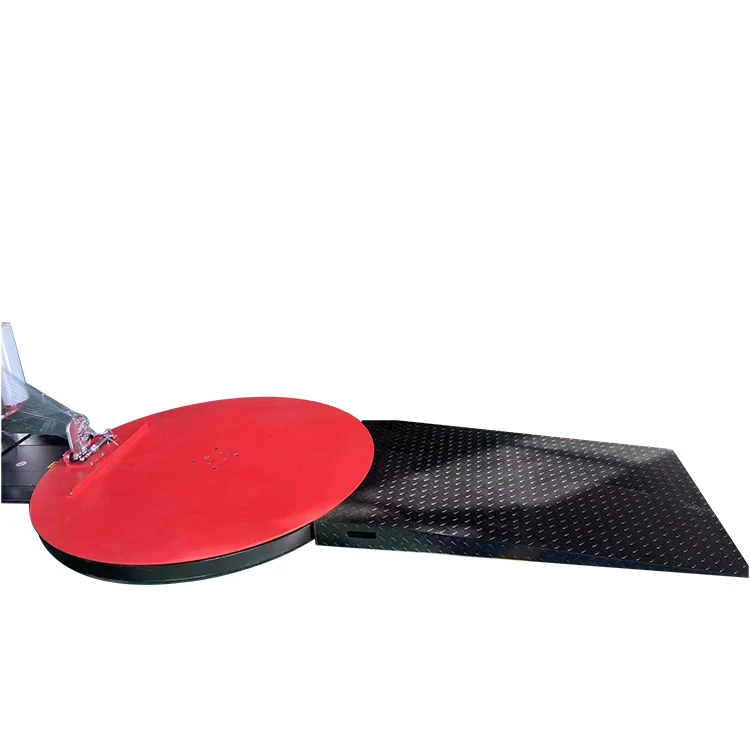

Turntable diameter | 1650mm | ||||||
Turntable height | 85mm | ||||||
Max wrapping height/standard machine | 2000mm(others customized) | ||||||
Max pallet size | L1220*W1220mm | ||||||
Turntable rated load | 2000kg | ||||||
Film carriage | Pre-stretch system | ||||||
Automatic detect goods height | Yes,by Photoelectricity sensor | ||||||
Control system | PLC | ||||||
Control panel | HMI/touch screen | ||||||
Machine size | L2450*W1650*H2450mm | ||||||
Machine weight | 700kg | ||||||
PE stretch film specification | width 500mm;inner diameter 76mm; thickness 20-30mic | ||||||

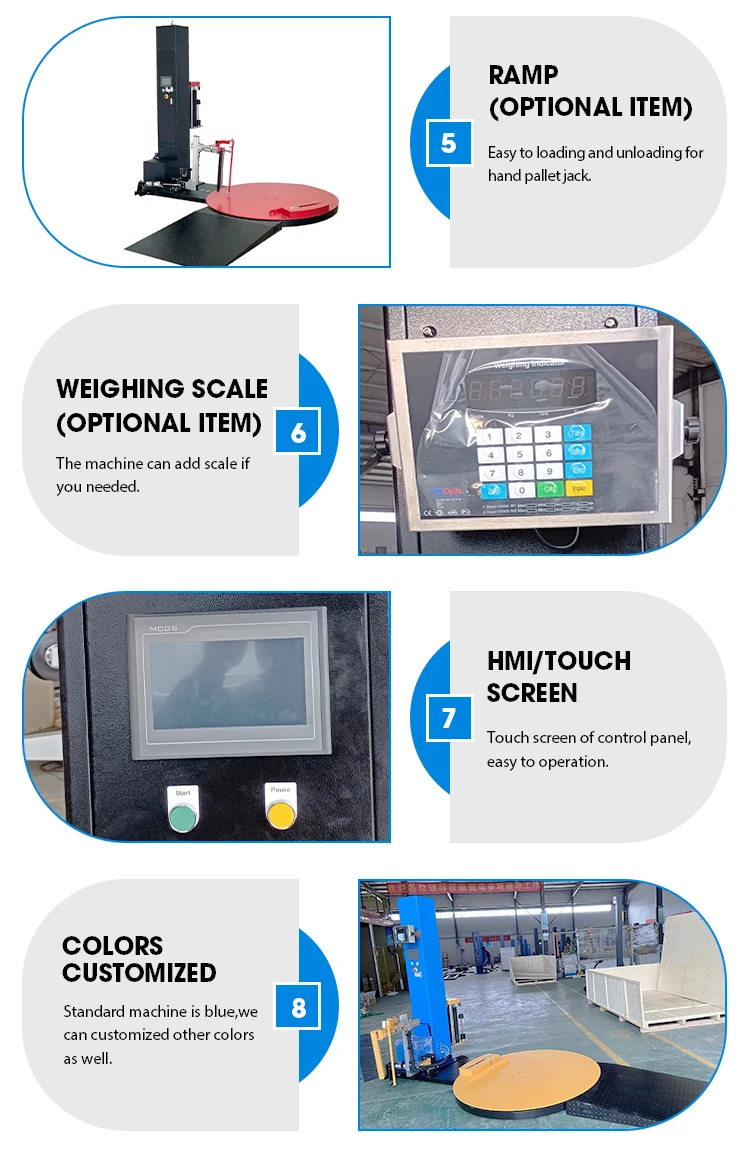

Optional function | Scale,top pressure platen and ramp | ||||||
Products Display

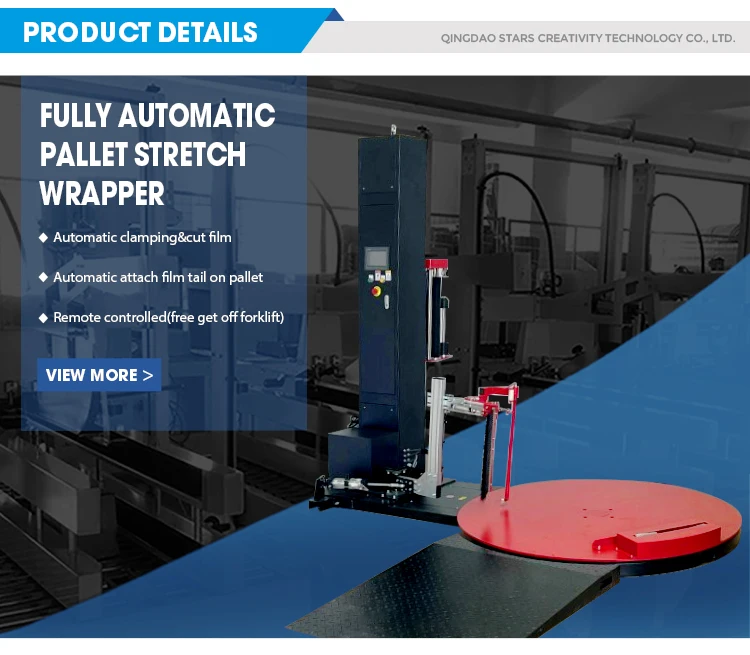

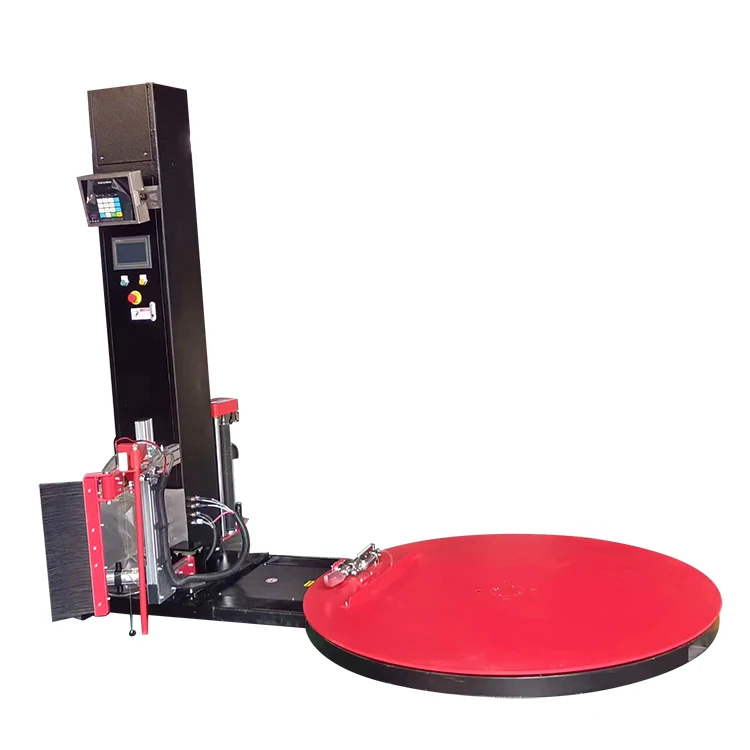

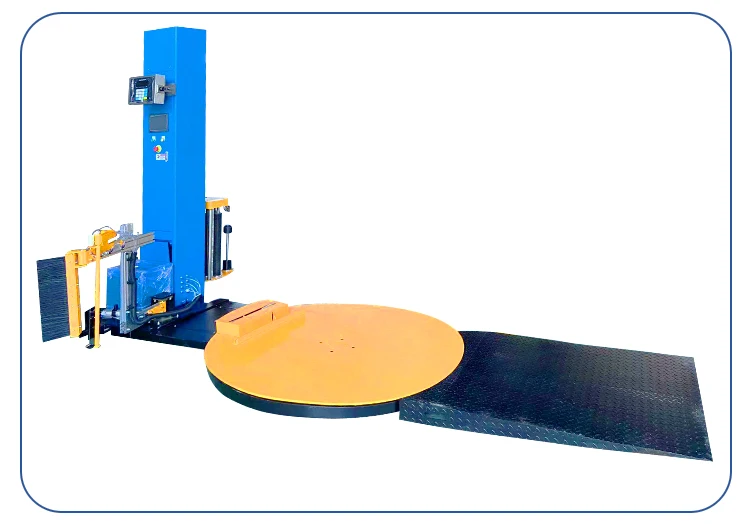

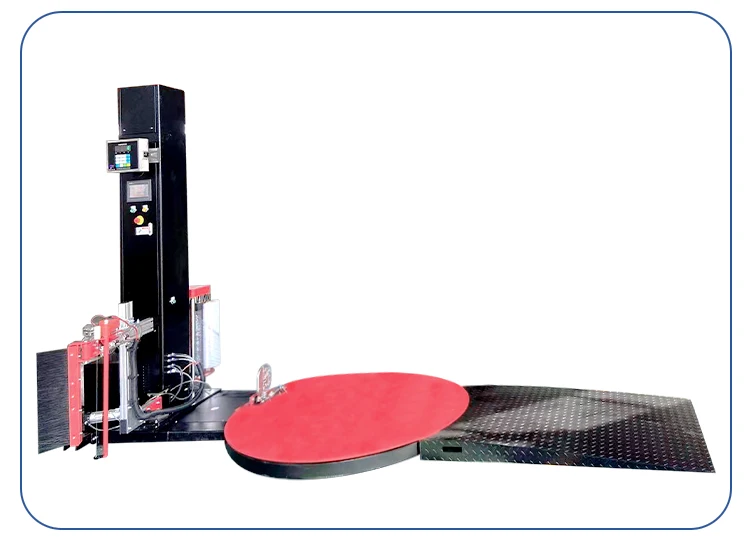

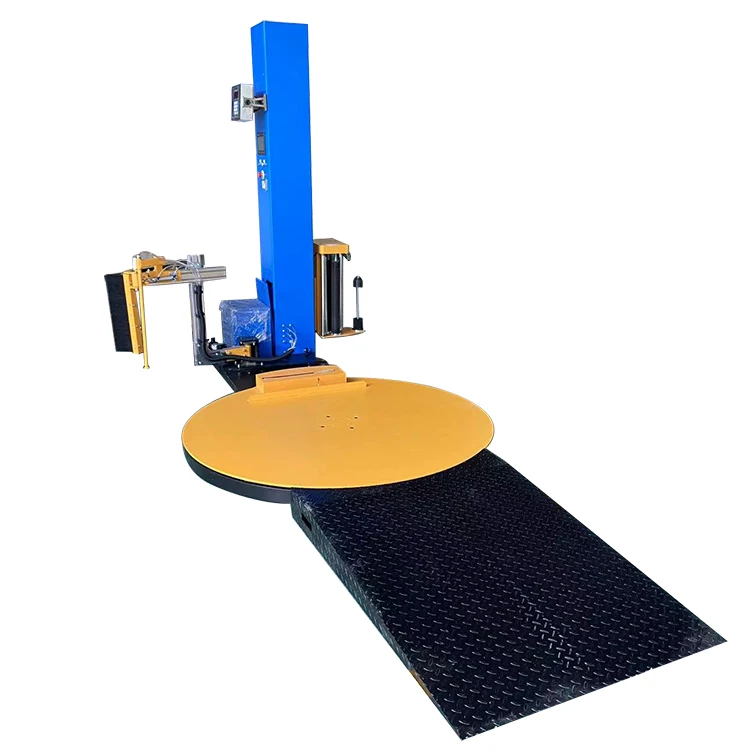

Fully Automatic Pallet Stretch Wrapping Machine
Hold:The automatic pallet wrapping machine must hold the leading edge (tail) of stretch film to allow the start of the stretch
wrapping cycle without the need of an operator to attach the stretch film to the load.
Apply:The resulting trailing edge of the stretch film (the tail) hanging from the pallet must be automatically applied to the
load. Positive film tail treatment ensures that the sagging tail does not hang up or unravel during transit or at the customer’s
location.
the Non-Conveyorized Fully Automatic Pallet Wrapping Machine allows operators to simply place the pallet on the pallet wrapping machine and pull the cord to initiate the automatic pallet wrapping cycle.the next new pallet won't need to put film on automatic clamping device,it will automatic clamping film after automatic cut off at last pallet wrapped and keeping automatic hold status in future.it just need to be start the
machine on green button or control by remote controller. Operators do NOT need to get off the forklift to stretch wrap the pallet.
machine on green button or control by remote controller. Operators do NOT need to get off the forklift to stretch wrap the pallet.

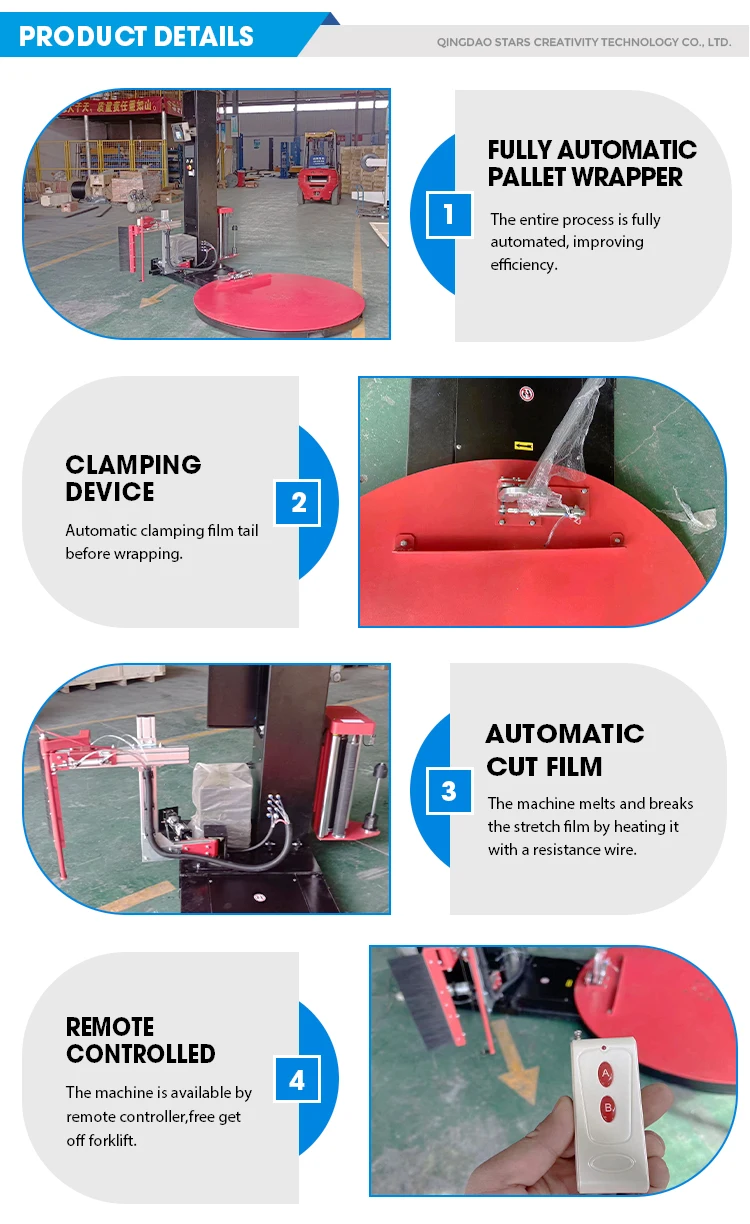

Hold:The automatic pallet wrapping machine must hold the leading edge (tail) of stretch film to allow the start of the stretch
wrapping cycle without the need of an operator to attach the stretch film to the load.
Wrap:The automatic pallet wrapping machine must wrap the product based on the pallet wrapping parameters that the operator has set on the stretch wrapper control panel.
Cut:Upon completion of the stretch wrapping cycle the stretch film must be cleanly cut from the pallet load and positively secured in
a clamp. This way, the leading edge of the stretch film is properly positioned to allow subsequent pallets to be stretch wrapped.
a clamp. This way, the leading edge of the stretch film is properly positioned to allow subsequent pallets to be stretch wrapped.
Apply:The resulting trailing edge of the stretch film (the tail) hanging from the pallet must be automatically applied to the
load. Positive film tail treatment ensures that the sagging tail does not hang up or unravel during transit or at the customer’s
location.
Product Details
Related Products
Packing&Delivery
Q1:how about the MOQ if we place an order?
A1:MOQ 1set.
Q2:custom made service is available?
A2:Yes,we can custom made all machines if standard one does not meet your requirements.
Q3:how many days of the lead time for standard machine?
A3:20-25workdays since received the payment.
Q4:how long time of your warranty period?
A4:12months since received the machine.
Q5:how to fix the problems if equipments got fault in working?
A5:take a video to us first,we will check and let you know how to do.we will send new spare parts to you if needs.
Q6:if the machine approved CE certificated?
A6:Yes,our machine had approved CE certificate.
A1:MOQ 1set.
Q2:custom made service is available?
A2:Yes,we can custom made all machines if standard one does not meet your requirements.
Q3:how many days of the lead time for standard machine?
A3:20-25workdays since received the payment.
Q4:how long time of your warranty period?
A4:12months since received the machine.
Q5:how to fix the problems if equipments got fault in working?
A5:take a video to us first,we will check and let you know how to do.we will send new spare parts to you if needs.
Q6:if the machine approved CE certificated?
A6:Yes,our machine had approved CE certificate.
